Laguna Pro Shaper 7.5hp, 3PH, 220V

Sale price
$ 4,049.10
List price
$ 4,499

Have questions? Give us a call at 260-637-0054.

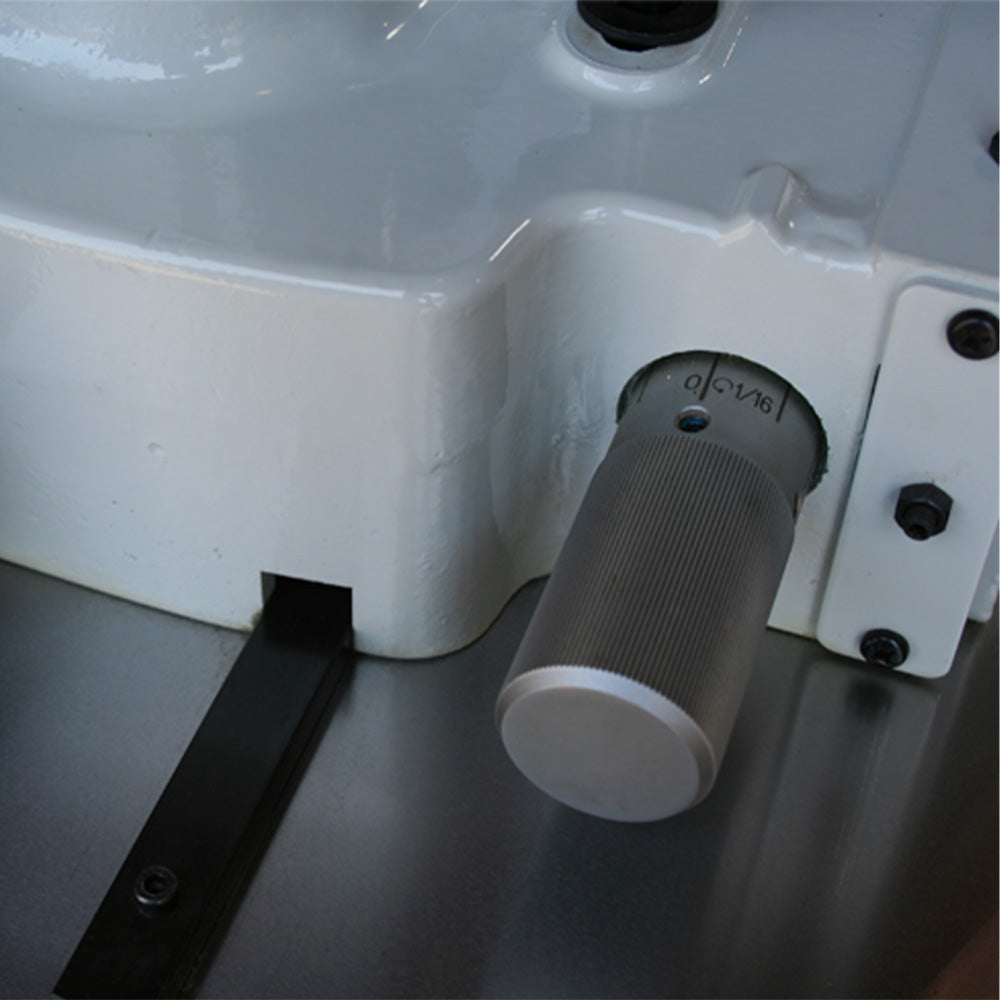

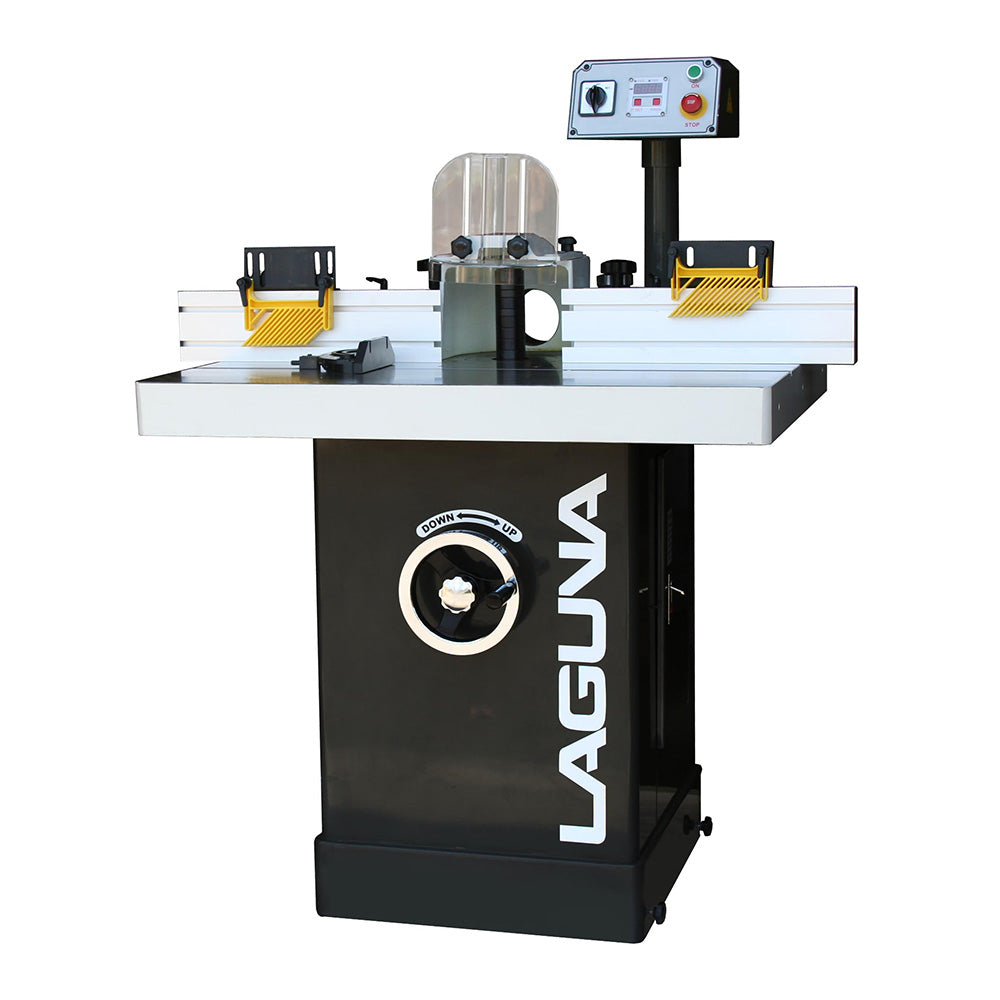

The Laguna Pro Shaper combines a precision shaper with features normally found only in much higher priced machines. For starters, the table measures an impressive 31" x 39" and is predrilled to accept most power feeders. The fence has a precision micro-adjustment that is aligned by a solid steel bar. Each full revolution of the turn handle gives an exact 1/16 adjustment to the fence.

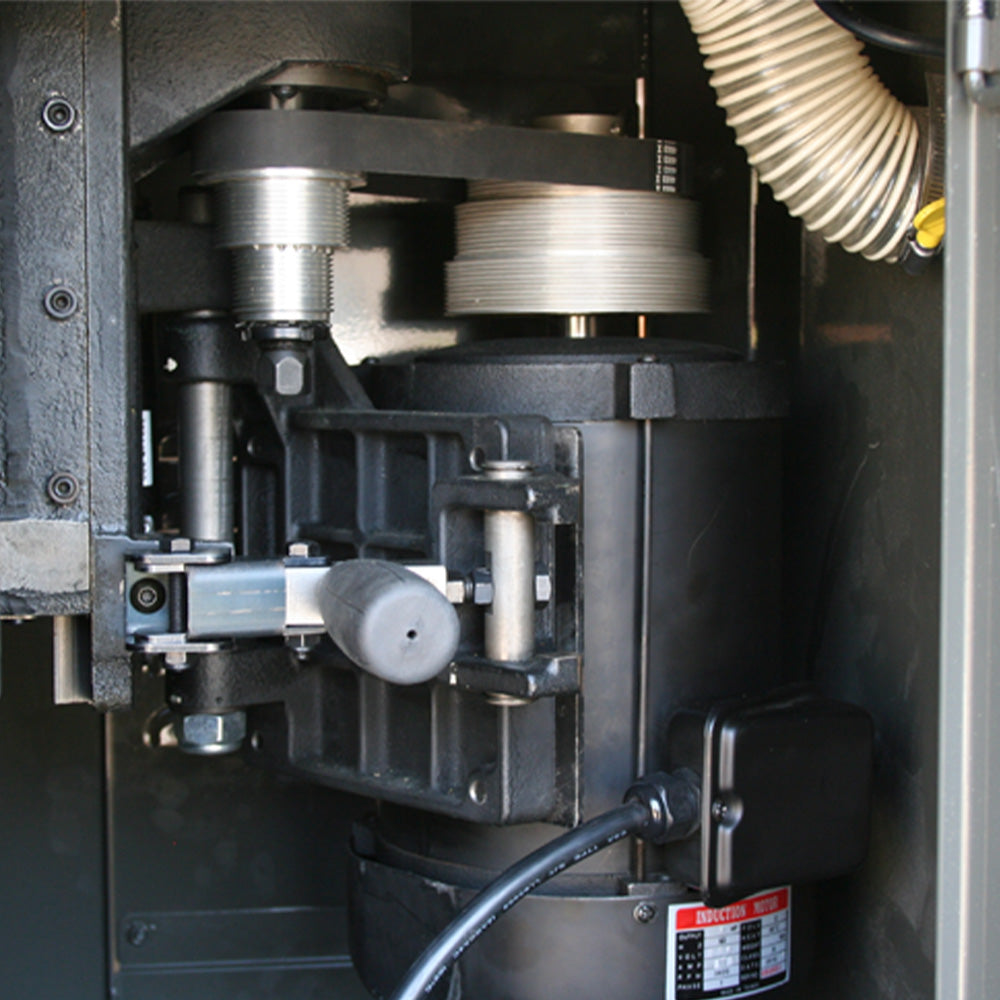

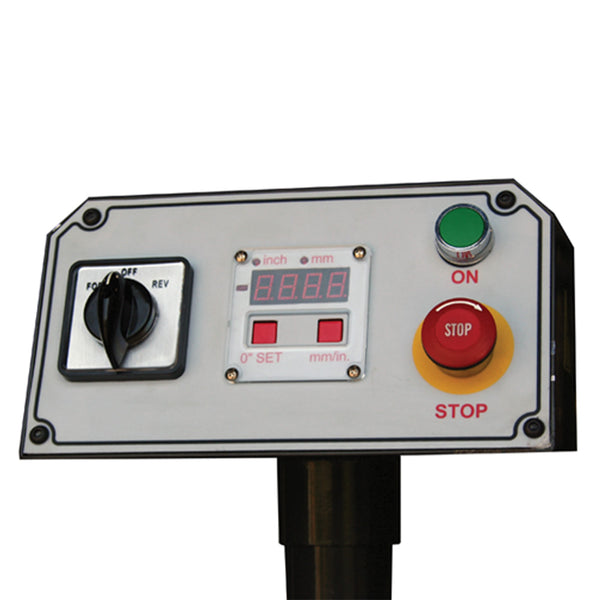

Inside you will find a heavy-duty 7.5 HP 220 volt three-phase motor. It offers 3 speeds with a unique quick change poly-groove belt system rather than the traditional V-belt. Digital readout is standard for the spindle height. The Pro Shaper is also equipped with a reversing switch and all controls are mounted with an easy access panel.

The fit and finish on this machine are top notch and even includes a wheel kit built right into the base.  The Laguna Pro Shaper is designed to give you years of trouble-free performance without breaking the bank.

Also available in 5hp & 1-phase.

Features
  • Heavy-duty precision fence
  • Rack and pinion macro adjustment
  • Quick-release belt change
  • 6 step spindle exchange
  • Dual dust ports
Specs

Motor: 7 1/2 HP 3 Phase 220/440V 60 HZ Prewired 220V 3 Phase
Table size: 39-5/16" x 31-7/16" x 3-1/2"
Spindle travel: 4"
Spindle Sizes: 3/4" and 1-1/4"
Capacity Under Nut: 6 (for 1-1/4" ) & 4 (for 3/4" )
Router Collets: 1/4" and 1/2"
Spindle speeds: 5,000 / 7,000 / 10,000 RPM
Table Opening Diameter: 7-5/16"
Digital Readout: Standard
Direction: Forward/Reversing Switch
Fence: Micro Adjustment
Weight (Net/Ship): 640/720 lbs.

Video

SKU: MSHAP5030-0130
