Laguna Industrial S|45T Shaper 5hp, 1PH, 220V

$ 10,499

Have questions? Give us a call at 260-637-0054.

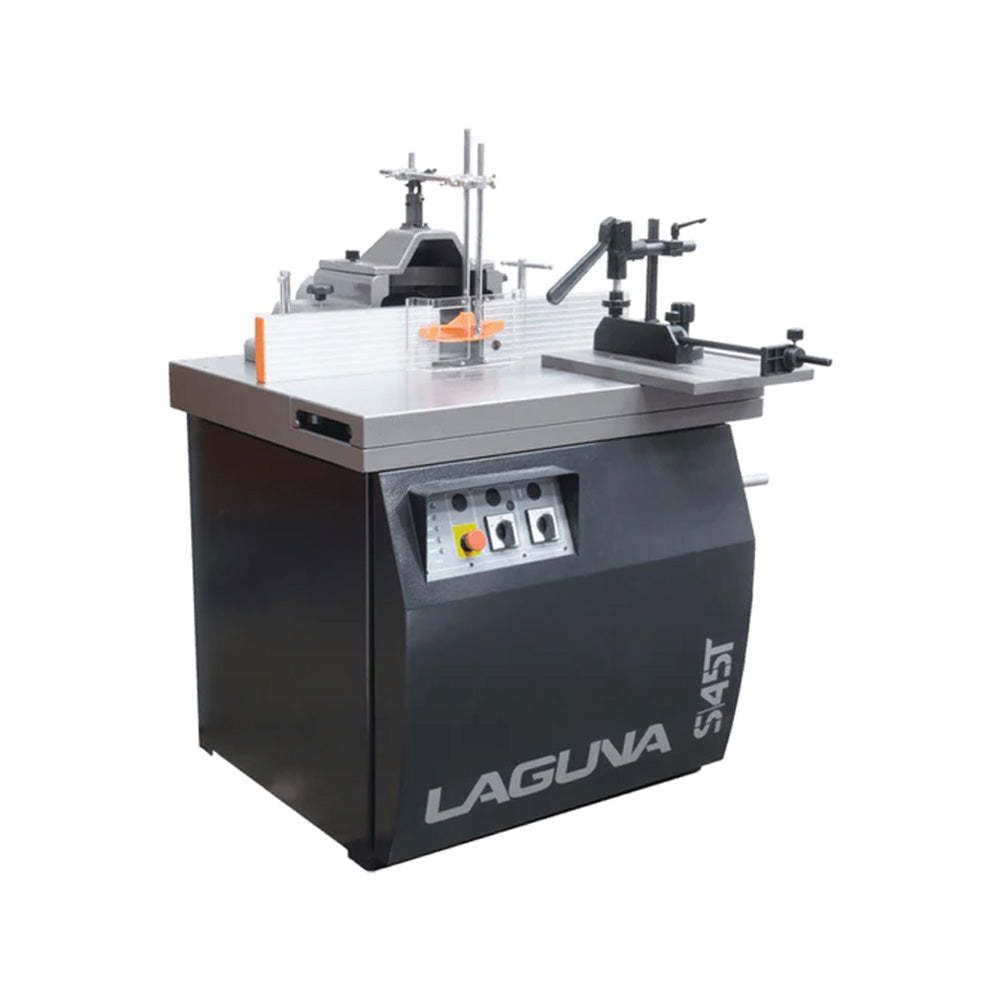

The Laguna S|45T Industrial Shaper was designed to be a heavy duty industrial workhorse for commercial applications. Weighing in at over 1000 lbs. it provides an exceptional value for any pro shop.

The combination of a dynamic electronically balanced spindle with robust solid castings makes the S45T run extremely smooth with absolute minimum vibration. The versatile 45° backward & 10° forward tilting spindle makes using a feeder much easier & keeps the cutting action close to the cast table rather than shaping from the top. Oversized cast table pre-drilled to accept most feeders & featuring sliding table with tenoning as standard. Complete with table & hold down clamp.

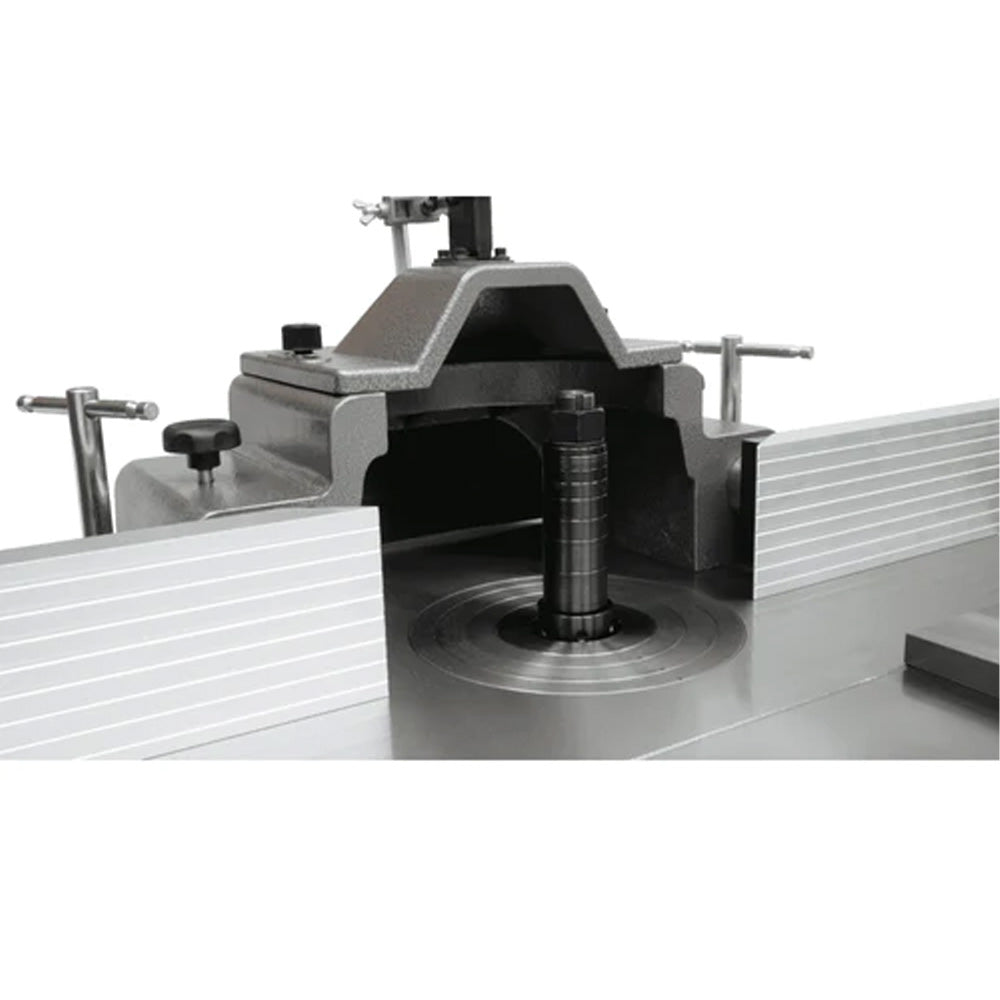

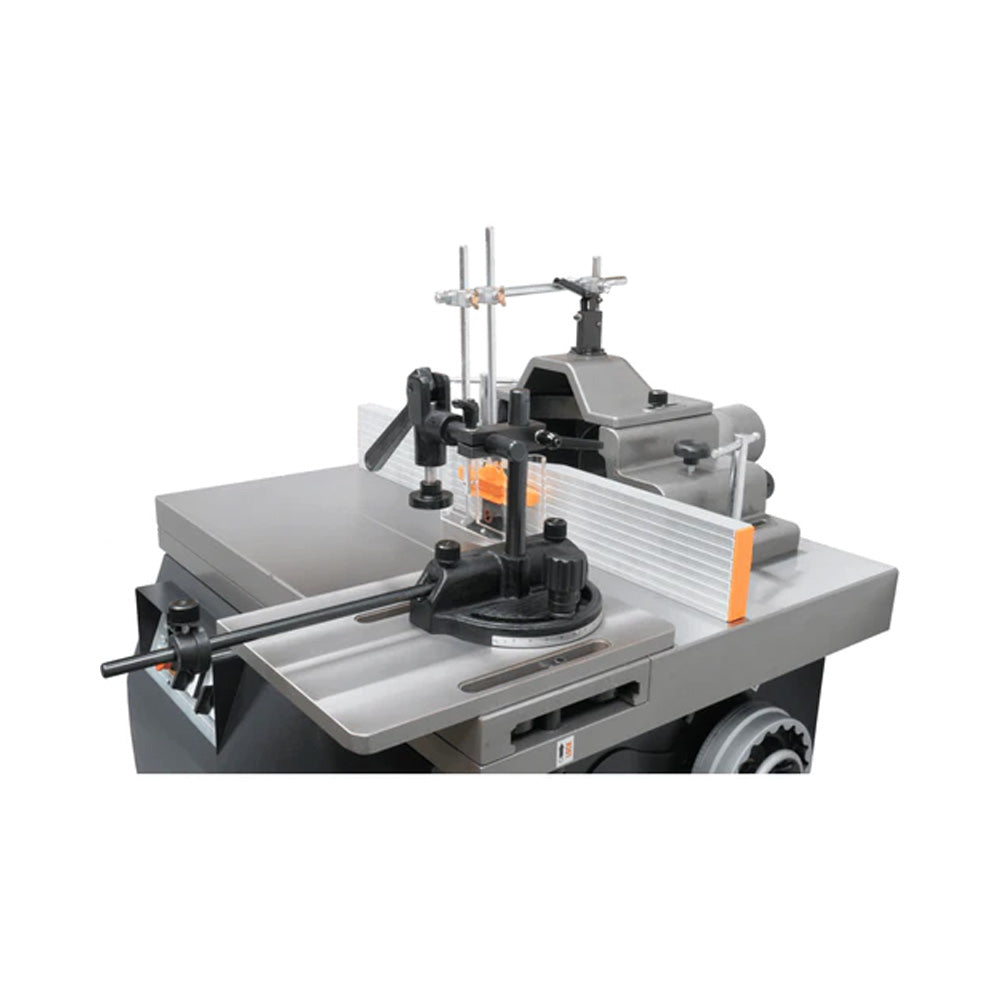

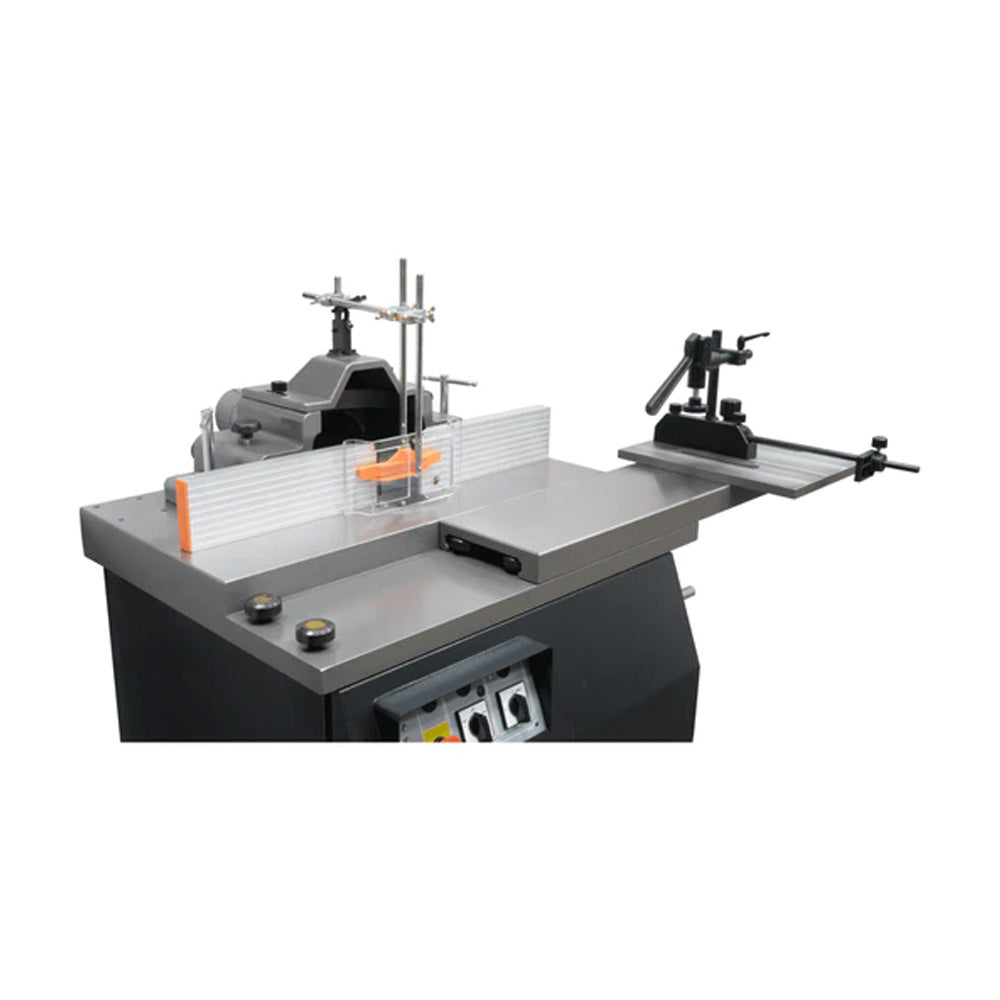

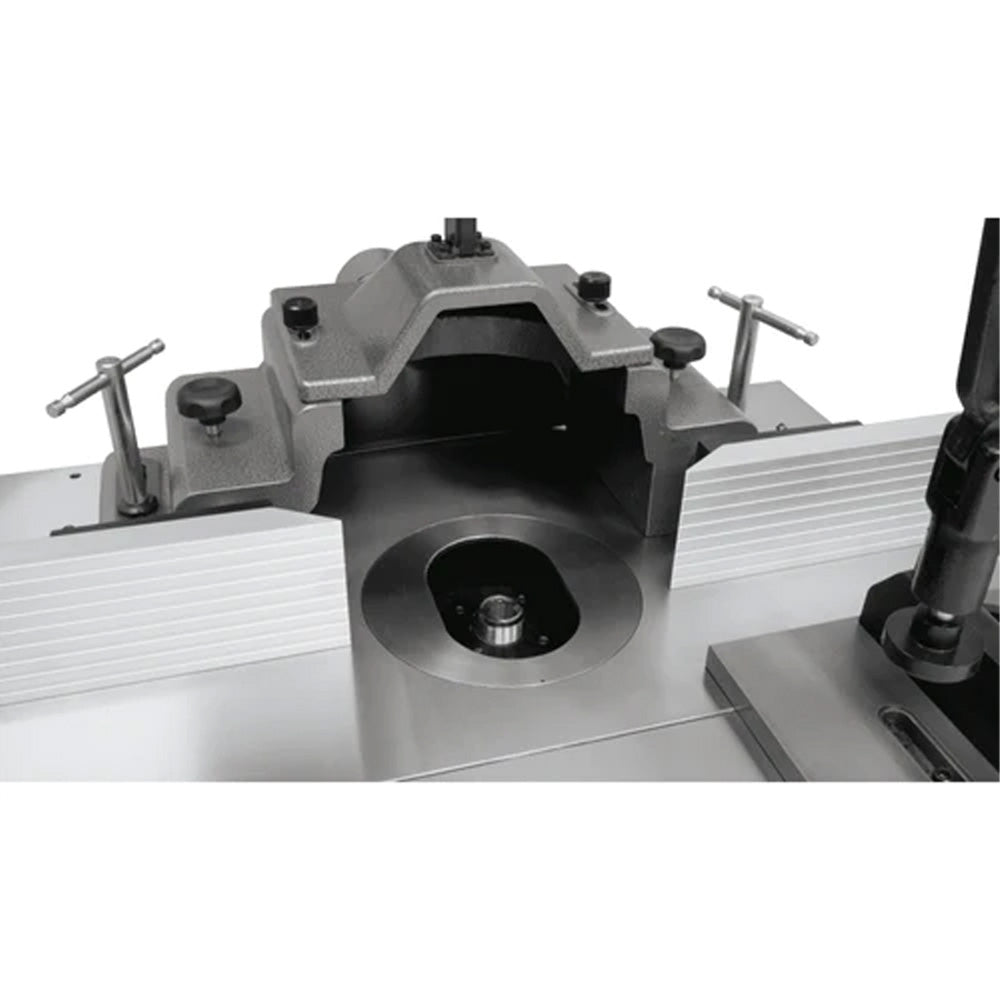

The sliding table has a full 30” stroke from miter fence to the center of the spindle. Miter gauge adjusts +/- 45° The interchangeable spindle comes standard as 1-1/4”, but other sizes including router collets are available. The fence is made from heavy cast iron & easily adjusts w micro-adjusters for both in/outfeed. LED lights display the desired RPM.

Also available with a 7.5hp, 3 Phase motor.

Motor: 5hp , 1PH, 220 Volt, 60 Hz.
Spindle Tilt: 45° Backwards, 10° Forward
Sliding Table: 10-1/4” X 39”
Sliding Table Stroke: 18-3/4”
Main Table Incl. S/T: 39-1/2” X 31-5/8”
Tenoning Table: 13-3/4 X 18-1/2”
Hold Down Clamp: Included
Tenoning Table Adjustment: 7” Slide to Spindle
Sliding Table Stroke: 19” Right of Spindle
Sliding Table Stroke: 19” Left of Spindle
Sliding Table Far Right: 30” Spindle to Miter Gauge
Table Height: 35 3/8”
Capacity Under Nut: 5”/125 MM
Spindle Stroke: 7”/180 MM
Spindle: 1 ¼” Interchangeable
Max. Tooling Diameter: 8-1/4”/210 MM Under Table
Max Tooling Diameter: 13” /335 MM Above Table
Rotation: Forward/Reverse
Fence: Micro-adjust, Cast Body
Speeds: 3,000/4,000/6,000/8,000/10,000 RPM

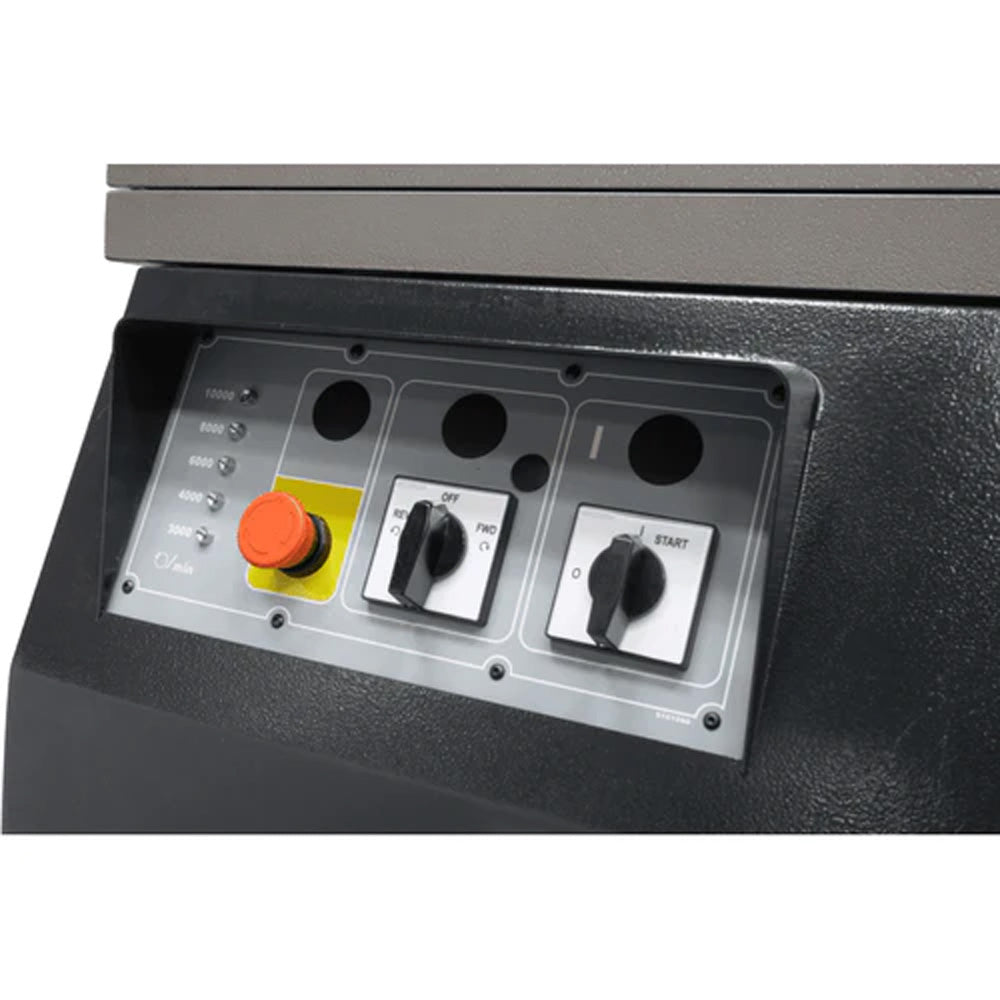

Readout: LED Lights for speeds

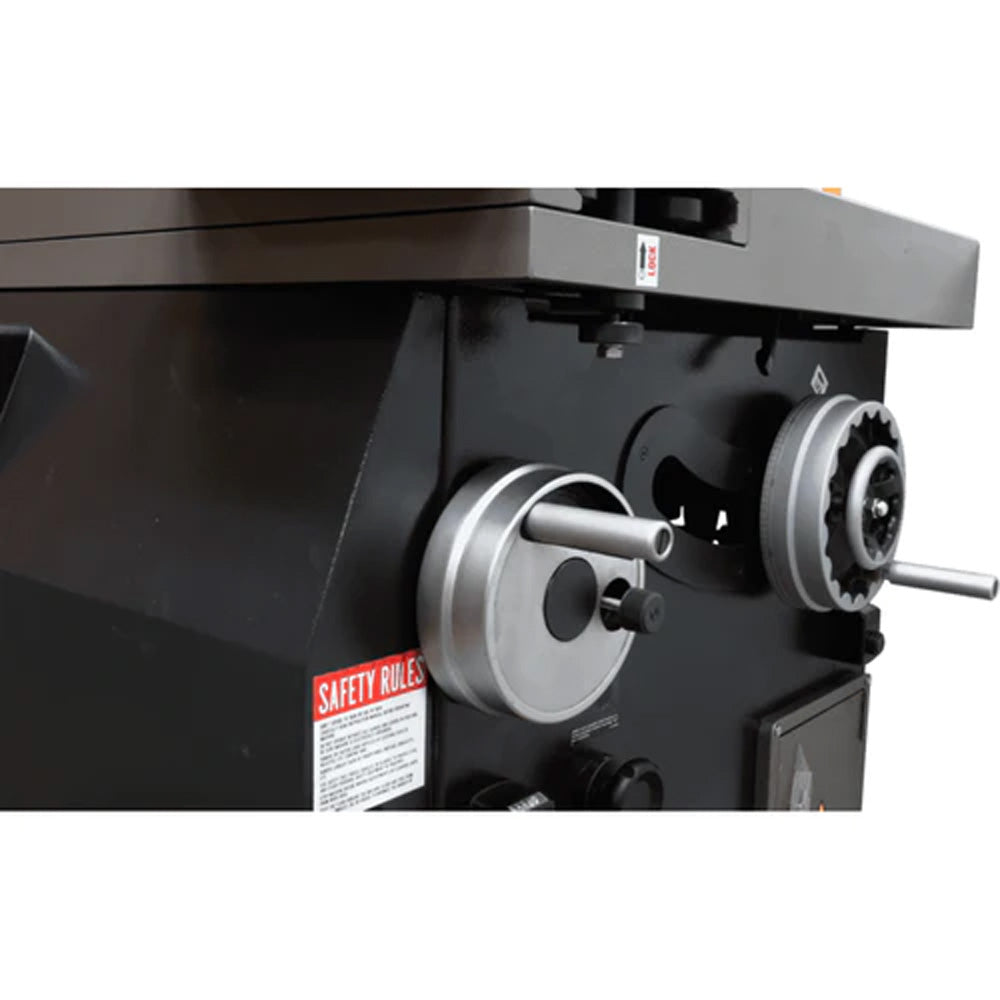

Readout: Mechanical Tilt & Spindle Height
Feeder: Pre-drilled Left Back Corner
Router Collet: Accepts, Not Included
Weight, Net/Ship: 1,056/1,350 Lbs.

    SKU: MSHAPS45T-5-0167
