Laguna DC:15 Dust Collector 1.5HP, 120V/240V
- Price
- $ 699
Have questions? Give us a call at 260-637-0054.

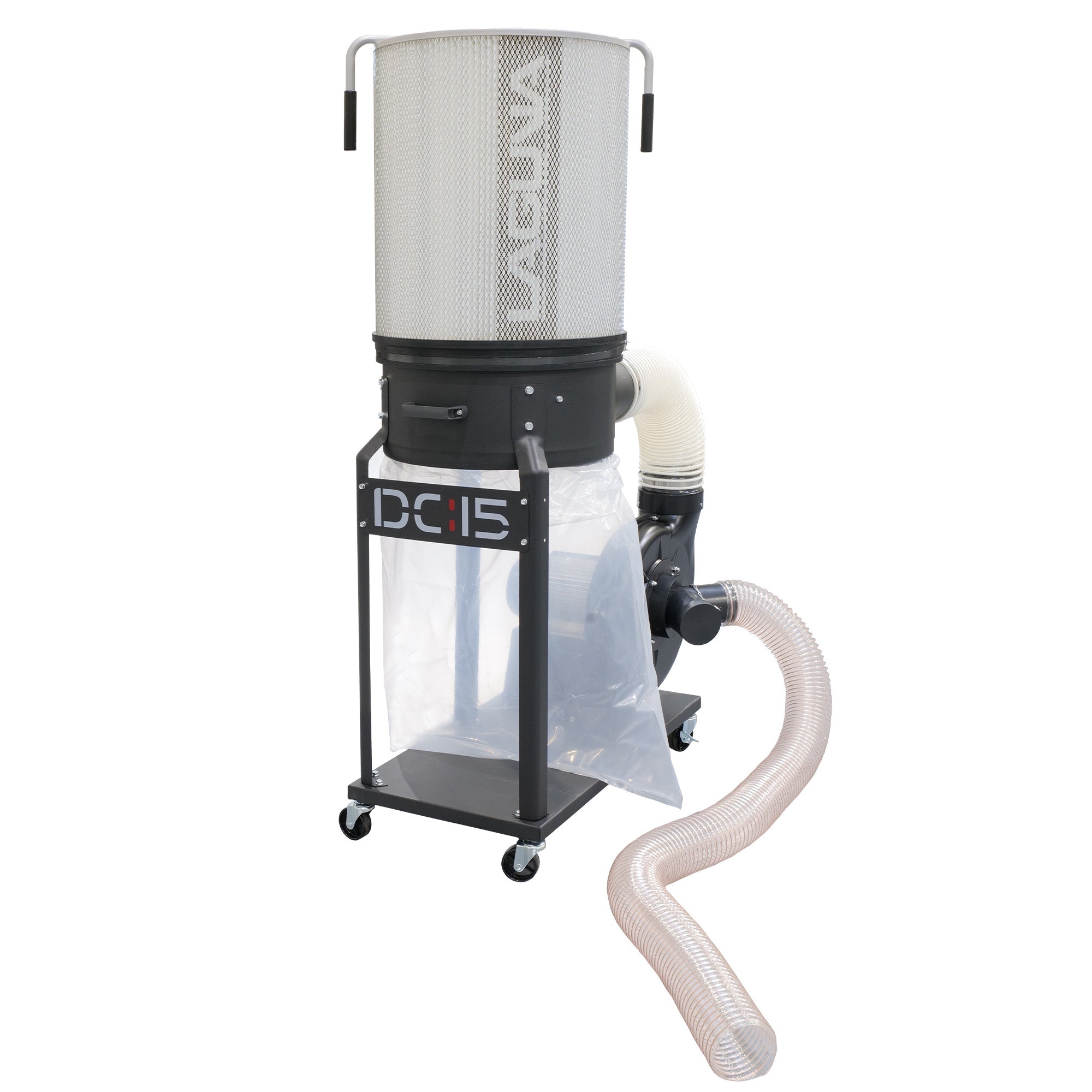

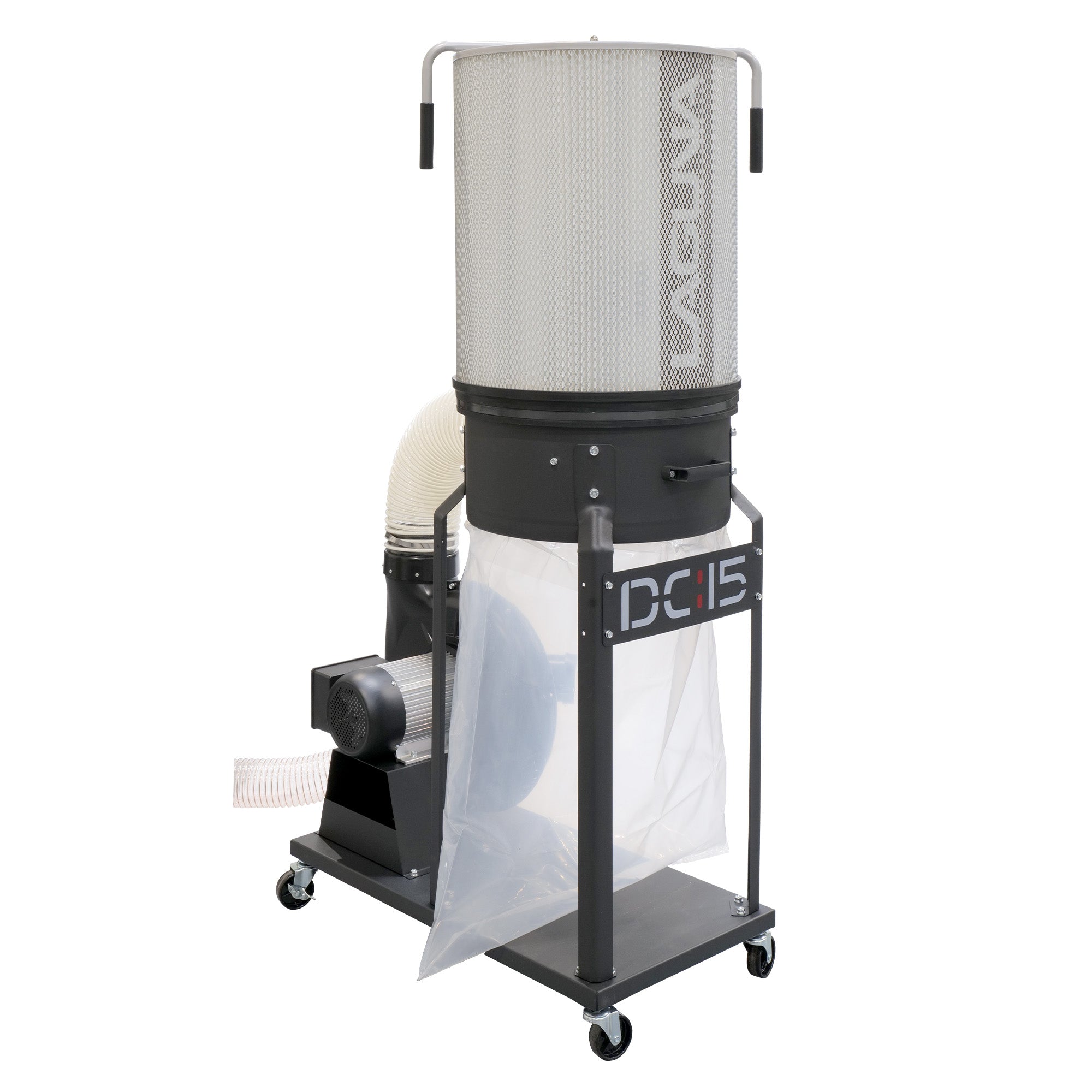

The DC:15 is an economical and versatile dust collector for small to mid-size shops. Its 1.5HP motor delivers 1,100 CFM of airflow through dual 4" inlets, capturing fine dust with 98% filtration efficiency at 2 microns. This machine also comes with a wheel kit that features locking casters, providing both easy portability and optimized shop space.

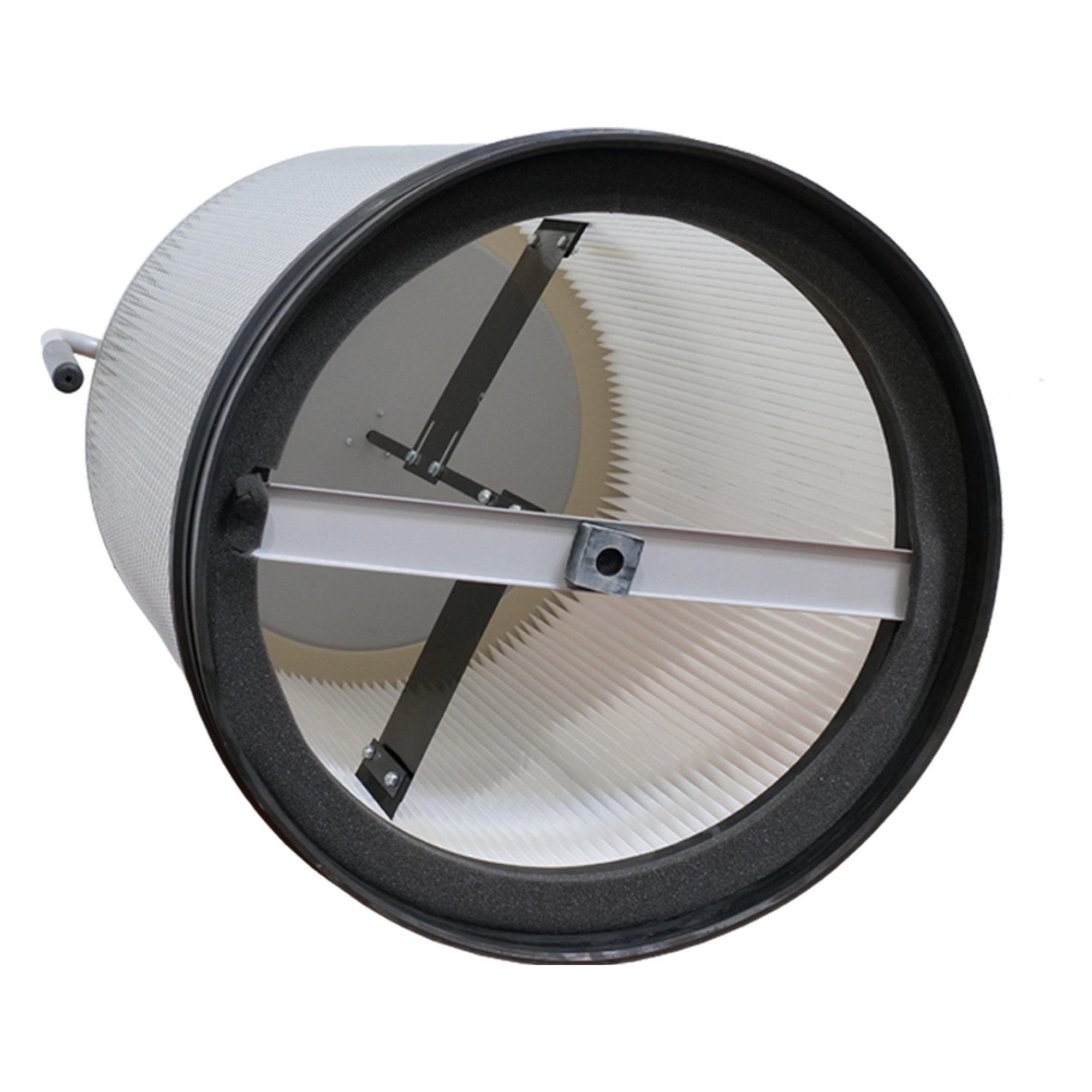

At the heart of the DC:15 is a pleated cartridge-style filter that excels at capturing fine dust down to 2 microns. It features a 2-paddle manual cleaning system that knocks caked-on dust down into the collection bag. The 35-gallon bag is held in place by an integrated spring clip, eliminating the need to mess with band clamps and making it easier to change!
On the front of the machine is an anti-racking plate, which prevents the legs from flexing and keeps vibrations to a minimum. There's also an integrated transport handle which makes moving the machine effortless.
Includes a 4" hose, clamps, and an adapter for easy setup with a variety of machines.
Features
- 1.5HP motor and (2) 4" dust ports provide plenty of localized dust collection
- Comes standard with swiveling, locking casters that mount to steel base plate
- 2 Micron pleated canister cartridge has generous surface area to keep fine particles in check
- Spring-loaded bag clamp ring facilitates easy changing and maintenance

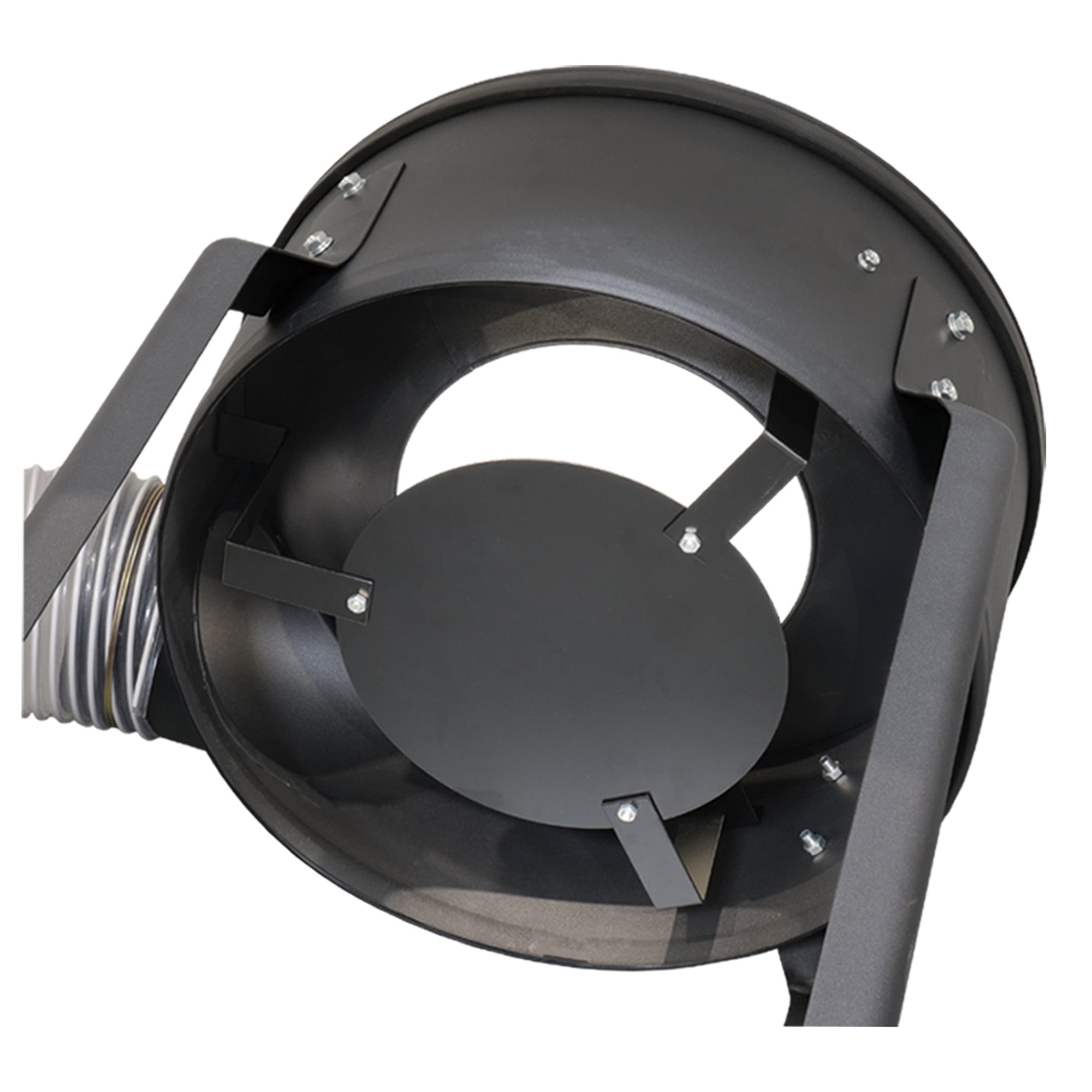

- Anti-racking plate minimizes vibration and prevents legs from flexing
Specs
Motor: 1.5HP
Electrical: 120V/240V, 11.5 A/5,7 A (pre-wired for 120V)
Filter efficiency: 98% at 2 Micron
Air flow @ 4" port: 1,100 CFM
Noise volume: 85 dB
Bag capacity: 35 gallons
Net weight: 127 lbs.
Dimensions (L x W x H): 41" x 20" x 67"
