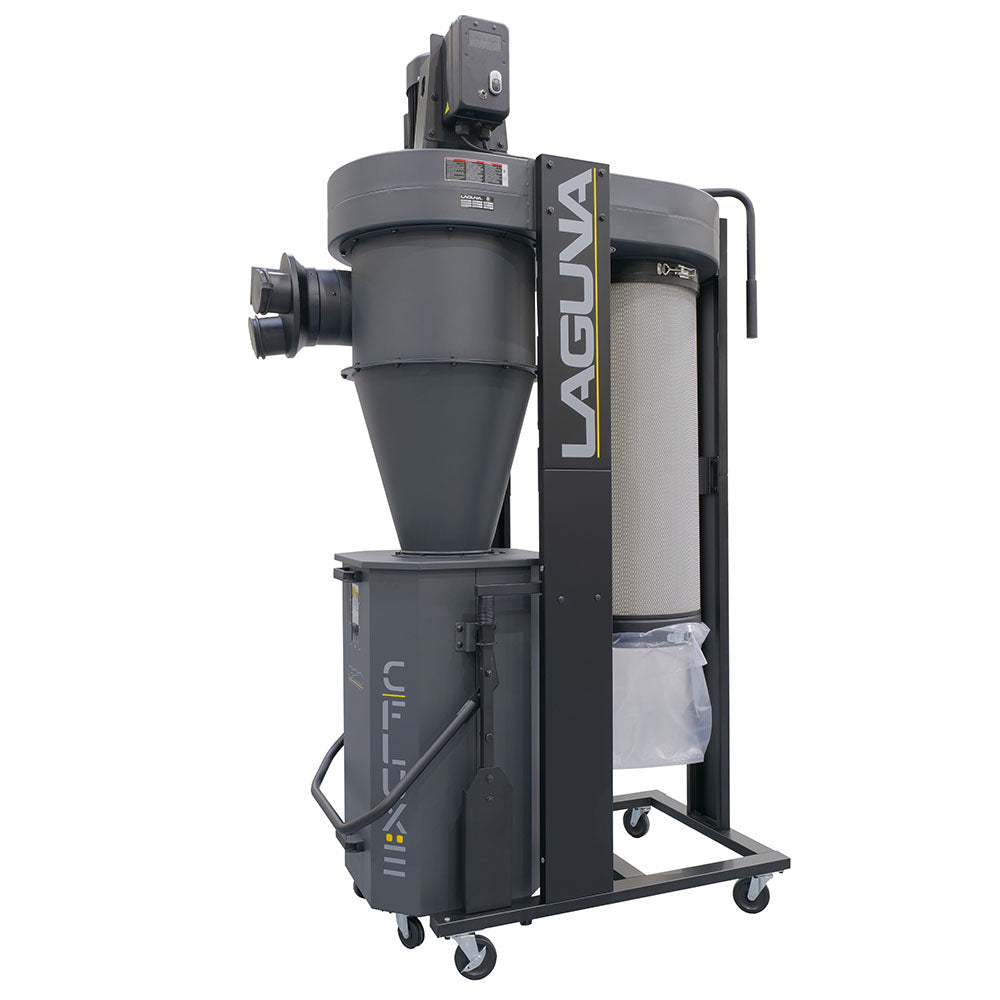

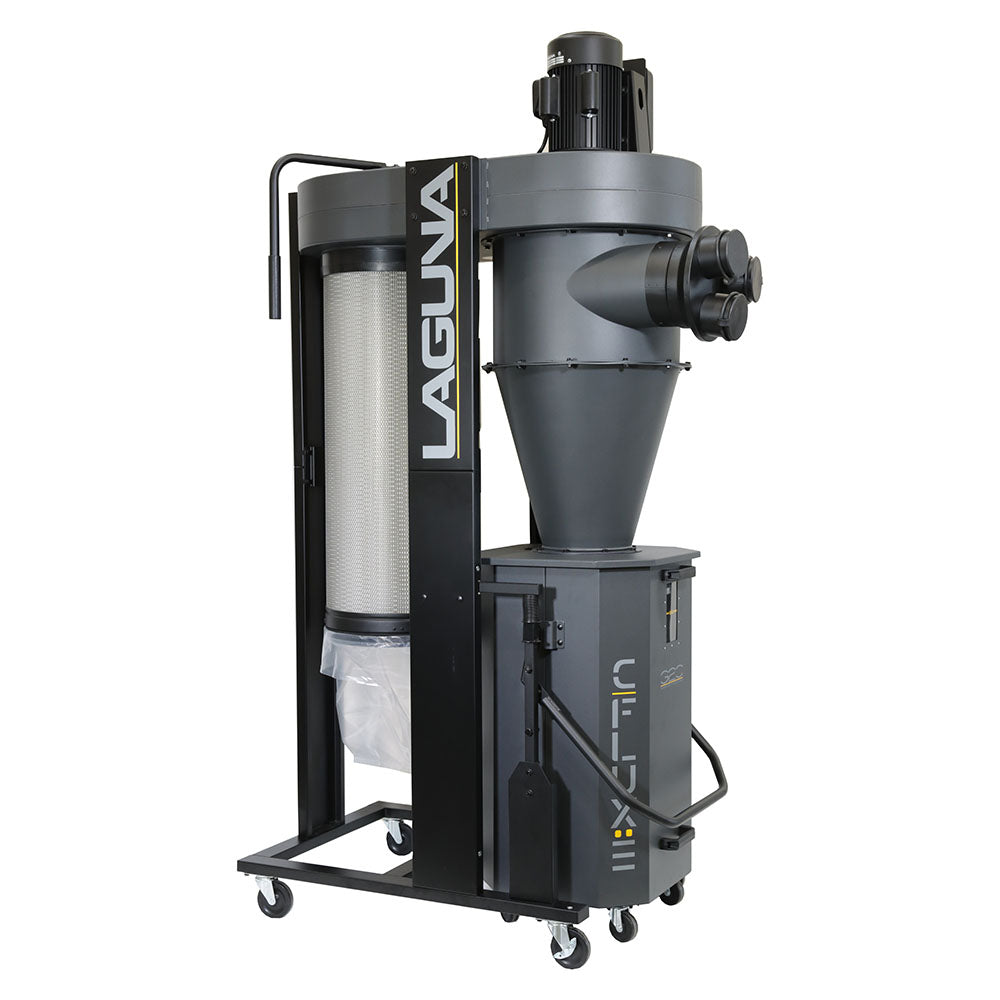

Laguna's C|Flux dust collectors have been engineered to be user friendly and highly effective.
How the cyclone works:
Fast-moving particles move in a cyclonic swirl to create a stronger CFM while larger and heavier particles slow down when meeting the crossbar and settle in the drum. Finer dust gets carried with the airstream up through the center vane. Only fine dust passes through the fan (unlike the single stage design where all dust passes through the fan). Single piece plenum creates minimum resistance while carrying the airflow into the canister. Particles are filtered by the HEPA or 1 micron canister. This superior cyclonic separation provides extended filter life.

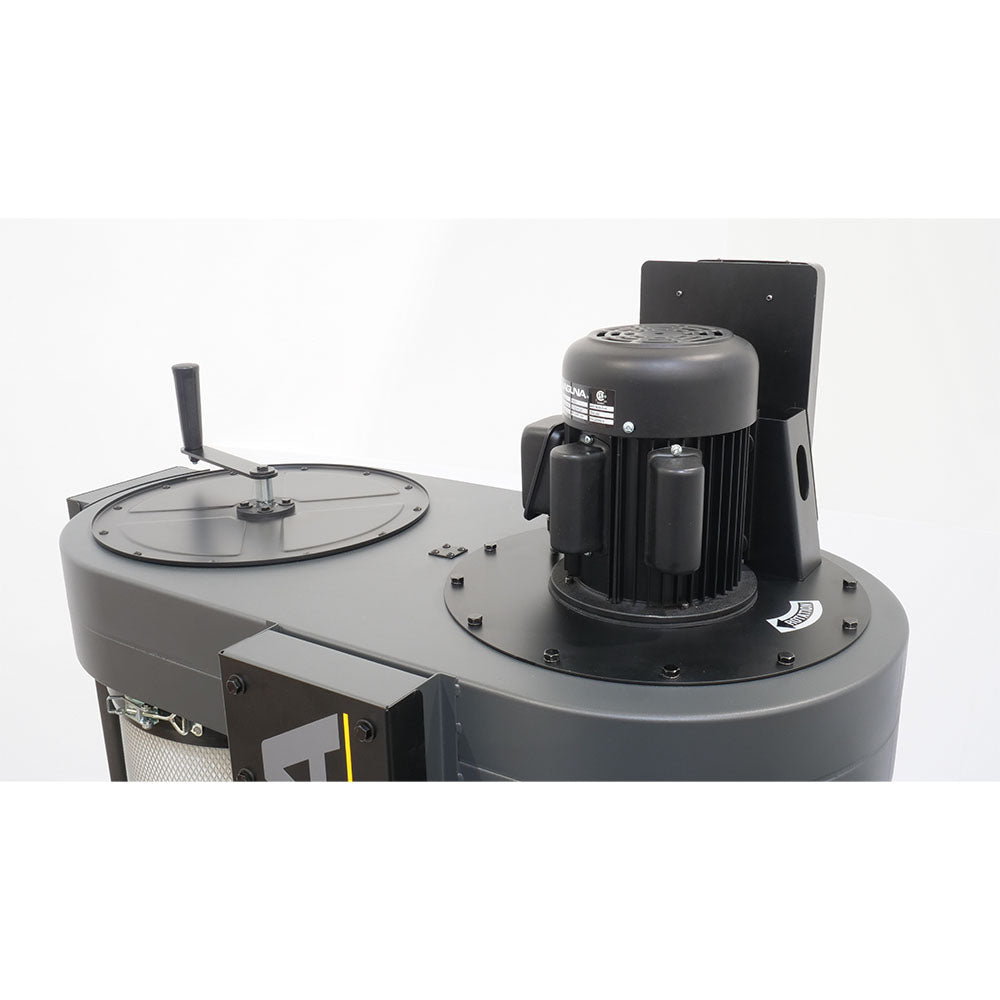

Motor Specs: 3 HP
Electrical Specs: 220V / 60Hz / 1PH / 3450 RPM
Running AMP: (8" inlet) 22A at 220V
Air Volume: 1624CFM (cubic feet per minute)
Max. static pressure: 11.2 Inches of water
Fan size: 15.5”

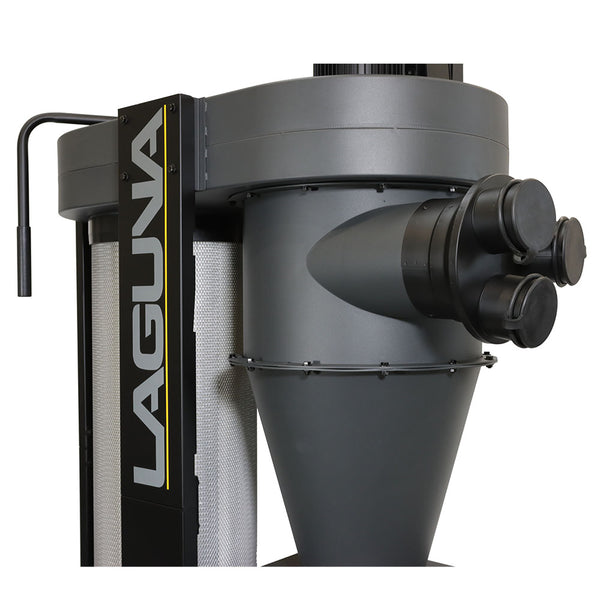

Inlet: Ø8” (Ø 8” BY Ø 4” X 3 PORTS)

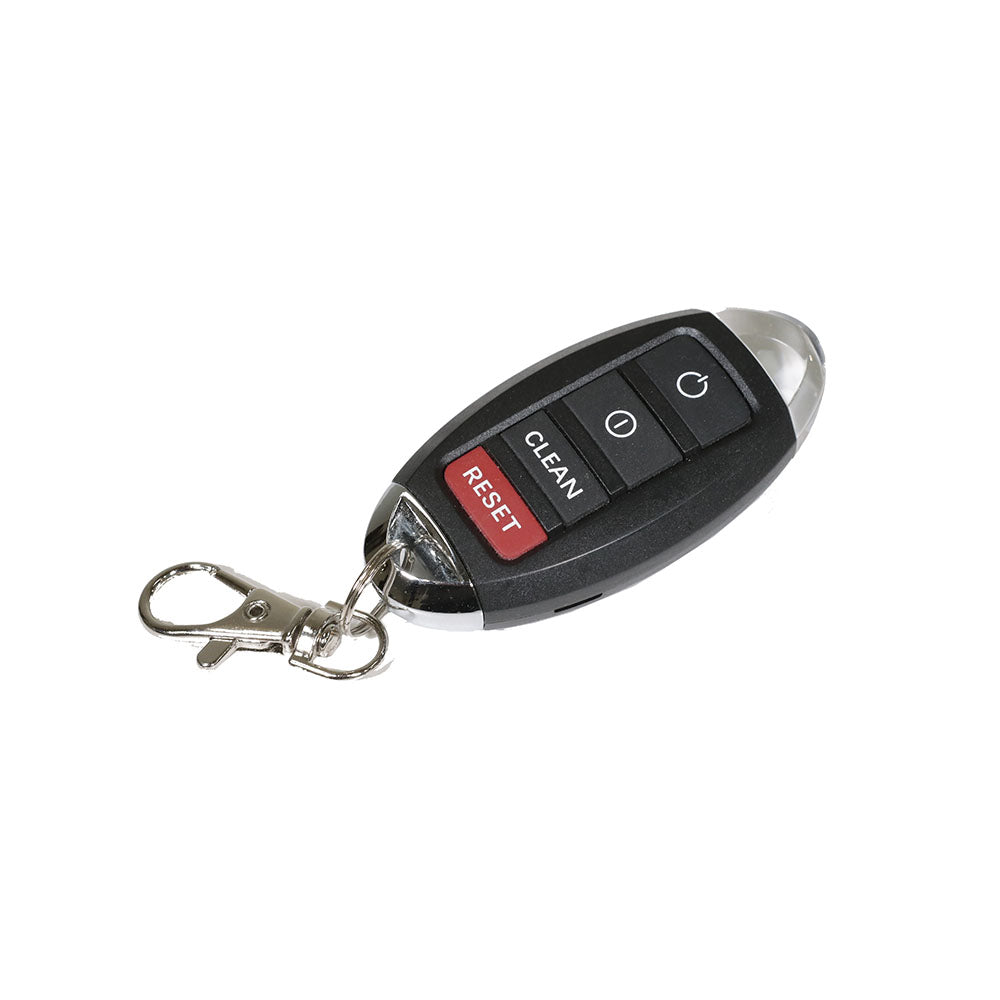

Switch: High frequency remote control switch

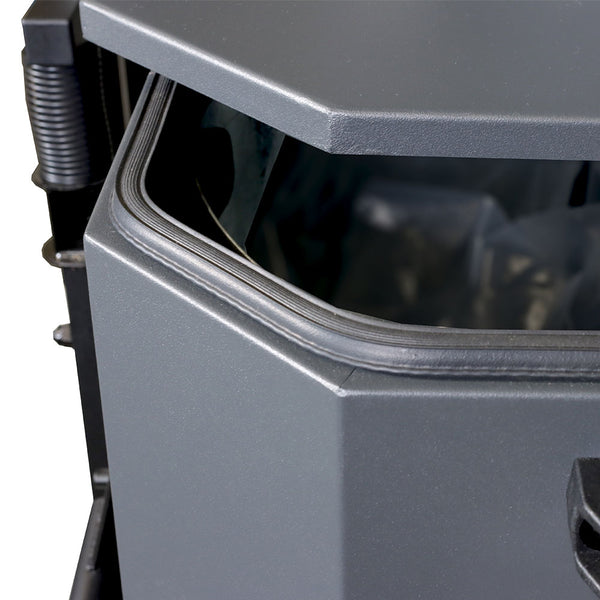

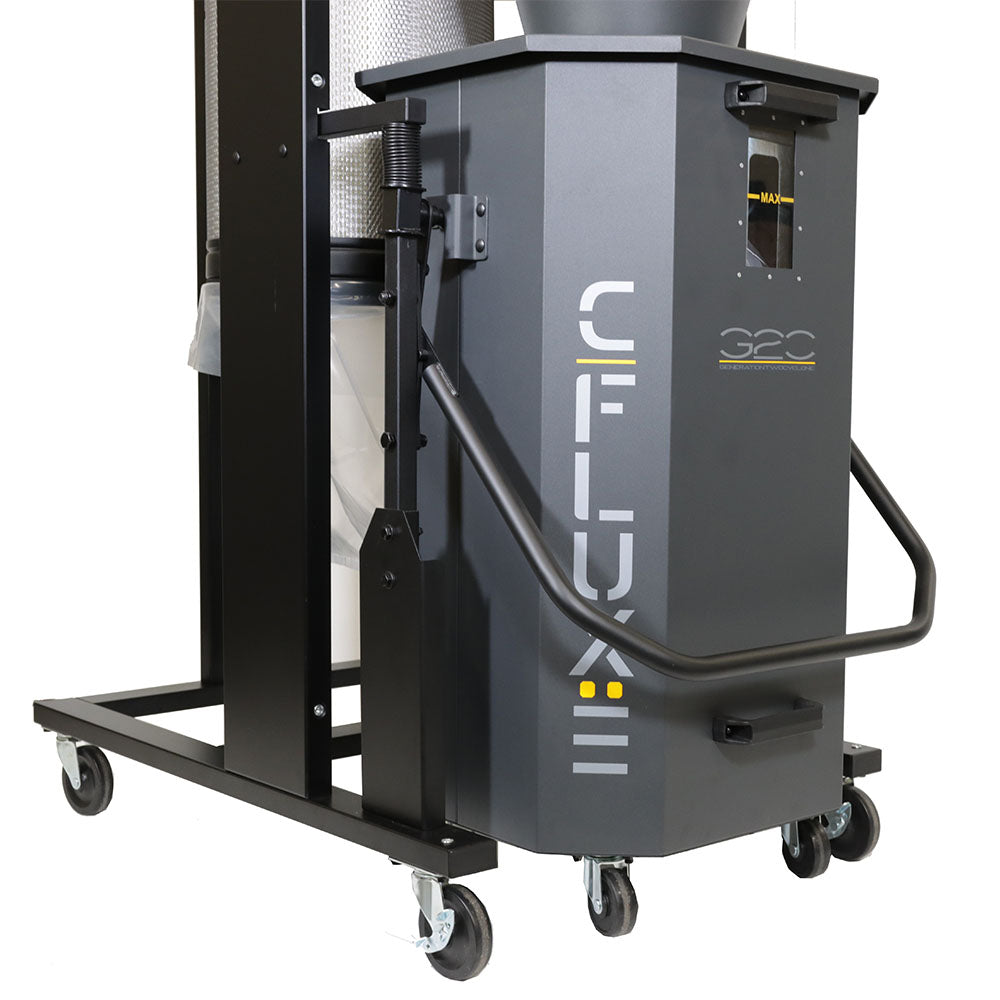

Collection capacity: 46-gallon Octagon drum
Filtering area: 9.5 m2 (102 ft2)
Cartridge Filter: 1 Micron Ø15.74” x 35.43” (Ø40 x 90cm) x 1pc
Machine weight: 373 lbs. (169 kgs)
Shipping weight: 441 lbs. (200 kgs)
