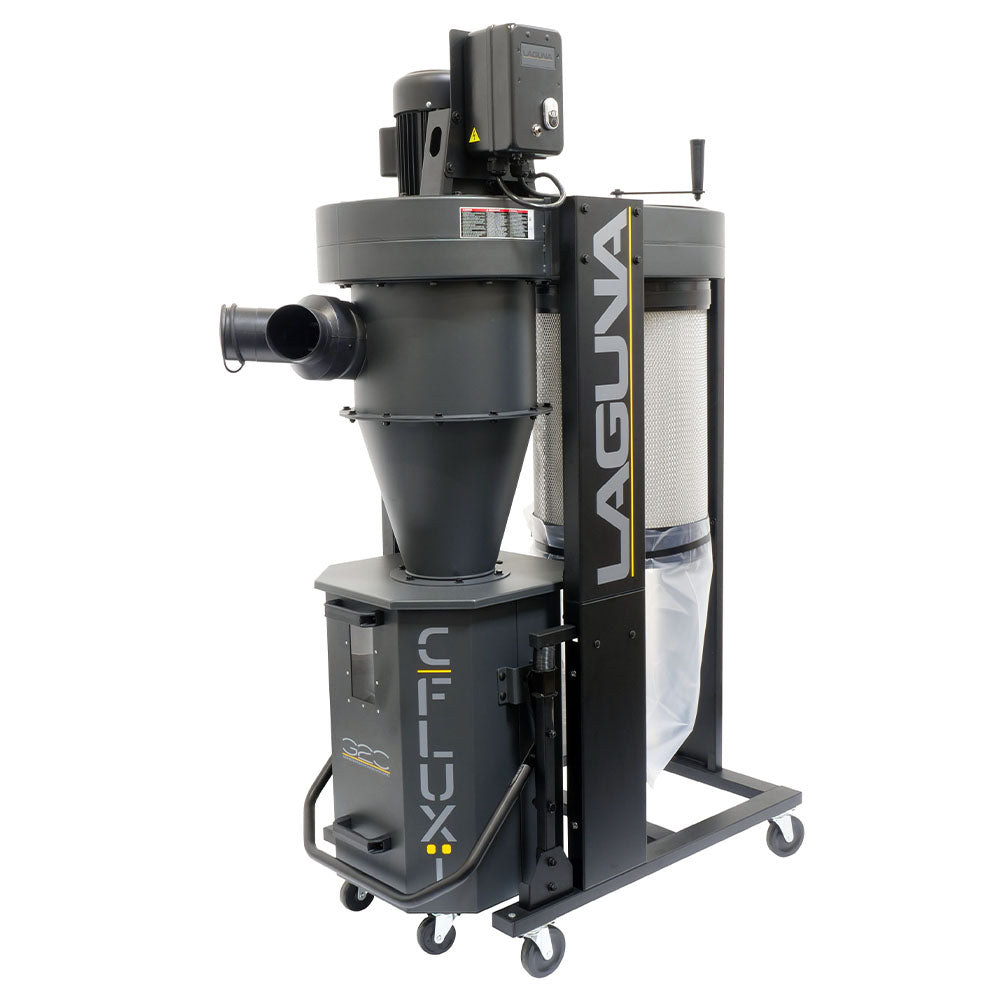

Laguna C Flux: 1 Cyclone Dust Collector

Overview

Get Yours Today at OakTree Supplies!

The c|flux series sets a new standard for cyclones. The horizontal chute is designed to maximize airflow while improving CFM. All shapes and dimensions has been reevaluated to optimize performance.

The c|flux:1 comes standard with a 1 micron canister providing filtration of 99.97% of particles between the sizes of 0.2 to 2 micron & features 48 sq/ft. of polyester spun bond pleated filter to ensure maximum airflow. 270° manual clean comes standard.

Specifications

• Motor HP: 1.5 HP
• Phase: 1
• Voltage: 110v
  • 220v Option available – sold separately
• Full Load Amperage Draw [FLA]: 18.8(110V) / 9.4(220V)
• Recommended Breaker: 30 AMP (110V) / 15 AMP (220V)
• Hertz: 60
• Plug: No
• RPM: 3450

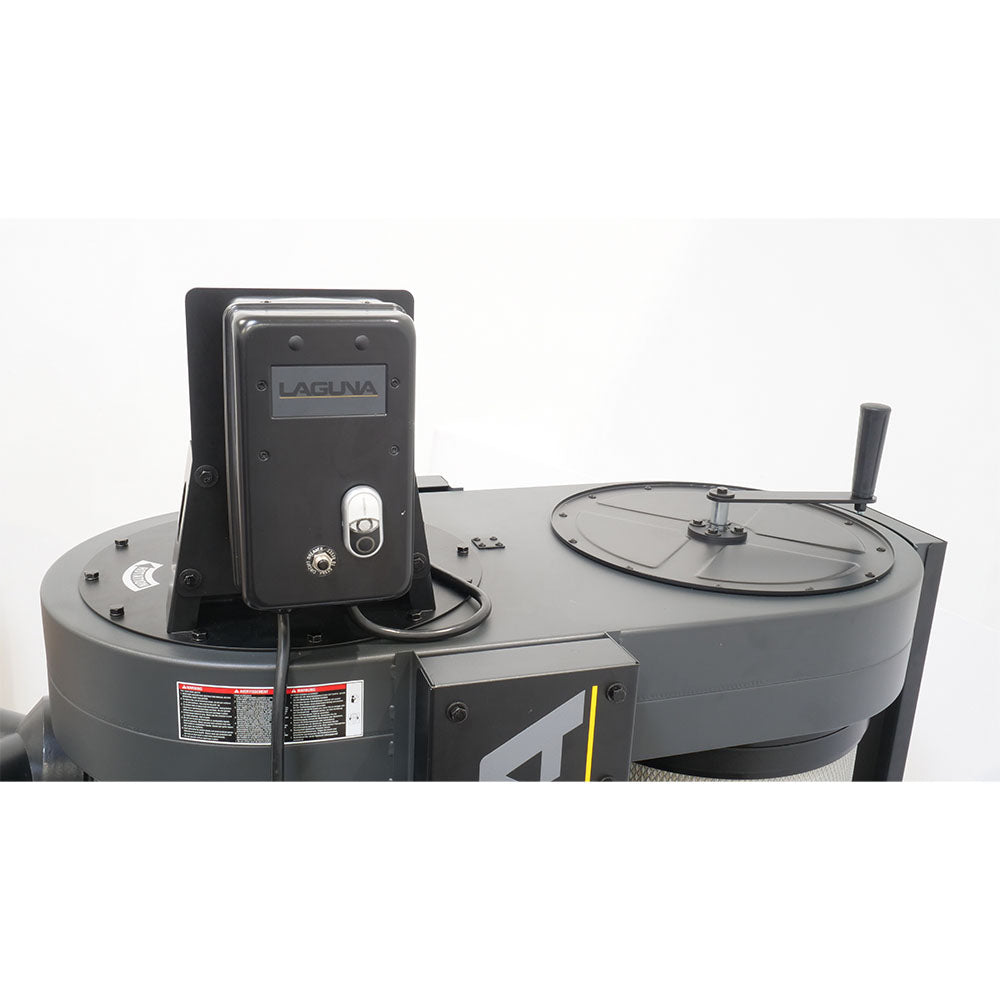

• Switch type: Radio Frequency Remote switch – Black Box

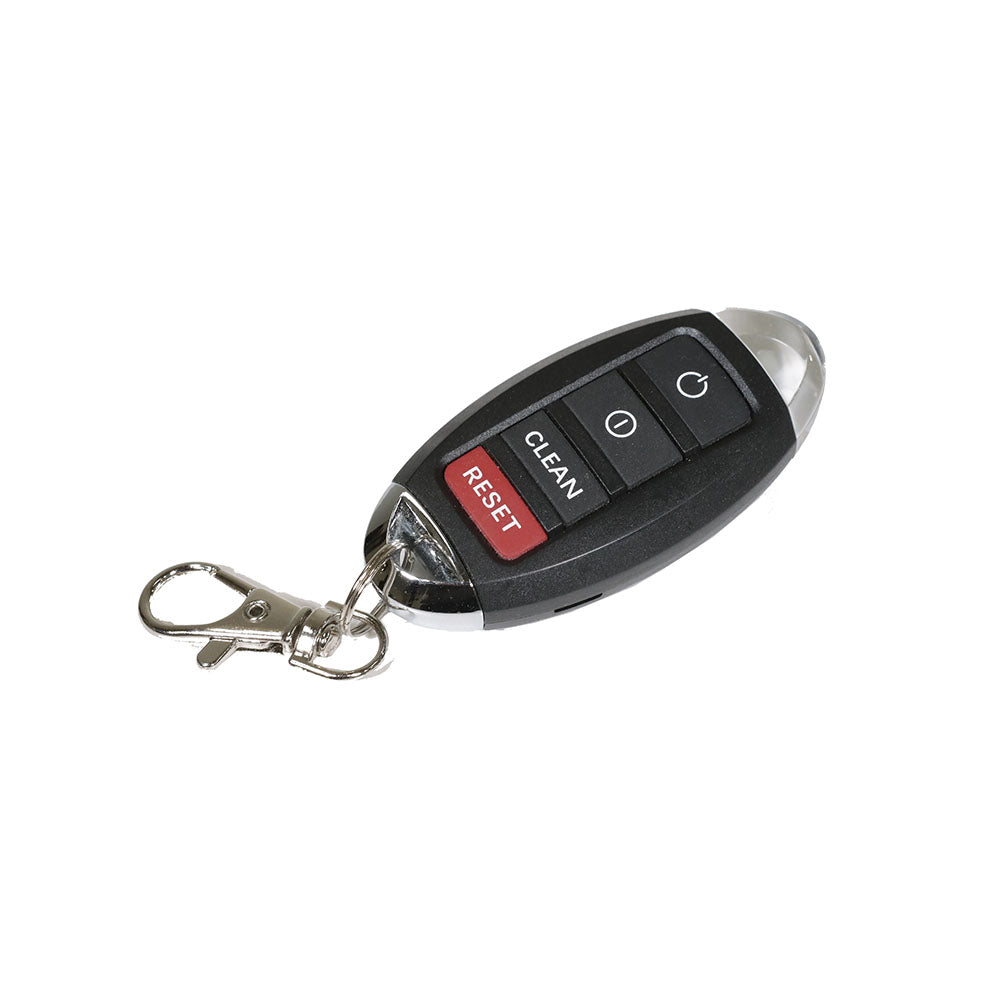

• Hand held remote control: HF
• Shop Setting CFM*: 900
• Inlet CFM: 1314
• Max Static Pressure (inches of water): 10.1″
• Impeller/Fan Size: 13.5″
• Impeller Material: Steel
• Impeller type: Radial Fin
• Balanced To:: ISO 1940
• Inlet Diameters: 6″ by 4″ x 2 ports
• Drum Capacity: 32 Gal.

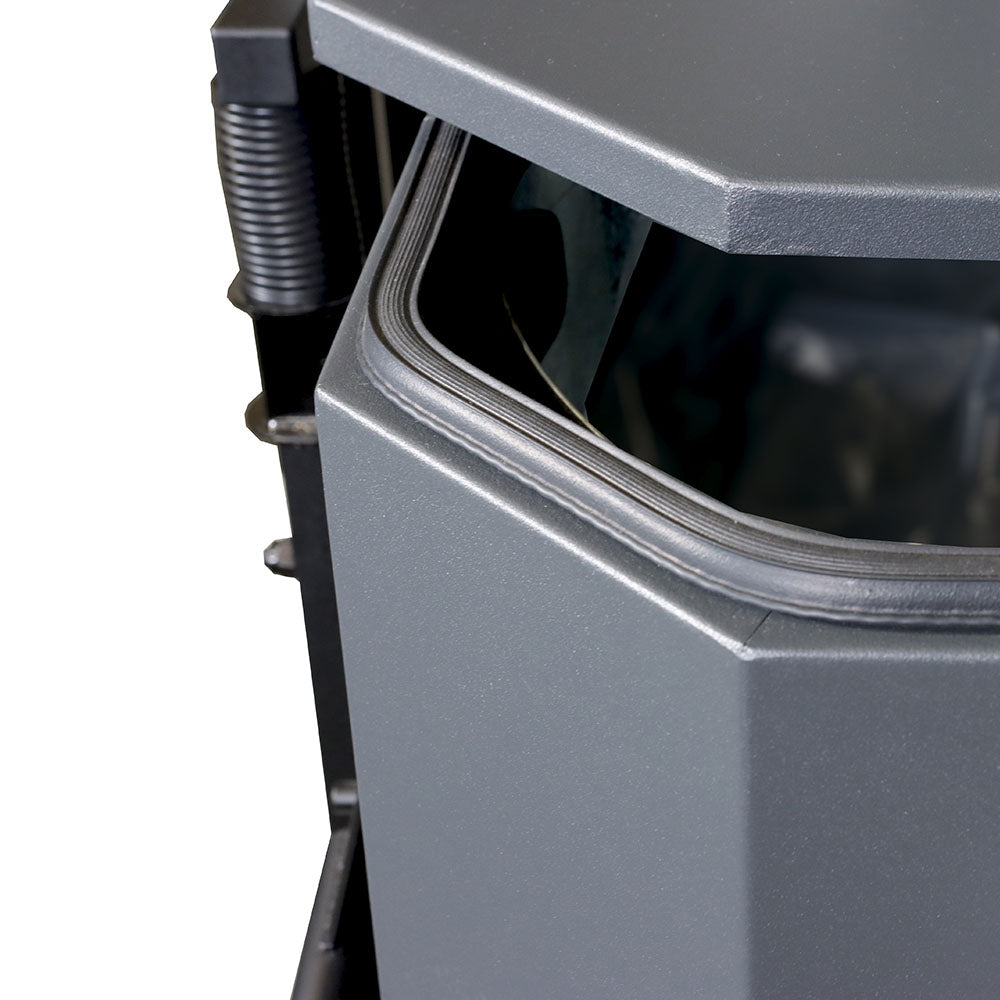

• Octagon drum: Metal drum insert
• Drum collection bag (Dia. x L): Plastic bag (Ø610 x 950mmL)
• Canister Filter type: 1 Micron
• Filtration efficiency: 0.2-2micron @ 99.97%
• MERV rating: 12
• Canister diameter: Ø400mm (15.75″)
• Cansiter length: 500mm (19.69″)
• Filter Surface Area: 4.5m²/48ft²

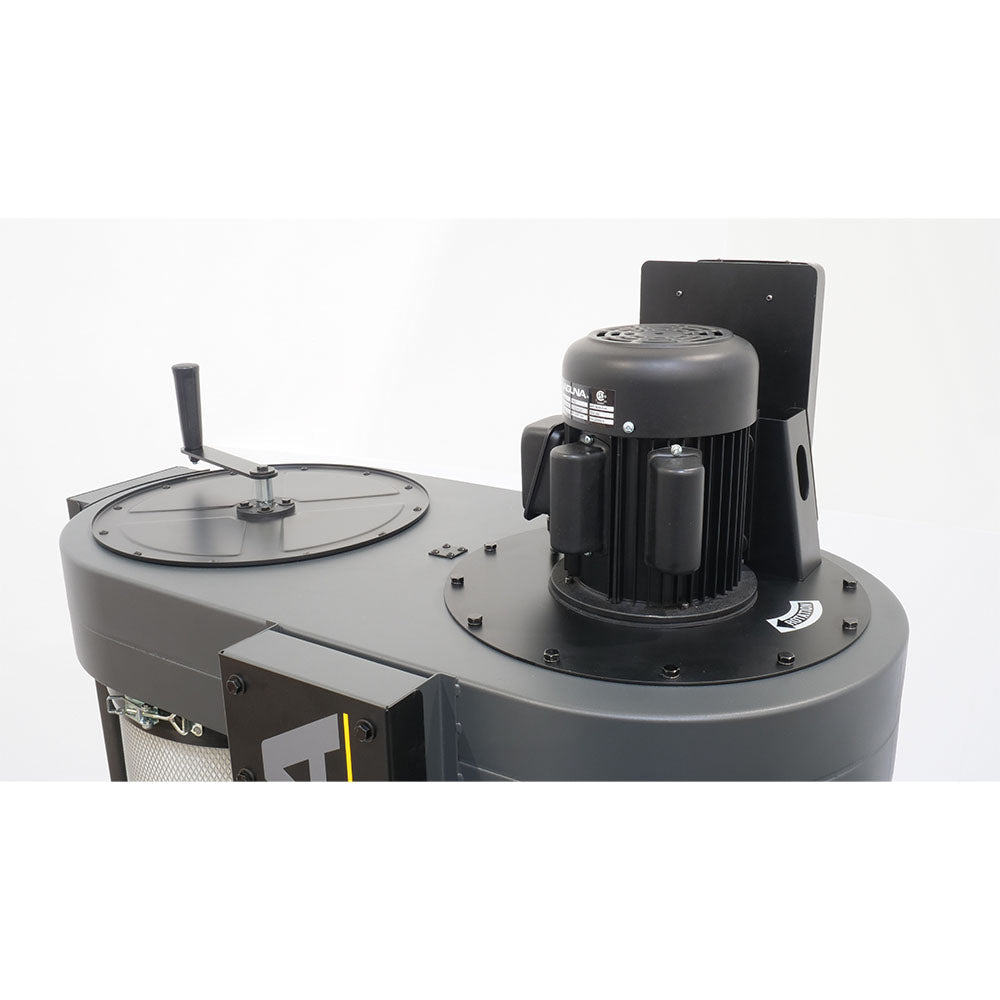

• Canister cleaning: Manual Handle crank. 270 degrees/*Optional Auto cleaning kit available
• Canister filter lower dust collection: Plastic bag (Ø400 x 600mmL)
• Base with perforated sheet across canister floor: N/A
• Wheels: 4″ Flat Caster
• US/CSA Approved: Yes
• Decibel Reading: 82 d B(A) (@9.8ft)
• Machine weight: 105kgs/232Lbs
• Shipping weight: 130kgs/287Lbs
• Assembled Dimensions (L x W x H): 42.5″ x 24″ x 68.5″ | 1078x614x1740mm
