Kreg Cabinet Door Mounting Jig

$ 32

Have questions? Give us a call at 260-637-0054.

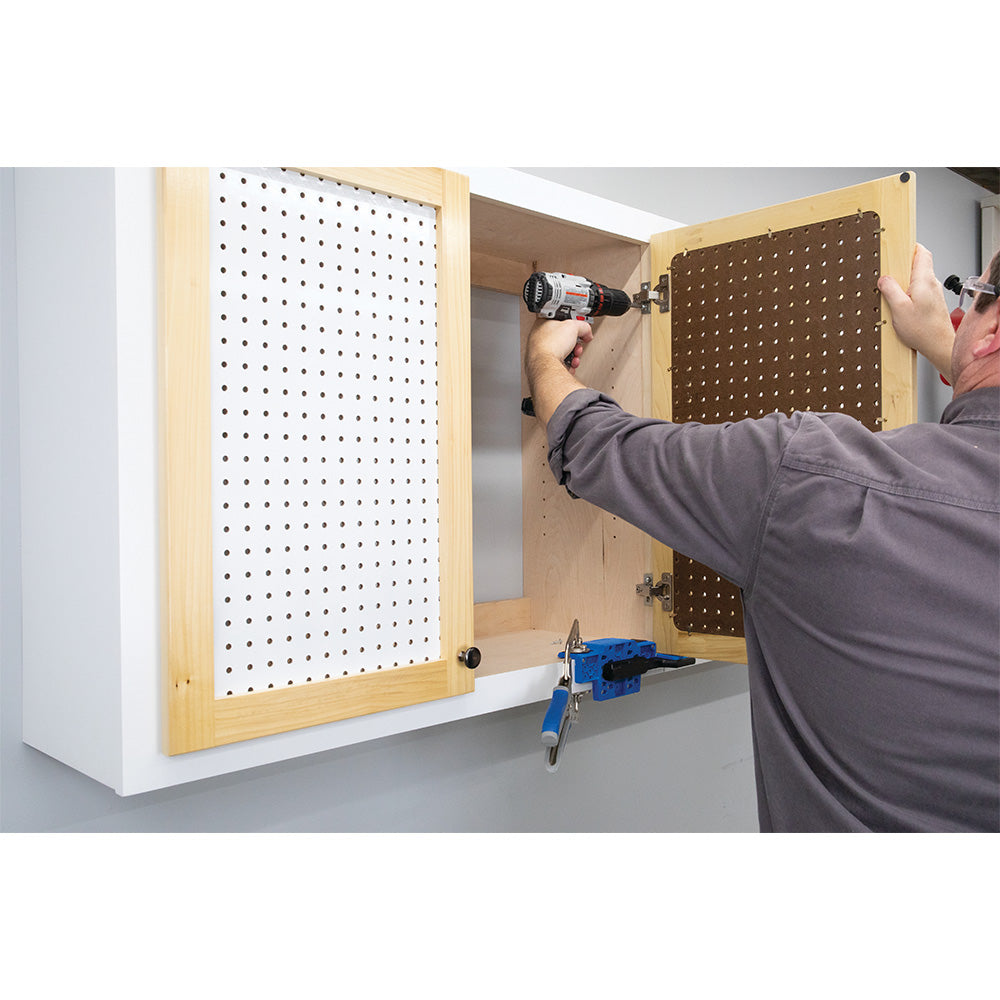

Get an extra helping hand for installing cabinet doors with the Kreg Cabinet Door Mounting Jig. It makes the job of installing cabinet doors a breeze – whether you’re working with face frames or frameless cabinets. It works with both left-hand and right-hand doors.

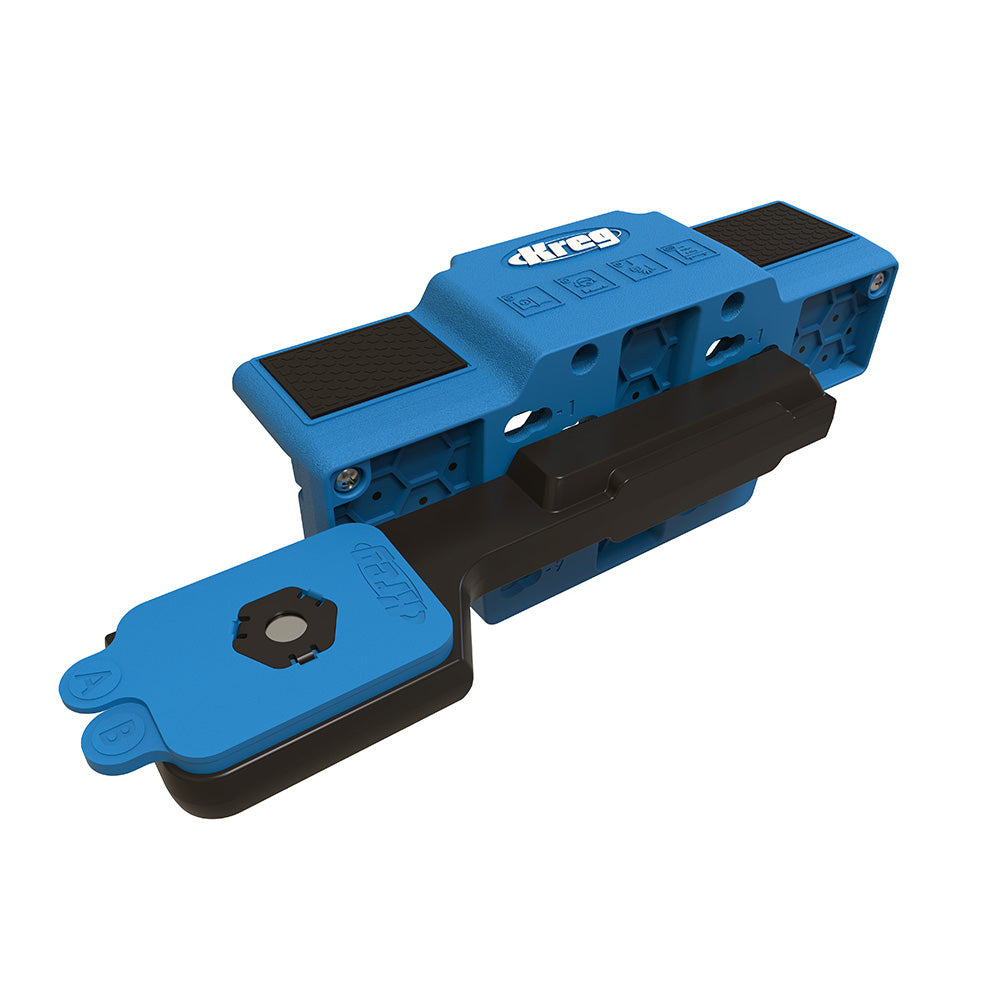

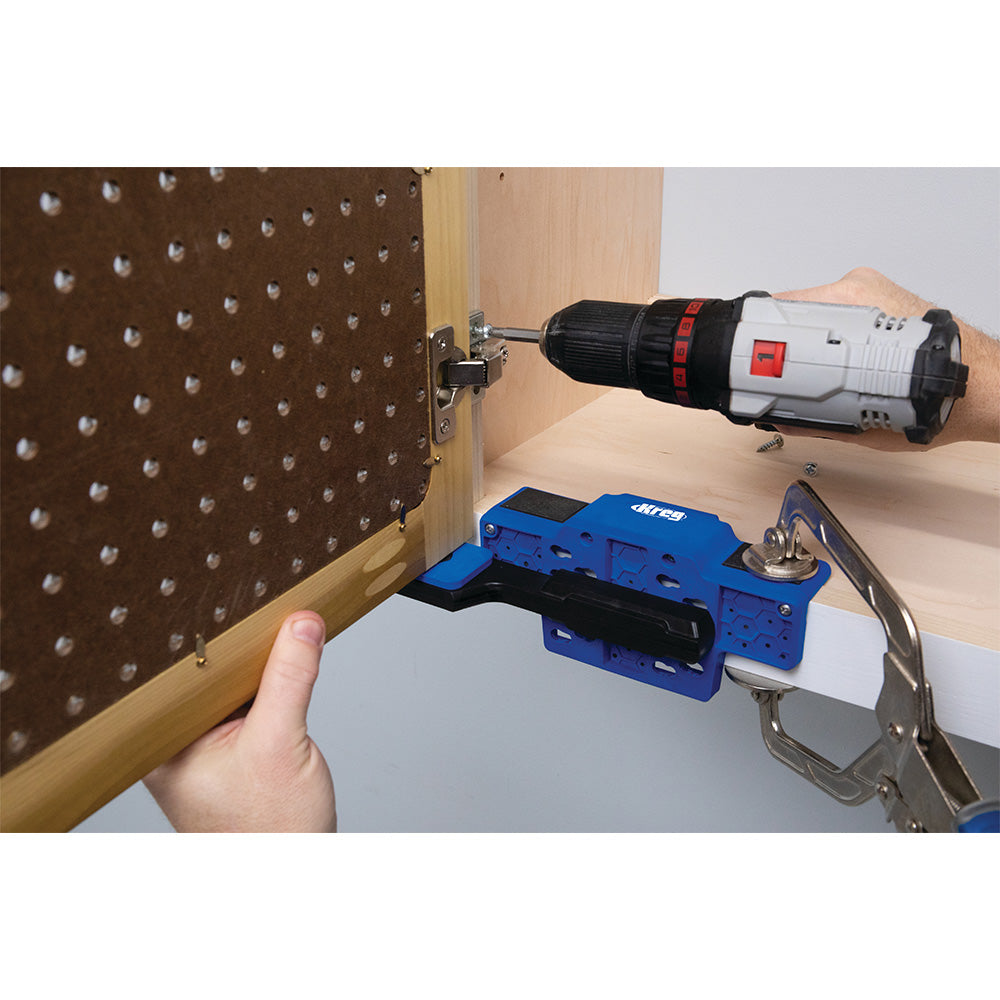

The jig features a support arm that helps you hold the door with one hand, while your other hand is free to mount the hinges to the cabinet. The Cabinet Door Mounting Jig also allows you to position your cabinet doors precisely. Adjust the support arm to one of the nine different positions to get your doors placed exactly where you want them. There’s one setting for inset doors, and eight more at 1/4" increments, so you can support doors that overlay the cabinet face up to 2".

The Cabinet Door Mounting Jig comes with two micro-adjustment shims for even more fine-tuning. Use one shim to move the door up by 1/16" or 1/8" – or combine both shims for 3/16" of adjustability.

  • Easy: Hang a door in just three steps: clamp, align, install
  • Convenient: Support arm helps hold the door in place while you attach hinges
  • Versatile: Use for left- and right-swing doors on frameless or face frame cabinets
  • Adjustable: Support arm adjusts to nine different positions so you can install doors where you want them
  • Reliable: GripMaxx™ anti-slip material ensures secure clamping, so doors stay in place during installation
  • Precise: Fine tune door height with included micro-adjustment shims

  • Works with left- and right-hand doors
  • GripMaxx™ anti-slip surfaces
  • Adjustable in 1/4" increments

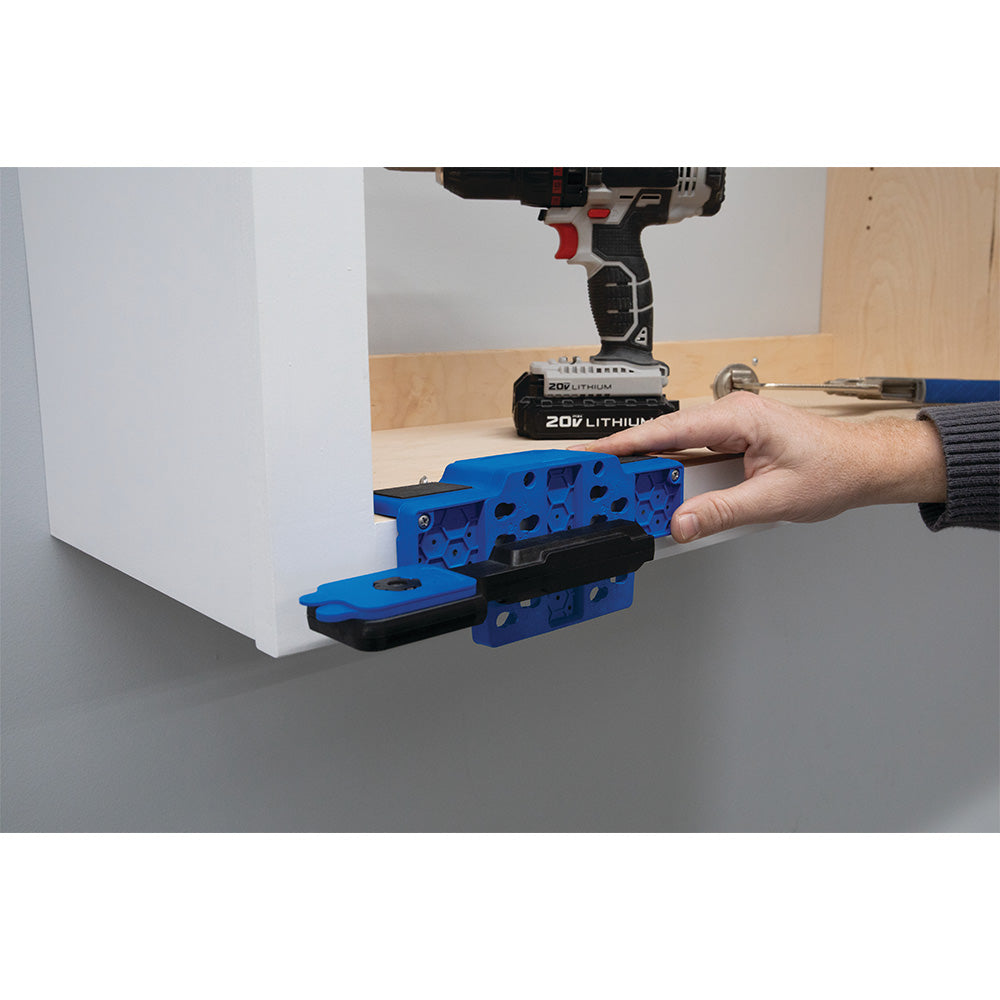

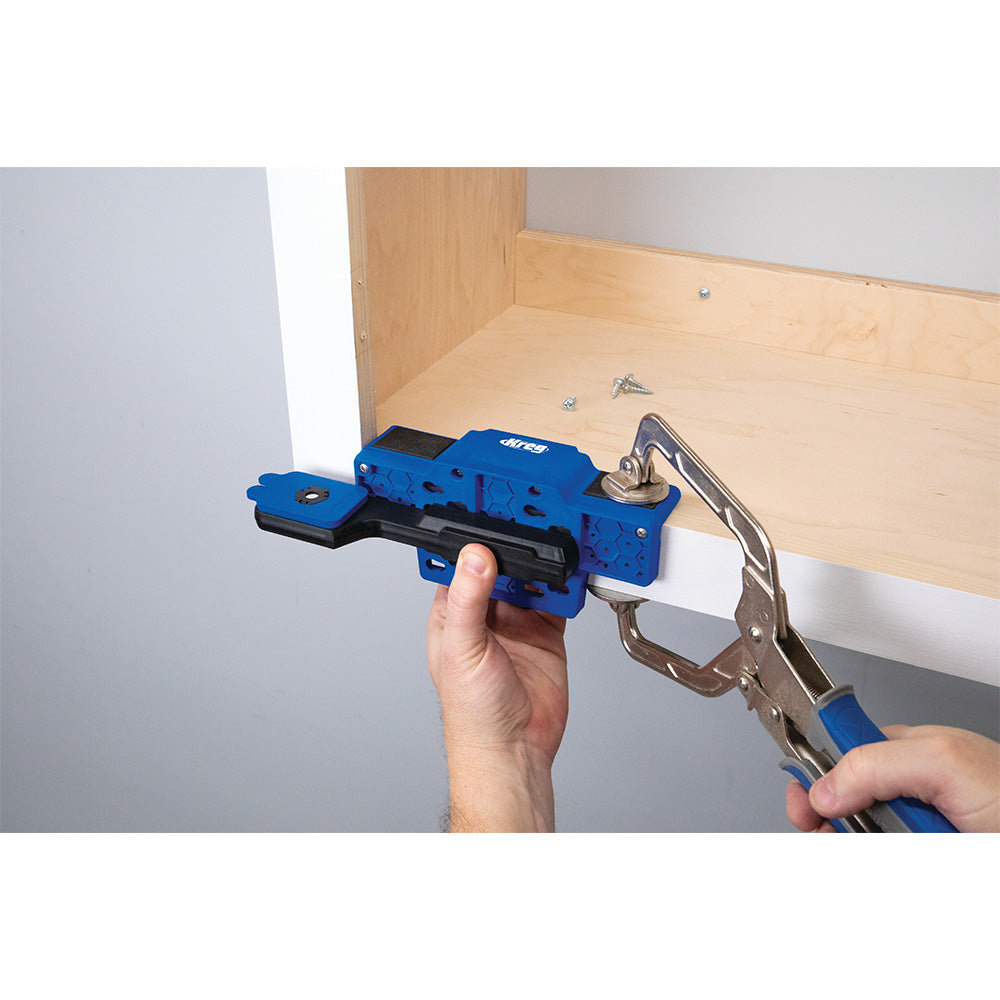

  • Clamps easily in place
  • 1/16" and 1/8" shims offer precise adjustment
  • Works with face-frame and frameless cabinets

Adjustability: Inset to 2" overlay in 1/4" increments
Capacity: 25 lbs.
