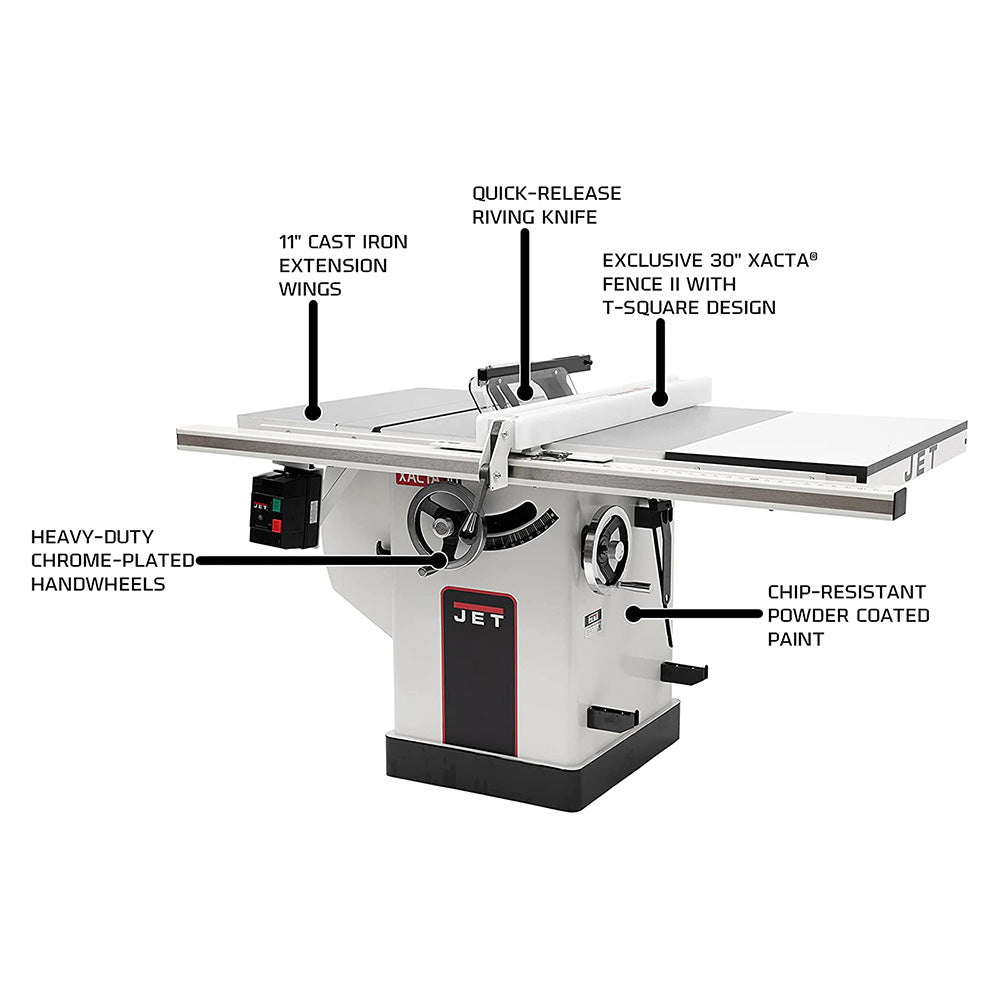

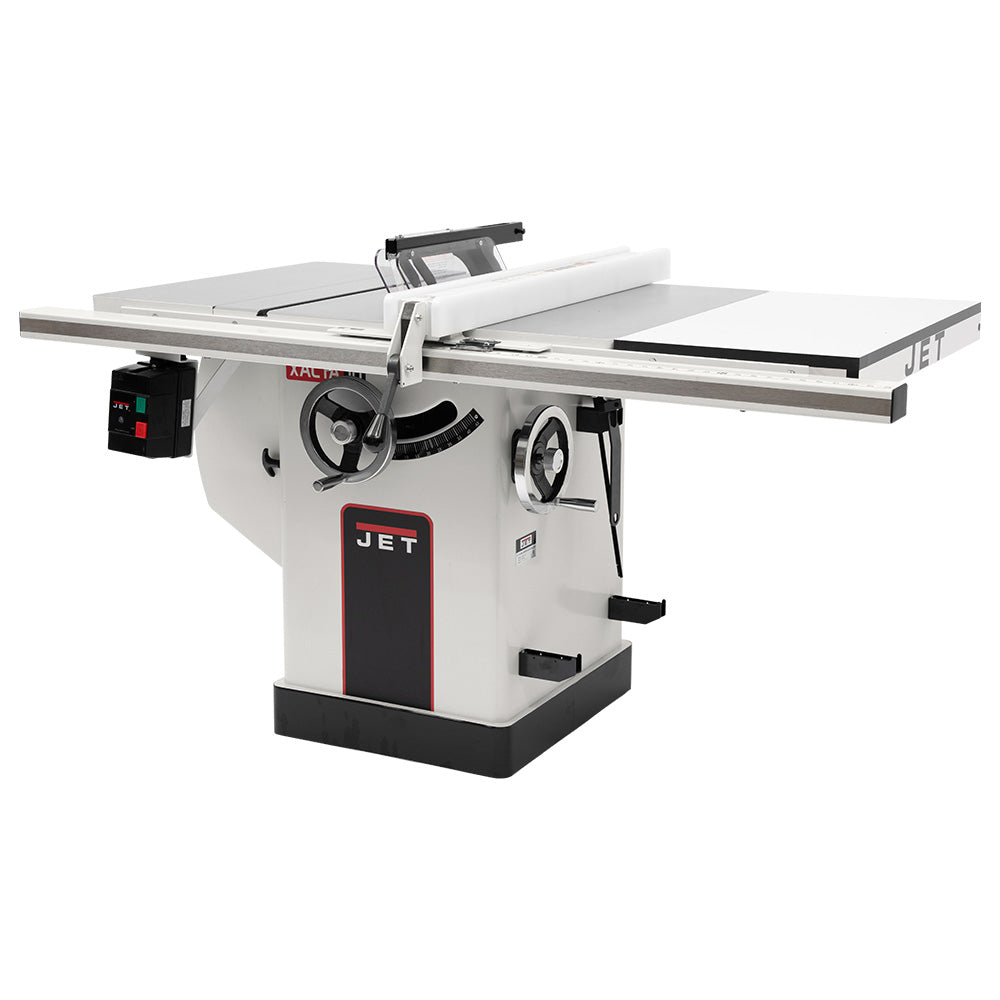

JET Deluxe XACTA Table Saw 30" Rip 3hp, 1-PH, 230V

• Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters
• Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement
• Hinged motor cover on cabinet gives quick access to the motor and belts

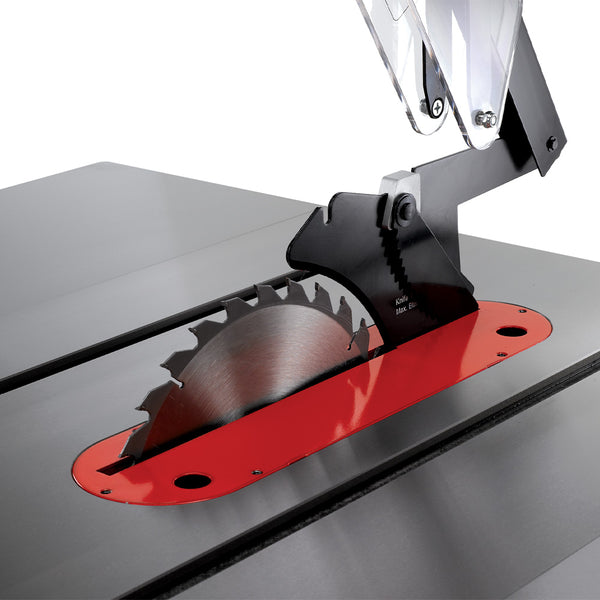

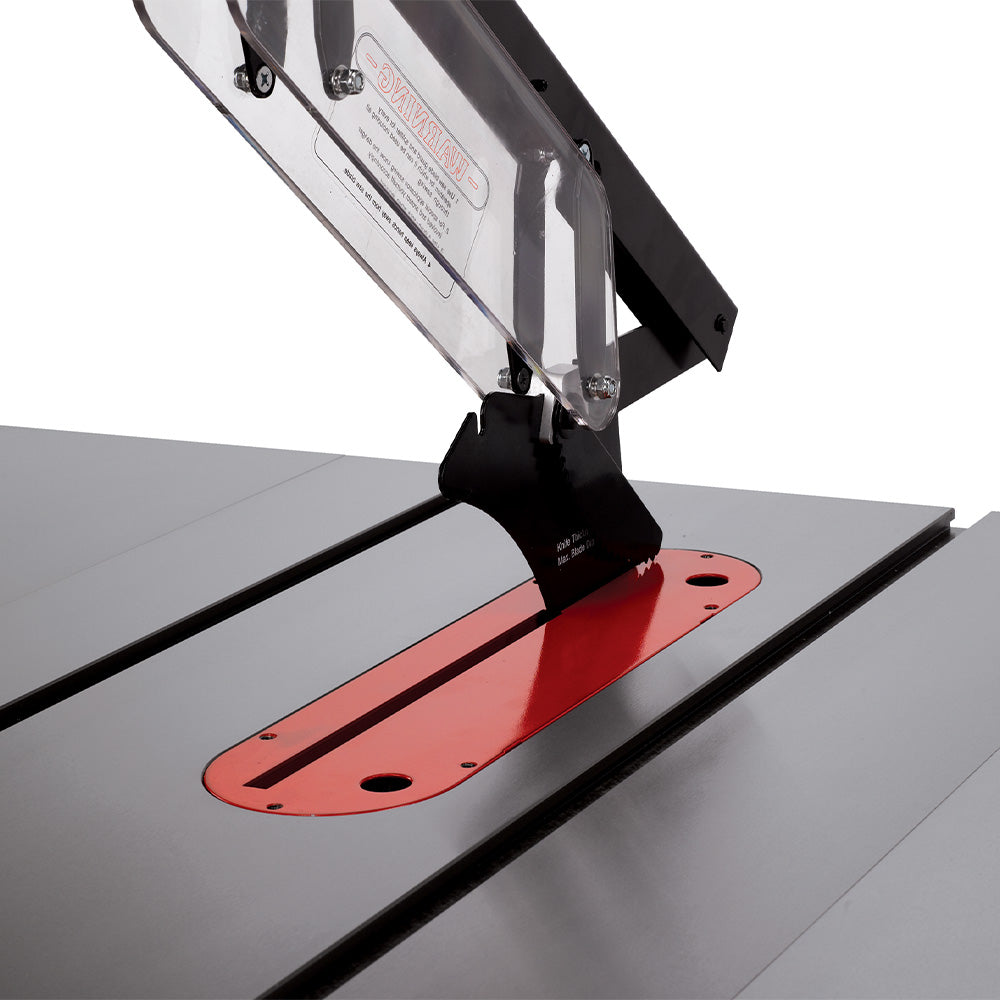

• Independent leaf safety guard protects operator from blade while cutting, even at 45° tilt
• Left and right cast iron extension wings
• Powder coated paint for a long-lasting, chip-resistant finish
• Precision ground high luster cast iron table tops with front edge bevel for hassle-free workpiece positioning
• Rail-mounted magnetic switch is easy to reach and provides overload protection
• Wide stance heavy-duty trunnion for stability and smooth blade positioning

Blade dia.: 10"
Arbor dia.: 5/8"
Max. depth of cut: 3"
Max. thickness (45° cut): 2-1/8"
Table in front of saw blade at max. cut: 10"
Max. width of dado: 13/16"
Max. dia. of dado: 8"
Dust port dia.: 4"
Min. dust collection required: 350 CFM
Table height: 34"
Table size w/extension (D x W): 29" x 42"
Table size w/o extension (D x W): 29" x 20"
Motor: 3hp, 1-phase, 230V
Gross weight: 407 lbs.
Net weight: 330 lbs.
