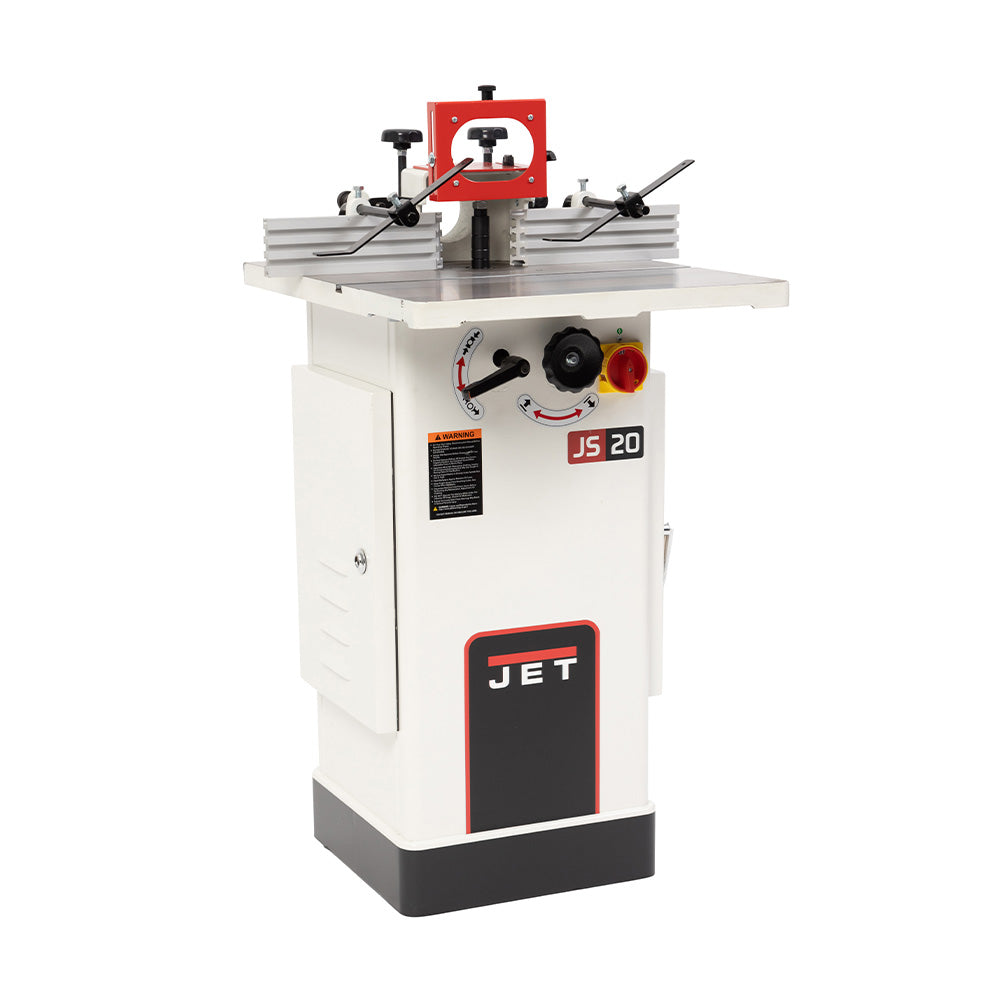

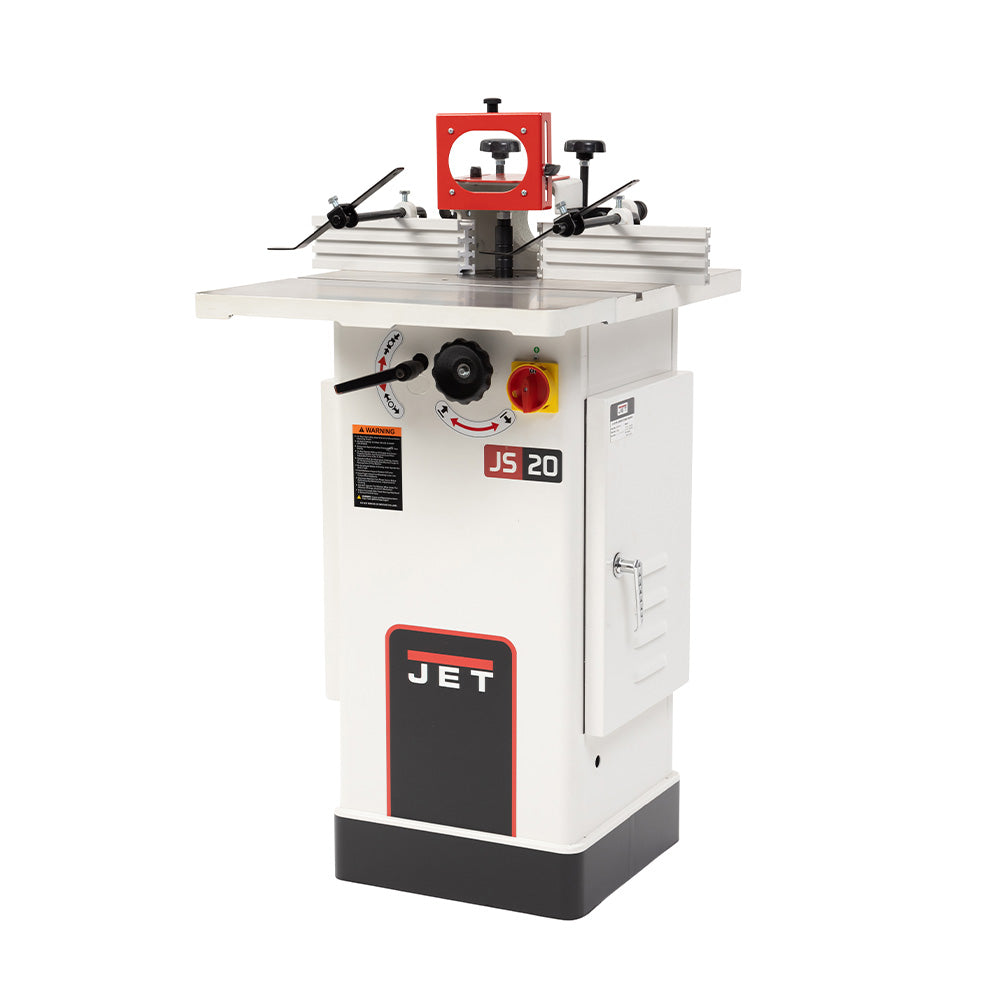

JET JWS-20CS 20" Spindle Shaper 1.5hp, 1-PH, 115/230V

$ 2,013.99

Have questions? Give us a call at 260-637-0054.

If you're looking for a space-saving shaper for your shop, the JET JWS-20CS is what you need. This compact powerhouse features an 8,000 and 10,000 RPM reversing 1.5hp motor. The sleek 18" x 20" precision-ground cast iron table provides a durable work area for various projects. Safe, easy cutter set up is assisted by a positive detent spindle lock. The independent left and right fences feature micro-adjustment, and a built-in 4” dust port.

JET warrants every product they sell against manufacturers’ defects. All JET Woodworking Machinery carry a 5-Year Warranty from date of purchase. Woodworking products with a 5-Year Warranty that are used for commercial or industrial purposes default to a 2-Year Warranty. Warranties are subject to JET's terms and conditions.

  • Powerful 1.5hp motor delivers dependable power, even on heavy jobs

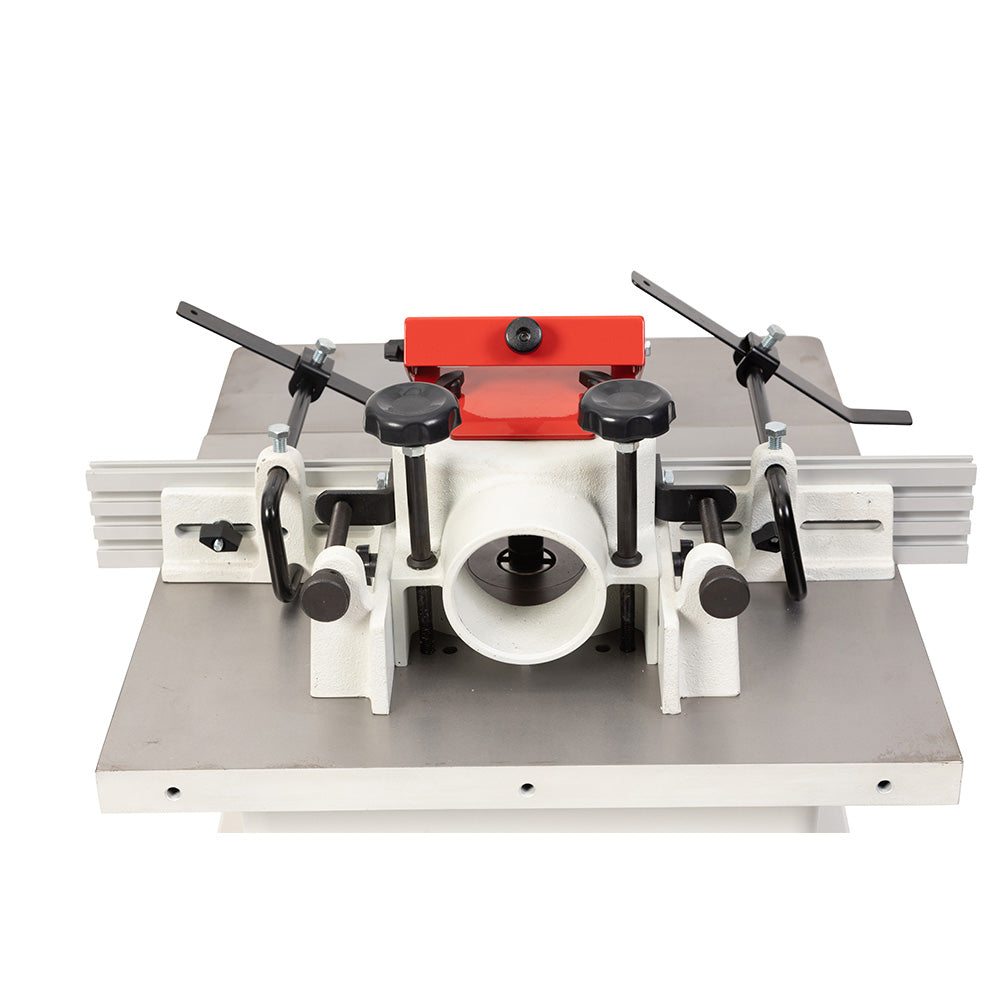

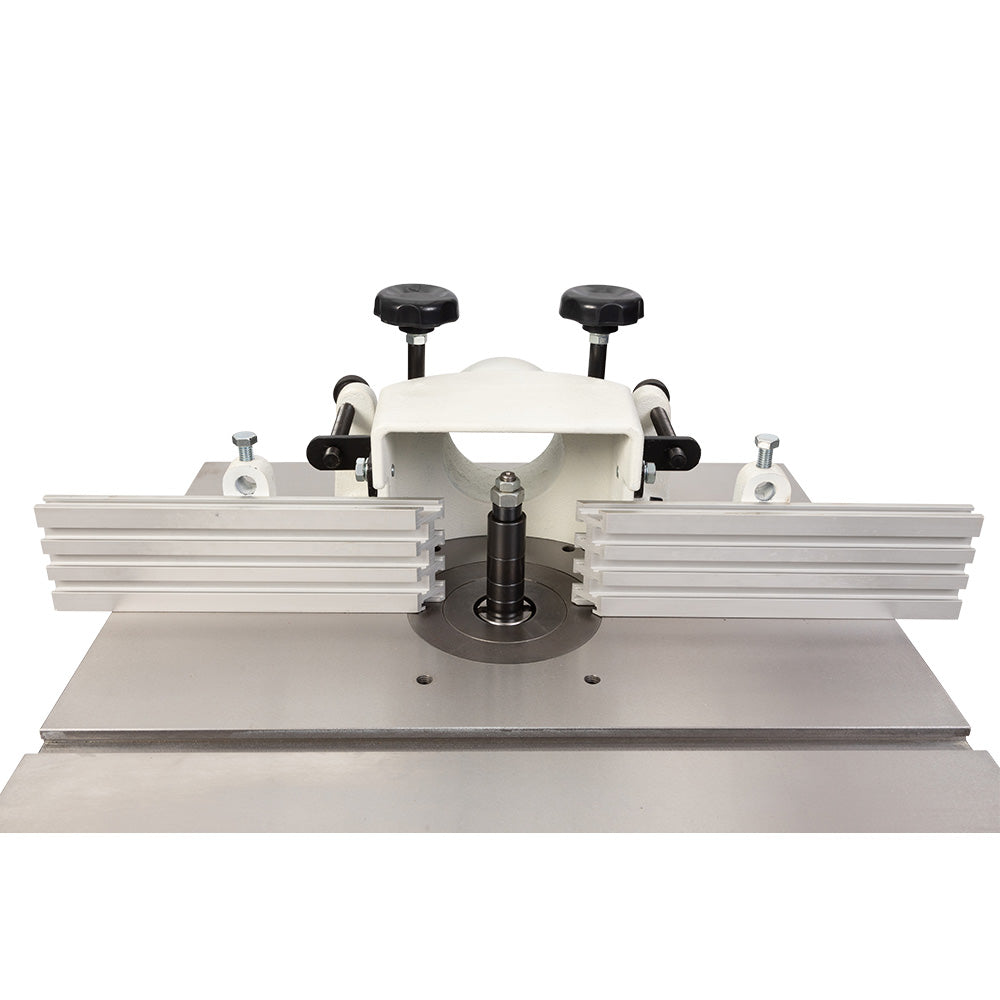

  • Independent left and right fences feature micro-adjustment and have zero-clearance capability
  • Fully enclosed, heavy-duty steel stand has a removable cover for easy motor access

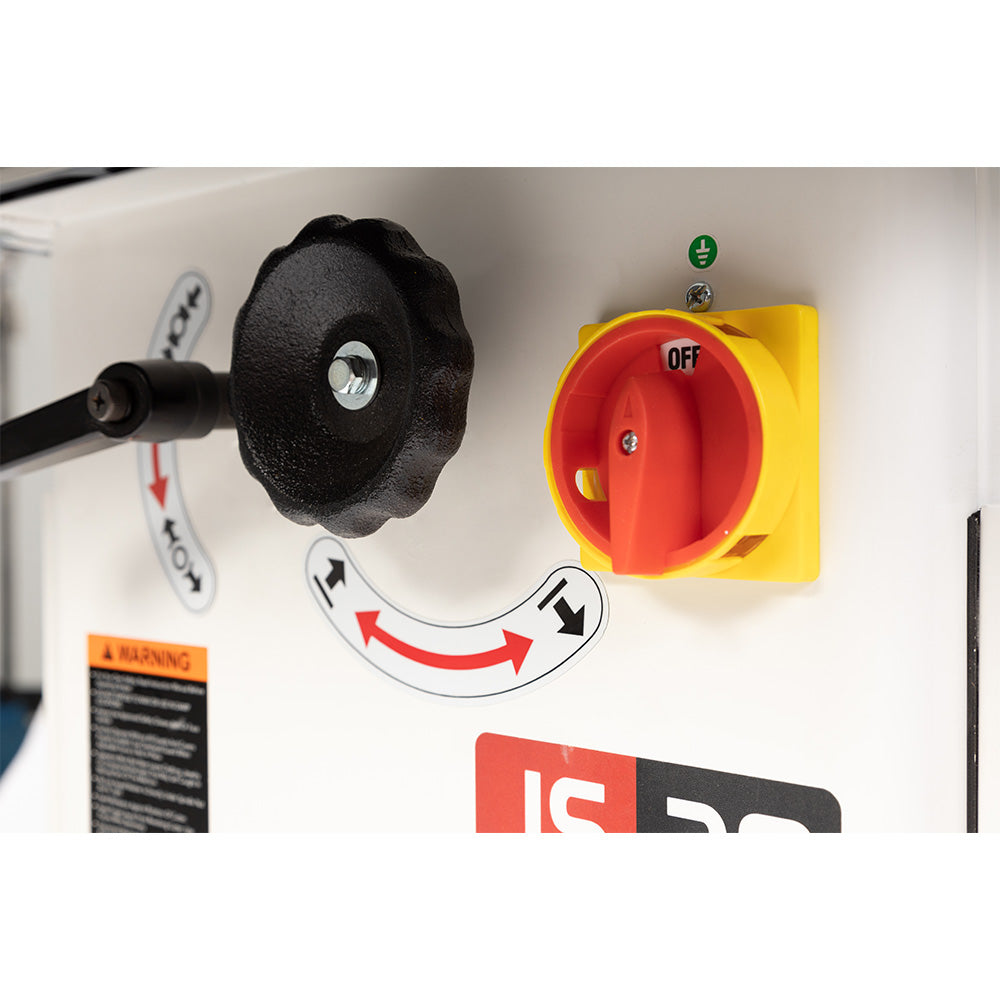

  • Forward/reverse switch for left and right hand operation
  • Extra-large handwheel is conveniently located for easy spindle height adjustments

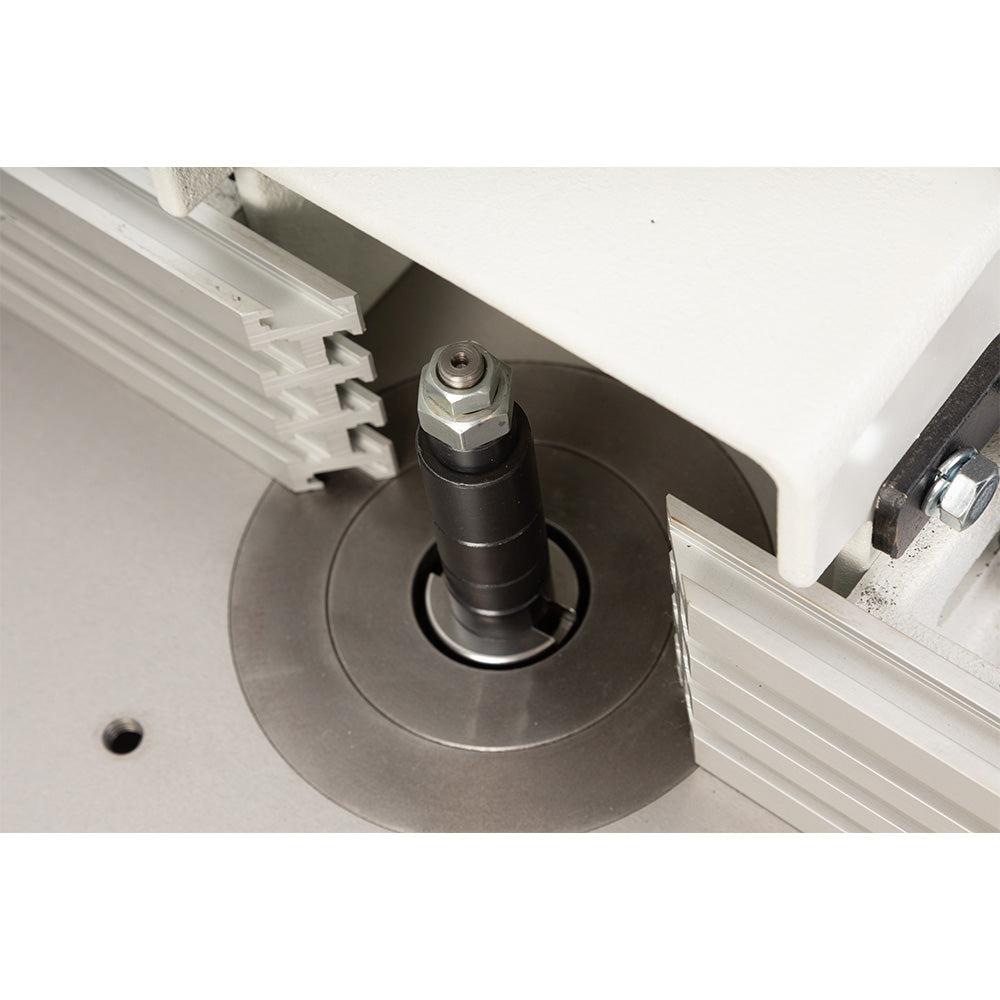

  • 1/2" and 3/4" interchangeable spindles and router bit collets for use with shaper cutter

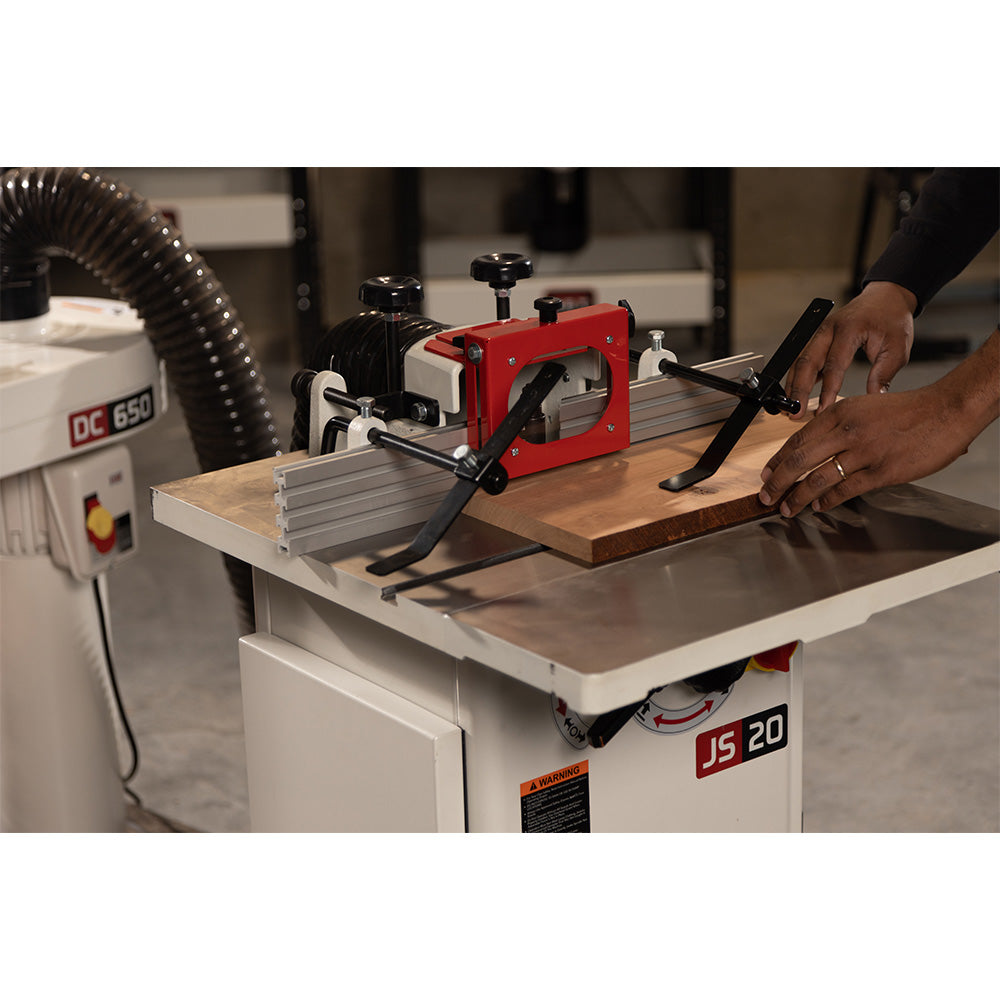

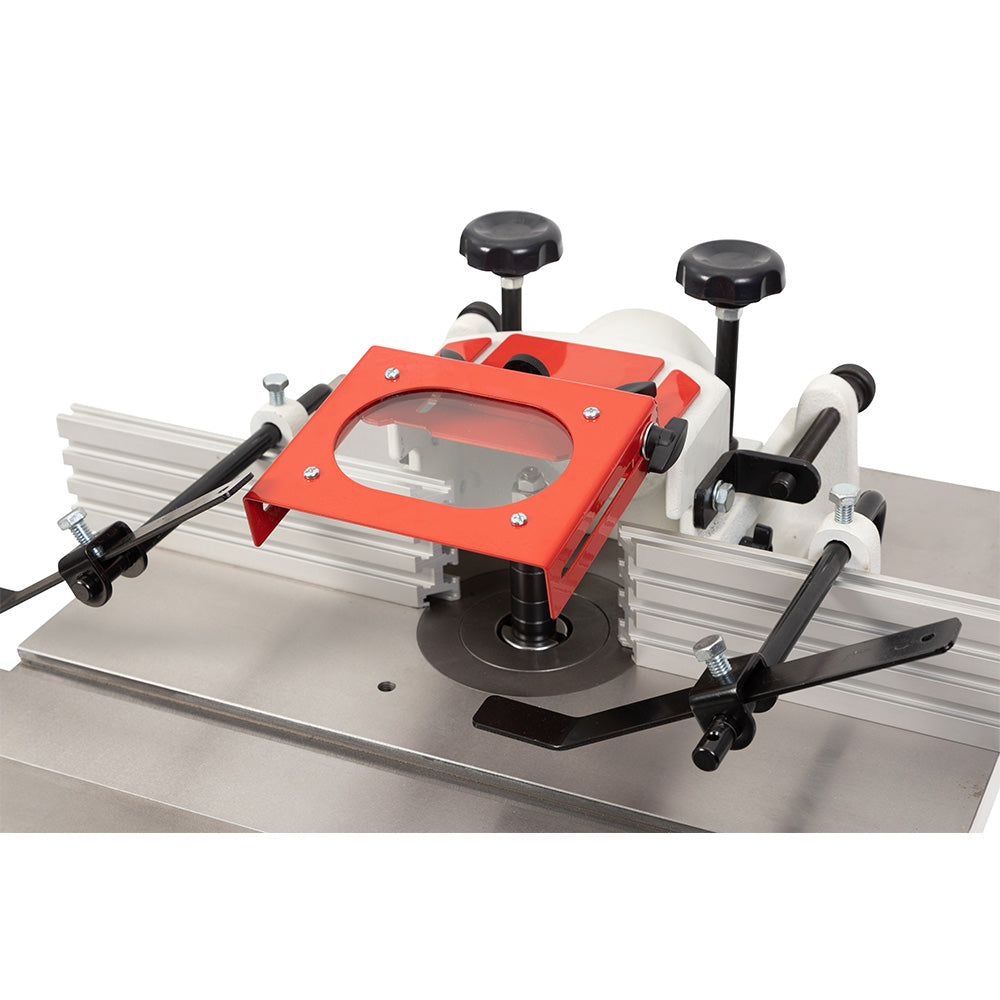

  • Two adjustable hold-downs to secure your work while shaping
  • Two reversible spindle speeds lets you select the best speed and torque for different cutter diameters

Motor: 1.5hp, 1-phase, 115/230V
Pre-wired: 115V
Cutterhead speed (reversible): 8,000 & 10,000 RPM
Table size (L x W): 18" x 20"
Table slot: 3/4" x 3/8" T-slot
Table opening diameter: 5-3/16"
Insert opening diameter: 1-5/8" and 3"
Fence size (2): 10" x 3"
Spindle capacity: 1/2" and 3/4"
Router bit collet capacity: 1/4" and 1/2"
Spindle travel: 2"
Table height: 33-1/2"
Overall dimensions (L x W x H): 18" x 20" x 42"
Min. dust collection: 300 CFM
Dust port diameter: 4"
Net weight: 198 lbs.

  • (1) Dust Chute
  • (1) Miter Gauge
  • (1) Draw Bar & Nut
  • (1) 1/2” Spindle Assembly
  • (1) 3/4” Spindle Assembly
  • (1) 1/4" Router Collet
  • (1) 1/2" Router Collet
  • (1) Arbor Wrench
  • (1) 3mm Hex Key Wrench
  • (1) 12mm / 14mm Open End Wrench

SKU: JT9-724020
