JET JPJ-12B 12" Straight Knife Jointer/Planer 3hp, 1PH, 230V

Sale price
$ 2,899.99
List price
$ 3,999.99

Have questions? Give us a call at 260-637-0054.

You don’t have to choose between buying a jointer or a planer – with the JPJ-12B, you can have both. Leave it to JET to design a machine that allows quick changeover between jointing and planing functions. This versatile machine features an extra-large aluminum extruded fence with centered controls for quick adjustments, a built-in dust chute capable of handling both planing and jointing operations, and a powerful 3-horsepower motor that can handle the toughest lumber.

A heavy-duty, fully welded steel base cabinet houses the motor and the planer table mechanism, while providing solid mounting for the associated controls and support for the jointer table and fence assemblies. Best of all, the fence can stay put when changing over functions.

JET warrants every product they sell against manufacturers’ defects. All JET Woodworking Machinery carry a 5-Year Warranty from date of purchase. Woodworking products with a 5-Year Warranty that are used for commercial or industrial purposes default to a 2-Year Warranty. Warranties are subject to JET's terms and conditions.

Features
  • Extremely quick changeover between jointing and planing functions. Fence does not need to be removed
  • Heavy-duty cast iron tables with a ground finish to ensure accuracy and flatness
  • Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability

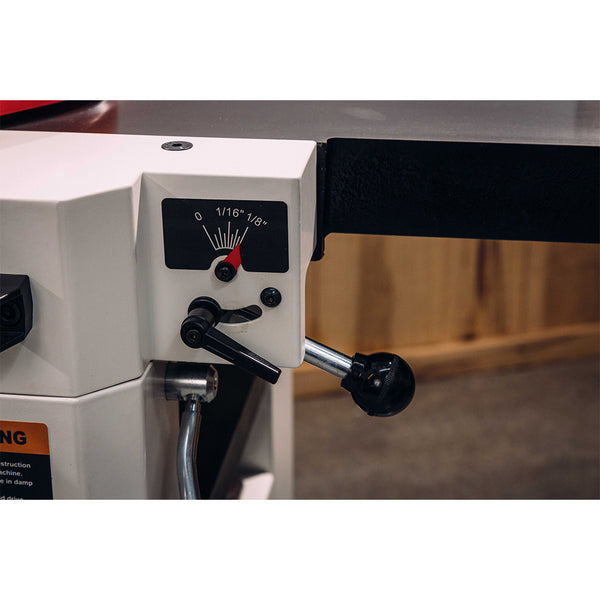

  • Large handwheel for quick and precise adjustments of planer table
  • Parallelogram design keeps the table close to the cutterhead for improved finish and allows for precise depth of cut adjustments
  • (3) Precision-balanced high-speed steel knives ensure quality cuts
Specs

Cuts Per Minute: 15,900
Cutterhead Diameter: 2-3/4"
Cutterhead Speed: 5,300 RPM
Dust Collection Min. Required: 550 CFM
Dust Port Outside Diameter: 4"
Feed Rate - Planing (FPM): 2 speed 16 to 26 FPM
Fence Positive Stops: 90° and 45° R
Fence Size (L x H): 43-1/4" x 5-7/8"
Fence Tilt: 90° to 45° R
Jointer Cutting Capacity (W x D): 12" x 1/8"
Jointer Table Size (L x W): 55" x 12-1/32"
Max. Depth of Cut - Planing: 5/32"
Max. Planing Thickness: 8-3/4"
Max. Planing Width: 12"
Min. Planing Length: 10"
Motor Power: 3hp
Motor Voltage: 230V
Net Weight: 453 lbs.
Number of Knives: 3
Overall Dimensions (L x W x H): 55-7/16" x 28-15/16" x 40"
Overall Height: 40"
Planer Cutting Capacity (W x D): 12" x 8-3/4"
Planer Table Size (L x W): 25" X 12-1/32"
Prewired Voltage: 230V
Recommended Circuit Size: 30 Amps
Standard Knife Size (L x W x T): 12-3/16" x 11/16" x 1/8"
Type of Cutterhead: Straight Knife
Full Load Amps: 15
Running Amps: 4.5

SKU: 715100
