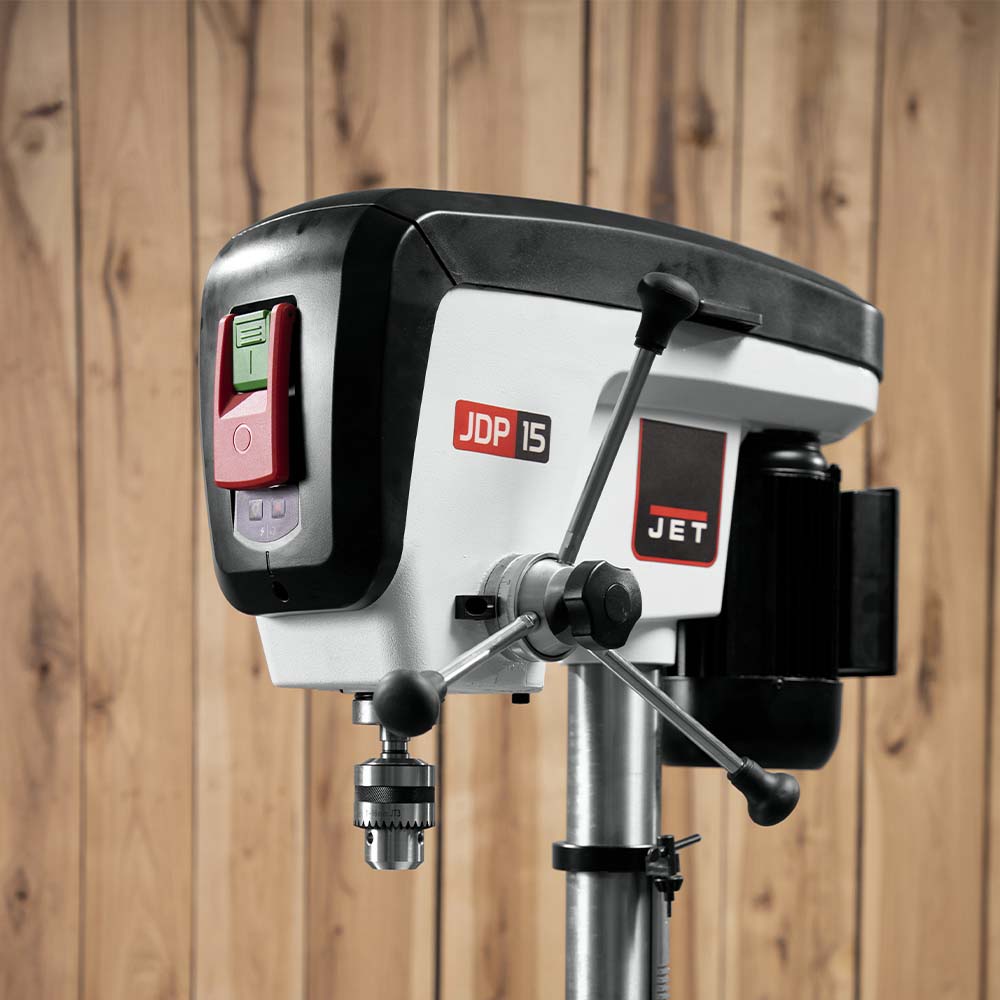

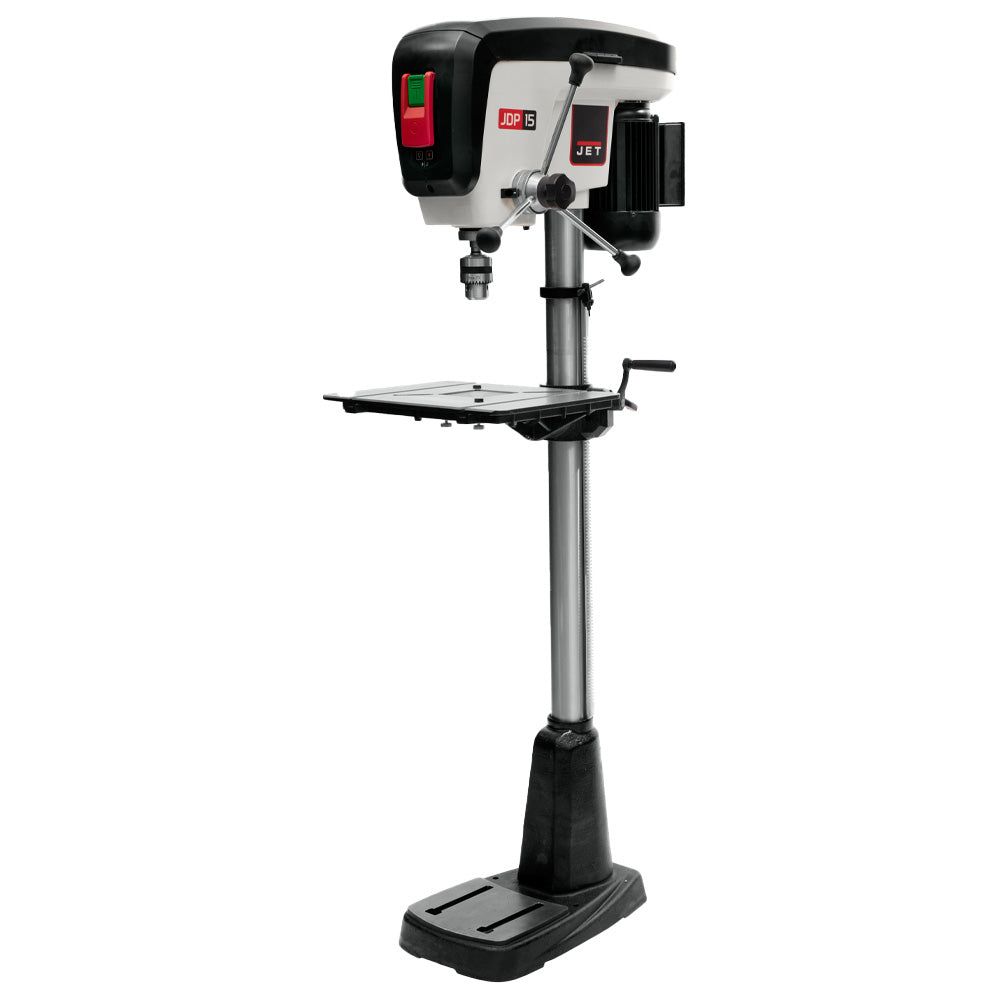

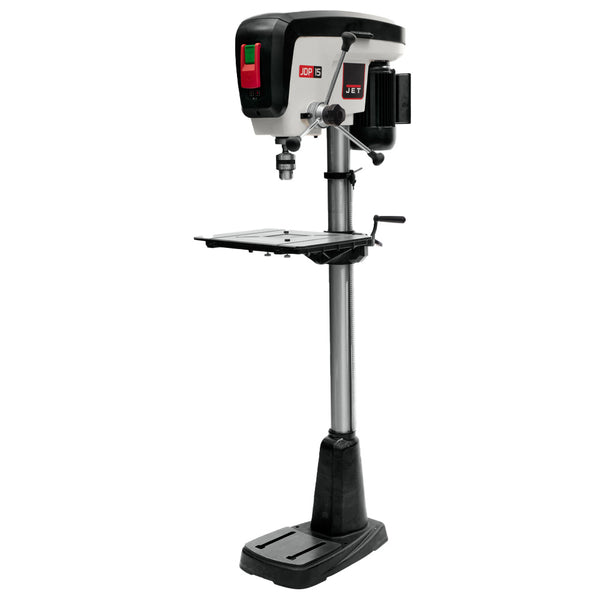

The JET JDP-15F, 15” Floor Standing Drill Press. From a full 3-1/8” of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press features a long-lasting, built-in LED work light to provide direct lighting while reducing shadows. Another feature includes the one-handed belt-tensioning system and a large 12-1/2" x 17" work table which are all CSA Certified.
[TABS]
Features

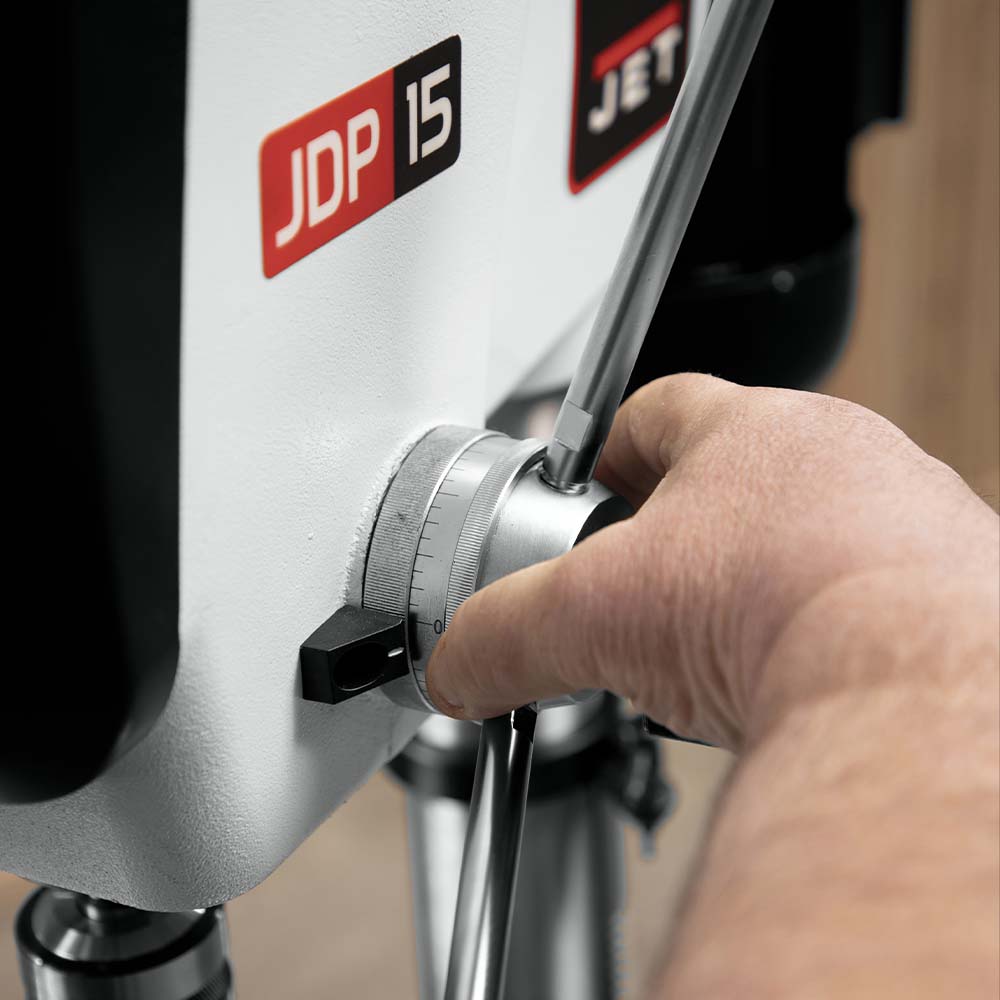

- Integrated depth stop makes repetitive drilling quick and easy
- Large cast iron base provides stability
- One-handed belt tensioning allows for rapid speed changes
- Power switch features a safety key and large, paddle-style off button
- Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system

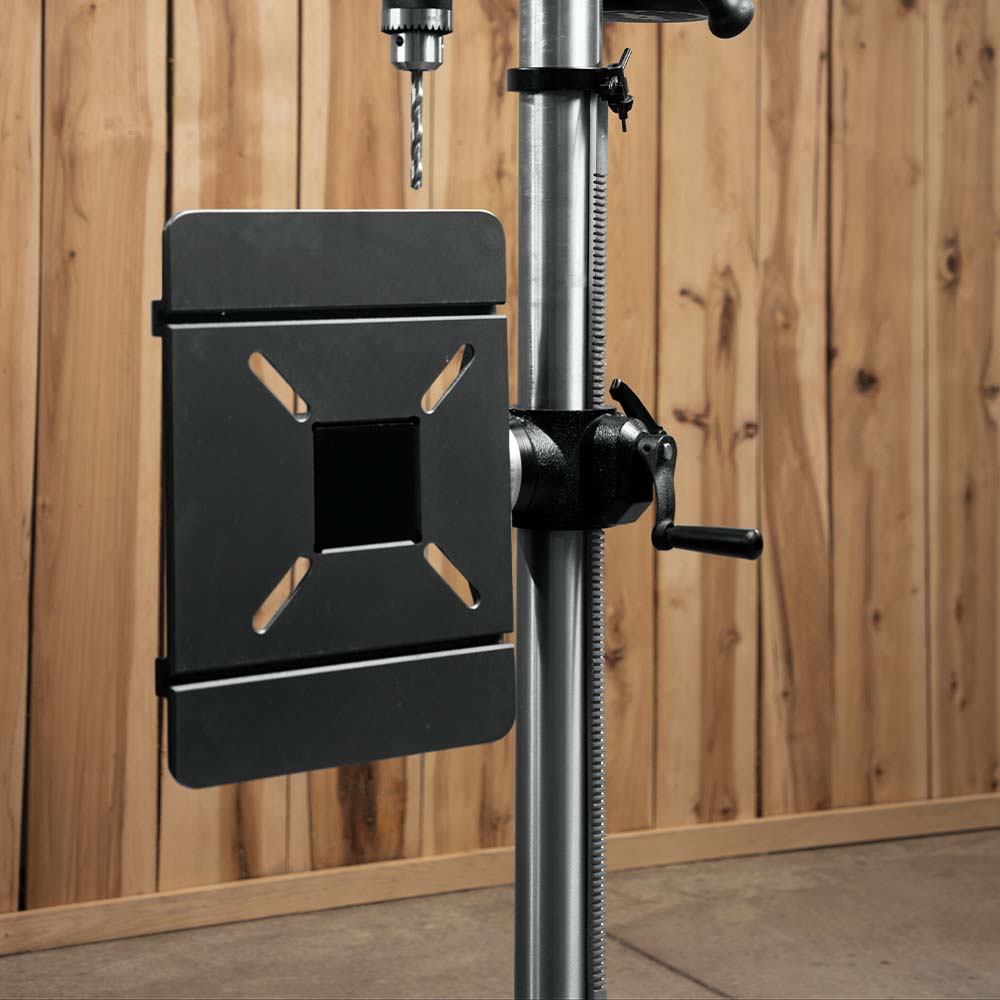

- Replaceable MDF table insert
- Table edge lip designed to make clamping easy
- Xacta-X laser system easily identifies the drill center
Specs
Assembled Machine Dimensions (L x W x H) (In.): 27 x 17 x 63-1/4
Chuck Size (In.): 5/8
Column Diameter (In.): 2-3/4
Motor Power (HP): 3/4
Motor Voltage (V.): 115
Number of Spindle Speeds: 16
Prewired Voltage (V.): 115
Spindle Distance to Base (In.): 46-1/2
Spindle Distance to Table (Max.) (In.): 30-1/2
Spindle Travel (In.): 3-1/8
Style (Type): Floor standing Model
Swing (In.): 15
Table Size (LxW) (In.): 12-1/2 x 17
Weight (Lbs.): 172
