$ 1,869

Have questions? Give us a call at 260-637-0054.

Are you ready to get more from your dust collector? The Cyclone Dust Collector Collection from JET delivers the efficiency you've been waiting for. With a direct mount filter, a radio frequency remote control, and a large collection bin, these dust collectors take your shop's capabilities to a new level. Upgrade to a JET Cyclone Dust Collector and experience The Power of Efficiency.

JET warrants every product they sell against manufacturer's defects. All JET Woodworking Machinery carry a 5-Year Warranty from date of purchase. Woodworking products with a 5-Year Warranty that are used for commercial or industrial purposes default to a 2-Year Warranty. Warranties are subject to JET's terms and conditions.

Features
  • Direct mounted filter eliminates inefficiencies from ridged flex hosing and bends

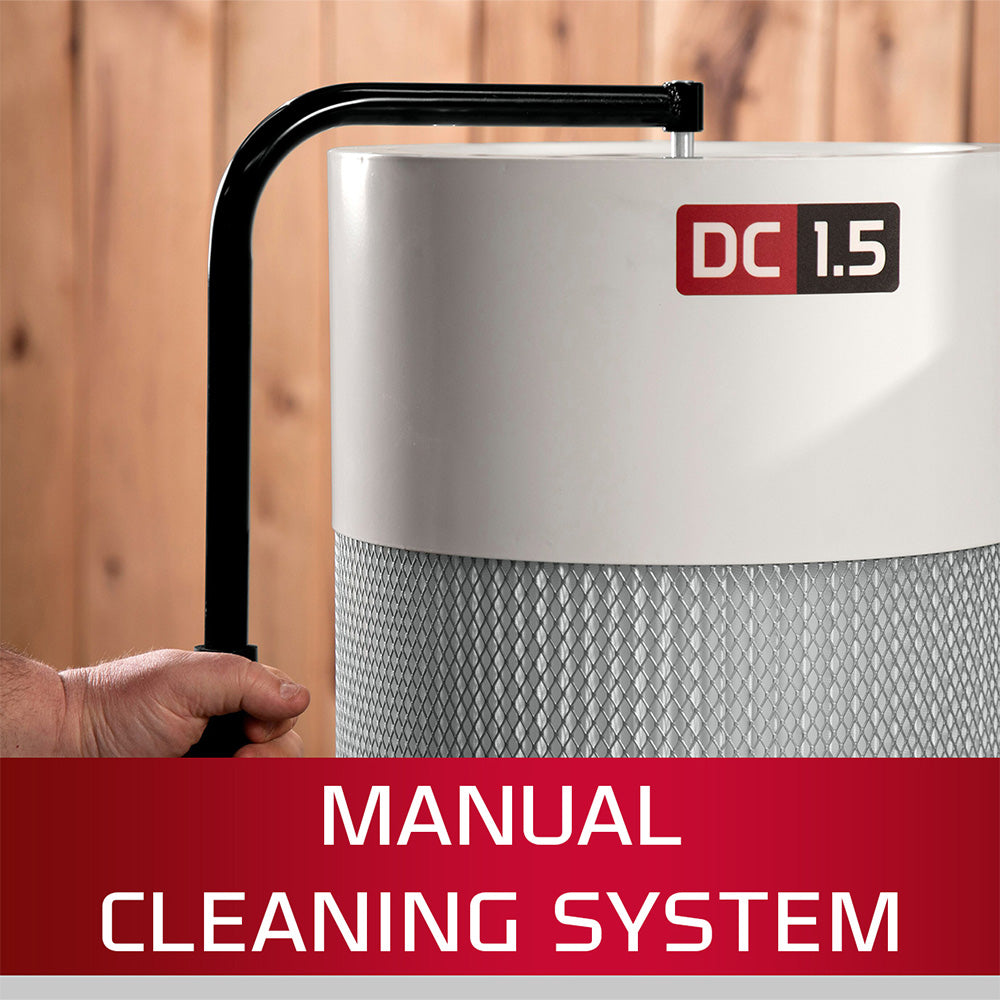

  • Double paddle manual cleaning system quickly cleans the pleated filter
  • Fine dust particles are filtered through pleated material that captures even the smallest particles down to 1 micron and below
  • Heavy debris is captured in 20 gallon drum with quick release levers and independent casters for quick emptying
  • Heavy debris is pulled down to collection drum before debris stream reaches the filter, providing constant suction
  • Included radio frequency remote control works from up to 50 feet away
  • Swivel casters make it easy to move the unit around the shop
  • Cyclone's two stage separation provides more working CFM than comparable horsepower single stage units
Specs

1-Hose Connection Diameter: 6"
2-Hoses Connection Diameter: 4"
Canister Filter Length: 15-3/4"
Collection Drum Capacity: 20 gal.
Filter Efficiency: 99% of 2 Micron particles, 86% of 1 Micron particles
Impeller Material: Steel
Sound Rating: 75 dB
Max. Static Pressure: 8,268 Wc.
MERV Value: 13
Motor Amps: 14 A
Starting Amps: 52 A

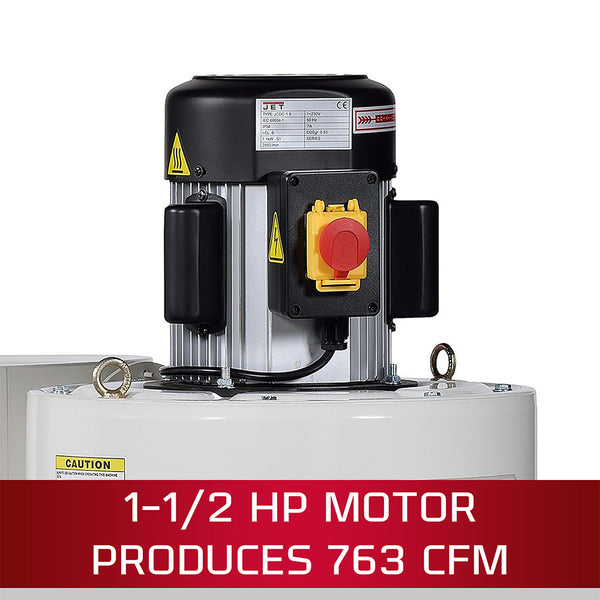

Horsepower: 1.5hp
Motor Voltage: 115V
Prewired Voltage: 115V
Dimensions (L x W x H): 22" x 47" x 67-9/16"
Net weight: 138.6 lbs.

SKU: JT9-717515
