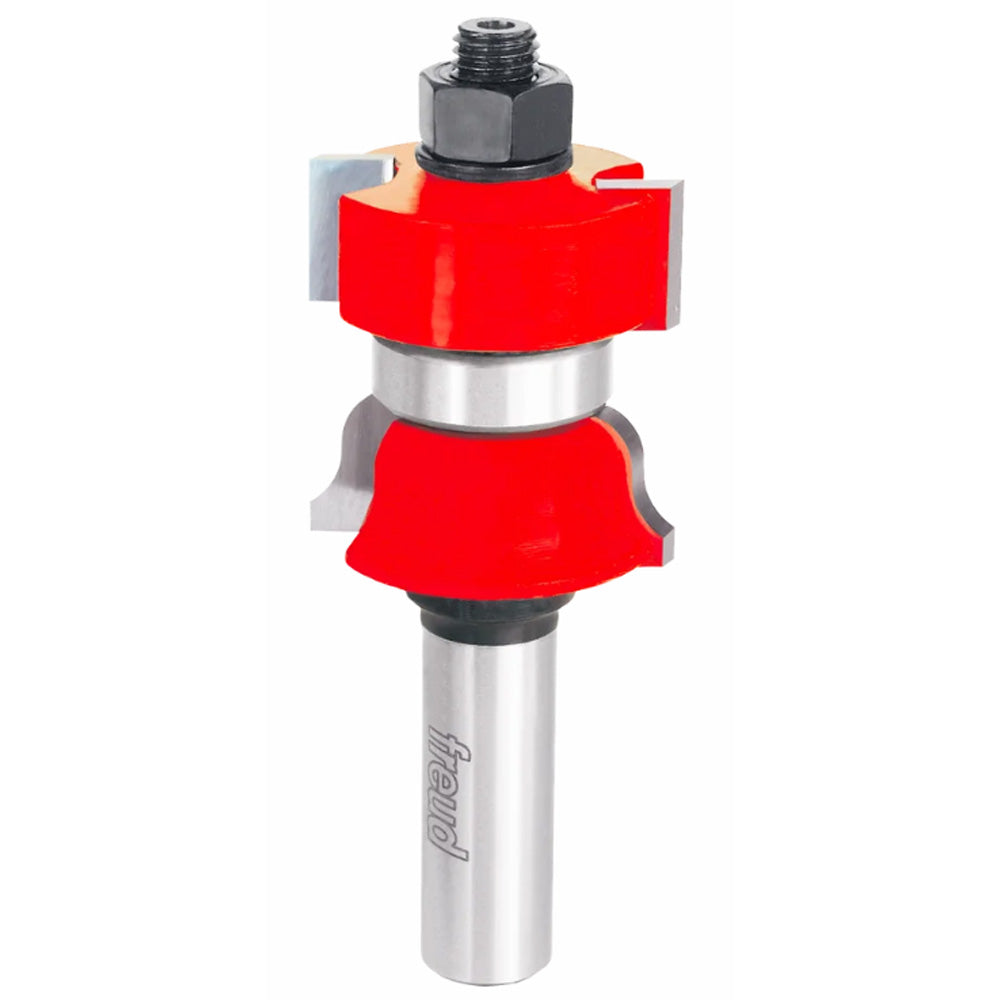

Freud Window Sash & Rail Router Bit - 1-11/32" Diameter, 1-25/64" Cut, 1/2" Shank
Freud Window Sash & Rail Router Bit - 1-11/32" Diameter, 1-25/64" Cut, 1/2" Shank
Click image to open expanded view
Freud Window Sash & Rail Router Bit - 1-11/32" Diameter, 1-25/64" Cut, 1/2" Shank
Freud Window Sash & Rail Router Bit - 1-11/32" Diameter, 1-25/64" Cut, 1/2" Shank

Freud Window Sash & Rail Router Bit - 1-11/32" Diameter, 1-25/64" Cut, 1/2" Shank

$ 95.78
$ 138.36

Have questions? Give us a call at 260-637-0054.

Designed to be used in conjunction with Freud Window Sash & Rail Bit #99-050.

The two bits in Freud's Window Sash and Rail family work together to produce a complete divided lite sash. #99-050 copes the rails, sash bars, and muntins, while this bit cuts the profile on all components. Bits are sold separately, and include an instruction manual. Use in table-mounted routers with fence only, suitable for hardwood or softwood.

Features
  • Used together, these bits produce all parts for a complete wood sash window
  • #99-050 copes the rails, sash bars, and muntins, while #99-051 cuts the profile on all components
  • Use with table-mounted routers only
  • Rout window parts from hardwood or softwood
  • Freud Perma-SHIELD Coating
Specs

Bearing diameter: 22mm
Cutting length: 1-25/64"
Overall diameter: 1-11/32"
Minor height: 17/32"
Overall length: 3-7/16"

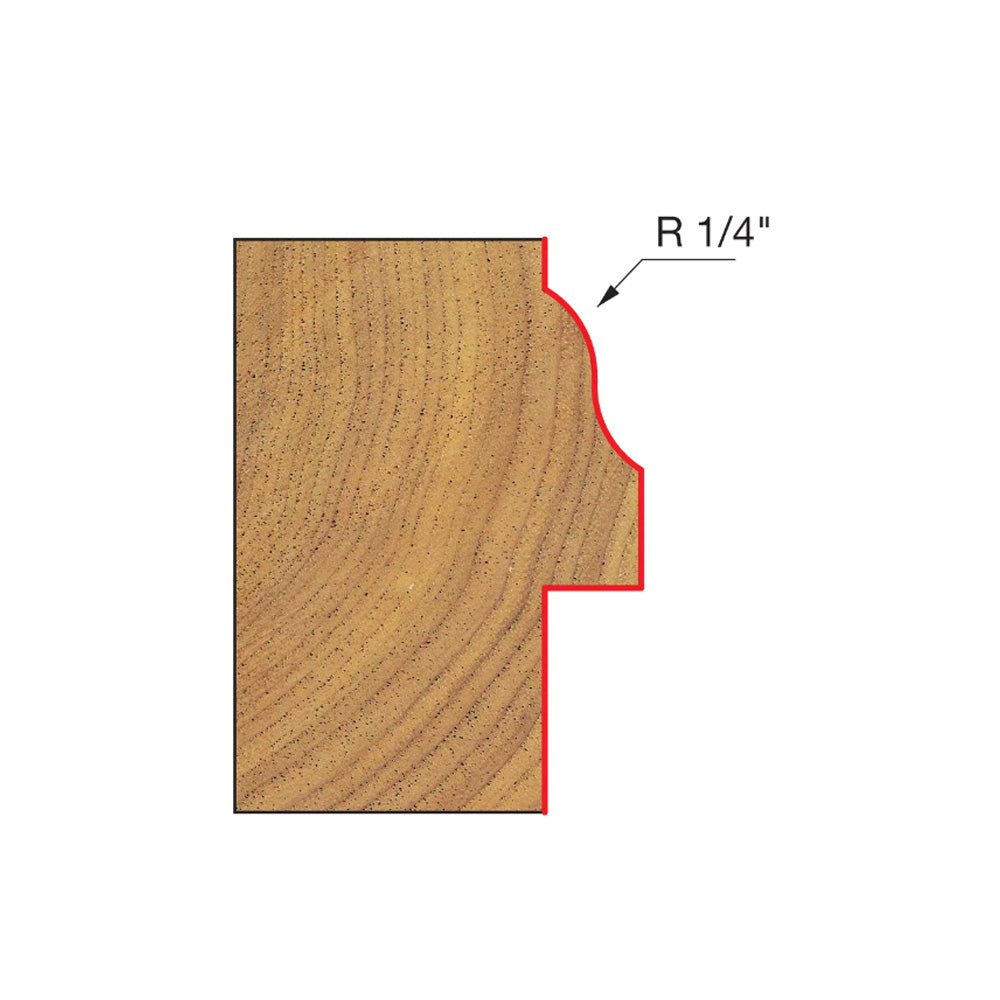

Radius: 1/4"
Shank diameter: 1/2"
Number of cutters: 2
Max RPM: 16,000

SKU: 99-051
