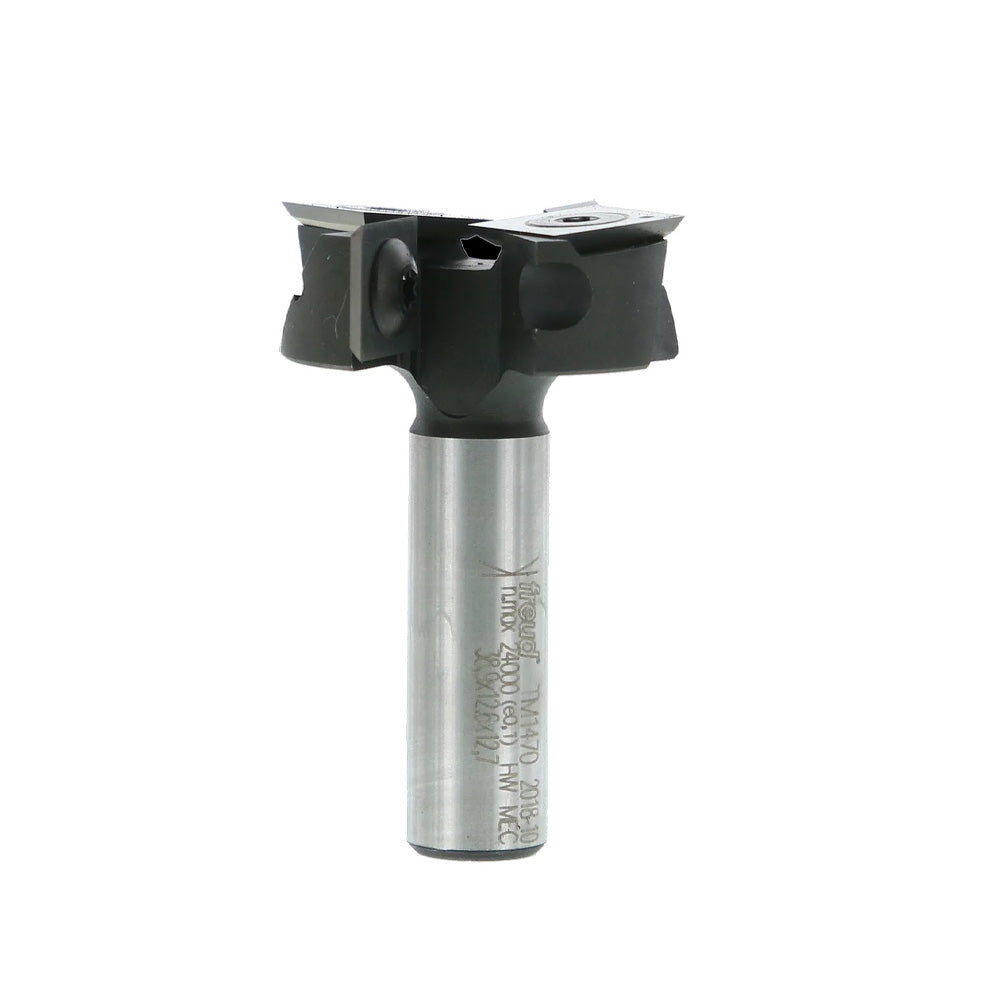

Freud Solid Wood Surfacing & Rabbeting Router Bit 1-1/2" Diameter, 1/2" Cut, 1/2" Shank
Freud Solid Wood Surfacing & Rabbeting Router Bit 1-1/2" Diameter, 1/2" Cut, 1/2" Shank
Freud Solid Wood Surfacing & Rabbeting Router Bit 1-1/2" Diameter, 1/2" Cut, 1/2" Shank
Click image to open expanded view
Freud Solid Wood Surfacing & Rabbeting Router Bit 1-1/2" Diameter, 1/2" Cut, 1/2" Shank
Freud Solid Wood Surfacing & Rabbeting Router Bit 1-1/2" Diameter, 1/2" Cut, 1/2" Shank
Freud Solid Wood Surfacing & Rabbeting Router Bit 1-1/2" Diameter, 1/2" Cut, 1/2" Shank

Freud Solid Wood Surfacing & Rabbeting Router Bit 1-1/2" Diameter, 1/2" Cut, 1/2" Shank

$ 179.56

Have questions? Give us a call at 260-637-0054.

When you need to flatten solid wood on a CNC, you want more than a bit that simply removes material. The Freud Solid Wood Surfacing & Rabbeting Bit is designed to leave a clean, flat finish while also giving you the ability to cut precise rabbets (L-shaped recesses) along the edges of solid wood panels. You can also use this bit to flatten slabs.

What truly sets this bit apart is its replaceable solid carbide inserts. Each insert has four usable cutting edges, so instead of replacing the entire bit when the cutting edges wear, simply rotate the inserts and keep working.

Combined with Freud's high-density TiCo carbide, the TM1470 is built to deliver the kind of longevity, versatility, and consistent performance that can make a specialized bit like this a valuable addition to a busy CNC setup.

Also available for MDF.

Replacement cutters >

Features
  • Two Jobs in One: Surface solid wood and cut precise rabbets with the same bit.
  • Large Cutting Diameter: 1-1/2" covers plenty of material with each pass for efficient surfacing.
  • Replaceable Carbide Inserts: Rotate each insert to use all four cutting edges before replacing it.
  • Built for CNCs & Router Tables: Designed for long cutting life, excellent finish quality, and demanding solid wood applications.
  • Super Density Carbide: Freud's own TiCo carbide with chromium for 2x longer cutting life.
Specs

Number of cutters: 4
Cutting length: 1/2"
Overall diameter: 1-1/2"
Overall length: 2-1/4"
Shank diameter: 1/2"
Max. RPM: 16,000

SKU: TM1470
