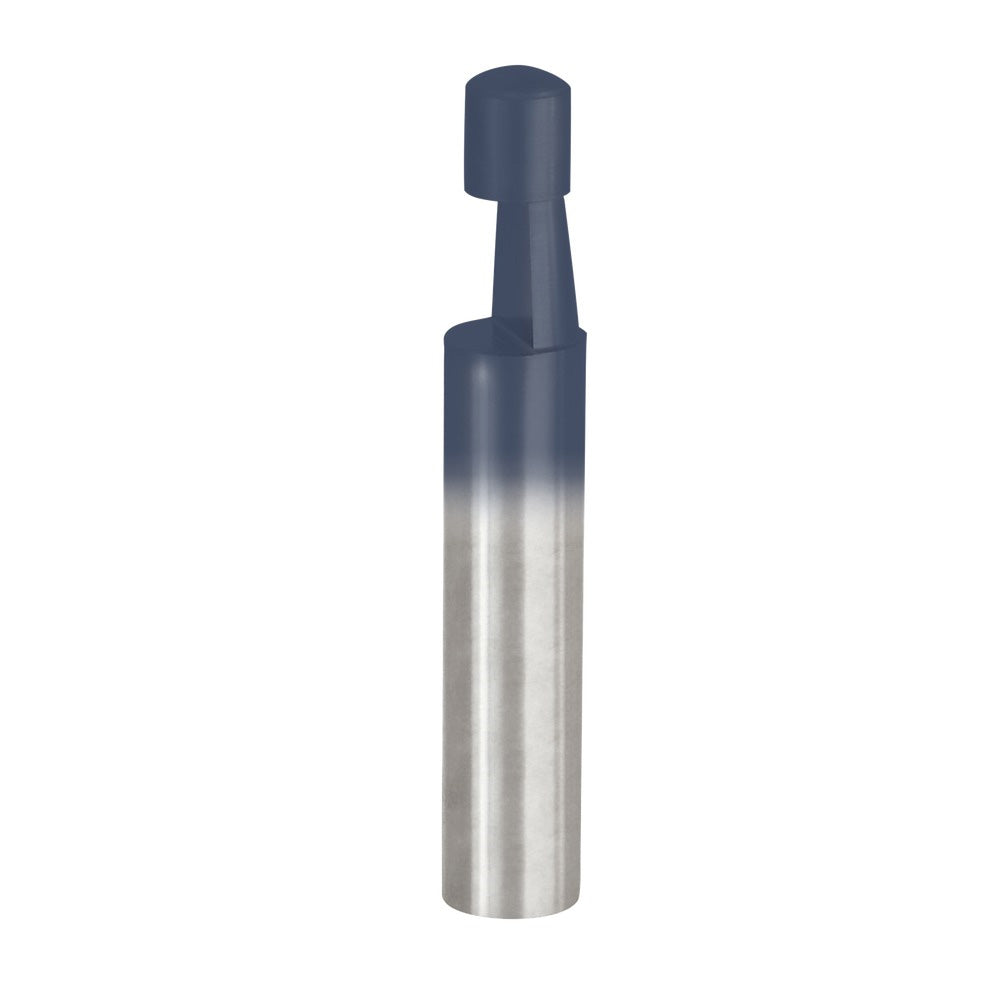

Freud 1/4" Shank 3/16" Carbide Bevel Trim Bit (1/4" Dia.)

Freud 1/4" Shank 3/16" Carbide Bevel Trim Bit (1/4" Dia.)

$ 11.29
$ 11.97

Have questions? Give us a call at 260-637-0054.

Bevel Trim Bits produce a clean, finished edge on plastic laminates with little or no filing. Choose among bevel angles from 8° to 45° in the 41-series bits, which also include a ball bearing guide. Or choose the solid carbide 66-100 for a 7° bevel in a very cost effective tool.

Ideal for fast bevel trim of plastic laminate.

Features
  • Black I.C.E. coating for cool cutting edge and superior chip evacuation
  • Black I.C.E. + Freud TiCo Hi-Density Carbide = 2X increased life and performance vs. standard uncoated bits
Specs

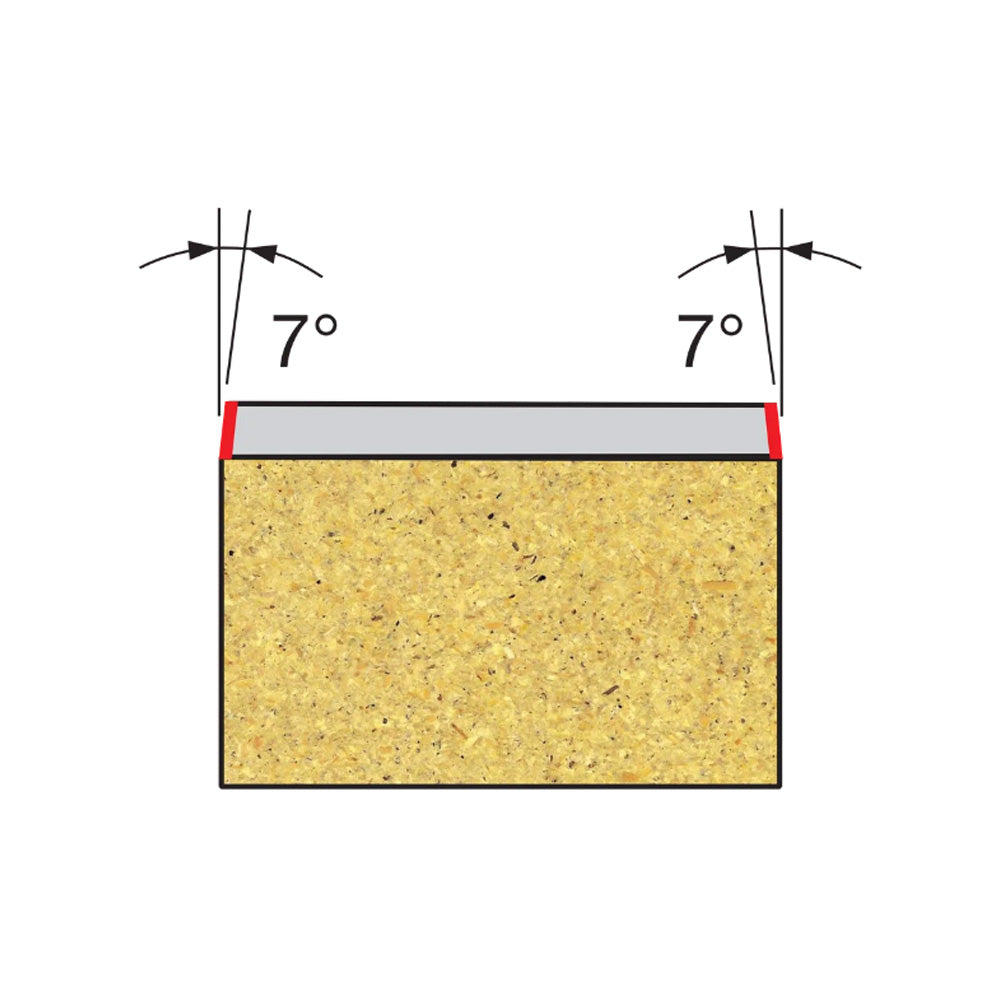

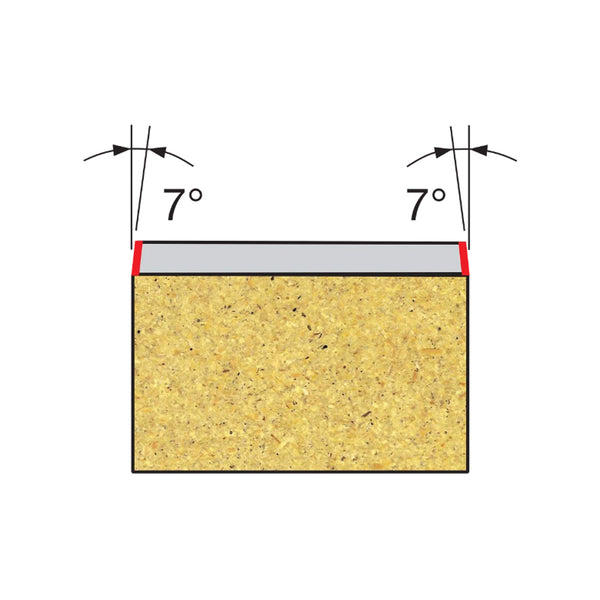

Angle: 7°
Bearing dia.: 3/16"
Carbide height: 1/4"
Overall dia.: 1/4"
Overall length: 1-1/2"
Number of cutters: 2
Max RPM: 24,000
Shank dia.: 1/4"

SKU: 66-100
