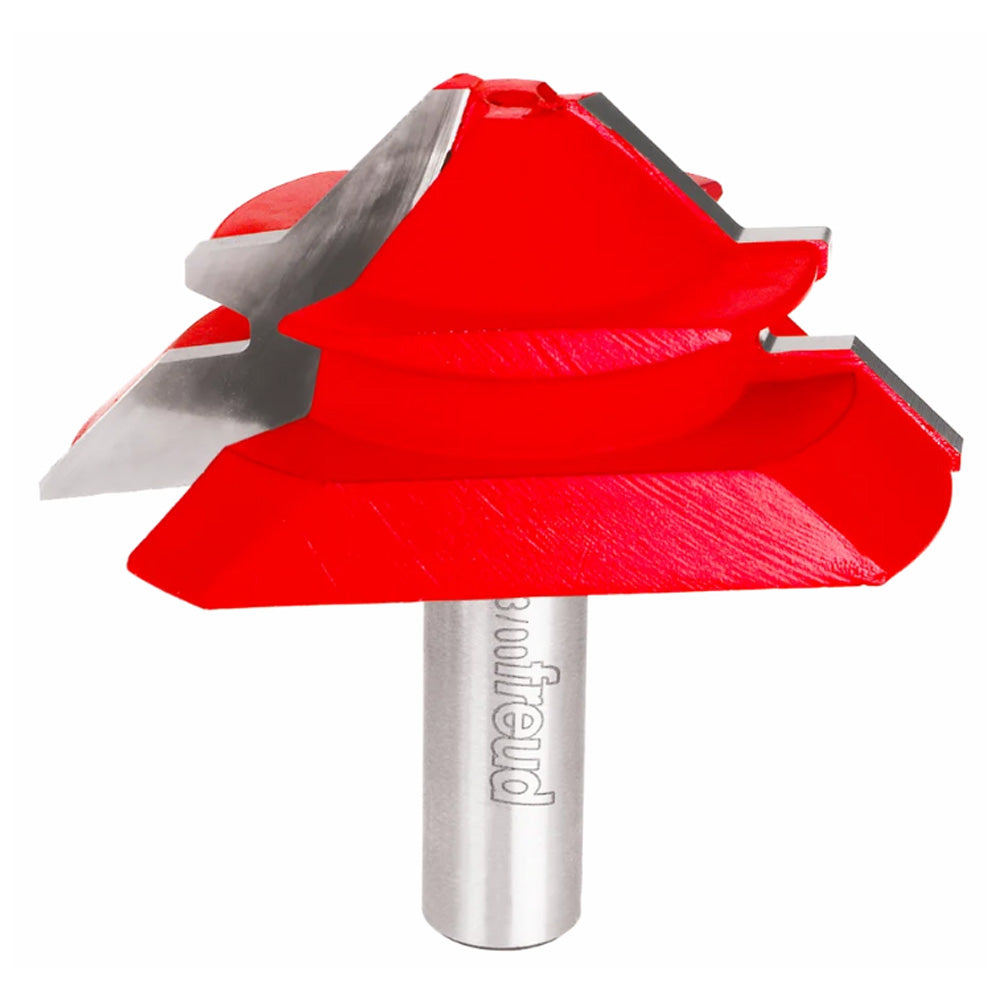

Freud Lock Miter Bit 1/2" SH, 2-11/64" D, 7/8" CL

Sale price
$ 96.05
List price
$ 109.97

Have questions? Give us a call at 260-637-0054.

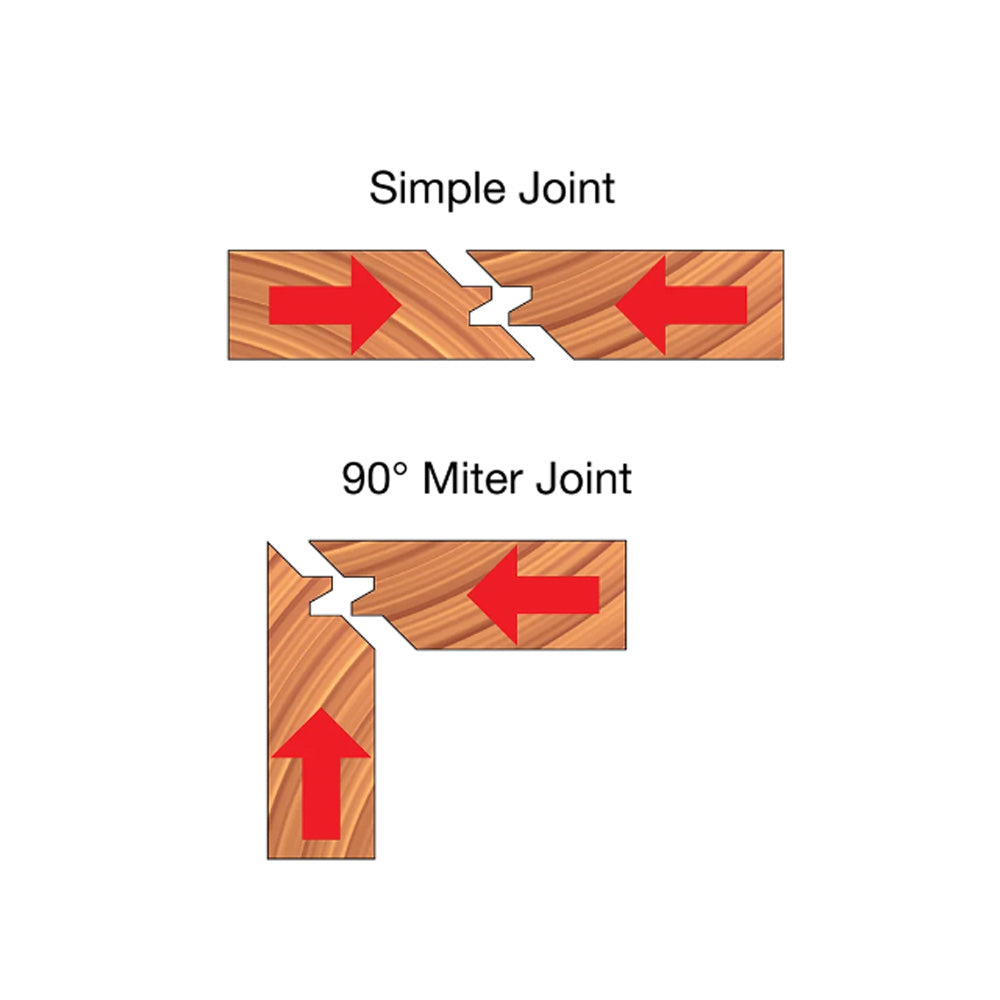

Create rock-solid interlocking corner joints with Freud Lock Miter Bits. For 90 degree joints use either of these bits. They are designed to rout one piece horizontally on the router table, and the other piece standing vertical. For routing solid hardwood or softwood on table mounted routers or CNC machines only.

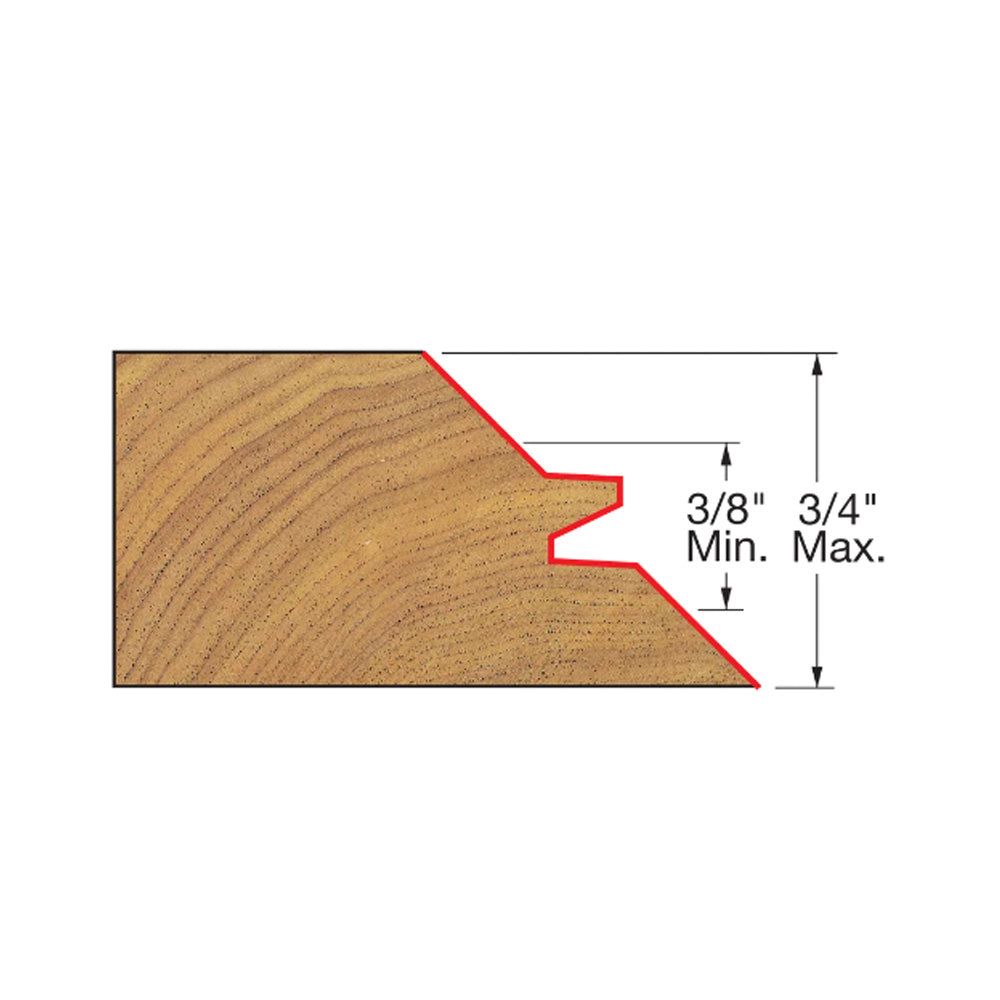

Ideal for creating interlocking 90° corners in 1/2" to 1" stock. Cuts thinner panels for projects such as humidors and jewelry boxes.

  • Creates remarkably strong interlocking joints
  • Best for hardwood and softwood, also routs plywood and composites
  • Use on CNC or table-mounted routers only
  • Cuts thinner panels for projects such as humidors and jewelry boxes
  • Freud Perma-SHIELD Coating

Angle: 45°
Cutting length: 7/8"
Overall dia.: 2-11/64"
Overall length: 2-3/8"
Number of cutters: 2
Max RPM: 16,000
Shank dia.: 1/2"

SKU: 99-035

Customer Reviews

Based on 1 review
Kevin Thomas
Great lock miter bit

Purchased this bit the create architectural box beams for remodel doing. Bit performed well and kept sharp edges even after 200’ of beam making. Like the fact that this bit will work with material from 1/2” to 1 1/2” thickness. Highly recommend!
