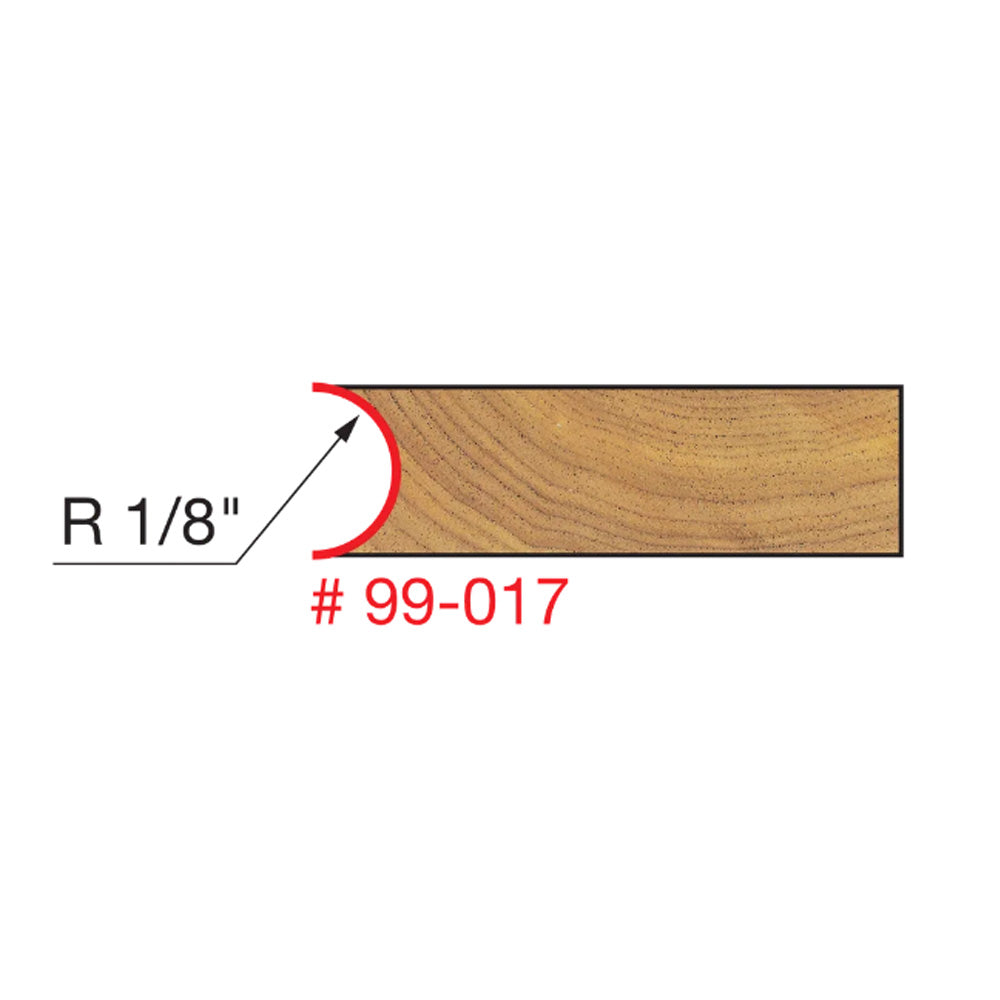

Originally designed to produce beautiful cedar strip canoes, these matching bits are also a great choice for smaller projects like curving planters, baskets and more. Bit 99-017 cuts the concave flute shape in one edge of a 1/4" thick strip, and 99-018 cuts the mating convex bead in the other edge. Use these bits to rout hardwood or softwood in CNC or table-mounted routers.
Ideal For: Milling perfectly matched joints in 1/4" material
Machine Use: CNC or table-mounted portable routers
Materials: Hardwood, softwood and composite materials

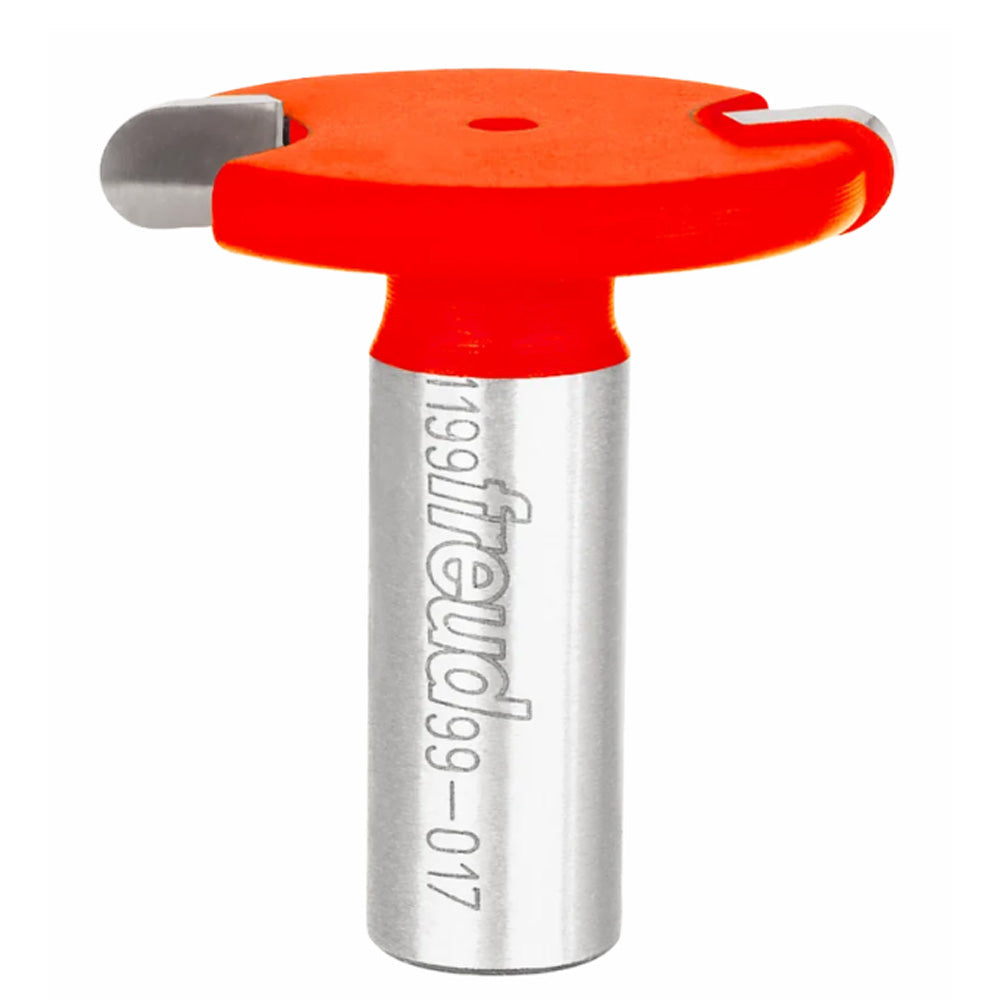

Item Number: 99-017
1/8" Radius Canoe Joint Bit with 1/2" shank, 1-11/16" overall length
- Number of cutters: 2
- Overall dia.: 1-1/2"
- Overall length: 1-11/16"
- Shank dia.: 1/2"
- Carbide height: 1/4"
Item Number: 99-018
1/8" Radius Canoe Joint Bit with 1/2" Shank, 1-7/8" overall length
- Number of cutters: 2
- Overall dia.: 1-1/2"
- Overall length: 1-7/8"
- Shank dia.: 1/2"
- Carbide height: 3/8"
