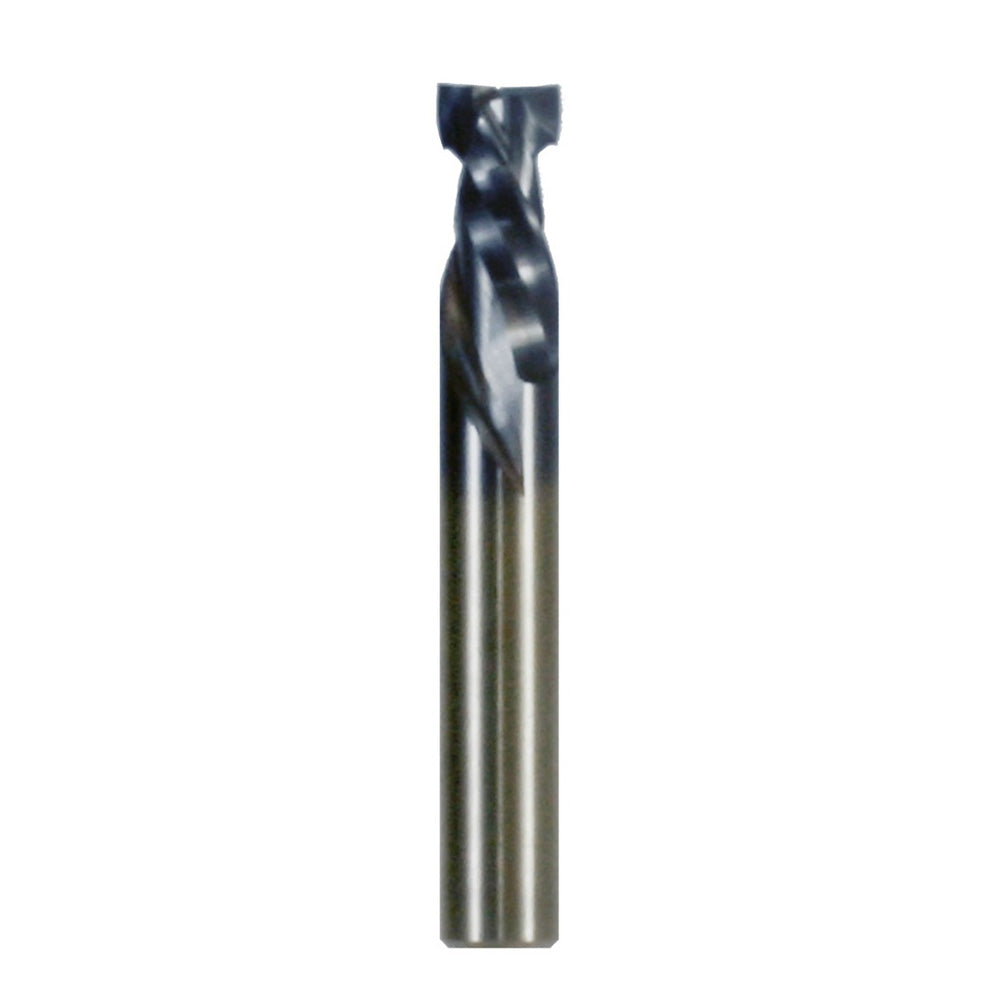

Freud Two Flute Mortise Compression Bit 1/2" SH, 1/2" D, 1-1/4" CL

Sale price
$ 66.54
List price
$ 77.97

Have questions? Give us a call at 260-637-0054.

Mortise Compression Spiral Bits feature a shorter up shear length than other compression spiral bits, making them ideal for grooves and mortises, or for through-cuts in thin double sided material (5/8" thick or less). Rout plywood, melamine and other double-sided materials, as well as hardwood and softwood. For use in CNC, hand-held or table-mounted routers.

  • Perfect grooves and mortises in delicate materials
  • Routs melamine, veneer plywood, hardwood and softwood
  • Black I.C.E. coating for cool cutting edge and superior chip evacuation
  • Freud Premier Solid Carbide
  • Black I.C.E. + Freud TiCo Hi-Density Carbide = 2X increased life and performance vs. standard uncoated bits

Cutting length: 1-1/4"
Overall dia.: 1/2"
Overall length: 3-1/2"
Number of cutters: 2
Max RPM: 24,000
Shank dia.: 1/2"
Upcut length: 1/4"

SKU: 77-509
