Powerful. Versatile. With four gears for every application. And with the best gear change you have ever operated. Whether you are working on wood, metal or masonry, the TPC is extremely durable and, thanks to its brushless EC-TEC motor, has extreme resilience and endurance.
The large number of attachments, combined with perfectly matched accessories, make the QUADRIVE an unrivalled hammer drill for a wide range of possible uses. Maintain control with our intelligent Kickbackstop which helps to minimize the risk of the drill twisting out of your hand.
Main Applications:
- Production of wooden substructures, frame structures
- Installation of doors and windows
- Drilling and screwdriving in wood, metal and plastic
- Drive screws into wood up to 3/8" x 11-13/16" (10x300 mm)
- Drilling in wood up to 2-3/4" (70 mm) with Forstner drill bits
- Drilling with hammer-mode in brickwork or masonry
The QUADRIVE – four gears, with the right one for every application:
1st gear: Demanding tightening of screws up to 3/8“ (10 mm).
2nd gear: Quick driving up to 5/16” x 11-13/32” (8 x 300 mm) in size.
3rd gear: Powerful drilling with auger bits of up to 3/4“ (20 mm).
4th gear: Fast drilling with small and medium-sized drill bits for pilot holes.
[TABS]
Features
-
Improved Control: The electronic kickback stop helps to prevent excess twisting if the drill suddenly becomes caught or jammed, therefore ensuring improved control when working
-
Optimized gear changing: Fast, safe, direct! Switching in any direction – from any gear straight to any other, without intermediate stages. Clearly marked gear positions with solid engagement
-
Increased power in 2nd gear: 40% more torque compared to the previous model for greater rotational torque with 5/16" (8 mm) screws
-
Unique system with perfect system compatibility: Thanks to the smart FastFix interface, you can use all of the 18 V attachments from the Festool range and therefore benefit from the system advantages
-
CENTROTEC tool chuck – for even faster bit changes: For instantly changing between drilling, countersinking and driving. The CENTROTEC tool chuck, which has proven itself since 2001, is a chuck and bit holder in one. Even though it is half the size and weighs 80% less than a standard chuck
More Features
-
Latest generation of brushless EC-TEC motors: The brushless EC-TEC motor is wear-free and converts the energy from the battery into optimum power with virtually no losses. The electronic motor management also guarantees maximum service life: Microprocessors monitor and control the temperature, voltage and current consumption of the motor, electronics and battery. The latest generation of EC-TEC motors provides more torque and speed under load
-
Practical attachments with quick angle adjustment: Very quick angle adjustment simply by rotating the green ring. The attachment doesn't need to be removed from the machine. Even the eccentric adapter for driving close to edges is equipped with quick angle adjustment
-
Convenient for day-to-day use: Optimized torque adjustment to meet specific demands. A robust belt clip that can be attached on both sides and a bit holder for secure and magnetic bit storage at the side of the drill
-
Extra mobile with Systainer integration: Systainer products are compatible with one another and can be connected to all previous Systainer generations, mobile dust extractors, and many other system accessories, such as Sys-Cart, Sys-Roll, or the MW 1000 mobile workshop
Specs
Battery voltage: 18 V
Gears: 4
Idling speed, 1st gear/2nd gear: 0 - 500/0 - 800 RPM
Idling speed, 3rd/4th gear: 0 - 2350/0 - 3600 RPM
Max. number of strokes: 57 600 RPM
Drilling diameter, wood/steel: 2-3/4" (70 mm) / 1/2" (13 mm)
Drilling diameter in brickwork: 3/8" (10 mm)
Torque adjustment 1st/2nd gear: 17.7 in-lb - 177 in-lb (2 - 20 Nm) / 17.7 in-lb - 177 in-lb (2 - 20 Nm)
Max. torque, wood/steel: 442.5 / 663.8 (50/75 Nm)
Chuck range: 1/16" - 1/2" (1.5 - 13 mm)
Battery capacity: 4,0 Ah
Weight with battery: 4.18 lbs (1,9 kg)

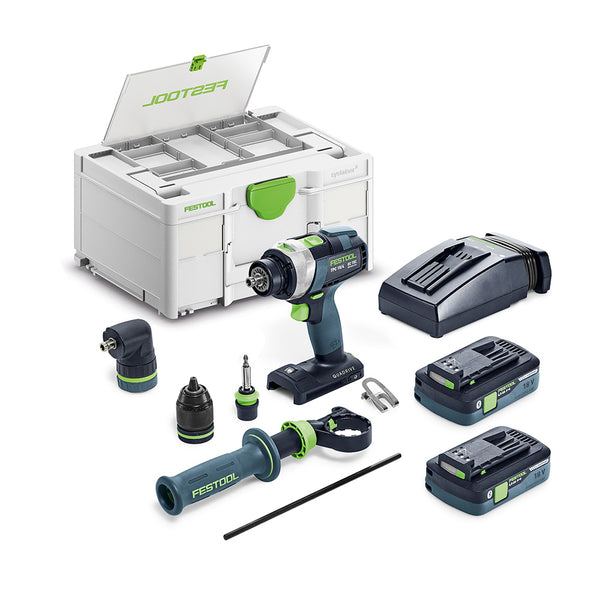

Includes
- 2 x BP 18 Li 4,0 HPC-ASI battery pack
- Rapid charger TCL 6
- CENTROTEC Chuck
- CENTROTEC BH 60 CE Imp magnetic bit holder
- FastFix keyless chuck 1/2" (13 mm)
- Bit PH 2
- Additional side-mounted hand grip
- FastFix Right Angle Chuck
- Belt clip
- Systainer SYS3 M 187
