$ 95

Have questions? Give us a call at 260-637-0054.

Veritas Saws combine the best characteristics of the classic fine joinery saw with those of state-of-the-art materials and construction methods. The tooth pattern on the thin high-carbon steel blade provides a good balance between cutting action and surface finish.

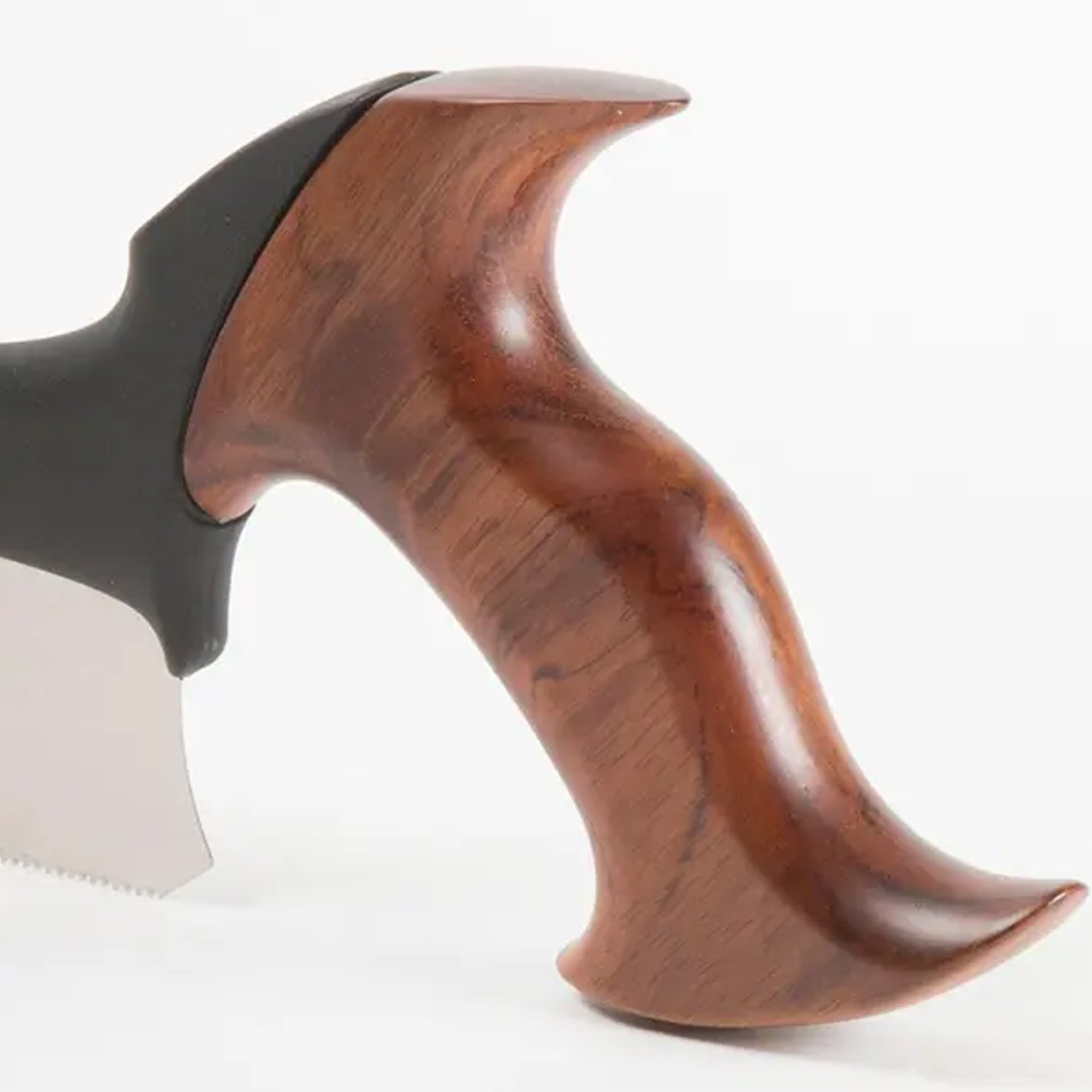

The pistol-grip design of the wooden handle makes it intuitive to hold the saw with the index finger resting on the stainless-steel/glass/polymer composite spine, which provides strength and rigidity.

When cutting joints, it is desirable to match the tooth pattern to the thickness of the material you are using. This fine-tooth dovetail saw is intended for material 1/2" and thinner. This is by no means a hard rule, as this saw will cut outside this range; however, it is most efficient within its specified range.

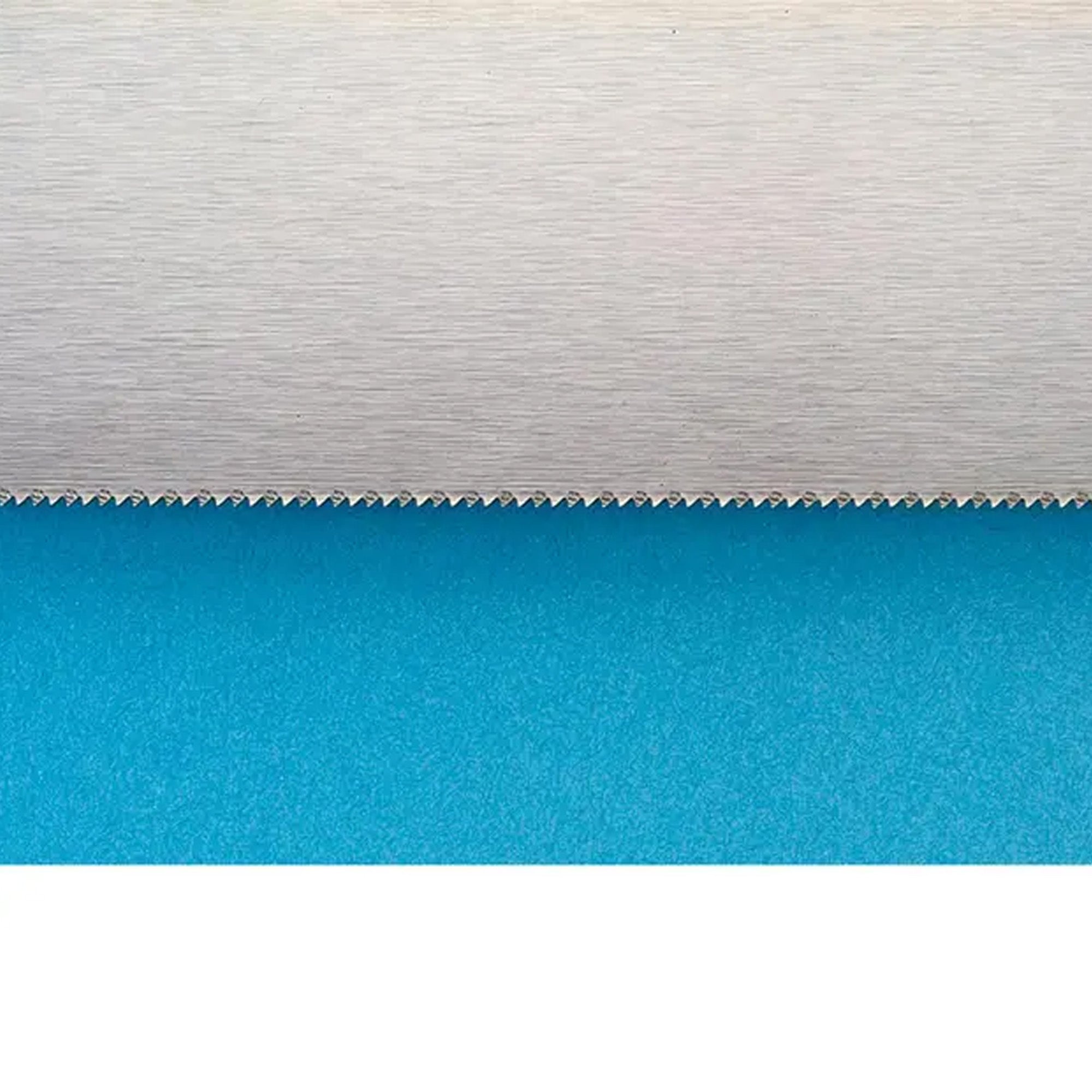

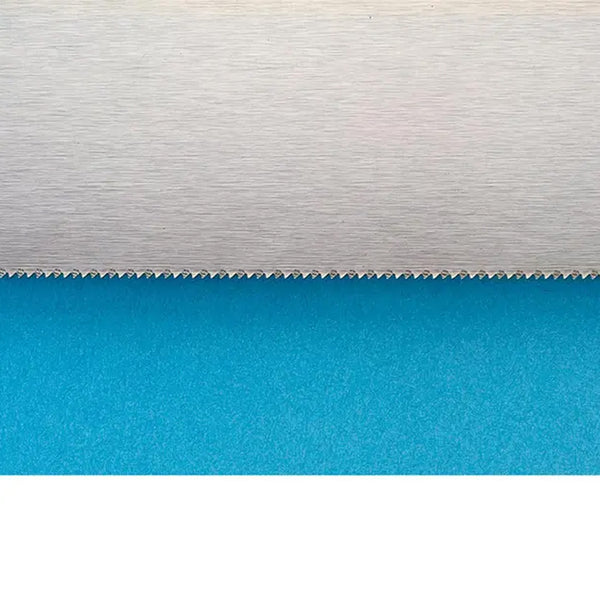

The teeth on this fine-tooth dovetail saw are filed at 20 teeth per inch, with a 14° rake and a 60° included angle. A double-extra-slim file will be necessary for sharpening these teeth. Set is 0.003" per side.

Features
  • Incorporates all of the critical characteristics of a classic fine joinery saw, yet is executed using modern production processes and state-of-the-art materials
  • The 0.020" thick high-carbon steel blade features 14 rip-cut teeth per inch, having 0.003" of set per side
  • The teeth have a rake angle of 14° and an included angle of 60°
  • The revolutionary spine is injection molded under high pressure using an advanced material, incorporating stainless-steel powder for weight, glass fiber for stiffness and a polymer resin binder
  • The blade and stainless-steel handle-mounting bolt are completely over-molded, creating a solid one-piece blade/spine/mount assembly
  • A single brass fastener secures the bubinga handle, the shape of which has been derived from antique saws in the Lee Valley collection
  • The saw has excellent balance, cuts easily and true and has a comfortable pistol grip that makes the saw feel as if it's an extension of your arm
Specs

Length: 14-1/4"
TPI: 20
Rake angle: 14°
Included angle: 60°

SKU: 05T0505
