$ 28,500

Have questions or need help choosing a machine?
Call us at 260-637-0054 or email sales@oaktreesupply.com

Business Financing Available

Eligible for a Section 179 tax deduction. See how much you can save >

Made in Illinois

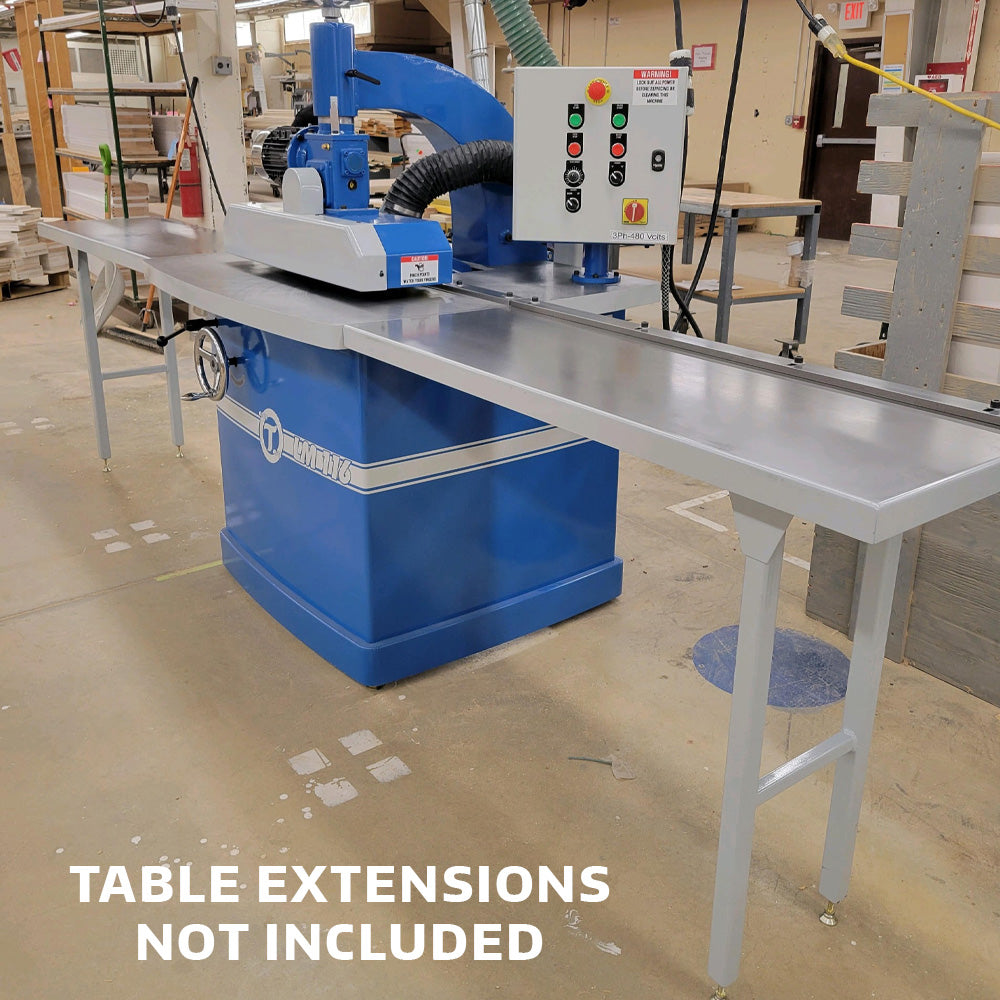

The LM116 Easy Lock Miter Machine does exactly what its name suggests — easily creates the difficult lock miter joint that is highly sought after in many woodworking applications. Many shops use the LM116 for cabinetry, beams, pillar/column wrapping, box newel posts, solid surface, and more!

Say goodbye to long hours spent trying to precisely cut and fit miter joints on the router table. The LM116 will significantly reduce not only your production time, but setup, gluing, clamping, and sanding as well! No more downtime setting up and changing angles or thickness, and no running pieces on their side.

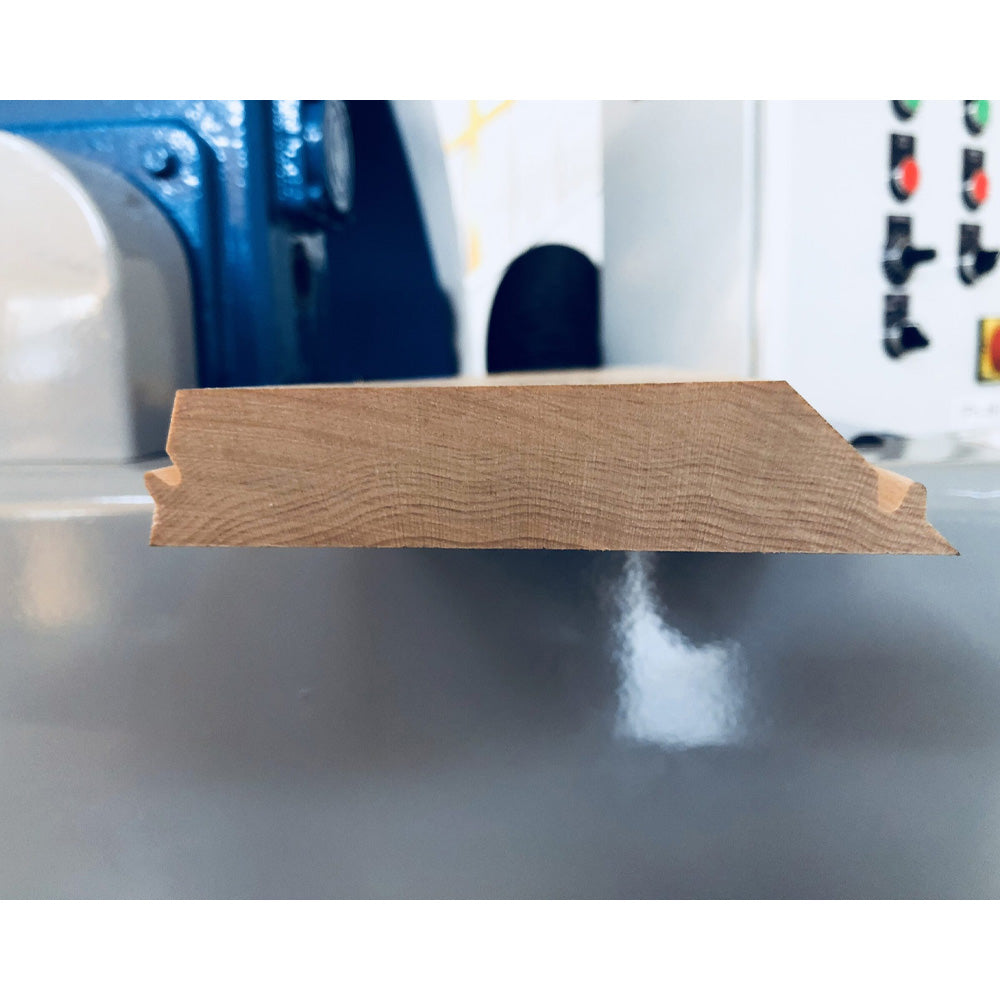

The LM116  allows you to cut 1/2" to 1" material with no changeout. A & B profiles can be cut with the exclusive pneumatic Power Tilt Spindle. Going from A to B and back to A is done with a simple flip of a switch. Different angles are simply dialed in and verified with a digital readout. Capable of machining angles from 90° – 30° (Finish Angle).

Made in the USA.

Features
  • A and B profiles are cut using a Single Pneumatic Powered Tilting Spindle
  • Digital readout for angle changes
  • Massive time reductions in setup, gluing, clamping, and sanding
  • Made in the USA
Specs

Max. Material Thickness: 1″
Min. Material Thickness: 1/2″
Min. Material Width: 1-1/4″
Min. Material Width (2-Sided): 2″
Min. Material Length: 12″
Spindle Motor: 5hp
Feed Motor: 0.5hp
Spindle Diameter: 1-1/4″
Spindle Speed: 8,200 RPM
Dust Collection Requirements: 670 CFM, 4″ Outlet
Pneumatic Requirements: 100 PSI .5 CFM
Table Size: 40″ x 47″
Footprint: 42″L x 54″W x 60″H
Shipping Dimensions (L x W x H): 57" x 48″x 79″
Shipping weight: 1,400 lbs.
Net weight: 1,250 lbs.

Video

SKU: LM116
