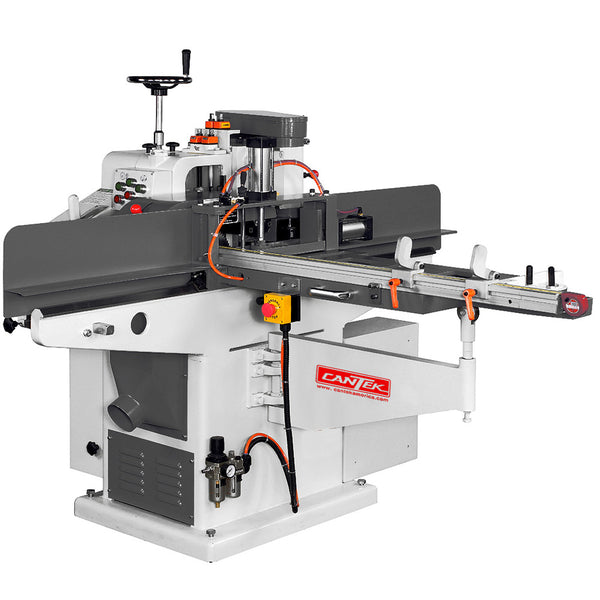

Cantek ST152C Single End Tenoner
- Price
- $ 16,695
Have questions? Give us a call at 260-637-0054.
Our Easy Purchase Guarantee:
- No hassle pricing — always sold at the manufacturers lowest price!
- No tax outside of Indiana or Washington State.
- Freight included in price.*
The Cantek ST152C Single End Tenoner offers superior tenoning results in a economical solution. The 12” trim saw unit is mounted in front of the tenon heads and enables stock to be cut to the desired length. The two horizontal spiral insert knife tenoning heads are capable of producing a tenon up to 6” long. The heads are accurately adjusted using mechanical digital readouts. The spiral insert heads produce an extremely smooth finish result. The two opposed coping heads allow for long tenons to pass between to produce a profile to match your rail profile. The coping heads are also adjusted using precision mechanical counters.
If you need a quote, we would be happy to provide one. Call 260-637-0054 or email sales@oaktreesupplies.com
Note: Cannot ship to Pennsylvania or California.
Machine Features
- Industrial cast iron machine frame for vibration free operation
- (5) working units to produce a wide range of tenons and profiles for door, window components, and furniture parts
- Accurate adjustment using mechanical digital readouts
- Spiral insert knife tenon cutterheads with scriber tips for superior tenoning results
- Opposed coping heads allow for profiling even with long tenons
- Vertical and horizontal pneumatic workpiece clamping ensures material is secure during tenoning operation
- Infeed and outfeed safety guards
- Sliding table rolls on precision machined ” V ” ways allowing for precise and smooth table movement
- Mechanical stops for precision length cutting
- Adjustable infeed fence determines stock removal length
- Dust extraction ports on each working unit
- Schneider electrical components to CSA standard
Individual Features
Trim Saw
- 12” dia. driven from tenon heads
- 1 ¼” shaft diameter x 6″ long
- 2,800 RPM
- Saw position moved by changing spacers
Tenon Heads
- Carbide insert spiral tenon heads with scribing inserts
- 152mm (6”) long x 127mm (5”) diameter tenons heads
- 5HP motor drives both tenon heads
- 1-1/4” diameter spindle
- 3,400 RPM
- 1″ lateral adjustment of tenon heads
- 14 mm x 14mm x 1.5mm carbide insert knives
Coping Heads
- Max. dia. tooling: 6 3/8”
- (2) 5 HP motors
- 1-1/4” diameter spindle
- 6,000 RPM
- 2-3/4” spindle length
- Independent adjustment each head
- (2) 4 knife wedge type cutterheads with chip breakers included (60o corrugated knives)
- Counterbore locknut allows both heads to move close together
Specs
Max. Tenon Cut
Length: 6” (152 mm)
Width: 14.5” (370 mm)
Thickness: 5” (127 mm)
Max. Tenoning cutterhead size: 4.3” dia. x 6” long (110mm dia. x 152mm long)
Max. Shaping cutterhead size: Ø 6 3/8″ (162mm)
Max. Sawblade diameter: Ø 12 “ (305mm)
Spindle diameter
Tenon spindle: 1-1/4”
Cope spindle: 1-1/4”
Saw spindle: 1-1/4"
Spindle speed
Tenon spindle: 3,400 RPM
Cope spindle: 6,000 RPM
Saw spindle: 2,800 RPM
Motor horsepower
Saw & tenon heads: 7.5 HP
Cope heads: 5 HP x 2
Sliding table area: 50.4” x 17.7” (1280 x 450 mm)
Net weight: 1,716 lbs. (780 kgs)
Gross weight: 1,914 lbs. (870 kgs)
Machine dimensions (LxWxH): 66” x 73” x 46” (1680 x 1840 x 1150 mm)
Packing dimensions (LxWxH): 67” x 31” x 56” (1700 x 780 x 1400 mm)
