Cantek S372 (3PH) 36" Two Head Wide Belt Sander (60" Belt)

$ 24,675

Have questions? Give us a call at 260-637-0054.

Our Easy Purchase Guarantee:

  • No hassle pricing  always sold at the manufacturers lowest price!
  • Freight included in price.*

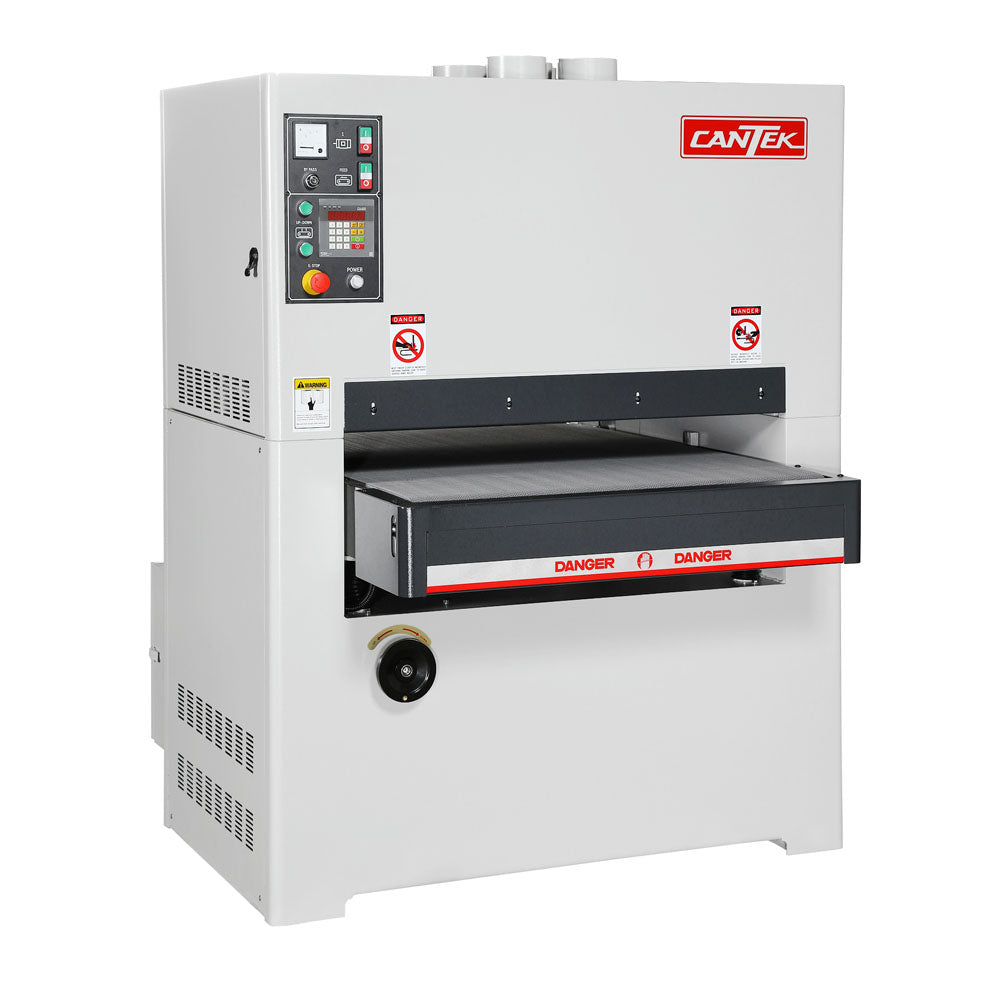

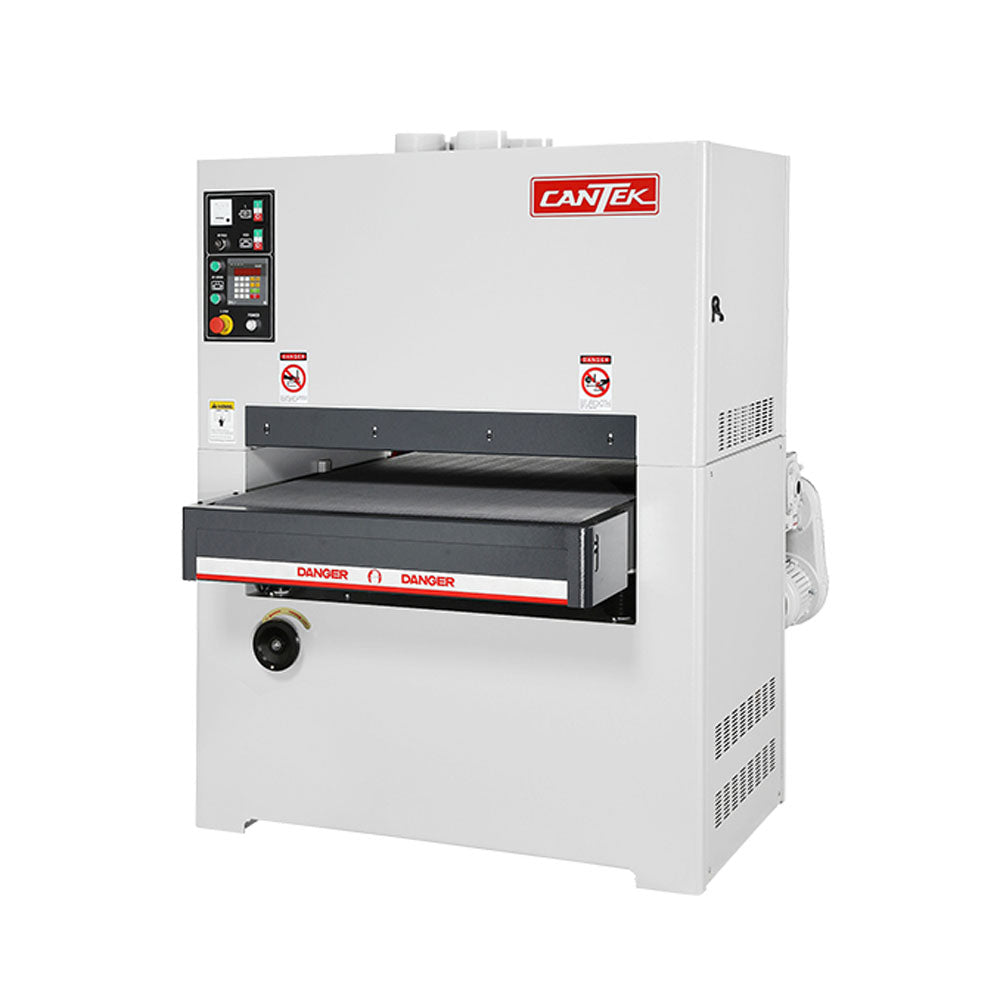

The Cantek S372 37″ Two Head Wide Belt Sander is perfect for any small to mid-sized shop looking to achieve outstanding results. Its robust construction is the best in its class and provides superior sanding results.

The flexibility with quick-change abrasive belts allows for more applications in a shorter time frame, helping to assist and meet deadlines. In addition, the S372 has a relatively small footprint providing greater access for smaller shops to accomplish bigger results. Equipped with motorized thickness adjustment with digital input control with settings to 0.001" / 0.01mm for precise table setting without compromise.

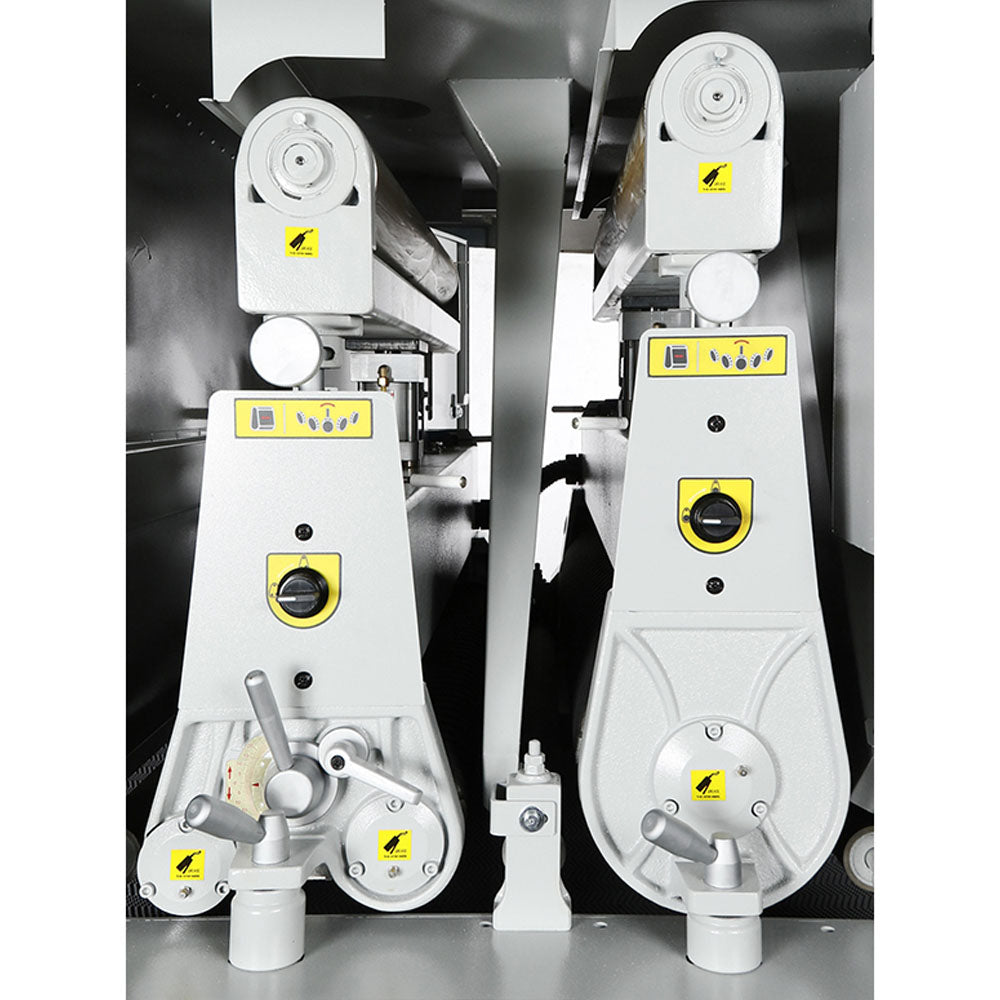

Equipped with 2 sanding heads: a Contact Drum for calibration sanding, and a Combination head with adjustable platen for both calibration & finish sanding. A quick-release handle & pneumatic belt tensioning to allow for fast belt changeover. Both sanding head frames are made from industrial cast iron.

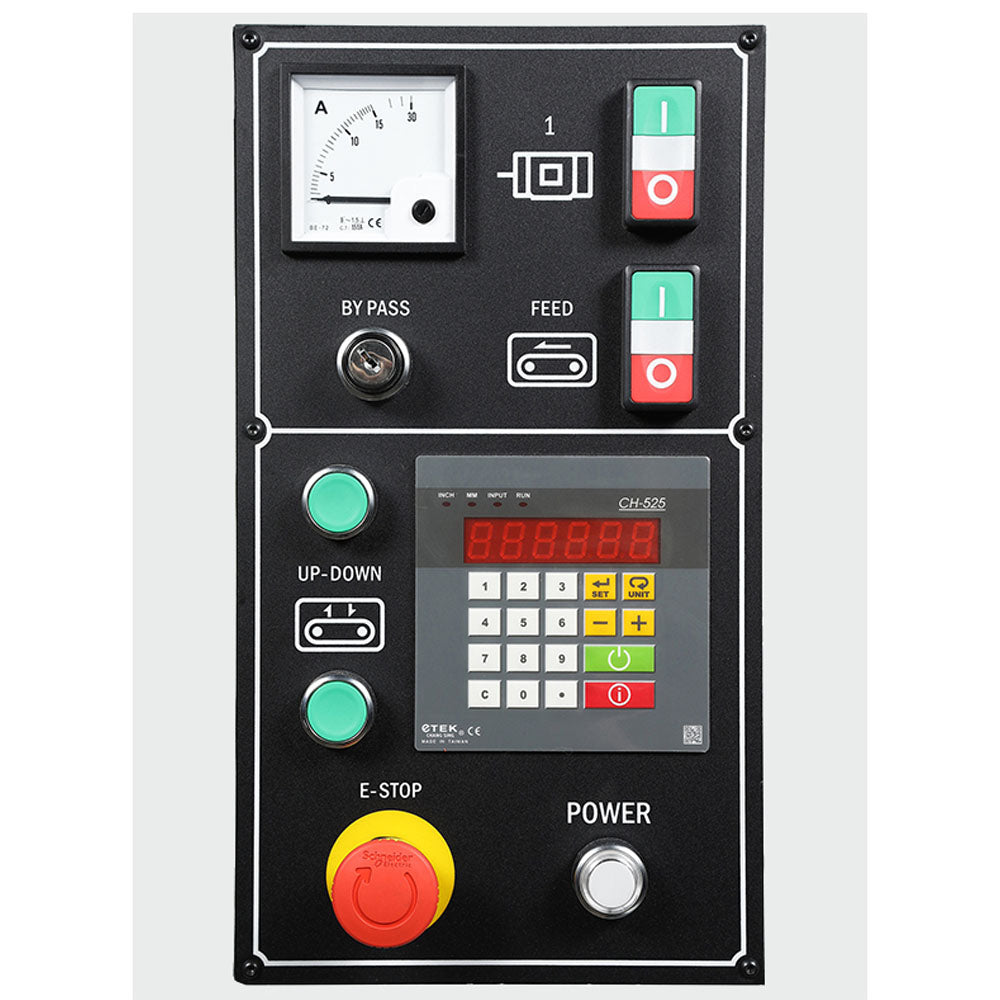

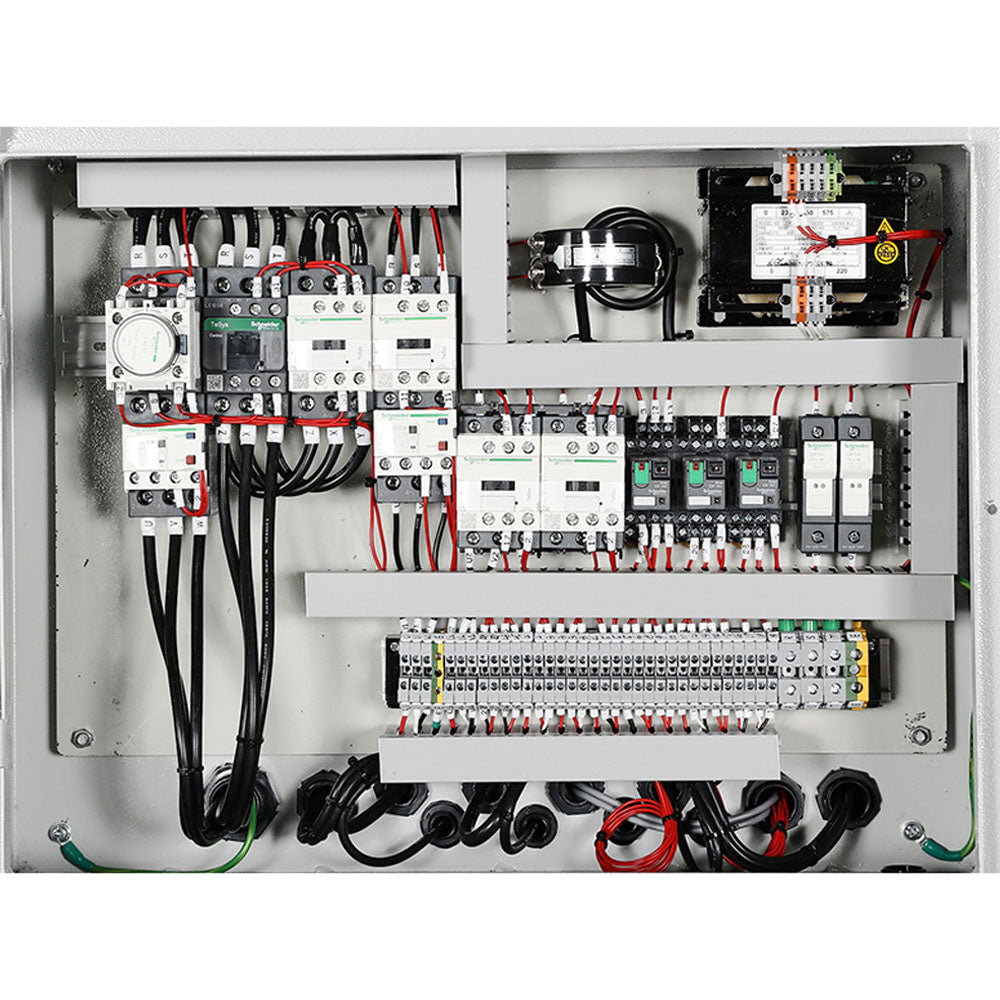

Centrally located control panel for convenient operator access. Includes digital motorized thickness adjustment to 3-decimal places in Inch & 2-decimals in MM. It is also equipped with an emergency stop button, and individual ammeters for load monitoring.

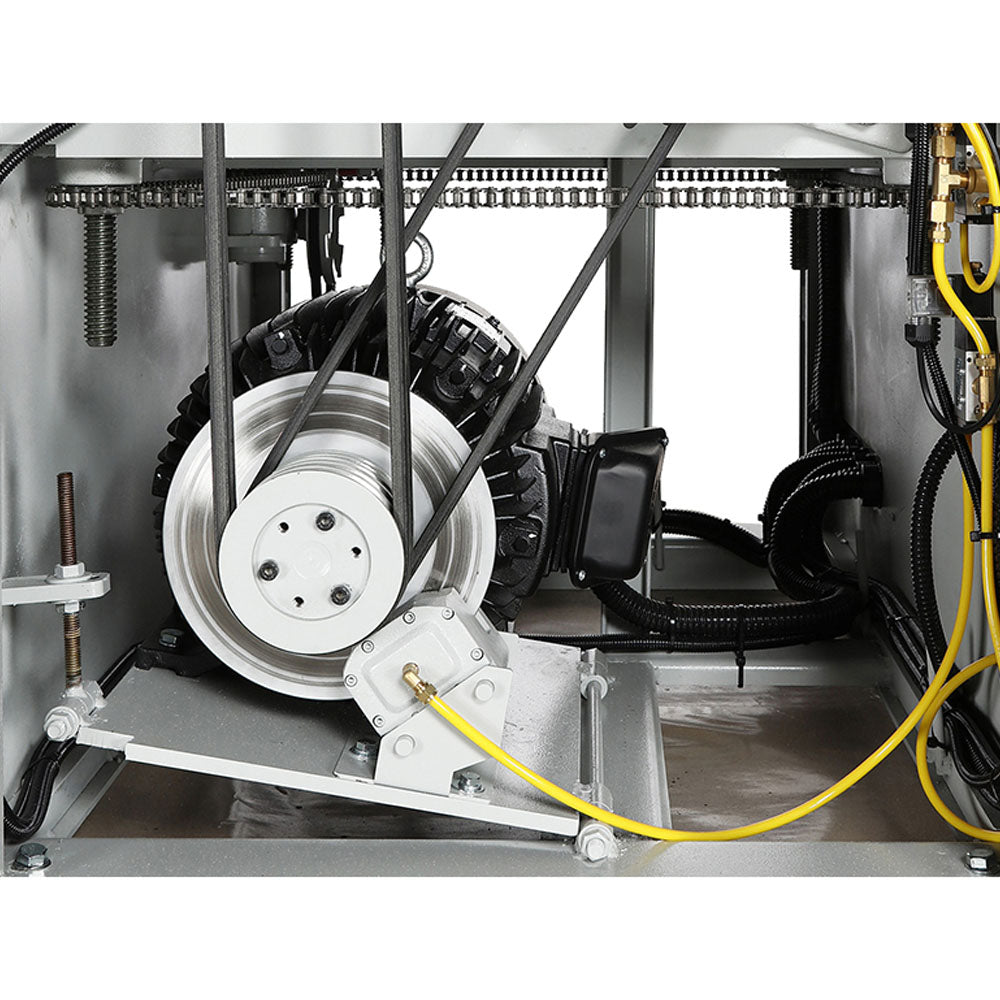

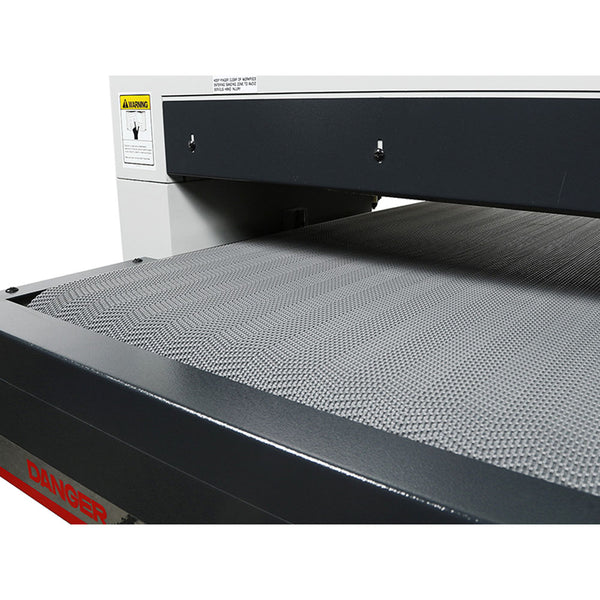

The automatic conveyor belt tracking ensures the conveyor belt is centered and does not track off to one side, which could damage the belt. This machine is outfitted with a powerful 20HP motor and a pneumatic disc braking system that facilitates faster belt changes with added machine safety.

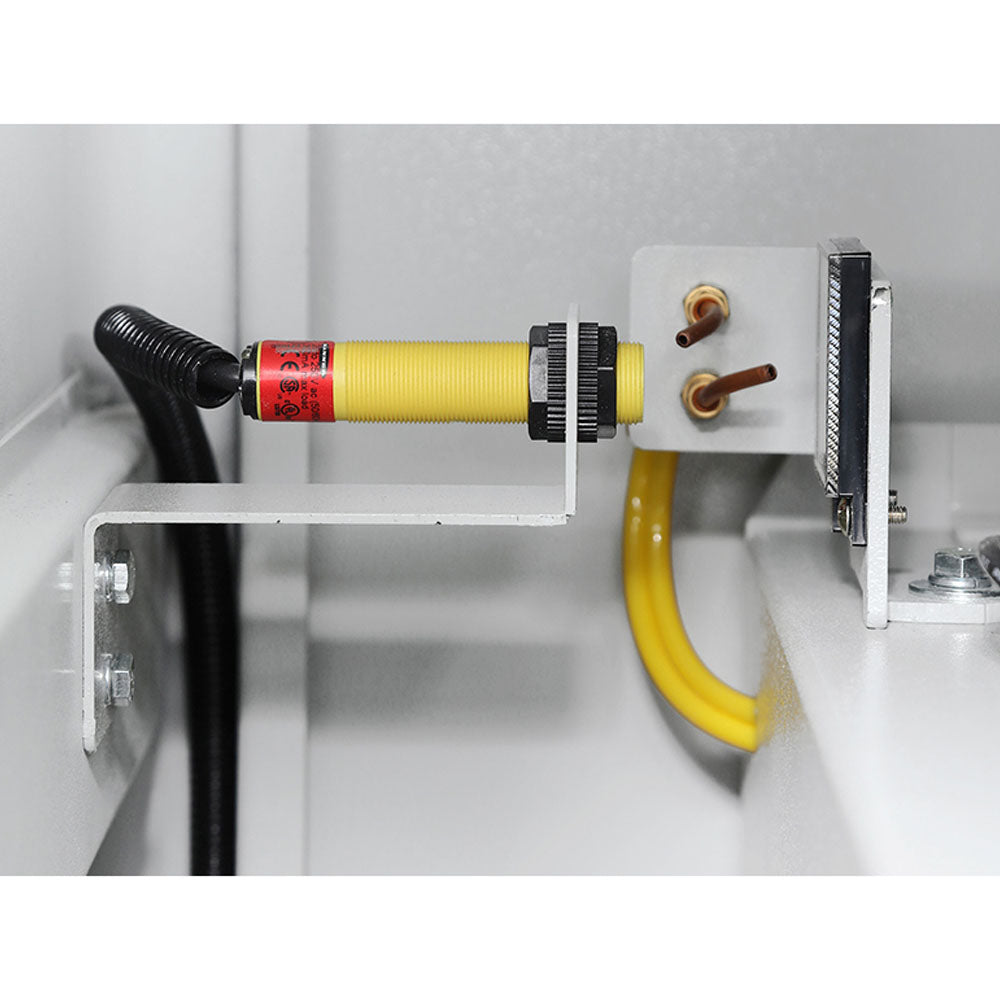

Electronic send & receive sensor precisely detects the sanding belt for the most reliable belt tracking. The machine is also equipped with belt overrun limit switches for added safety. Variable feed speed allows the operator to choose the correct sanding speed for various sanding applications, belt grits, wood species, and desired results.

Equipped with an over-height lever gate that will automatically shut off the machine should a workpiece too thick be sent through for sanding. Also equipped with a front safety bar, emergency stop buttons on front and rear of the machine, and safety switches on all door panels.

If you need a quote, we would be happy to provide one. Call 260-637-0054 or email

Note: Cannot ship to Pennsylvania or California.

  • Dual sanding heads increase efficiency by reducing the number of passes
  • Rubber contact drum for calibration sanding
  • Combination sanding unit with 5" rubber contact drum and 2" wide adjustable sanding platen for a wide range of sanding applications
  • Adjustable platen produces superior sanding results with finer sandpaper grits
  • Accurate digital thickness control with both Inch & Metric settings allows the operator to key in the desired thickness, and table will automatically move into position
  • Small footprint
  • Two sanding heads:

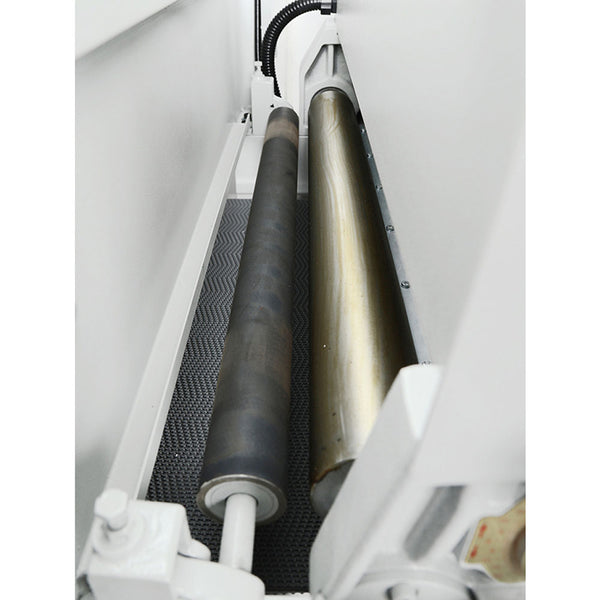

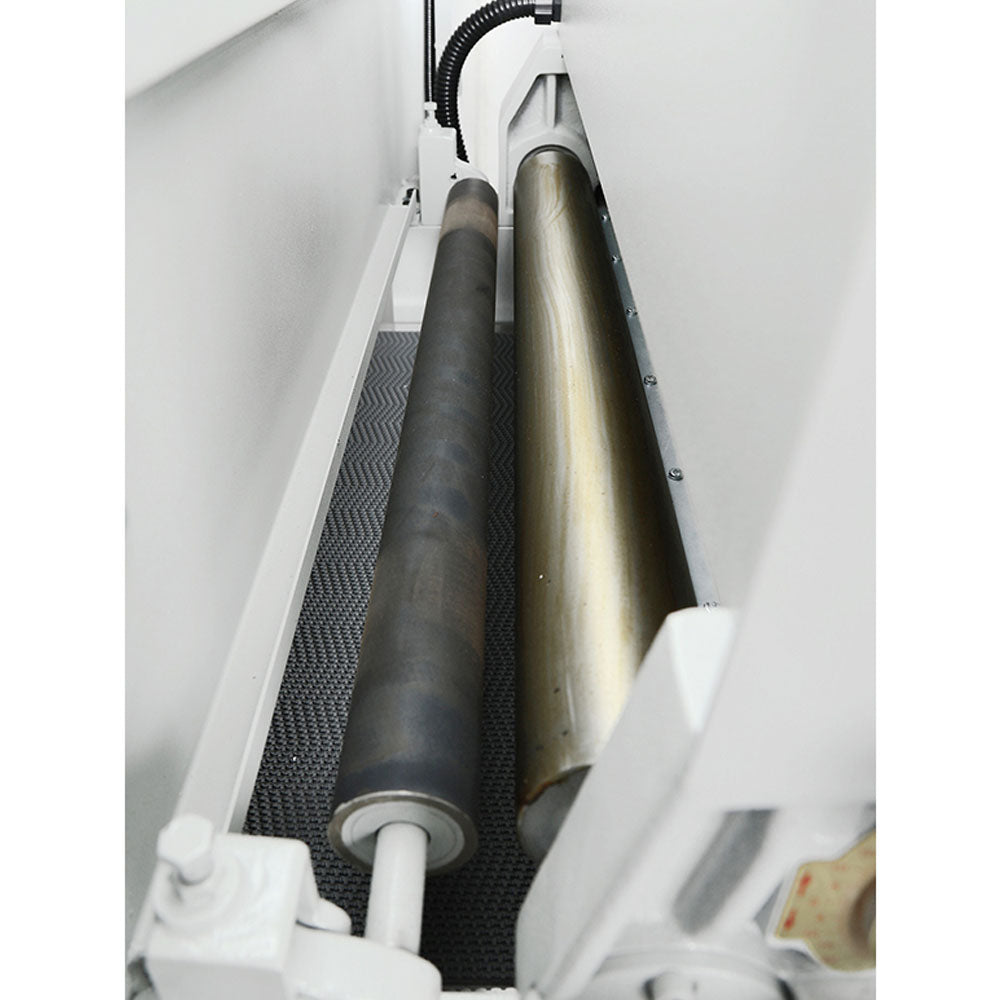

    • First Head: Rubber contact drum with 7" diameter drum
    • Second Head: Combination head with 5" diameter drum and 2" wide platen
  • Electronic belt tracking for optimum belt life and sanding results
  • Ammeter for load monitoring to ensure the proper amount of material is removed according to the selected grit
  • Disc brake on the main motor allows for faster belt changes
  • Pneumatic belt tensioning with quick release outboard support to facilitate fast belt changes
  • Table raising jackscrews
  • Material over-height limit switch
  • Interlocks are located on all access doors

Abrasive belt size: 37" x 60"
Main motor: 20HP

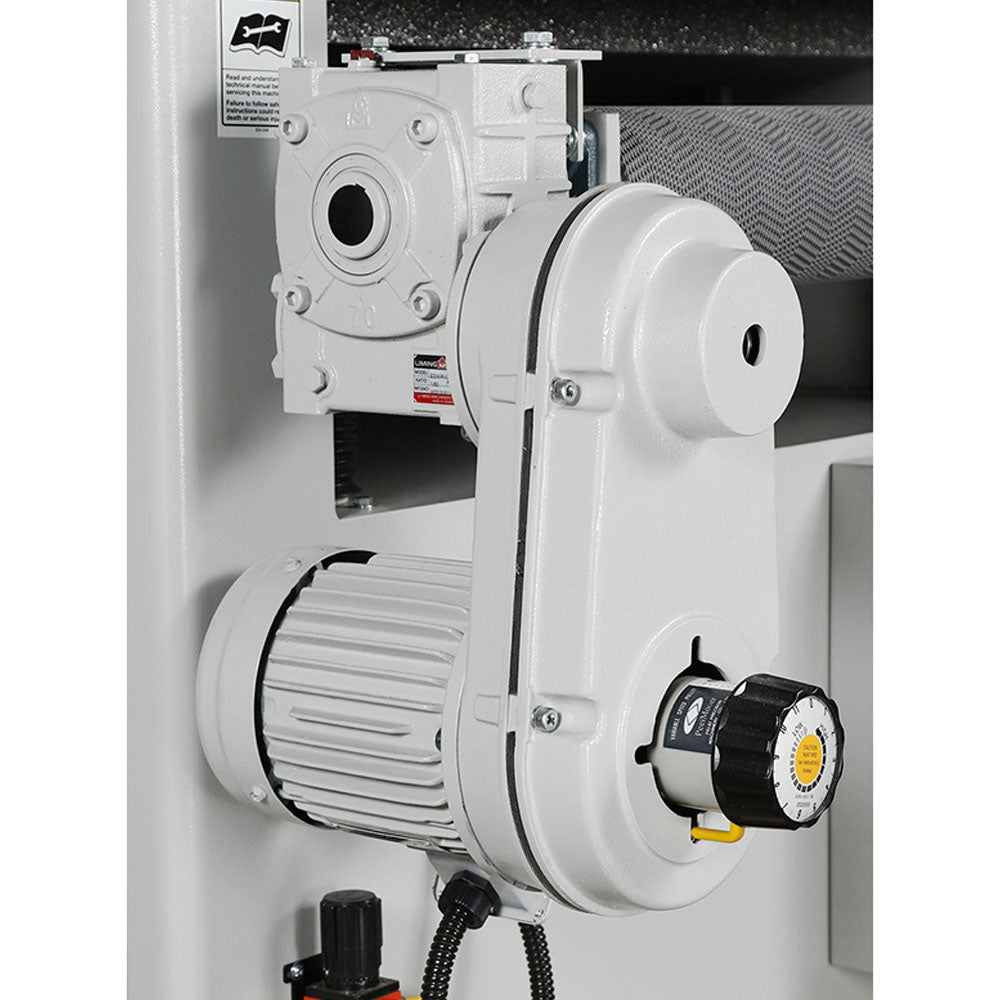

Feed motor: 1HP
Motor: 3-phase
Working width: 37"
Min. part length: 12.5"
Max. thickness opening: 5"
Feed speed variable: 15 to 49 FPM
Pass line height: 37"
Dust outlet: 6 @ 4"
Compressed air pressure: 60 PSI
Compressed air volume: 12 CFM
Dust collection requirements: 2,472 CFM
Net weight: 3,086 lbs.
Machine dimensions: 60" x 53" x 67"
Electrical requirements: 230/3/60 = 60 amps
