Cantek S251 (1PH) 24" Wide Belt Sander (60" Belt)

$ 13,860

Have questions? Give us a call at 260-637-0054.

Our Easy Purchase Guarantee:

  • No hassle pricing  always sold at the manufacturers lowest price!
  • Freight included in price.*

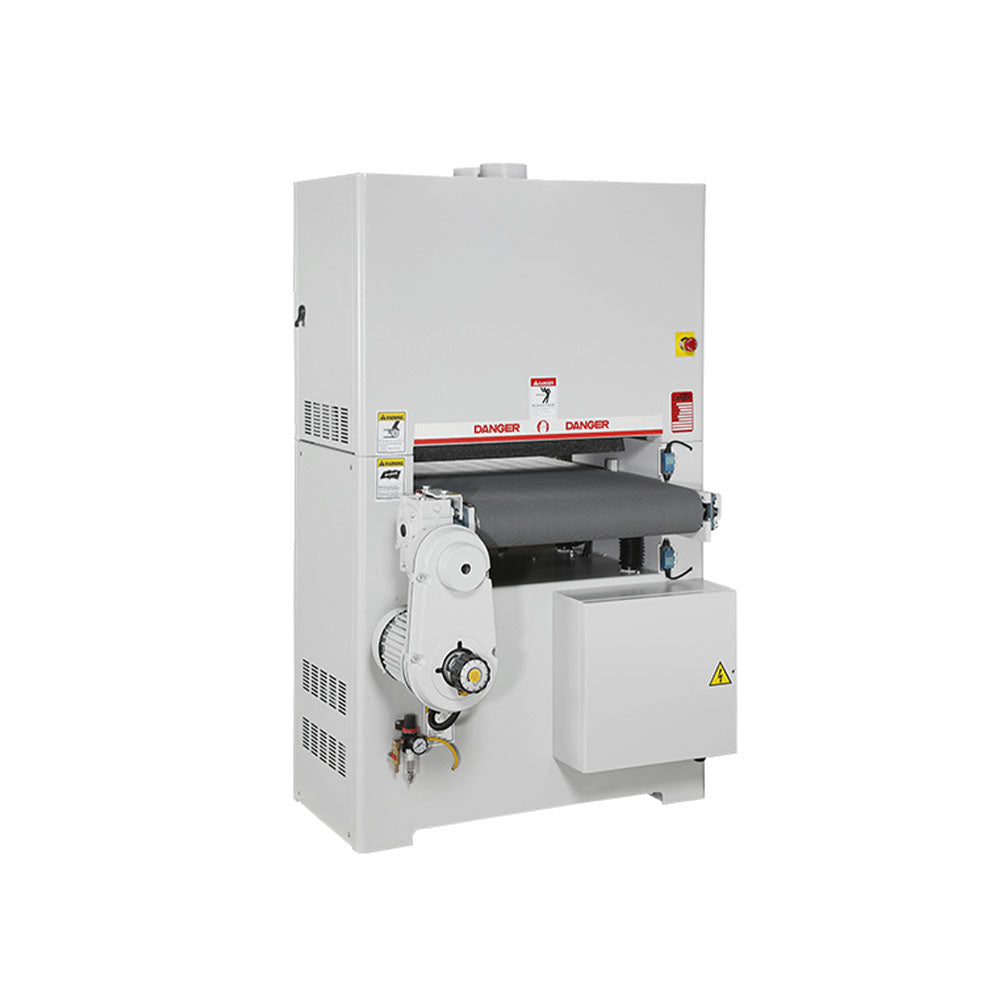

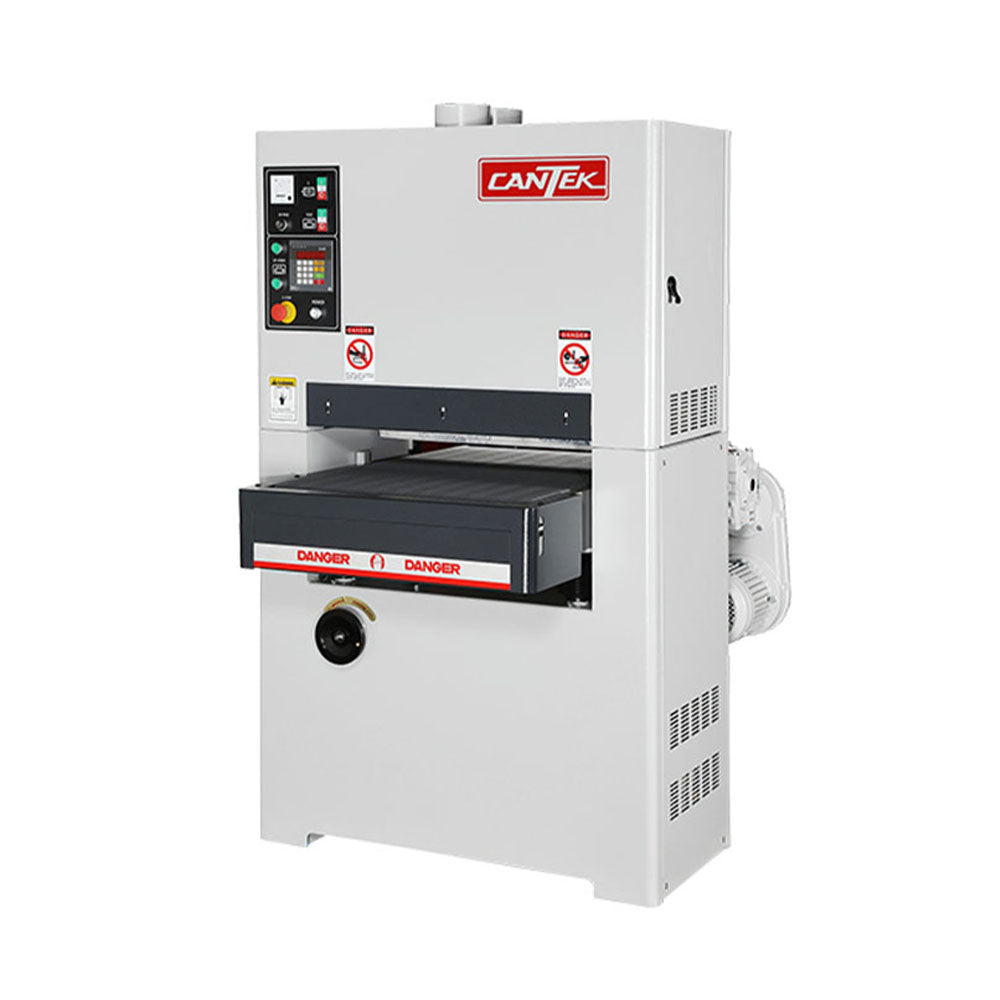

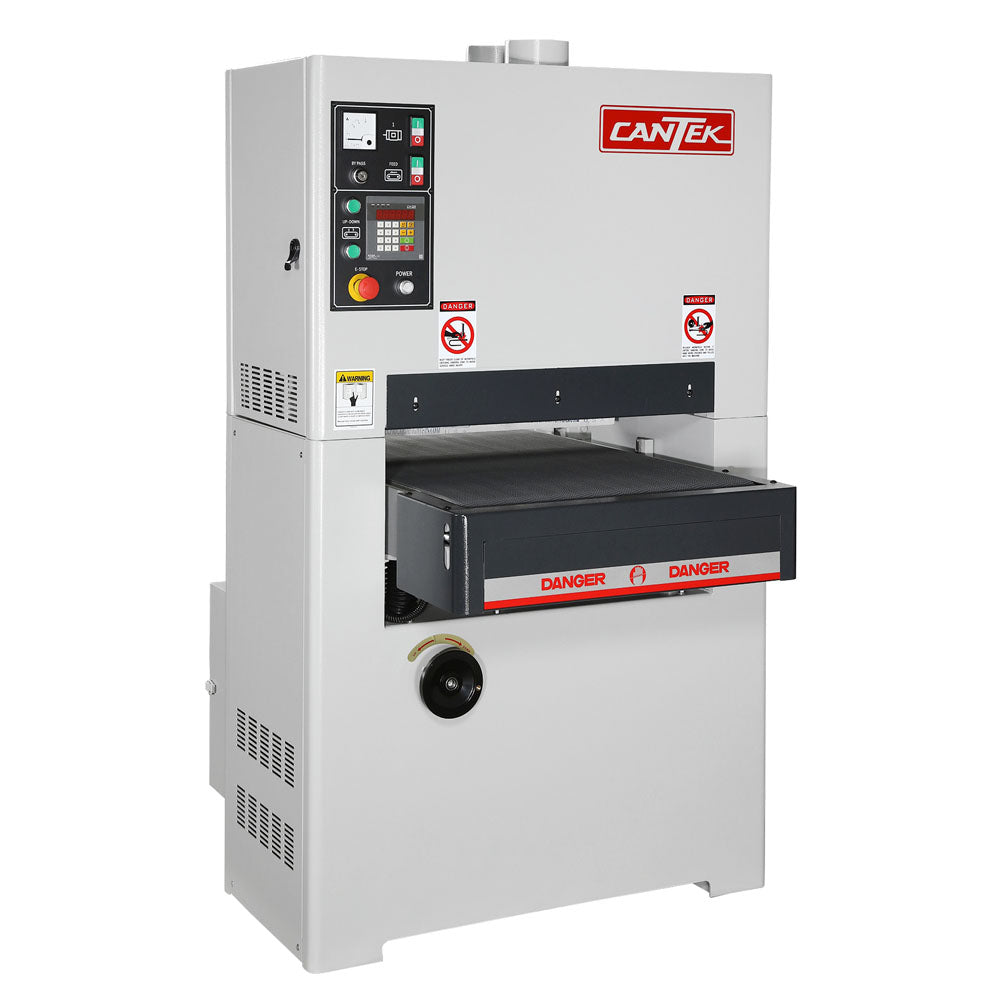

The Cantek S251 24″ Wide Belt Sander is compact and versatile with a combination sanding unit for calibration and final sanding. The robust sanding unit and heavy-duty frame ensure optimum sanding results. Motorized thickness adjustment with digital thickness control for fast and accurate table adjustment.

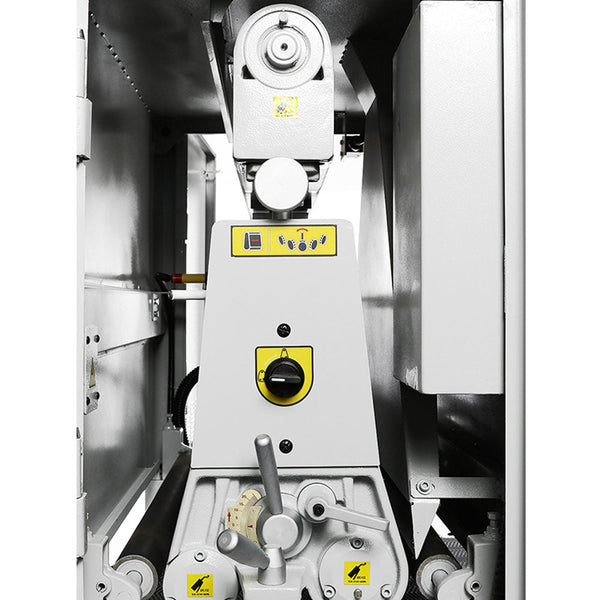

The single combination head allows the operator full control of sanding operations for calibrating off of the rubber drum & finish sanding by lowering the platen through an eccentric lever. Quick-release handle for belt changing and access to the removable platen.

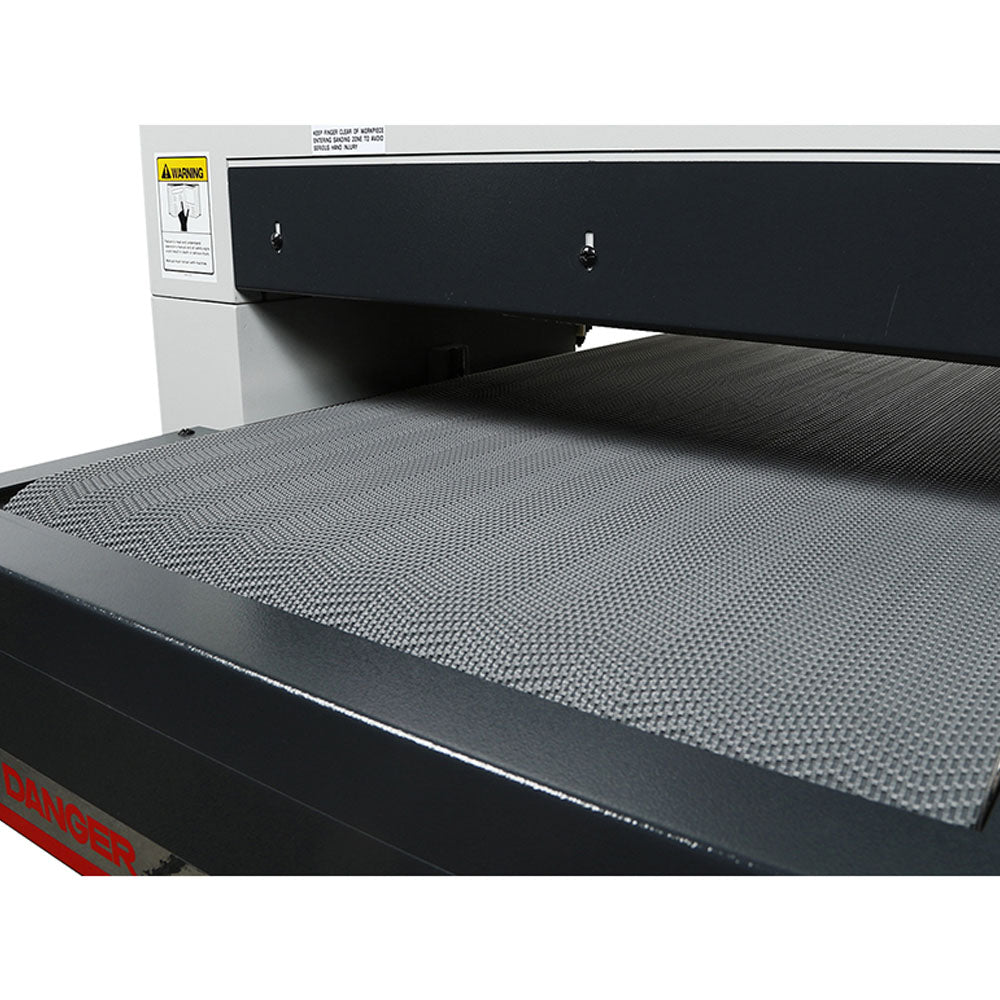

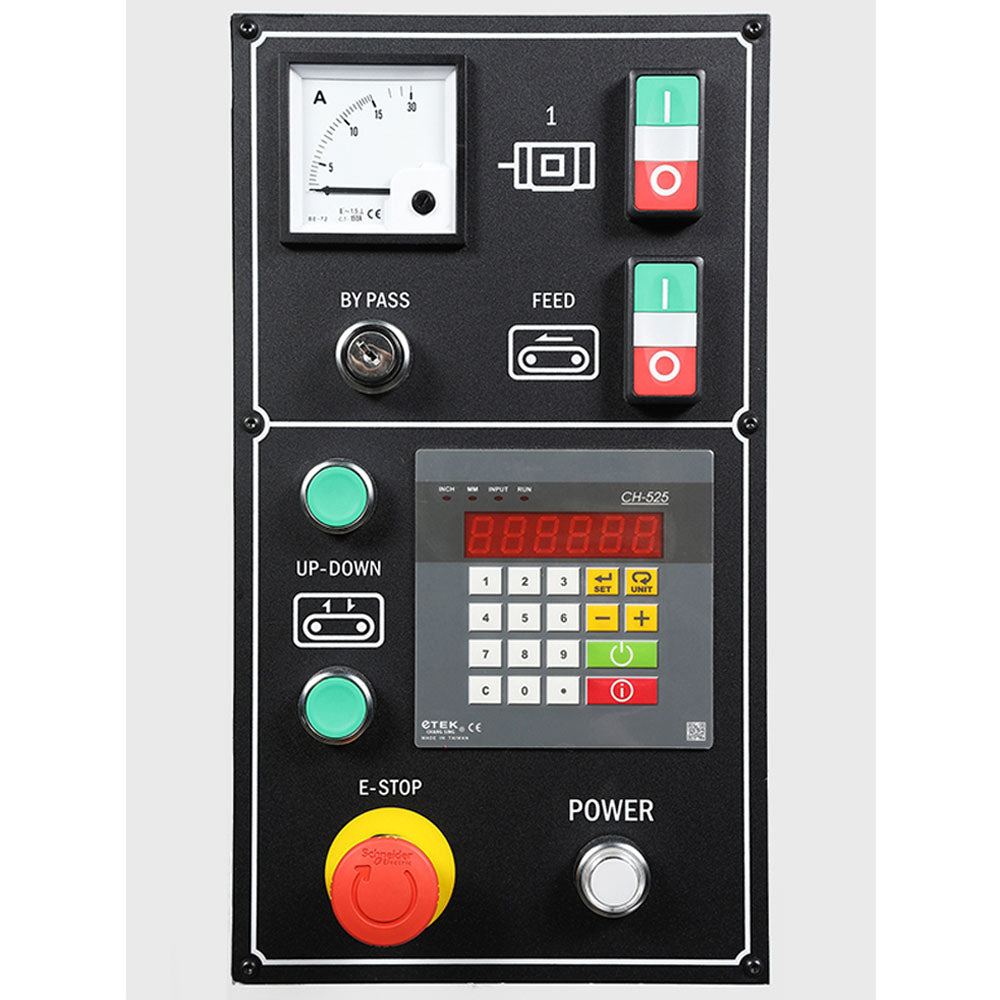

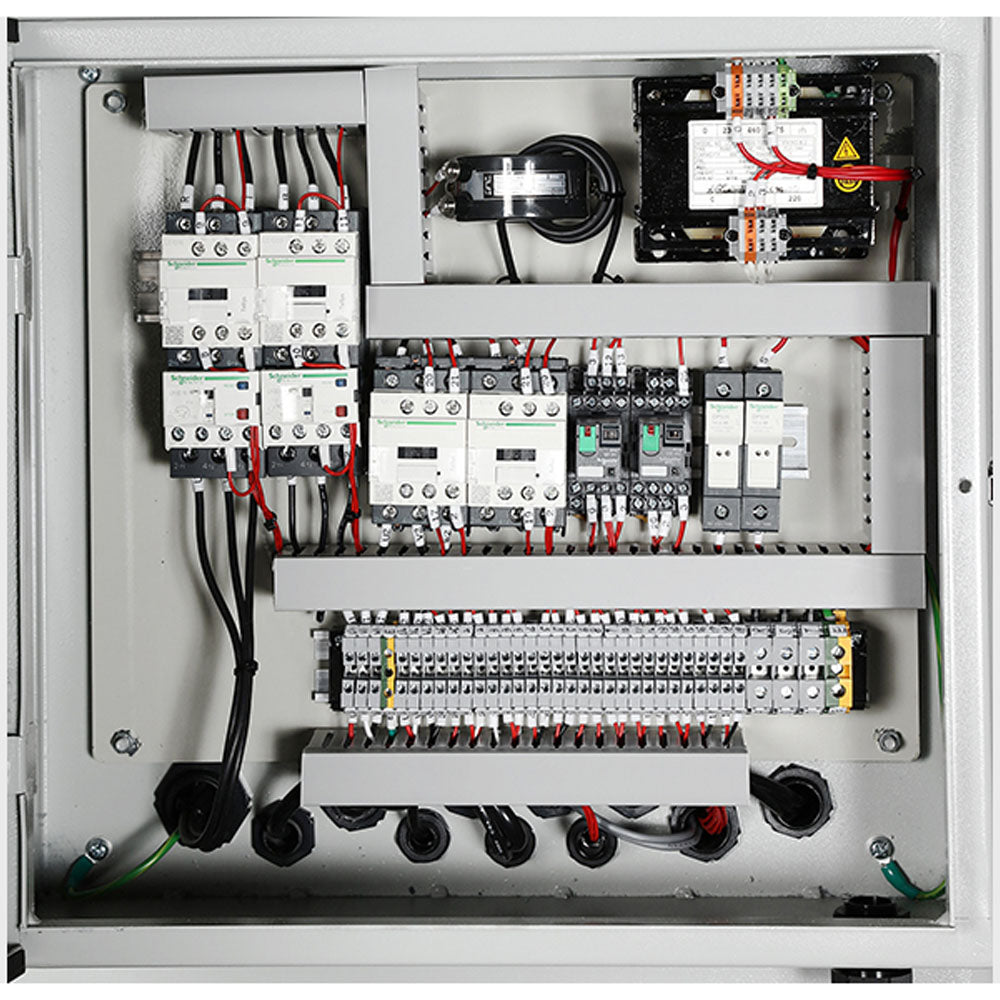

Centrally located control panel for convenient operator access. Includes digital motorized thickness adjustment to 2-decimal places in Inch & 1-decimal in MM. Also, emergency stop button, ammeter for load monitoring. High-quality rubber conveyor belt with automatic belt tracking. The tracking system ensures the conveyor belt does not travel off to one side, causing damage.

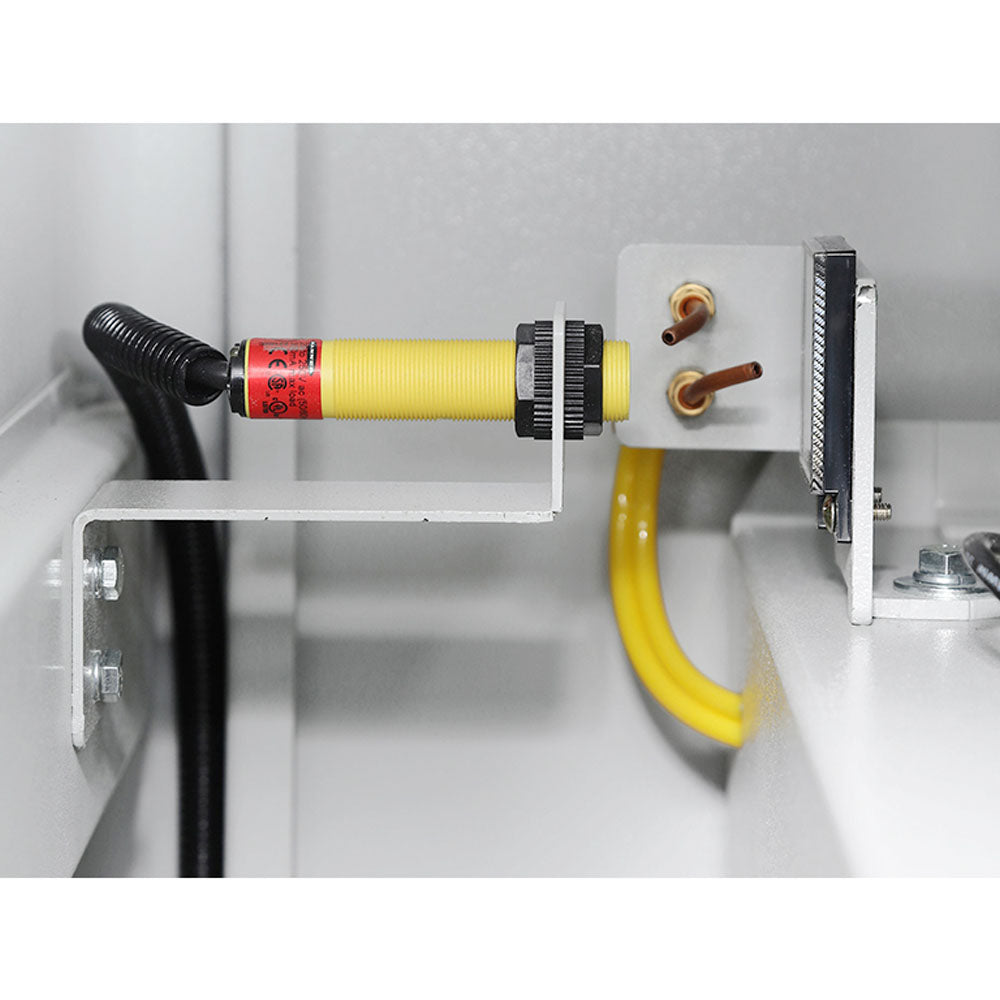

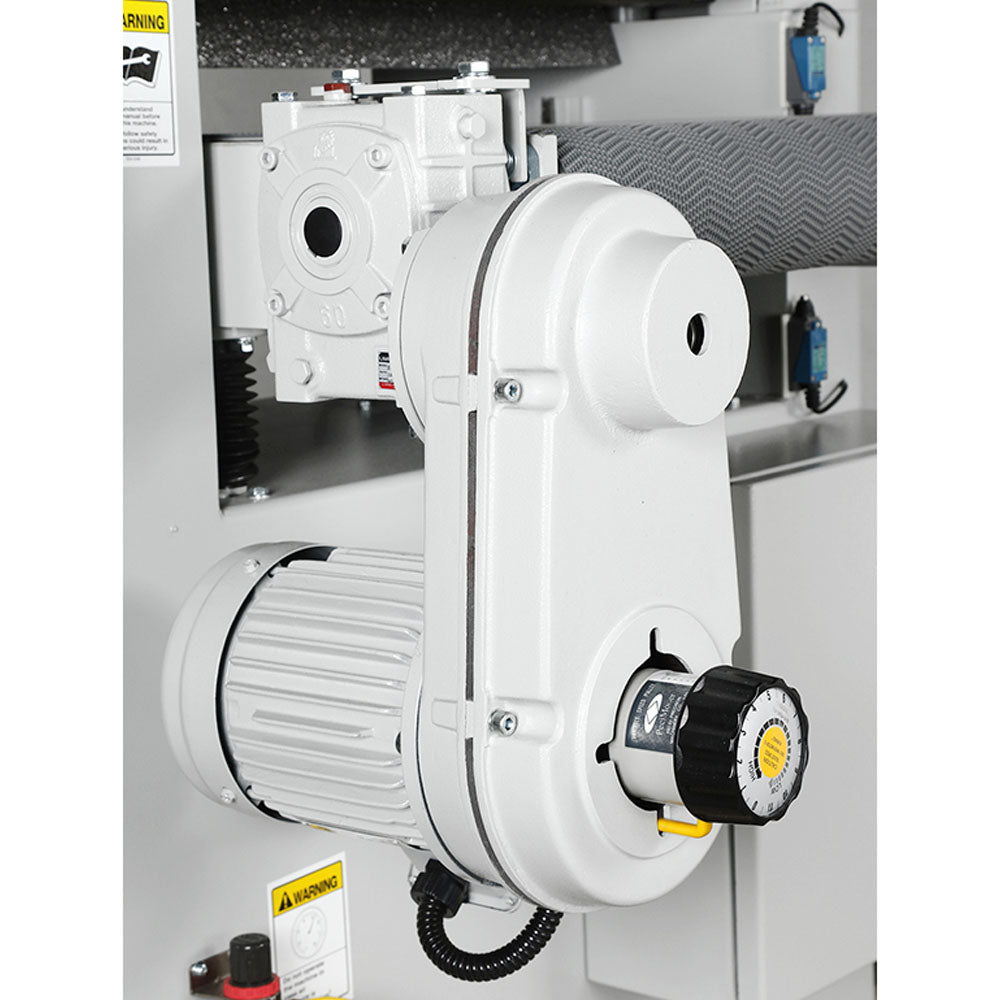

Electronic send & receive sensor precisely detects the sanding belt for the most reliable belt tracking. The machine is also equipped with belt overrun limit switches for added safety. Variable feed speed allows the operator to choose the correct sanding speed for various sanding applications, belt grits, wood species, and desired results.

Equipped with an over height lever gate that will automatically shut off the machine should a workpiece too thick be sent through for sanding. Also equipped with a front safety bar, emergency stop buttons on the front and rear of the machine, and safety switches on all door panels.

If you need a quote, we would be happy to provide one. Call 260-637-0054 or email

Note: Cannot ship to Pennsylvania or California.

  • Accurate digital thickness control with both Inch & Metric settings allows the operator to key in the desired thickness, and table will automatically move into position

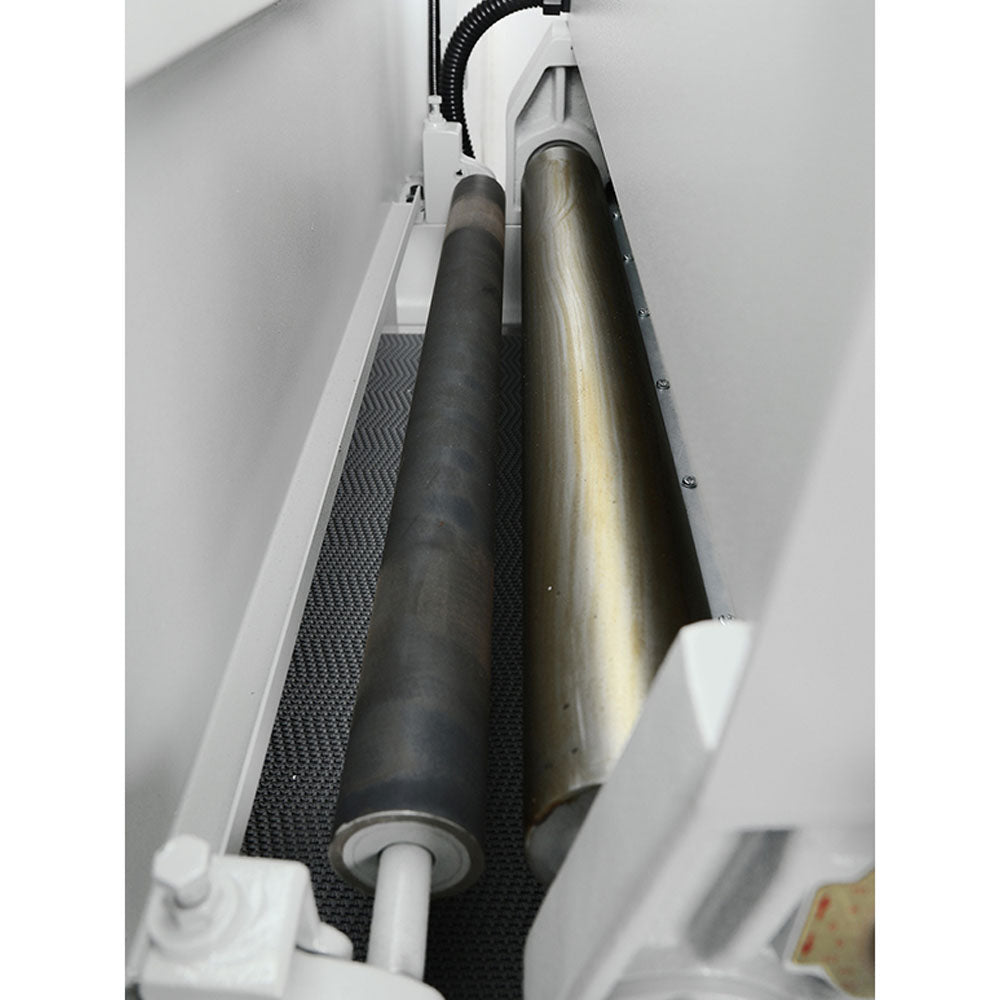

  • Combination sanding unit with 3-3/8" rubber contact drum and 2" wide adjustable sanding platen for a wide range of sanding applications

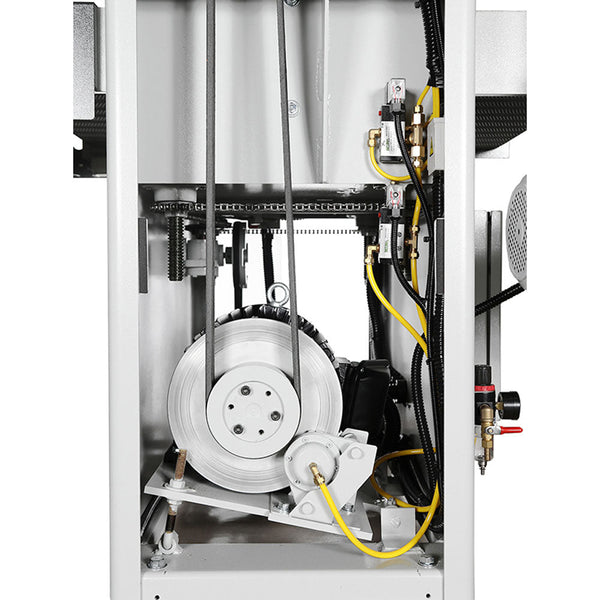

  • Equipped with a powerful 10HP sanding motor and a pneumatic disc braking system to facilitate faster belt changes
  • Small footprint
  • Electronic belt tracking for optimum belt life and sanding results
  • Ammeter for load monitoring to ensure the proper amount of material is removed according to the selected grit
  • Disc brake on the main motor allows for faster belt changes

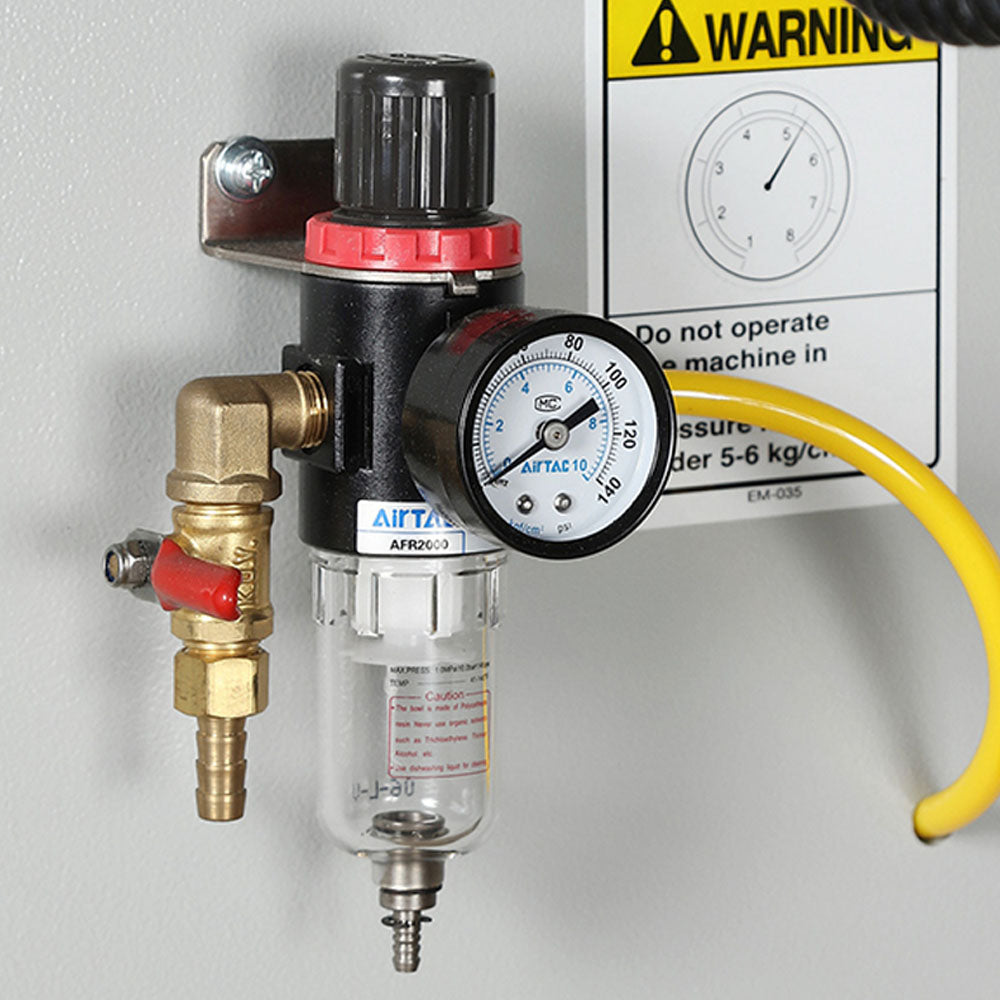

  • Pneumatic belt tensioning with quick release outboard support to facilitate fast belt changes
  • Material over-height limit switch
  • Interlocks are located on all access doors

Abrasive belt size: 25" x 60"
Main motor: 10HP
Feed motor: 1HP
Motor: 1-phase
Working width: 25"
Min. part length: 13"
Max. thickness opening: 5"
Feed speed variable: 15 to 49 FPM
Pass line height: 37"
Dust outlet: 2 @ 4"
Compressed air pressure: 60 PSI
Compressed air volume: 7 CFM
Dust collection requirements: 824 CFM
Net weight: 1,344 lbs.
Machine dimensions: 50" x 45" x 76"
Shipping weight: 1,565 lbs.
Shipping dimensions: 52" x 45" x 76"
Electrical requirements: 230/3/60 = 34 amps


Please note: Items being shipped to extremely remote areas or areas with limited delivery access (such as islands only accessible by ferry) may incur additional shipping or freight fees. If your order requires any additional fees other than what is already included in the price, you will be contacted before those fees are applied and before your item ships. This is rare and will not apply to most orders.

SKU: S251 (1PH)
