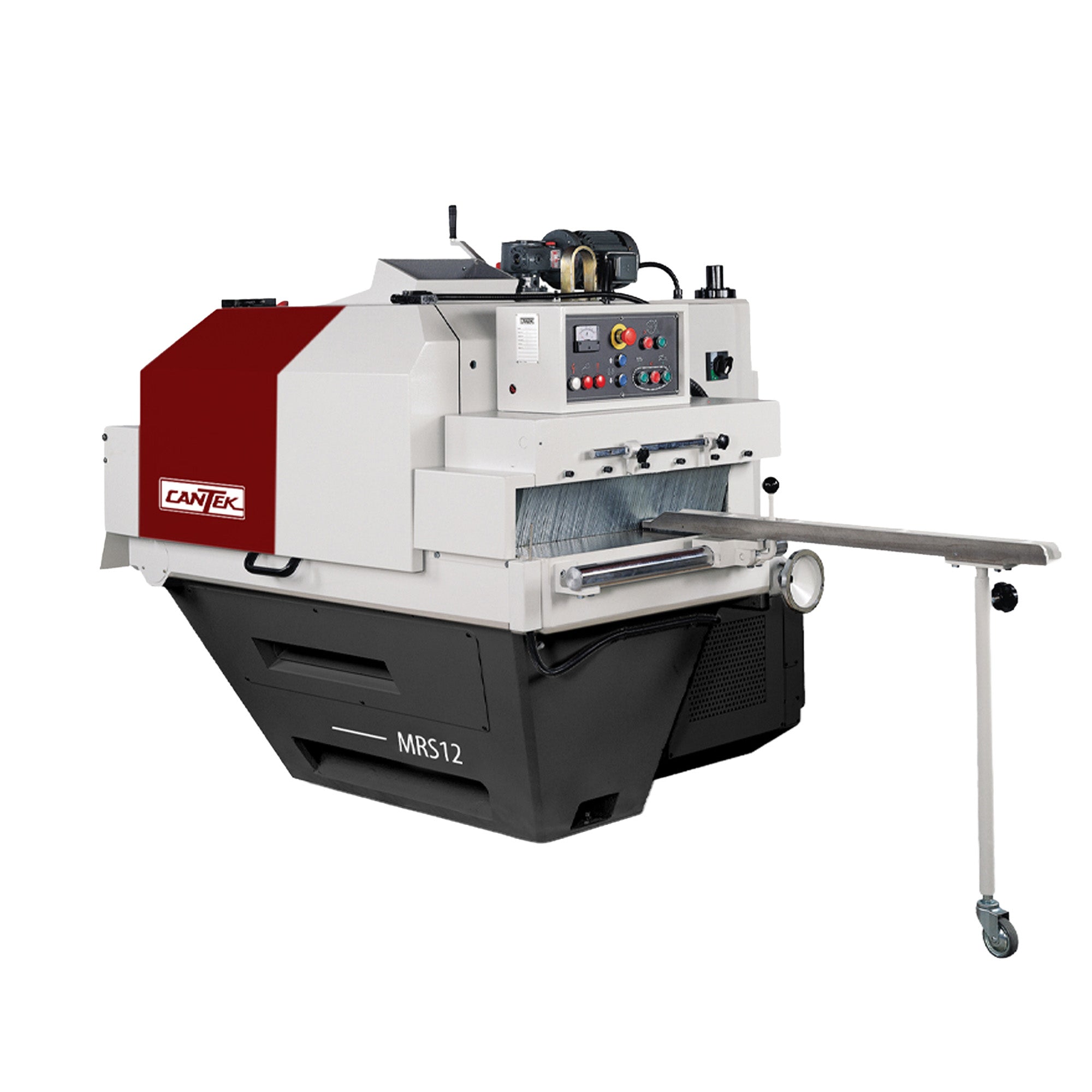

MRS12 Multi Ripsaw
Our Easy Purchase Guarantee:
- No hassle pricing — always sold at the manufacturers lowest price!
- No quote needed.
- No tax outside of Indiana.
- FREE shipping!
*If you need a quote, we would be happy to provide one. Call 260-637-0054 or email sales@oaktreesupplies.com [TABS]
Features
- The Frame is Cast Iron, all the main parts are enclosed, ensuring protection and perfect stability
- Straight line caterpillar feeding with heavy guided chain with rubber inserts. Chain blocks are special cast iron with heat treated & precision ground pins
- Nickel chrome steel Saw Arbor with 70 mm OD – dble. keyed quick removal sleeve
- 3 sets of Anti-Kickback Fingers 2 top, 1 bottom
- Powered Rise & Fall to the pressure rollers
- New style round Fence Bar support with quick shift long fence
- Automatic Centralized lubrication system
- Automatic Star-Delta Starter (slow speed start) and low voltage controls
- C.E style European guard & safety features
- Long fence for control of long material
- Automatic star-delta starter (slow soft-low amperage start) and low voltage controls
- Electrics to 230/460 or575 volts 3 phase 60 cycles – as required to UL/CSA Standards
- With 3 rubber coated hold down rollers at outfeed end of machine
- Overload protection device – Feed speed will slow down automatically if saw motor becomes overloaded
Specs
Maximum working thickness: 3 3/8” (85mm) with standard pressure shoe
*2 ¾” (70mm) with short stock attachment:
Minimum Length: 12” with short stock attachment
Saw Sleeve Usable Length(between outside saws): 12″ (305 mm)
Sawblade Dia: 200 to 305mm (8” to 12”)
Saw arbor Sleeve OD (Diameter): 70 mm
Saw arbor diameter: 50 mm
Saw arbor vertical adjustment: 3.6” (90 mm)
Saw Motor HP: 60 HP 460 volt
Powered Pressure Rollers(Rise/Fall): ½ HP motor
Saw Arbor Speed: 3800 RPM
Feed Speeds: 25 – 100 FPM
Feed Motor HP: 3 or 5 HP
Voltage: Machine can be ordered 230,460,
or 575 v, stock machine is 460 v electrics
Table Size: 30” x 60″
Table Height from floor: 33.5″
Net Weight: 4510 lbs.
Shipping Weight: 5060 lbs.
Machine Dimensions: 82.68” 59” x 56 ½”
Shipping dimensions: 70.87” x 66.93” x 63”
Machine includes HD Quick Removal Gang Saw Sleeve (70mm OD with 2 Keys) & a set of 38 Spacers
