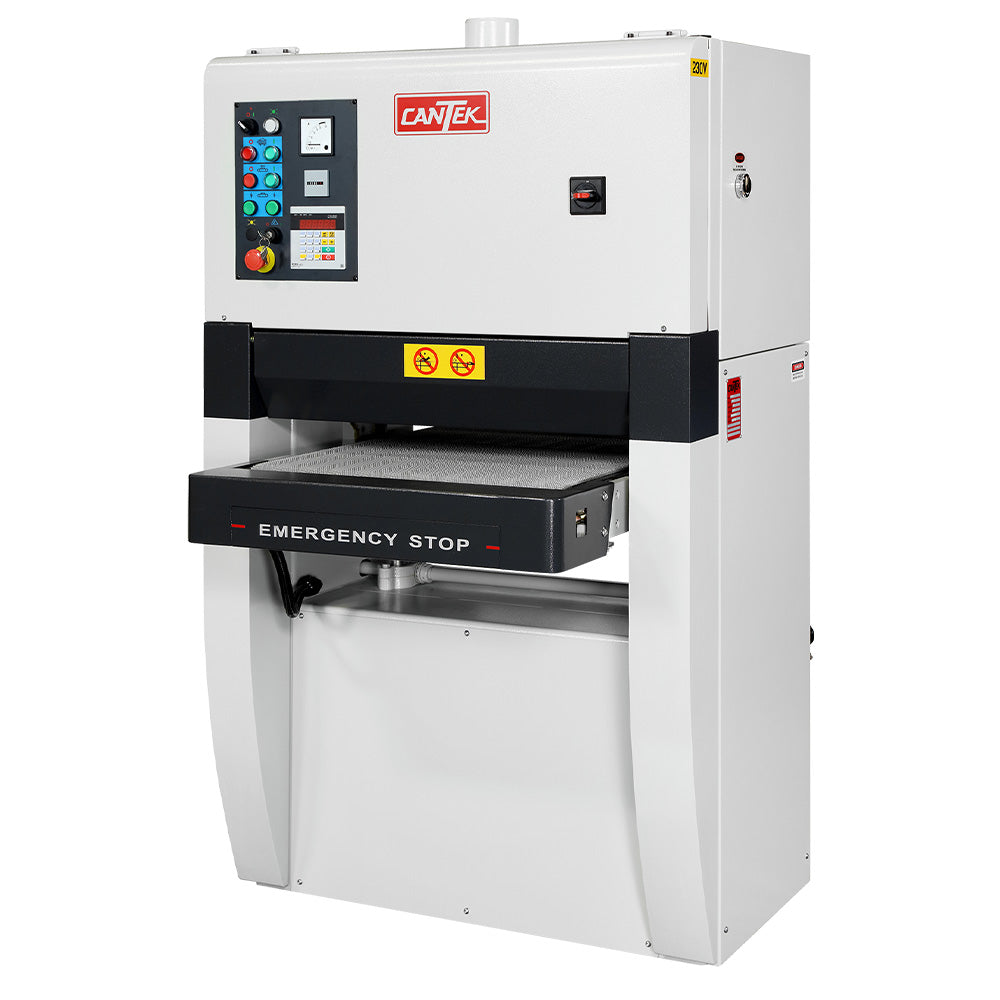

Cantek C251-8 (3PH) 24" Wide Belt Sander w/8" Max. Thickness (60" Belt)
- Price
- $ 12,705
Have questions? Give us a call at 260-637-0054.
Our Easy Purchase Guarantee:
- No hassle pricing — always sold at the manufacturers lowest price!
- Freight included in price.*
The Cantek C251-8 24″ Widebelt Sander is compact and versatile with a combination sanding unit for calibration and final sanding. The robust sanding unit and heavy-duty frame ensure optimum sanding results. Motorized thickness adjustment with digital thickness control for fast and accurate table adjustment.

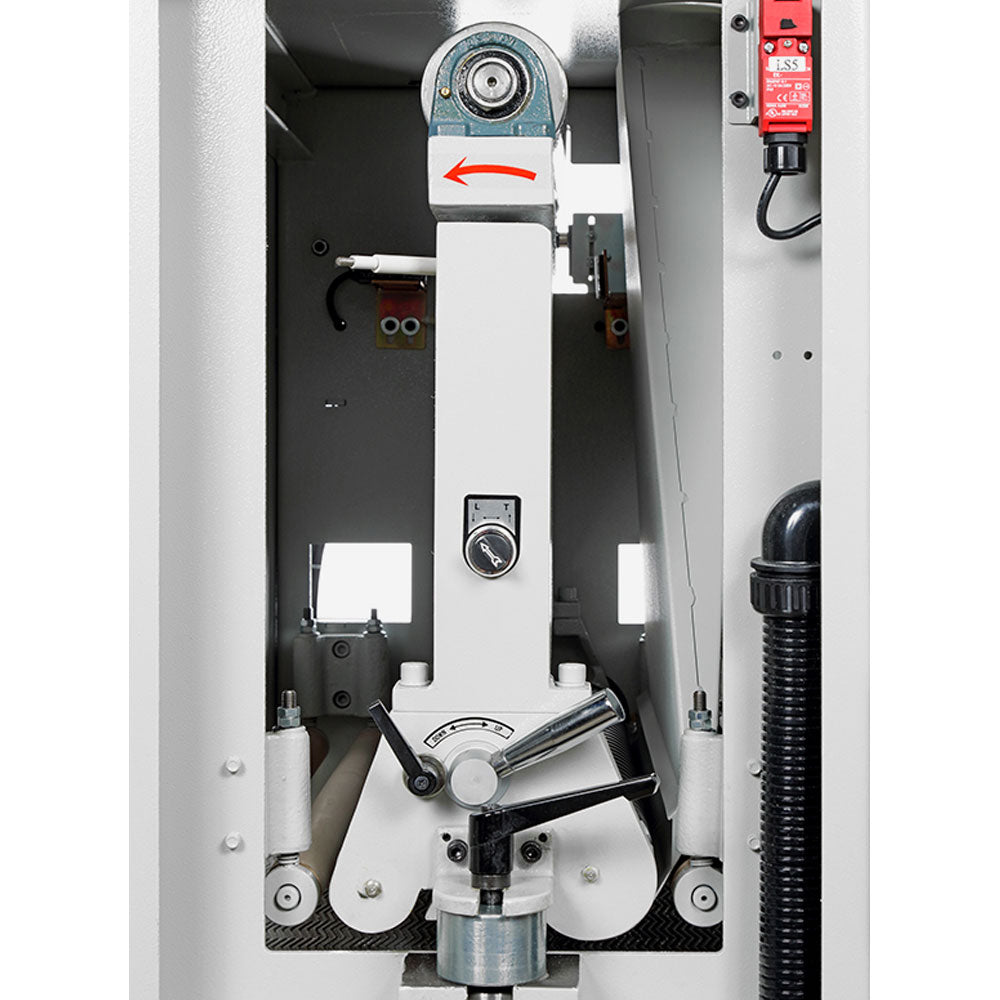

The single combination head allows the operator full control of sanding operations for calibrating off of the rubber drum & finish sanding by lowering the platen through an eccentric lever. Quick-release handle for belt changing and access to the removable platen.

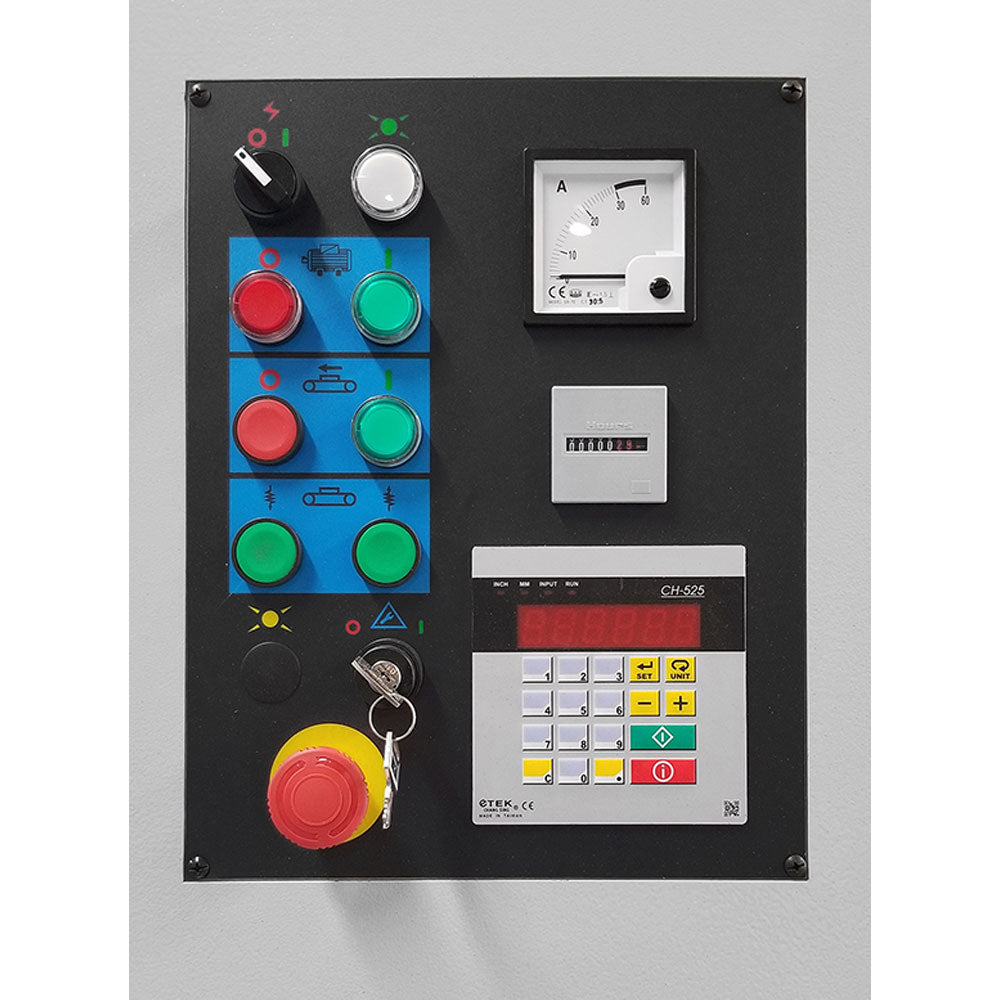

Centrally located control panel for convenient operator access. Includes digital motorized thickness adjustment to 2-decimal places in Inch & 1-decimal in MM. Also, emergency stop button, ammeter for load monitoring, and hour meter to aid in maintenance scheduling.

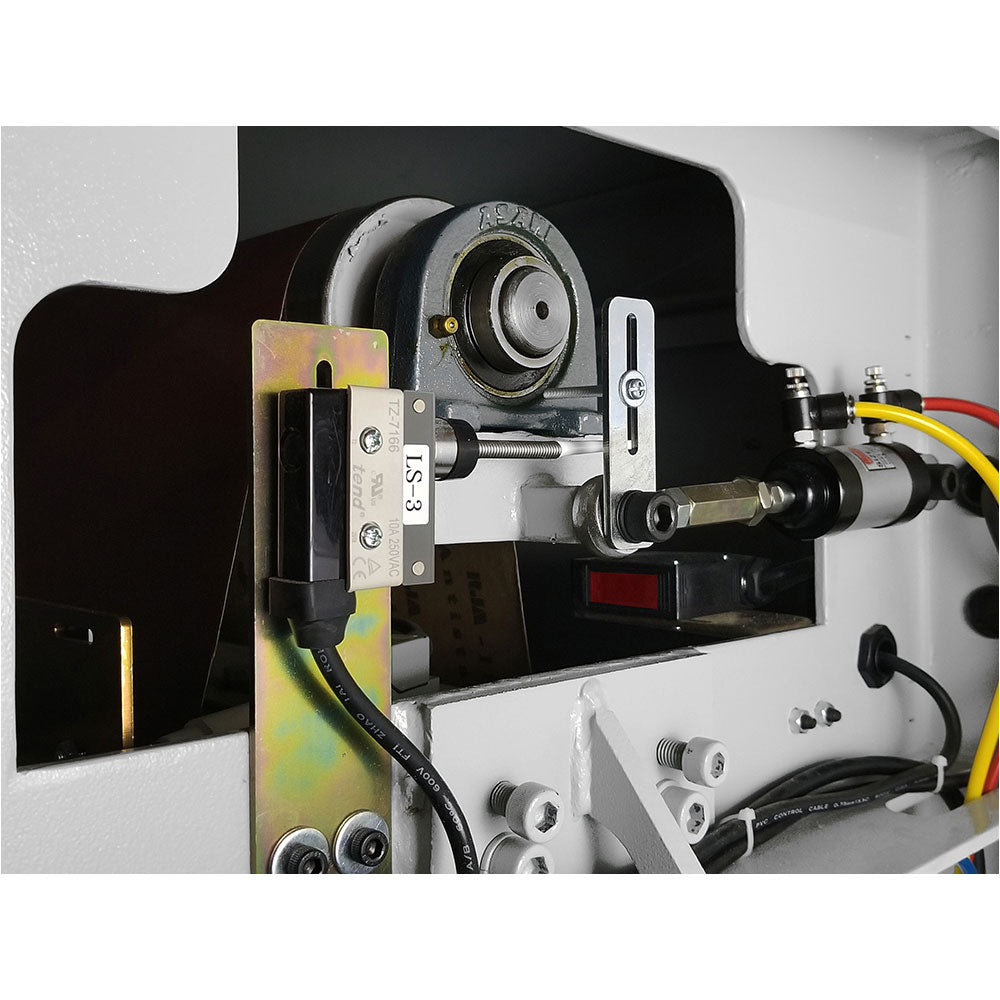

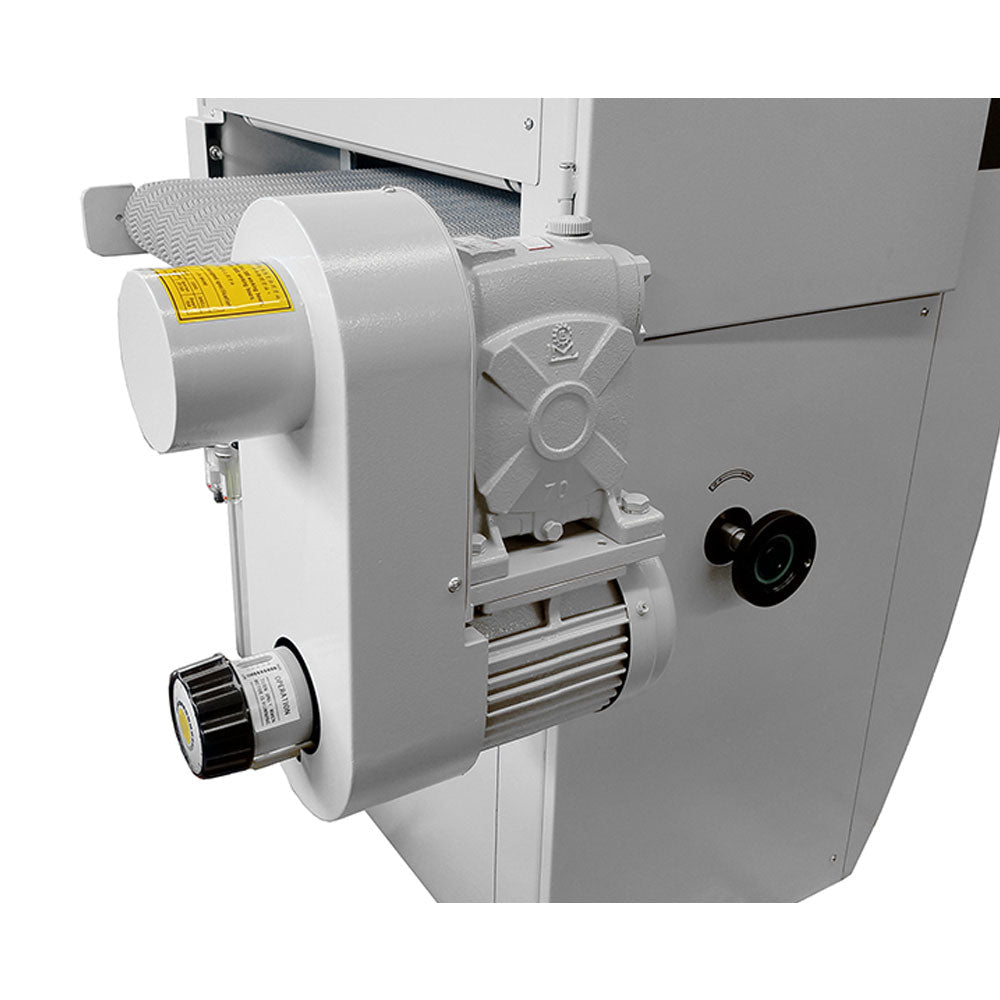

An electronic send & receive sensor precisely detects the sanding belt for the most reliable belt tracking. The machine is also equipped with belt overrun limit switches for added safety. Variable feed speed allows the operator to choose the correct sanding speed for various sanding applications, belt grits, wood species, and desired results.

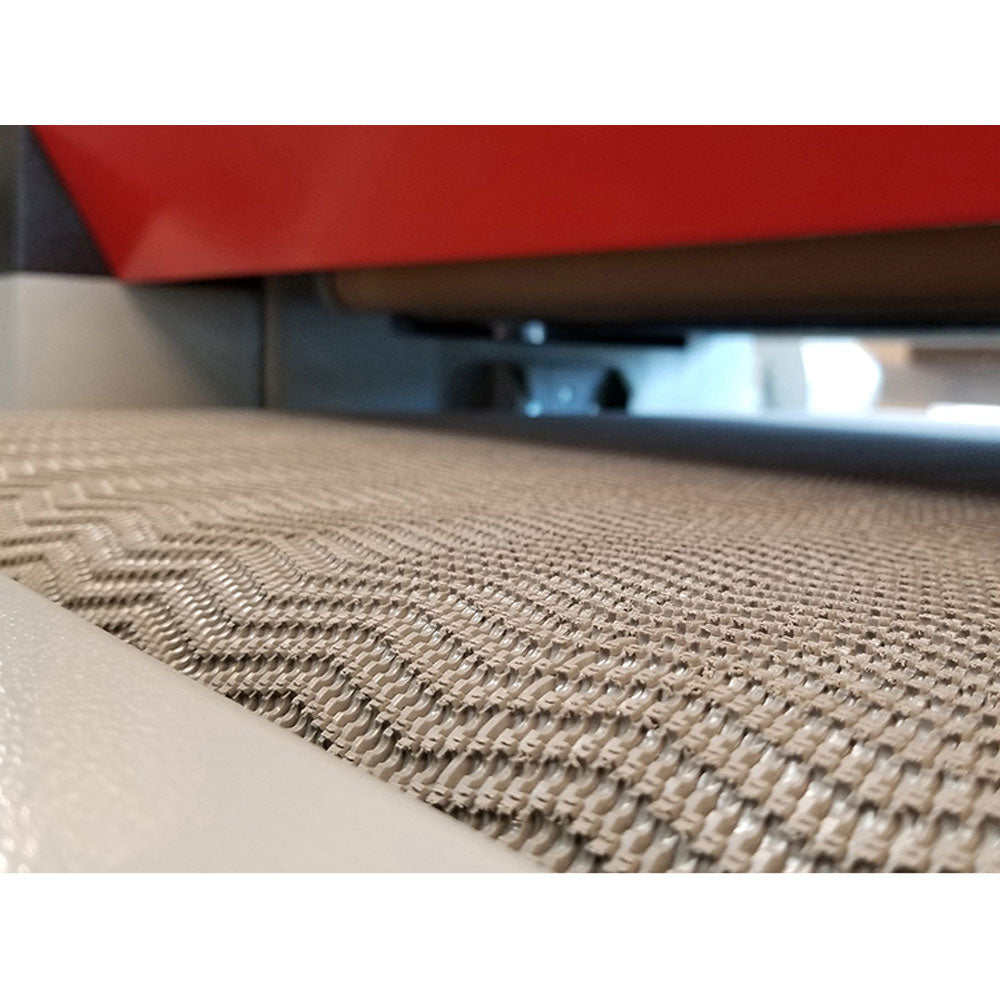

High-quality rubber conveyor belt with automatic belt tracking. The tracking system ensures the conveyor belt does not travel off to one side, causing damage. The C251 is equipped with a powerful 10HP sanding motor and a pneumatic disc braking system to facilitate faster belt changes. Also equipped with dual infeed and dual outfeed hold-down rollers to firmly secure the panel during sanding operations.

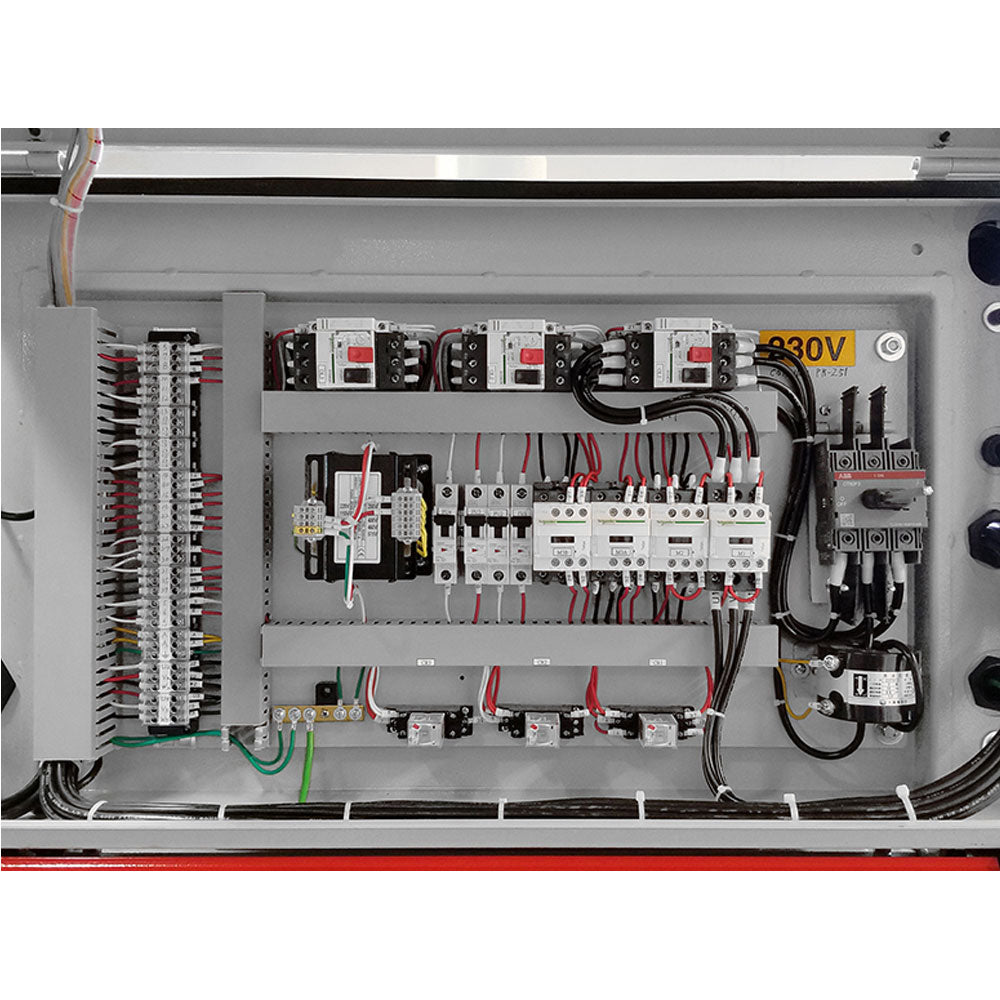

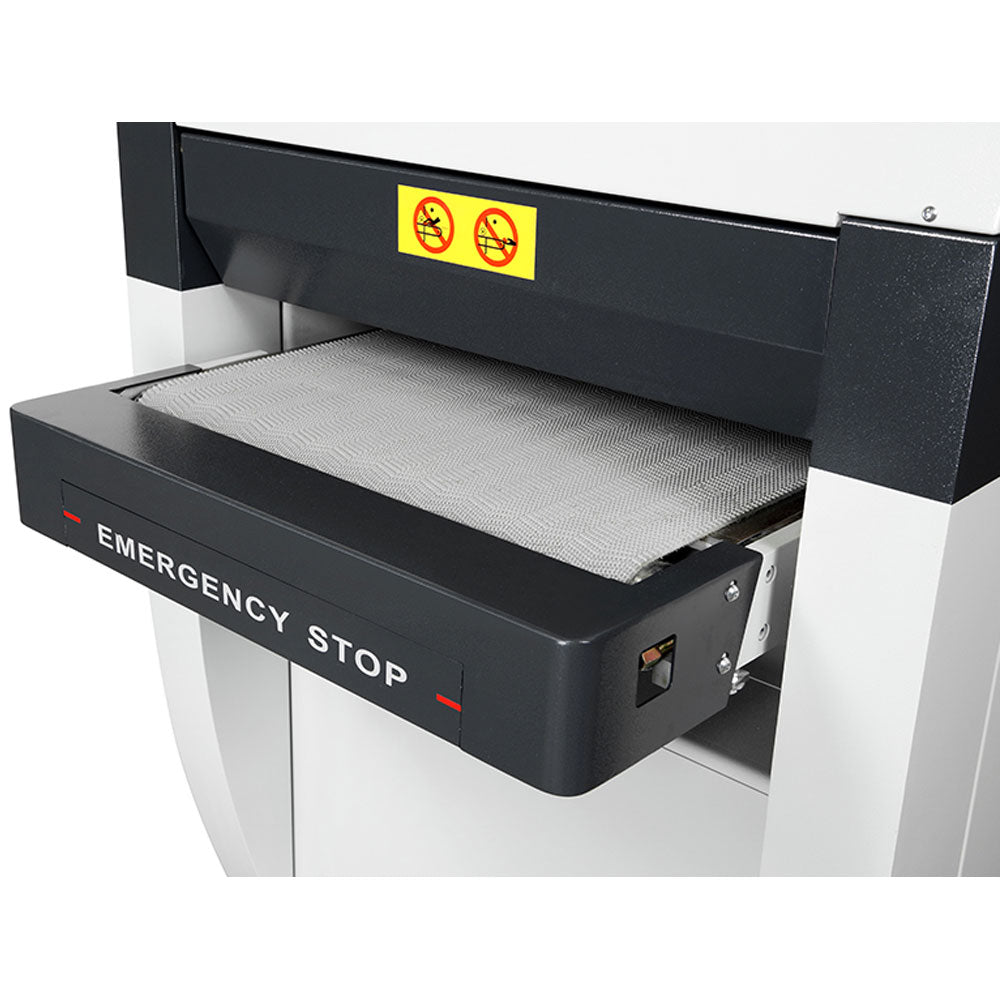

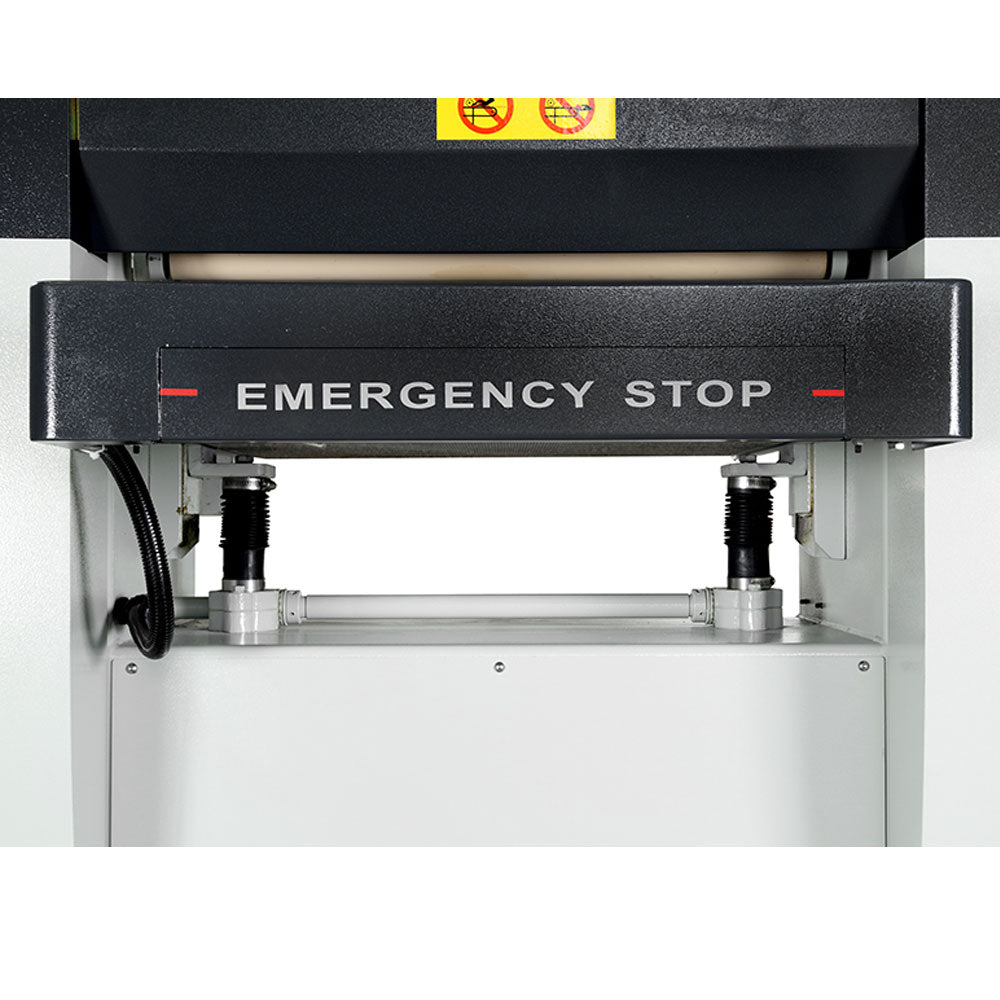

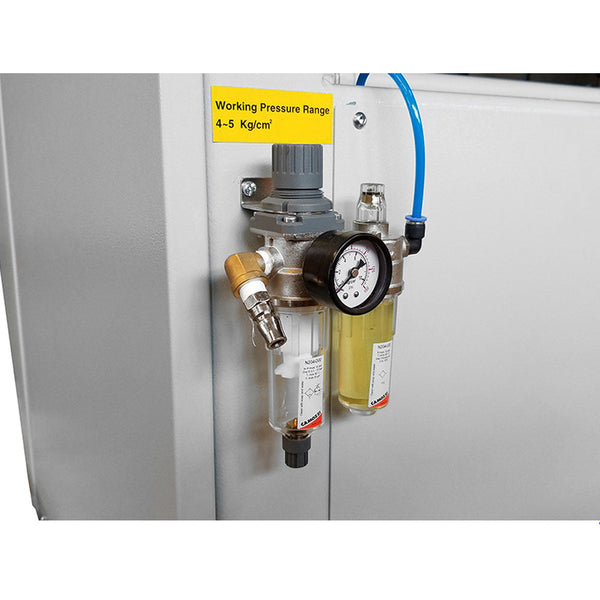

Equipped with an over height lever gate that will automatically shut off the machine should a workpiece too thick be sent through for sanding. Also equipped with a front safety bar, emergency stop buttons on the front and rear of the machine, and safety switches on all door panels. On the electrical panel, high-quality Schneider electrical controls and Camozzi pneumatics are readily available.
If you need a quote, we would be happy to provide one. Call 260-637-0054 or email sales@oaktreesupplies.com
Note: Cannot ship to Pennsylvania or California.
Features
- Accurate digital thickness control with both Inch & Metric settings allows the operator to key in the desired thickness and the table will automatically move into position
- Small footprint
- Combination sanding unit with 3-3/8” rubber contact drum and 2” wide adjustable sanding platen for a wide range of sanding applications
- Electronic belt tracking for optimum belt life and sanding results
- Ammeter for load monitoring to ensure the proper amount of material is being removed according to the selected grit
- Disc brake on main motor allows for faster belt changes
- Pneumatic belt tensioning with quick-release outboard support to facilitate fast belt changes

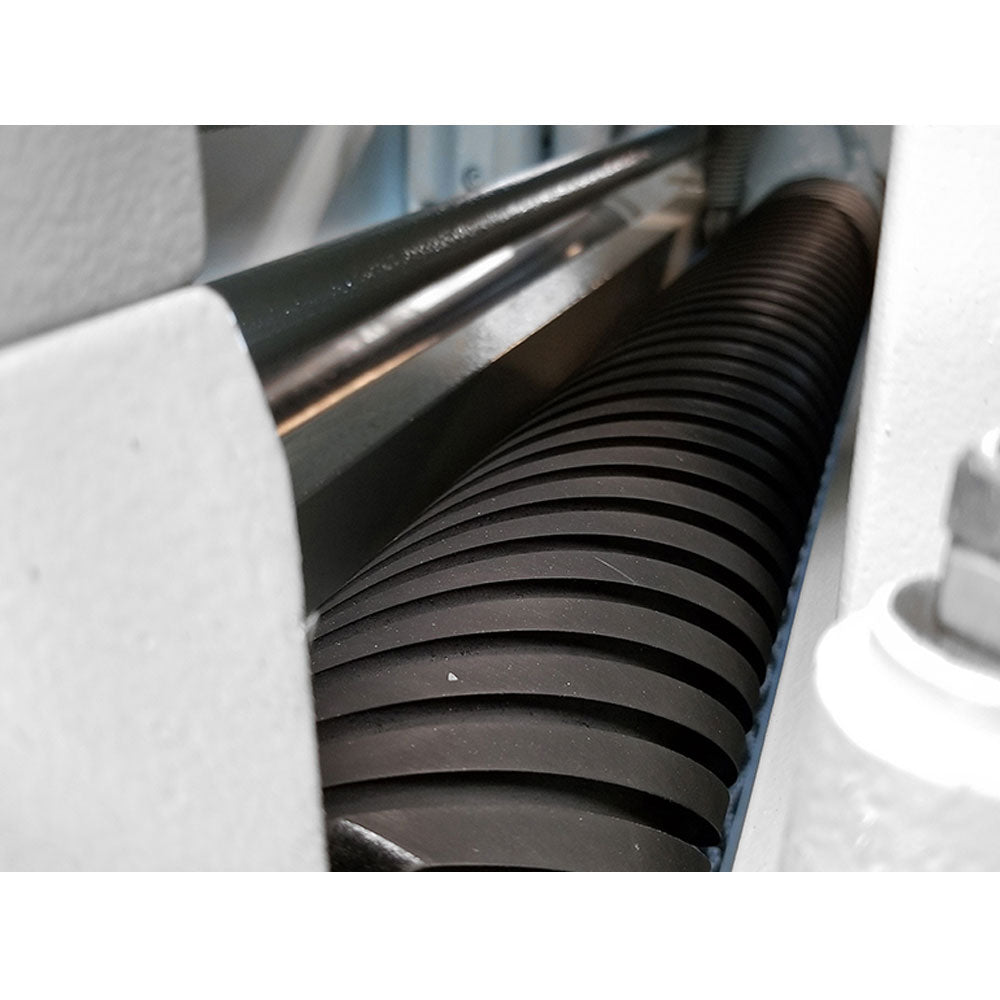

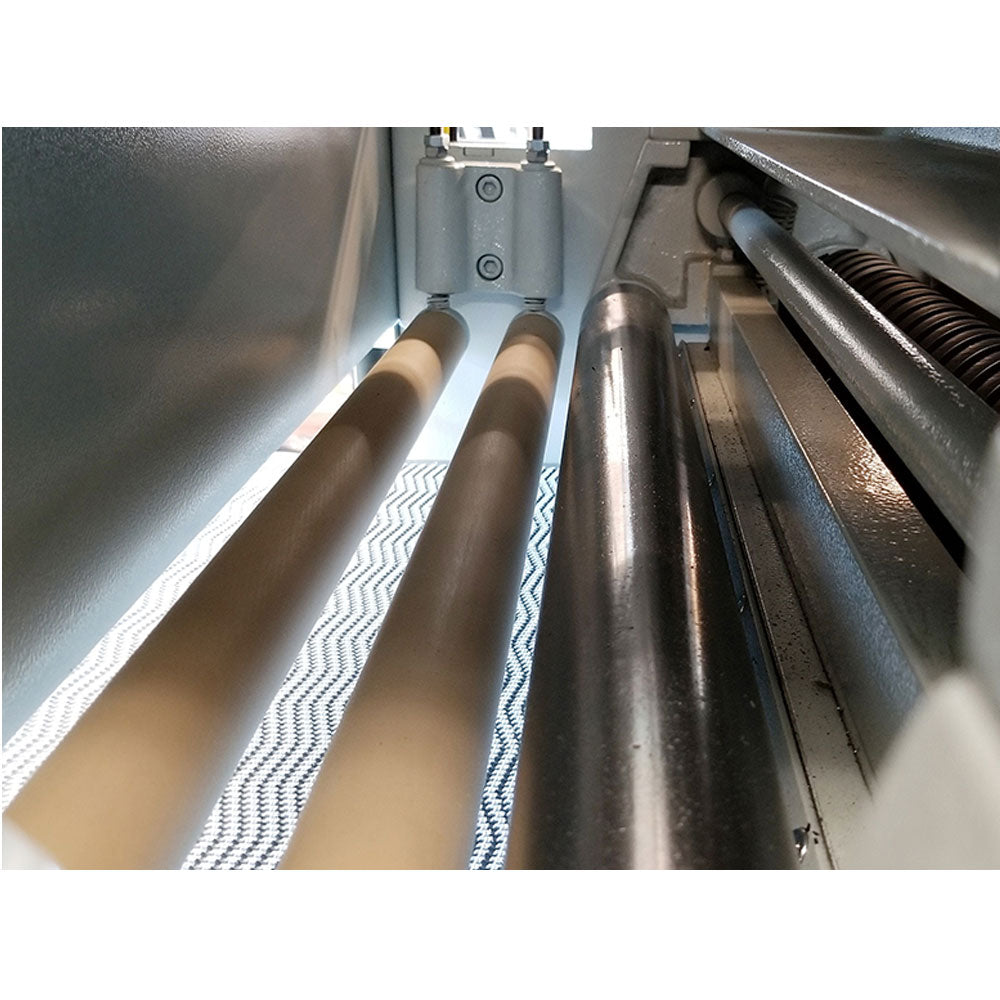

- Double infeed and outfeed pressure rolls for superior part hold down
- Material over-height limit switch
- Hour meter records the actual running time of the machine which can be used to provide timely maintenance for the machine
- Interlocks located on all access doors
Specs
Abrasive belt size: 25” x 60” (635 x 1,524 mm)
Main motor: 10hp
Feed motor: 1hp
Table rise/fall motor: 1/2hp
Maximum width stock: 24” (609 mm)
Minimum part length: 13” (330 mm)
Maximum thickness opening: 8” (200 mm)
Feed speed- variable: 13 to 52 FPM (4 to 16 m/min)
Passline height: 33” – 38” (838 – 965 mm)
Infeed table: 11-1/2” (292 mm)
Dust outlet: 1 @ 4” (101 mm)

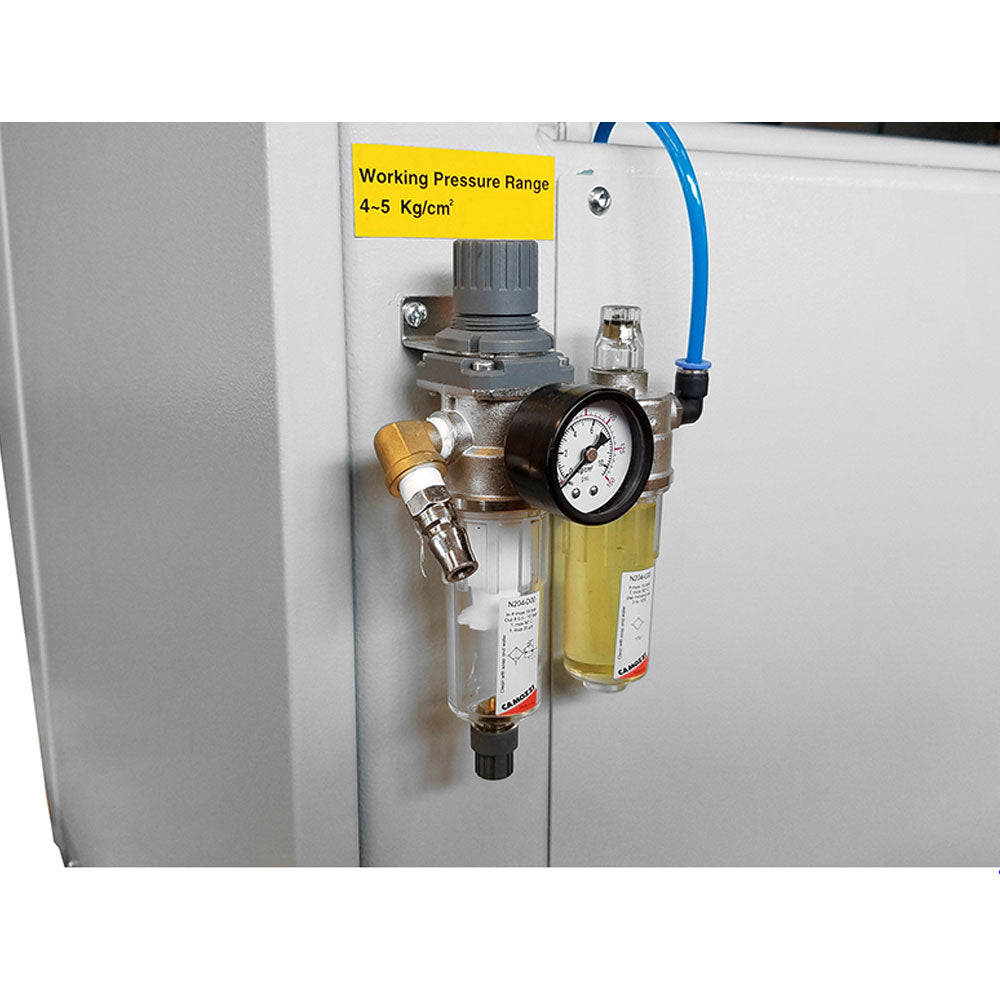

Compressed air usage: 2 CFM @ 90 PSI
Net weight: 1,540 lbs.
Machine dimensions: 67" x 55" x 82.3" (1,701 x 1,397 x 2,090 mm)
Shipping weight: 1,760 lbs.
