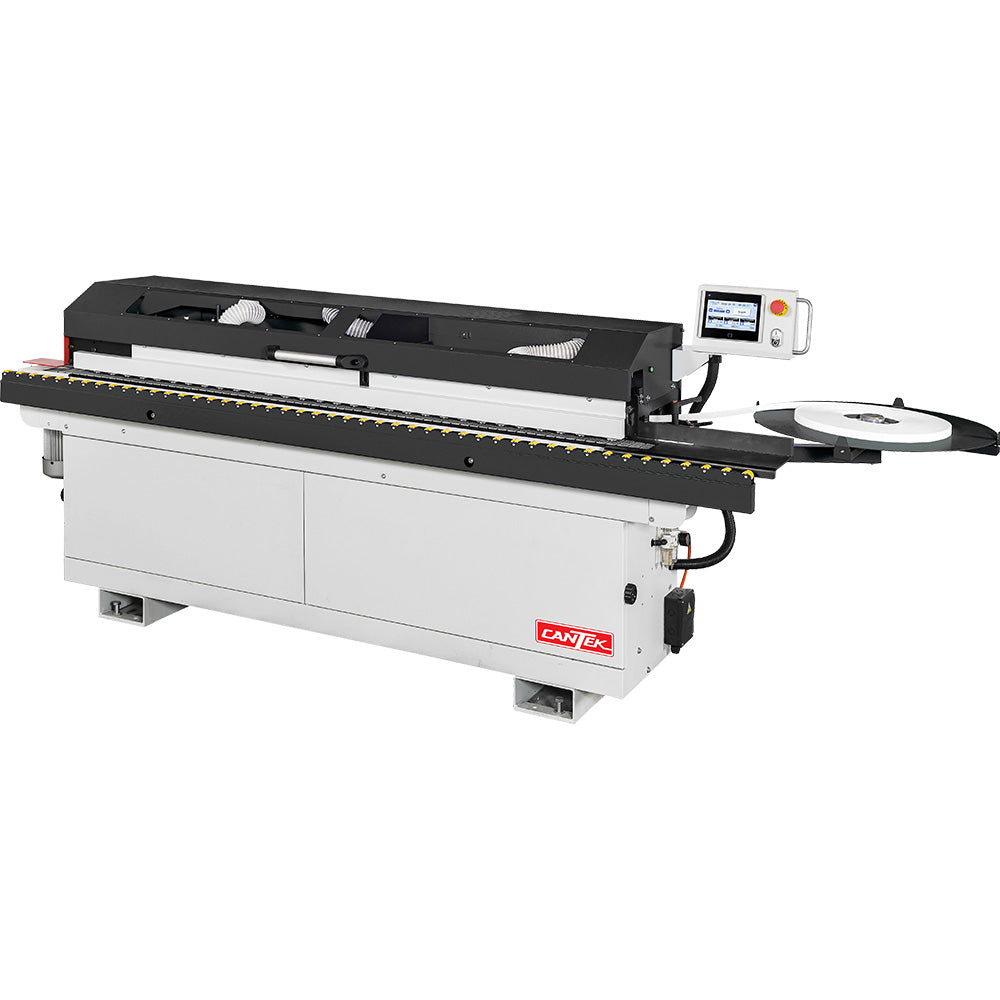

Cantek MX370M (3PH) Automatic Edgebander

The Cantek MX370M Edgebander is designed to be a compact & durable entry level edgebander with pre-milling & corner rounding functions offered at an affordable price. This machine is equipped with pre-milling, combination end trimming & corner rounding unit, flush trimming, PVC scraping, and buffing.  User friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm

Our Easy Purchase Guarantee:

• No hassle pricing — always sold at the manufacturers lowest price!
• No tax outside of Indiana or Washington State.

If you need a quote, we would be happy to provide one. Call 260-637-0054 or email sales@oaktreesupplies.com

Note: Cannot ship to Pennsylvania or California

[TABS]

Features

• Compact design with dual function end trim and corner rounding unit
• Versatile edgebander capable of applying 0.4mm to 3mm edge tape
• Counter rotating diamond pre-milling heads ensure a perfectly square edge and clean panel to work with, resulting in a minimally visible glue joint
• The corner rounding function finishes the ends of cabinet doors and more with a radius edge, eliminating any manual rework of the panel
• Automatic edge feeding with a thickness capacity of 0.4–3 mm; strip material can be hand-fed
• Conveyor chain feed system for reliable results with a feed speed of 23 FPM
• Heavy-duty pressure beam with extendable workpiece support
• Heated infeed fence for pre-heating the panel for optimum glue penetration

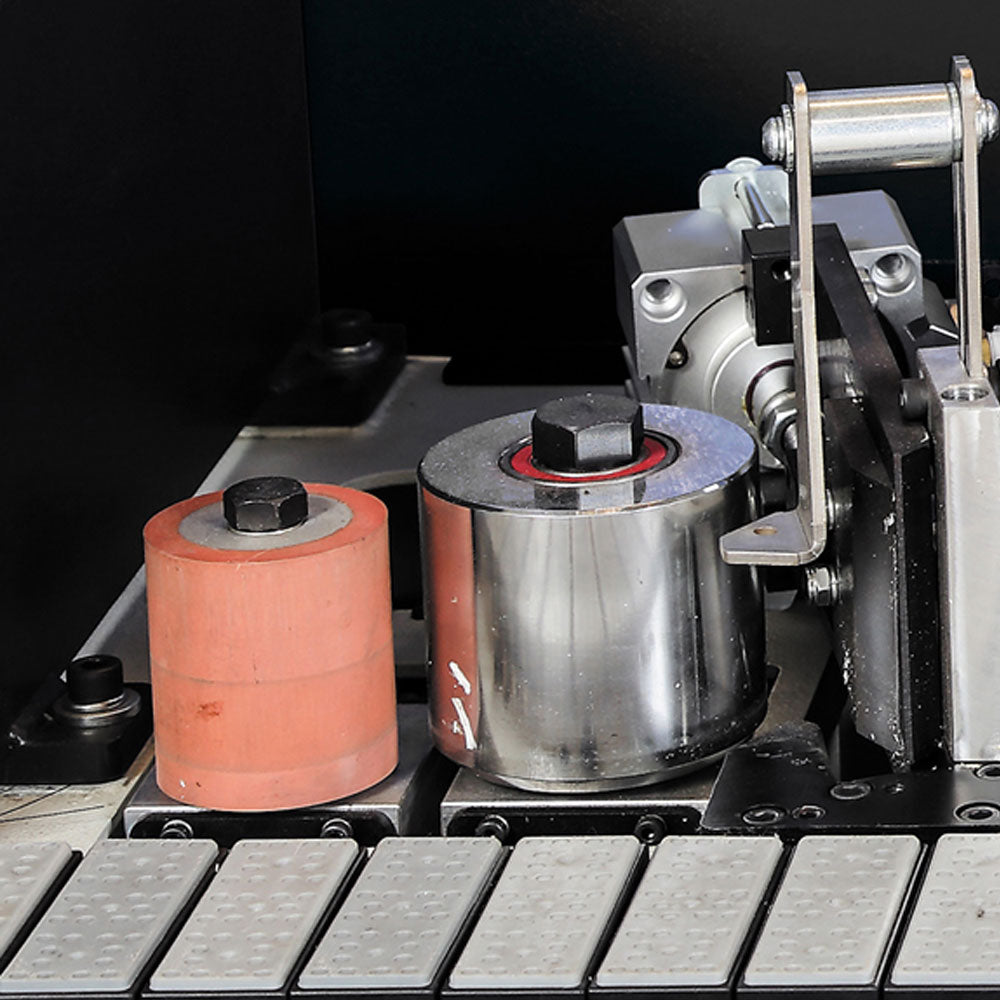

• Spring-loaded pressure unit with (2) pressure rollers
• Teflon-coated hot-melt glue pot
• User friendly 7” touch screen to control all edgebander functions
• Edge coil support plate for PVC/ABS coiled edgebanding
• Radius scraping and buffing units ensure a clean and vibrant edge

More Features

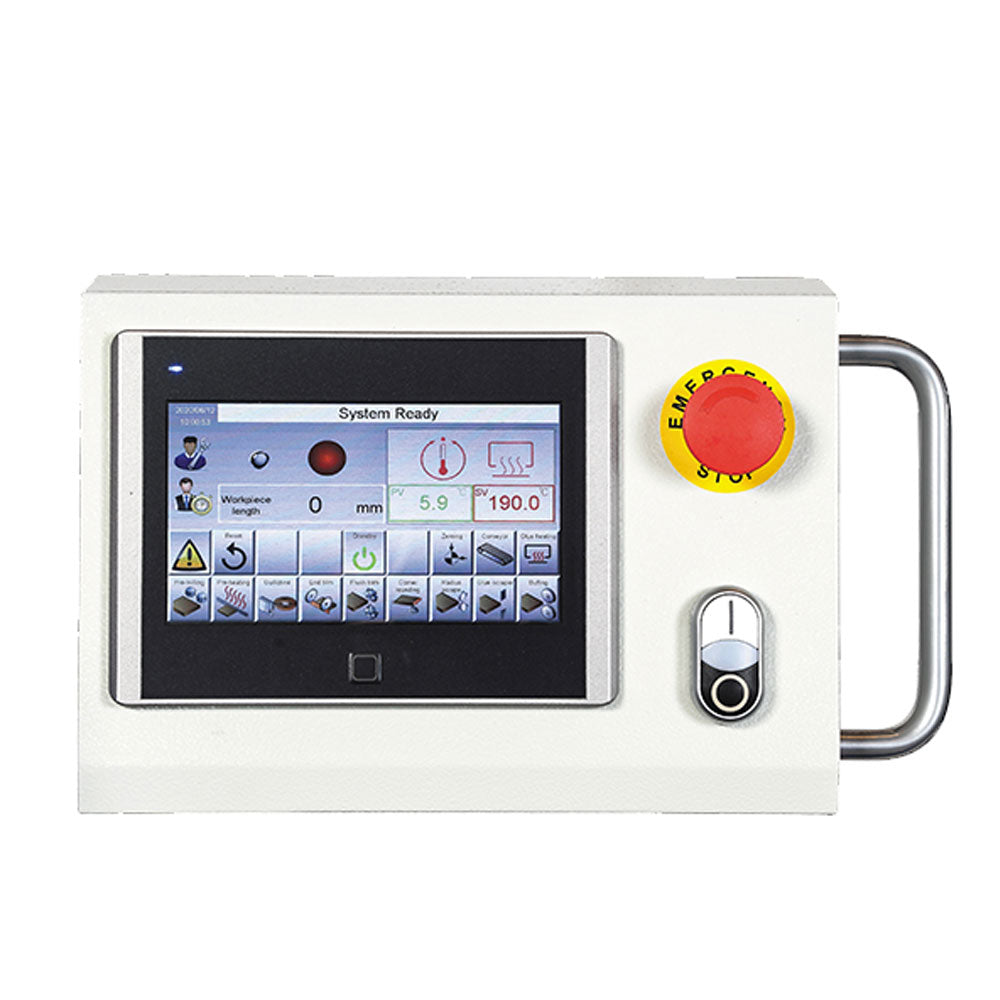

TOUCH SCREEN INTERFACE
Glue temperature settings
Units can be selected and disengaged individually
Heated fence is standard
Keeps track of workpiece length, number or work pieces and hours

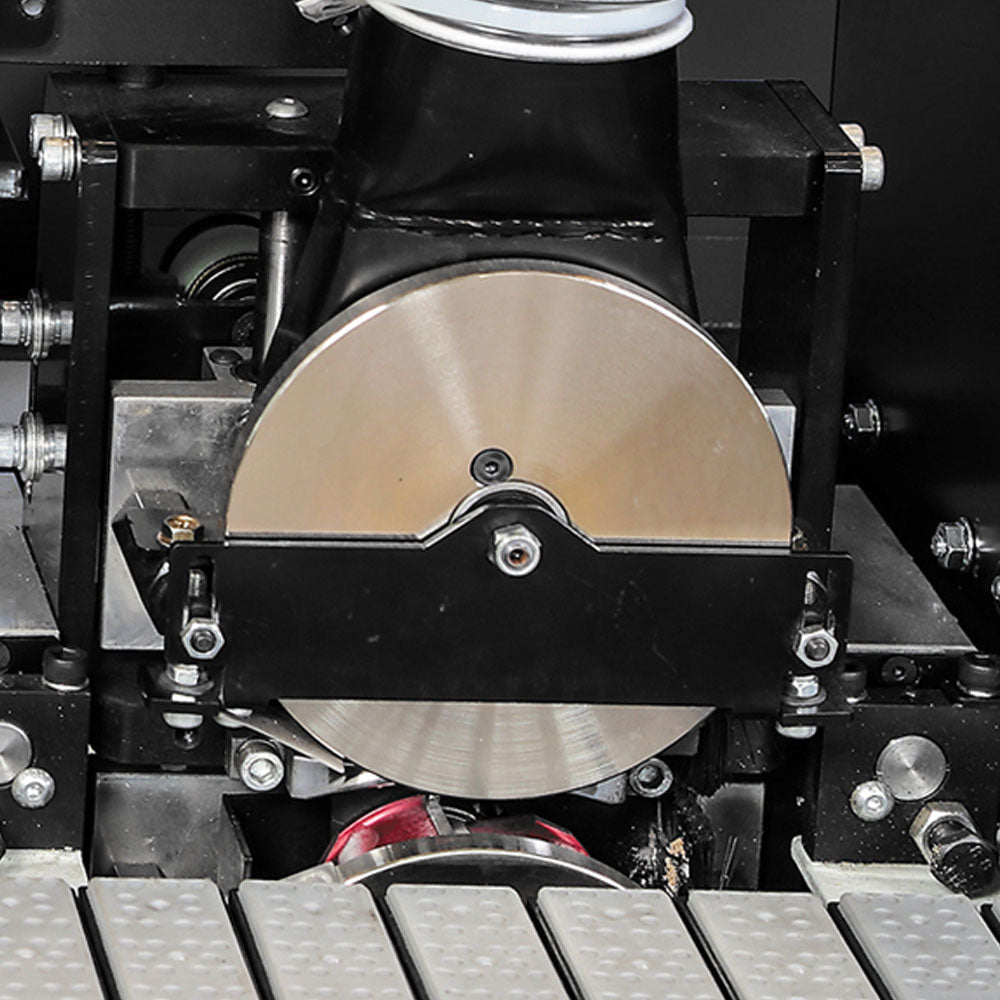

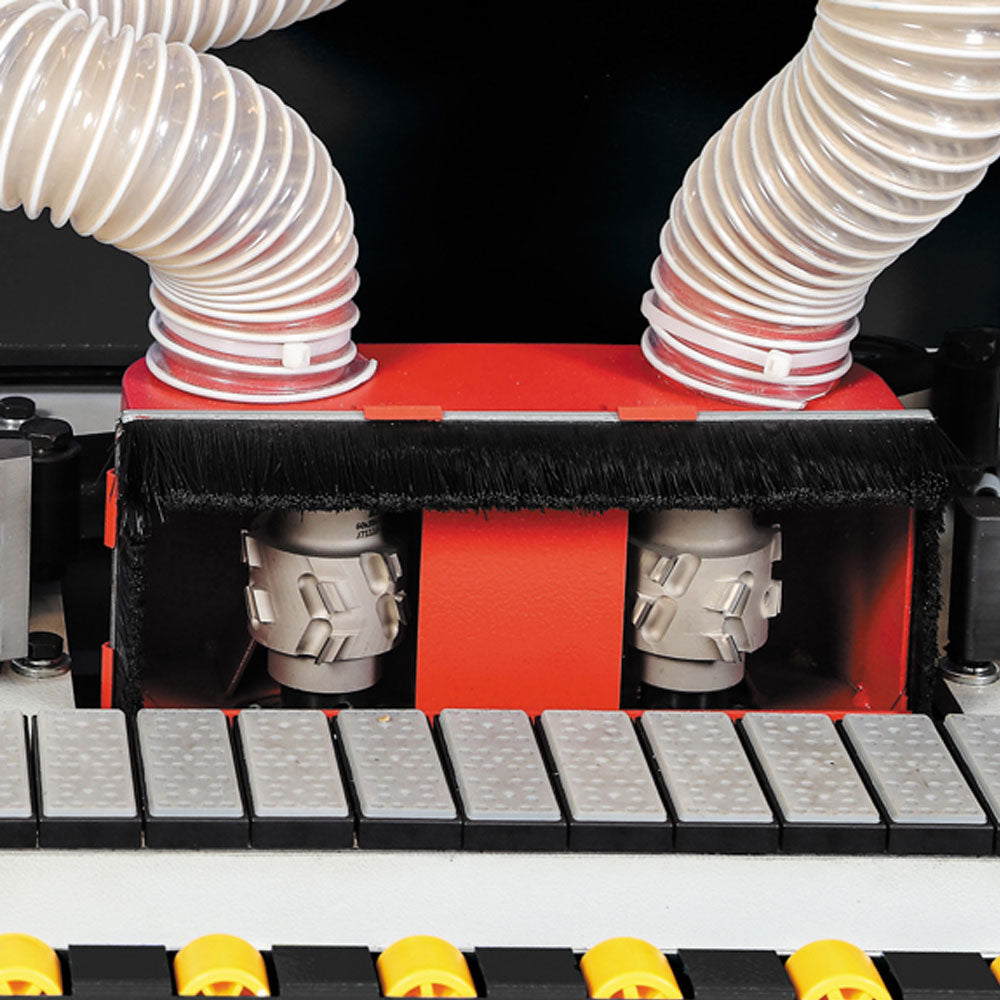

PREMILLING UNIT
(2) diamond milling heads which are counter rotating mill the edge of the panel prior to applying the edgebanding for precise squareness and optimum edge results. Maximum removal of 3mm.

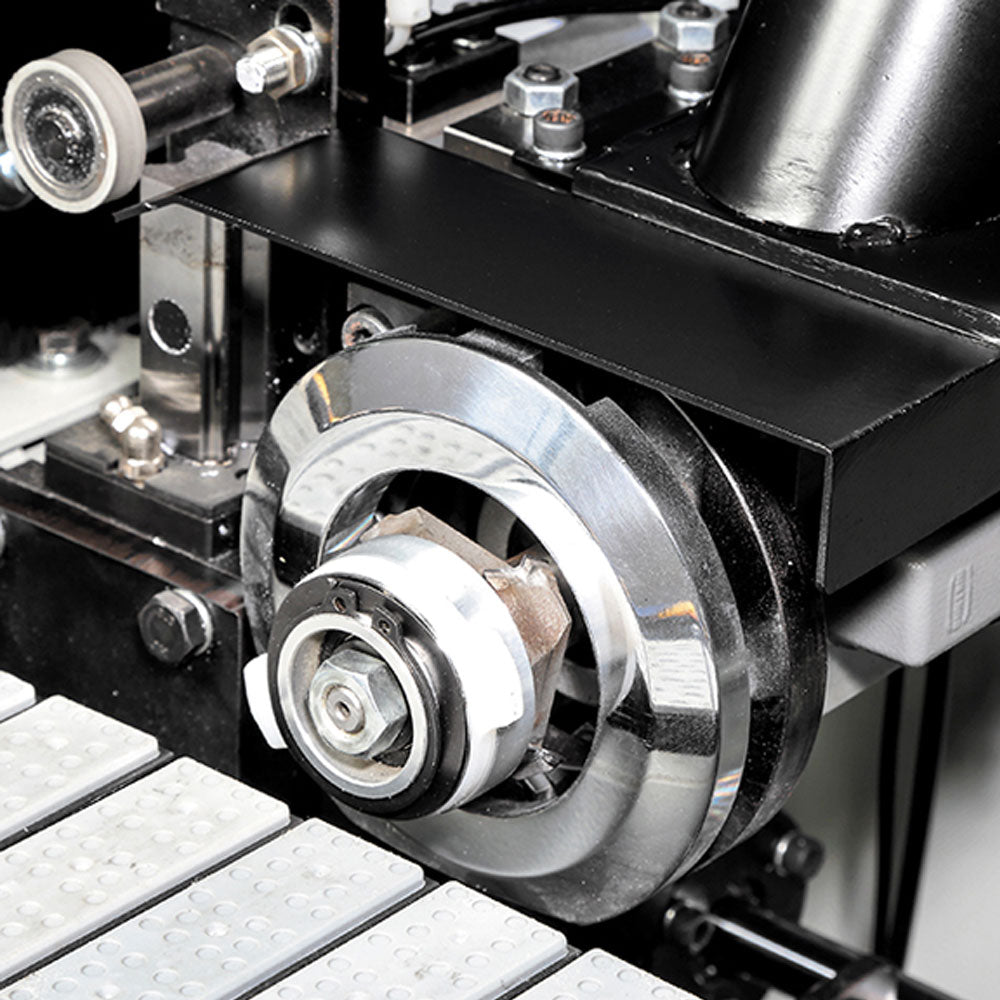

END TRIM / CORNER ROUNDING UNIT
Dual purpose unit for performing end trimming and corner rounding functions in one.
Can flush trim or radius trim depending on the work piece being machined.

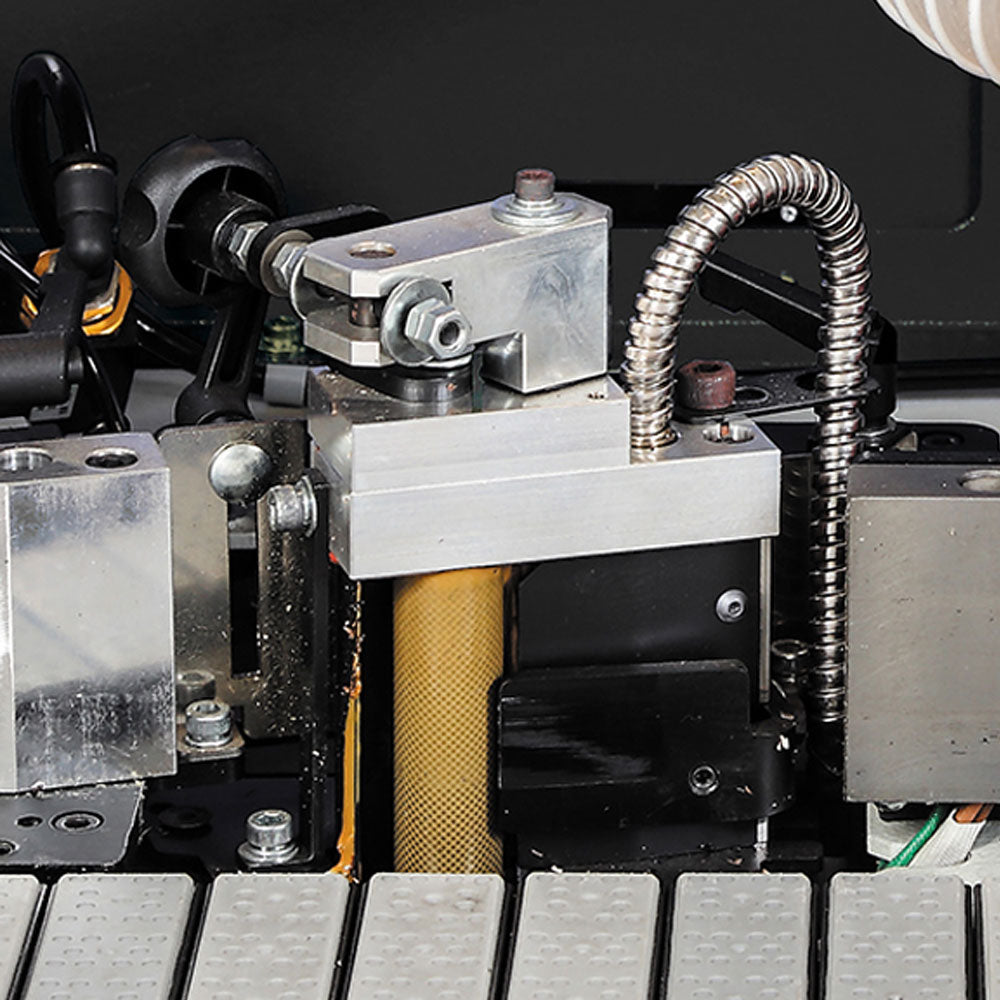

FLUSH TRIMMING UNIT
The standard copy roller disc for flush trimming unit is accurate, does not damage the work piece, and produces an optimum finish.
Adjust cutter position with mechanical digital readout for straight or radius profile

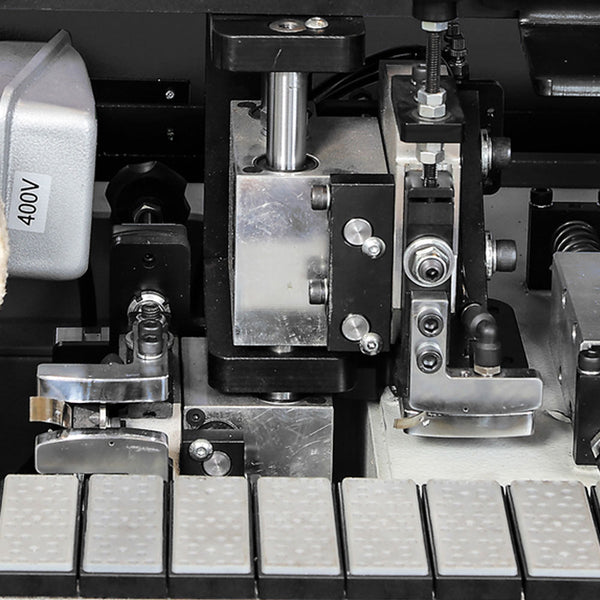

RADIUS SCRAPING
Radius scraper with 2mm radius.

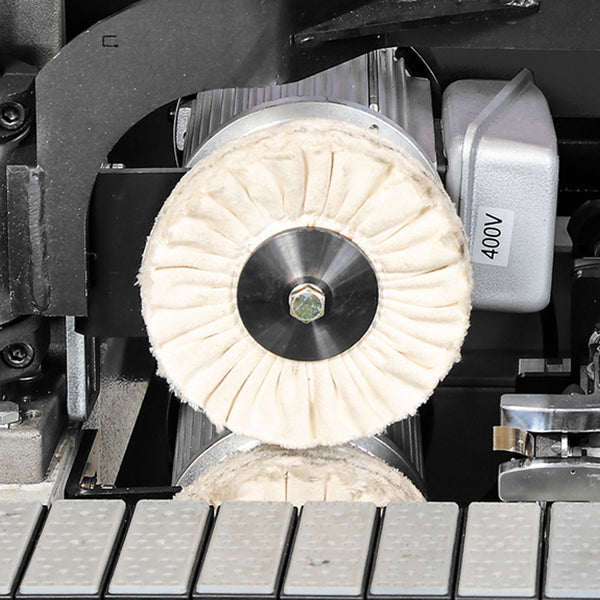

BUFFING
The buffing unit leaves a super finish on ABS and PVC edging, and removes any discoloration on the edges, which is especially noticeable when working with dark edge material.

Specs

Feeding speed: 23 FPM (7 m/min.)
Panel thickness: 0.472~1.77” (12~45 mm)
Edge thickness: 0.0158”~0.118” (0.4 ~ 3 mm)
Minimum panel width: 3.54” (90mm)
Minimum panel length: 6.7” (170mm)
Min panel length w/ corner rounding
With panel height 12-30mm: 6.7″ (170mm)
With panel height 30-45mm: 8.67″ (220mm)
Working table height: 33.7” (856mm)
Extensible support width: 22” (560mm)
Extraction connection: 4” x 3 (100mm x 3)
Pre-milling spindle speed: 12000 RPM
Top & bottom trimmer RPM: 10500 RPM
End trim/corner rounding RPM: 12000 RPM
Buffing RPM: 2800 RPM
Max. machine dimensions (LxWXH): 130” x 47 ¼” x 47 ¼” (3300x1200x1200mm)
Machine weight: 1067 lbs (485 kgs)
Shipping dimensions (LxWxH): 109” x 28 ½” x 54” (2920x720x1320mm)
Shipping weight: 1507 lbs (685 kgs)
