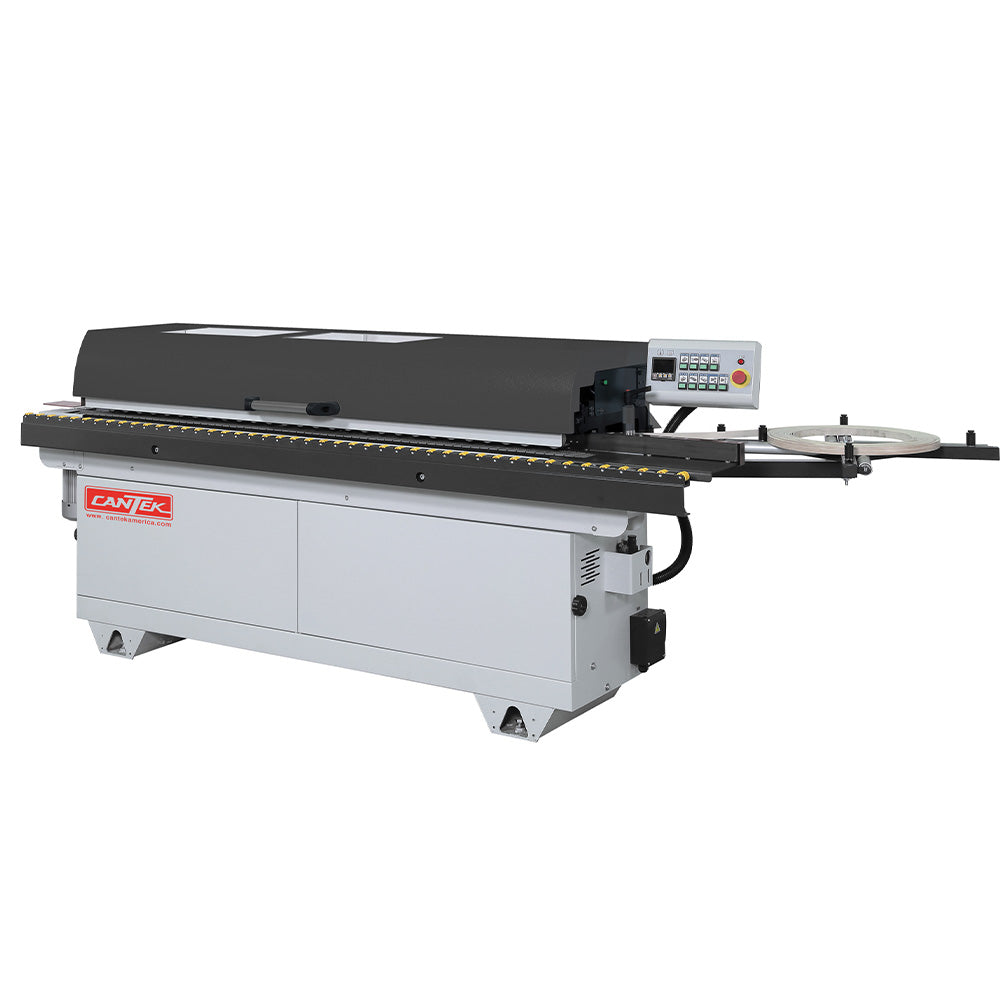

The Cantek MX350M Automatic Edgebander is an entry level edgebander with pre-milling that is the perfect blend of quality and affordability. With fine attention to detail and quality componentry, the MX350M can output high quality edges on cabinet parts and more. The pre-milling diamond cutterheads machine the panel just prior to applying the glue to ensure optimum edge quality prior to applying the edge tape. Additionally, the machine is equipped with end trimming, flush trimming, PVC scraping, and buffing. User friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4 mm & 3 mm.
Front and rear trimming cut-off can be made together with flush trimming and buffing unit (opt) on both sides of work-piece. The machines are made exclusively to execute above functions within the dimensions of the technical characteristics specified. When using the Max 350M, it is advisable to use good compressed air and dust collection system. Flush trimming is the only operation which gives dust emission. Connect the machine to an efficient dust collector system which guarantees a suction outlet at least a 20 mt/1”.
Our Easy Purchase Guarantee:
No hassle pricing— always sold at the manufacturers lowest price!
No tax outside of Indiana.
If you need a quote, we would be happy to provide one. Call 260-637-0054 or email email@example.com
Compact design makes it the ideal edgebanding solution for small workshops
Pre-milling the panel ensures optimum edge quality prior to edgebanding
Precise adjustments for optimum edge quality
Chain feed system ensures consistent feeding of material for consistent results
Available in 230V 1 or 3 phase

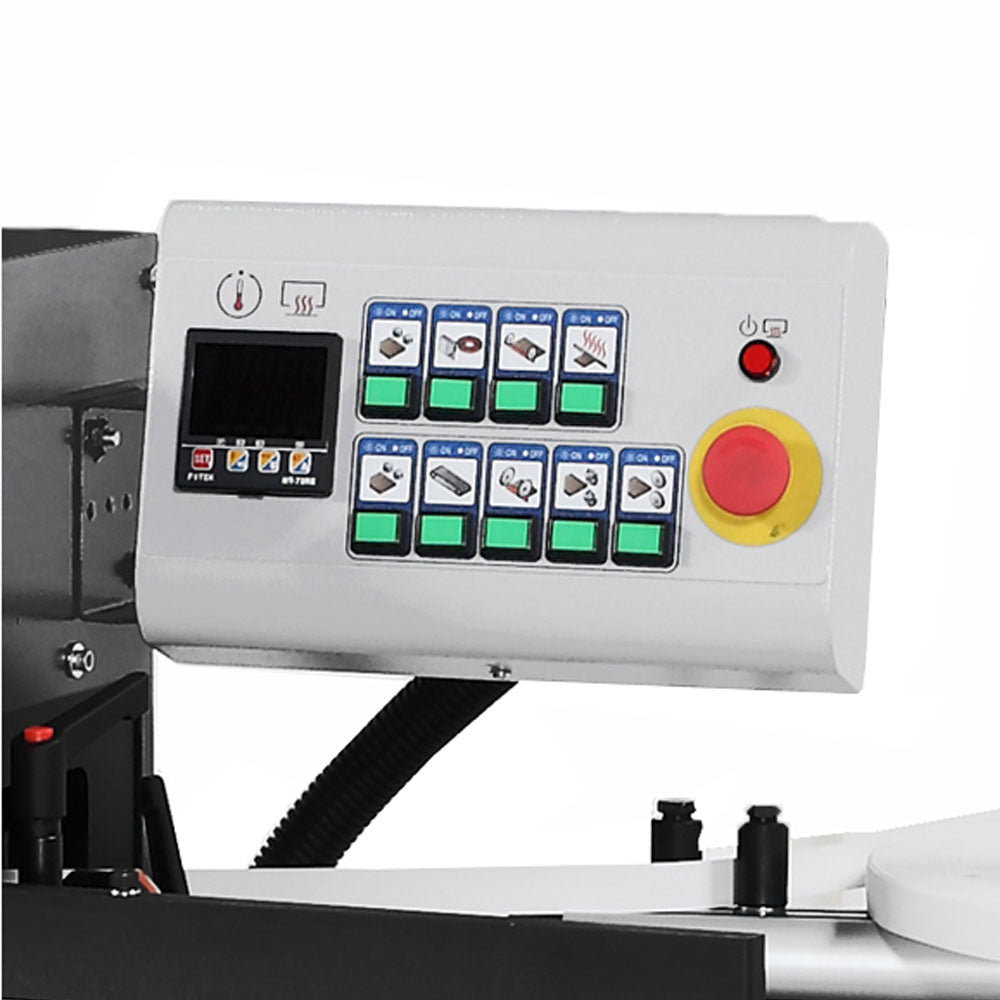

PLC control system with LED display and keypad
Workpiece is fed by chain

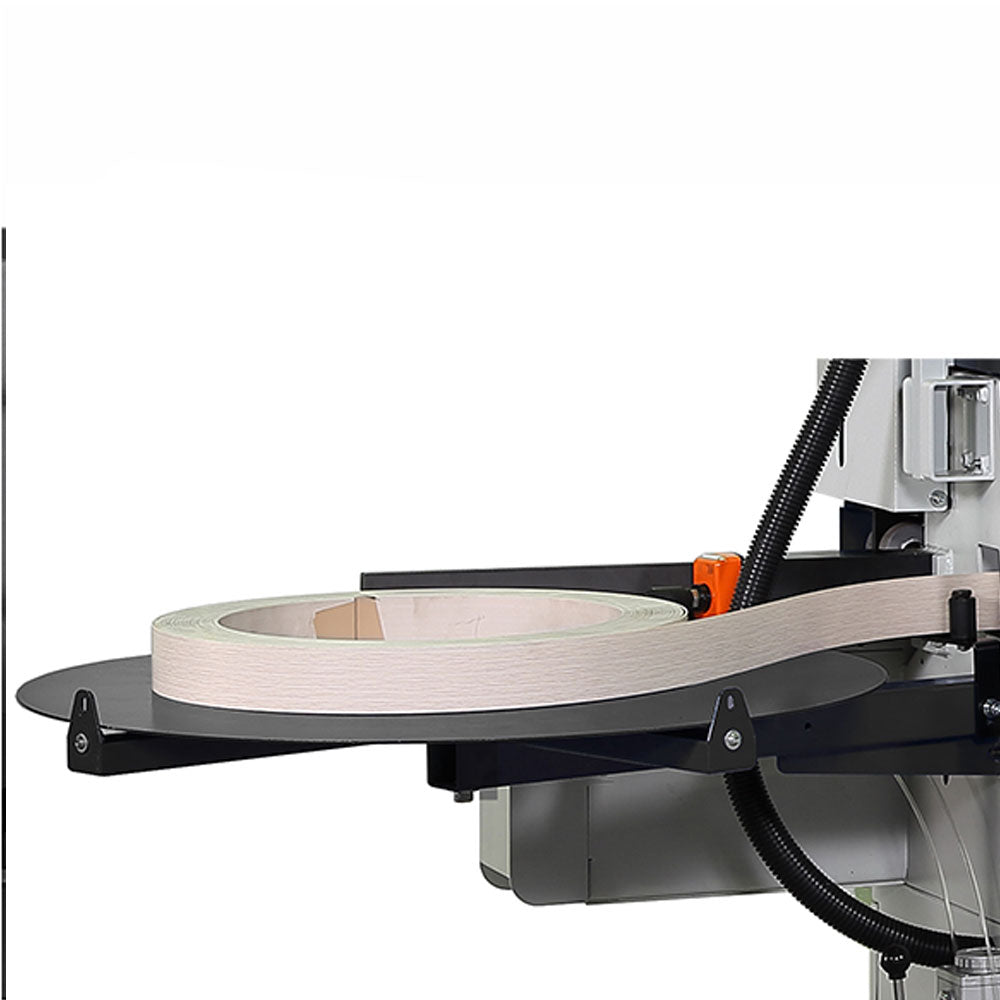

Edge coil support plate: Ø 800 mm (31.5″), for PVC/ABS
Automatic edge feeding with a thickness capacity of 0.4-3 mm; strip material up to 4mm can be hand-fed
Coiled edge bands up to 3 mm in thickness in Hard-PVC/ABS are cut with guillotine shears.

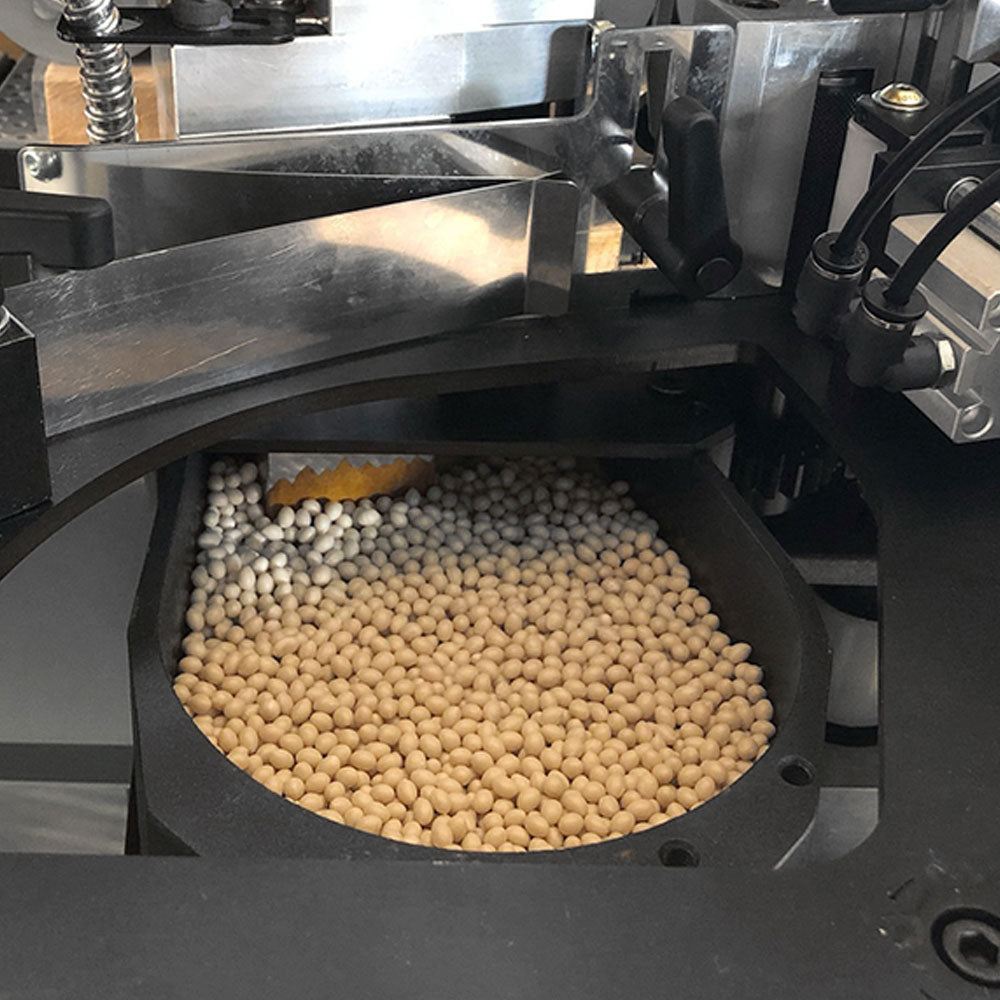

2 kg (2.64 lb) Teflon-coated hot-melt glue pot

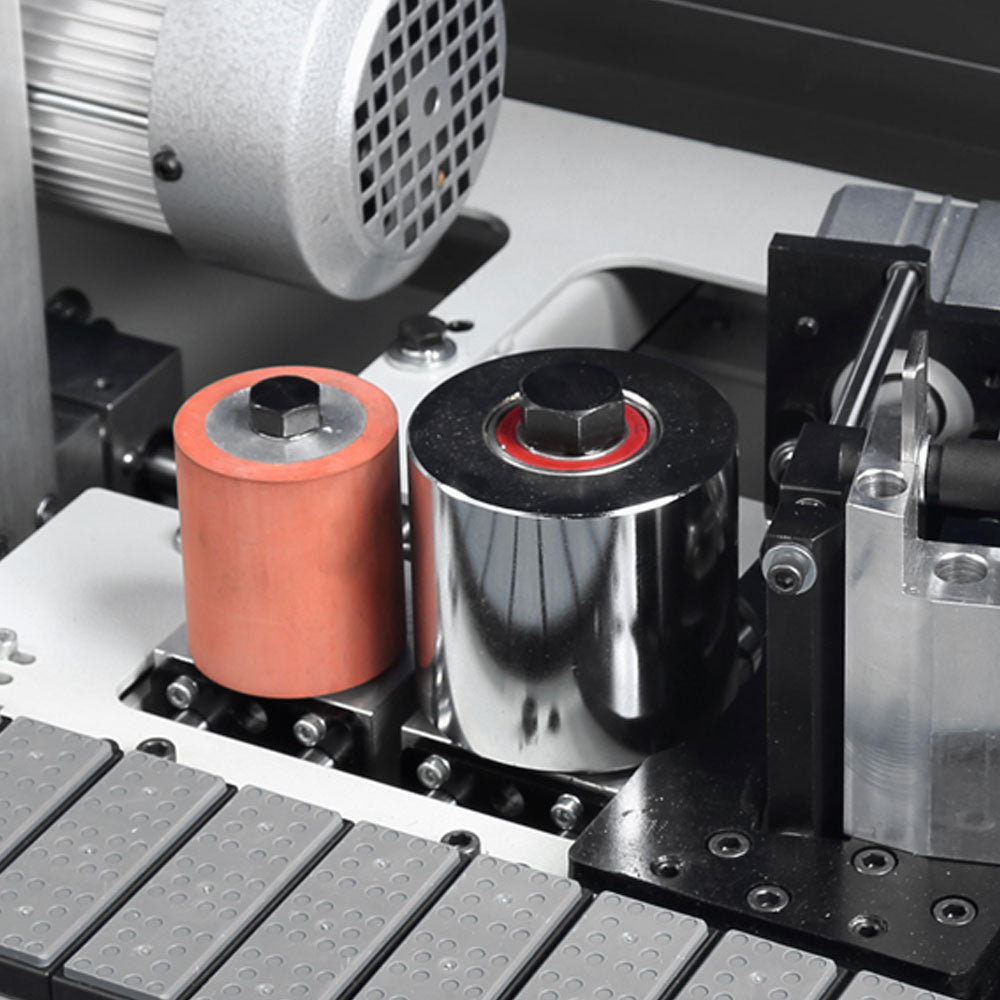

Spring loaded pressure unit with (2) pressure rollers (1 chrome & 1 rubber)

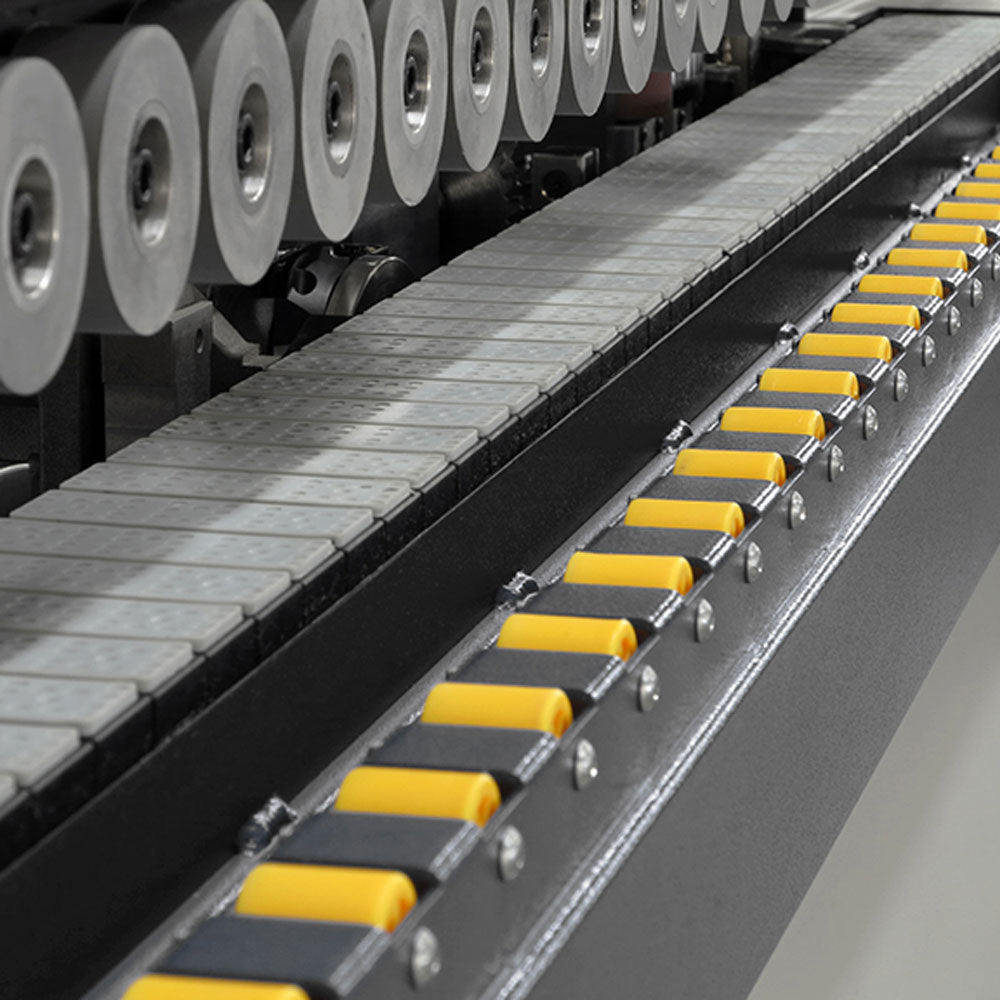

Heavy duty pressure beam with extendable work-piece support
Heated infeed fence for pre-heating the panel for optimum glue penetration
Mechanical digital readouts for convenient and quick adjustment to the working units & thickness

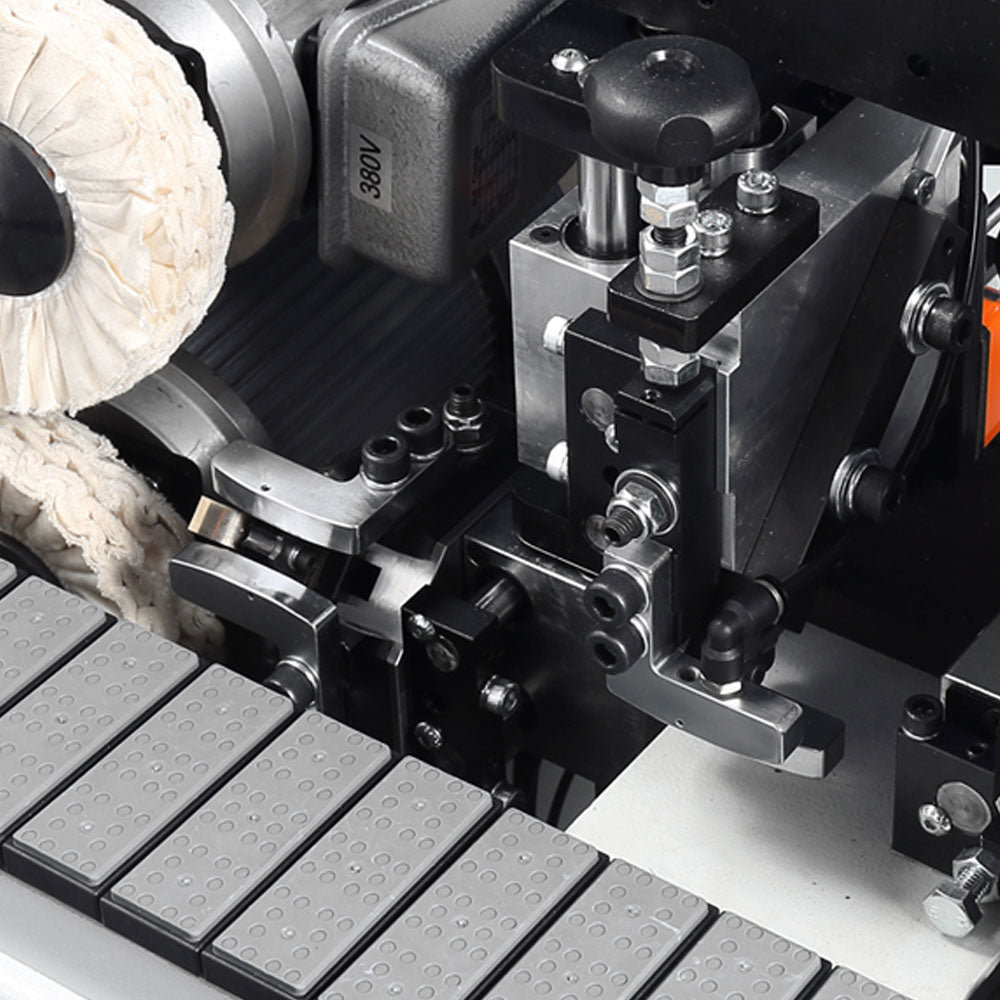

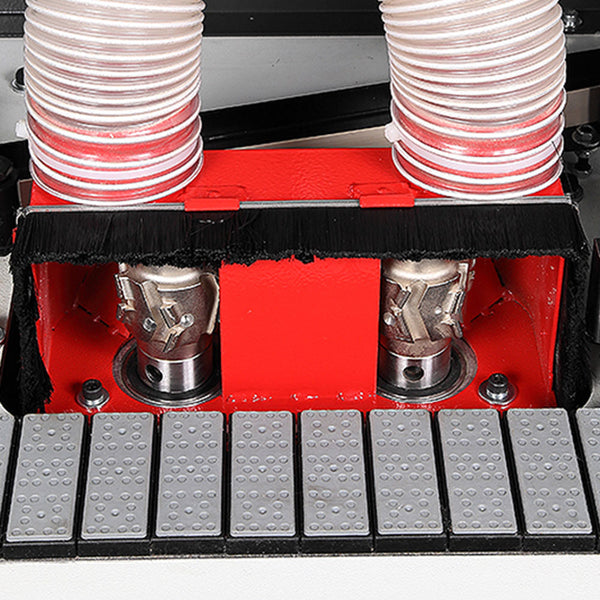

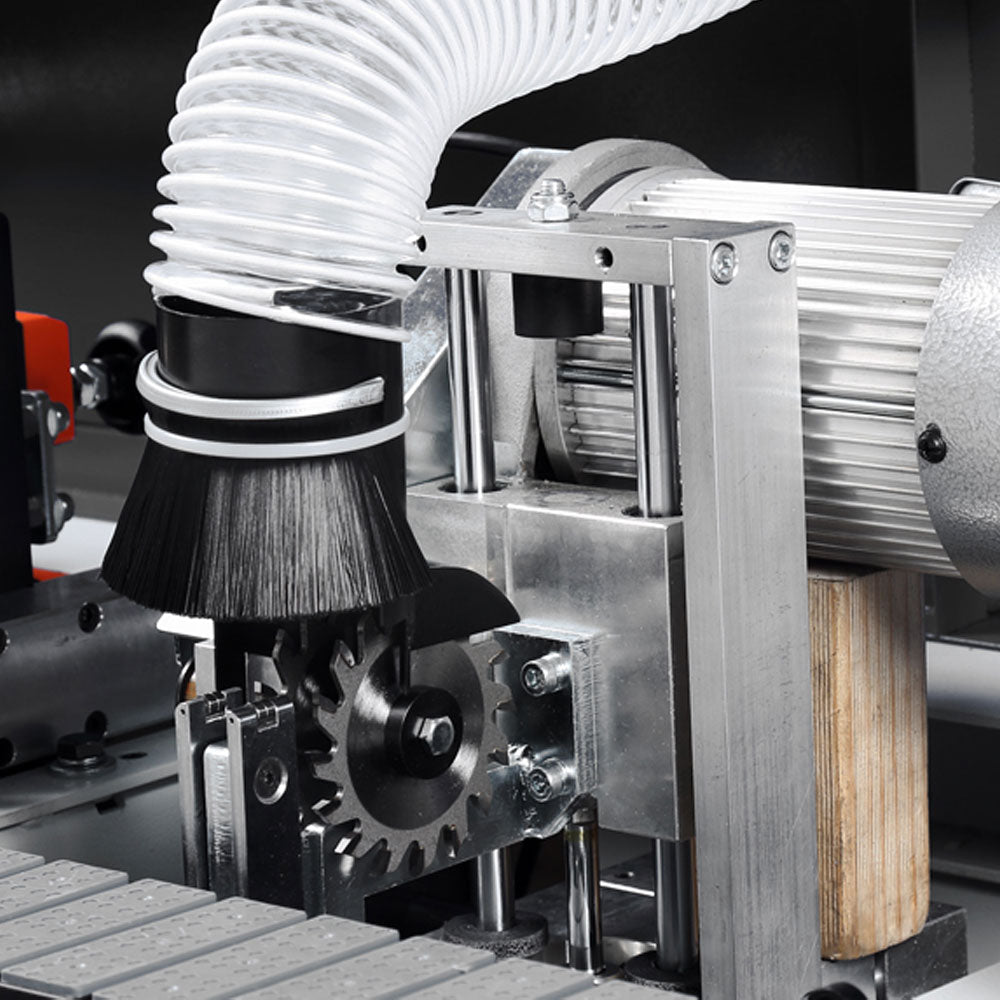

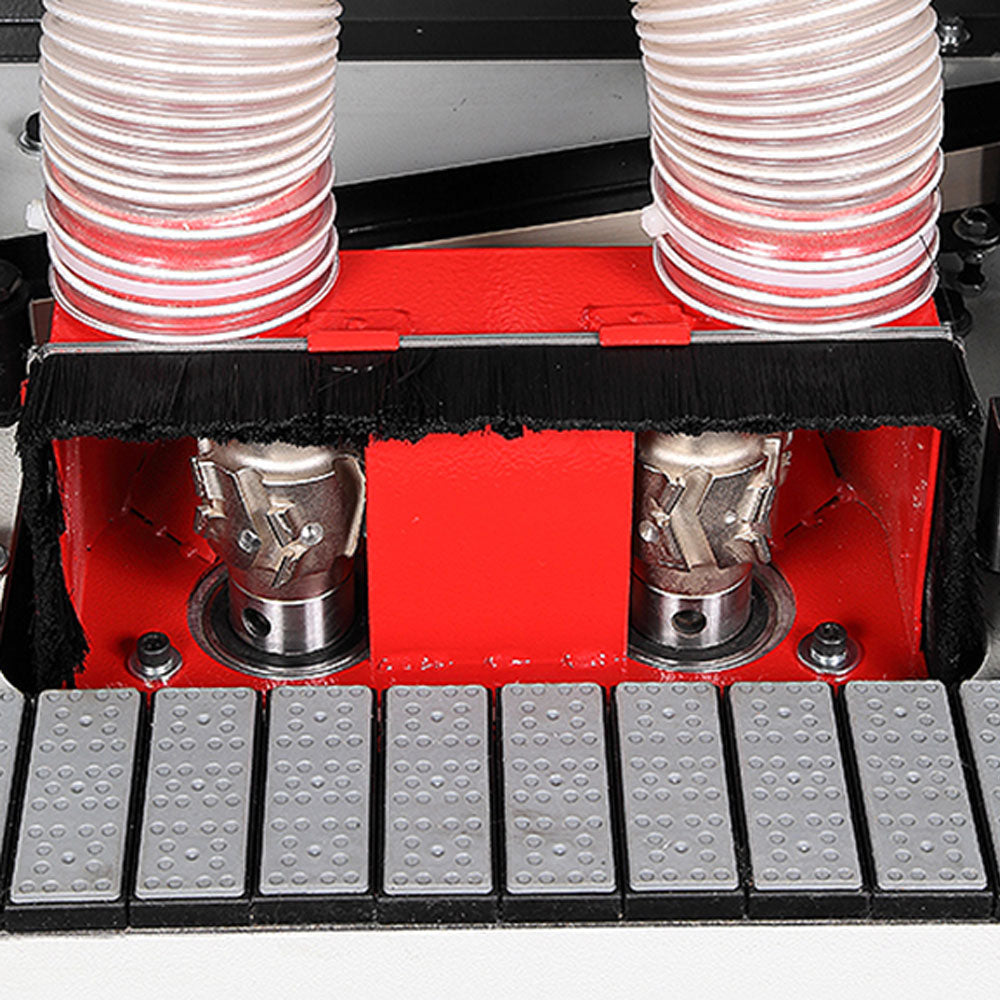

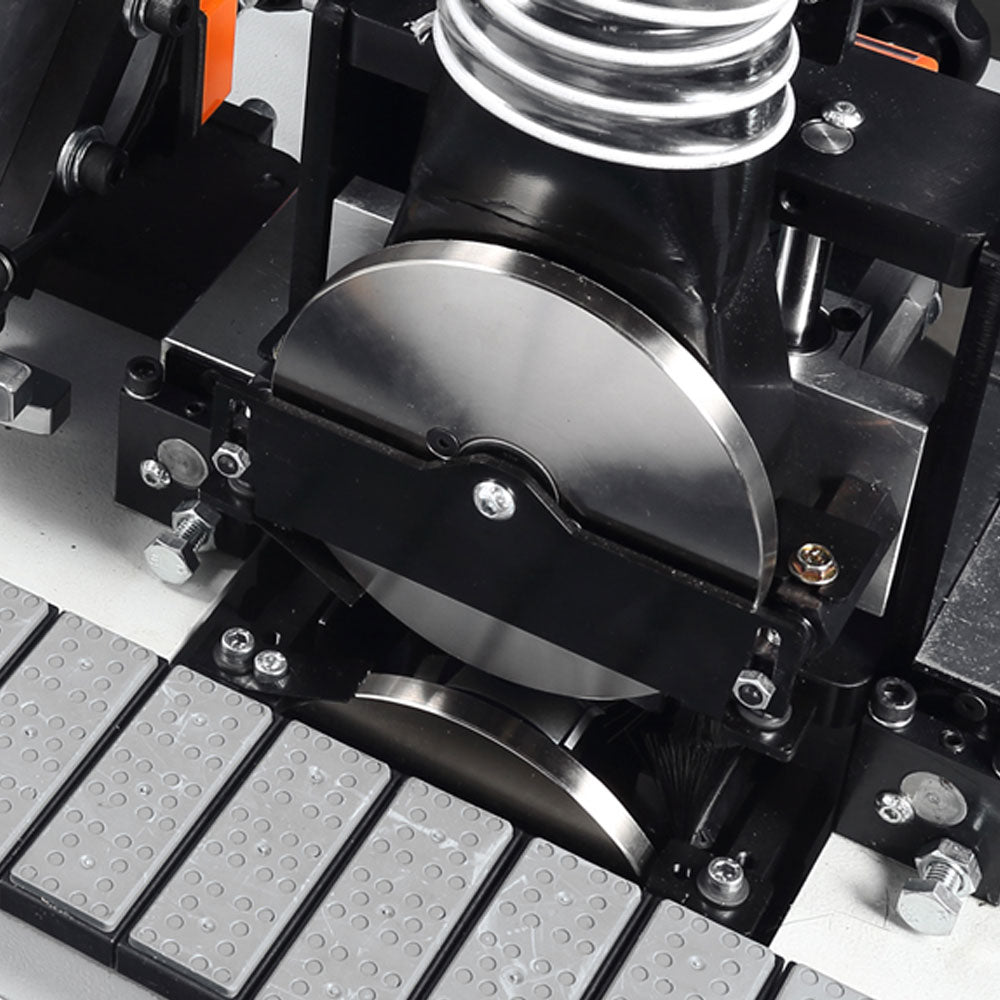

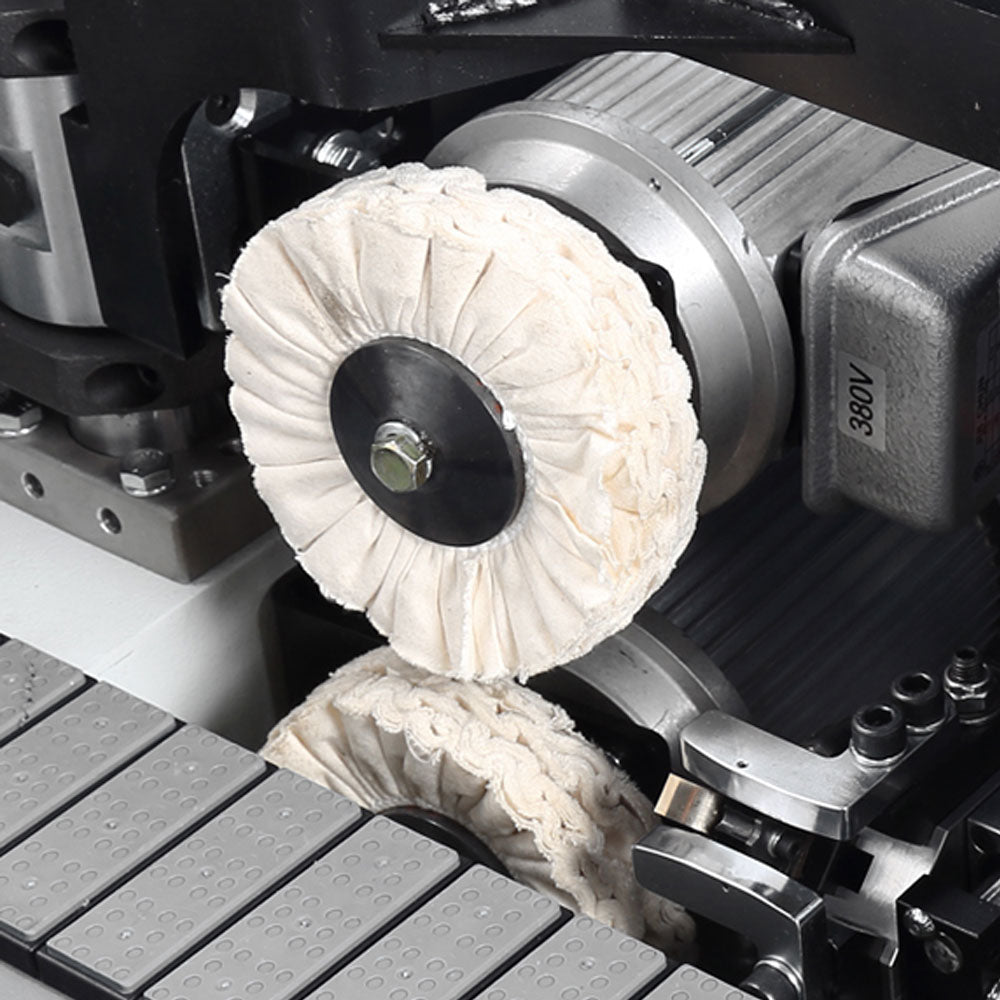

PRE-MILLING Pre-milling unit with (2) counter rotating diamond cutterheads for precise edge quality. END TRIM 8800 RPM dual saw blade (80mm / 3.15″) end trimming unit TOP & BOTTOM TRIM 10500 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming RADIUS SCRAPING Radius scraper with 2mm radius knives can be easily excluded when not required BUFFING 2800 RPM top & bottom buffing units to polish the machined edge
Feeding speed: 23 FPM (7 m/min.) Panel thickness: 0.472~1.77” (12~45 mm) Edge thickness: 0.0158”~0.118” (0.4 ~ 3 mm) Minimum panel width: 3.54” (90mm) Minimum panel length: 8 3/4” (220mm) Working table height: 33.7” (856mm) Extraction connection: 4” (100mm) Premilling spindle speed: 9000 RPM Top & bottom trimmer RPM: 10500 RPM Power: 1 Phase Max. machine dimensions (LxWXH): 126” x 47 ¼” x 47 ¼” (3200 x 1200 x 1200mm) Machine weight: 1162 lbs (528 kgs) Shipping dimensions (LxWxH): 111” x 28.4” x 52” (2820 x 720 x 1320mm) Shipping weight: 1452 lbs (660 kgs)
