$ 14,280

Have questions or need help choosing a machine?
Call us at 260-637-0054 or email sales@oaktreesupply.com

Please call for availability.

Business Financing Available

No hidden fees or surcharges.

Eligible for a Section 179 tax deduction. See how much you can save >

Made in Taiwan. Ships from the United States.

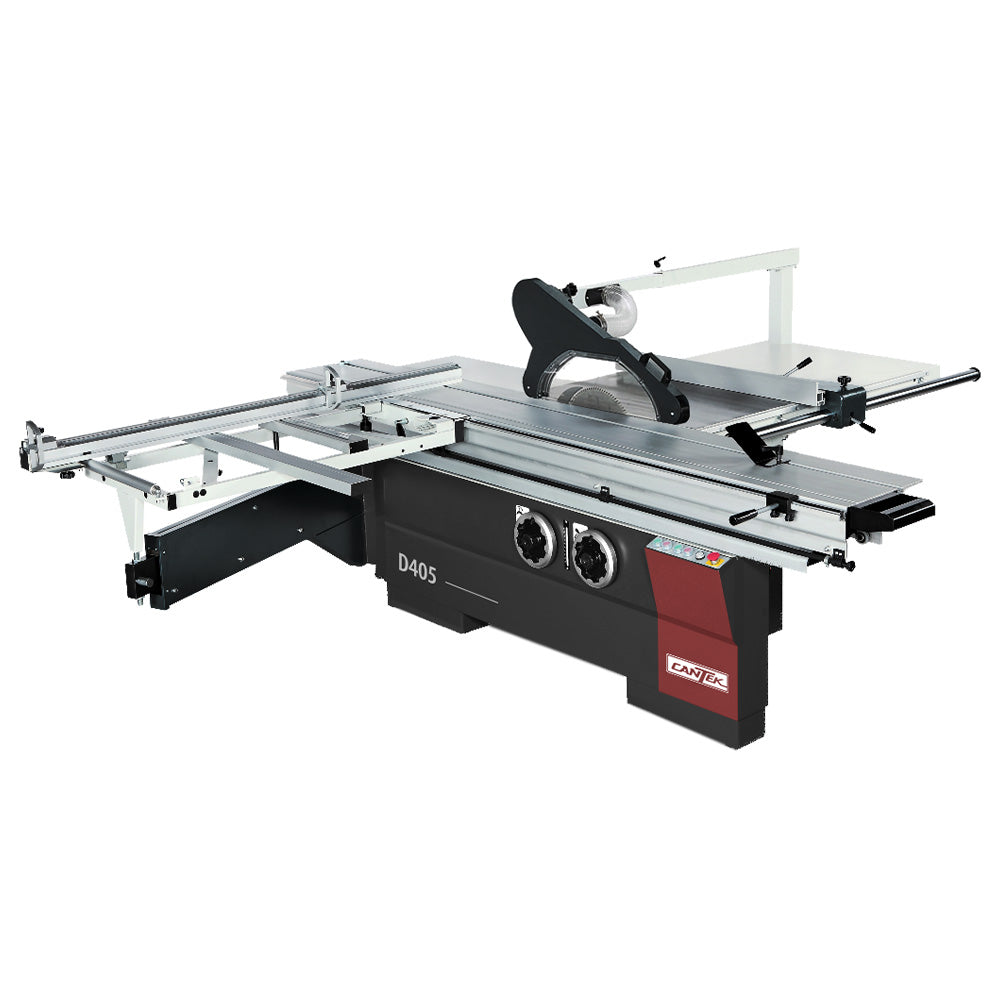

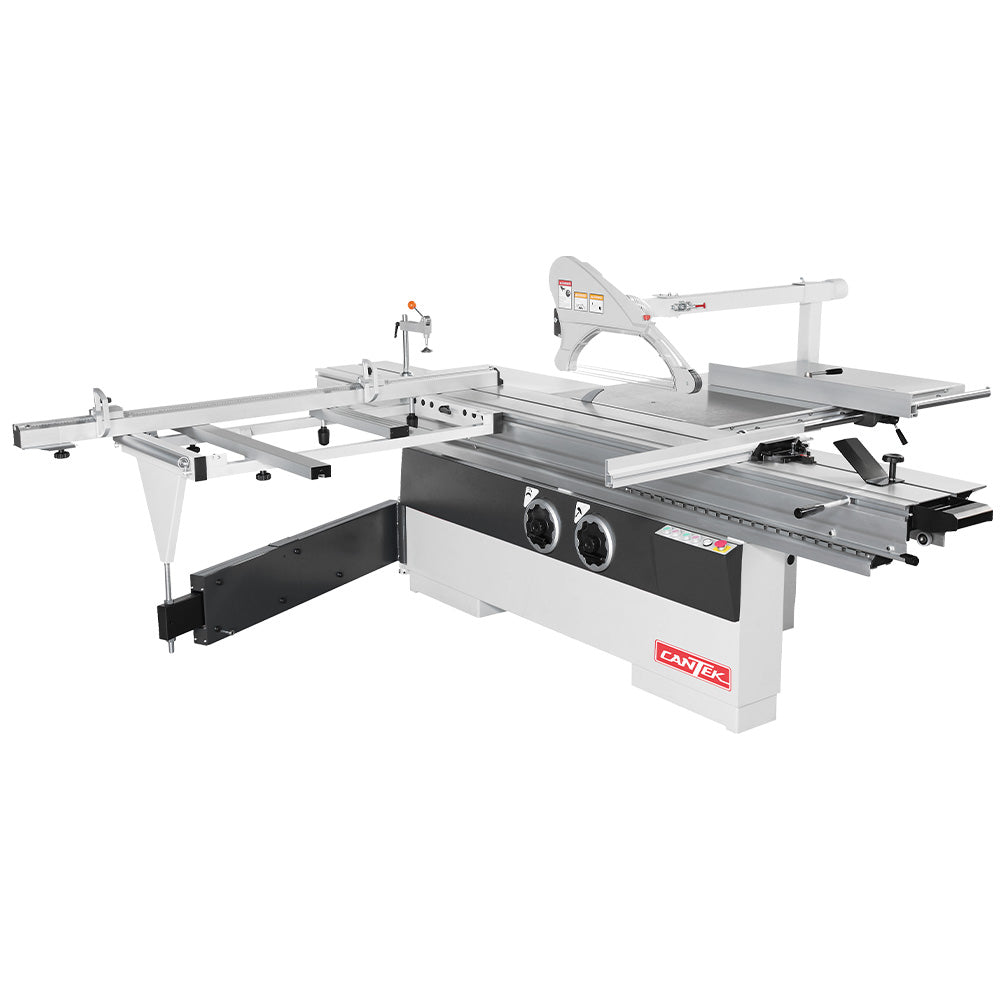

The D405M Saw with 8 ft. slider is the ideal panel-cutting solution for cabinet shops, millwork companies, and furniture shops that need a precision saw but have limited floor space. It combines a robust 7.5HP main motor and 1HP scoring unit with heavy-duty construction, such as its cast-iron main table and saw carriage, resulting in precise panel sizing with high accuracy and repeatability cut after cut.

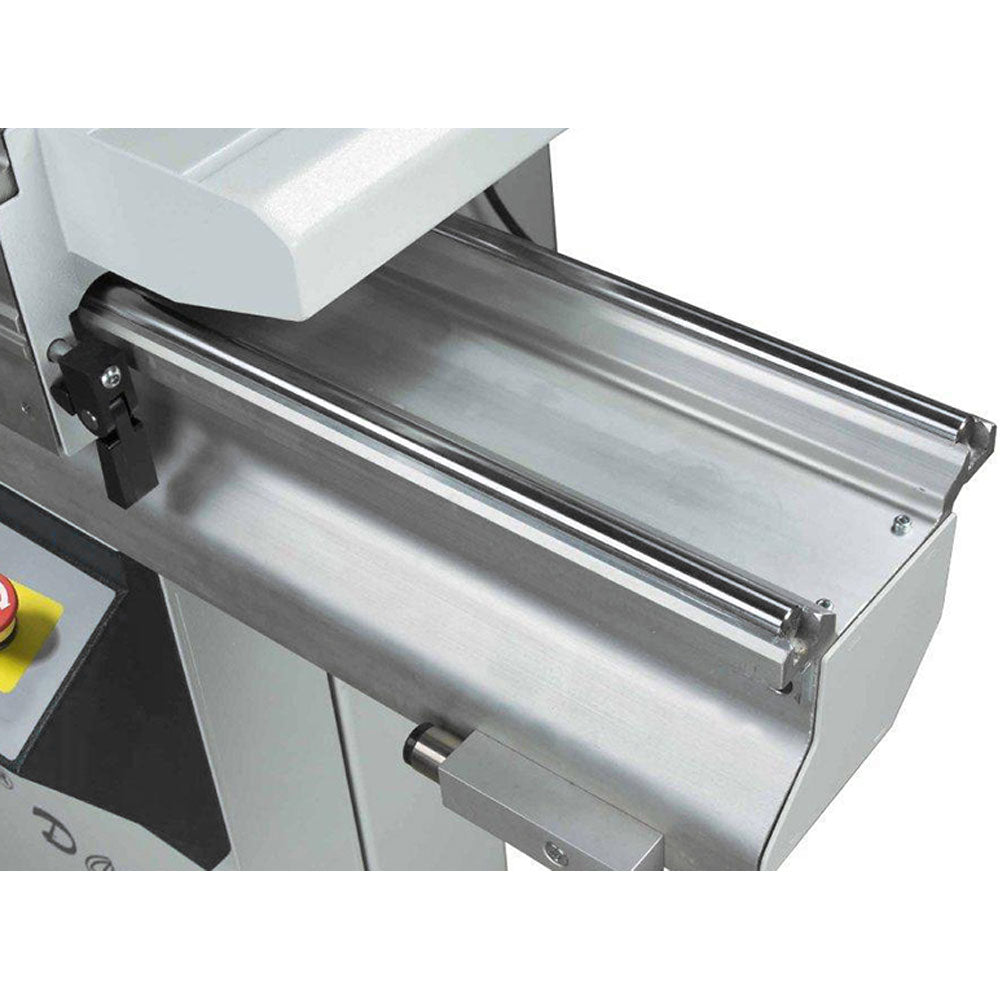

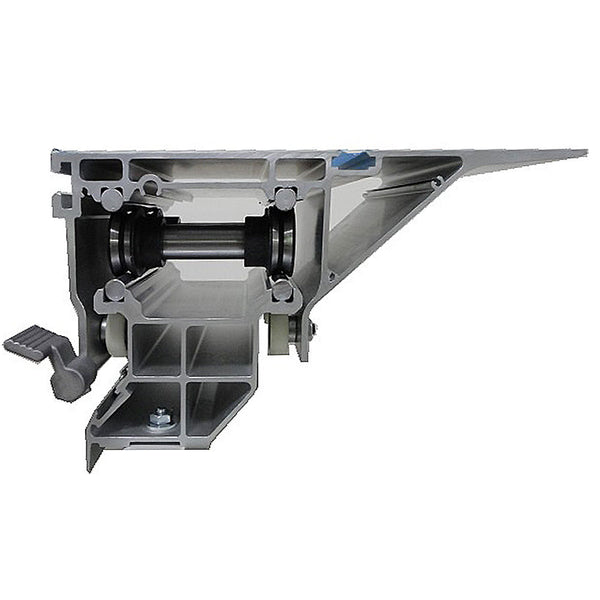

The sliding table on the D405M runs on precision hardened upper and lower linear guide rails, making it easy and smooth to move. These rails, along with the chrome rollers, are highly wear-resistant. The table can be locked in multiple positions to facilitate panel loading. Reinforced webbing inside the extrusions ensures the table stays perfectly straight and precise.

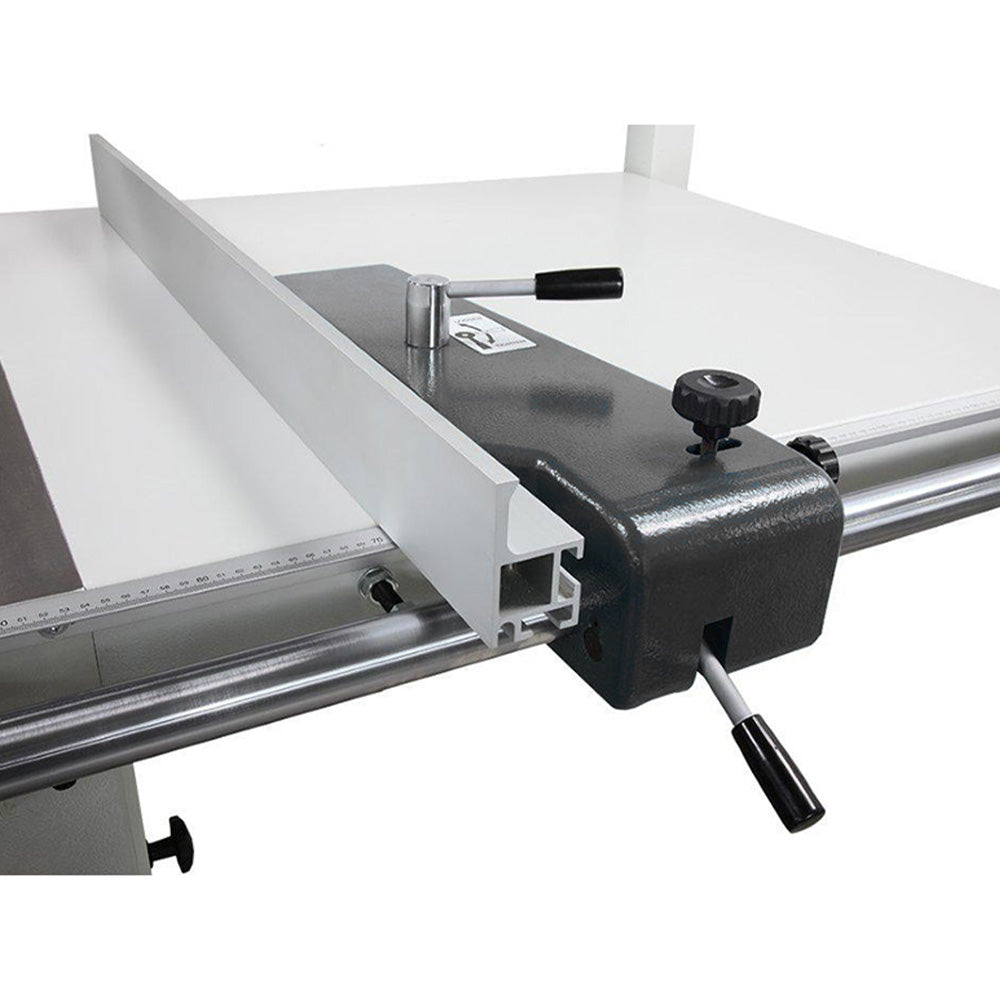

An industrial cast-iron rip fence on the D405M adds to the stability of this sliding table saw. The fence runs on a hardened round guide rail and features a dual inch/mm scale for making micro adjustments. Easily adjust the fence forwards and backwards, or from vertical to flat for a lower profile when performing narrow bevel cuts.

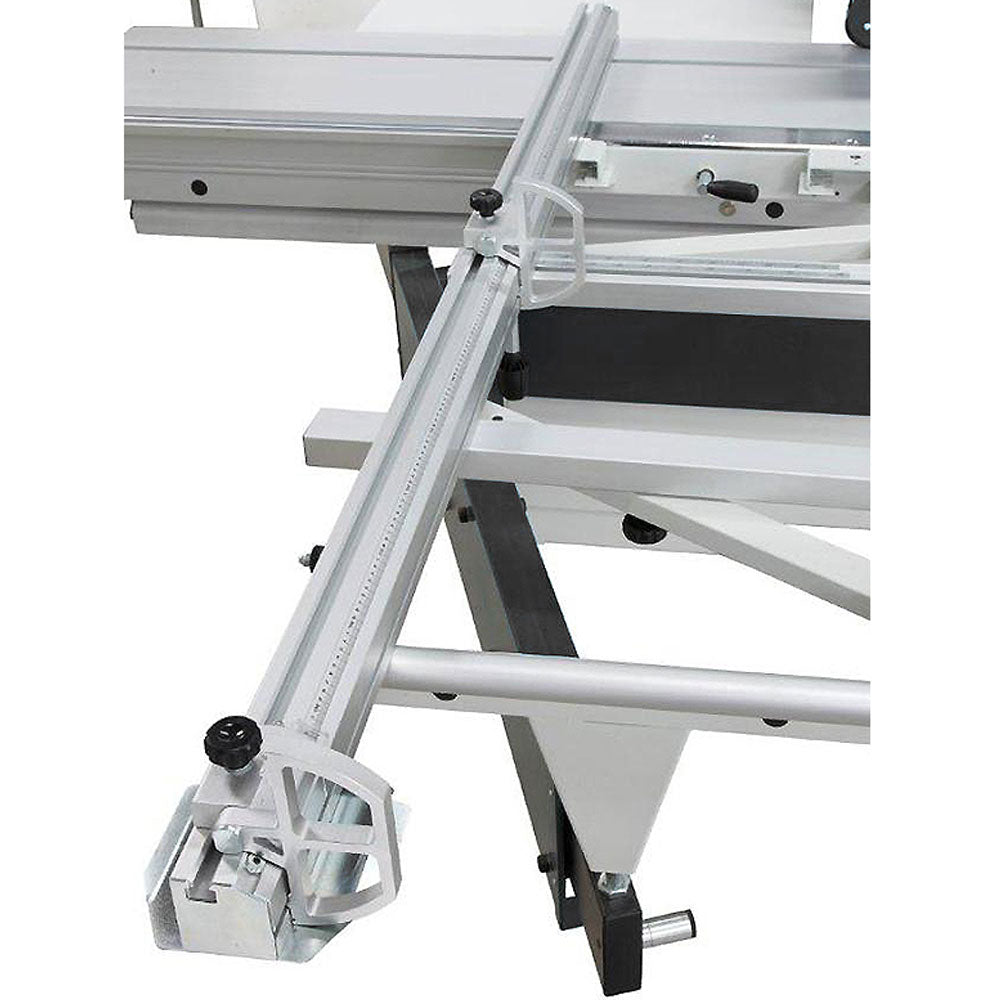

The D405M includes a miter crosscut fence that can be set from a positive stop of 90° to 45° with an angle scale. Two flip stops are set in place along the crosscut fence with dual inch/mm scales. The crosscut fence can also be extruded to 140" (3,500mm). All of this is supported by a heavy-duty outrigger and support arm.

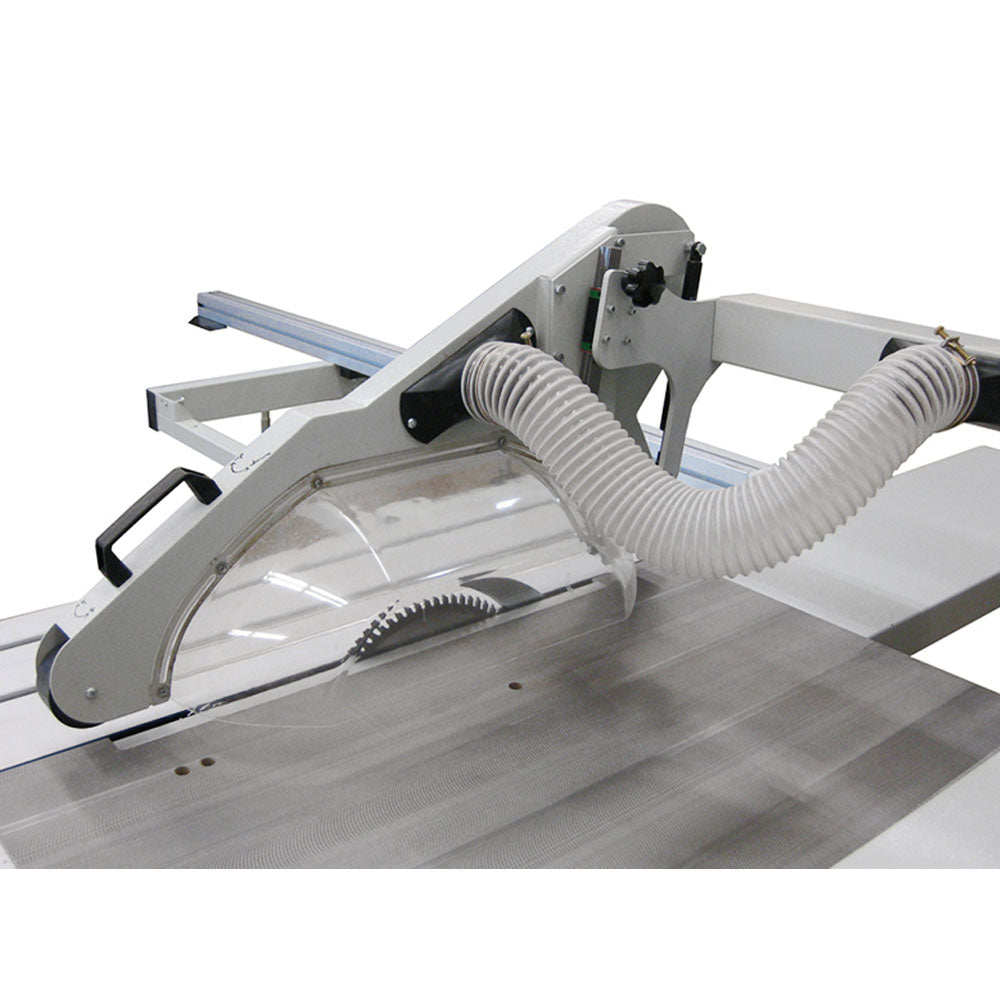

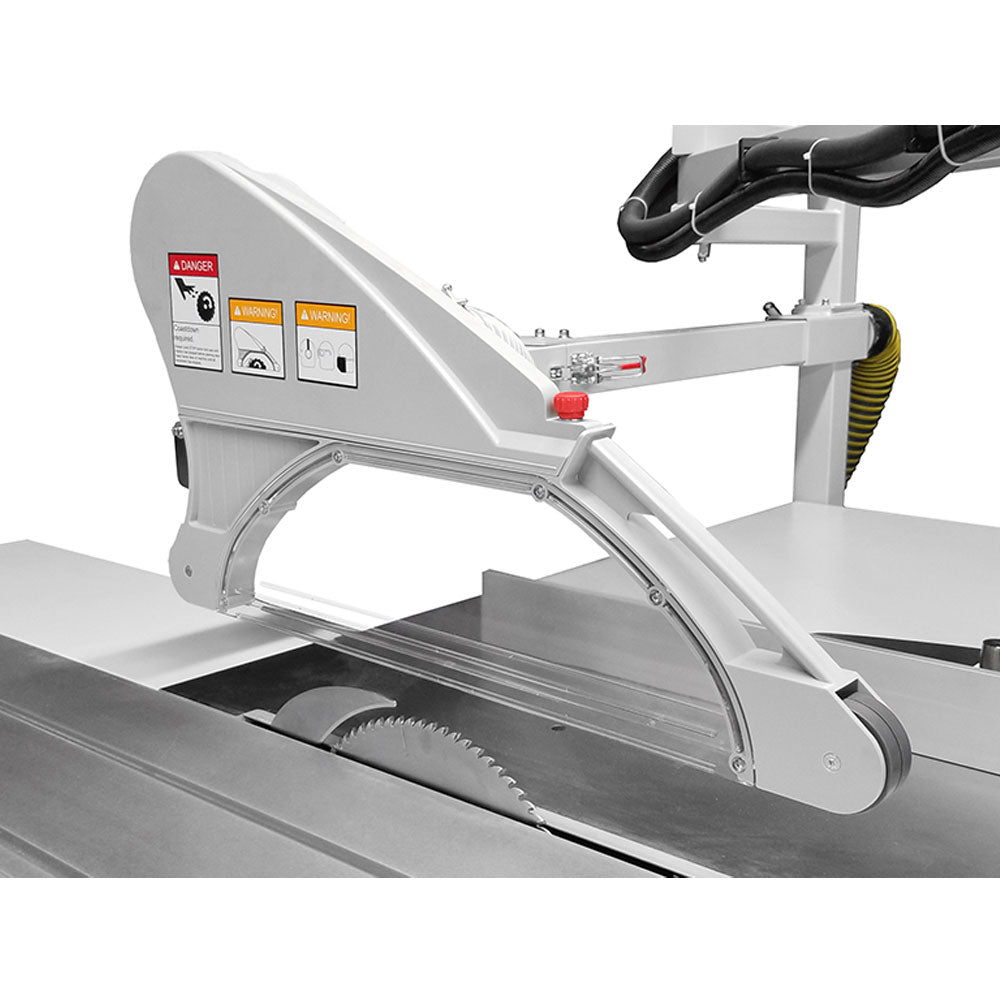

Good dust collection is vital to keep your saw running smoothly and efficiently. The D405M features an overarm blade guard with a built-in dust extraction port so that dust is captured as soon as it is made. It comes equipped with a quick-change guard system so the operator can choose the standard straight guard, or the bubble guard for bevel cutting.

Includes (1) 14" diameter main blade and (1) 120mm diameter scoring blade.

Note: Cannot ship to Indiana, Ohio, Pennsylvania or California.

Features
  • Precision anodized aluminum sliding table running on precision ground steel guides for smooth table movement
  • Crosscut miter fence with (2) flip stops for accurate panel sizing and angular cuts
  • Manual blade rise, fall, and tilting with a convenient pointer for blade angle display
  • Heavy-duty rip fence runs on round cylindrical solid steel guide with manual adjustment and micro adjustment knob
  • Overarm safety guard with quick-change system for changing between straight and bevel cutting guards

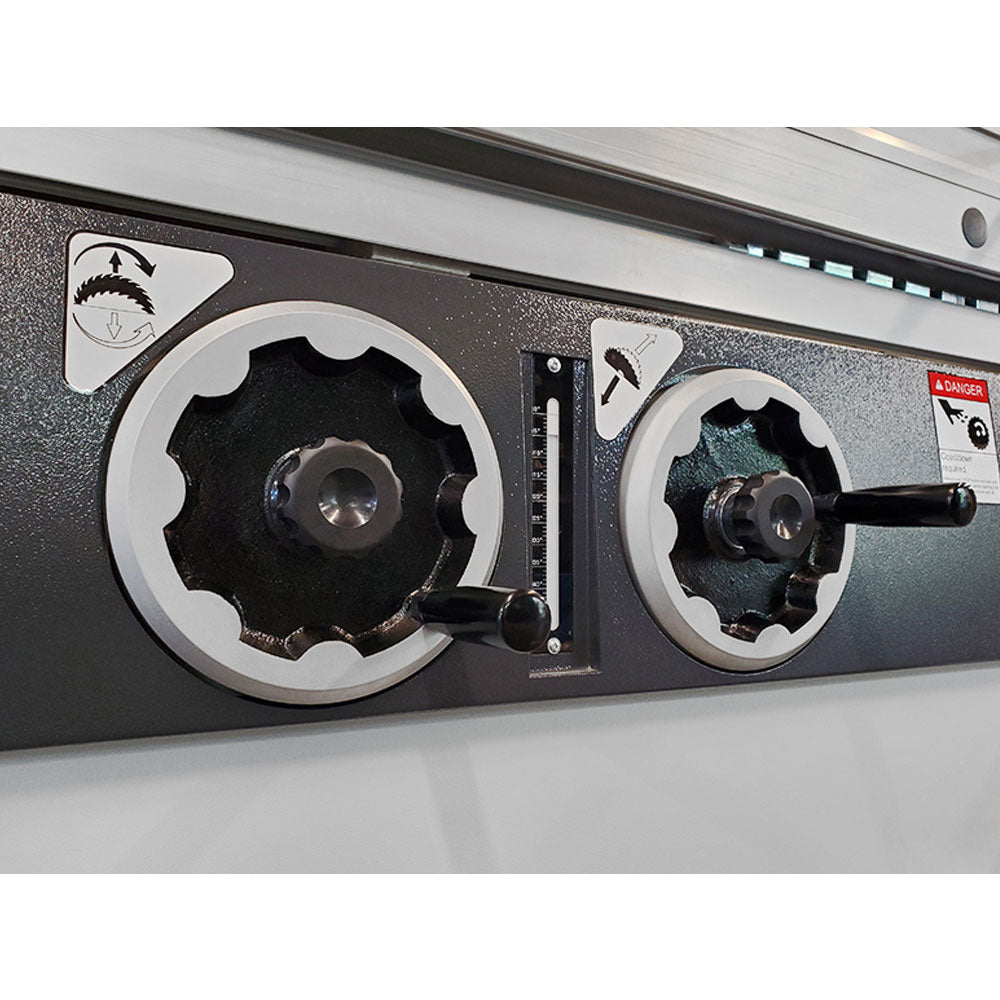

  • Manual saw blade rise/fall & tilting, conveniently located on the operator side of the machine
  • Heavy-duty outrigger for support of workpiece during cutting operations
  • Dual inch and metric scales for both rip and crosscut fence

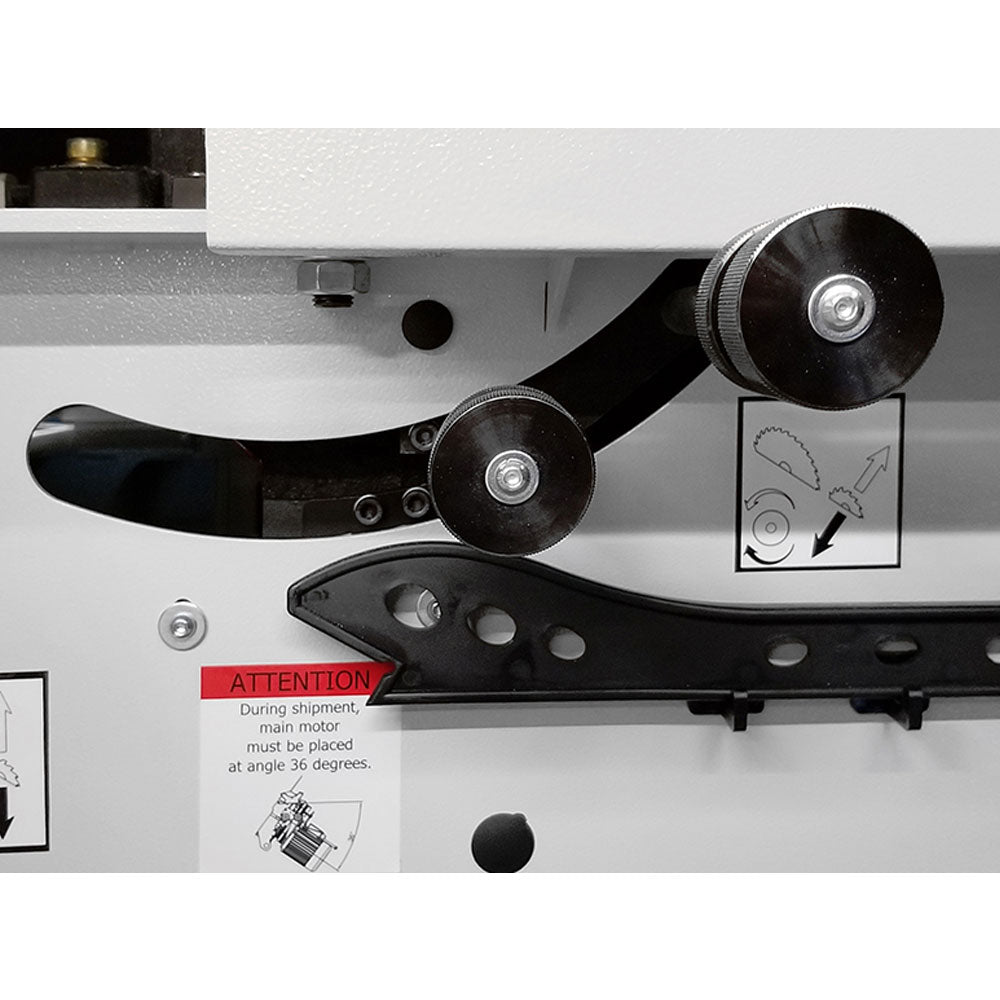

  • Manual lateral and vertical scoring adjustment by externally mounted handles for operator convenience

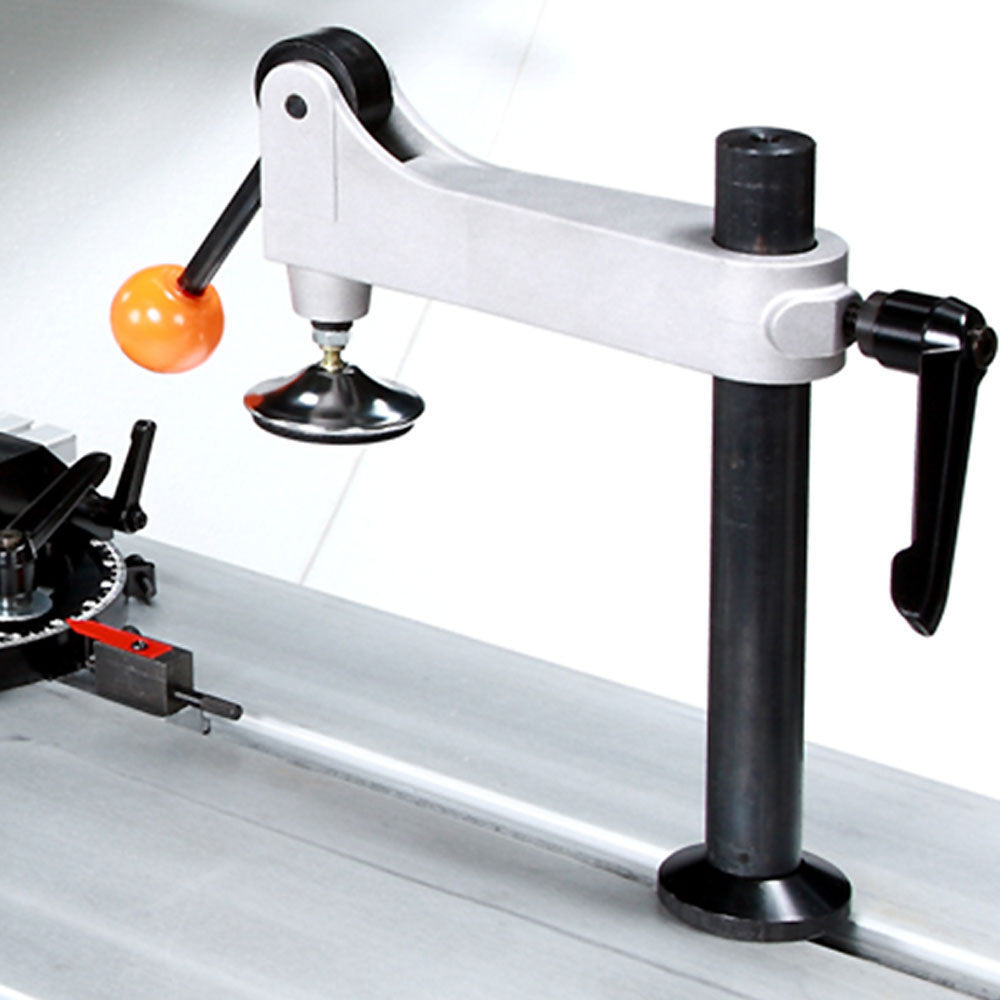

  • Eccentric hold-down clamp, table return handle, and wedge for solid wood ripping included
  • Overhead saw blade guard with built-in dust port included (CE-type)
Specs

Sliding table dimension: 102.4″ x 14.9″ (2,600 x 378mm)
Cast iron table: 21.6″ x 35.3″ (548 x 896mm)
Extension table (rear): 37.5″ x 35.3″ (952 x 896mm)
Extension table (front): 12.6″ x 32.7″ (320x 830mm)
Table size: 59″ x 68″ (1,500 x 1,726mm)
Round rail: 1.97″ (50mm)
Max. blade diameter: 16″ (400mm)
Main blade bore: 30mm
Max. cutting height at 90°: 4.13″ (105mm)
Max. cutting height at 45°: 2.76″ (70mm)
Main motor: 7.5HP
Main blade speed (3): 3,000/4,000/5,000 RPM
Scoring blade diameter: 120mm
Scoring blade bore: 20mm
Scoring blade motor power: 1HP (0.75 kW)
Scoring blade speed: 8,000 RPM
Cutting width: 51.2″ (1,300mm)
Main blade tilting adjustment: Manual (0-45°)
Dust ports (machine / guard): 4.72″ / 2.5″ (120mm / 64mm)
Dust collection required: 825 CFM
Machine total weight: 1,612 lbs. (733 kgs)
Machine shipping details: 1,428 lbs. (83″ x 46″ x 44″)
Sliding table shipping details: 363 lbs. (137″ x 20″ x 15″)
Overhead guard shipping details: 80 lbs. (40″ x 36″ x 6″)
Electric: 230V, 3-Phase, 60 Hz = 26.2 Full Load Amps
Electric: 575V, 3-Phase, 60 Hz = 10.3 Full Load Amps

Includes
  • (1) 14" main blade
  • (1) 120mm scoring blade
  • (1) Eccentric hold-down clamp
  • Wedge for solid wood ripping
*Shipping

Please note: Items being shipped to extremely remote areas or areas with limited delivery access (such as islands only accessible by ferry) may incur additional shipping or freight fees. If your order requires any additional fees other than what is already included in the price, you will be contacted before those fees are applied and before your item ships. This is rare and will not apply to most orders.

SKU: D405M-8 (3PH)
