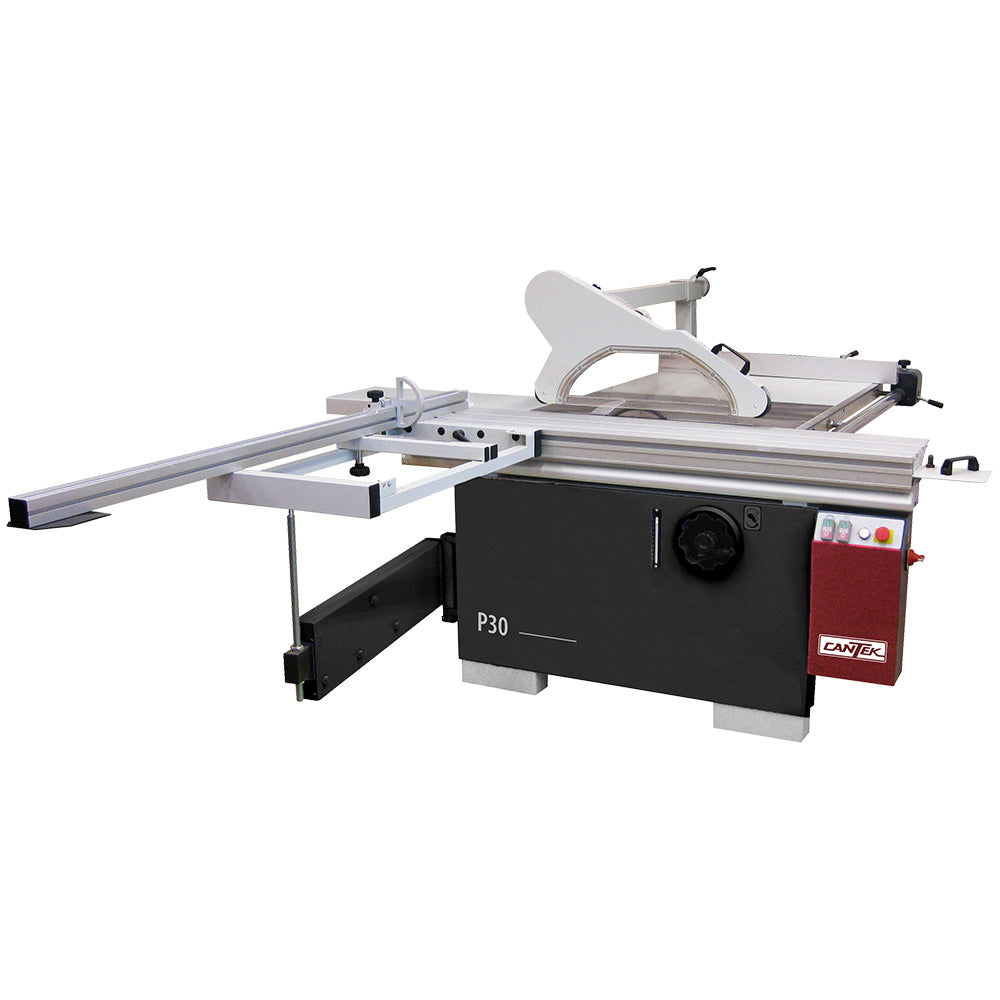

The Cantek P30 5′ Sliding Table Saw is the ideal solution for customers looking for the precision and convenience of a sliding table saw but have limited floor space and smaller cutting requirements. The P30 has a precision sliding table which runs on ball bearings and hardened steel guide strips. It is equipped with individual motors for the main saw blade (5 HP) and scoring blade (¾ HP). The blade height and tilt is manually adjusted by means of individual handwheels. The angle of the blade is displayed by a linear scale for added operator convenience. The rip fence runs on a round hardened rail and is manually adjusted up to 51”. Equipped with a crosscut miter fence and (2) flip stops.
Our Easy Purchase Guarantee:
- No hassle pricing — always sold at the manufacturers lowest price!
- No quote needed.
- No tax outside of Indiana.
- FREE shipping!
*If you need a quote, we would be happy to provide one. Call 260-637-0054 or email sales@oaktreesupplies.com [TABS]
Features

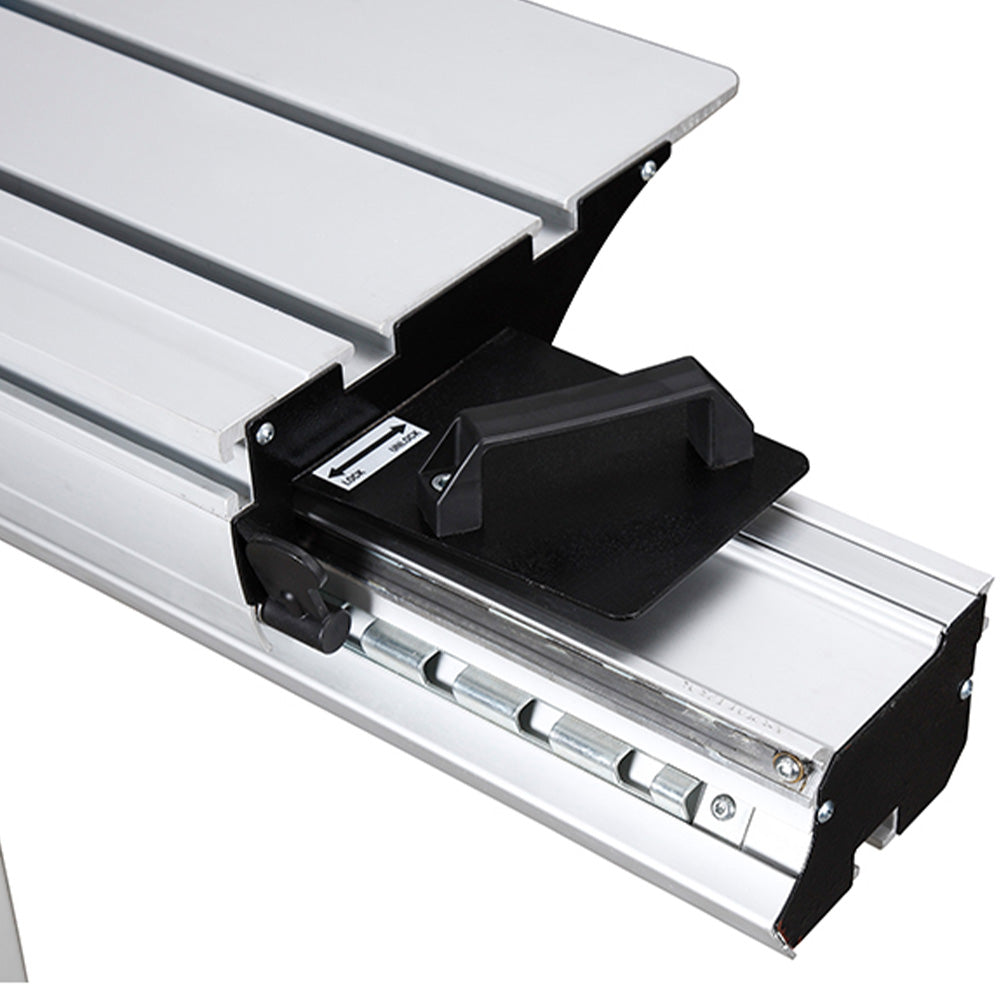

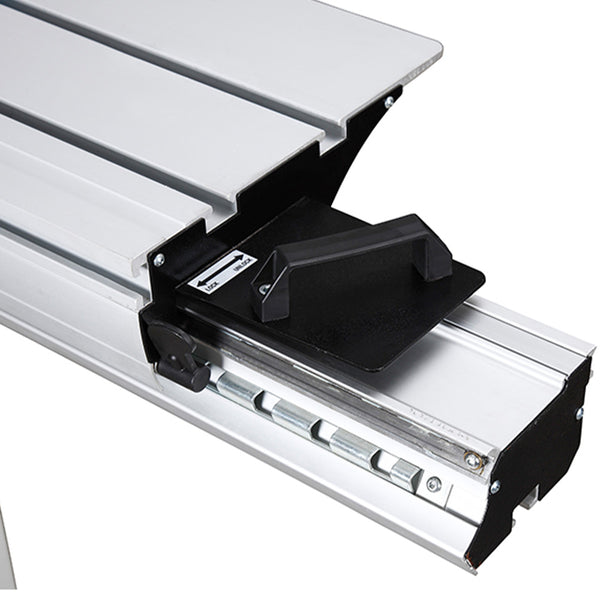

- Precision anodized aluminum sliding table with ball bearing guide system for smooth table movement
- Powerful 5 HP main motor with ¾ HP scoring motor

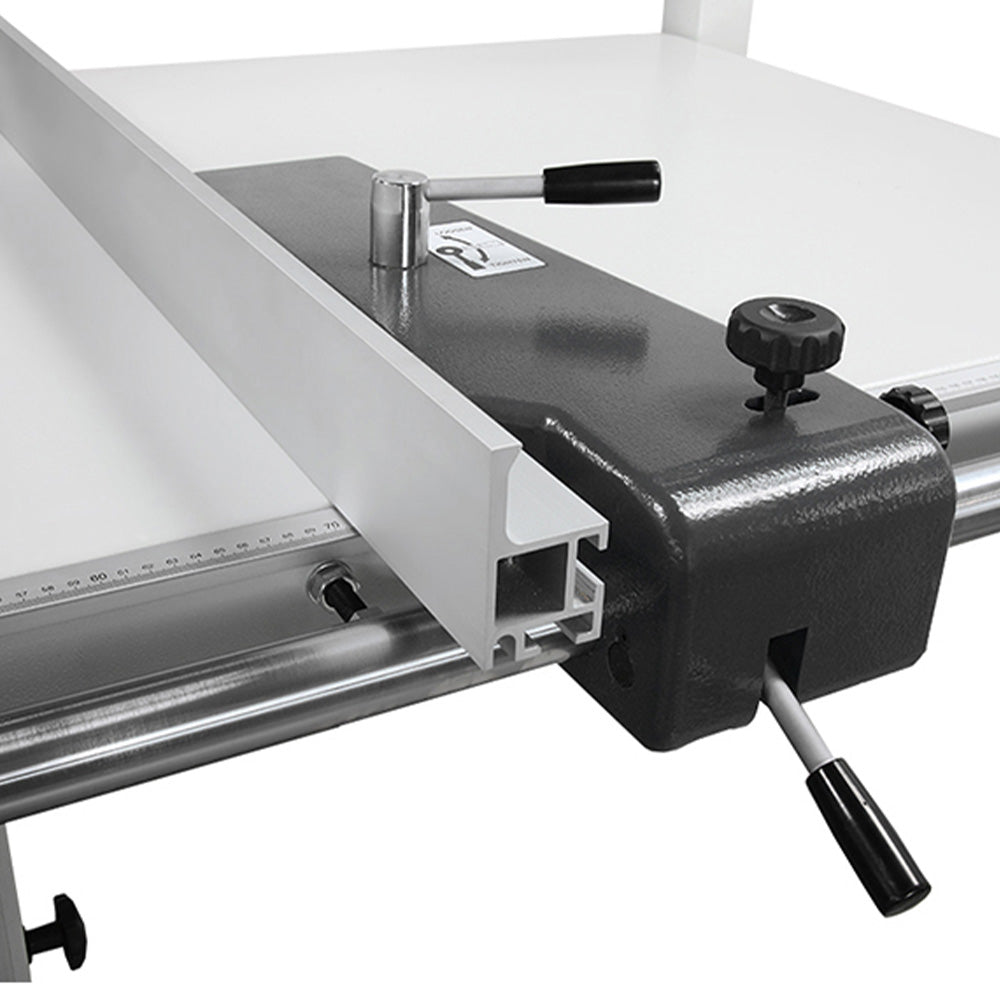

- Heavy duty cast-iron rip fence with 51” cutting capacity
- Aluminum crosscut miter fence with (2) flip stops
- Manual rise/fall the main saw blade

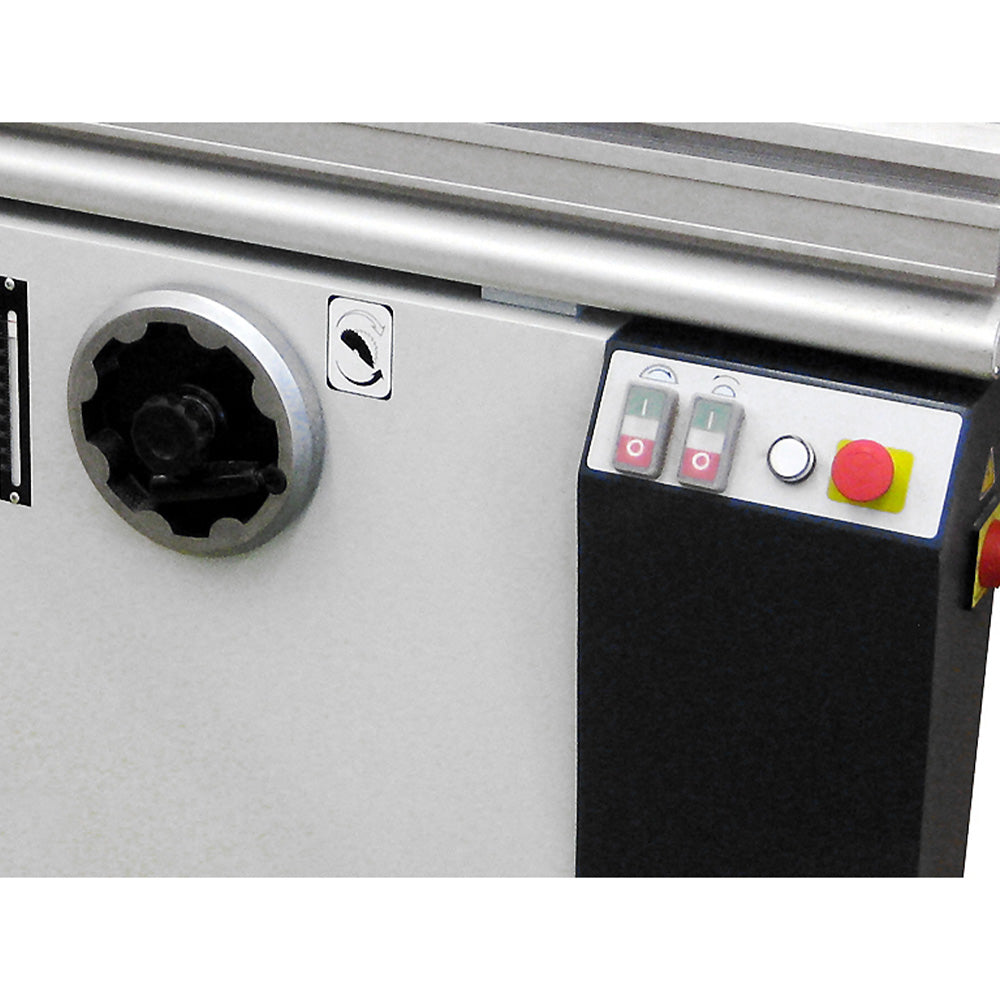

- Manual tilting of the saw blades with angle indicator conveniently located by adjustment handwheel

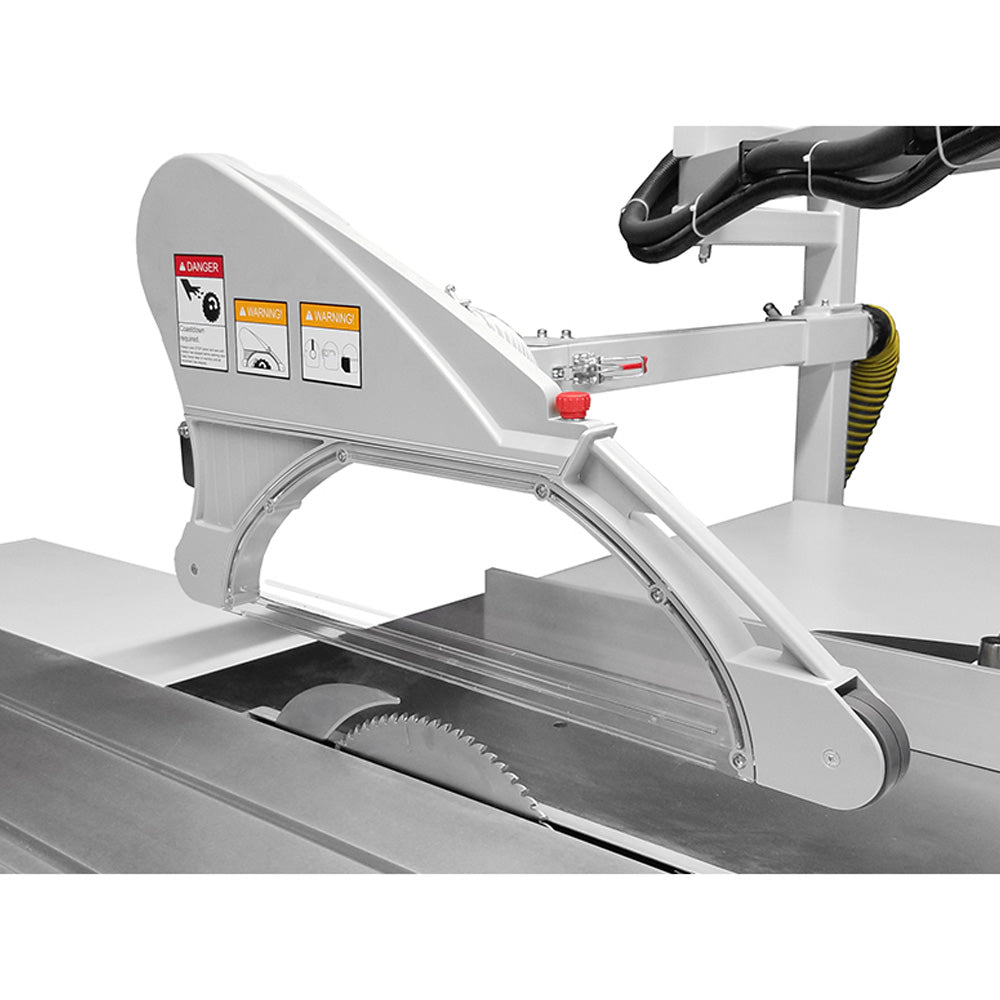

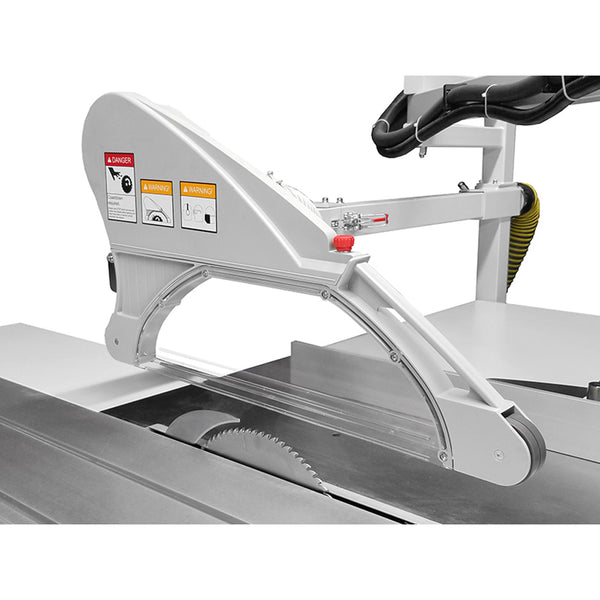

- Overarm blade guard with build in dust port
More Features
- Solid cast iron main table which is ground and polished
- Heavy-duty outrigger for strong support of workpiece during cutting operations
- Solid rip fence with manual fine adjustment and locking lever
- Easy to access external scoring adjustment
- Extension table at side and back of main table
- Optional Equipment Included:
- Eccentric hold down clamp
- CE Overarm Guard with Dust Port
- Wedge for Solid Wood Ripping
Specs
Sliding table dimension: 63″ x 12.4″
Cast Iron table: 21 ½” x 35 ¼”
Extension table (rear): 18″ x 17 ½”
Extension table (front): 12 ½” x 32 ½”
Table size: 39 ½” x 68″
Round rail: 50mm
Main saw blade (Max.): 12″ (14″); 305mm (355mm)
Main saw bore: 30mm
Max. cutting height at 90° (355mm): 3 ½” (4 ½”)
Max. cutting height at 45° (355mm): 2 ½” (2 ¾”)
Main motor power: 5 HP
Main blade speed: 4000 RPM
Scoring saw blade: 120mm
Scoring saw blade bore: 20mm
Scoring blade motor power(optional): 3/4 HP
Scoring blade speed: 8000 RPM
Cutting width – ripping: 51″ max
Cutting width adjustment: Manual
Crosscutting width (Maximum): 134.6”
Main saw blade tilting adjustment: Manual (0°~ 45°)
Main saw height adjustment: Manual
Scoring saw height adjustment: Manual
Saw guard: CE Guard Included
Machine weight: 447 kgs
Shipping weight: 523 kgs
Shipping dimensions: 83” x 46” x 44”
Electrics:
230/1/60 = 28 Full Load Amps
230/3/60 = 15.2 Full Load Amps
