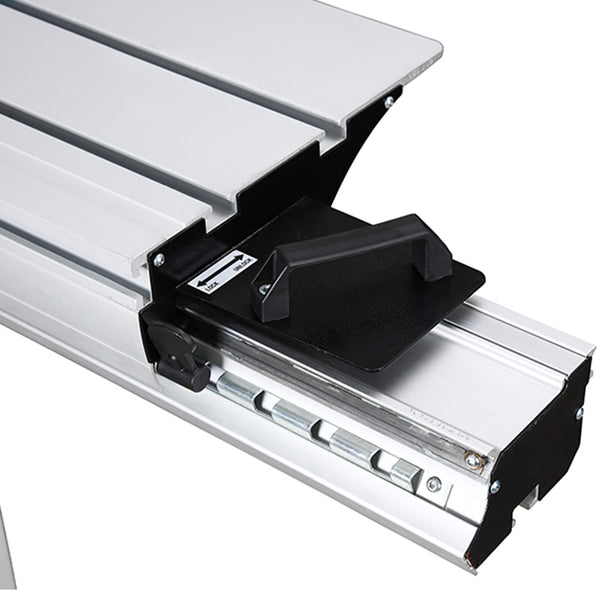

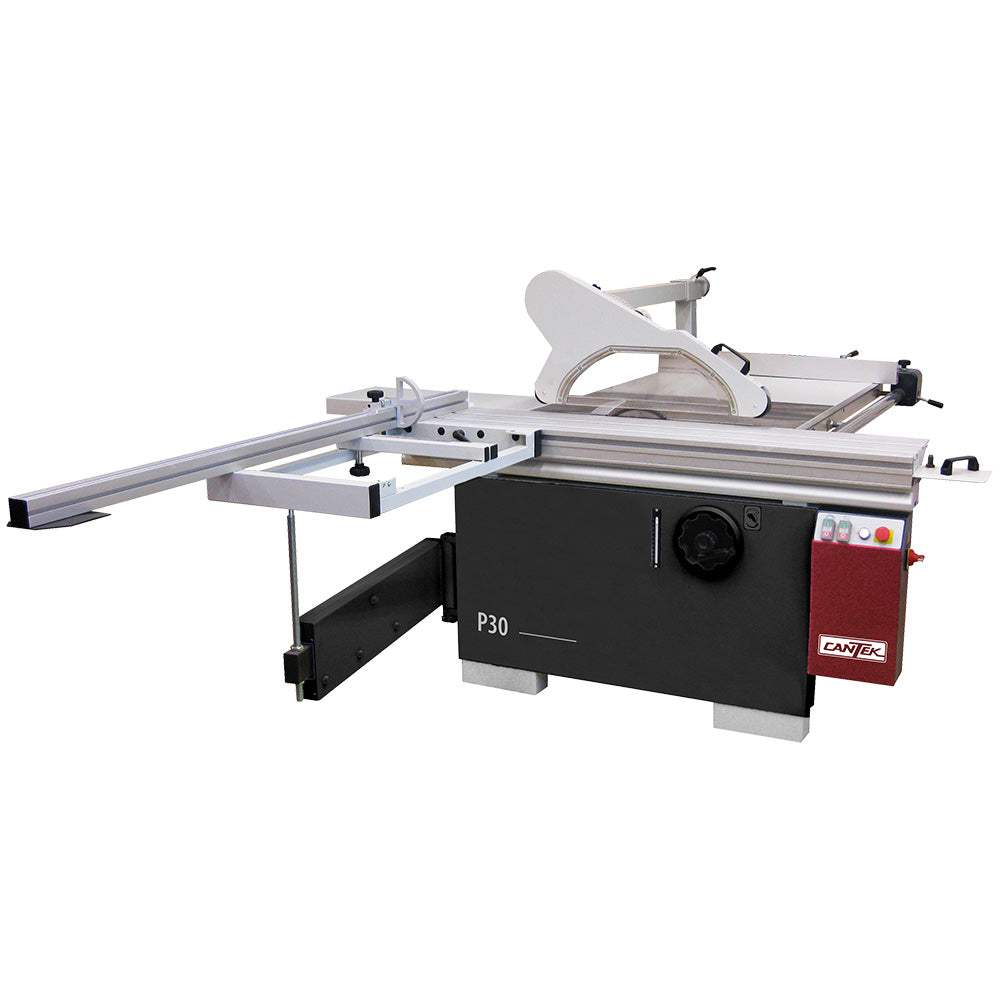

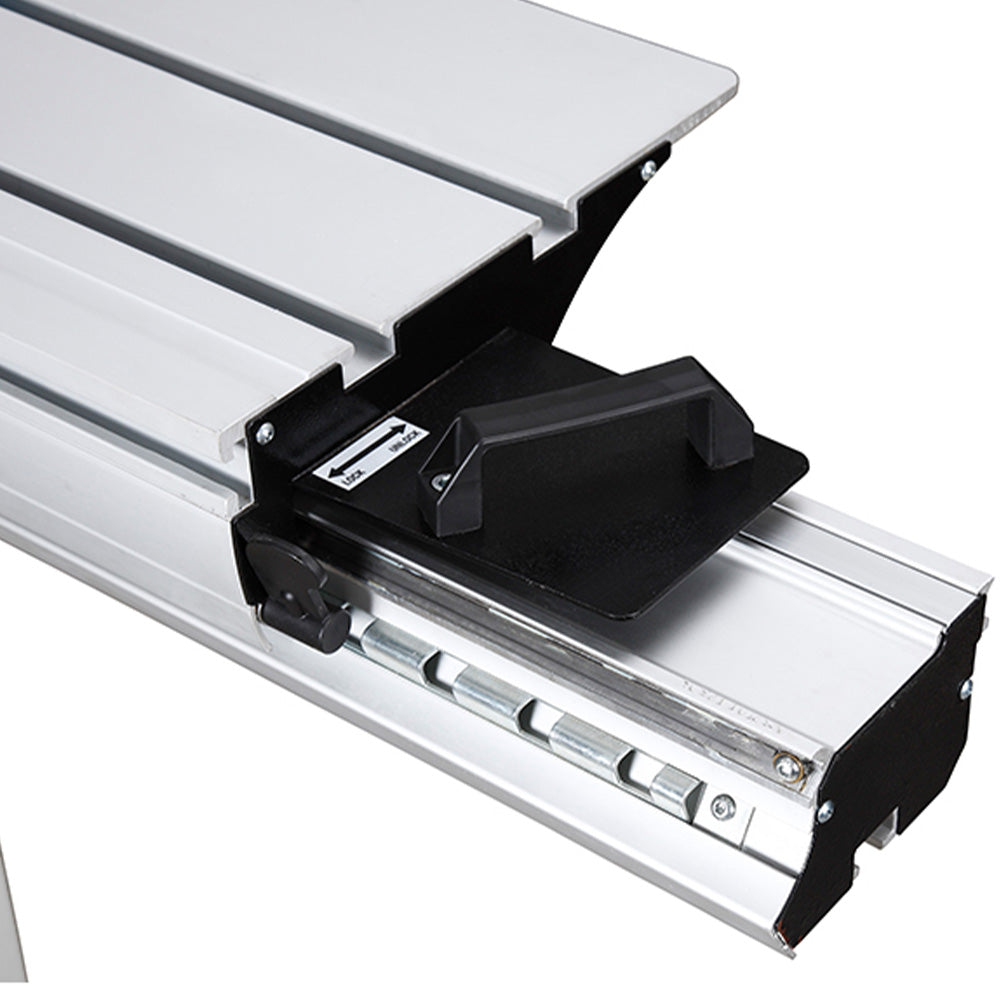

The Cantek P30 5′ Sliding Table Saw is the ideal solution for customers looking for the precision and convenience of a sliding table saw but have limited floor space and smaller cutting requirements. The P30 has a precision sliding table which runs on ball bearings and hardened steel guide strips.

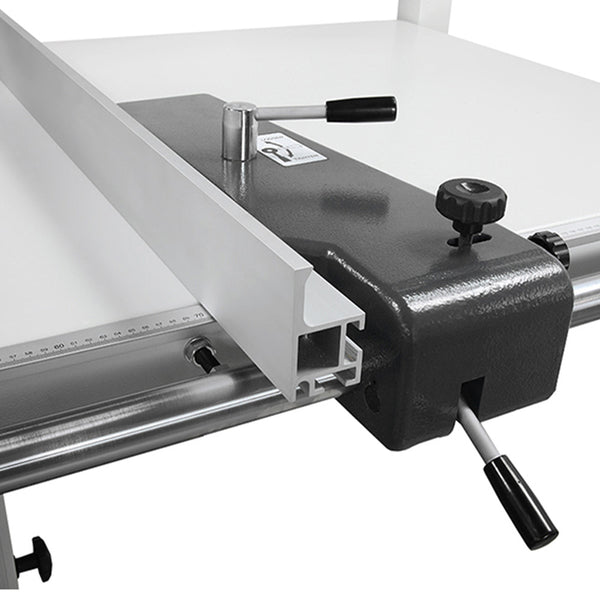

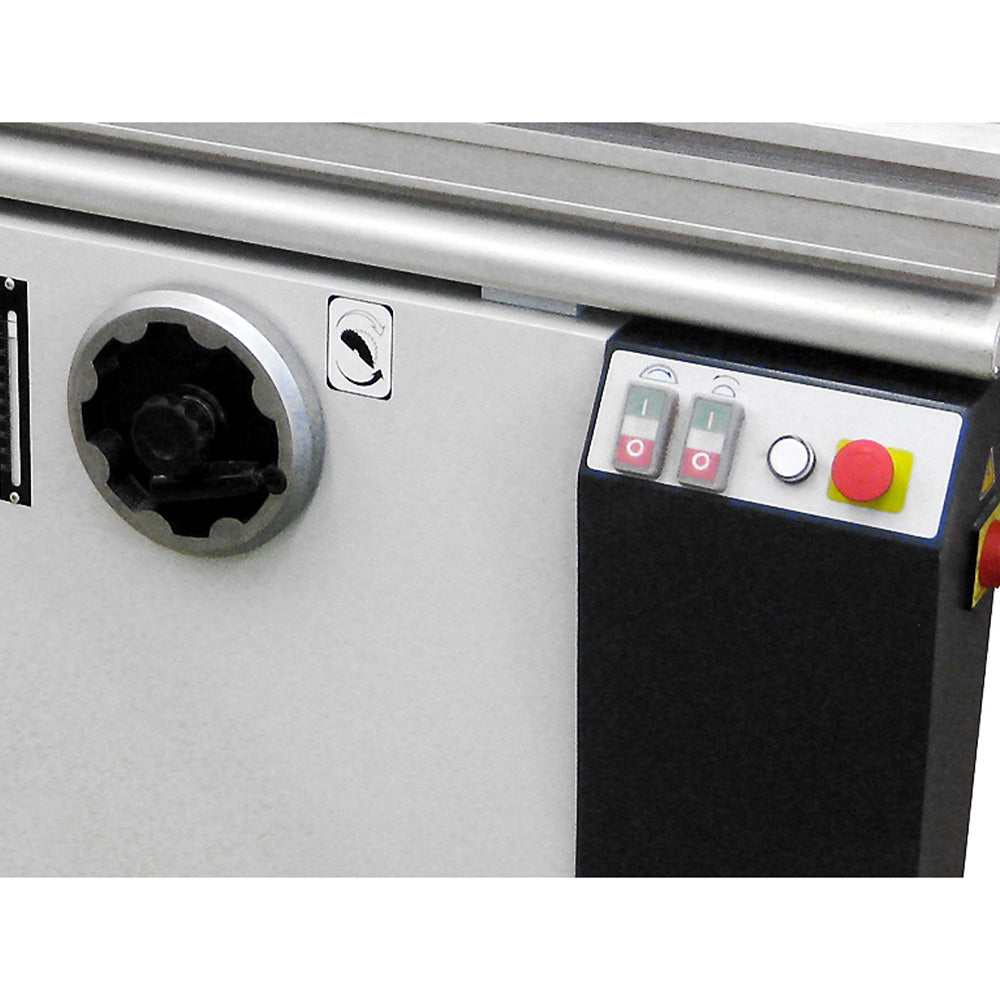

It is equipped with individual motors for the main saw blade (5 HP) and scoring blade (3/4 HP). The blade height and tilt is manually adjusted by means of individual handwheels. The angle of the blade is displayed by a linear scale for added operator convenience. The rip fence runs on a round hardened rail and is manually adjusted up to 51”. Equipped with a crosscut miter fence and (2) flip stops.
If you need a quote, we would be happy to provide one. Call 260-637-0054 or email firstname.lastname@example.org
Note: Cannot ship to Pennsylvania or California.
Sliding table dimension: 63″ x 12.4″
Cast Iron table: 21-1/2” x 35-1/4”
Extension table (rear): 18″ x 17-1/2”
Extension table (front): 12-1/2” x 32-1/2”
Table size: 39-1/2” x 68″
Round rail: 50 mm
Main saw blade (Max.): 12″ (14″); 305 mm (355 mm)
Main saw bore: 30 mm
Max. cutting height at 90° (355mm): 3-1/2” (4-1/2”)
Max. cutting height at 45° (355mm): 2-1/2” (2-3/4”)
Main motor power: 5 HP
Main blade speed: 4,000 RPM
Scoring saw blade: 120 mm
Scoring saw blade bore: 20 mm
Scoring blade motor power(optional): 3/4 HP
Scoring blade speed: 8,000 RPM
Cutting width – ripping: 51″ max
Cutting width adjustment: Manual
Crosscutting width (Maximum): 134.6”
Main saw blade tilting adjustment: Manual (0°~ 45°)
Main saw height adjustment: Manual
Scoring saw height adjustment: Manual

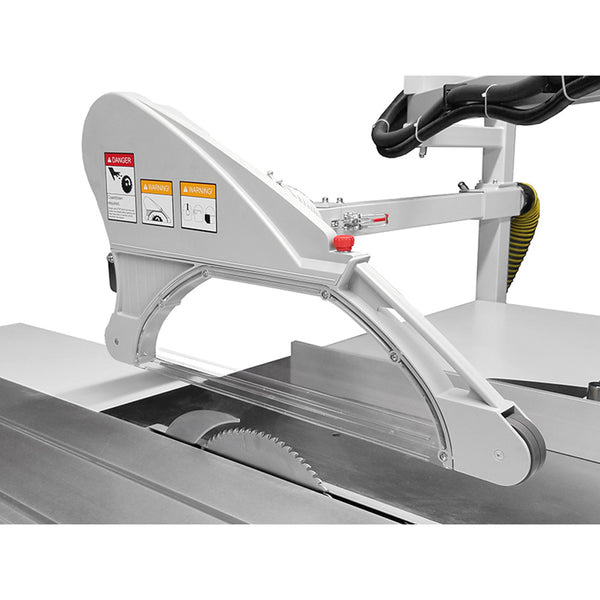

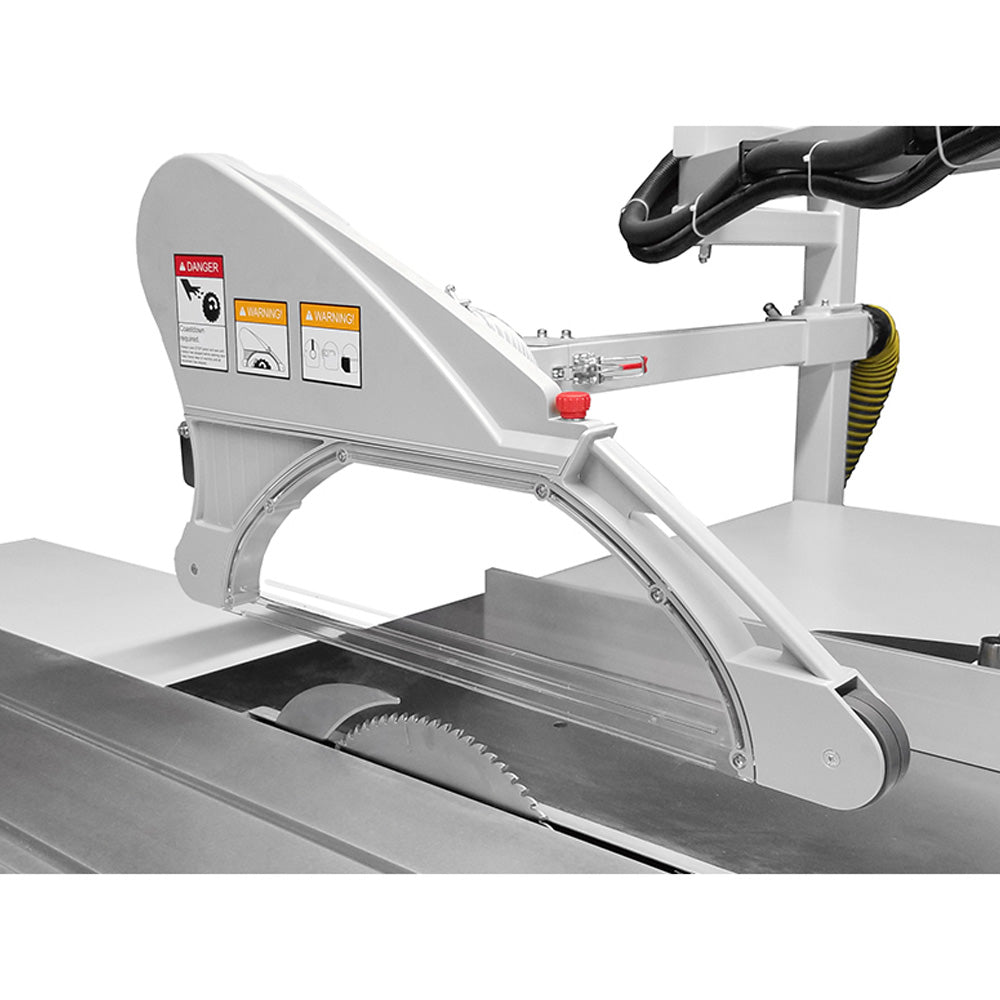

Saw guard: CE Guard Included
Machine weight: 985 lbs. (447 kgs)
Shipping weight: 1,153 lbs. (523 kgs)
Shipping dimensions: 83” x 46” x 44”
230/1/60 = 28 Full Load Amps
230/3/60 = 15.2 Full Load Amps
