Cantek C431 44" Wide Belt Sander (60" Belt) - 3 Phase

$ 26,565

Have questions? Give us a call at 260-637-0054.

Our Easy Purchase Guarantee:

  • No hassle pricing  always sold at the manufacturers lowest price!
  • Freight included in price.*

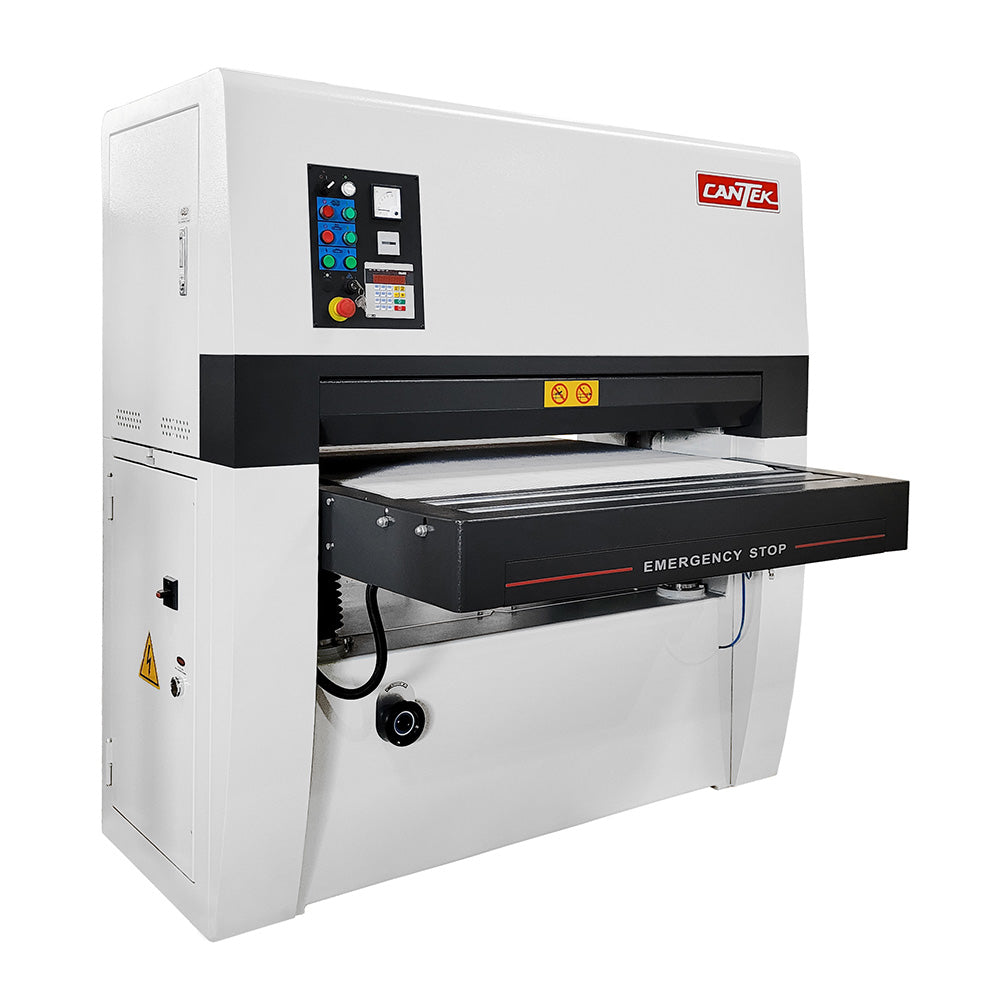

The Cantek C431 43″ Widebelt Sander is compact and versatile with a combination sanding unit for calibration and final sanding.  The robust sanding unit and heavy-duty frame ensure optimum sanding results.  Motorized thickness adjustment with digital thickness control for fast and accurate table adjustment.

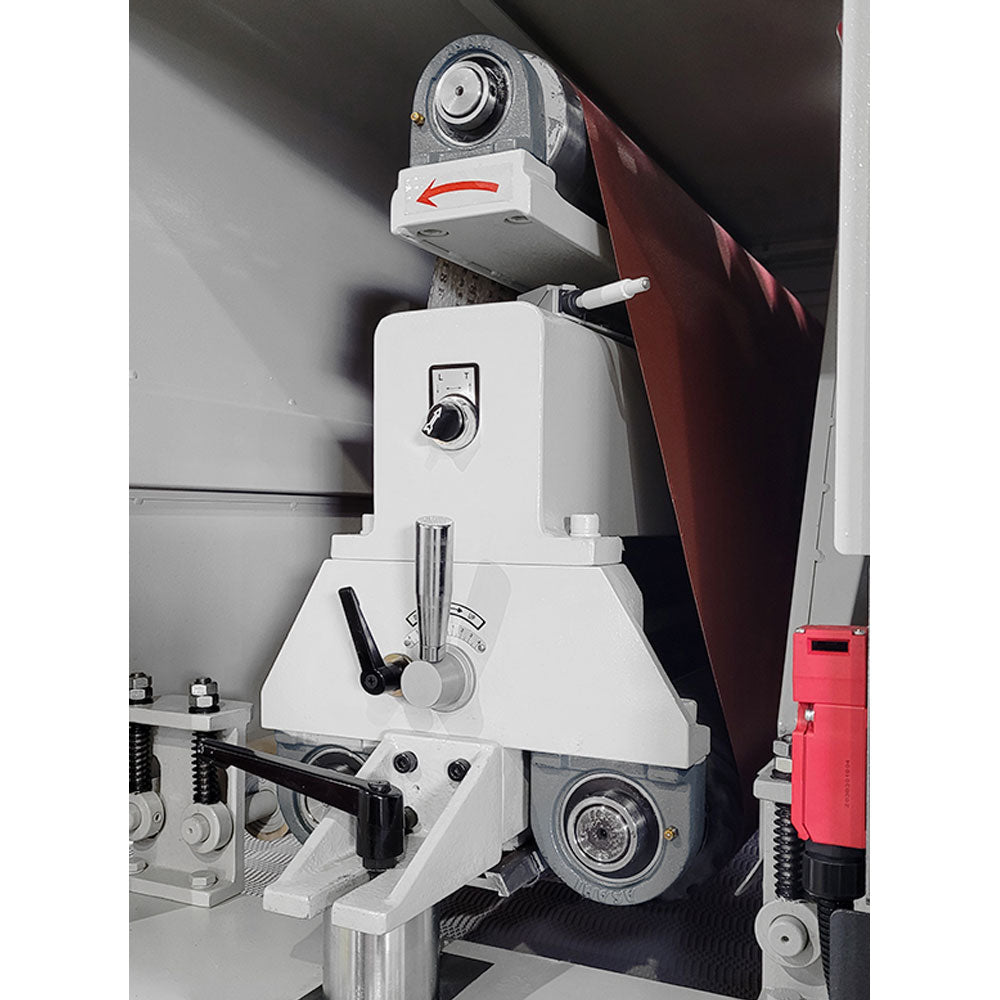

The single combination head allows the operator full control of sanding operations for calibrating off of the rubber drum & finish sanding by lowering the platen through an eccentric lever. Quick-release handle for belt changing and access to the removable platen.

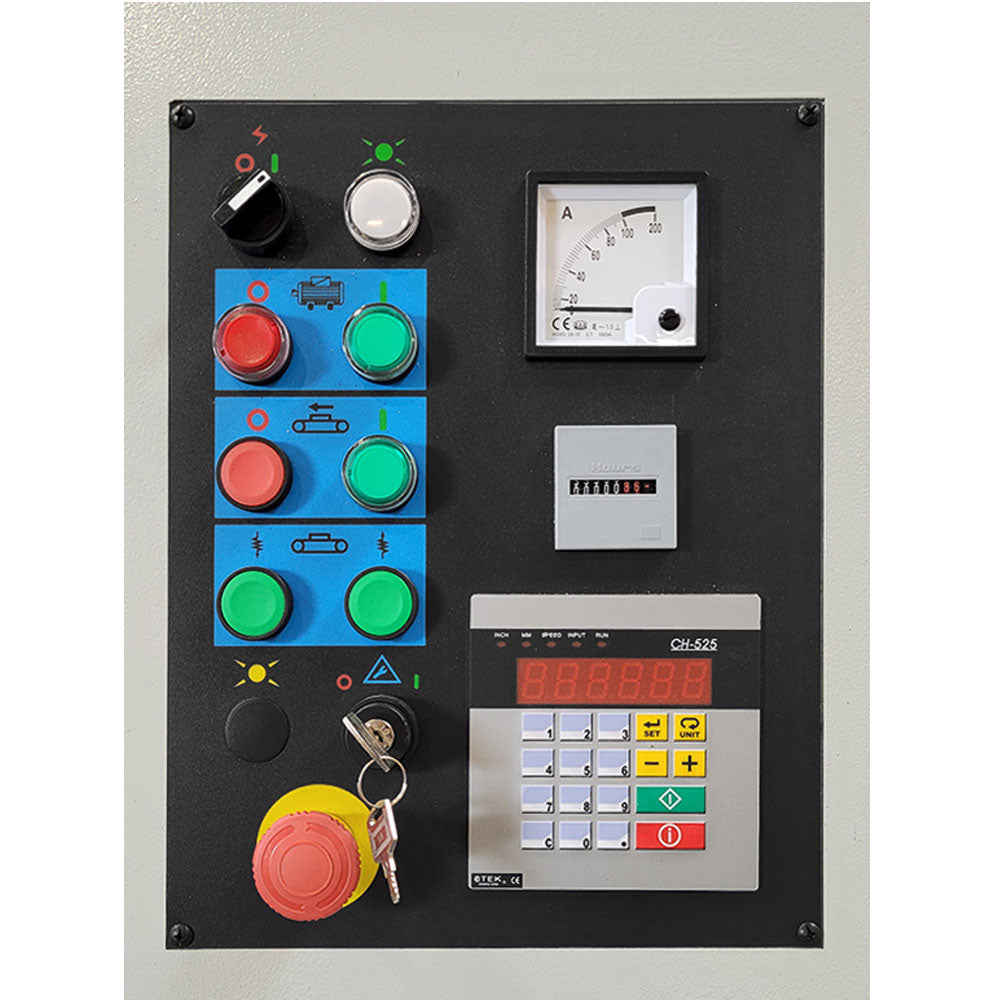

Centrally located control panel for convenient operator access. Includes digital motorized thickness adjustment to 3-decimal places in Inch & 2-decimals in MM. Also, emergency stop button, ammeter for load monitoring, and hour meter to aid in maintenance.

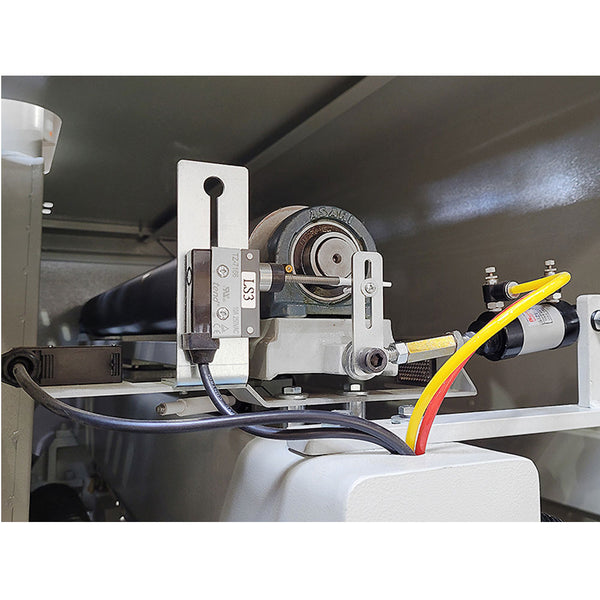

Electronic send & receive sensor precisely detects the sanding belt for the most reliable belt tracking. The machine is also equipped with belt overrun limit switches for added safety. Variable feed speed allows the operator to choose the correct sanding speed for various sanding applications, belt grits, wood species, and desired results.

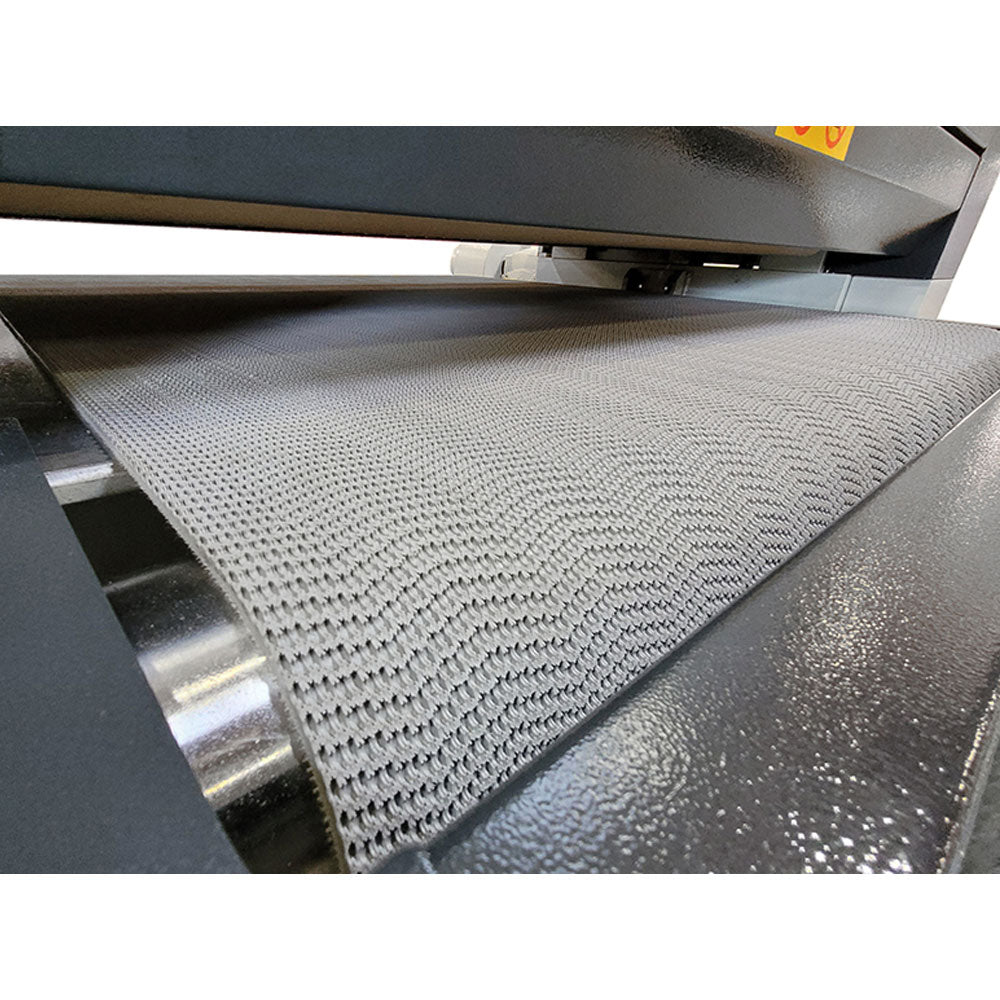

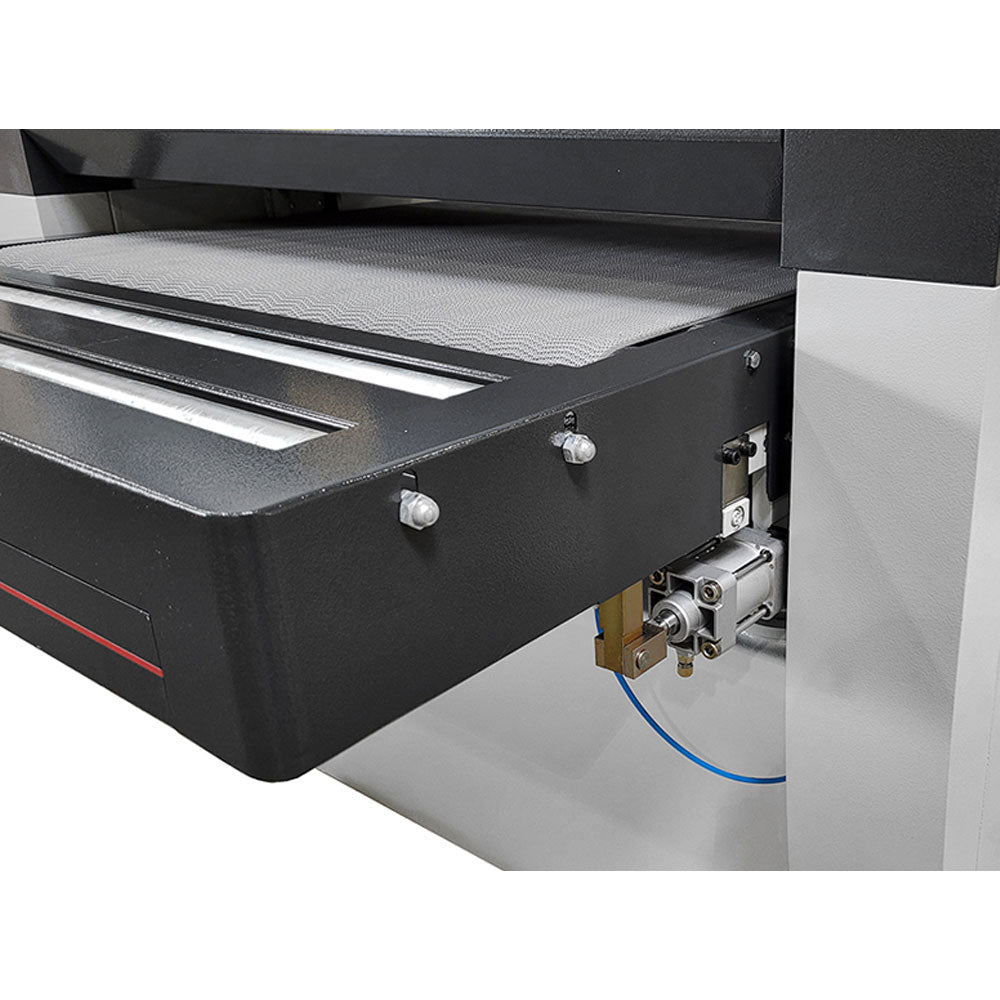

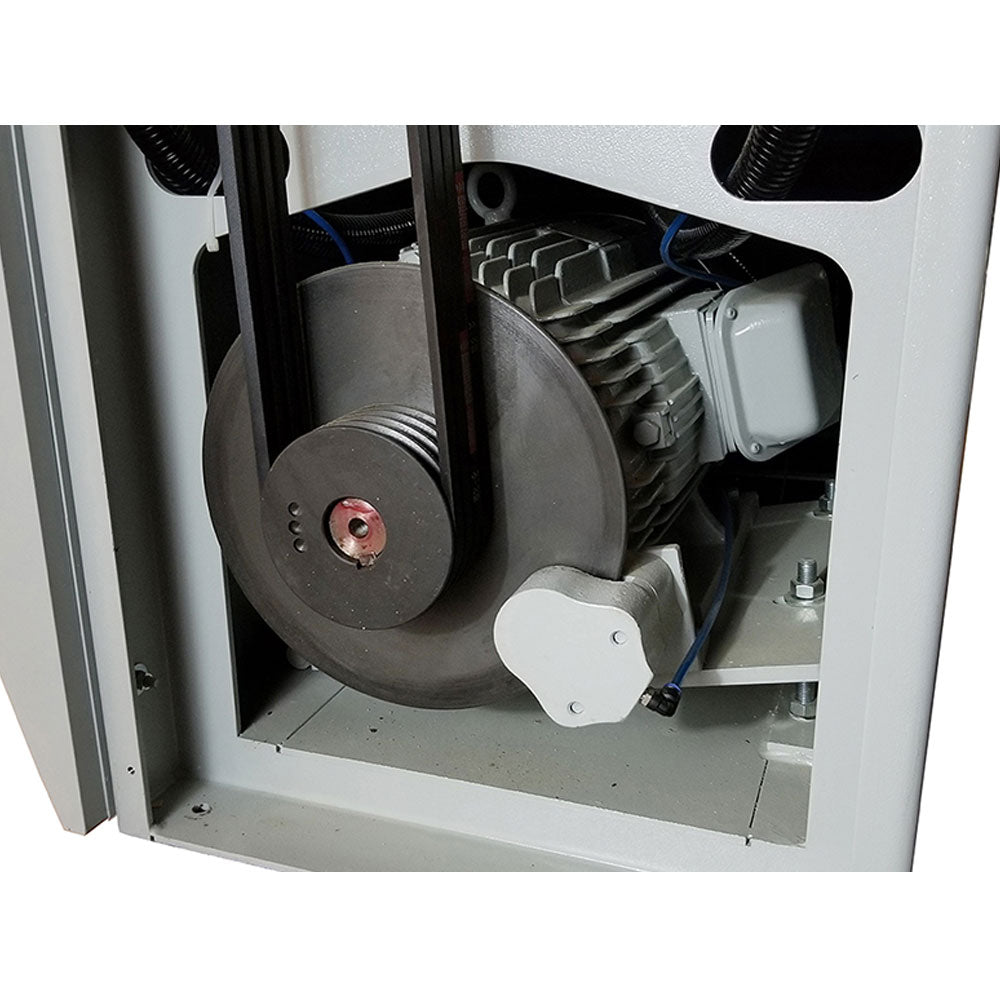

The C431 is equipped with a powerful 20HP sanding motor and a pneumatic disc braking system to facilitate faster belt changes. It comes standard with a high-quality reinforced rubber conveyor belt which combines superior grip with high accuracy thickness. The conveyor belt is tracked automatically by a pneumatic tracking cylinder.

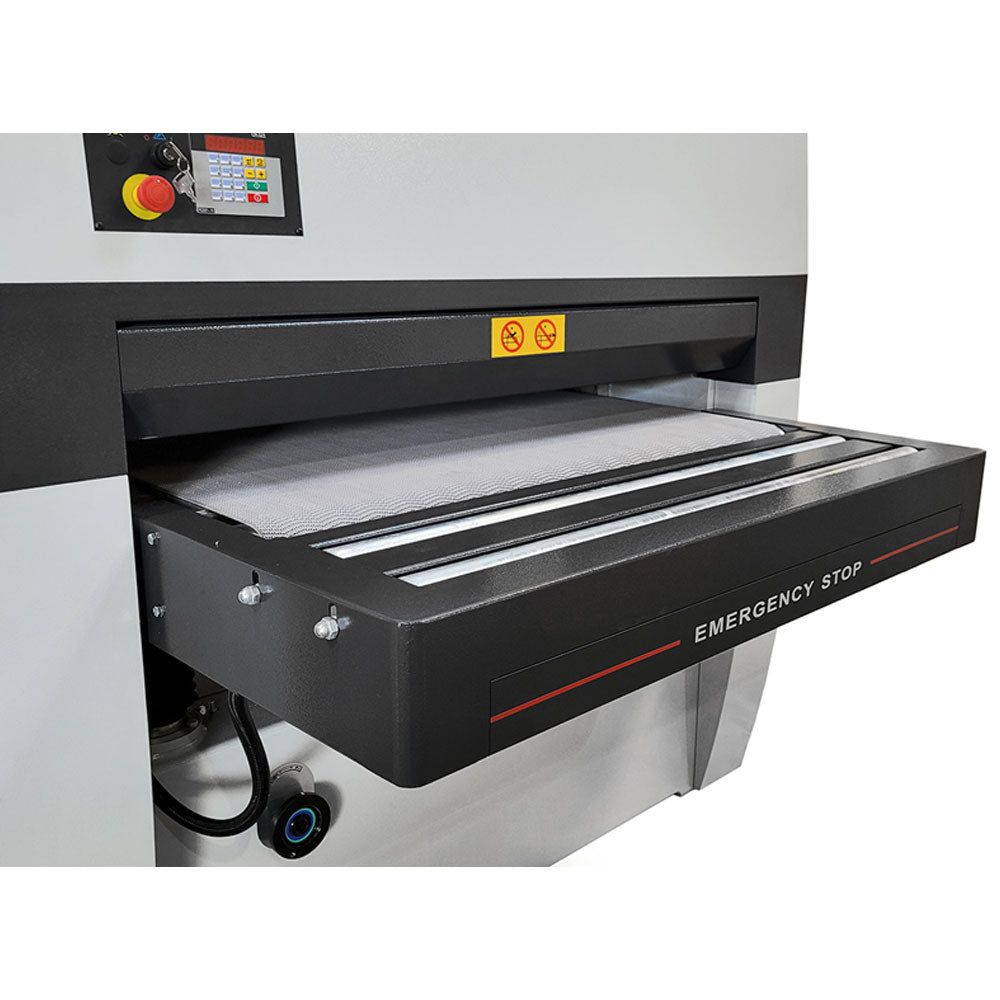

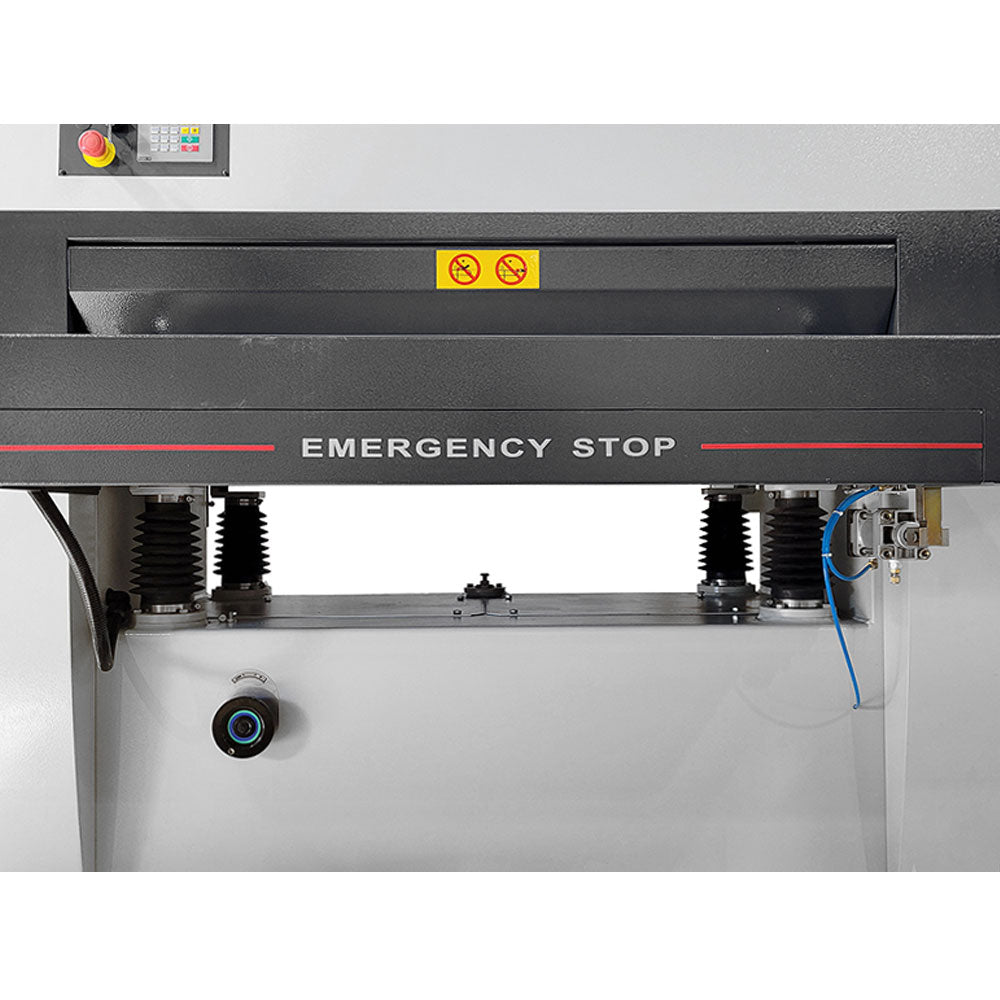

An extended infeed table with dual idle table rolls facilitate the workpiece's handling. It comes equipped with an overhead lever gate that will automatically shut off the machine should a workpiece too thick be sent through for sanding. Additionally is equipped with a front safety push bar, emergency stop buttons on the front and rear of the machine, and safety switches on all door panels.

If you need a quote, we would be happy to provide one. Call 260-637-0054 or email

Note: Cannot ship to Pennsylvania or California.

  • Accurate digital thickness control with both Inch & Metric settings allows the operator to key in the desired thickness and the table will automatically move into position
  • Small footprint

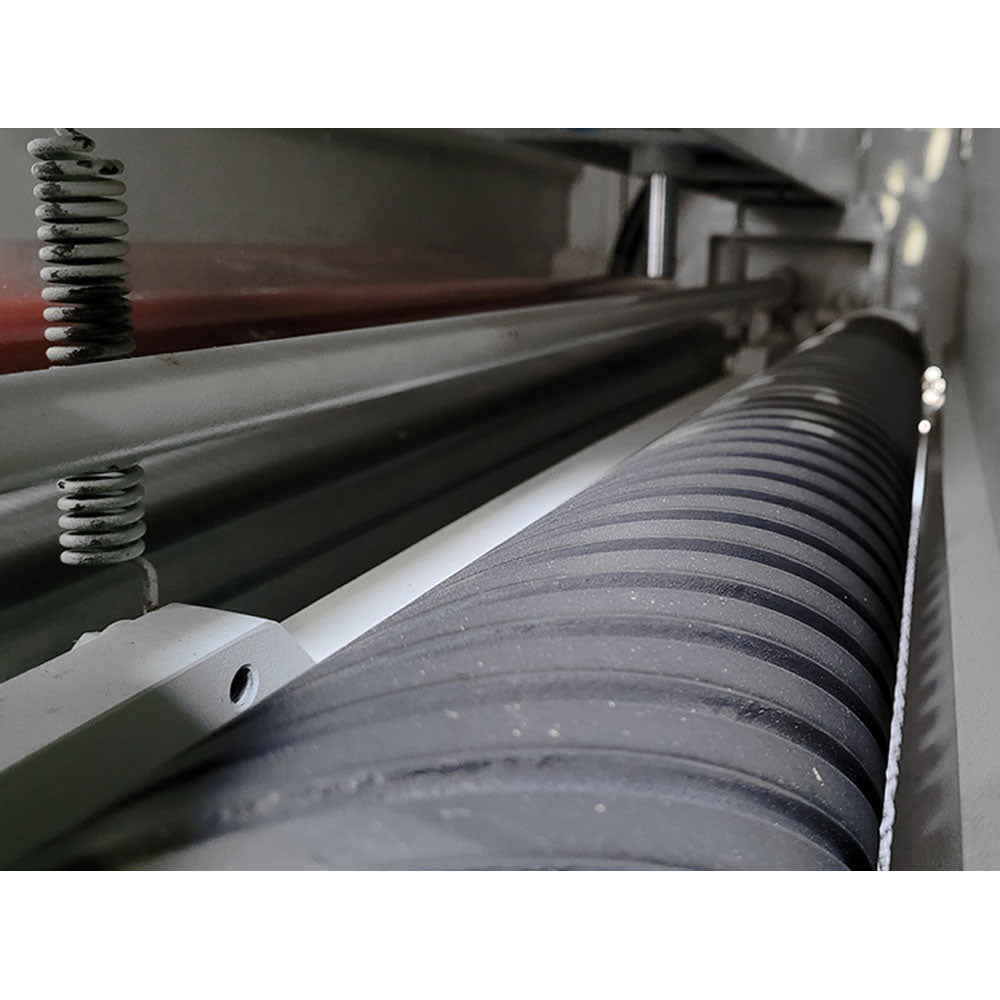

  • Combination sanding unit with 5” rubber contact drum and 2.6” wide adjustable sanding platen for a wide range of sanding applications
  • Electronic belt tracking for optimum belt life and sanding results
  • Ammeter for load monitoring to ensure the proper amount of material is being removed according to the selected grit
  • Disc brake on main motor allows for faster belt changes
  • Pneumatic belt tensioning with quick-release outboard support to facilitate fast belt changes
  • Double infeed and outfeed pressure rolls for superior part hold down
  • Four table-raising jack screws
  • Material over-height limit switch
  • Hour meter records the actual running time of the machine which can be used to provide timely maintenance for the machine
  • Interlocks located on all access doors

Abrasive belt size: 44” x 60” (1,117 x 1,524 mm)
Main motor: 20 HP

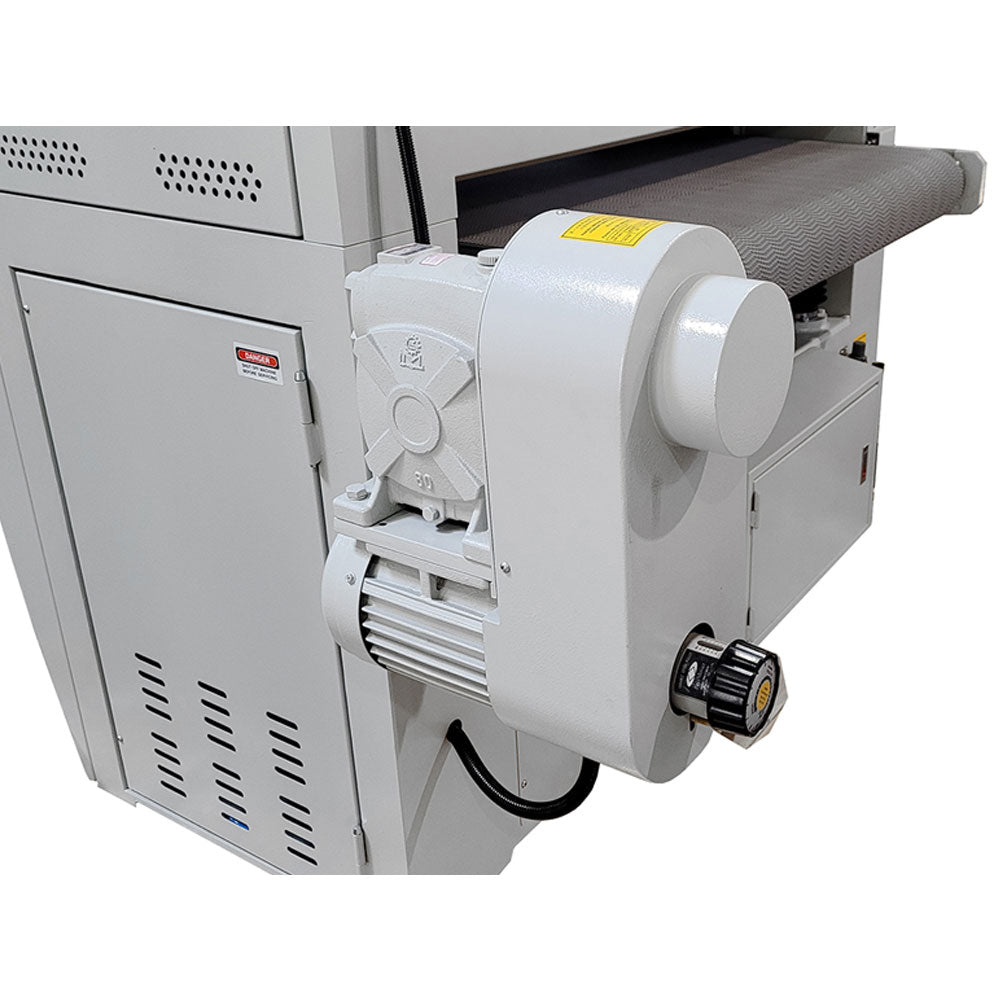

Feed motor: 2HP
Table rise/fall motor: 1/2 HP
Max. width stock: 43” (1,092 mm)
Min. part length: 16” (400 mm)
Max. thickness opening: 5.9” (150 mm)
Feed speed- variable: 13 to 52 FPM (4 to 16 m/min)
Passline height: 33”- 38” (838 – 965 mm)
Infeed table: 11-1/2” (292 mm)
Dust outlet: 2 @ 4” (100 mm)

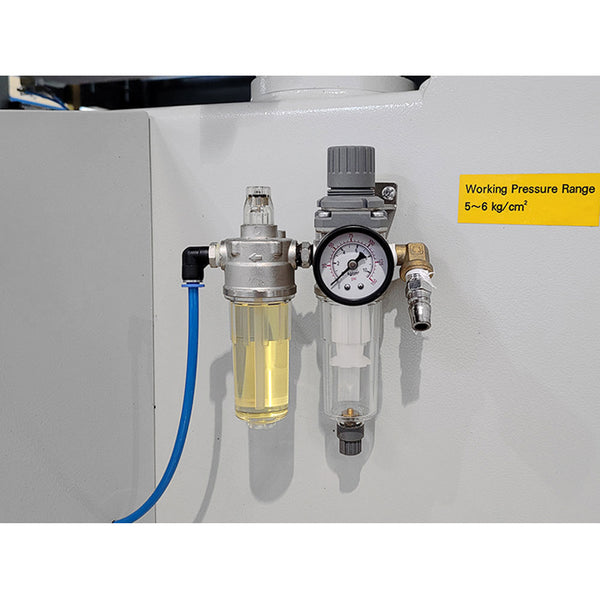

Compressed air usage: 2 CFM @ 90 PSI
New weight: 3,344 lbs. (1520 kgs)
Machine dimensions: 70” x 72” x 71-1/4” (1,780 x 1,820 x 1,810 mm)
Shipping weight: 3,652 lbs. (1660 kgs)
Shipping dimensions: 73” x 77” x 82” (1,854 x 1,950 x 2,080 mm)


Please note: Items being shipped to extremely remote areas or areas with limited delivery access (such as islands only accessible by ferry) may incur additional shipping or freight fees. If your order requires any additional fees other than what is already included in the price, you will be contacted before those fees are applied and before your item ships. This is rare and will not apply to most orders.

SKU: C431
