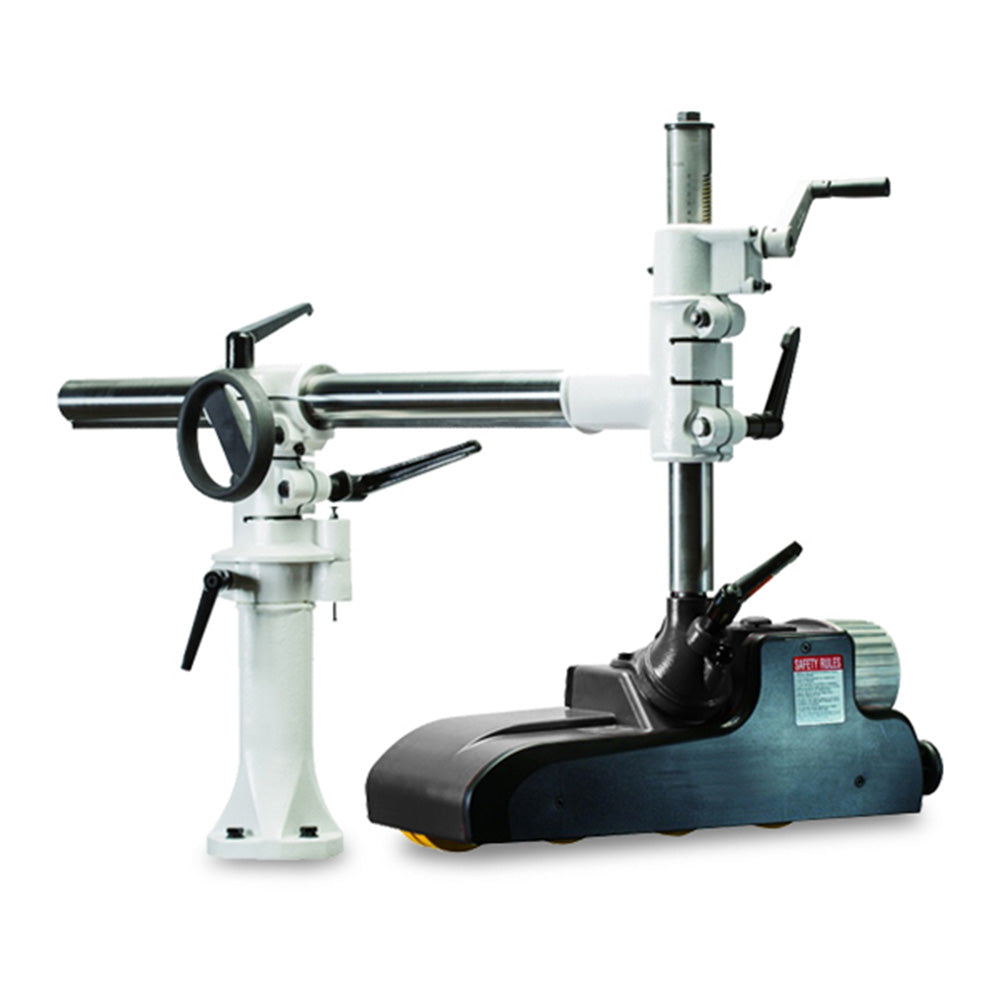

Cantek DS400 (230V 3PH) 4 Roll Variable Speed Power Feeder w/ Smart Stand

Price
$ 2,940

Have questions? Give us a call at 260-637-0054.

Our Easy Purchase Guarantee:

  • No hassle pricing  always sold at the manufacturers lowest price!
  • Freight included in price.*

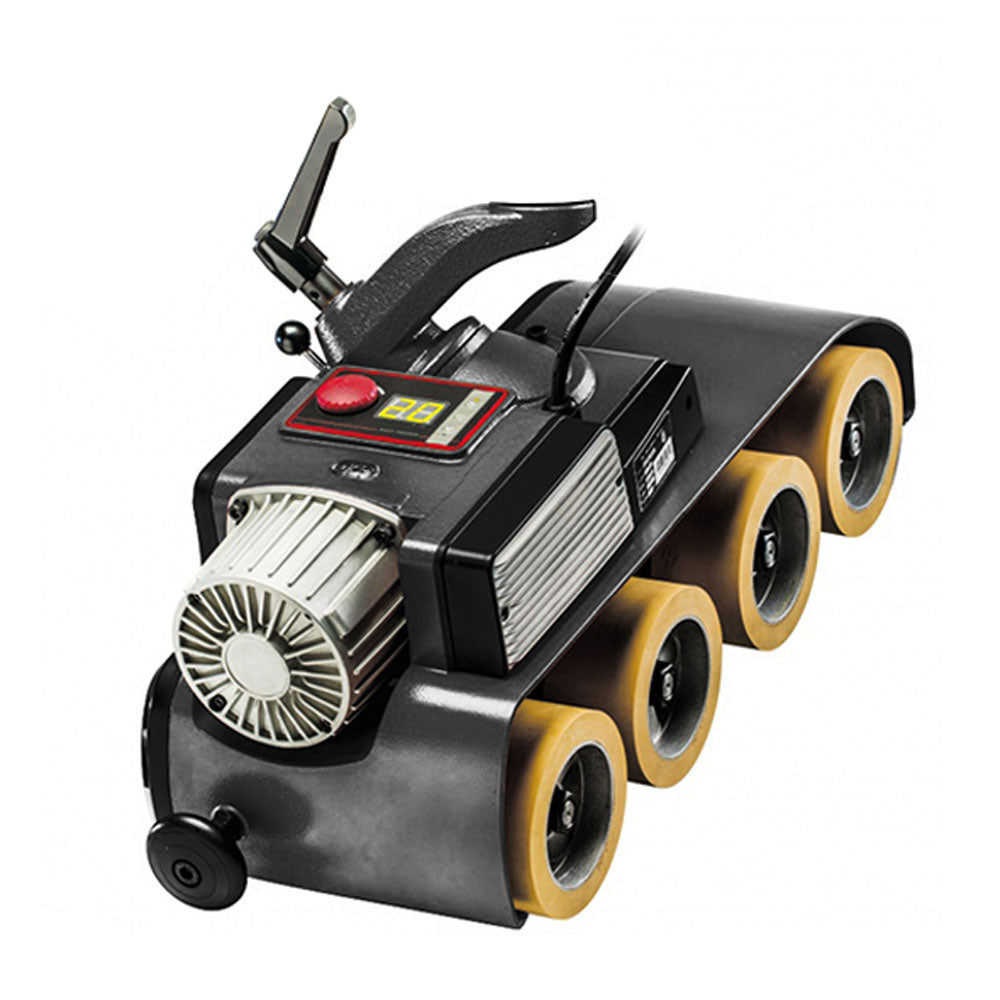

The Cantek DS400 4-Roll Variable Speed Power Feeder with SMART Stand is safe on a consistent feeding unit for shapers, table saws, and more. The rubber feed wheels grip the workpiece firmly and feed it at a constant speed to produce flawlessly finished pieces.

The DC brushless servo motor with electronic variable speed adjustment allows the operator full control for setting the optimum feed speed according to the specific job, The DC400 includes the SS03 Heavy Duty Smart Stand which features an extra-long support column and extension arm which allows for use of this mount and stand on larger woodworking machinery. The horizontal rotation also has a clutch and memory lock, making quick cutter blade switches a safer and quicker task.

If you need a quote, we would be happy to provide one. Call 260-637-0054 or email sales@oaktreesupplies.com

Note: Cannot ship to Pennsylvania or California.

Features

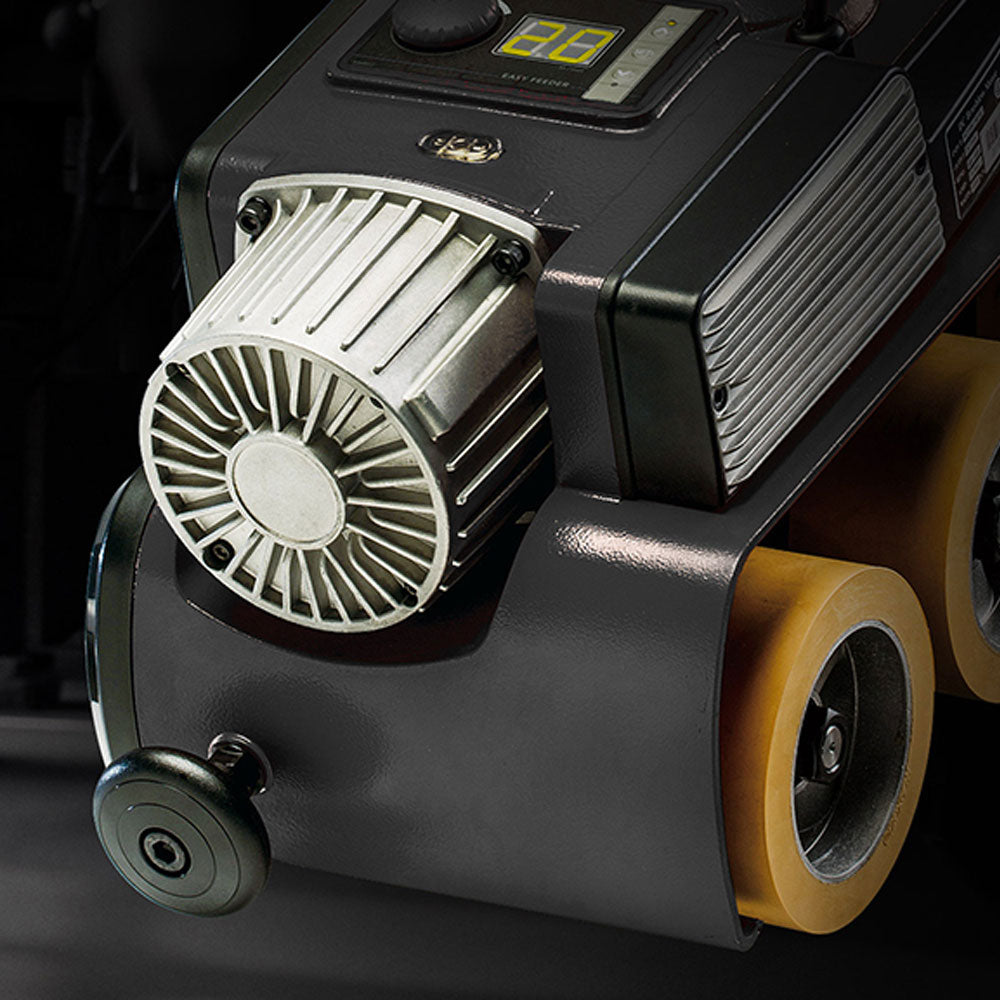

  • High-efficiency DC brushless servo motor
  • High efficiency = more power, more torque!
  • Saves +50% power output over other feeders of the same size
  • Electronic variable feed speed adjustment for optimum cut quality

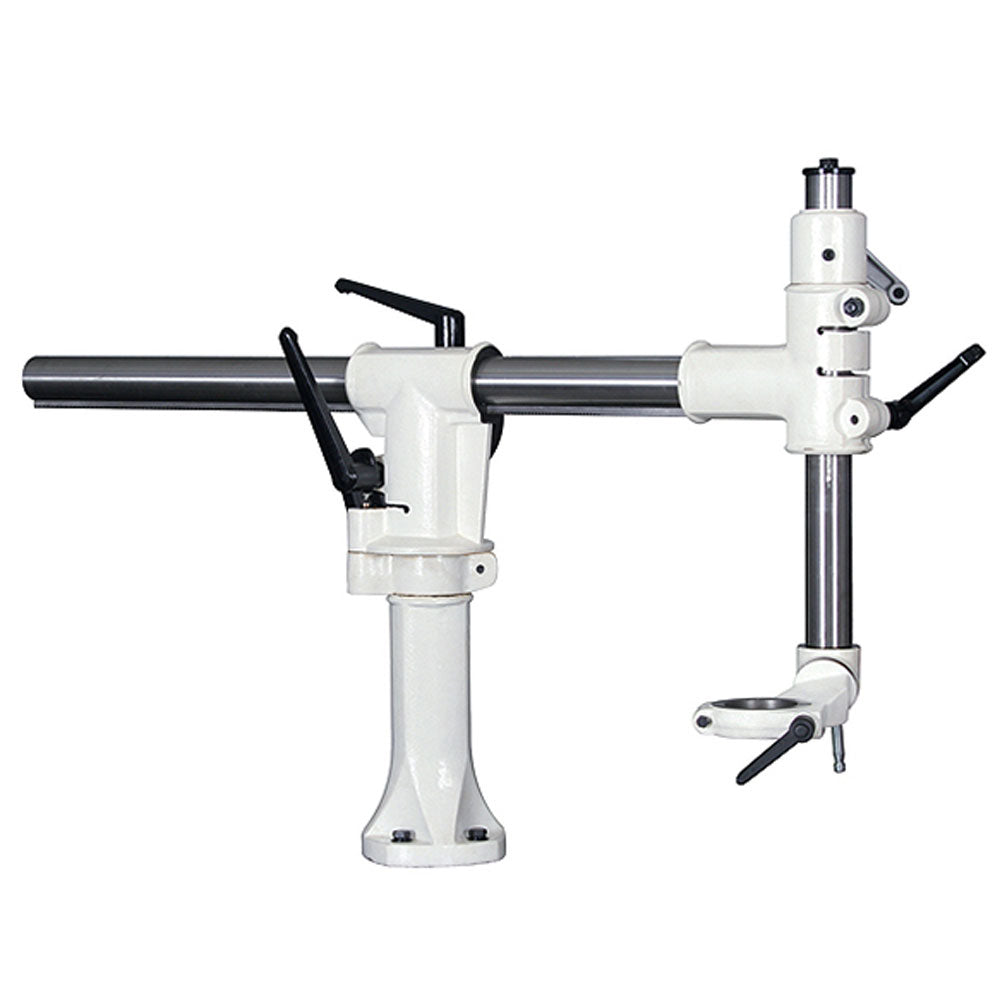

  • Includes SS03 Heavy Duty Smart Stand with the following features
  • 42” horizontal adjustment arm for even greater reach
  • Front-mounted vertical adjustment for added operator convenience
  • Memo-locking allows for quick and accurate relocation of the feeder unit after adjusting it out of position
  • 1/2 HP DC Brushless Servo Motor with electronic speed display

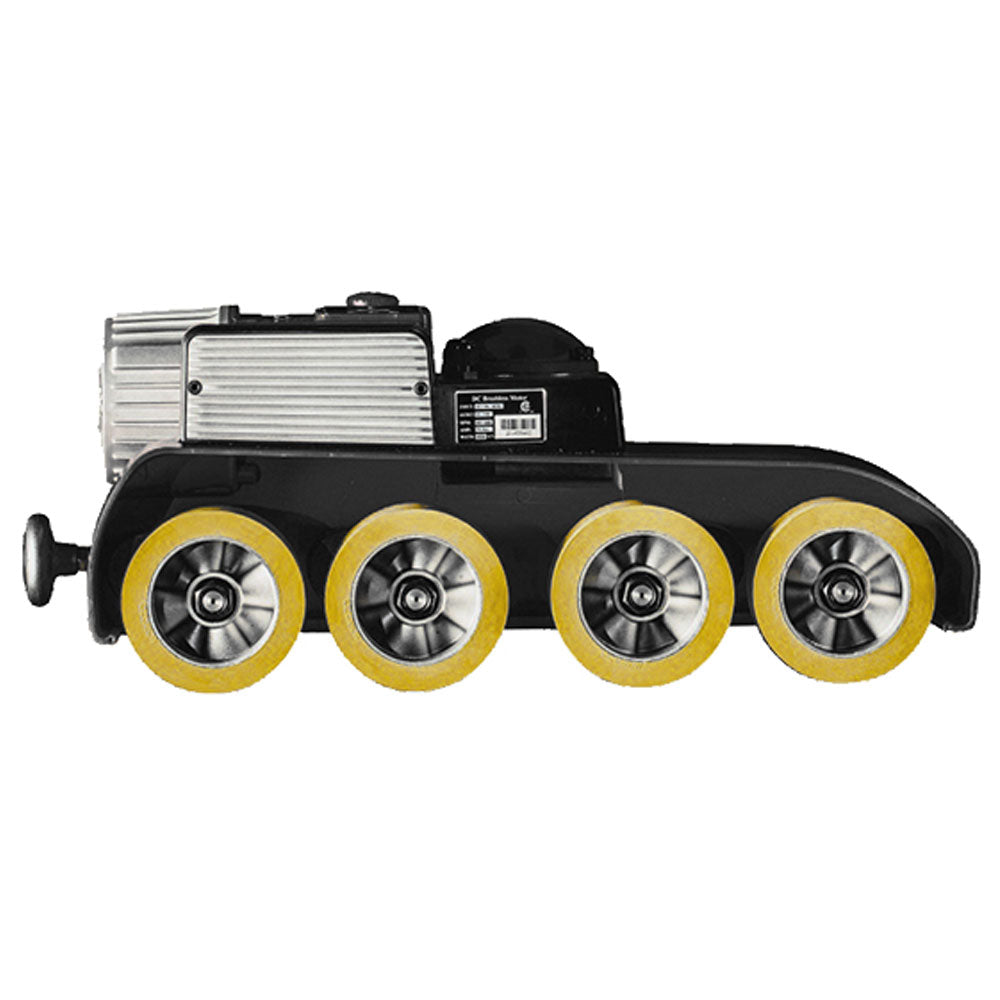

  • (4) rubber feed rollers
  • Variable speed 2-22 M/min (7-72 FPM)
  • Forward/reverse feed

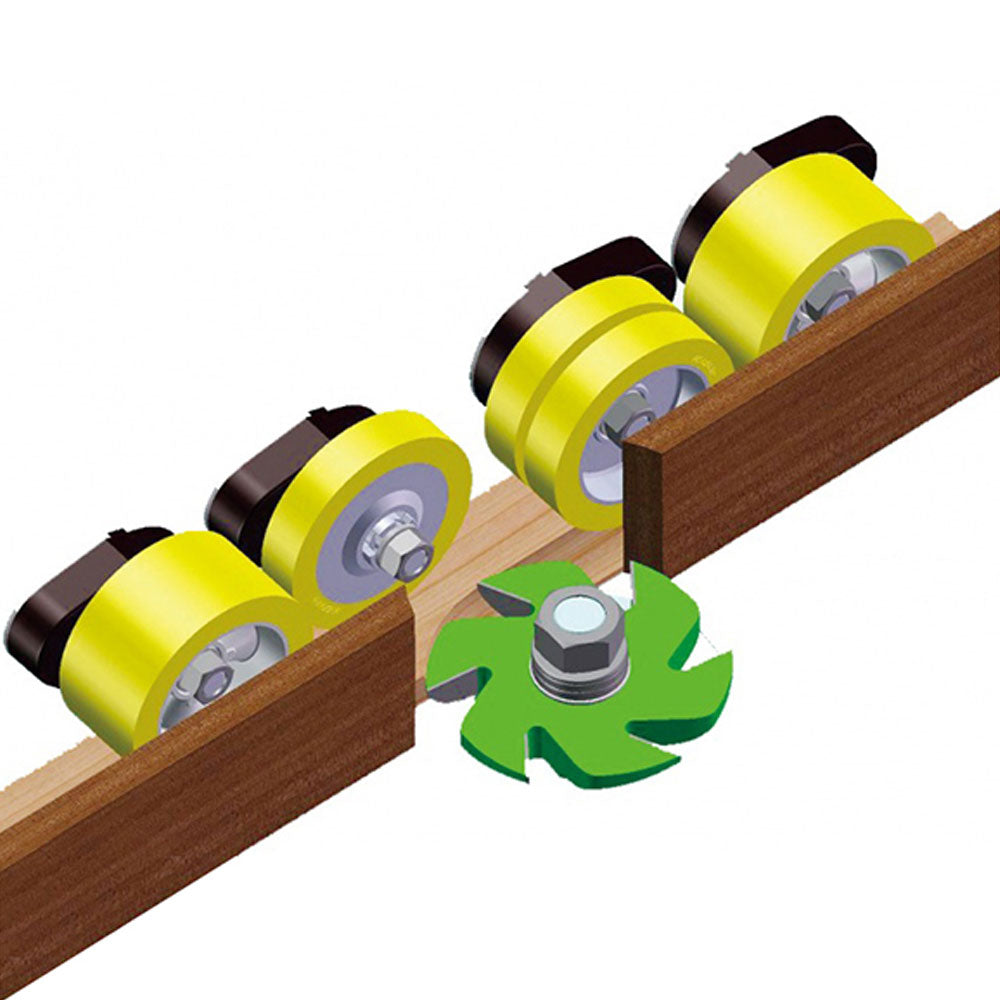

  • Optional Dual Rollers for saw or cutter clearance
Specs

Horsepower / Rotation: 0.5HP(0.4KW),1 or 3PH; Forward/Reverse
Range of Speeds (50Hz) (60Hz): 2-22 M/Min (7-72 FPM)
Rollers (Belts): Φ120 x 25 mm X 6 pcs (Φ4.8″ x 1″ x 6 pcs) / PC
Roller Suspension: 18mm (3/4″)
Net Weight: 164 lbs.
Gross Weight: 174 lbs.
Carton for Body: 27″ × 12-3/4″ × 12-3/8″
Carton for Stand: 30-3/8″ x 12-5/8″ x 11-1/2″
Carton for Overarm: 42-1/8″ x 2-3/8″ x 2-3/8″

*Shipping

Please note: Items being shipped to extremely remote areas or areas with limited delivery access (such as islands only accessible by ferry) may incur additional shipping or freight fees. If your order requires any additional fees other than what is already included in the price, you will be contacted before those fees are applied and before your item ships. This is rare and will not apply to most orders.

SKU: DS400 (230V 3PH)
