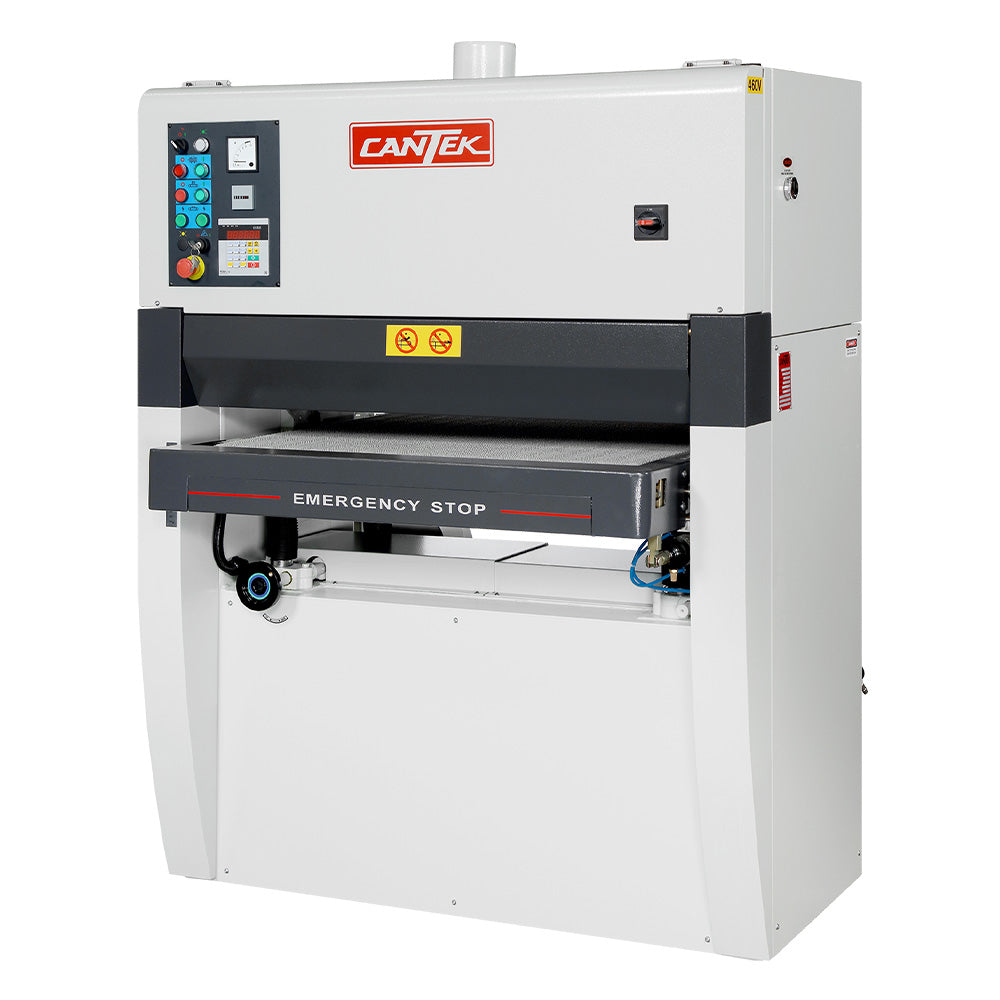

The Cantek C371 36″ Widebelt Sander is compact and versatile with a combination sanding unit for calibration and final sanding. The robust sanding unit and heavy-duty frame ensures optimum sanding results. Motorized thickness adjustment with digital thickness control for fast and accurate table adjustment.
Our Easy Purchase Guarantee:
- No hassle pricing — always sold at the manufacturers lowest price!
- No quote needed.
- No tax outside of Indiana.
*If you need a quote, we would be happy to provide one. Call 260-637-0054 or email sales@oaktreesupplies.com [TABS]
Features

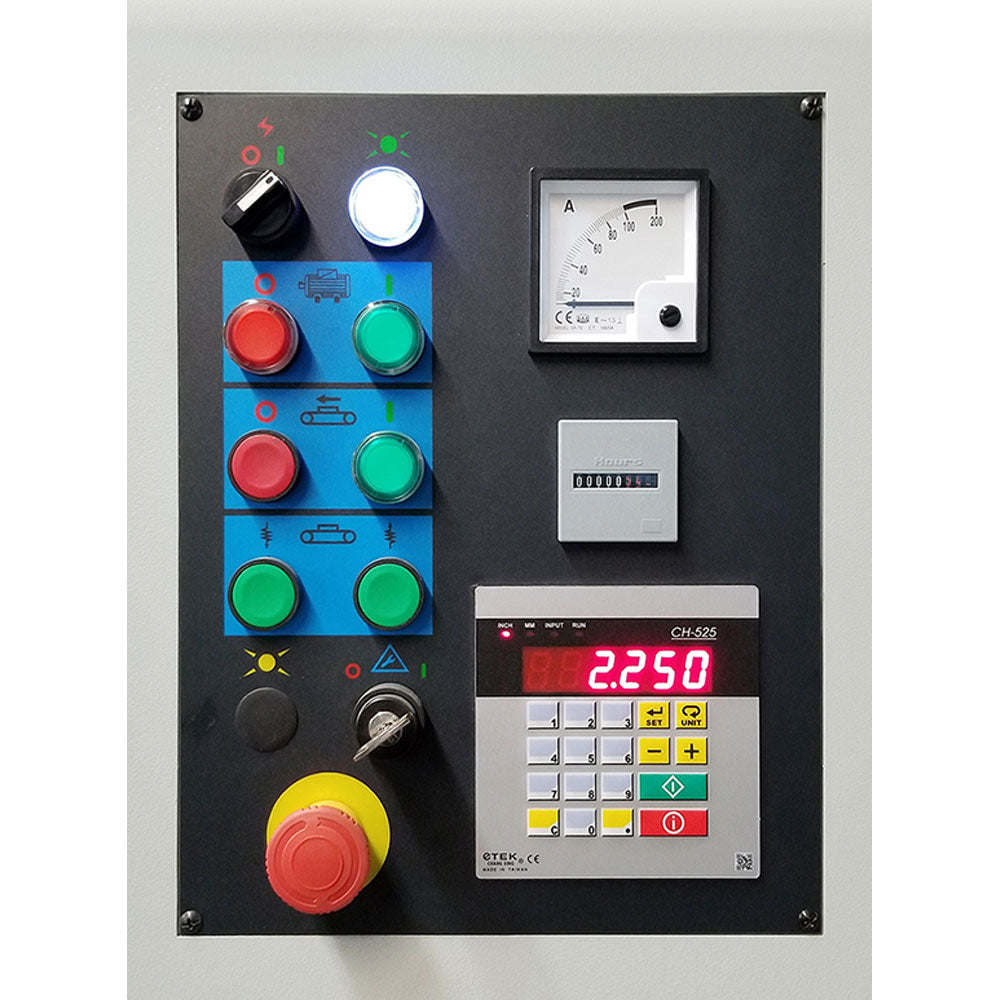

- Accurate digital thickness control with both Inch & Metric settings allows operator to key in the desired thickness and table will automatically move into position.
- Small footprint

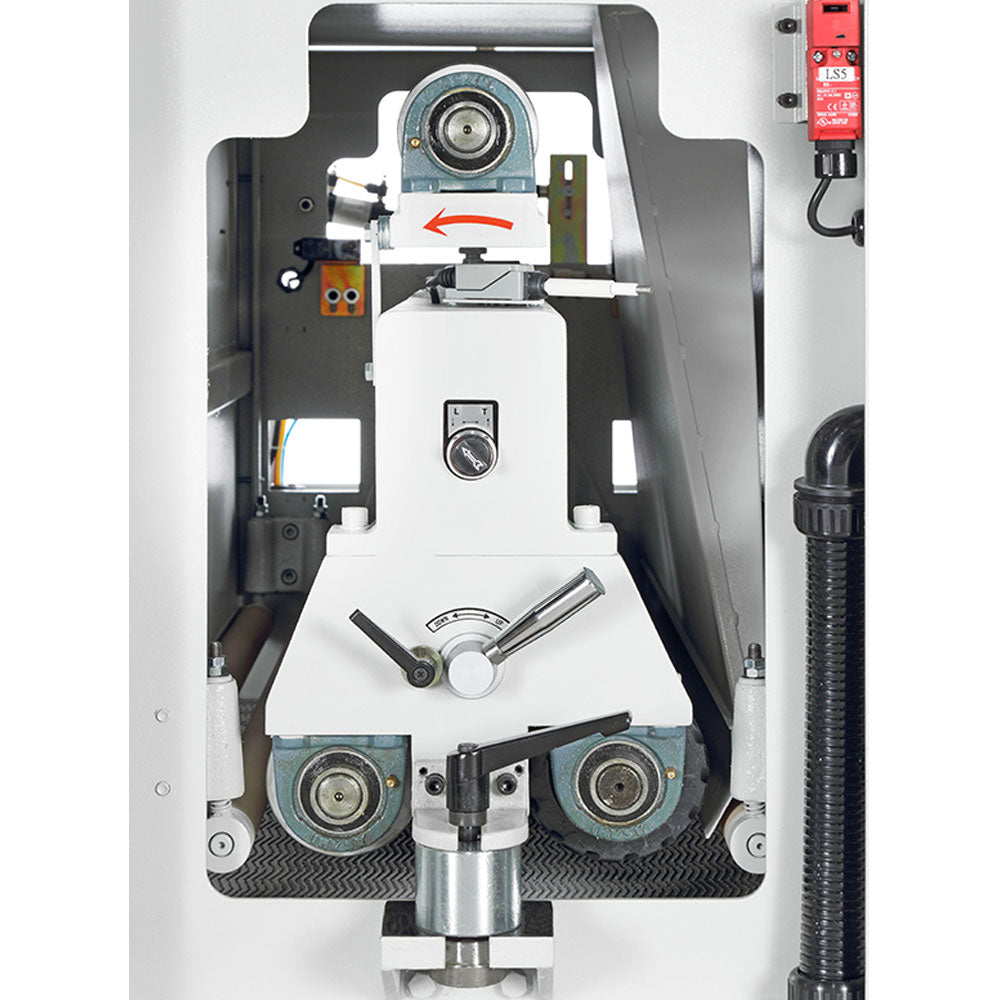

- Combination sanding unit with 5” rubber contact drum and 2” wide adjustable sanding platen for a wide range of sanding applications.
More Features
- Electronic belt tracking for optimum belt life and sanding results
- Ammeter for load monitoring to ensure the proper amount of material is being removed according to the selected grit.

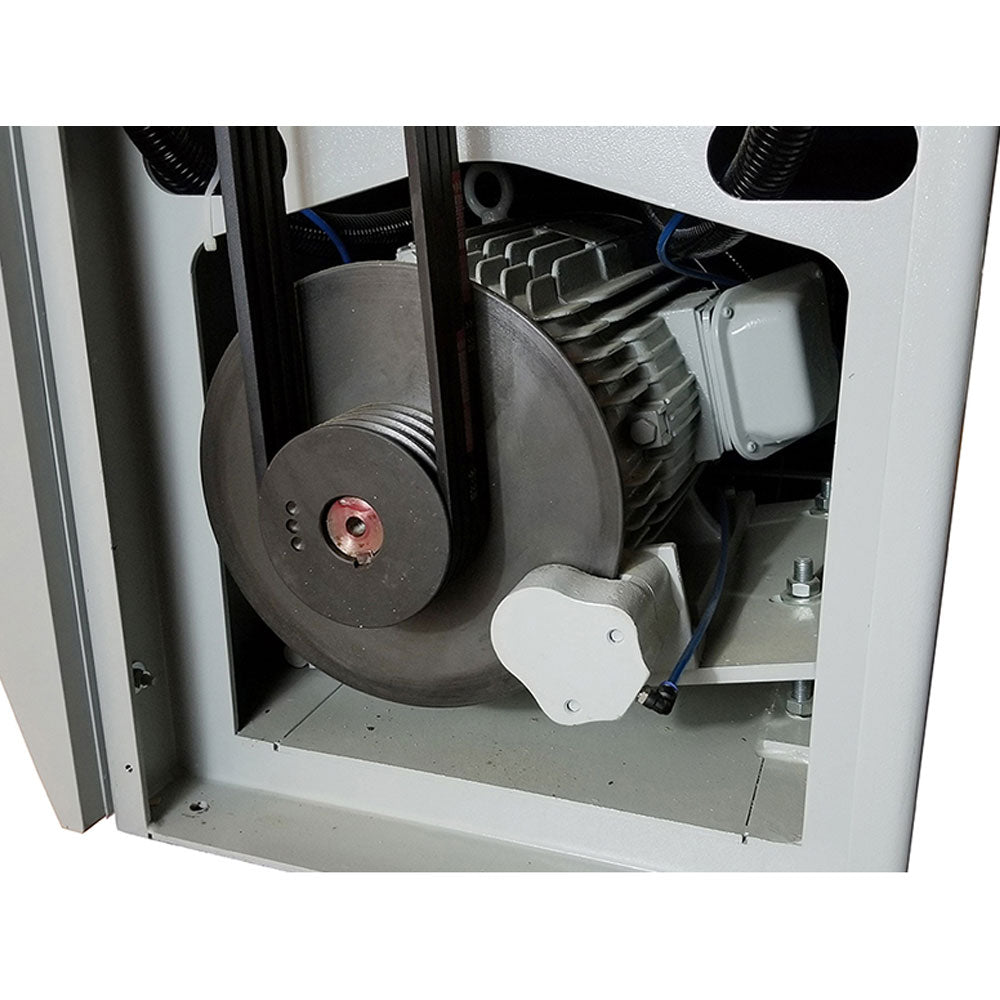

- Disc brake on main motor allows for faster belt changes
- Pneumatic belt tensioning with quick release outboard support to facilitate fast belt changes.
- Double infeed and outfeed pressure rolls for superior part hold down

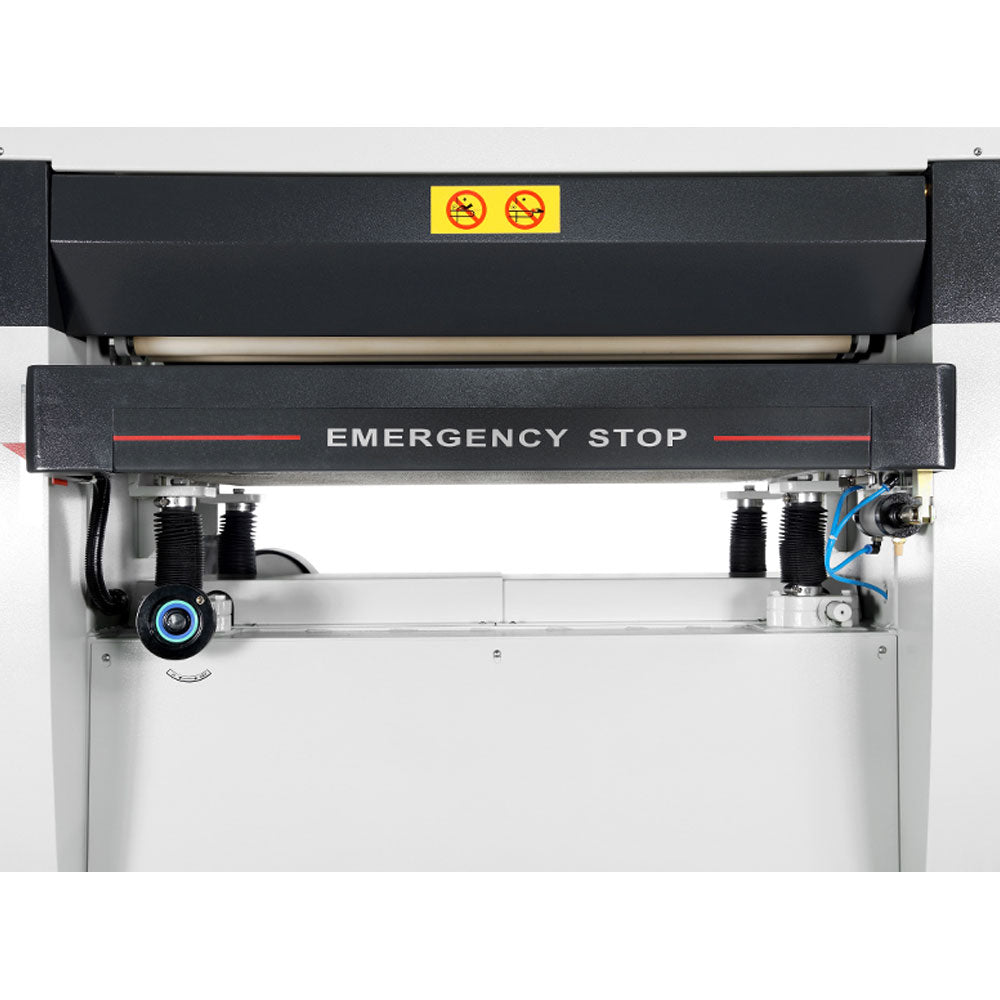

- Four table raising jack screws

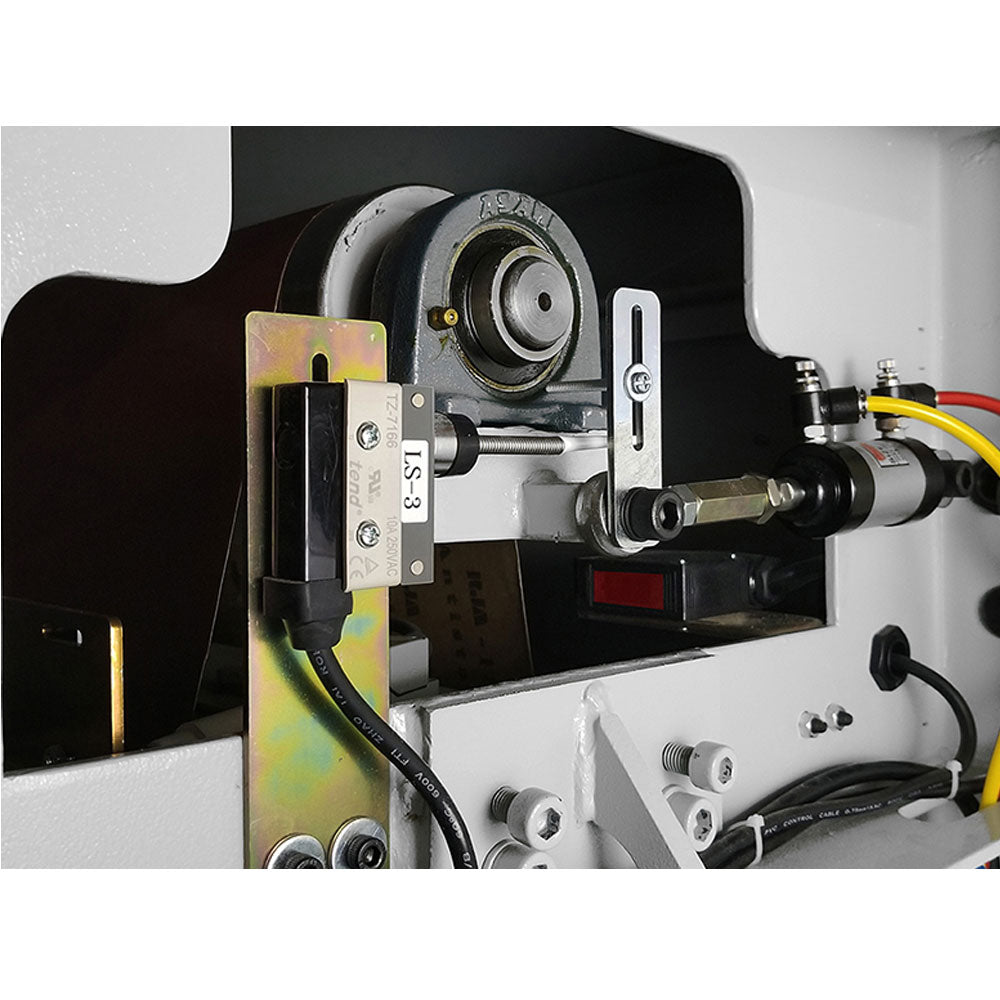

- Material over-height limit switch
- Hour meter records the actual running time of the machine which can be used to provide timely maintenance for the machine
- Interlocks located on all access doors.
Specs
Abrasive belt size: 37” x 60” (939 x 1524 mm)
Main motor: 20 HP
Feed motor: 2HP
Table rise/fall motor: ½ HP
Maximum width stock: 36” (910 mm)
Minimum part length: 13” (330 mm)
Minimum thickness opening: 5” (127 mm)
Feed speed- variable: 13 to 52 FPM (4 to 16 m/min)
Passline height: 33”- 38” (838 – 965 mm)
Infeed table: 11 ½” (292 mm)
Dust outlet: 1 @ 5” (127 mm)
Compressed air usage: 2 CFM @ 90 PSI
New weight: 1980 lbs (900 kgs)
Machine dimensions: 64” x 53” x 73” (1625 x 1346 x 1854 mm)
Shipping weight: 2530 lbs (1150 kgs)
Shipping dimensions: 67” x 55” x 78” (1701 x 1397 x 1981 mm)
