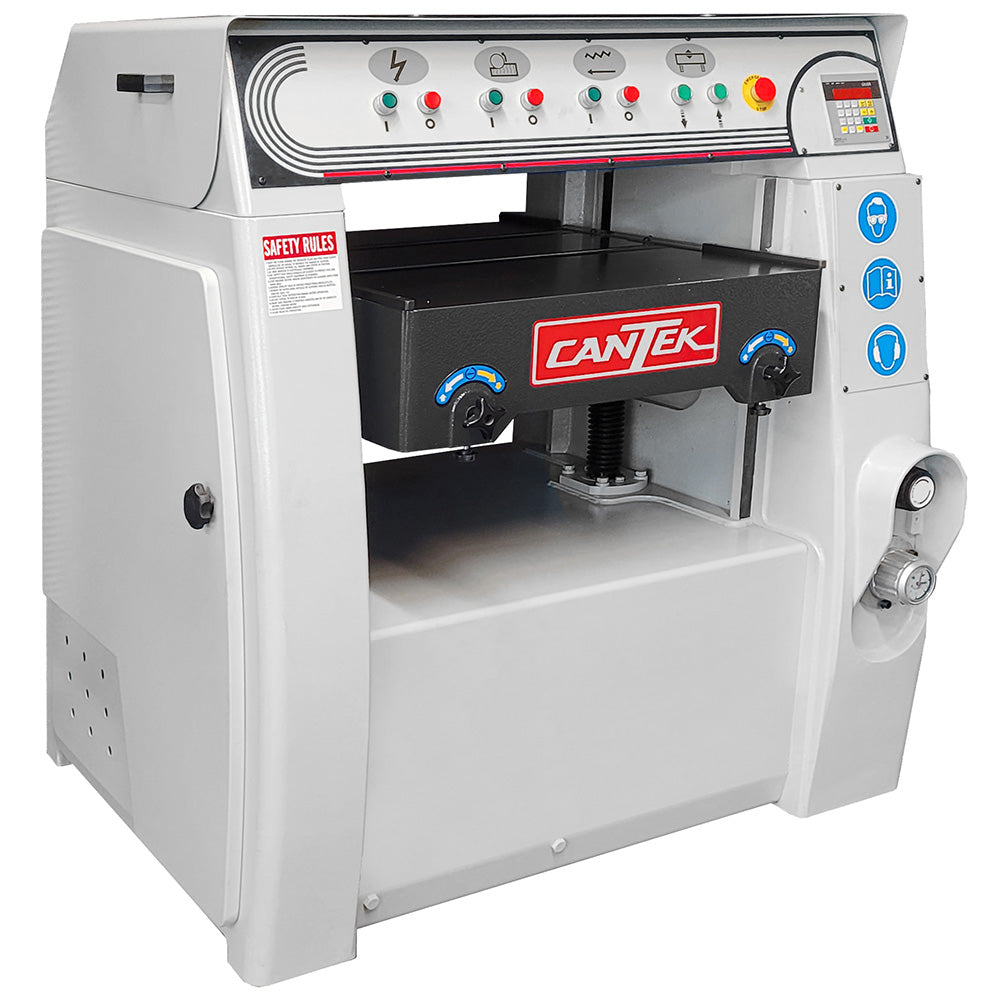

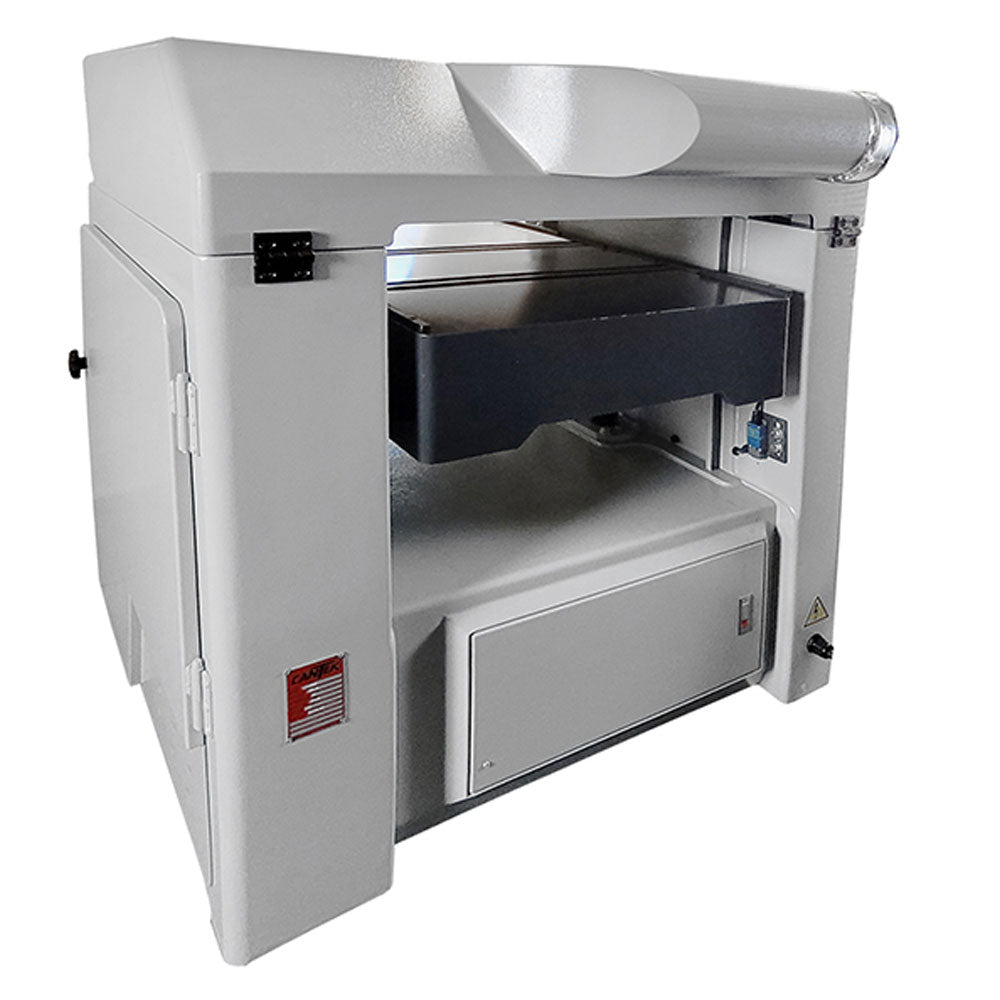

The Cantek CM626 26″ Planer is a production planer with high horsepower and feed rates. It is equipped with our spiral insert knife cutterhead with two-sided replaceable knives which produce a smooth planed finish with maximum cutting depth. With upper and lower driven feed rollers the CM626 can plane even the most difficult-to-feed material. The powerful 20HP motor can ensure optimum stock removal even on full-width boards. With infinitely variable feeds the operator has full control to ensure the optimum feed speed according to your needs. Equipped with the motorized movement of the table by convenient digital control the operator can accurately input the desired thickness to achieve accurate results.
Our Easy Purchase Guarantee:
- No hassle pricing — always sold at the manufacturer's lowest price!
- No tax outside of Indiana or Washington State
*If you need a quote, we would be happy to provide one. Call 260-637-0054 or email sales@oaktreesupplies.com
Note: Cannot ship to Pennsylvania or California
[TABS]
Features
- Spiral insert knife cutterhead with superior cut quality and a maximum depth of cut
- Two-sided solid carbide inserts are easily changed while providing optimum wear life
- Heavy-duty cast iron machine frame ensures long machine life, and optimum cut quality with its superior vibrating damping properties

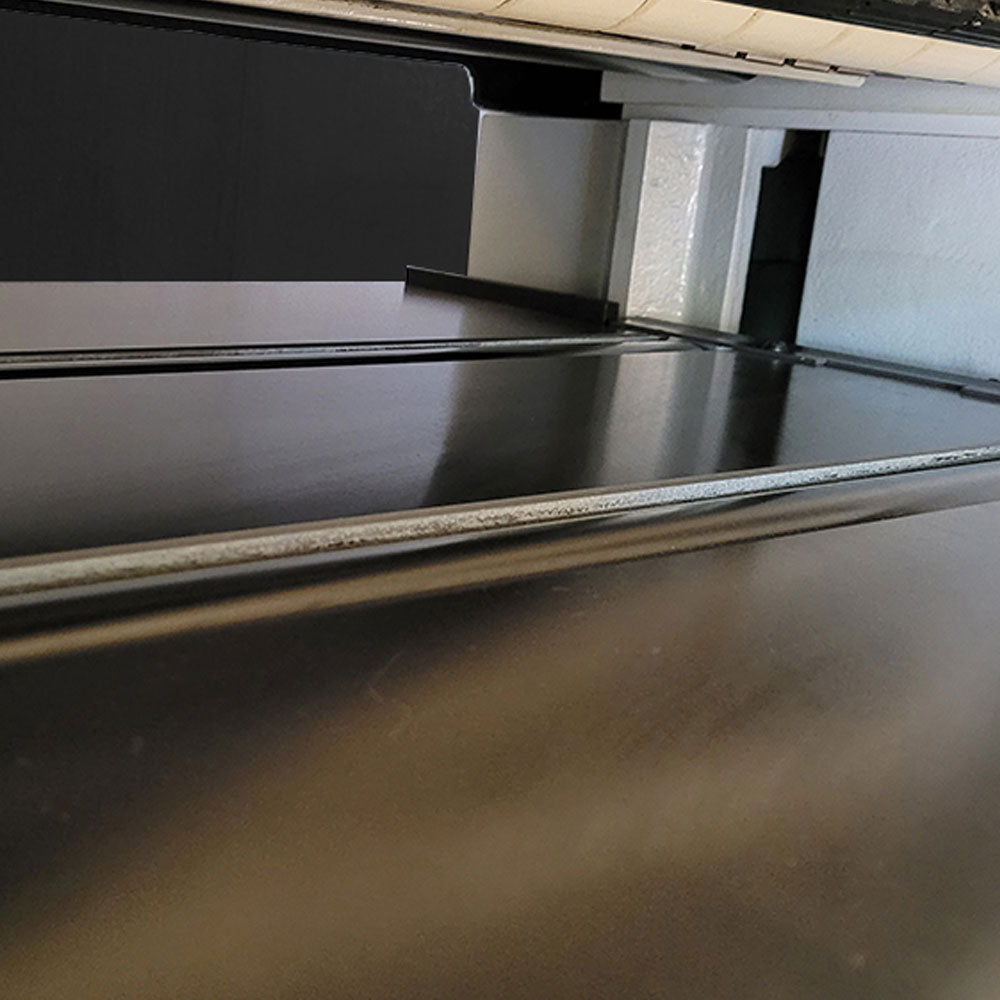

- Driven bed rollers for optimum feeding results even with difficult-to-feed material
- Powerful 20HP cutterhead motor for even the most demanding planing jobs

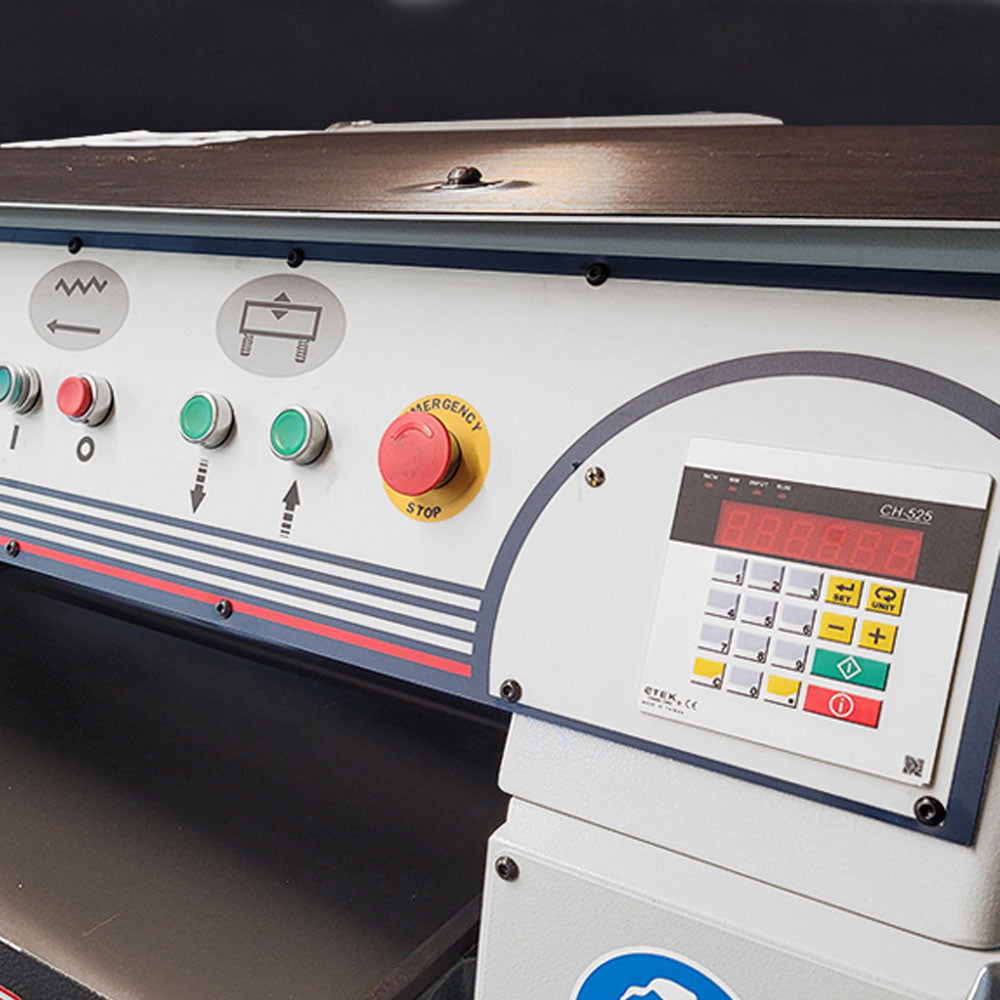

- Digital thickness control for accurate automatic adjustment of the table position

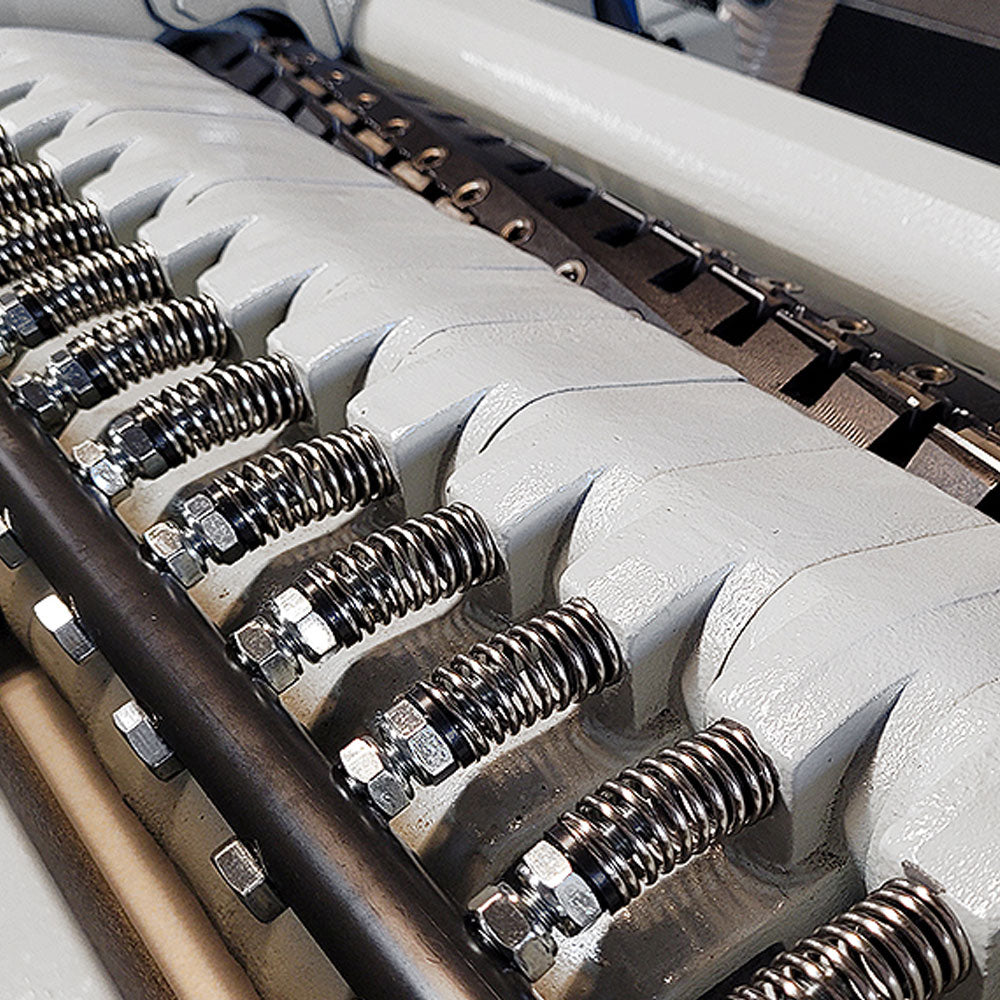

- Serrated sectional infeed roll, sectional chip breakers and pressure shoes

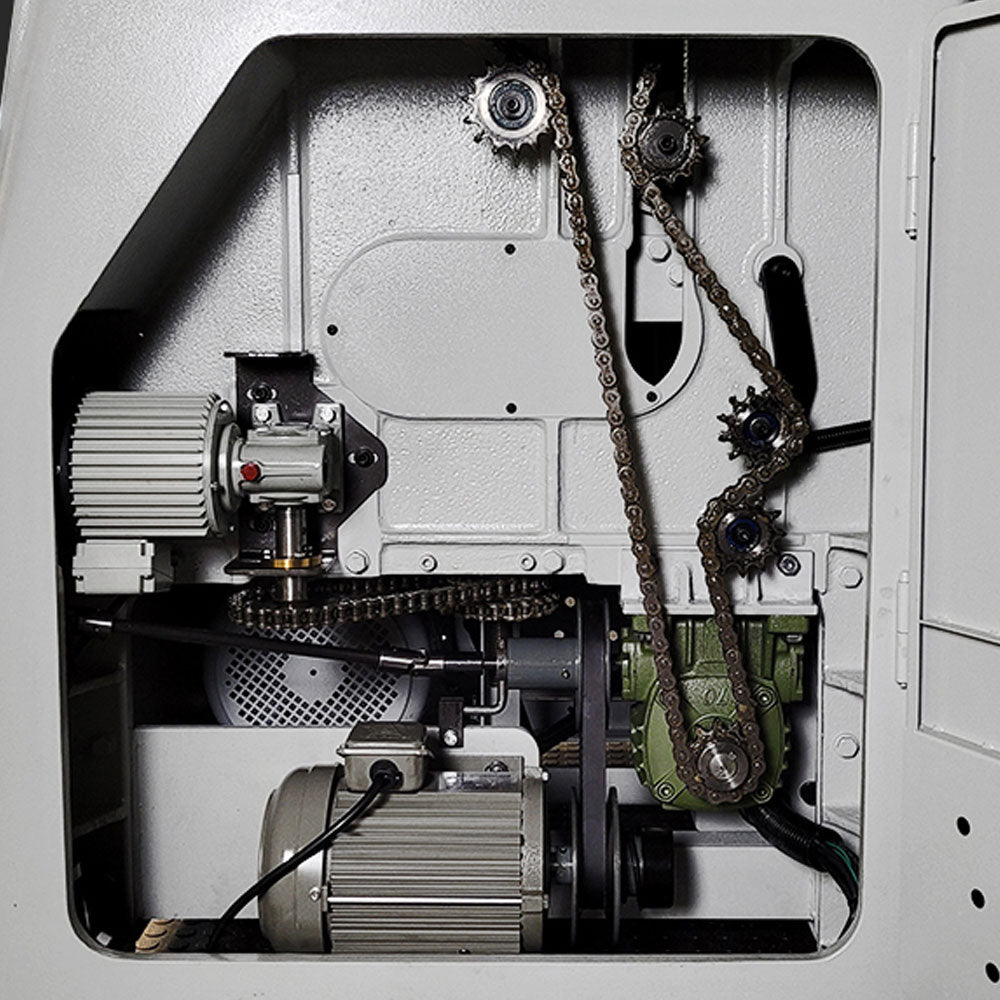

- Driven opposing upper and lower feed rollers for optimum feeding results

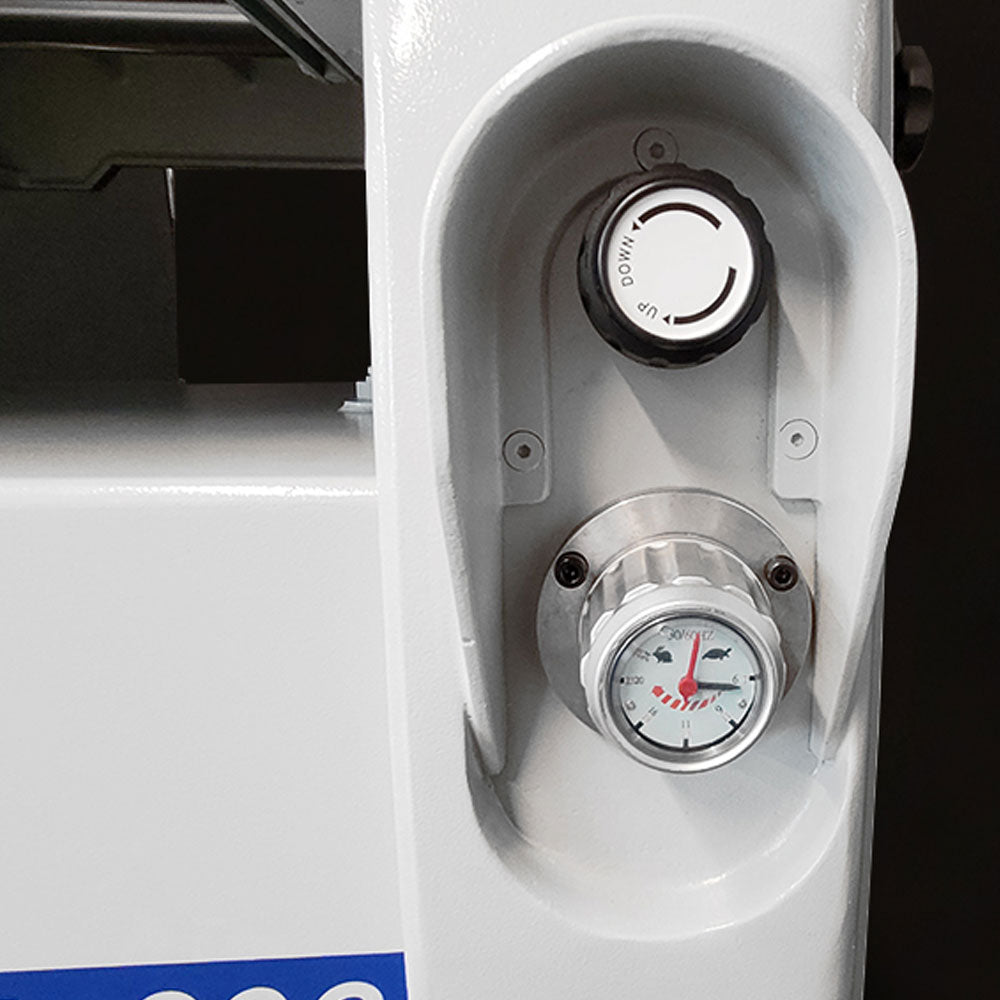

- Variable feed speed to 70 FPM

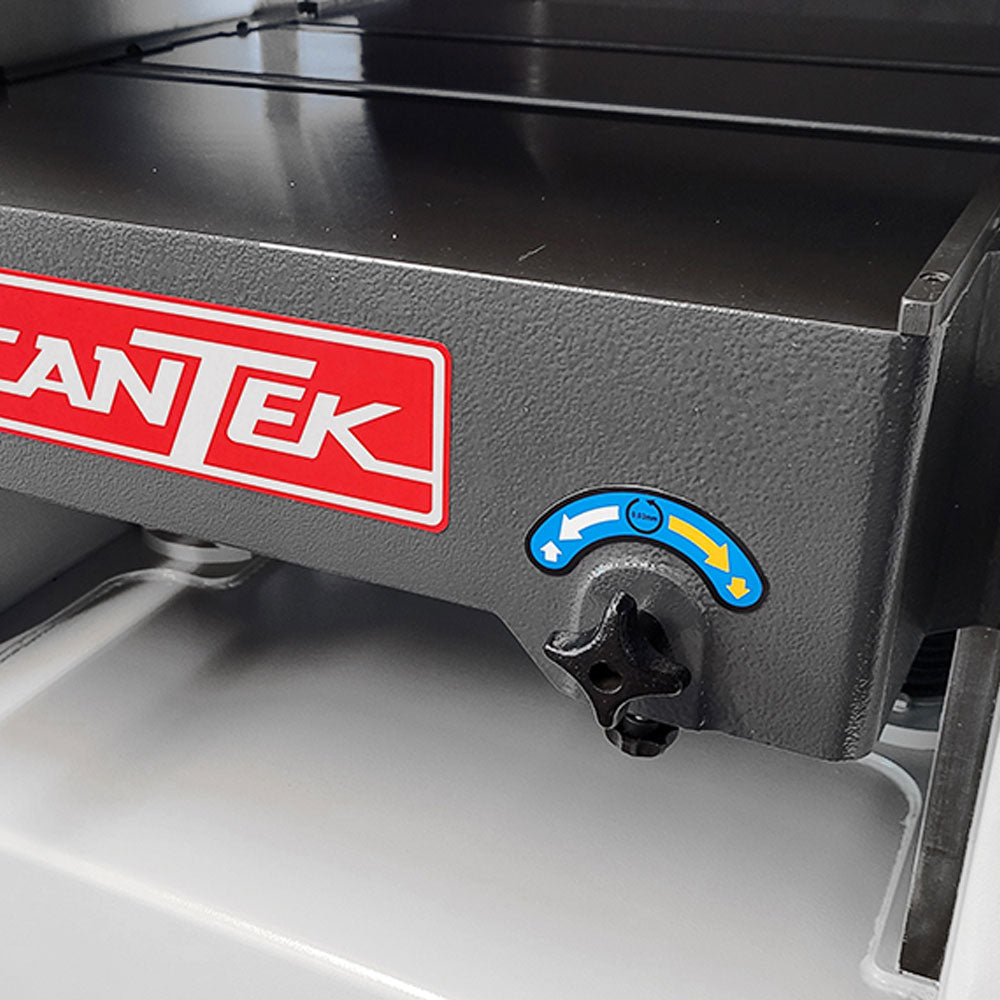

- Adjustable bed rollers to assist feeding results when required
- Anti-kickback fingers ensure safe operation
- Heavy-duty elevation jack screws and precision machined slides for accurate and smooth table movement
- Sound dampening machine cover conveniently hinges to provide easy access to the planer head and feed assembly
- 6” dust port
Specs
Maximum planing width: 26″ (660mm)
Maximum planing thickness: 11.8″ (300mm)
Minimum planning thickness: 0.15″ (4mm)
Maximum depth of cut: 0.31″ (8mm)
Minimum planning length: 10.35″ (263mm)
Table area: 35″ x 27″ (900 x 690mm)
Feed speeds variable: 23~98 FPM (7~30m/min)
Main motor: 20 HP
Feed motor: 1 HP
Table motor: 1/2 HP
Knives: 30 x 12 x 1.5mm (QTY: 100)
Cutterhead diameter: 4 ¾” (120mm)
Cutterhead RPM: 5000 RPM
Top feed rollers: 3″ dia. (75mm)
Dust hood outlet: 6″ dia. (150mm)
Machine weight: 2200 lbs. (1000 kgs)
Machine dimensions (WxDxH): 46″x39″x49″ (1167 x 995 x 1246mm)
Shipping weight: 2420 lbs. (1100 kgs)
Shipping dimensions (LxWxH): 44″x52″x58″ (1117 x 1320 x 1474mm)
