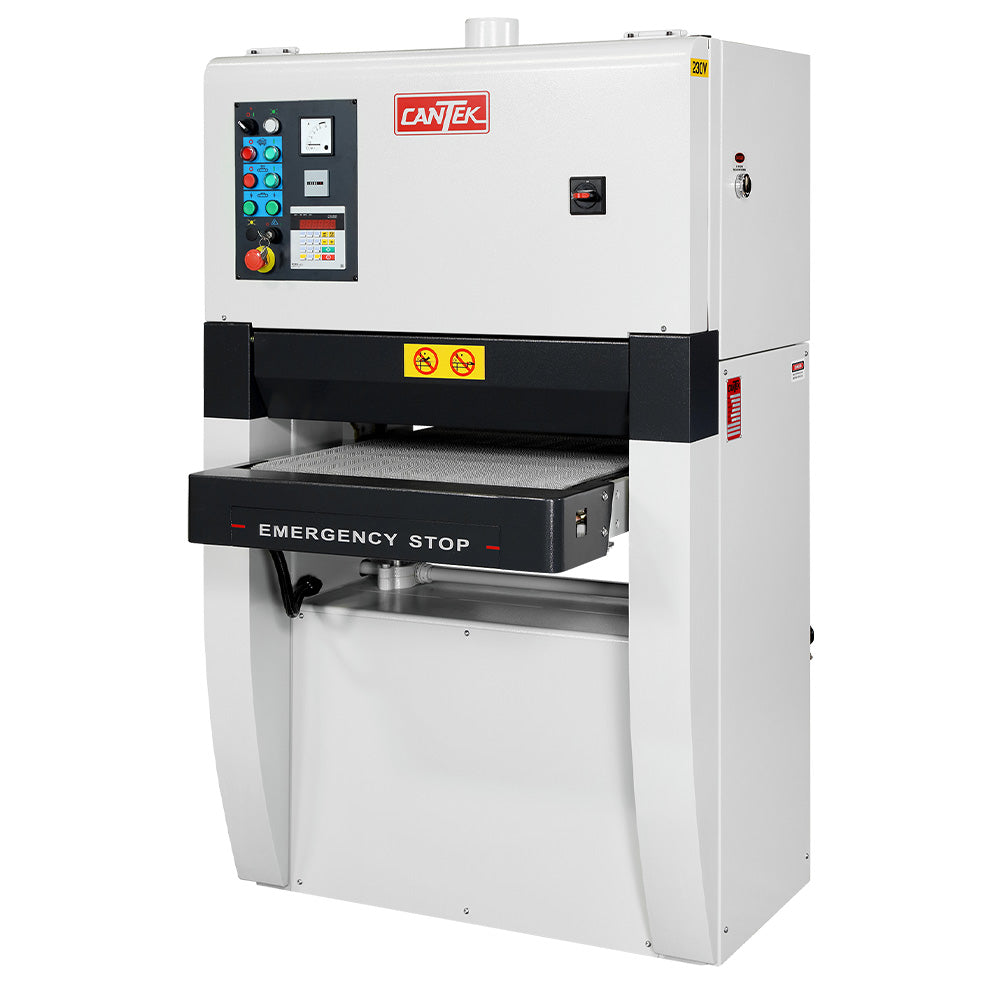

The Cantek C251 24″ Widebelt Sander is compact and versatile with a combination sanding unit for calibration and final sanding. The robust sanding unit and heavy-duty frame ensure optimum sanding results. Motorized thickness adjustment with digital thickness control for fast and accurate table adjustment.
Our Easy Purchase Guarantee:
- No hassle pricing — always sold at the manufacturer's lowest price!
- No tax outside of Indiana.
If you need a quote, we would be happy to provide one. Call 260-637-0054 or email sales@oaktreesupplies.com [TABS]
Features

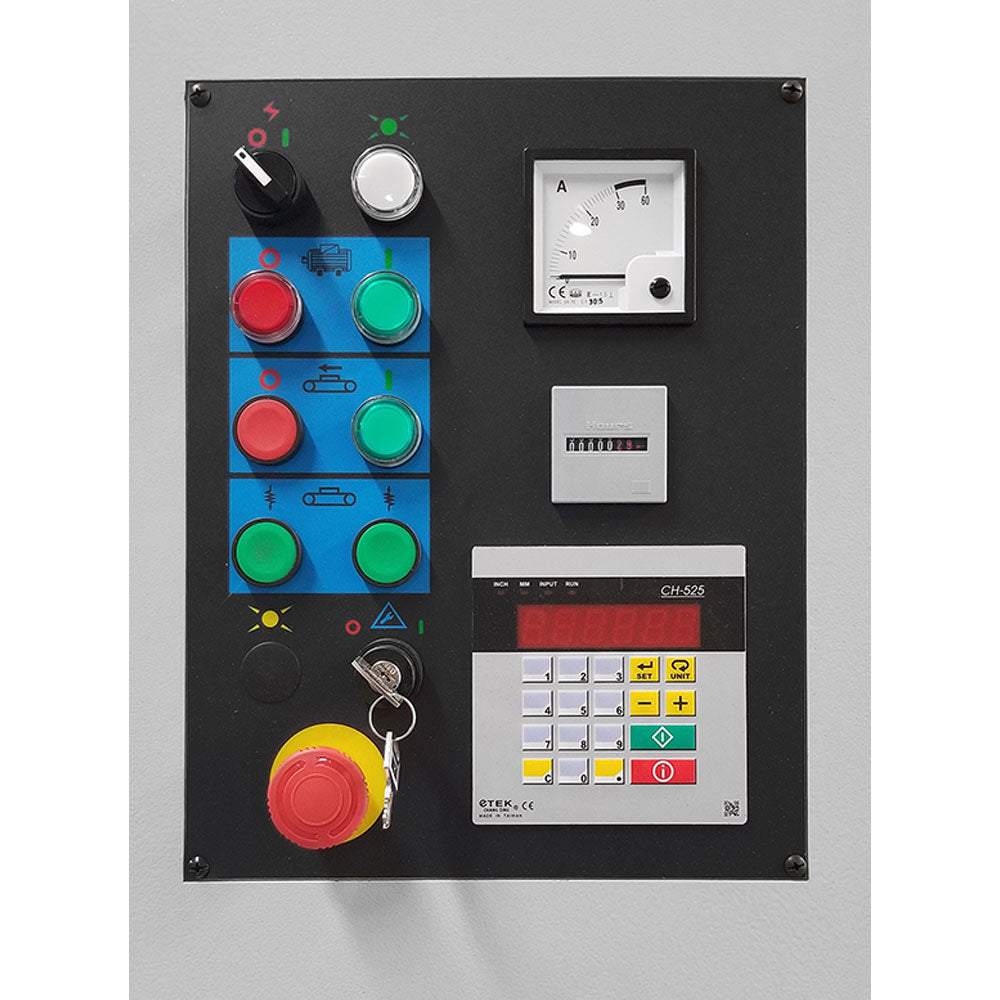

- Accurate digital thickness control with both Inch & Metric settings allows the operator to key in the desired thickness and the table will automatically move into position.
- Small footprint

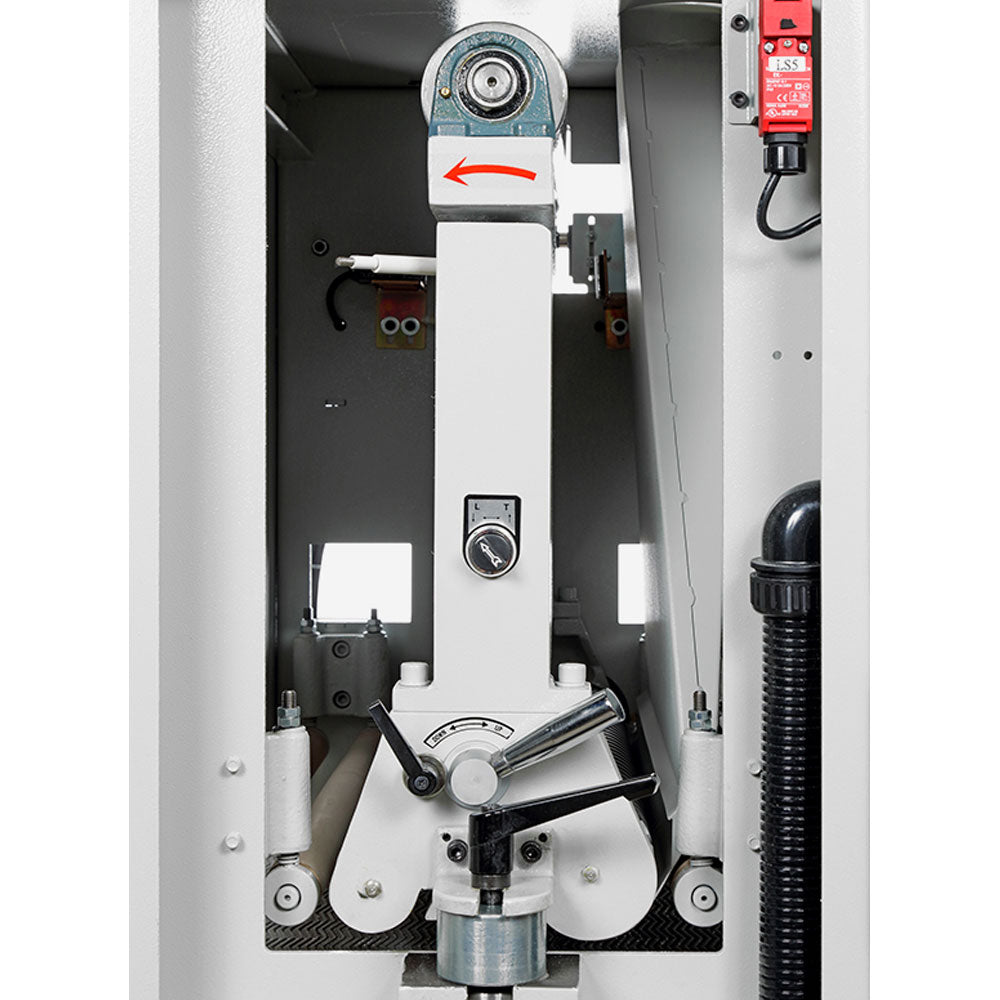

- Combination sanding unit with 3-3/8” rubber contact drum and 2” wide adjustable sanding platen for a wide range of sanding applications.
More Features
- Electronic belt tracking for optimum belt life and sanding results
- Ammeter for load monitoring to ensure the proper amount of material is being removed according to the selected grit.
- Disc brake on main motor allows for faster belt changes

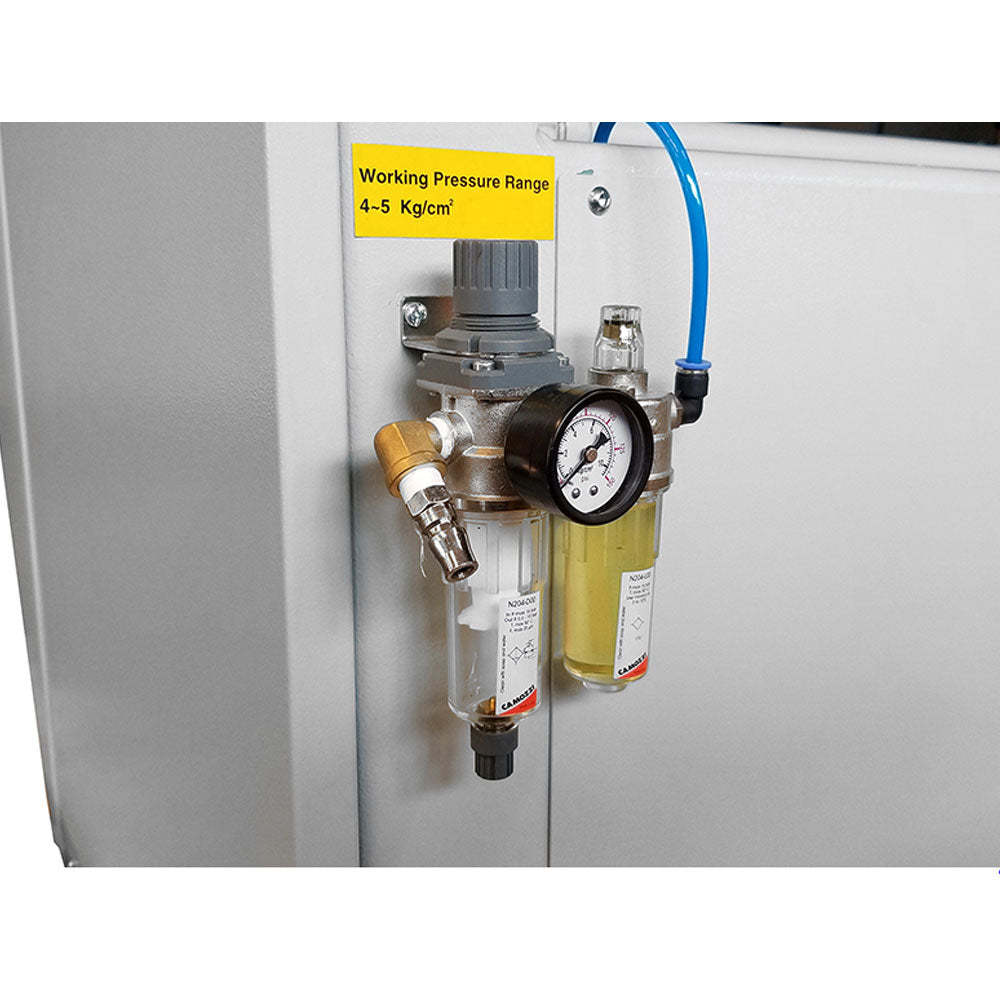

- Pneumatic belt tensioning with quick-release outboard support to facilitate fast belt changes.

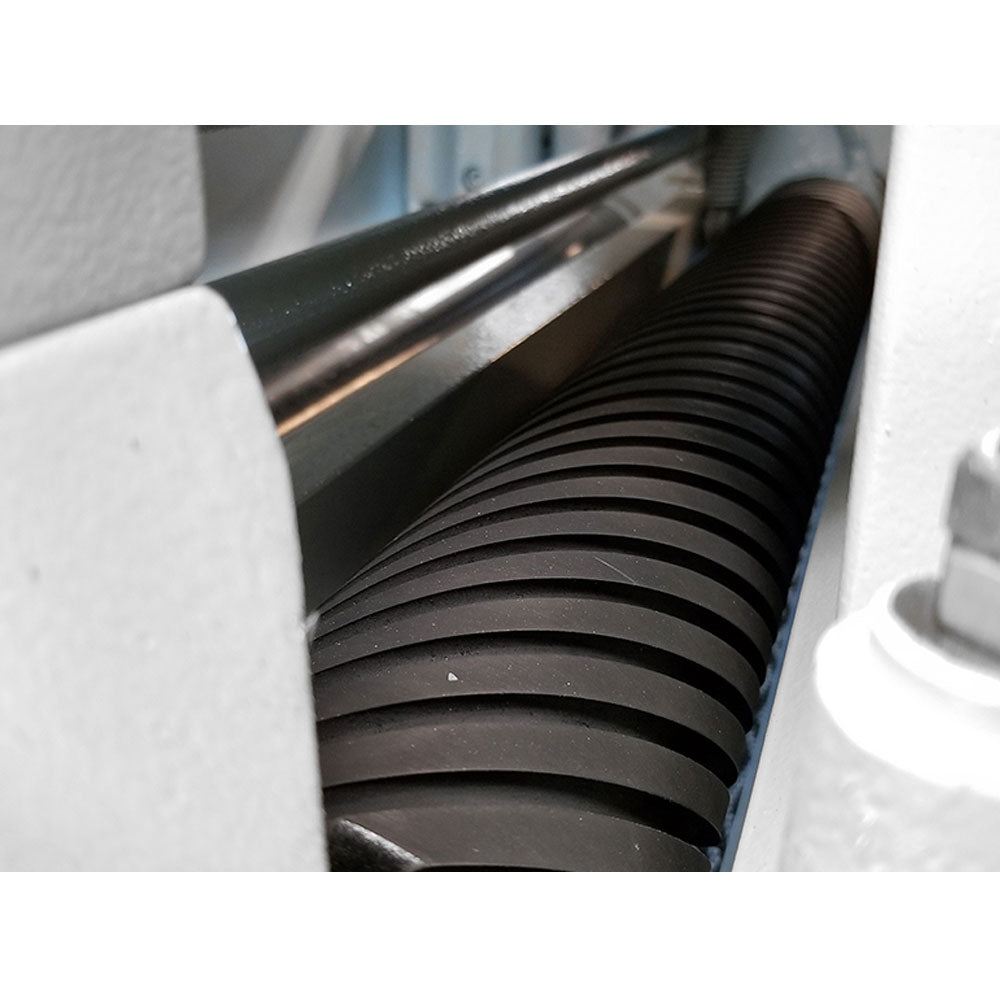

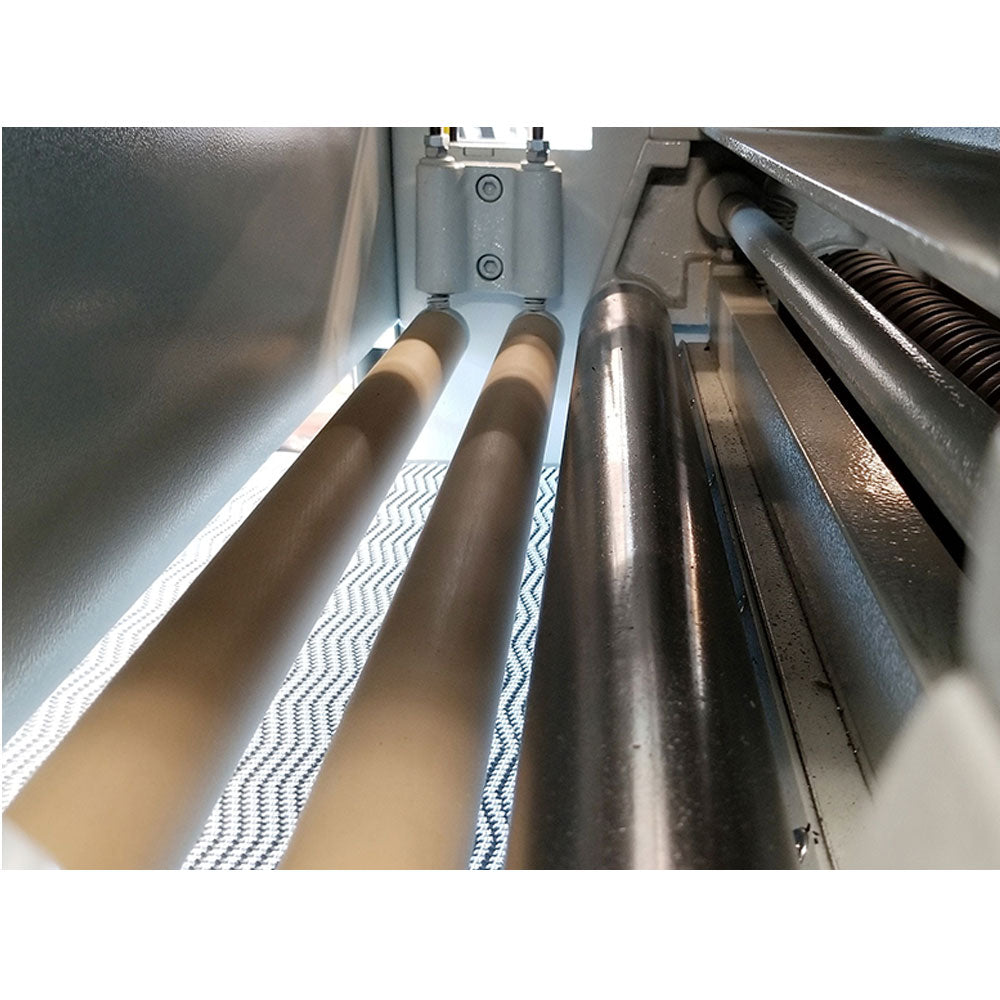

- Double infeed and outfeed pressure rolls for superior part hold down

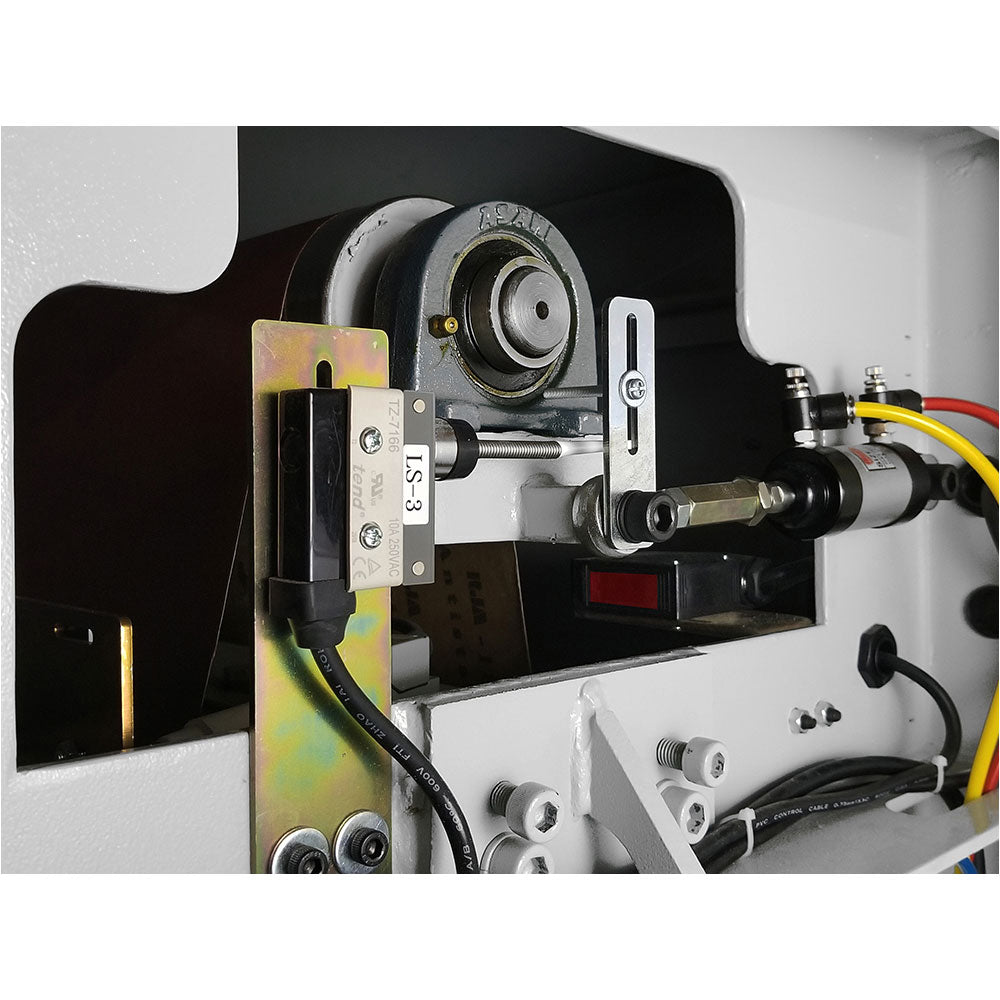

- Material over-height limit switch
- Hour meter records the actual running time of the machine which can be used to provide timely maintenance for the machine
- Interlocks located on all access doors.
Specs
Abrasive belt size: 25” x 60” (635 X 1524 mm)
Main motor: 10 HP

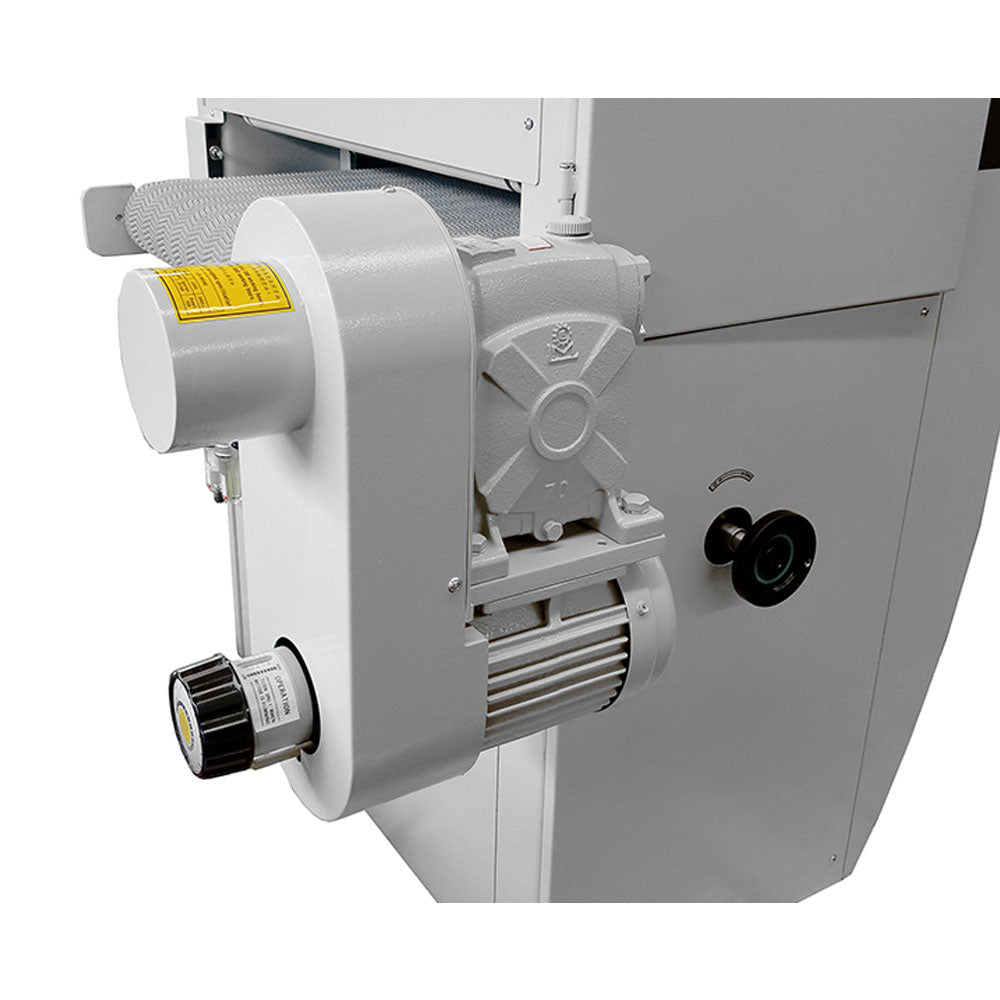

Feed motor: 1 HP
Table rise/fall motor: ½ HP
Maximum width stock: 24” (609 mm)
Minimum part length: 13” (330 mm)
Maximum thickness opening: 4” (100 mm)
Feed speed- variable: 13 to 52 FPM (4 to 16 m/min)
Passline height: 33” – 38” (838 – 965 mm)
Infeed table: 11-1/2” (292 mm)
Dust outlet: 1 @ 4” (101 mm)
Compressed air usage: 2 CFM @ 90 PSI
Net weight: 1452 lbs (660 kgs)
Machine dimensions: 53” x 50” x 63” (1346 x 1270 x 1600 mm)
Shipping weight: 1584 lbs (720 lbs)
