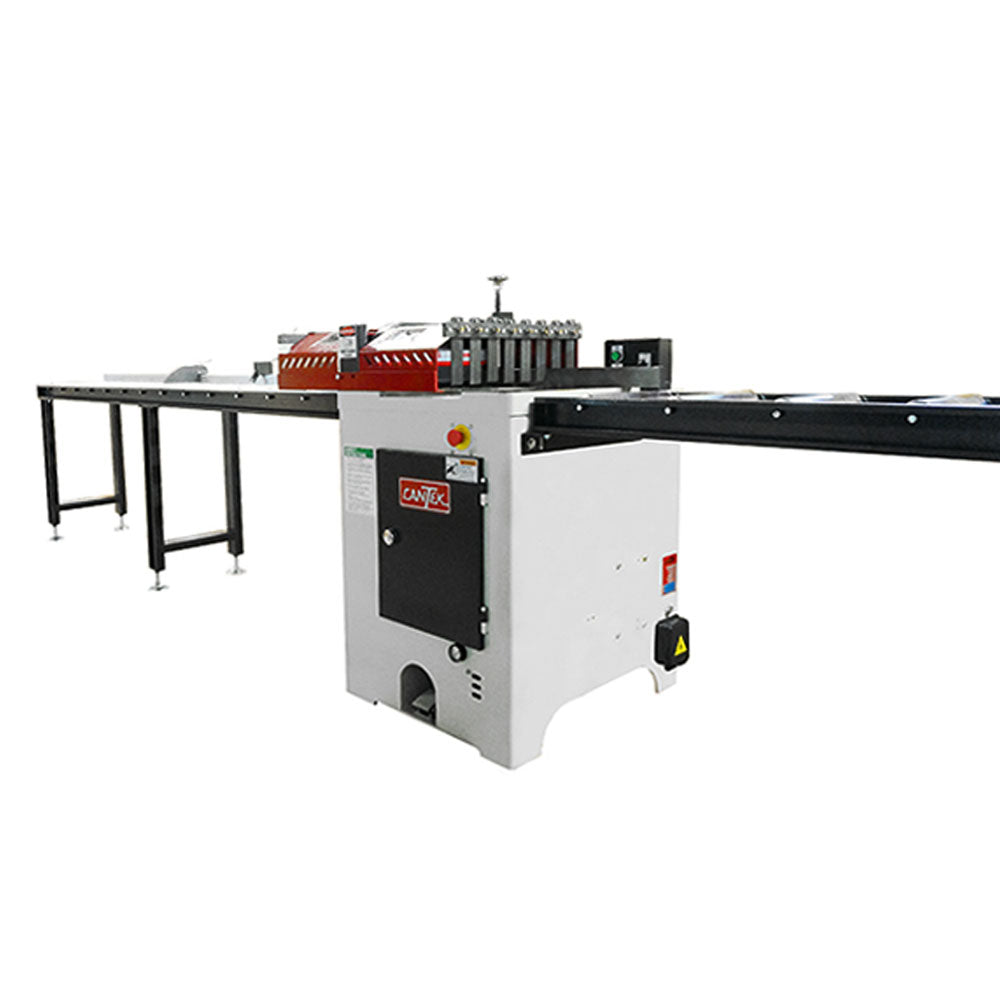

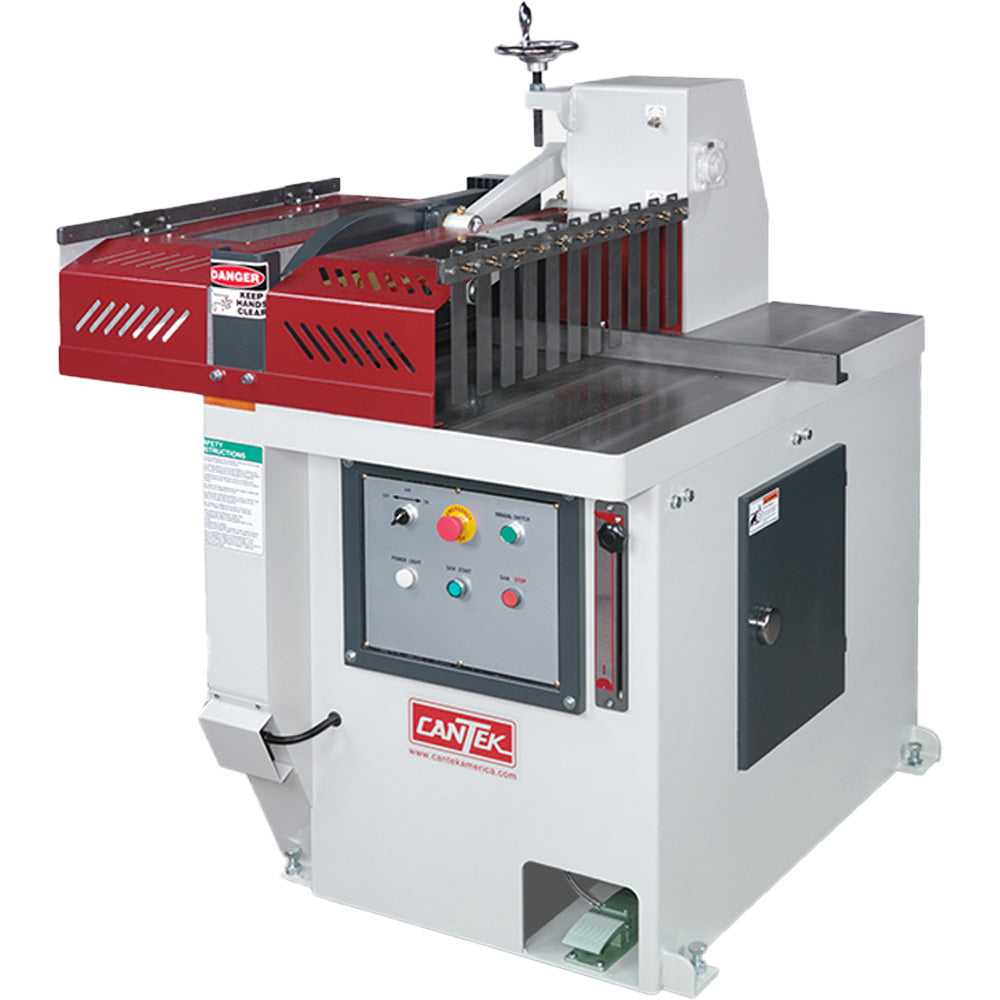

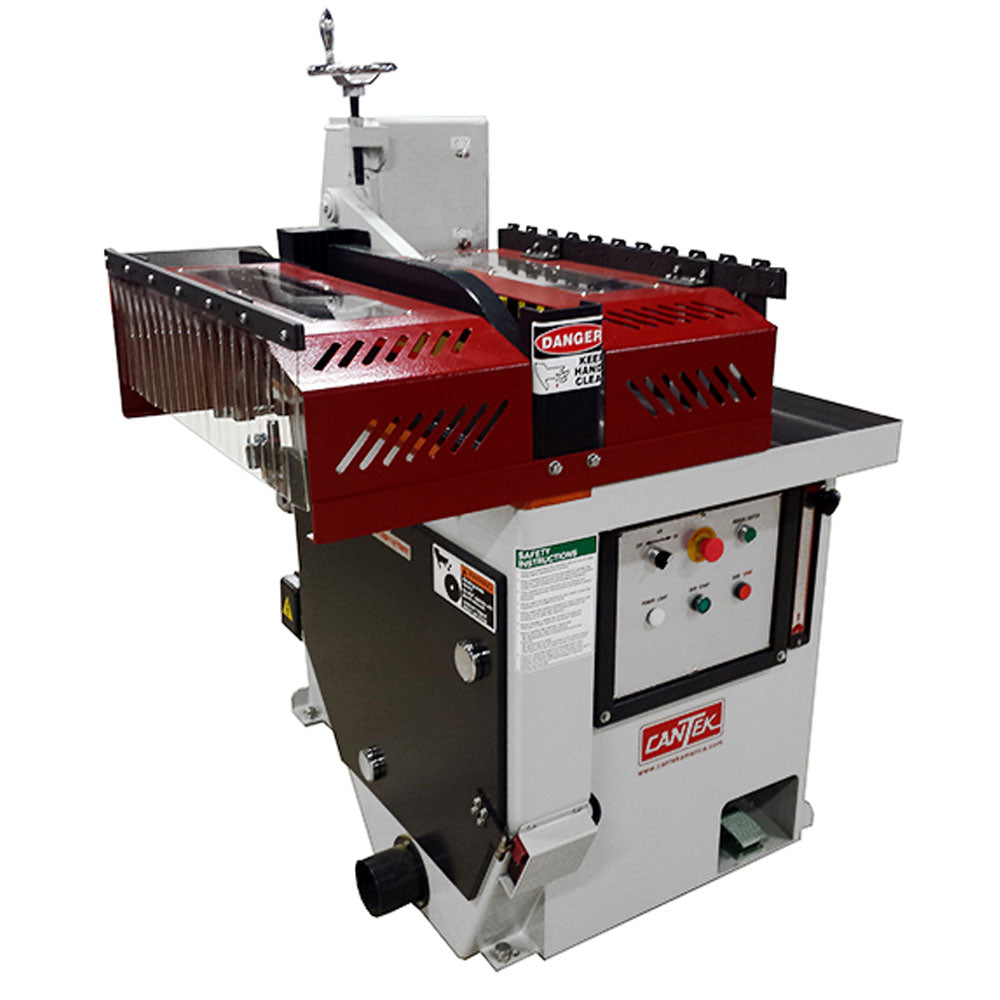

Cantek PCS24 24" Pneumatic Chop Saw w/ Foot Pedal Control (LH or RH)
Call for your best price!
Have questions? Give us a call at 260-637-0054.
The Cantek PCS24 24” pneumatic chop saw is the ideal solution for increasing production on crosscut operations while maintaining optimum safety. Its powerful 15HP motor and adjustable cutting stroke ensure it can effortlessly cut though a wide range of materials and dimensions. A number of features are included to ensure safe operation such as the infeed/outfeed safety guard, microswitches on all access doors, and security bolt on the saw access door. Available in either left hand or right hand operation depending on your ideal production flow.
Our Easy Purchase Guarantee:
No hassle pricing— always sold at the manufacturers lowest price!
No quote needed.
No tax outside of Indiana.
*If you need a quote, we would be happy to provide one. Call 260-637-0054 or email firstname.lastname@example.org [TABS]
Large cutting capacity from 2”x21” up to 8”x 8”
Adjustable cutting stroke to ensure optimum cutting speed and cut quality
Reliable performance day in and day out
Added safety features
Available in Right Hand & Left Hand configuration
Cut off capacity (thickness x width): 2″ x 21″, 4″ x 19″, 6″ x 15″, 8″ x 8″
Powerful 15HP main motor

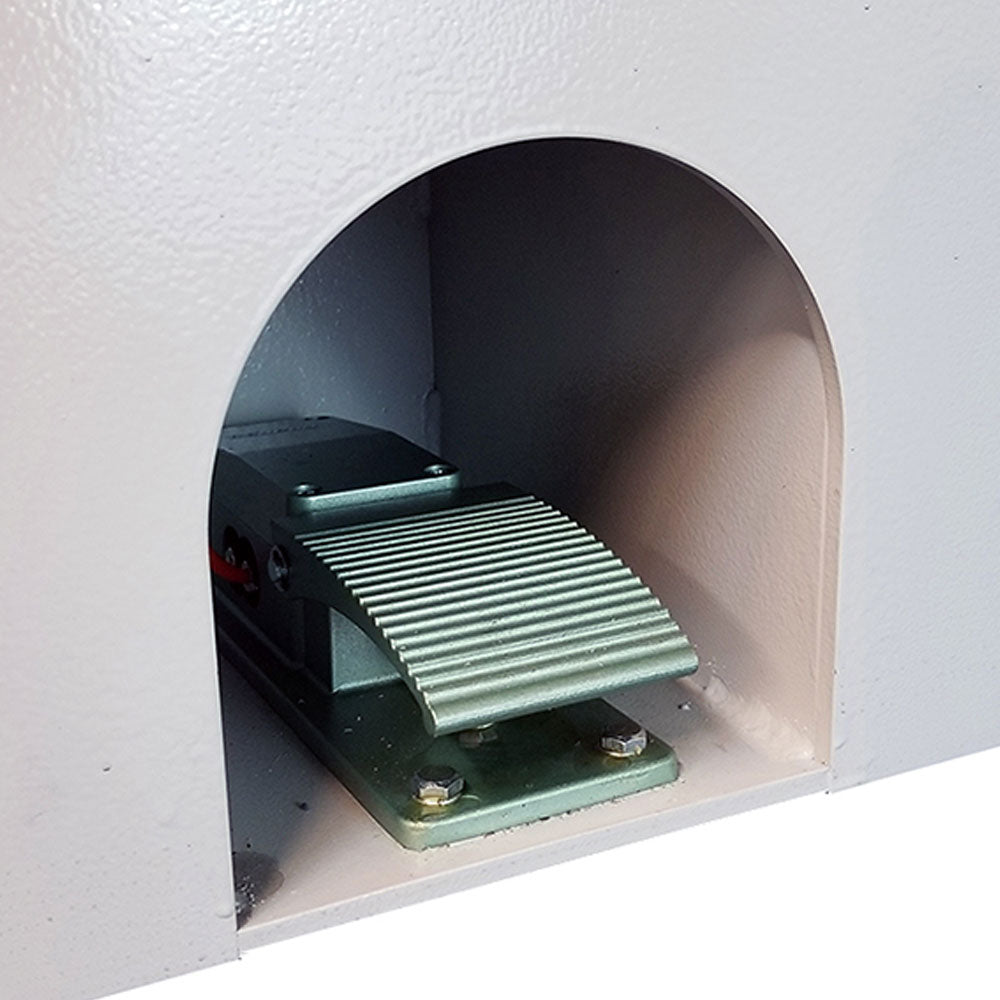

Pneumatic foot pedal operation with adjustable cutting speed from the front of the machine (Optional dual push bottom control)
Fast cutting cycle with up to 40 strokes per minute
Cast iron table surface is precision ground assuring high cutting accuracy.
Material clamp is easily adjusted for workpiece thickness variation.
CSA/UL magnetic switch
Cutting capacity (thickness x width): 2″x21″, 4″x19″, 6″x15″, 8″x8″ Cycle speed: 40 strokes/min Cycle operation: Air / mechanical Saw blade size: 24″ max. (20″ min.) Saw arbor diameter: 1″ Saw blade speed: 2400 RPM Dust exhaust diameter: Ø4″ x 2 Air consumption: 27.5 CFM Motor: 15 HP Table size: 45.3″ x 26″ Net weight: 1058 lbs Gross weight: 1433 lbs Machine dimensions (LxWxH): 40.2″ x 45″ x 55″ Packing dimensions (L x W x H): 53.5″ x 35.5″ x 57″

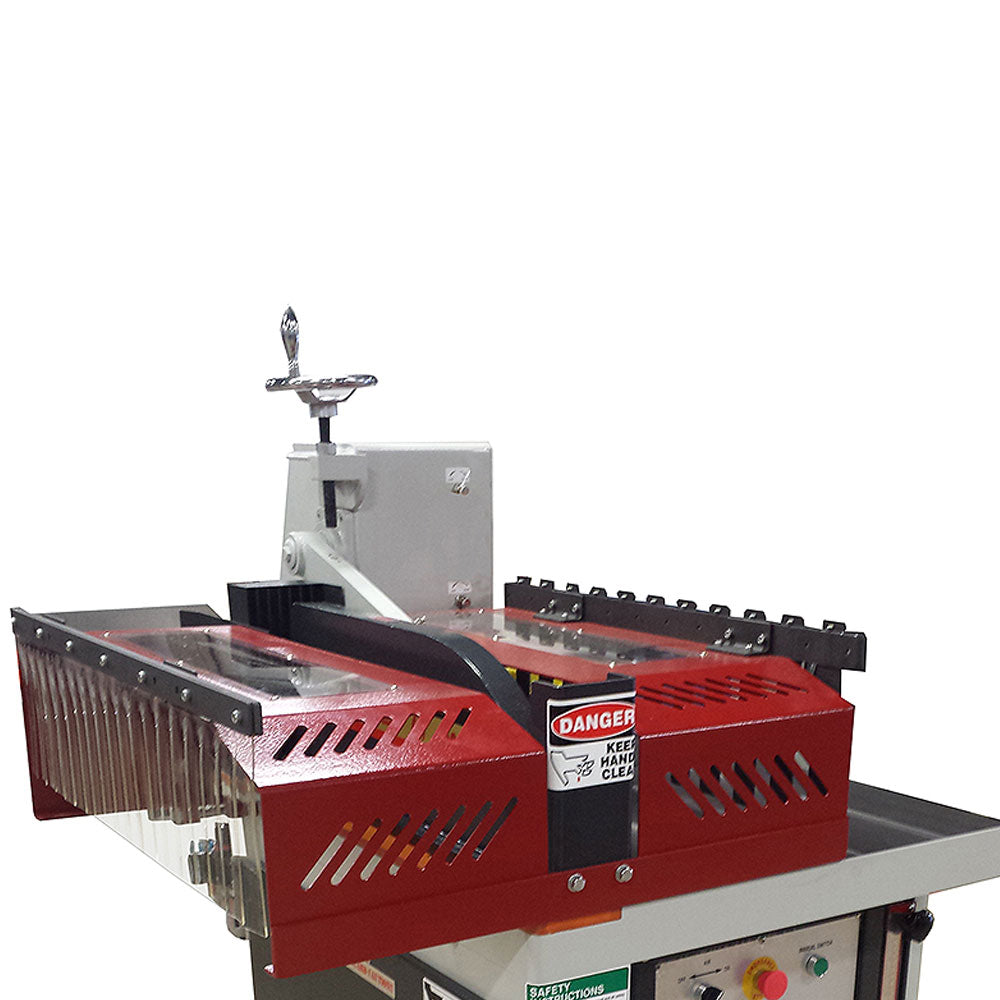

Safety guard covers infeed and outfeed to maximize operators safety during cutting operations
Infeed guard has adjustable fingers to minimize opening
Door safety limit switches with extended security bolt
Emergency stop button

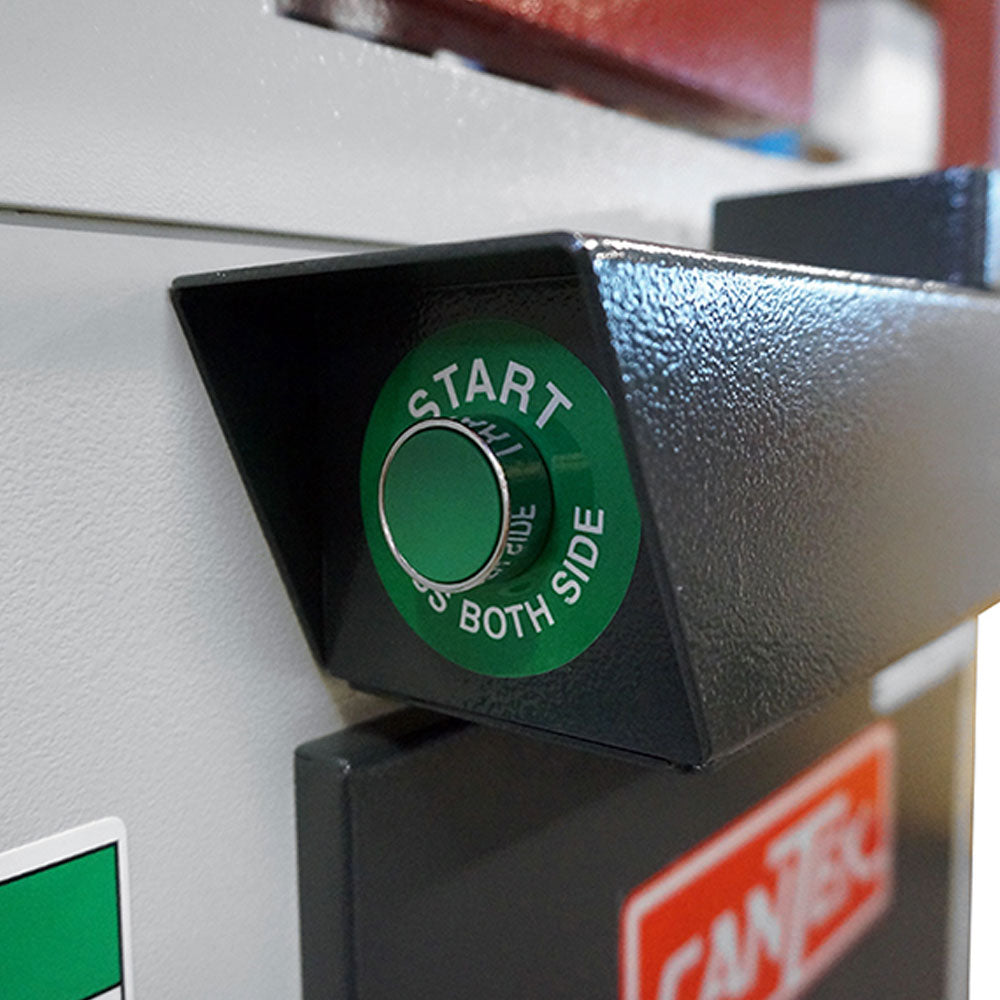

Optional dual push button control which requires both buttons to be pushed simultaneously to cycle the saw
