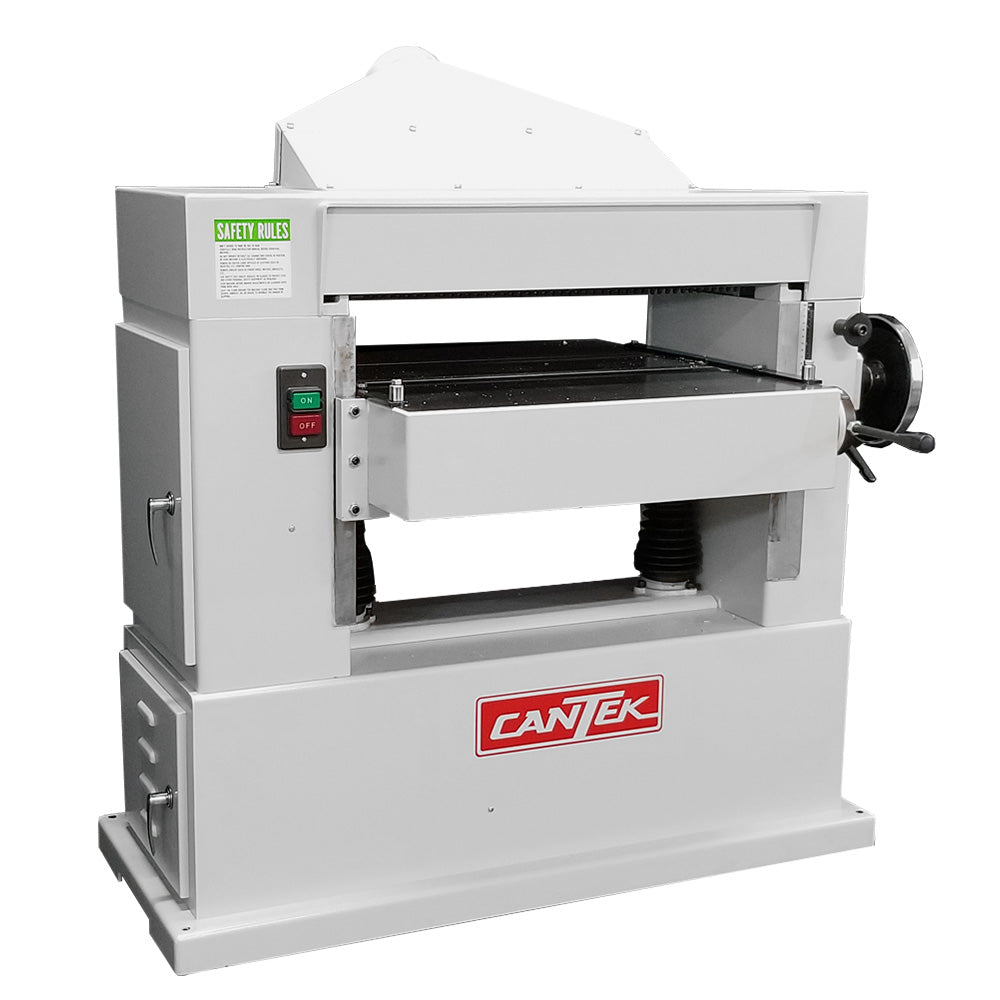

The Cantek P24HV 24” Planer has a cast iron table and head assembly with robust welded steel frame results in superior planing finish due to greatly reduced vibration. The spiral insert knife cutterhead runs extremely quiet and the solid carbide inserts provide a smooth finish and have a long life. When one edge gets dull simply rotate the knife 90 degrees for a new cutting edge. Knives can be rotated four times before needing to be replaced.
Our Easy Purchase Guarantee:
No hassle pricing— always sold at the manufacturers lowest price!
No quote needed.
No tax outside of Indiana.
*If you need a quote, we would be happy to provide one. Call 260-637-0054 or email firstname.lastname@example.org [TABS]

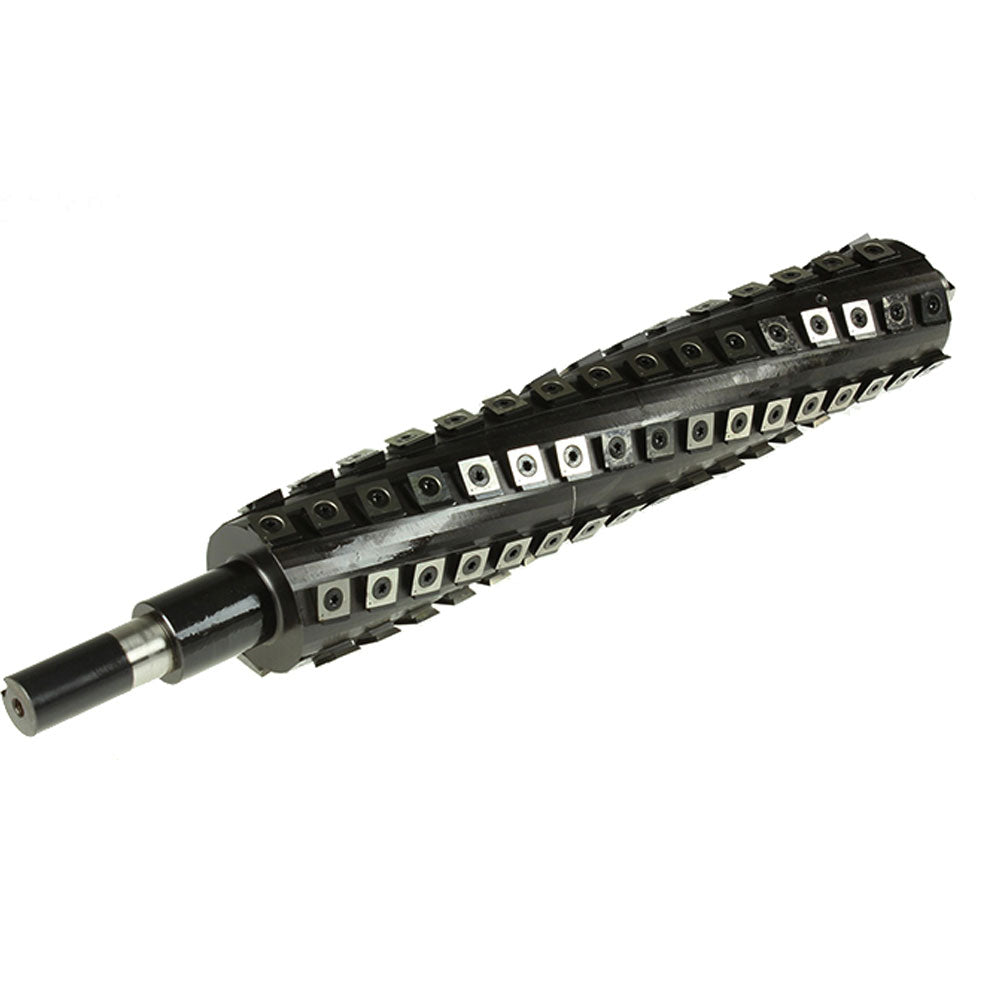

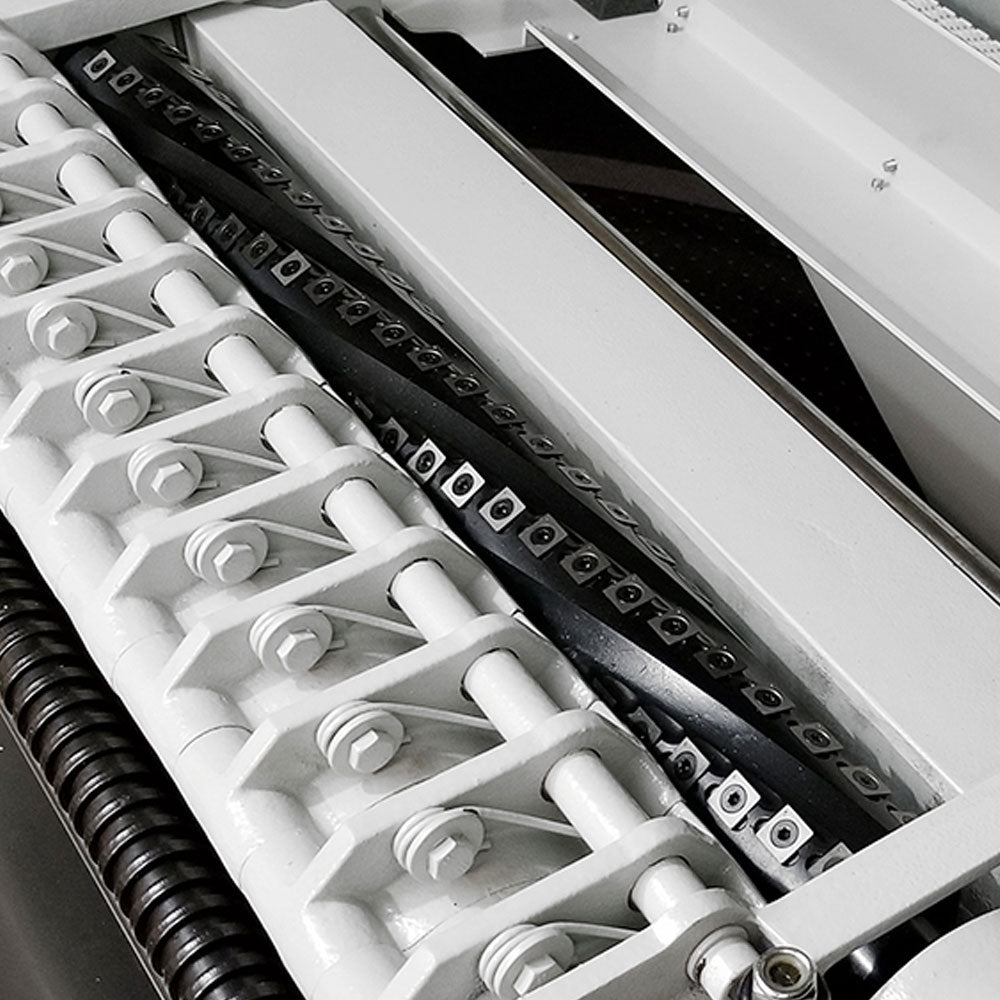

Spiral Insert Knife Cutterhead with replaceable carbide insert knives for long life and smooth cutting action (132 inserts, 14mmx14mmx2mm)
Sectional chip breakers

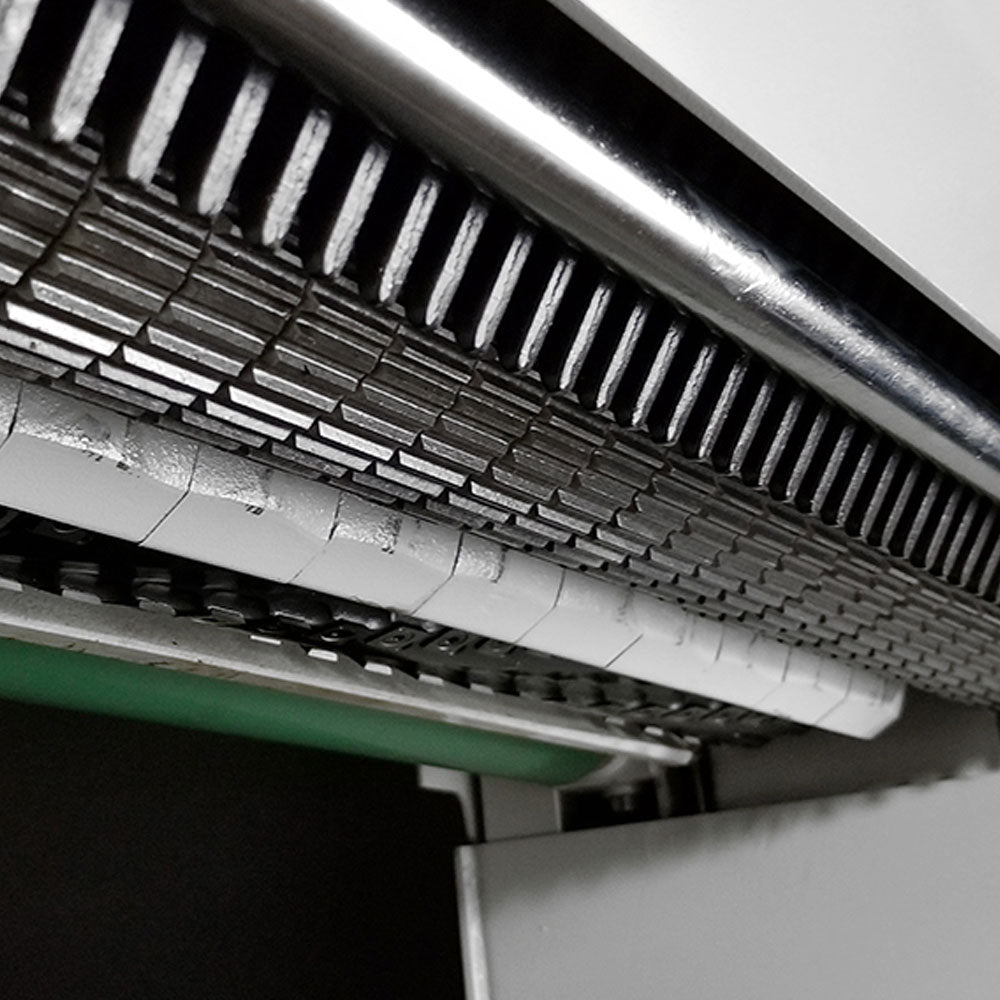

Serrated sectional infeed roll conforms to material which is not yet flat
Anti-kickback fingers for safe operation

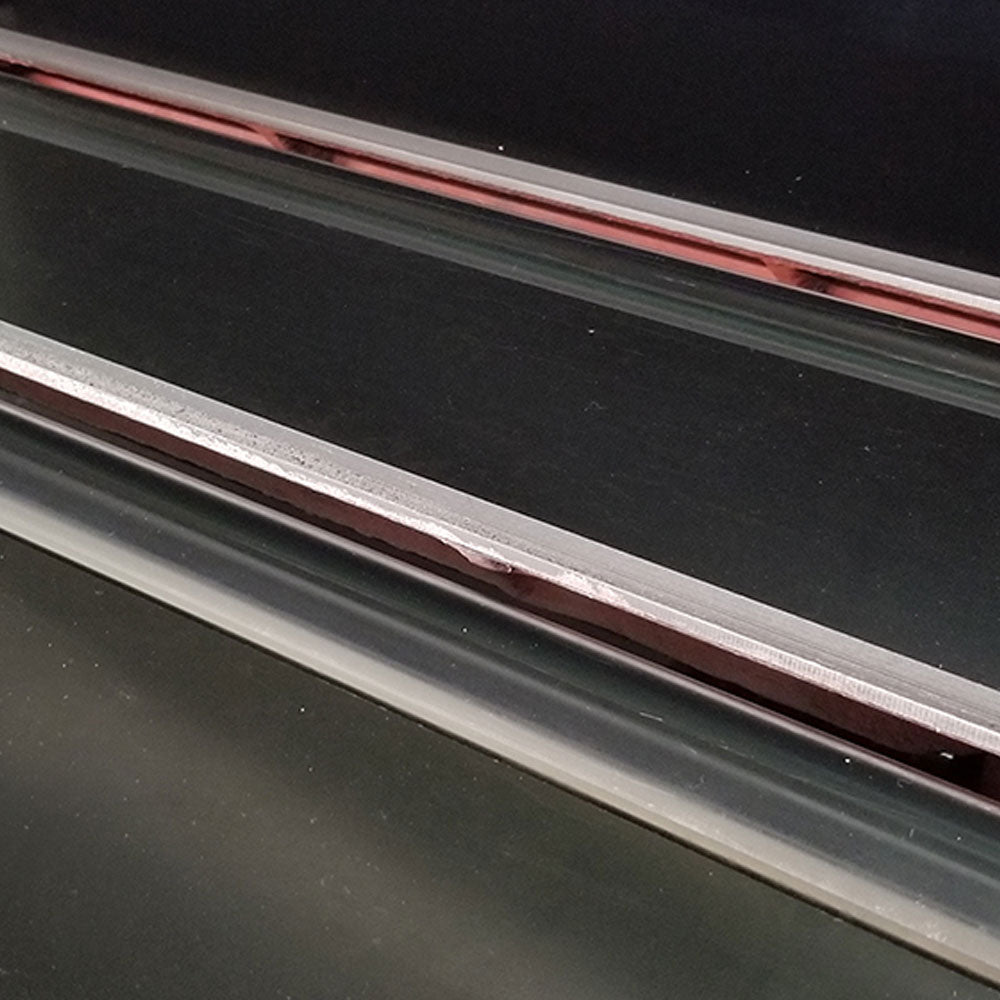

Double bed rolls which are conveniently adjusted from the front of the machine to assist with planing difficult to feed material

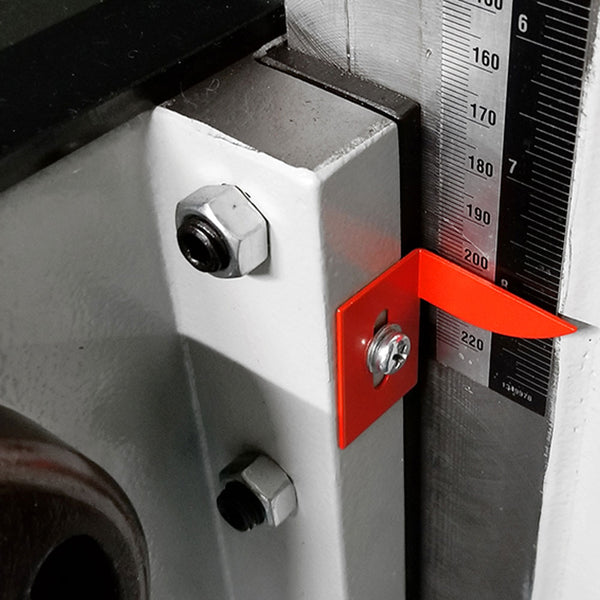

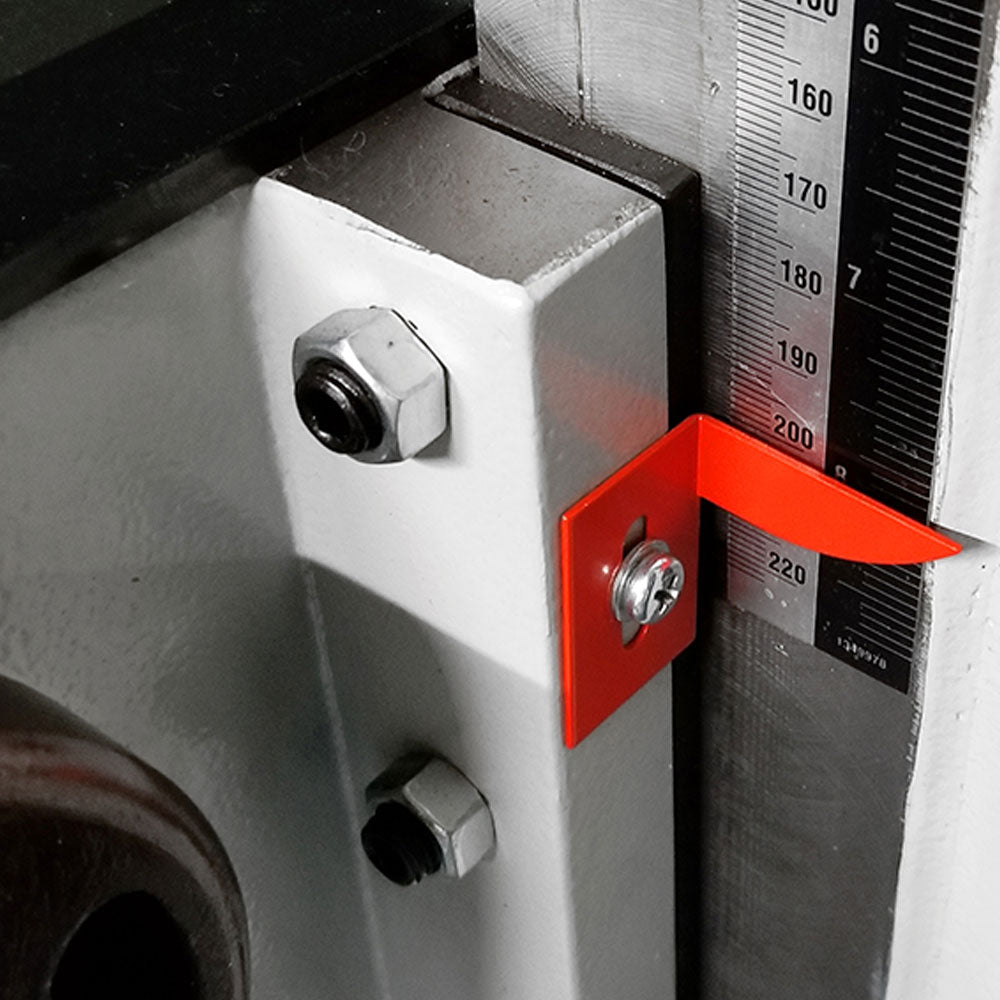

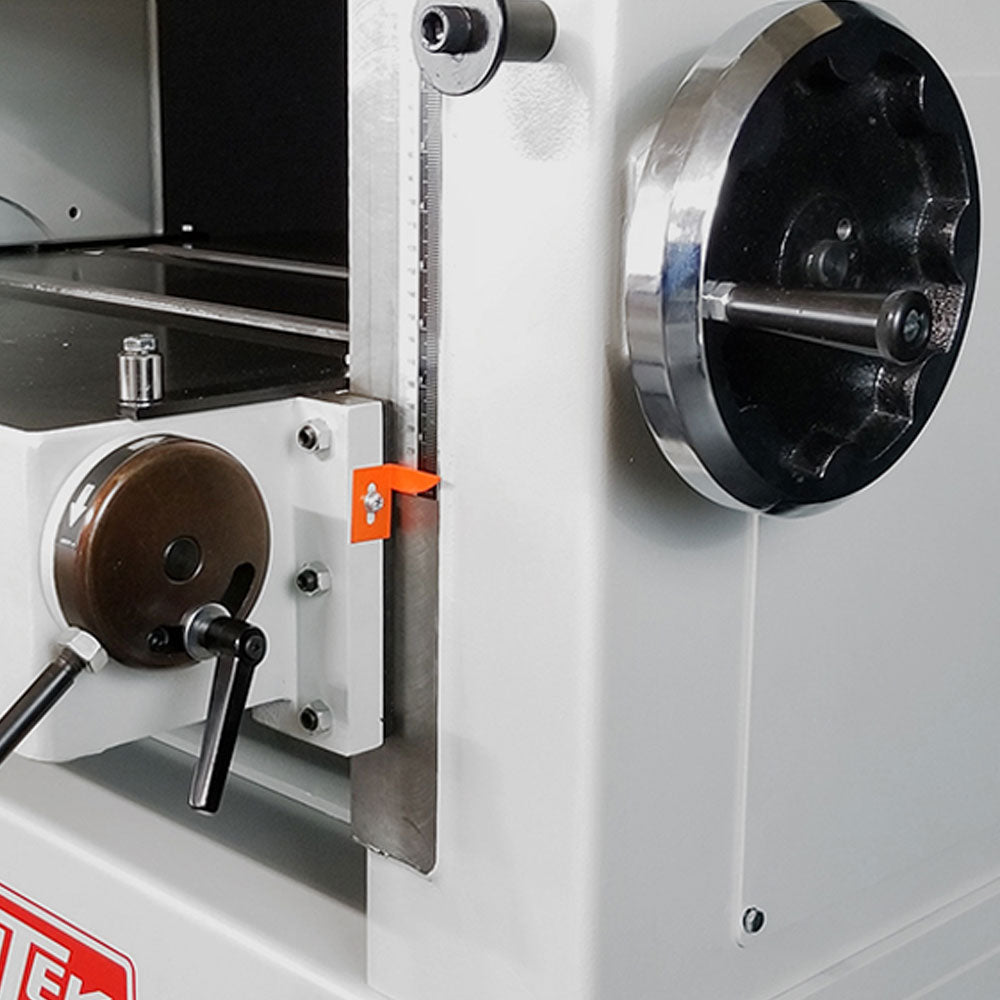

Side handwheel with linear scale for table adjustment
Polyurethane outfeed roll which will not mark your material after it has been planed
Flip open top lid with limit switch for safe & convenient changing of the insert knives

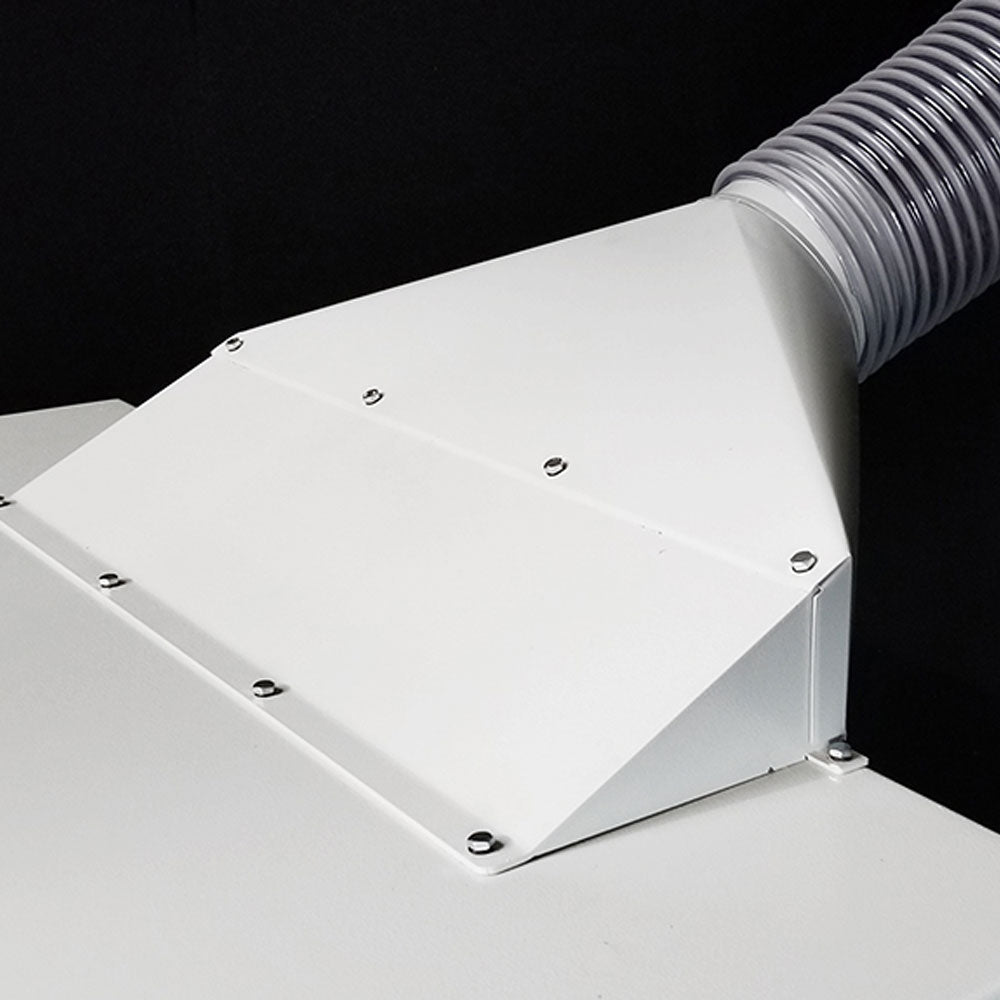

Maximum planing width: 24″ Maximum planing thickness: 8″ Feed speeds (2): 20 & 30 FPM Main motor: 7 ½ HP Cutterhead diameter: 3-3/16″ Min. length: 8″ Table rise & fall: Manual Dust port: (1) 6” Net weight: 950 lbs. Shipping weight: 1150 lbs. Machine dimensions (LxWxH): 48” x 36” x 50”
