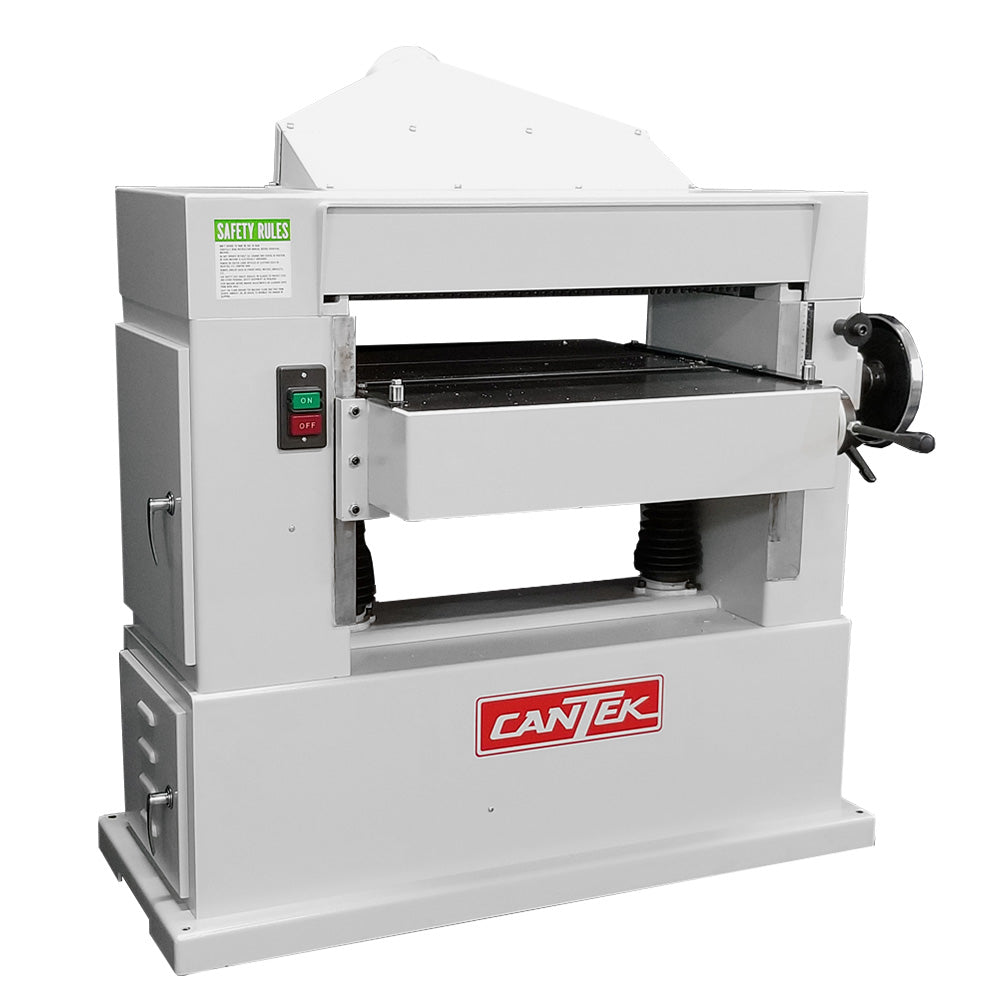

Cantek P20HV (3PH) 20" Planer, 5HP w/ Spiral Cutterhead

Price
$ 7,770

Have questions? Give us a call at 260-637-0054.

Our Easy Purchase Guarantee:

  • No hassle pricing  always sold at the manufacturers lowest price!
  • Freight included in price.*

The Cantek P20HV 20” Planer has a cast iron table and head assembly with robust welded steel frame results in superior planing finish due to greatly reduced vibration.  The spiral insert knife cutterhead runs extremely quiet and the solid carbide inserts provide a smooth finish and have a long life.  When one edge gets dull simply rotate the knife 90 degrees for a new cutting edge.  Knives can be rotated four times before needing to be replaced.

If you need a quote, we would be happy to provide one. Call 260-637-0054 or email sales@oaktreesupplies.com

Note: Cannot ship to Pennsylvania or California.

Features

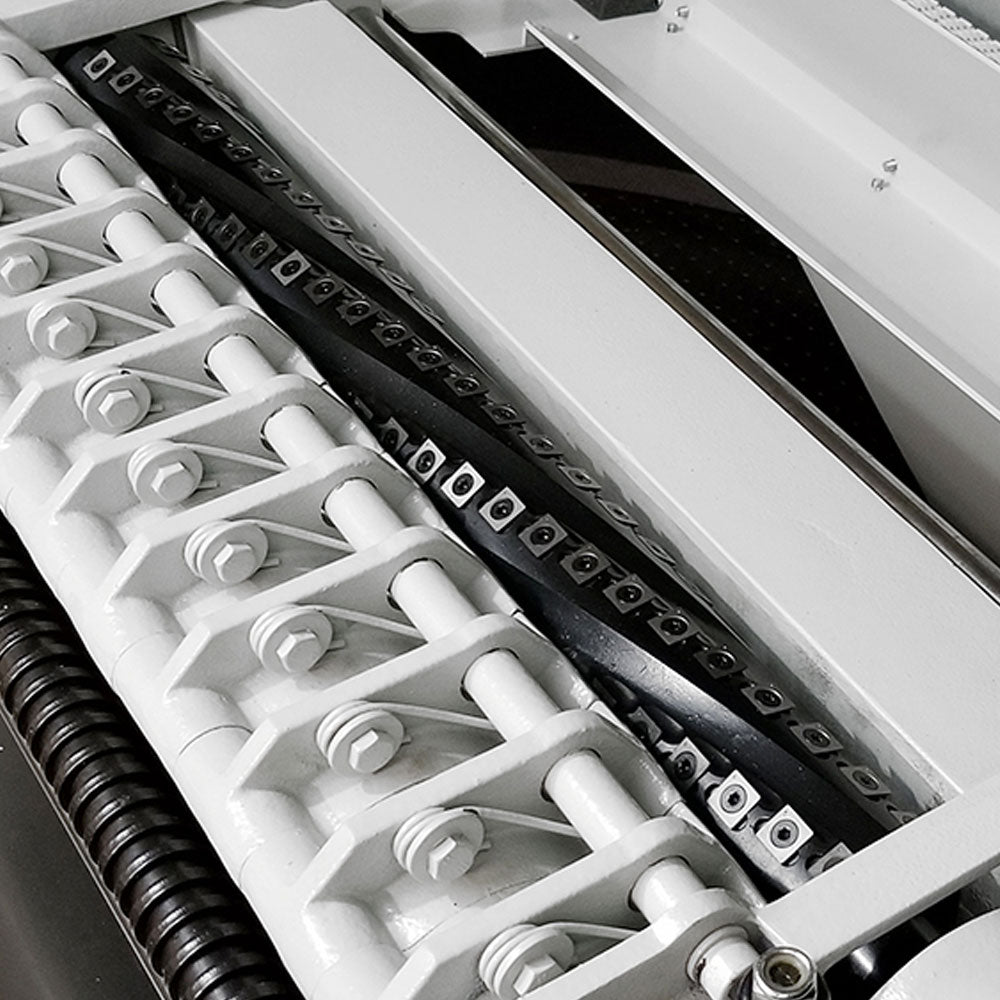

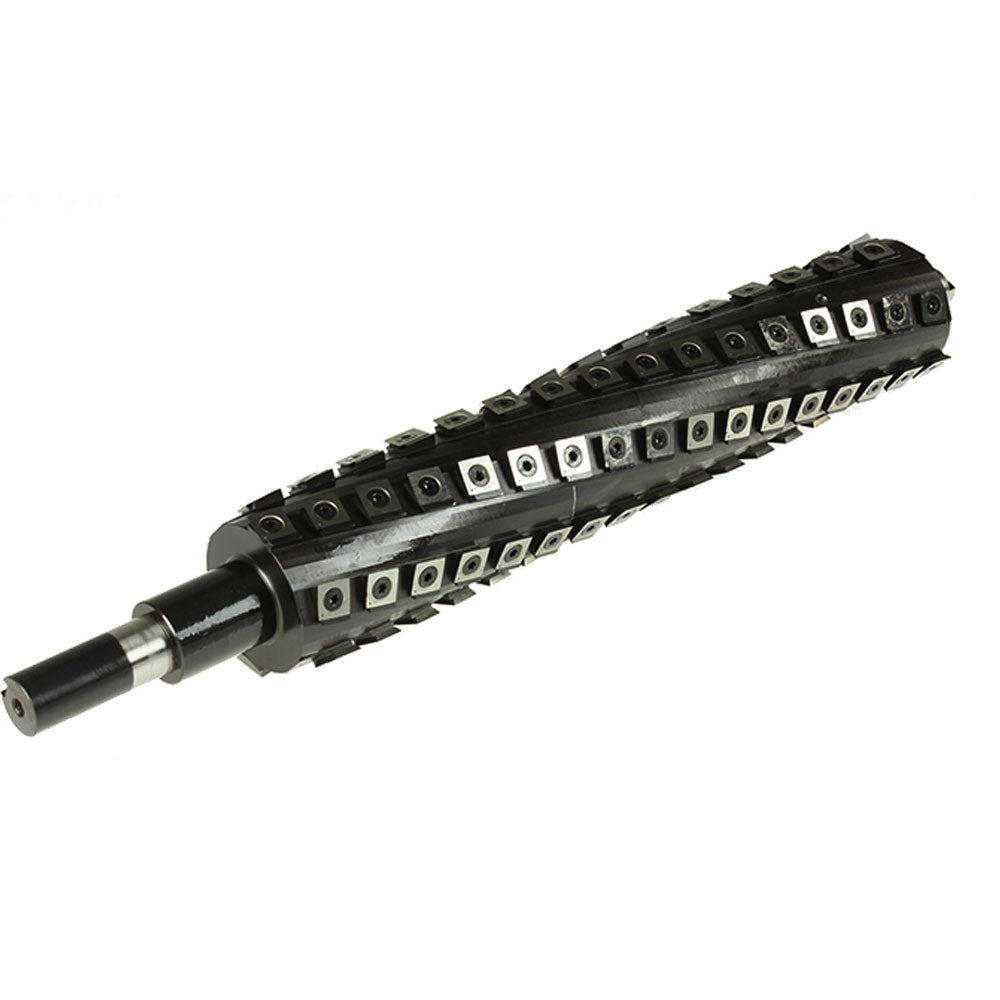

  • Spiral Insert Knife Cutterhead with replaceable carbide insert knives for long life and smooth cutting action (132 inserts, 14mmx14mmx2mm)
  • Sectional chip breakers

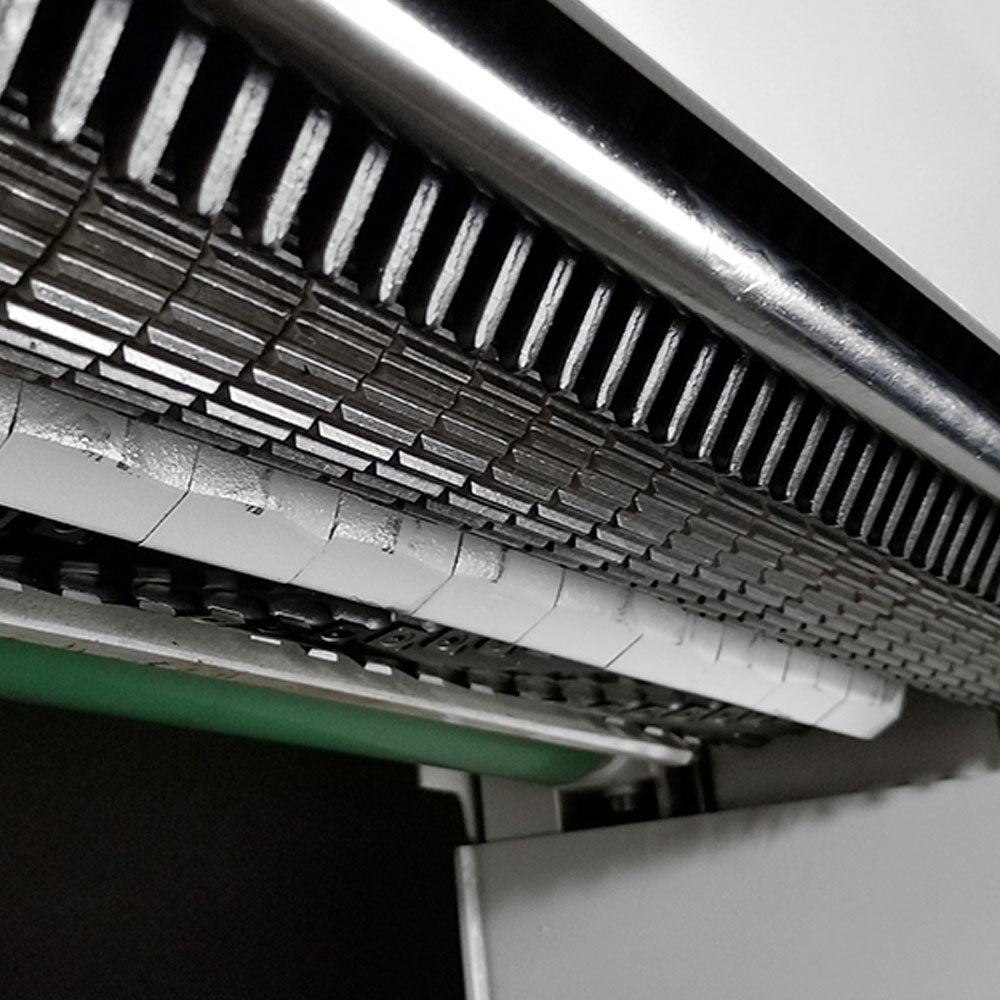

  • Serrated sectional infeed roll conforms to material which is not yet flat
  • Anti-kickback fingers for safe operation
  • Available in single phase and 3-phase electrics
  • 2-feed speeds

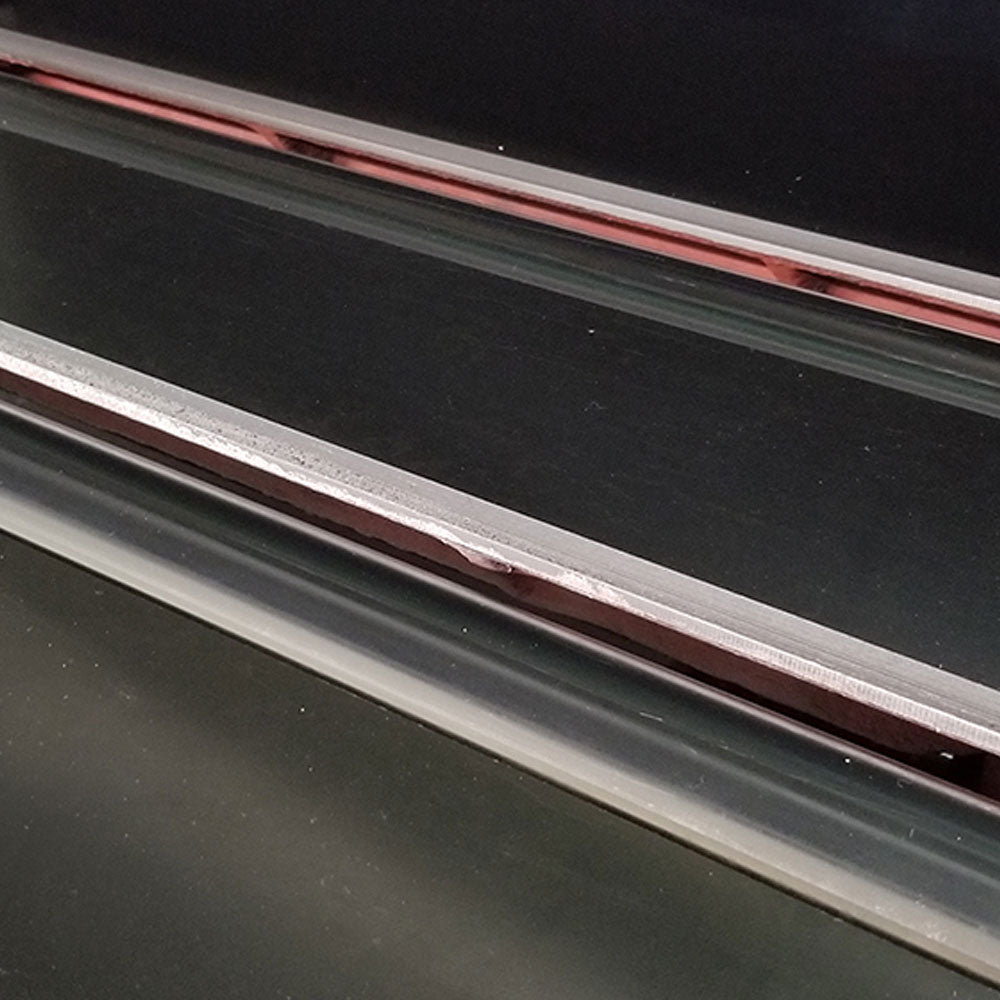

  • Double bed rolls which are conveniently adjusted from the front of the machine to assist with planing difficult to feed material

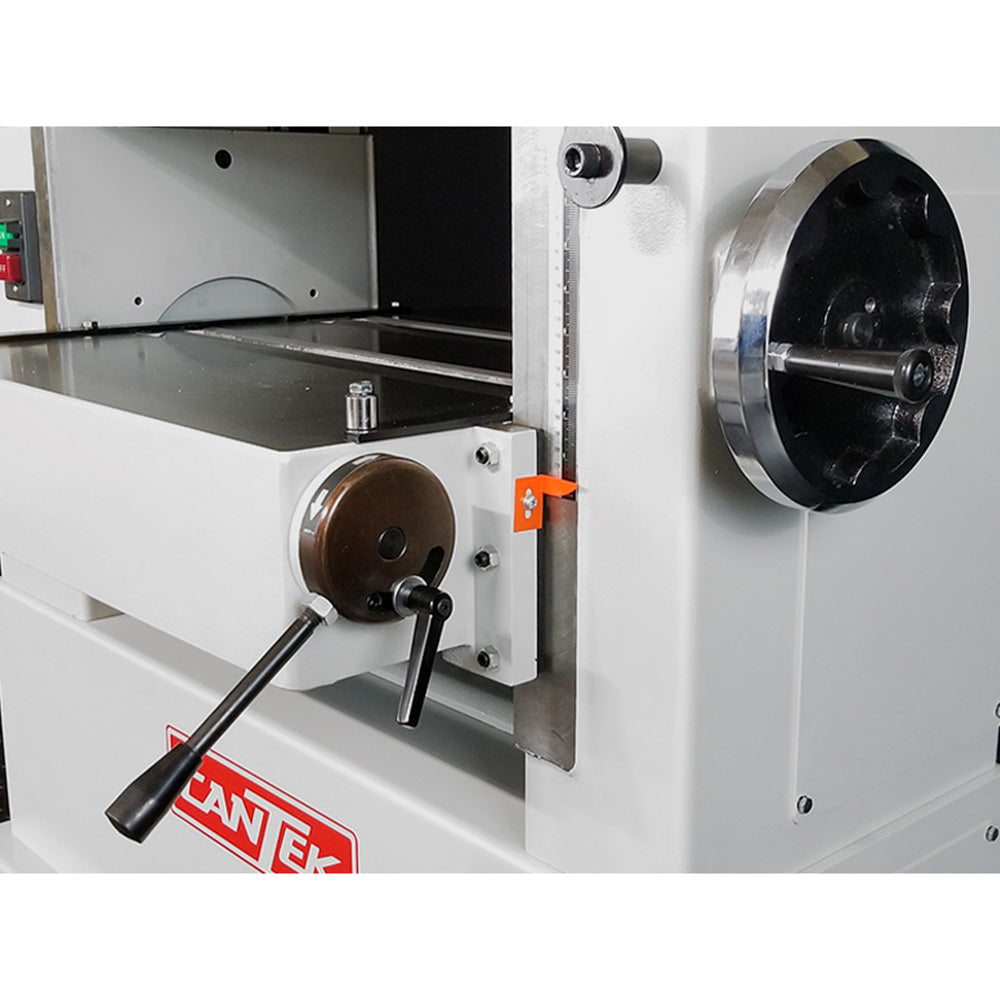

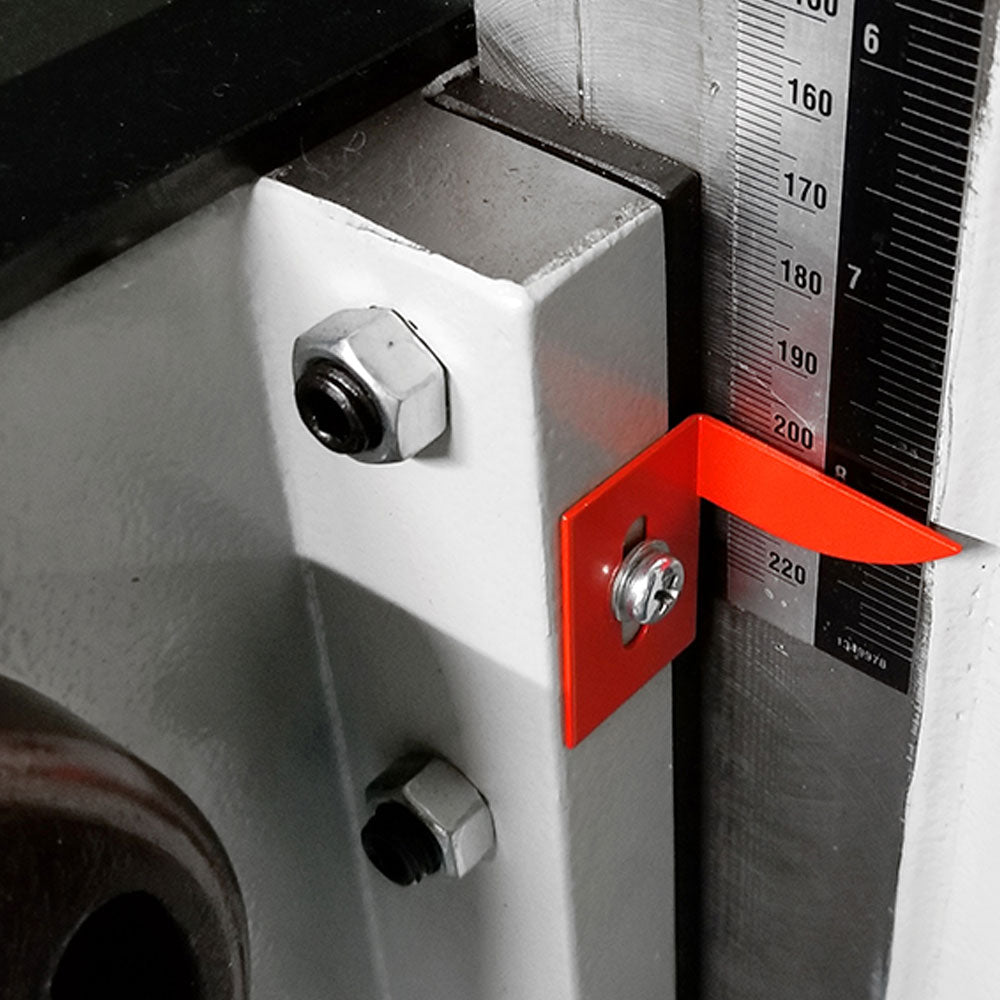

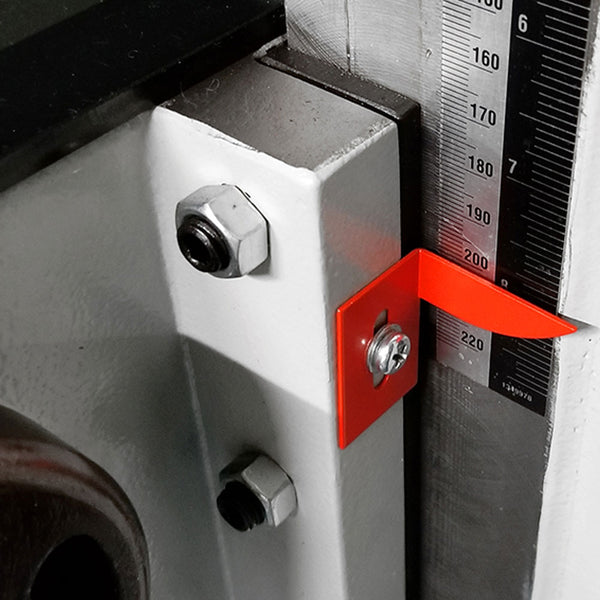

  • Side handwheel with linear scale for table adjustment
  • Polyurethane outfeed roll which will not mark your material after it has been planed
  • Flip open top lid with limit switch for safe & convenient changing of the insert knives
Specs

Maximum planing width: 20″
Maximum planing thickness: 8-5/8″
Feed speeds (2): 20 & 30 FPM
Main motor: 5 HP
Cutterhead diameter: 3-1/8″
Min. length: 8″
Table rise & fall: Manual

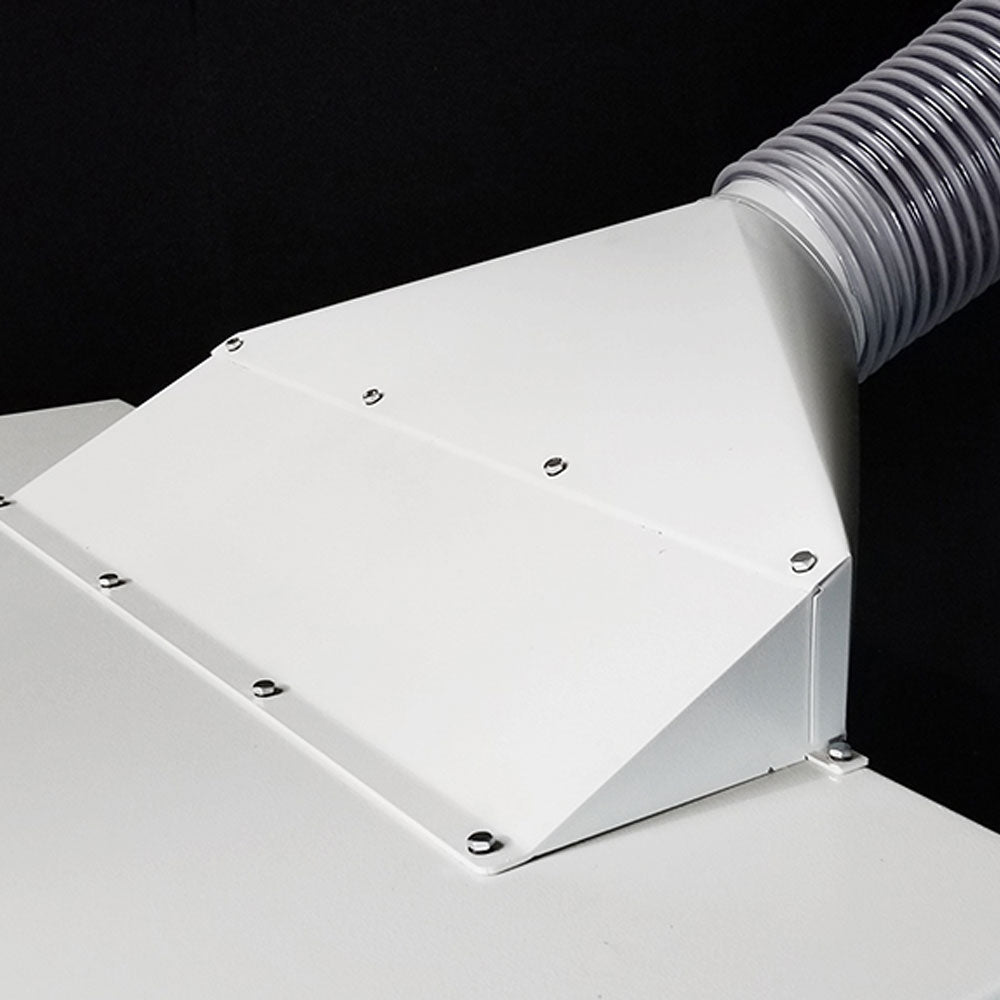

Dust port: (1) 6”
Net weight: 924 lbs.
Shipping weight: 1,144 lbs.
Machine dimensions (L x W x H): 44” x 30” x 45”

Video

*Shipping

Please note: Items being shipped to extremely remote areas or areas with limited delivery access (such as islands only accessible by ferry) may incur additional shipping or freight fees. If your order requires any additional fees other than what is already included in the price, you will be contacted before those fees are applied and before your item ships. This is rare and will not apply to most orders.

SKU: P20HV (3PH)
