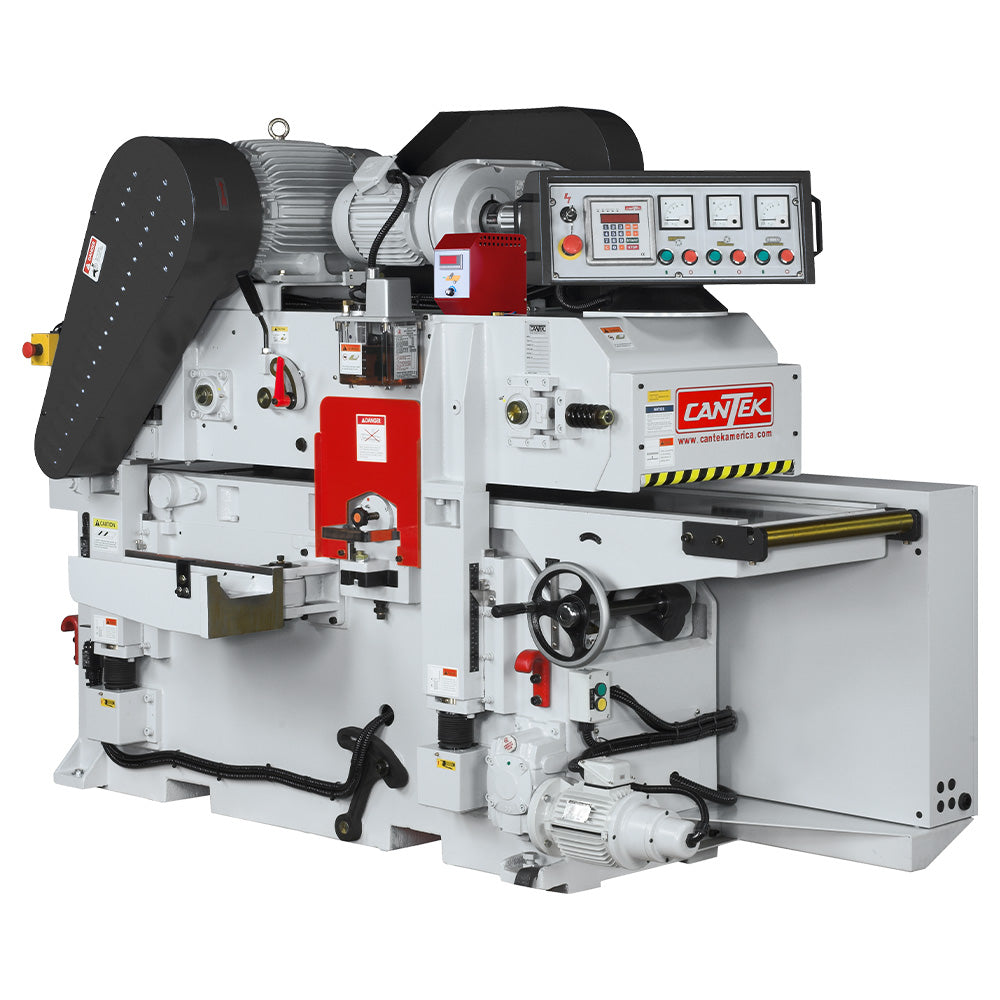

Cantek GT400BRD 16" X 6.7" Double Surfacer Planer

$ 26,880

Have questions? Give us a call at 260-637-0054.

Our Easy Purchase Guarantee:

  • No hassle pricing  always sold at the manufacturers lowest price!
  • Freight included in price.*

The Cantek GT400BRD 16″ Double Surface Planer has a robust cast-iron body for industrial planning day in and day out.  The spiral insert knife cutterheads produce a smooth planed finish with maximum stock removal.  The material is passed over the bottom head with a spring-loaded pin feed system allowing it to act like a jointer to flatten the board prior to being planed to an accurate thickness with the top head.

If you need a quote, we would be happy to provide one. Call 260-637-0054 or email

Note: Cannot ship to Pennsylvania or California.

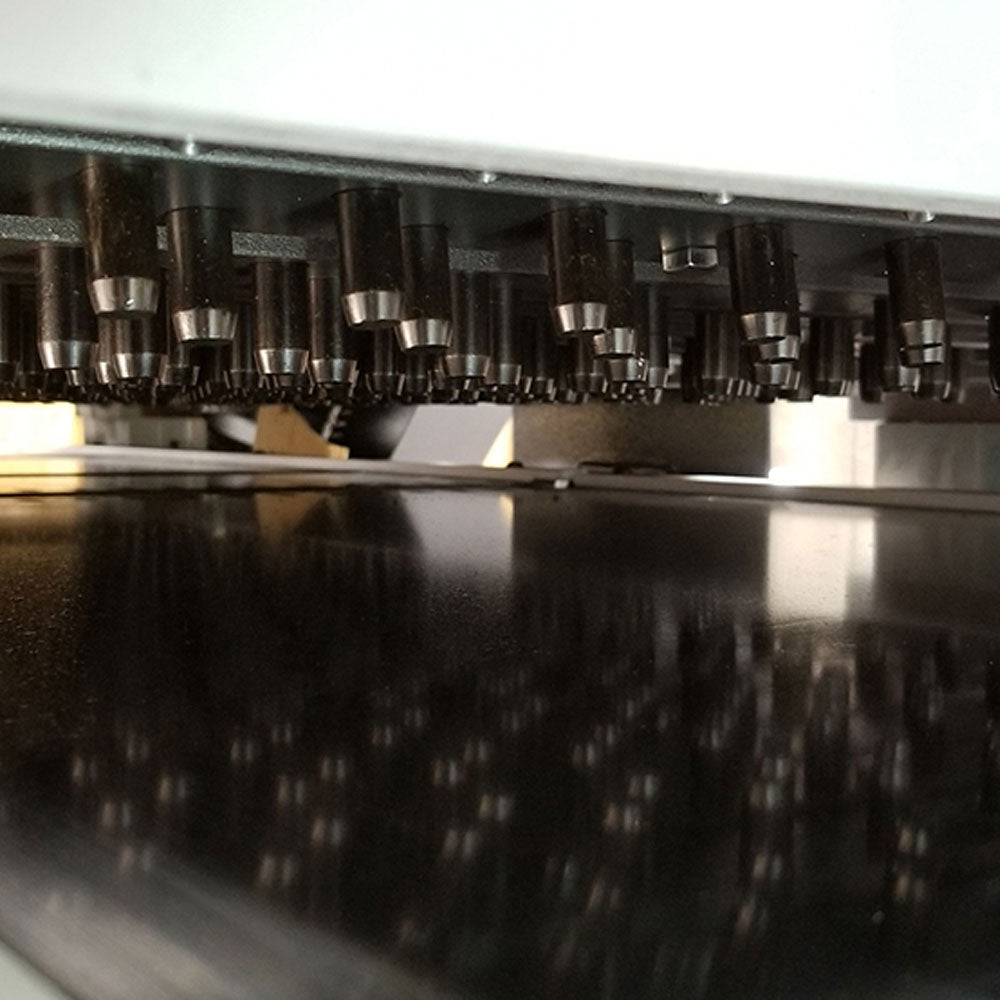

  • Spring loaded conveyor pin system ensures material is passed over the bottom cutterhead to result in a flat and uniform board prior to planning to thickness on the top head

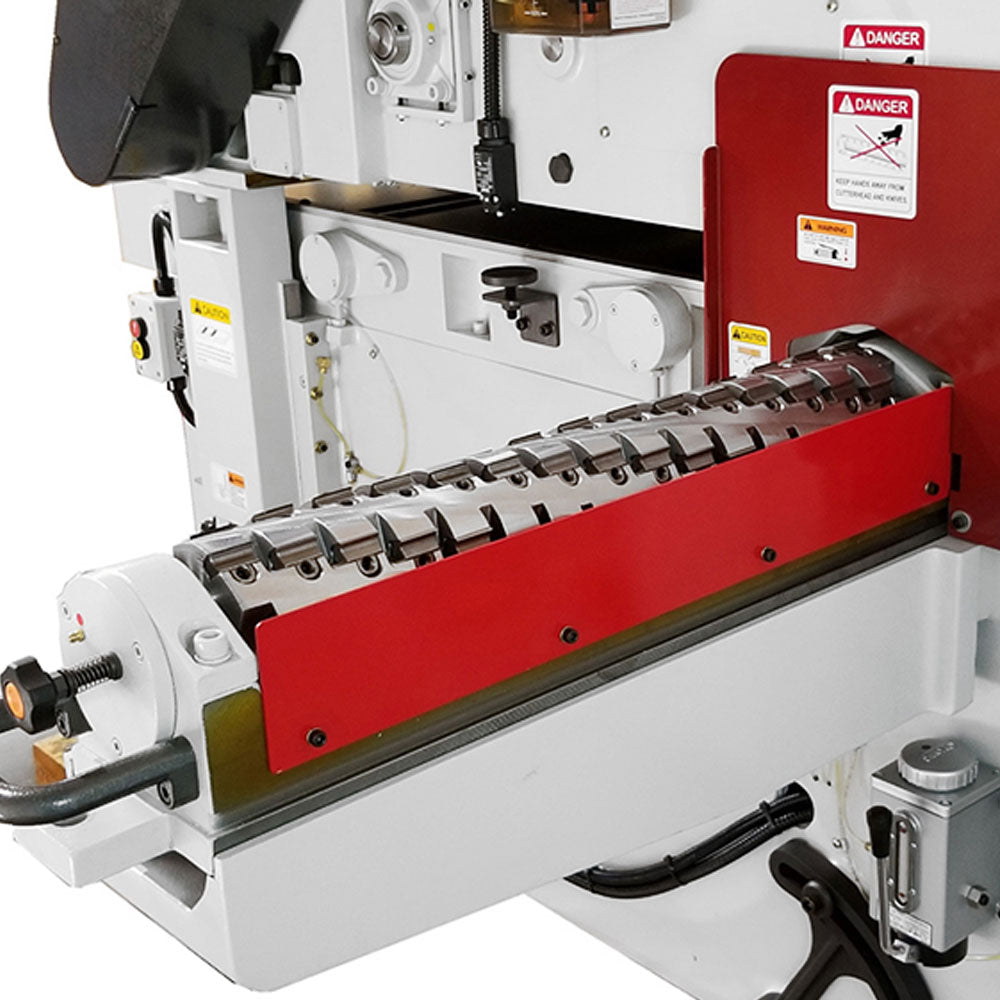

  • Spiral insert knife cutter heads with two-sided solid carbide knives produce a smooth finish with increased stock removal capacity and extremely quiet operation
  • Heavy-duty cast-iron machine body and table for vibration-free cutting
  • Digital electronic thickness adjustment in INCH and MM (Inch = 0.001” / mm = 0.01mm resolution) for precise thickness control
  • 16″ wide x 6.7″ thick planning capacity
  • Cutterheads are spiral insert type with six (6) rows of carbide inserts
  • (2) driven and (1) idle bed roll for superior feeding of even difficult material

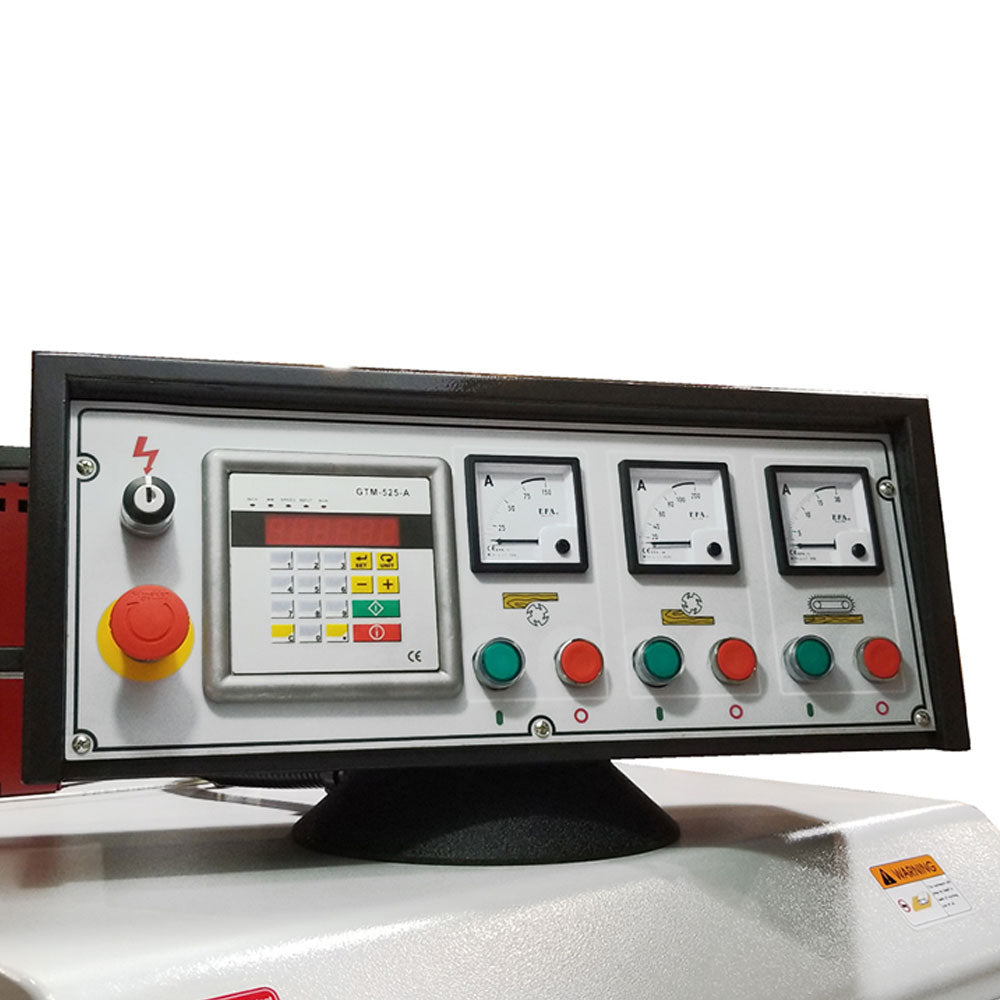

  • Swiveling control panel for more ergonomic access to machine controls

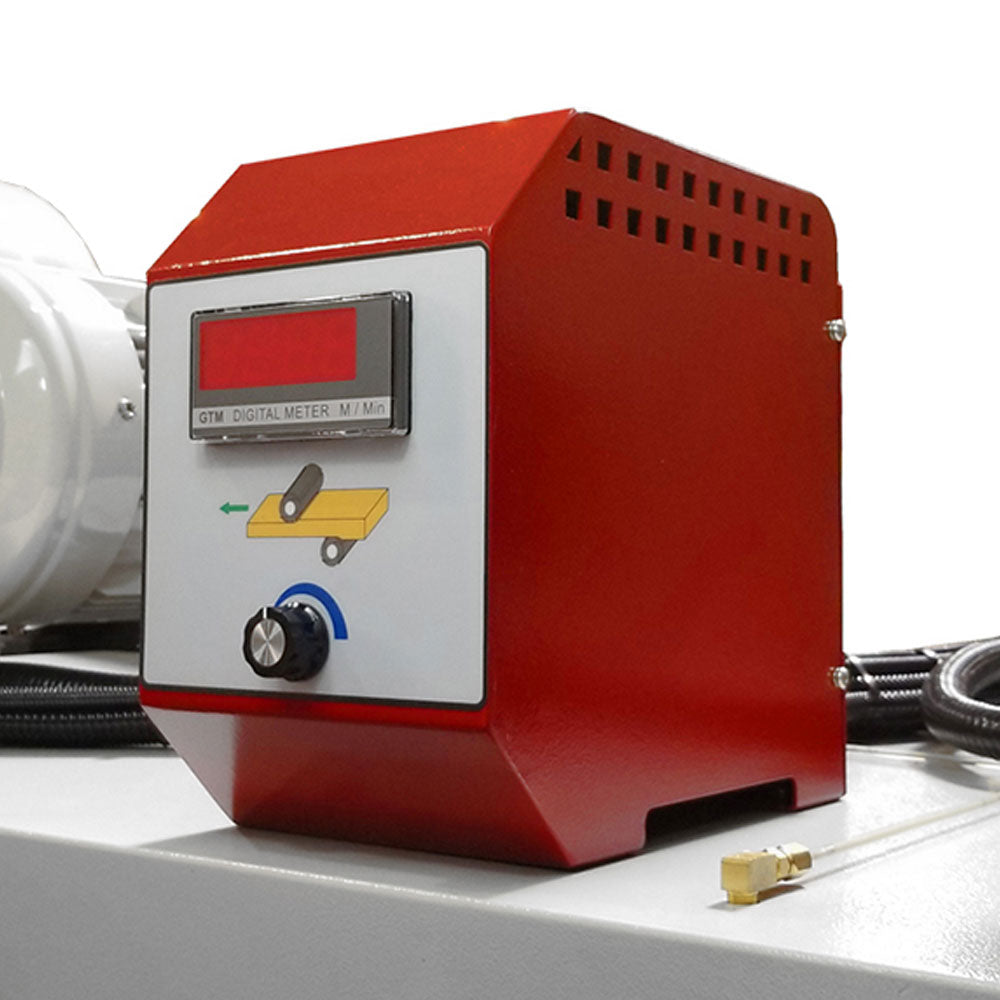

  • Inverter variable speed control with feed speeds from 26 to 80 FPM
  • Easy to access external handwheel adjustment of infeed bed

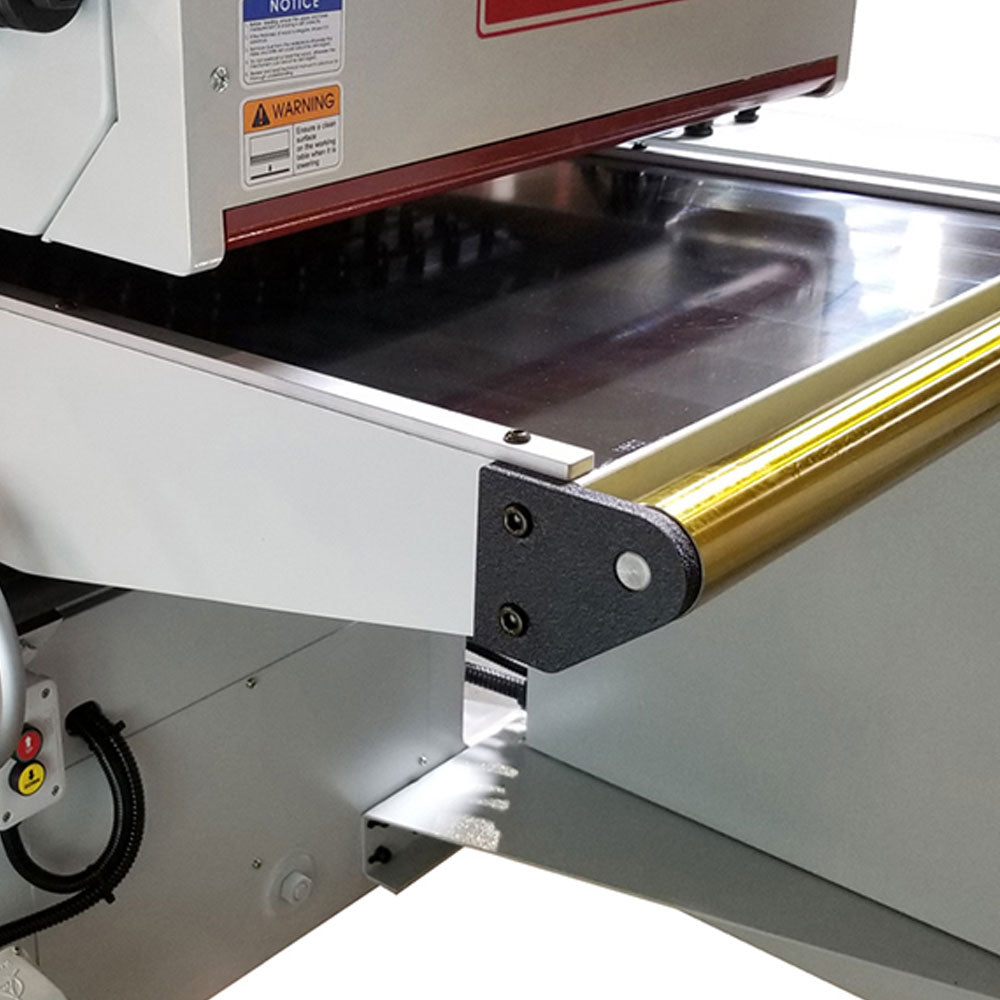

  • Hard chromed worktable for high wear resistance

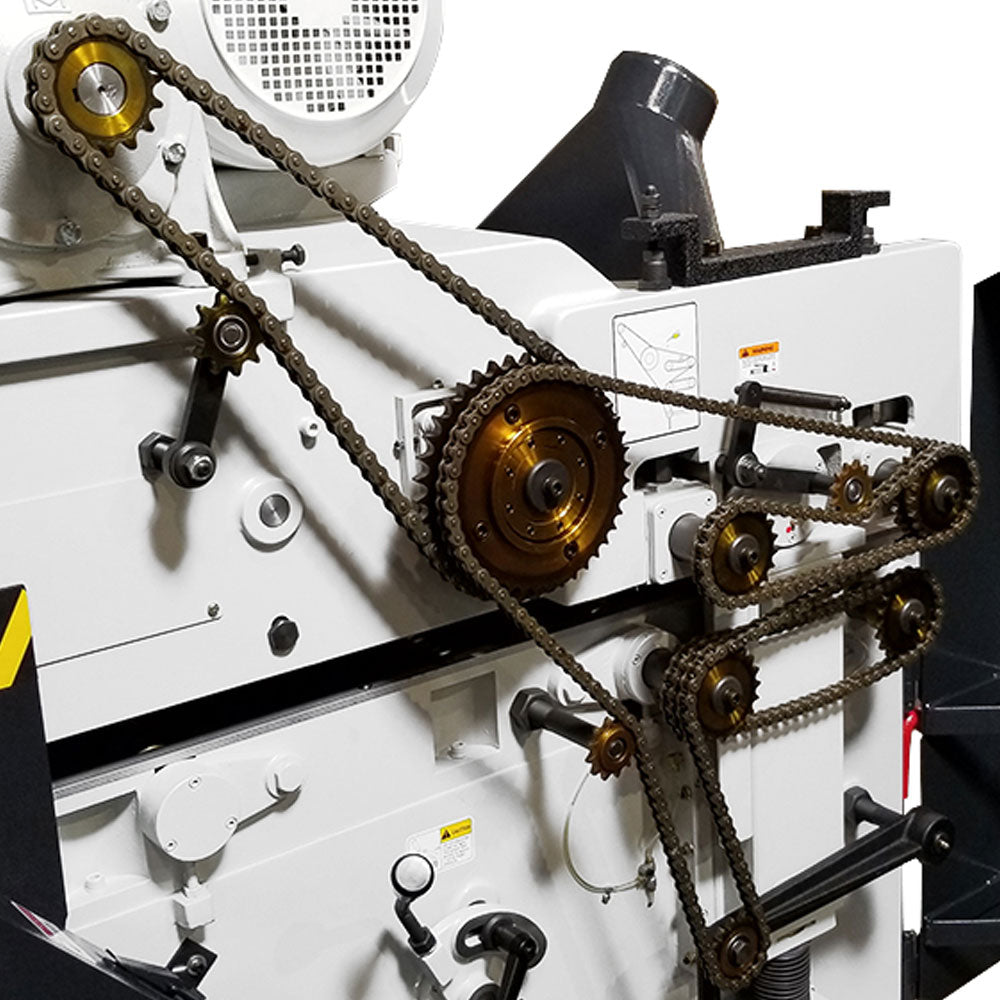

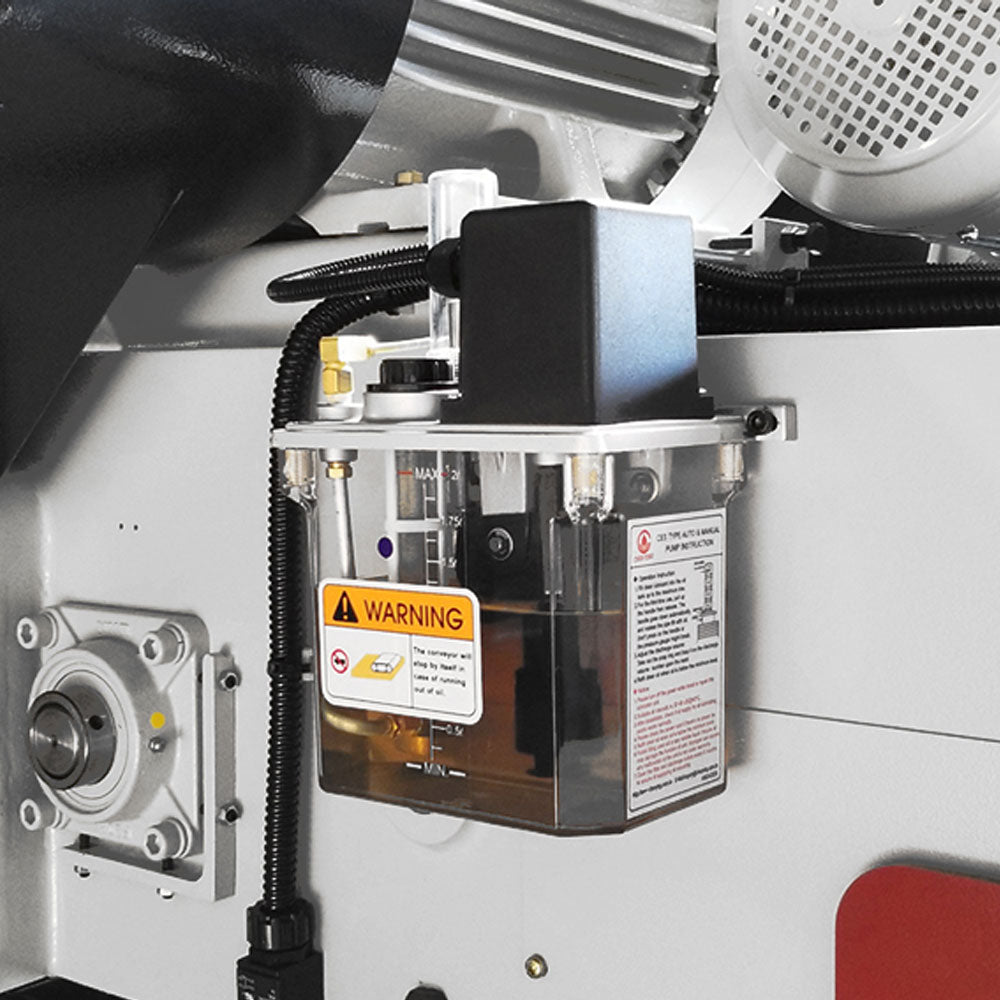

  • Auto lubrication to conveyor chain, central lubrication for dovetail elevation guideways
  • Section chipbreaker and sectional feed roller before top cutterhead

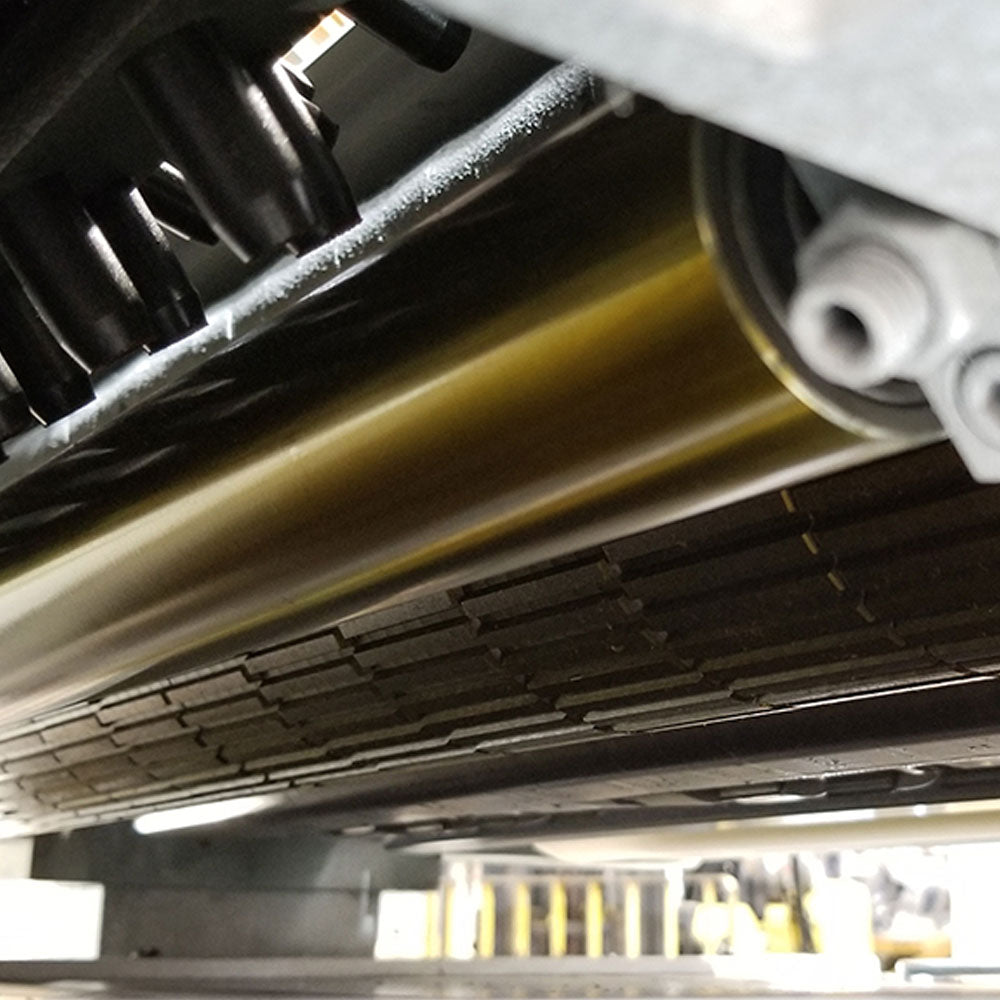

  • Rubber outfeed top roller to prevent chip marking
  • Over-thickness safety shut-off bar across infeed.
  • Ammeter for each motor on control panel to monitor motor load

Maximum working width: 16″ (405 mm)
Maximum working thickness: 6.7″ (170 mm)
Minimum workpiece length: 10″ (250 mm)
Minimum working thickness: 0.315″ (8 mm)
Bottom jointing head motor: 10hp
Top planing head motor: 15hp
Feed motor: 2hp
Table elevation motor: 1/2hp
Cutterhead diameter: 4″ (101 mm)
Knife information: 30 mm x 12 mm x 1.5 mm (60 knives / head)
Cutterhead speed: 5,000 RPM
Feed speed (variable): 23~65 FPM (8~24 m/min)
Dust collection: 2 @ 5″ diameter (2 @ 125mm)
Table size: 19″ x 86″ (482 x 2,185mm)
Machine dimensions (L x W x H): 86.6″ x 35.43″ x 66.93″
Net weight: 4,180 lbs.
Packaging dimensions: 90.5″ x 37.4″ x 72.83″
Gross weight: 4,620 lbs.
