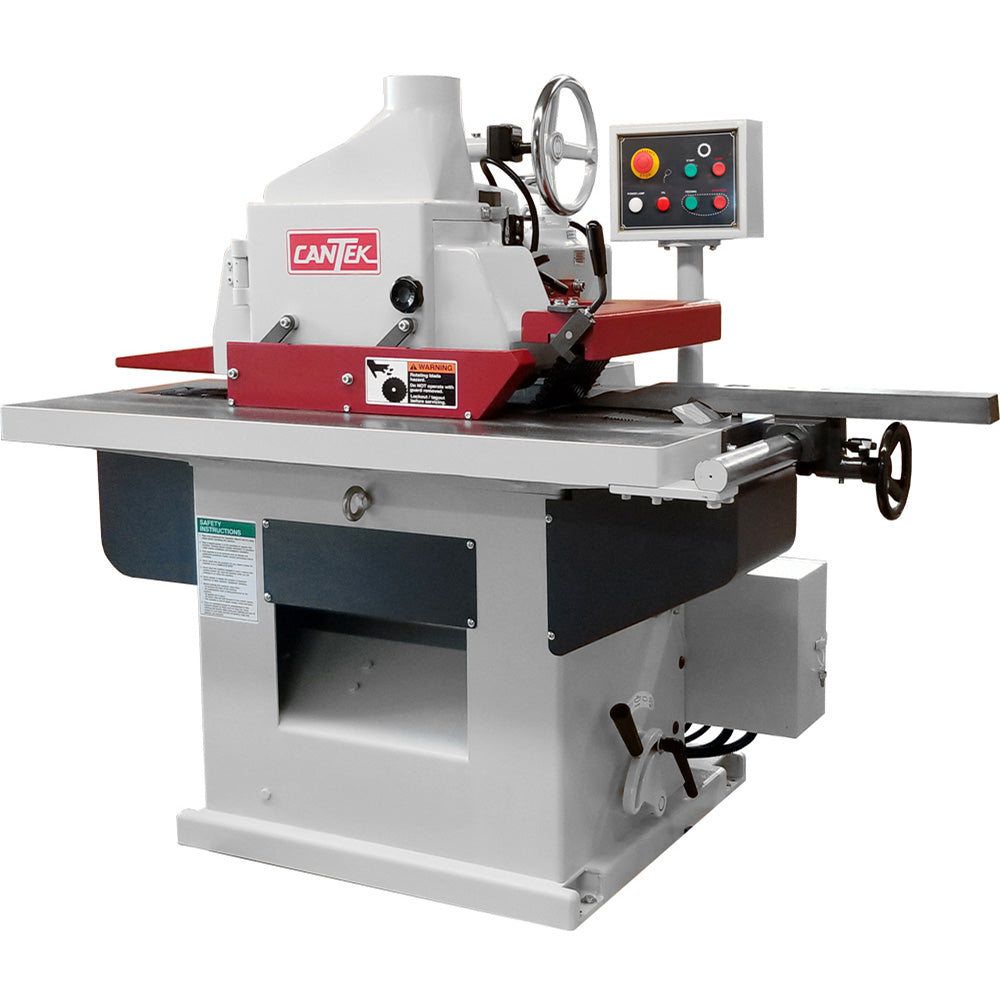

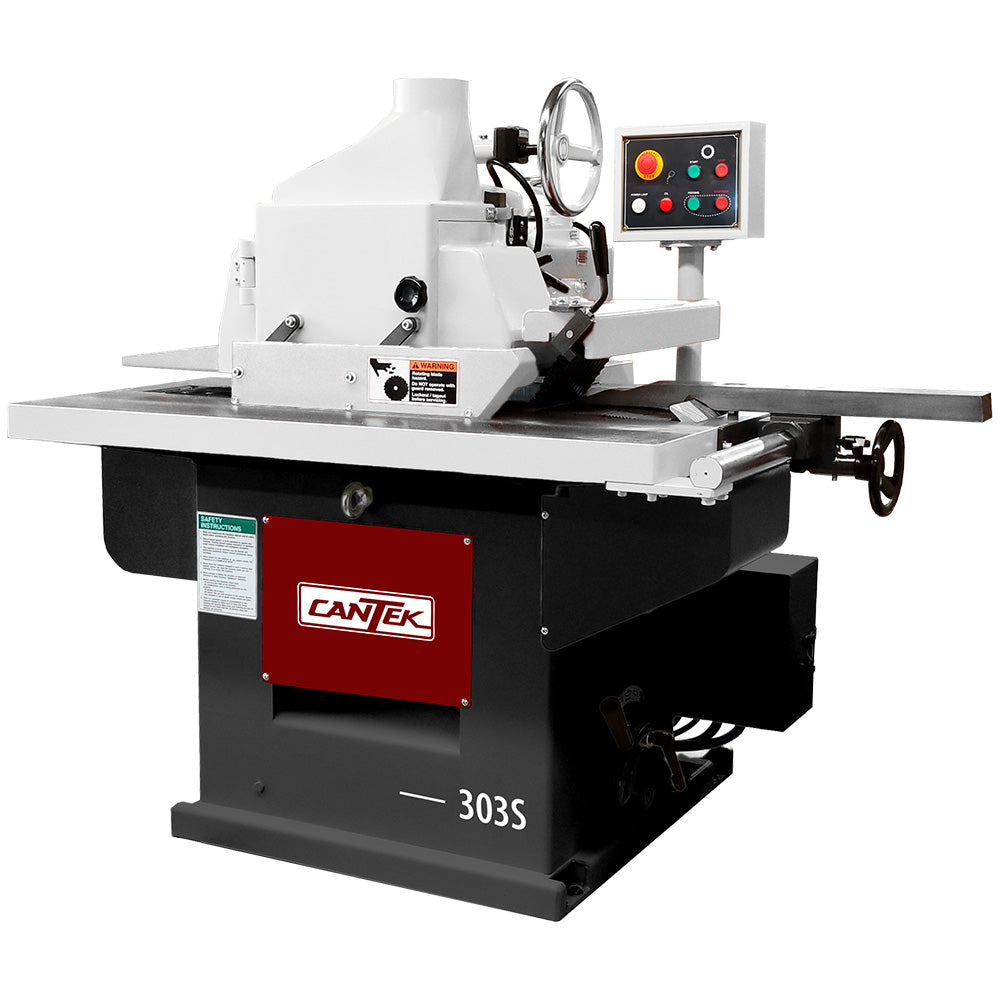

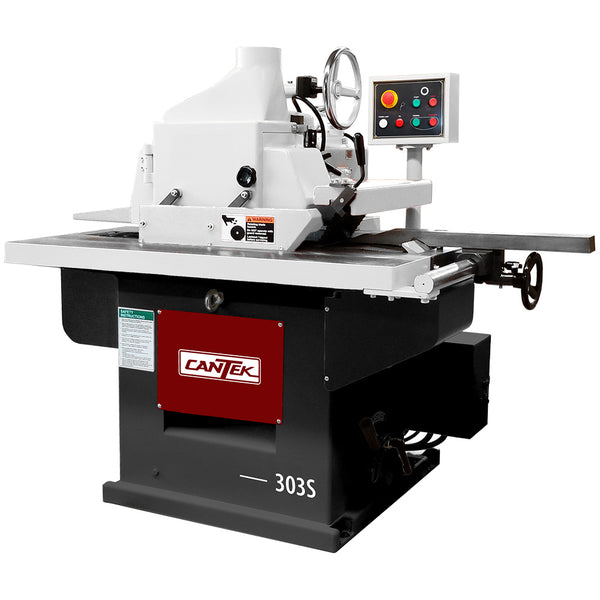

The Cantek 303S single blade ripsaw is a straight line ripsaw that is the ideal ripping upgrade for those looking to prepare material for a moulder or for producing face frame material. The 303S automatically feeds the material for consistent rip results. The cast iron feed chain runs on double V guide rails and holds the material firmly for precision straight cutting. A powerful 10 HP motor with maximum 12” blade provides a cutting depth up to 3.35”. A micro adjustable infeed fence allows for quick setups to ensure precise rip widths with fast adjustments.
Our Easy Purchase Guarantee:
- No hassle pricing — always sold at the manufacturers lowest price!
- No quote needed.
- No tax outside of Indiana.
- FREE shipping!
*If you need a quote, we would be happy to provide one. Call 260-637-0054 or email sales@oaktreesupplies.com [TABS]
Features
- Rigid machine body consists of a thick welded steel frame with an integral table which is fitted with a sturdy cast column.
- Precision built saw arbor constructed to ensure precision cutting without vibration.
- Cast iron upper assembly & cast iron table with superior vibration damping for optimum results

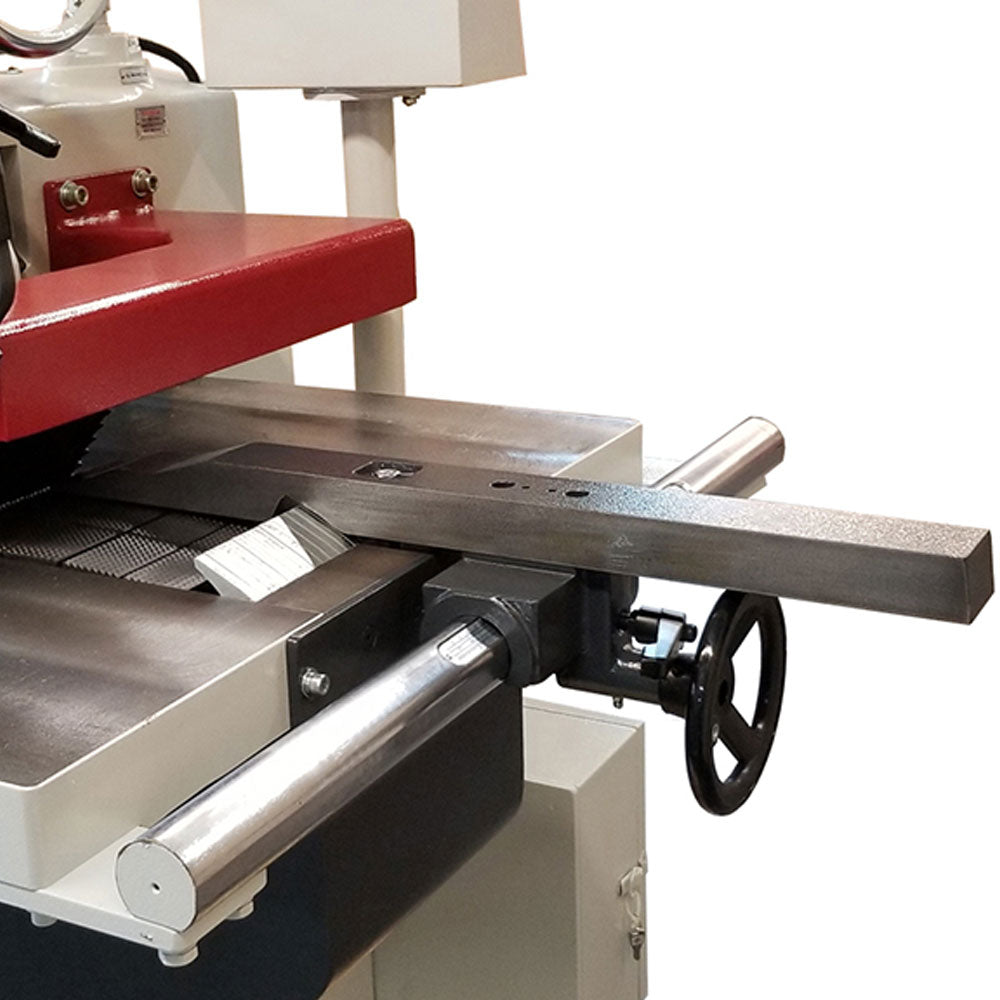

- Micro adjustable fence by rack and pinion for fast setups with precise results

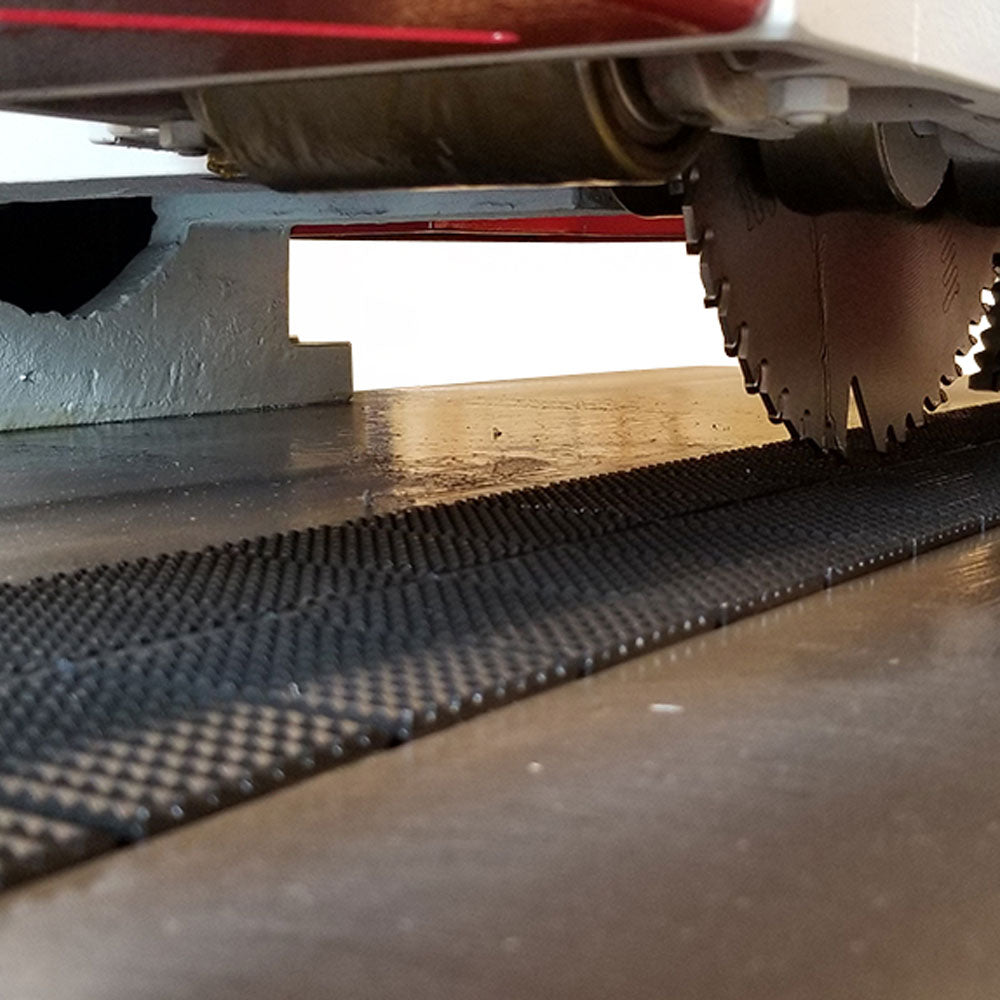

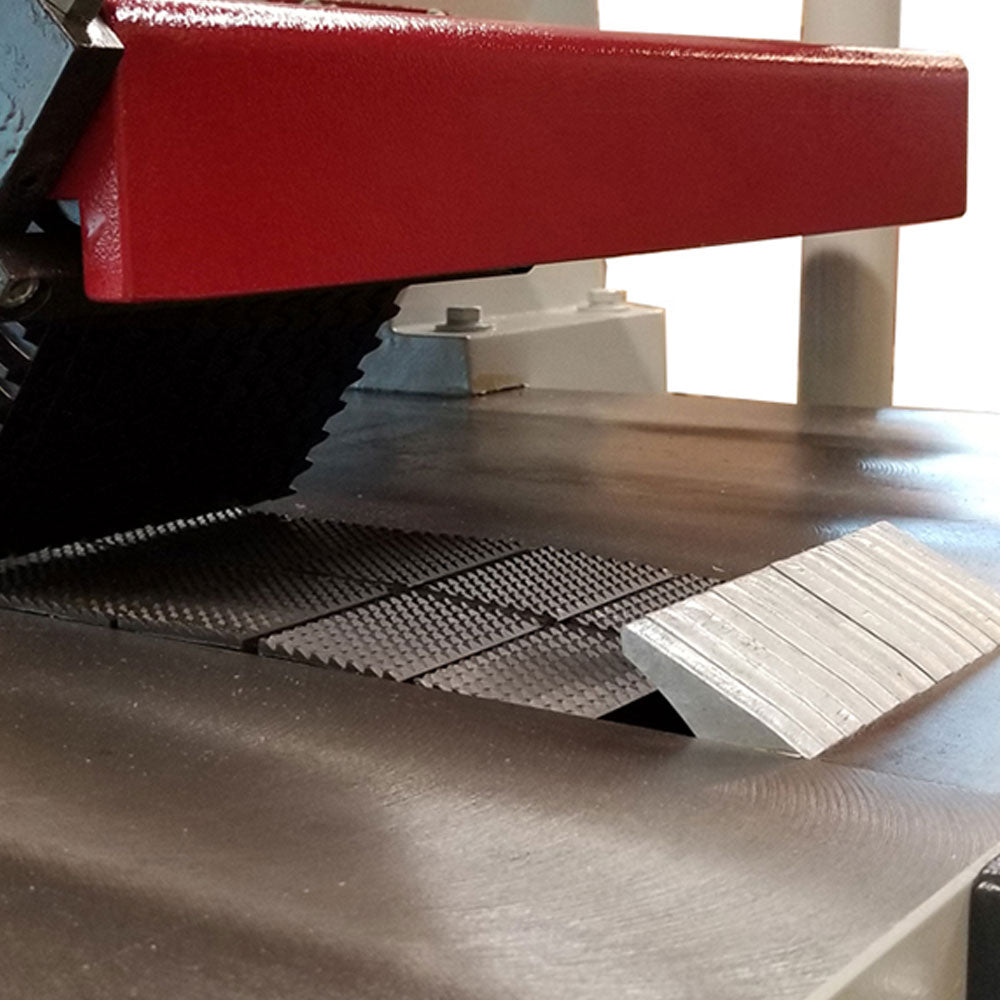

- Cast iron chain and track assembly is precision machined and hardened for maximum wear resistance with superior cut quality
More Features

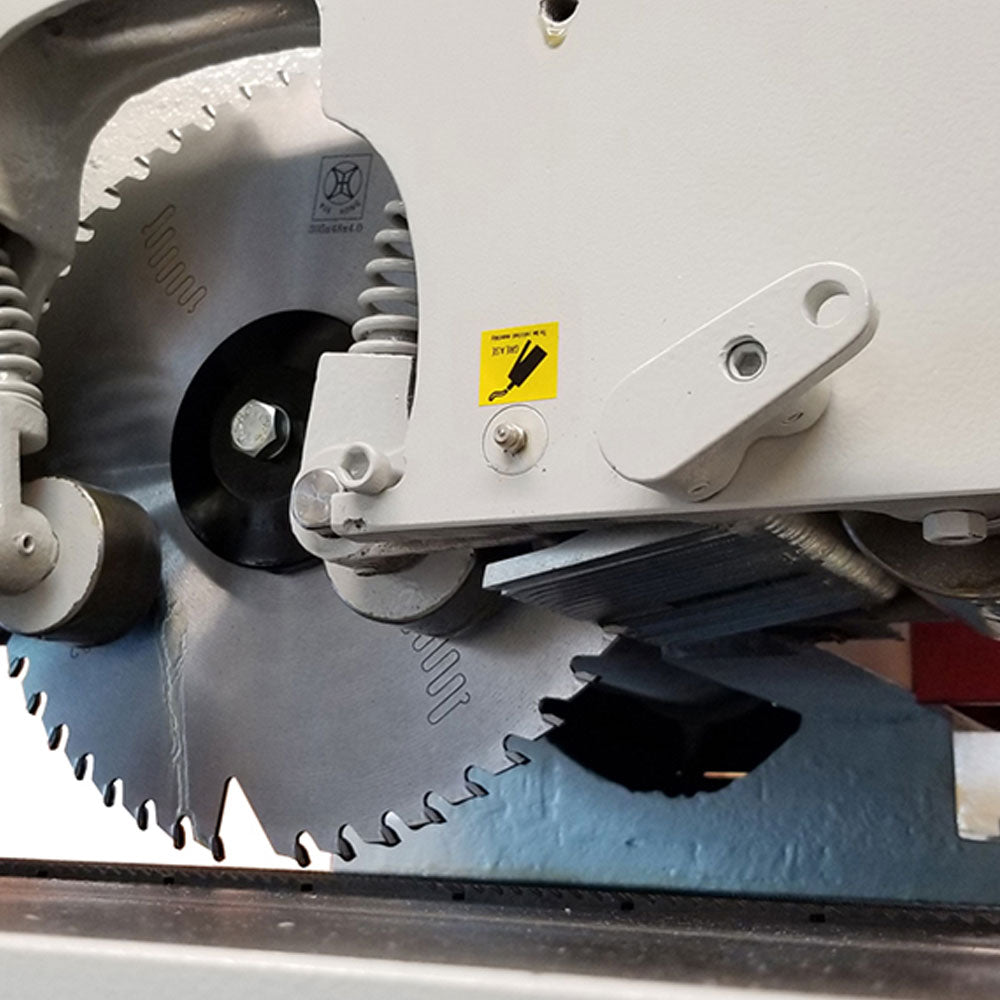

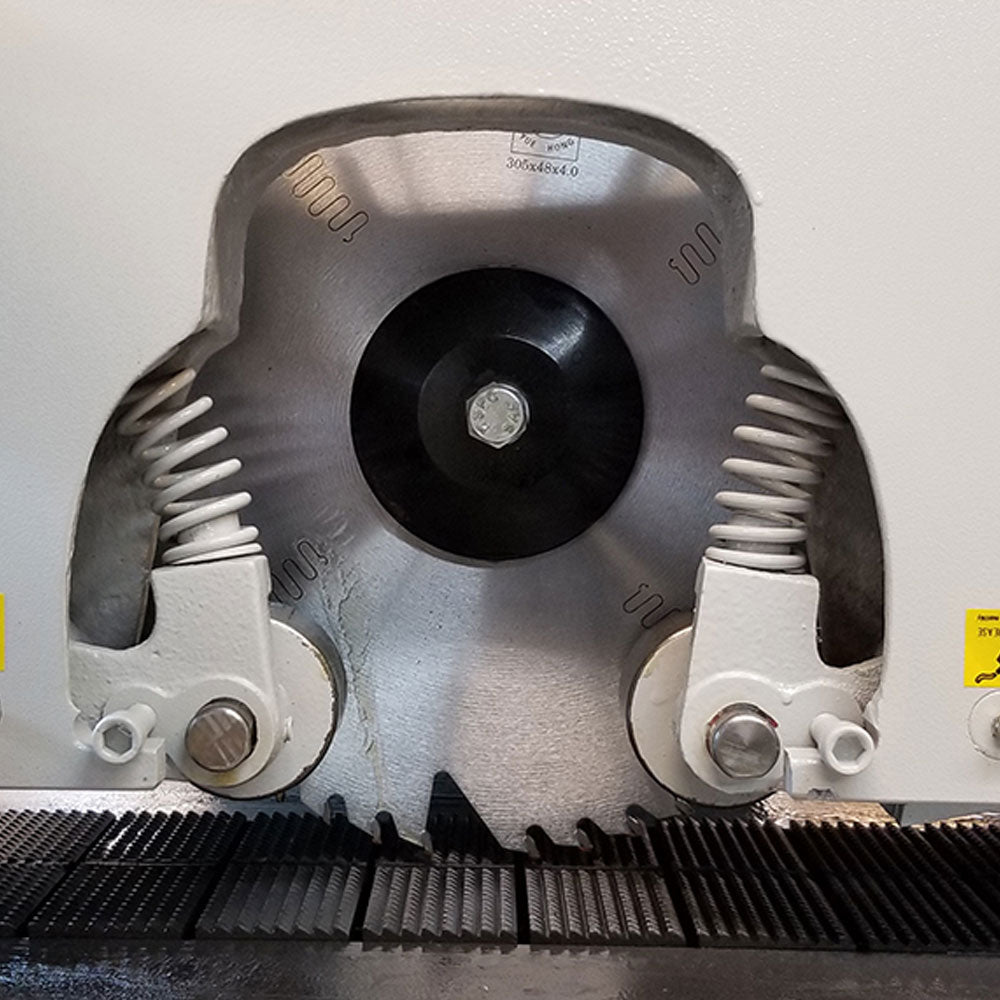

- Two rows of anti-kickback fingers for safe operation
- Swing down rear table prevents short workpieces and thin edgings from jamming in the machine

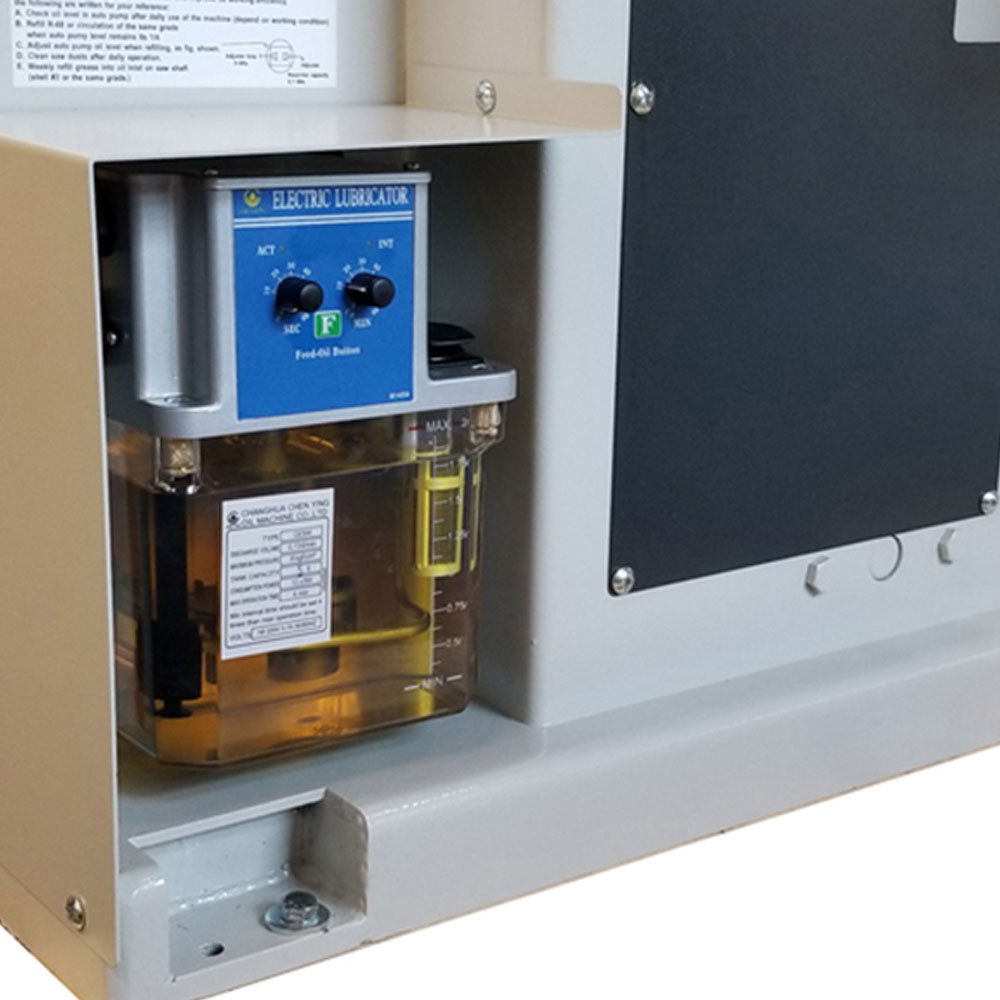

- Electronic chain lubricator provides consistent lubrication to the chain track for optimum wear resistance
- Powerful 10HP motor

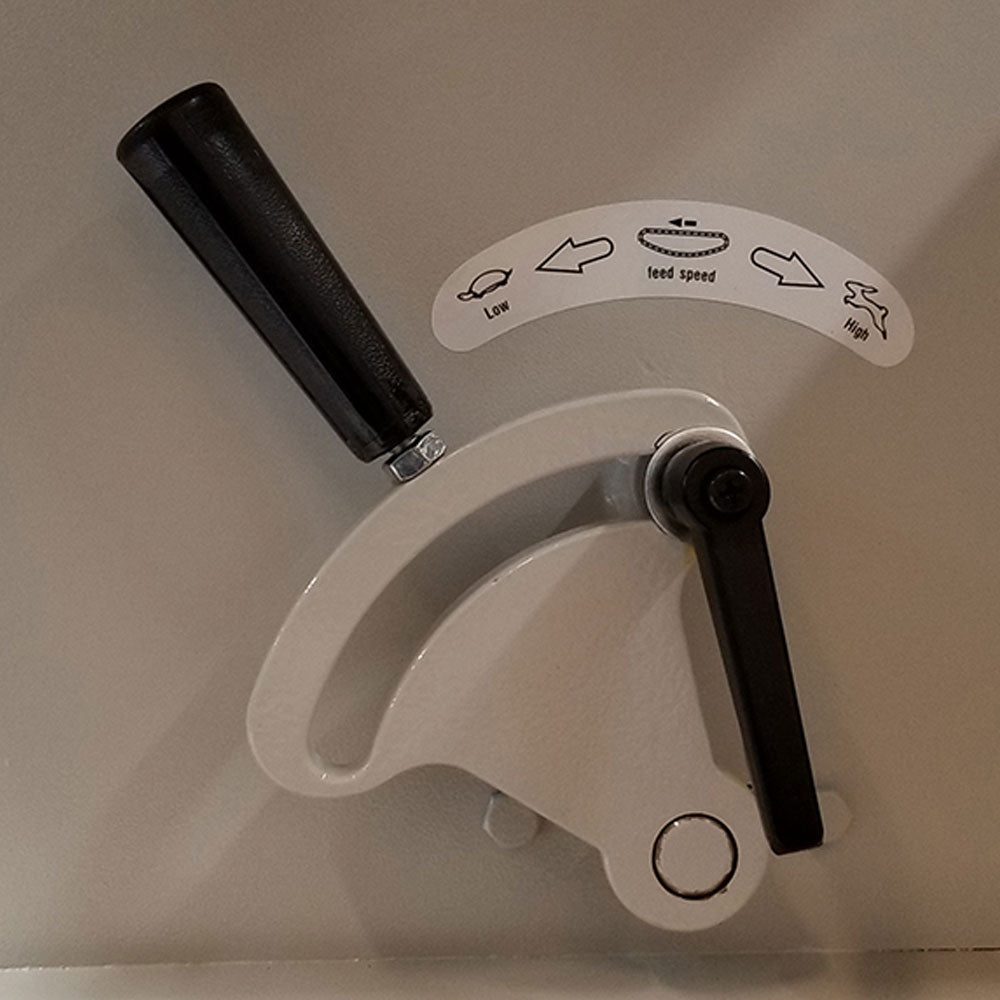

- Three feed speeds can be externally adjusted for operator convenience

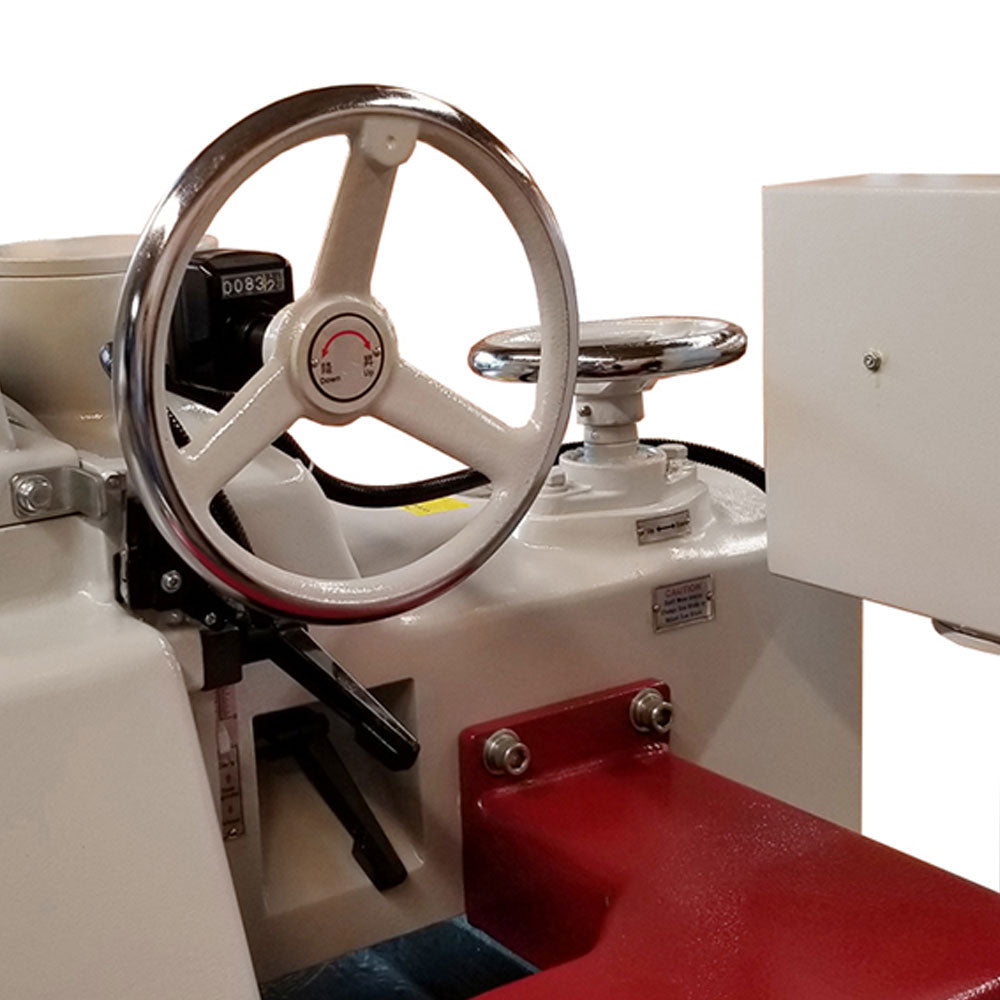

- Mechanical digital readout for setting the workpiece thickness
- 12” blade is included

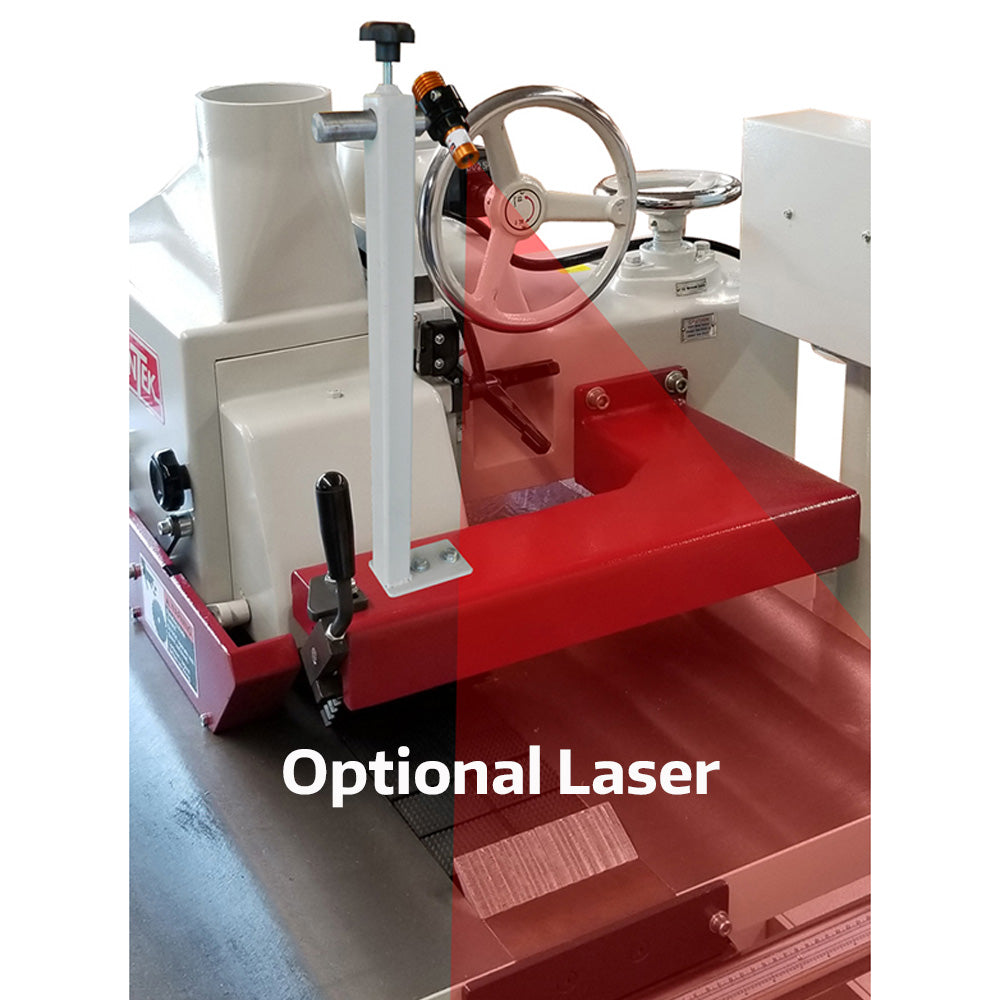

- Optional laser light for projecting the cutting line
Specs
Saw arbor diameter: 1″
Saw blade diameter: 8 – 12″
Saw arbor speed: 4500 RPM
Feed speeds: 3 (50, 65, 85 FPM)
Maximum workpiece thickness: 3.35″
Minimum workpiece length: 8″
Pressure rollers: 4 rows (6 rollers)
Distance between saw and column: 13 ¾”
Arbor motor: 10 HP
Feed motor: 1 HP
Table size: 30″ x 50″
Table height: 31-7/8″
Net weight: 1870 Lbs
Shipping weight: 2310 Lbs
Machine dimensions: 61″ x 38″ x 53″
Shipping dimensions: 59″ x 46″ x 59″
