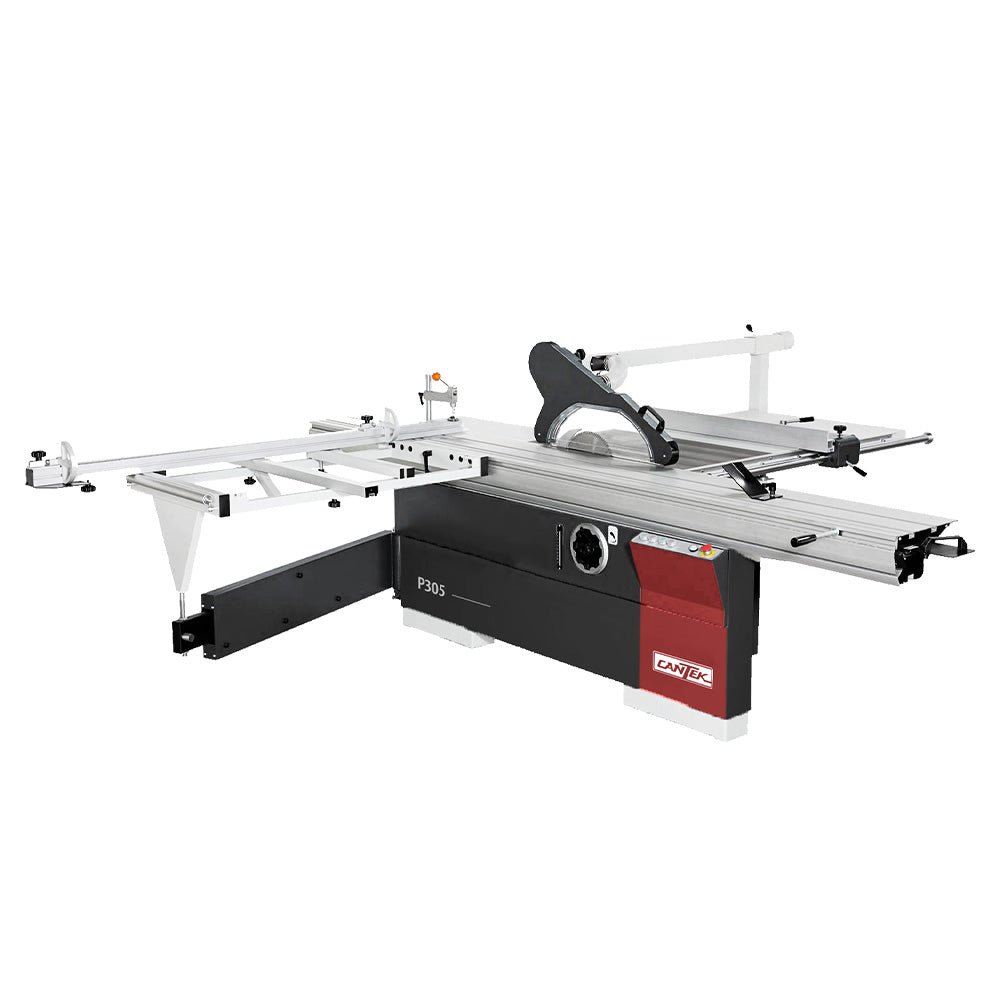

The Cantek P305 10’ Sliding Table Saw is built for the budget conscious user that still wants precision and accuracy. The P305 has a precision sliding table which runs on ball bearings and hardened steel guide strips. It is equipped with individual motors for the main saw blade (5 HP) and scoring blade (1 HP). The blade height and tilt is manually adjusted by means of individual handwheels. The angle of the blade is displayed by a linear scale for added operator convenience. The rip fence runs on a round hardened rail and is manually adjusted up to 51”. Equipped with a extendable crosscut miter fence and flip stops.
Our Easy Purchase Guarantee:
- No hassle pricing — always sold at the manufacturers lowest price!
- No tax outside of Indiana or Washington State.
If you need a quote, we would be happy to provide one. Call 260-637-0054 or email sales@oaktreesupplies.com
Note: Cannot ship to Pennsylvania or California
[TABS]
Features
- Precision anodized aluminum sliding table with ball bearing guide system for smooth table movement
- Powerful 5 HP main motor with 1 HP scoring motor
- Heavy duty cast-iron rip fence with 51” cutting capacity
- Aluminum crosscut miter fence with (2) flip stops and dual inch/metric scales
- Manual rise/fall the main saw blade
- Manual tilting of the saw blades with angle indicator conveniently located by adjustment handwheel
- Overarm blade guard with build in dust port
More Features
- Solid cast iron main table which is ground and polished
- Heavy-duty outrigger for strong support of workpiece during cutting operations
- Solid rip fence with manual fine adjustment and locking lever
- Easy to access external scoring adjustment
- Convenient eccentric manual scoring adjustment
- Extension table at side and back of main table
- Equipped with set of main and scoring blades
- Included: Eccentric hold down clamp & wedge for solid wood ripping included
Specs
Cast iron fixed table dimension: 1500 x 1726mm (59″ x 68″)
Sliding table dimension: 3200 x 360mm (10ft. x 14″)
Max. main saw blade diameter: 305 / 355mm (Max)
Main saw bore: 30mm
Max. cutting height with blade at 90o: 90 / 115mm
Max. cutting height with blade at 45o: 63 / 81mm
Main motor power: 5 HP
Main blade speed: 4000 RPM
Scoring saw blade: 120 mm (4.7″)
Scoring saw blade bore: 20 mm.
Scoring blade motor power: 1 HP
Scoring blade speed: 8000 RPM
Blade tilt: 0 – 45o
Max. ripping width: 1300mm (51″)
Dust collection ports: (1) 100mm (3.9″) / (1) 60mm (2.3″)
Machine weight: 1206 lbs. (548 kgs)
Machine shipping weight: 1435 lbs. (652 kgs)
Machine shipping dimensions: 83″ x 45 ½” x 44″
Sliding table weight: 176 lbs. (80 kgs)
Sliding table shipping weight: 227 lbs. (103 kgs)
Sliding table shipping dimensions: 130″ x 17″ x 9″
Electrics:
230/1/60 = 36 Full Load Amps
230/3/60 = 19.4 Full Load Amps
575/3/60
[/TABS]
