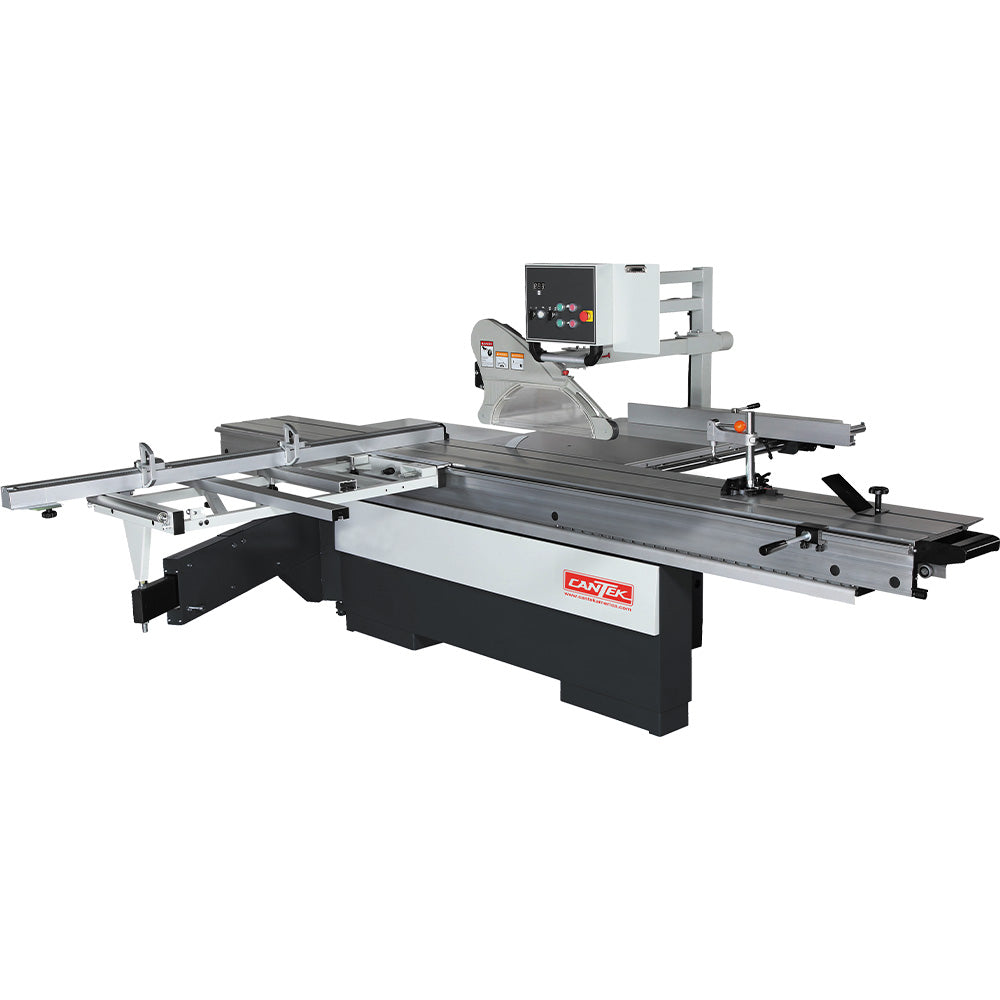

The Cantek D405A Sliding Table Saw is the ideal sliding panel saw for high accuracy cutting of sheet materials to produce kitchen cabinetry, furniture, millwork operations, and more. This is our most industrial saw with manual setting rip fence. The 10’ sliding table is made from a precision aluminum extrusion and runs on precision linear guide rails. It has motorized rise/fall and tilt of the blades.
Our Easy Purchase Guarantee:
- No hassle pricing — always sold at the manufacturers lowest price!
- No quote needed.
- No tax outside of Indiana.
- FREE shipping!
*If you need a quote, we would be happy to provide one. Call 260-637-0054 or email sales@oaktreesupplies.com [TABS]
Features
- Motorized blade height & tilt adjustment with a digital angle readout
- Precision sliding table runs on hardened linear guides for extremely smooth and effortless movement
- Powerful 7.5 HP main motor and separate 1HP scoring motor
- Ergonomic eye level control panel for adjusting the blade height, and blade angle along with on/off switches for the main and scoring motors
- Accurate crosscut miter fence for fast length and angle setting
More Features
- Motorized blade rise/fall
- Motorized blade tilting with electronic angle display on control panel
- Overhead control panel can be adjusted for operator convenience
- Convenient external manual scoring adjustment
- Powerful 7.5 HP main motor with separate 1HP scoring motor
- (3) saw blade speeds for optimum cutting results in various materials

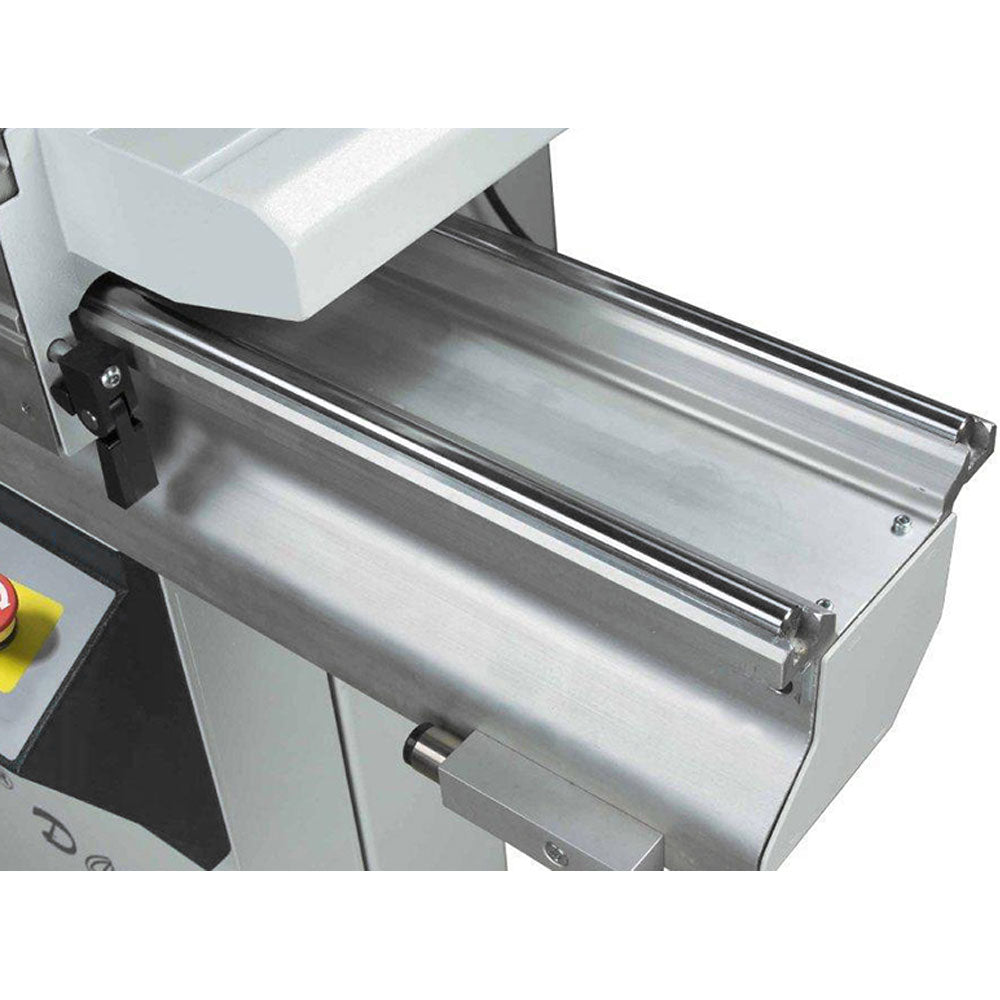

- Precision anodized aluminum sliding table with prismatic rollers running on precision ground steel guides
- Aluminum extruded crosscut fence with (2) flip stops with convenient angle adjustment for mitre cuts
- Solid cast iron main table which is ground and polished
- Heavy-duty outrigger for strong support of workpiece during cutting operations

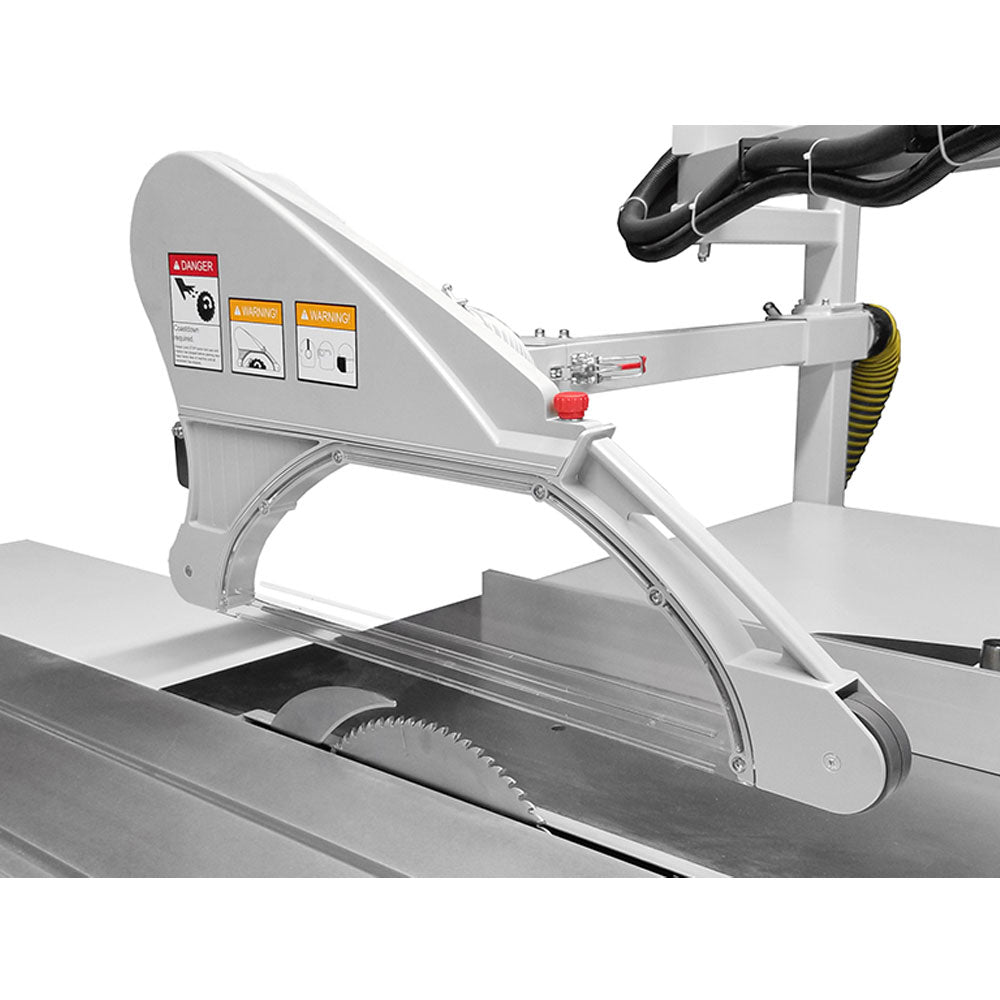

- Overhead CE blade guard with dust port
- Complete with eccentric clamp and wedge for solid wood cutting
Specs
Sliding table dimensions: 3200 x 395mm (126 x 15.5″)
Cast iron table dimensions: 548 x 896mm (21.6″ x 35.3″)
Extension table (rear): 952 x 896mm (38.7″ x 35.25″)
Extension table (front): 830 x 320mm (32.7″ x 12.6″)
Main saw blade (Max.): 400mm (16″)
Main saw bore dia.: 30mm
Max. cutting height @ 90o (355mm): 105mm (4.13″)
Max. cutting height @ 90o (400mm): 130mm (5.12″)
Max. cutting height @ 45o (355mm): 70mm (2.75″)
Main motor power: 7.5 HP
Main blade speed: 3000 / 4000 / 5000 RPM
Scoring blade dia.: 120mm
Scoring blade bore dia.: 20mm
Scoring blade motor power: 1 HP
Scoring blade speed: 8000 RPM
Max. rip cutting width: 1300mm (51″)
Cutting width adjustment: Manual
Saw height adjustment: Motorized
Saw blade tilting adjustment: 0~45o (Motorized)
Scoring saw adjustment: Manual
Dust collection outlets: 120 / 60mm (4.72″ / 2.4”)
Machine shipping dimensions: 2110 x 1150 x 1120mm (83″ x 45.25″ x 44″)
Machine NW / GW: 575 / 666 kgs (1265 / 1465 lbs)
Sliding table shipping dimensions: 3480 x 490 x 370mm (137″ x 19.3″ x 14.6″)
Sliding table NW / GW: 141 / 173 kgs (310 / 381 lbs)
Machine total weight NW / GW: 740 / 874 kgs (1628 / 1923 lbs)
Electrics: 230/3/60 =26.20 Full total Amps
Options
- Optional crosscut fence with digital readouts for precise length setting
- Optional digital display for angle of crosscut fence for accurate miter cuts
