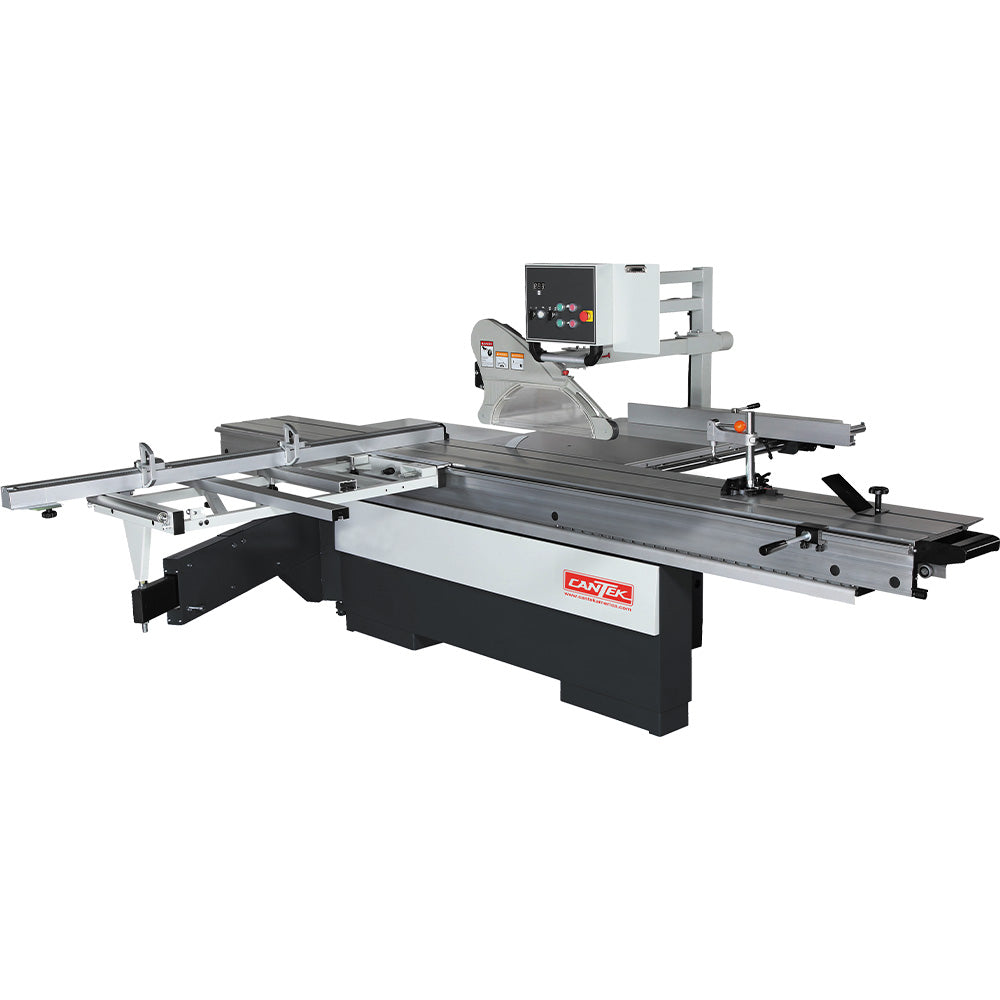

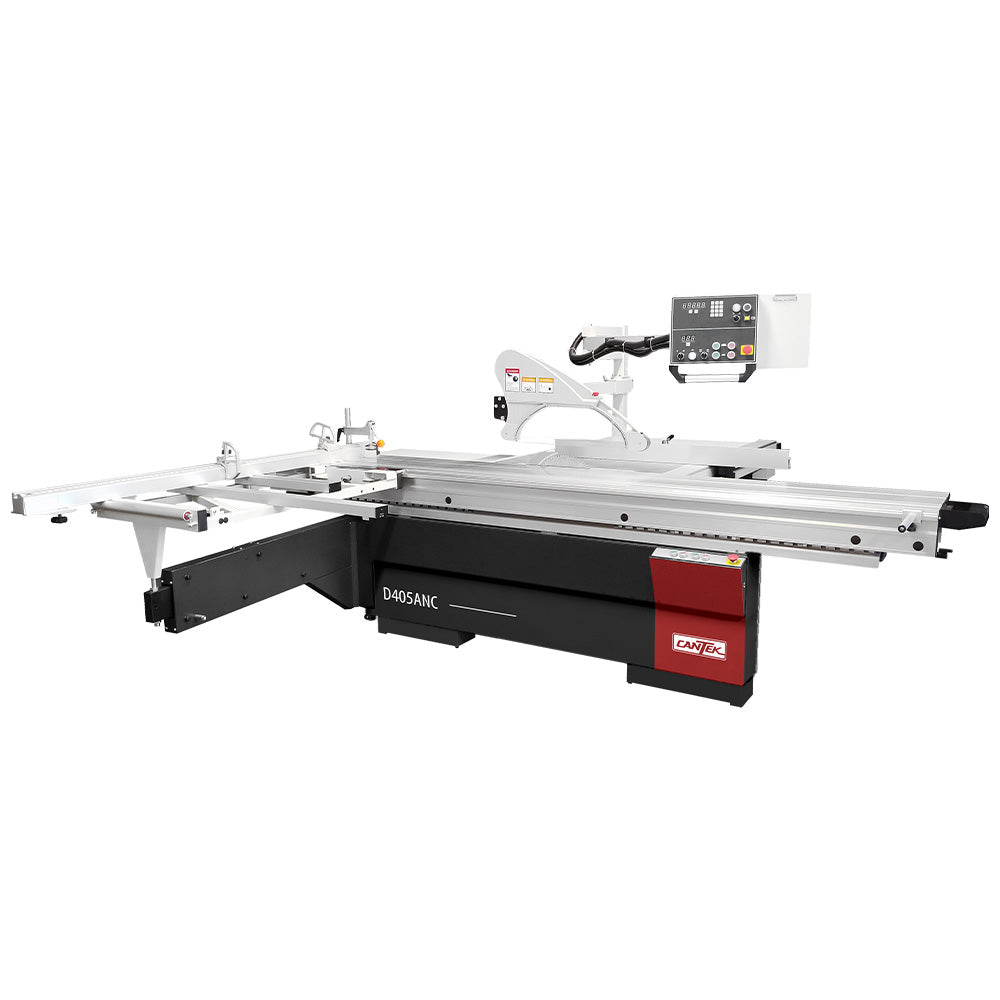

The Cantek D405ANC 1-Axis Sliding Table Saw is the ideal sliding panel saw for high-accuracy cutting of sheet materials for the production of kitchen cabinetry, furniture, millwork operations, and more. The NC rip fence provides the operator with the added convenience of setting the rip width automatically through eye-level control. This saves time while providing a high level of accuracy and repeatability. The 10’ sliding table is made from a precision aluminum extrusion and runs on precision linear guide rails.
Options:

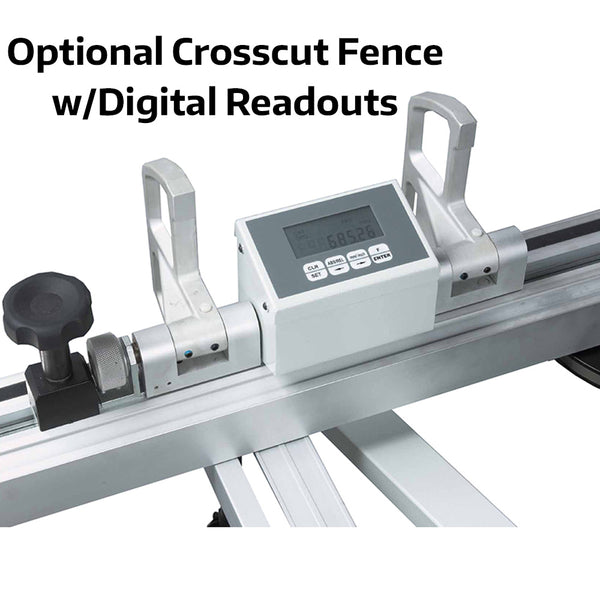

Optional crosscut fence with digital readouts for precise length setting

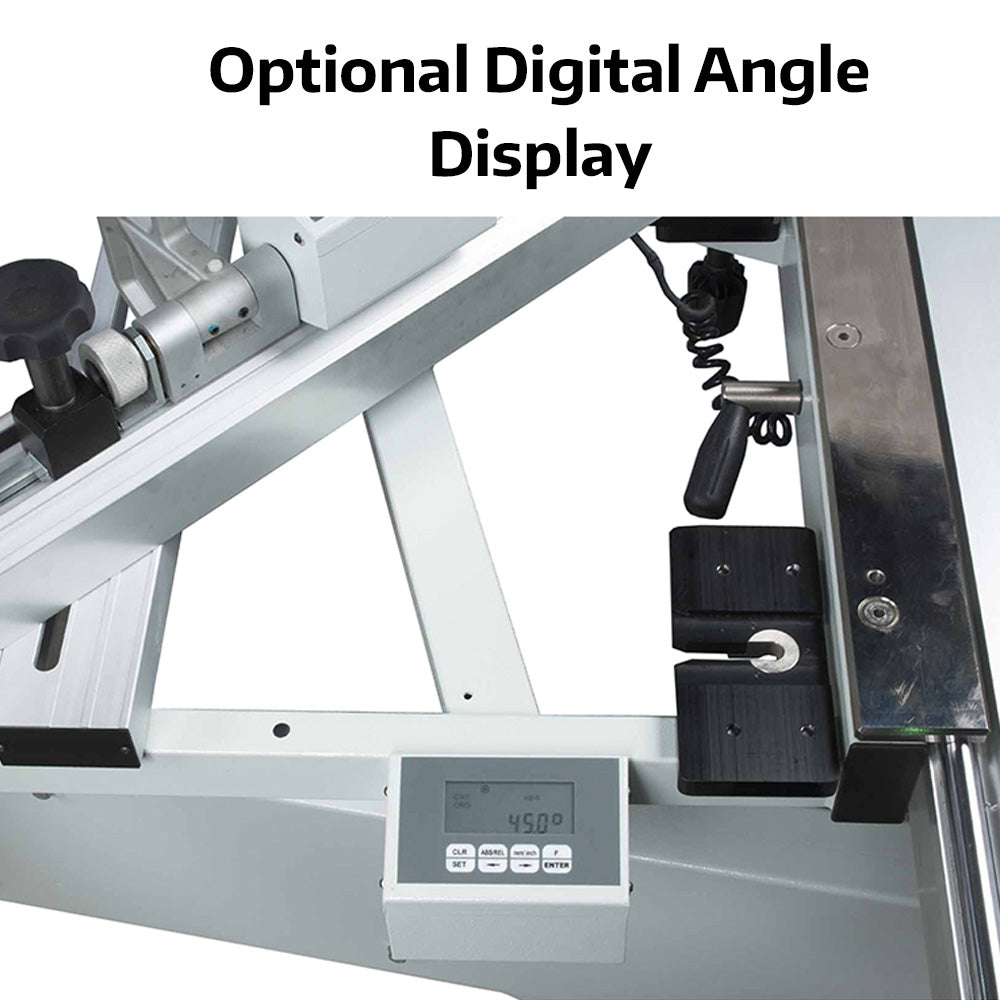

Optional digital display for angle of crosscut fence for accurate miter cuts
Our Easy Purchase Guarantee:
No hassle pricing— always sold at the manufacturer's lowest price!
No tax outside of Indiana or Washington State
If you need a quote, we would be happy to provide one. Call 260-637-0054 or email sales@oaktreesupplies.com
Note: Cannot ship to Pennsylvania or California
[TABS]
Features
Programmable rip fence saves time & provides a high level of accuracy and repeatability
Precision sliding table runs on hardened linear guides for extremely smooth and effortless movement
Powerful 7.5 HP main motor and separate 1HP scoring motor

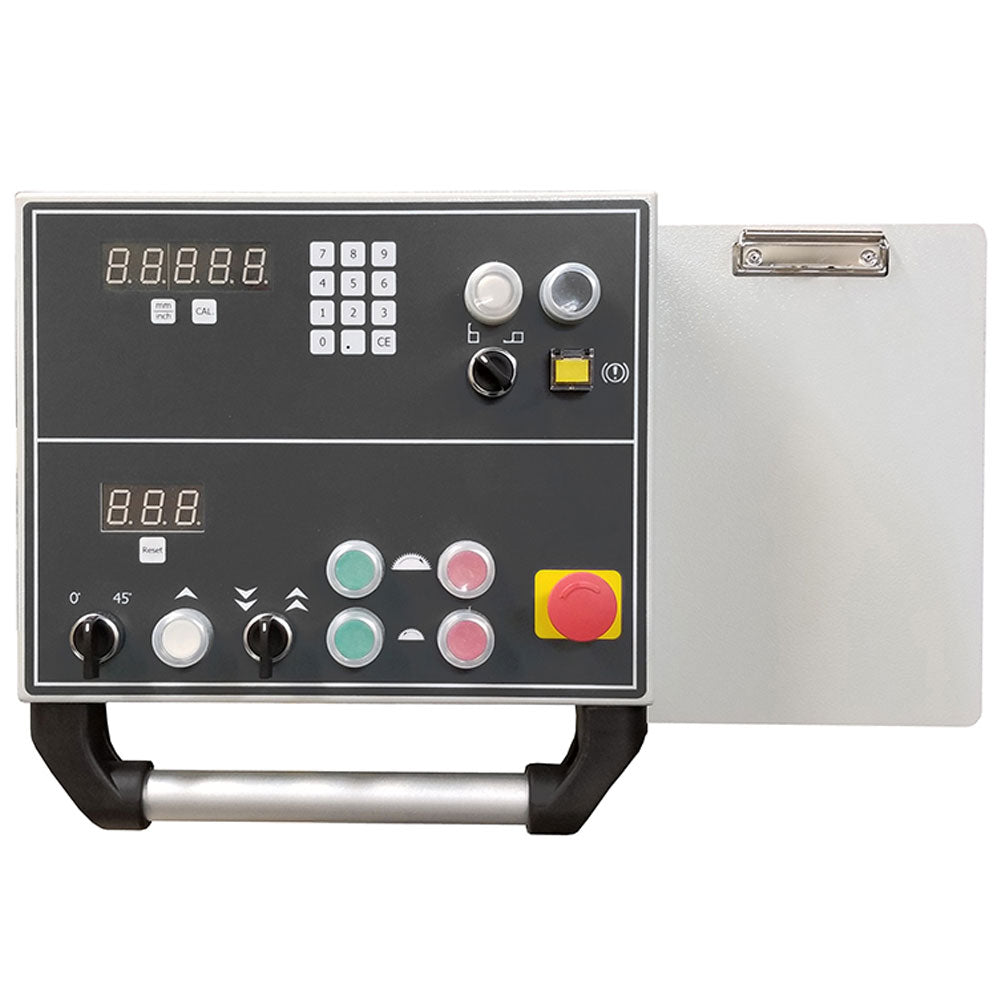

Ergonomic eye level control panel for setting the rip width, blade height, and blade angle along with on/off switches for the main and scoring motors
Accurate crosscut miter fence for fast length and angle setting
More Features

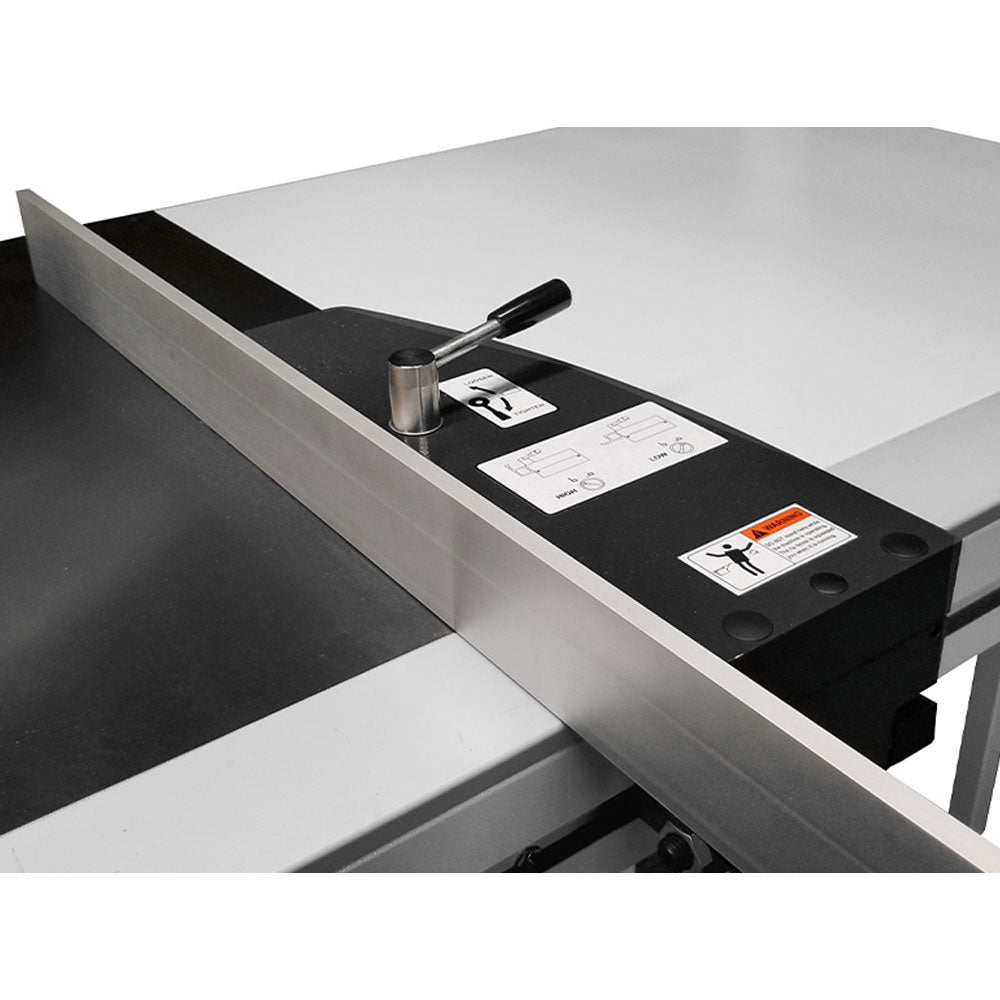

Programmable rip fence with a maximum cutting width of 51″ by means of a precision ball screw
Motorized blade rise/fall
Motorized blade tilting with electronic angle display on control panel
Overhead control panel can be adjusted for operator convenience

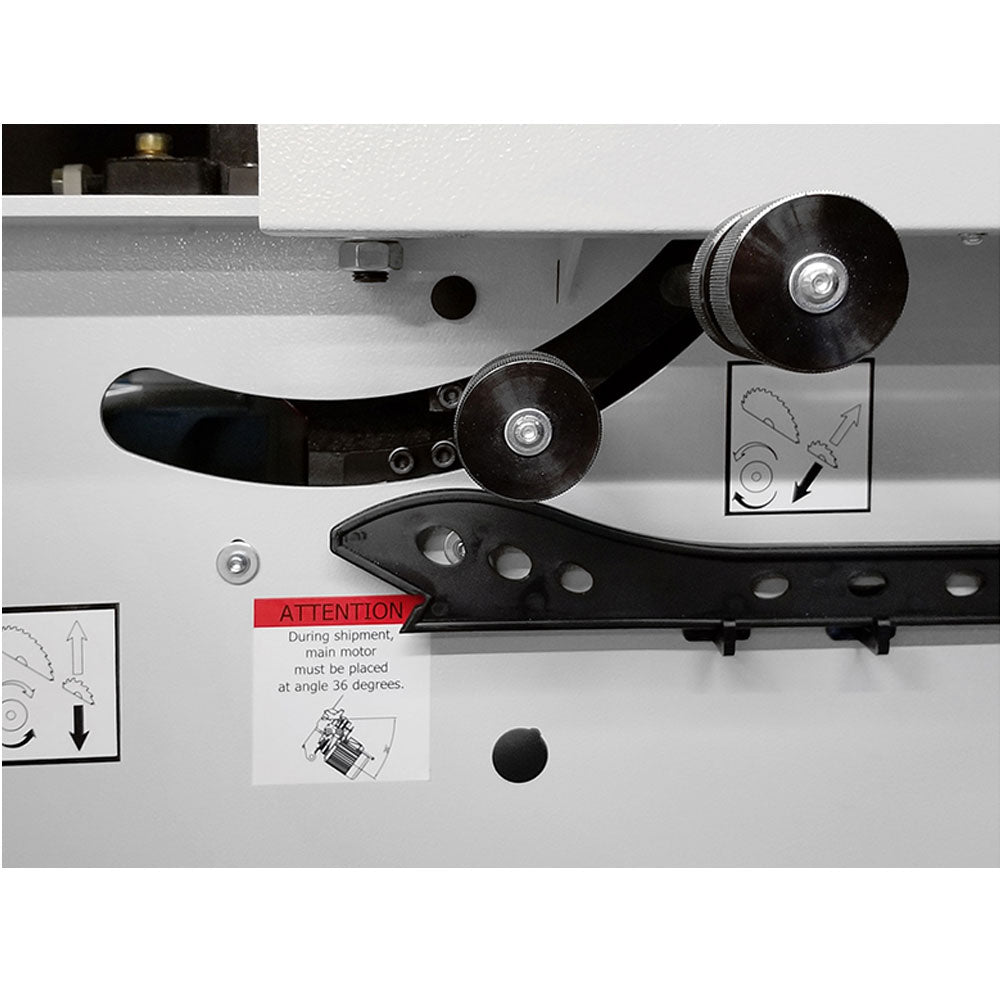

Convenient external manual scoring adjustment
7.5 HP main motor with 1HP scoring motor
(3) saw blade speeds for optimum cutting results in various materials

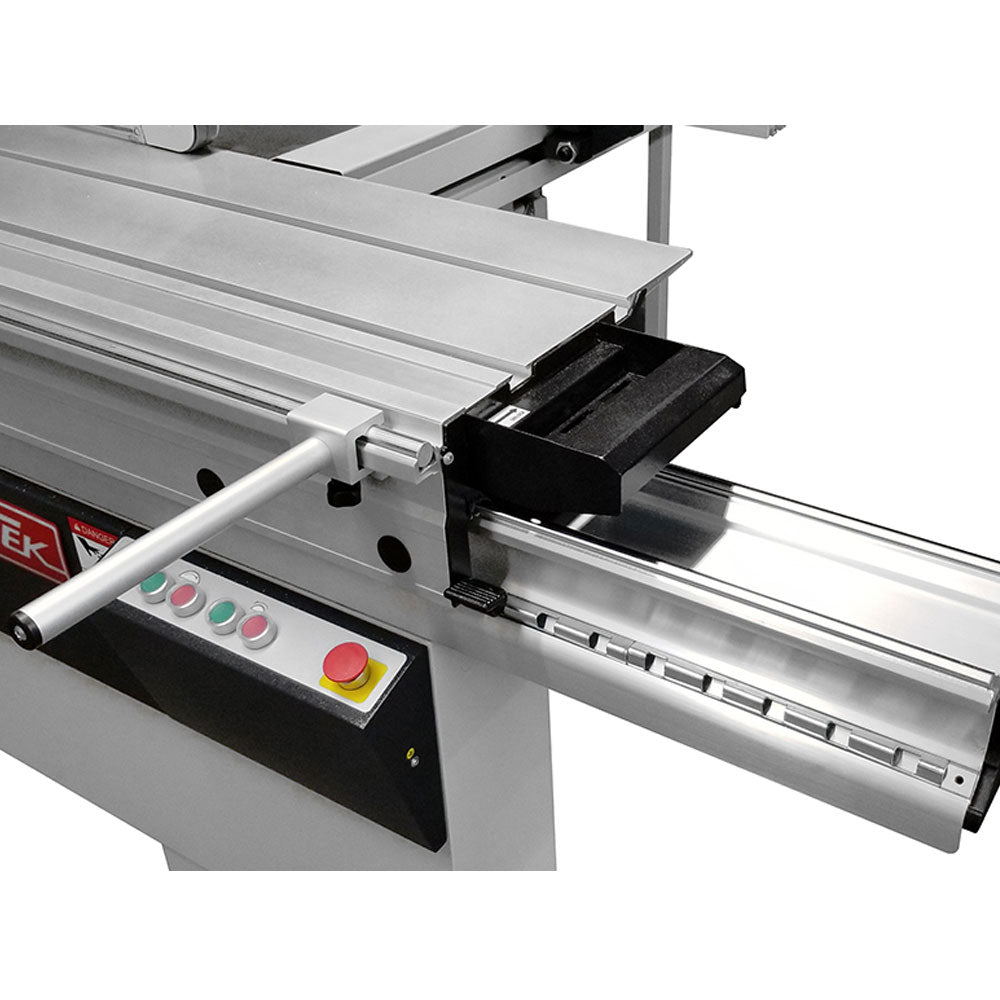

Precision anodized aluminum sliding table with prismatic rollers running on precision ground steel guides

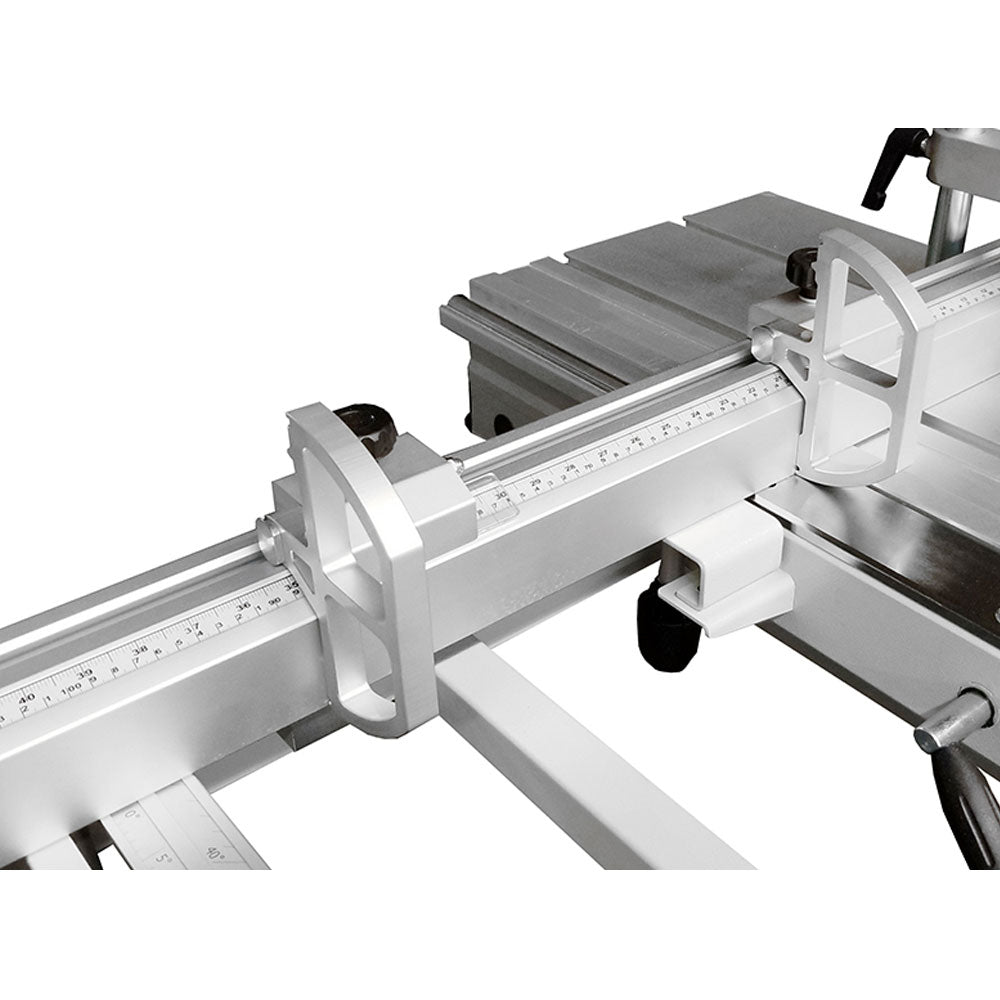

Aluminum extruded crosscut fence with (2) flip stops with convenient angle adjustment for mitre cuts
Solid cast iron main table which is ground and polished

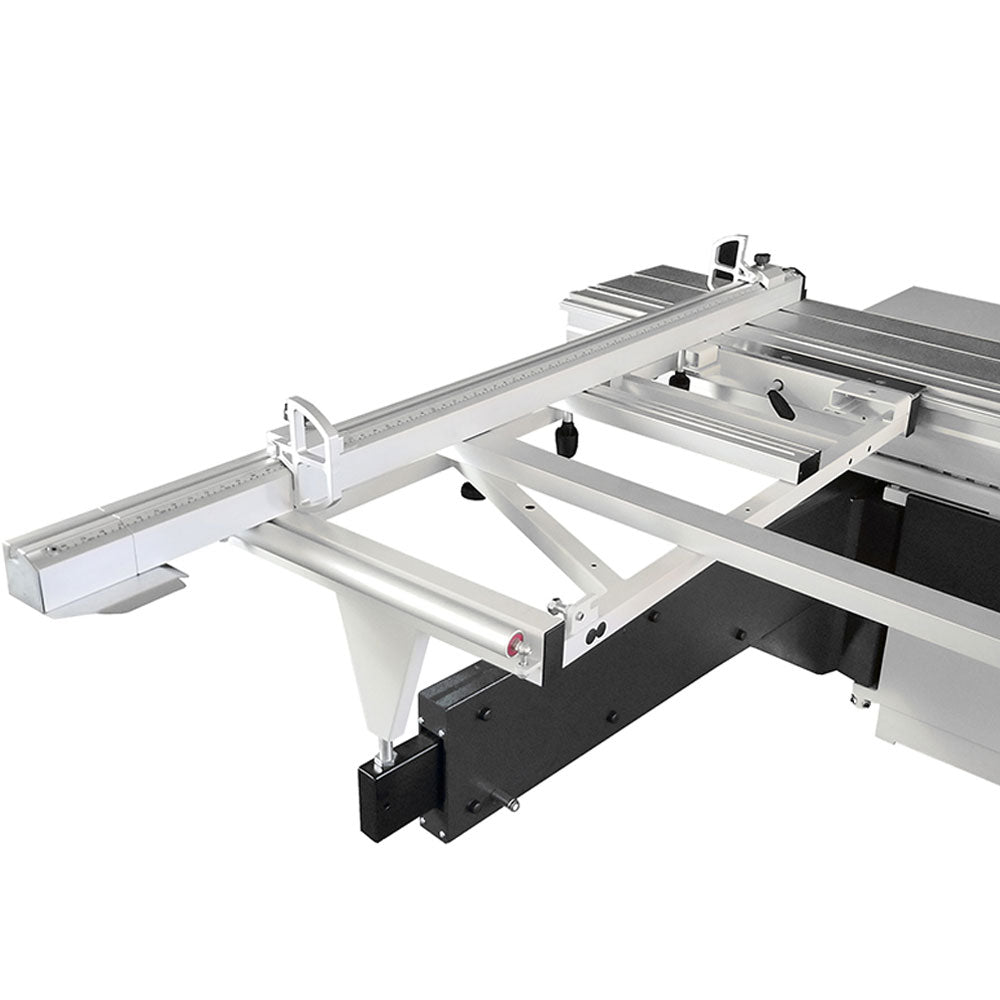

Heavy-duty outrigger for strong support of workpiece during cutting operations

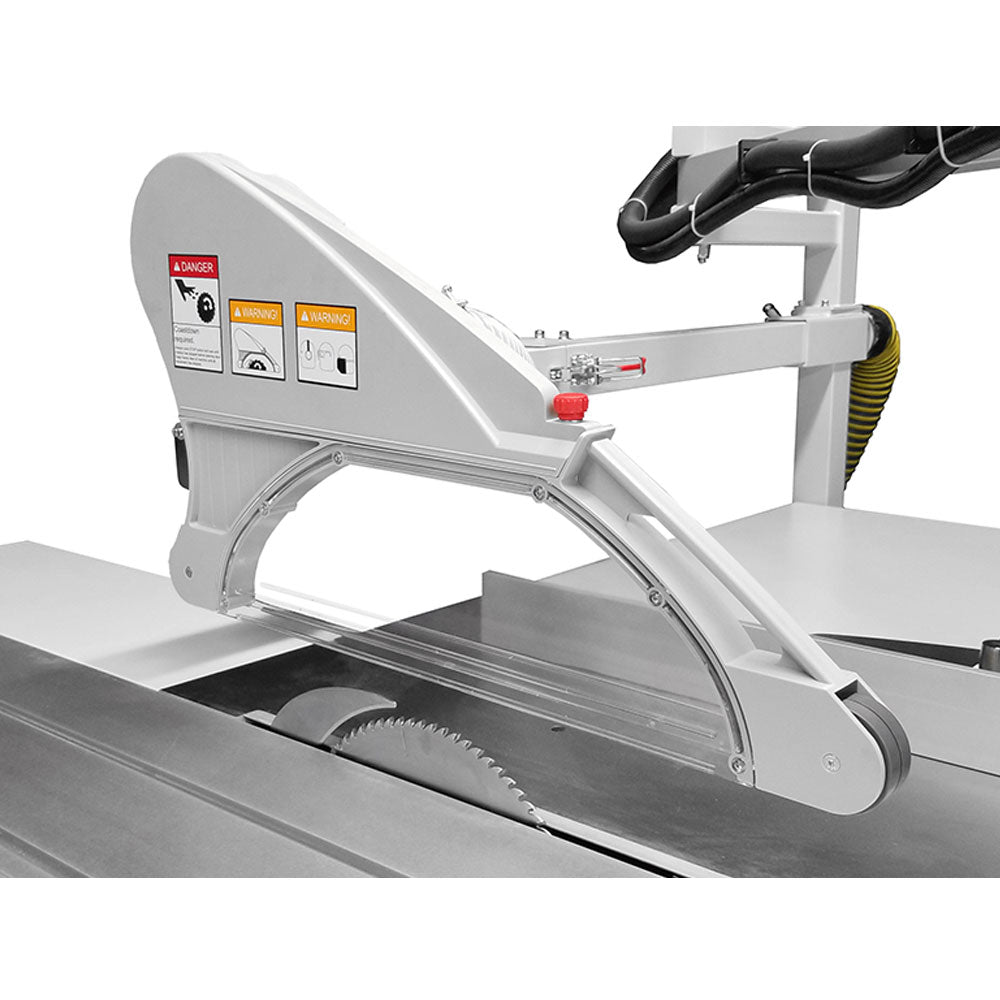

Overhead CE blade guard with dust port
Complete with eccentric clamp and wedge for solid wood cutting
Specs
Sliding table dimensions:126 x 15.5″ (3,200 x 395 mm) Cast iron table dimensions:21.6″ x 35.3″ (548 x 896 mm) Extension table (rear):38.7″ x 35.25″ (952 x 896 mm) Extension table (front):32.7″ x 12.6″ (830 x 320 mm) Table size: 59″ x 68″ (1,500 x 1,726 mm) Main saw blade (Max.): 16″ (400 mm) Main saw bore dia.: 30 mm Max. cutting height @ 90o (355mm): 4.1″ (105 mm) Max. cutting height @ 90o (400mm): 5.1″ (130 mm) Max. cutting height @ 45o (355mm): 2.75″ (70 mm) Main motor power: 7.5 HP Main blade speed: 3,000 / 4,000 / 5,000 RPM Scoring blade dia.: 120 mm Scoring blade bore dia.: 20 mm Scoring blade motor power: 1 HP Scoring blade speed: 8,000 RPM Max. rip cutting width: 51″ (1,300 mm) Cutting width adjustment: Motorized Saw blade tilting adjustment: 0~45o (Motorized) Scoring saw adjustment: Manual Dust collection outlets: 4.72″ x 4″ (120 / 100 mm) Machine shipping dimensions: 83″ x 45.25″ x 44″ Machine NW / GW: 1,228 / 1,428 lbs. Sliding table shipping dimensions: 137″ x 19.3″ x 14.6″ Sliding table NW / GW: 310 / 381 lbs. Rip fence shipping dimensions: 73.25″ x 12.6″ x 13″ Rip Fence NW / GW: 90 / 115 lbs. Machine total weight NW / GW: 1,628 / 1,923 lbs. Electrics: 230/3/60 =26.20 Full total Amps
