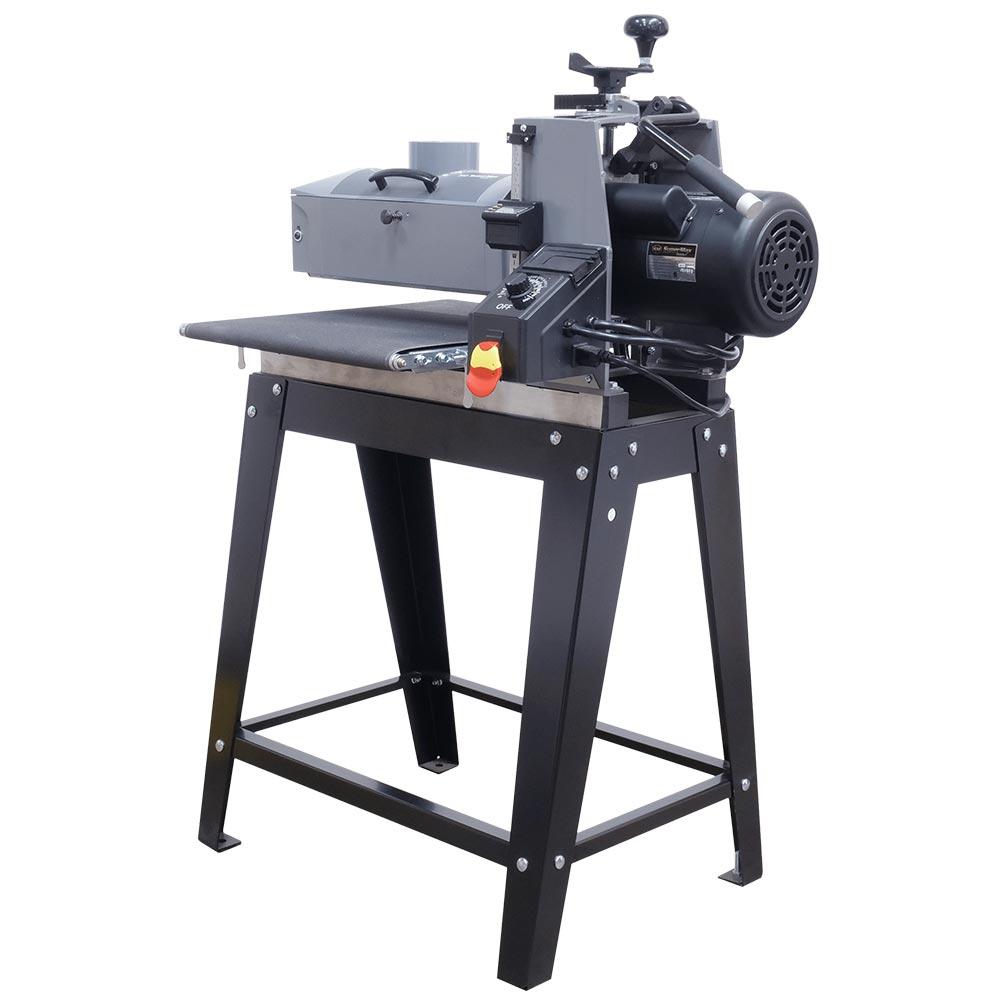

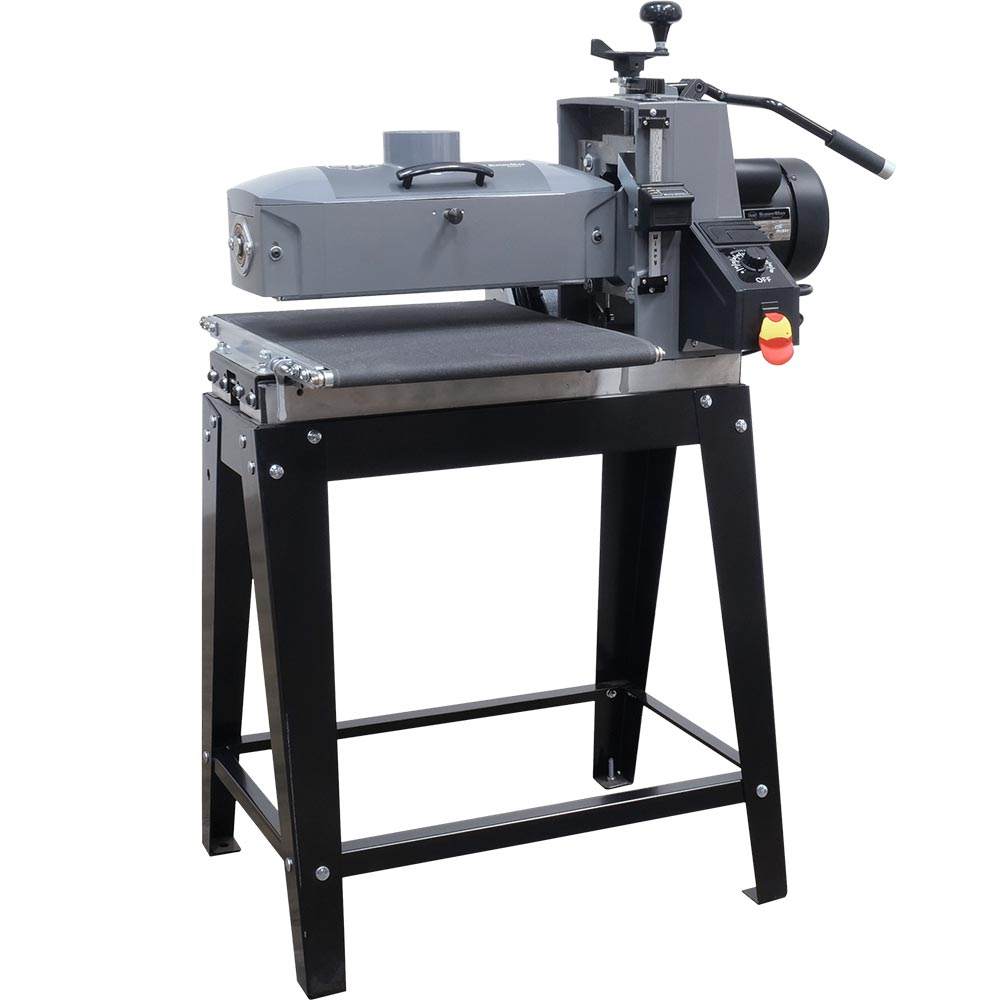

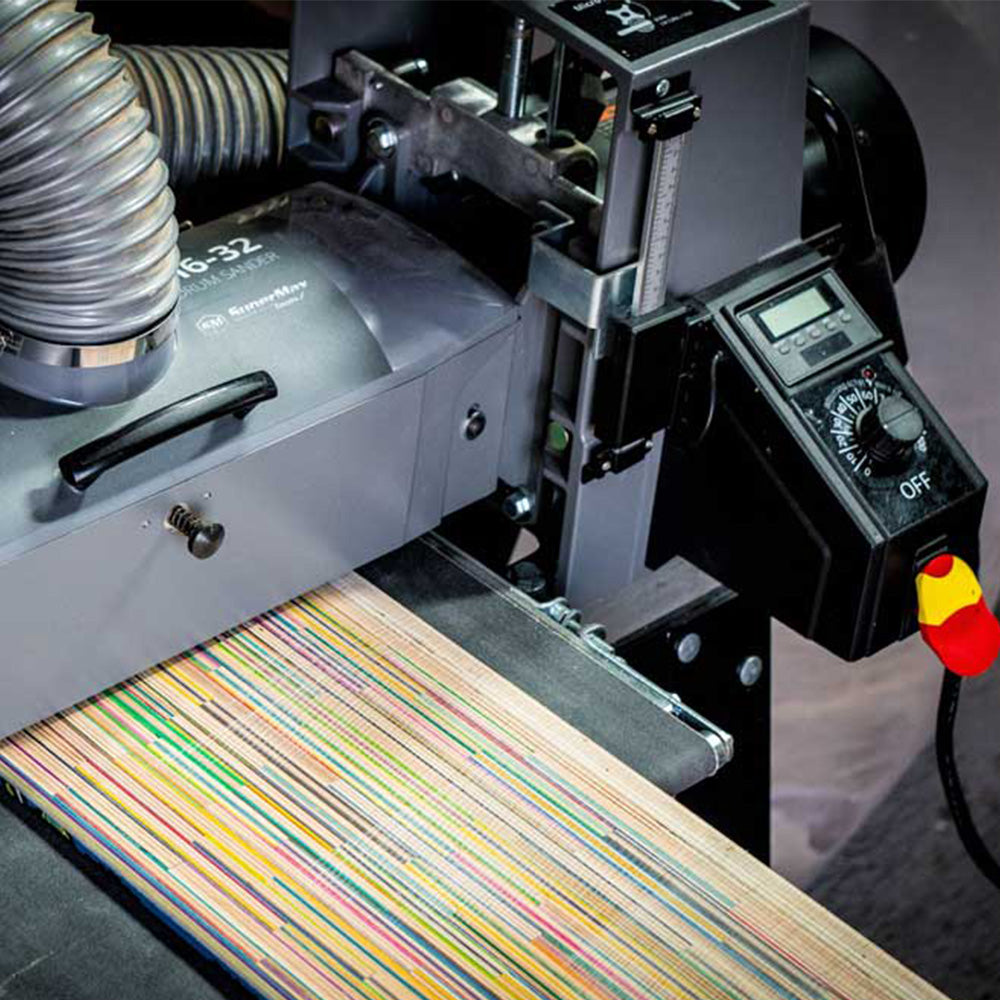

SuperMax 16-32 Drum Sander
- Sale price
- $ 1,349.10
- List price
- $ 1,499
Have questions? Give us a call at 260-637-0054.
The 16-32 Drum Sander was designed with features to improve productivity. The patented quick lever adjustment allows height adjustments from 0″-3″ with one pull of a lever, versus 48 revolutions of a hand wheel, greatly reducing set-up time and increasing productivity. Additionally, the drum carriage is bolted to the base, preventing any movement or alignment issues.
The Turbo Vented Dust Port increases CFM air-flow to dust collectors by 15%. Simple alignment features just one nut that adjusts the conveyor to parallel the sanding head, which makes aligning the conveyor fast and easy.
Features
- Patented “Quick Lever Adjustment” which allows height adjustments from 0″-3″ with one pull of a lever versus 48 revolutions of a hand wheel greatly reducing set-up time and increases productivity

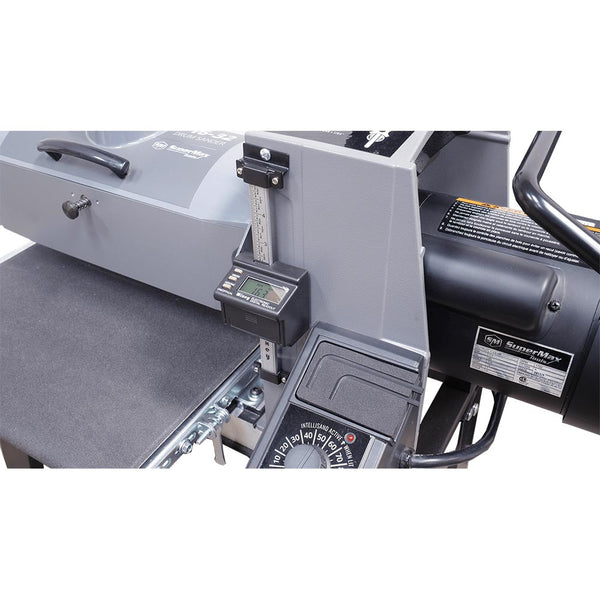

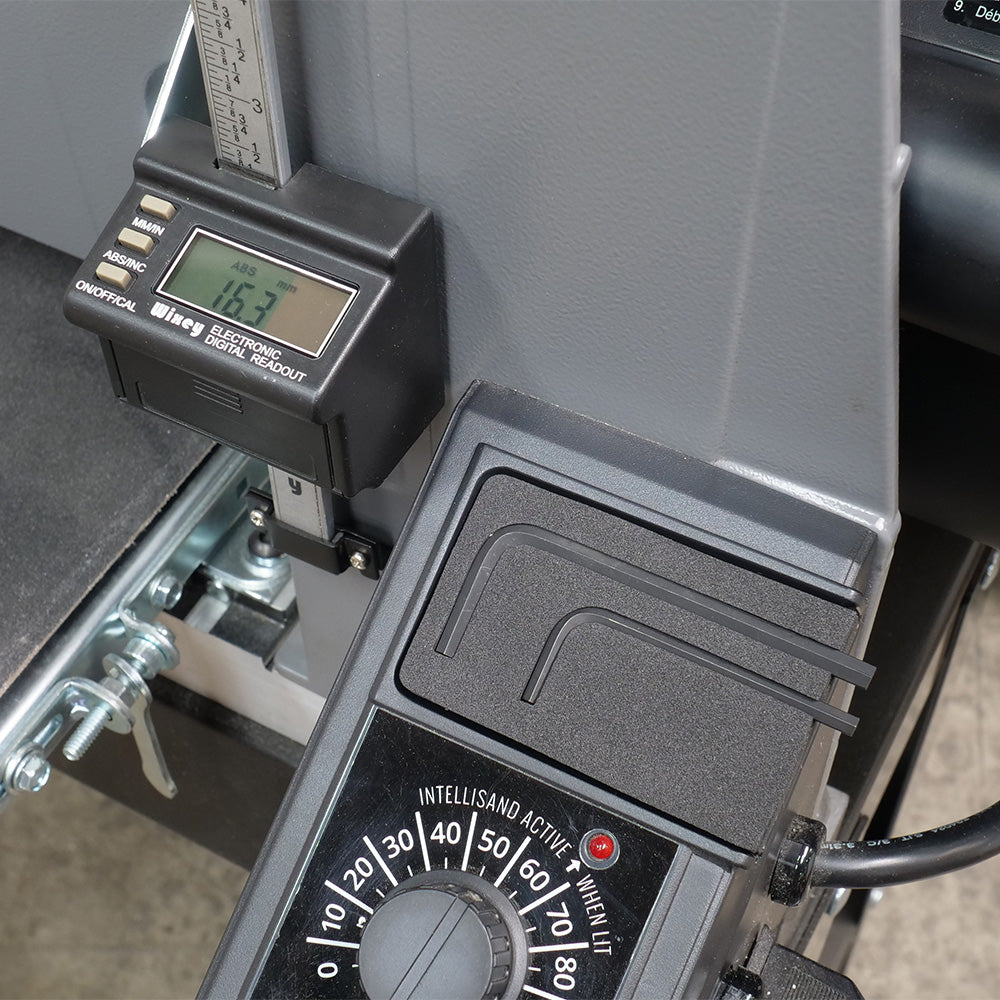

- Includes built-in Digital Read Out which helps maintain consistent thicknesses to increase accuracy and quality
- Turbo Vented Dust Port increases CFM air-flow to dust collectors by 15%
- Simple Alignment Feature – just one nut adjusts the conveyor to parallel the sanding head, making aligning the conveyor to the sanding head fast and easy
- Indexed alignment setting – the fast lever is an indexed alignment setting for narrow and wide stock. When sanding stock wider than 16″, the index lever will properly adjust the conveyor for flawless wide sanding
- Drum will never go “out of alignment” – the drum carriage is bolted to the base, preventing any movement or alignment issues
- Intellisand Technology
- CSA Certified
- Rear placement of the Gear Motor: improve conveyor belt tracking.
- Patented Fast Lever: allows quick adjustments for wide and narrow stock
- INTELLISAND Technology: prevents gouging, damaging, or burning material
Specs
Drum Speed: 1,740 RPM
Max. Sanding Width: 32″
Min. Sanding Length: 2-1/4″
Max. Sanding Thickness: 3″
Min. Sanding Thickness: 1/32″
Drum: 5″ x 16″ extruded aluminum
Dust hood Turbo Vented: 1×4″, vacuum port (min. 600 CFM recommended)
Conveyor Speed: 0-10 FPM
Drive Motor: 1.5hp
Power Requirements: 110 V, 15 Amp, 20 AMP
Shipping Weight: 158 lbs. (1 box including stand)
Dimensions (W x D x H): W: 34″ x 22″ x 48″ (without casters)
Video
After reading a number of reviews on drum sanders I decided to go with the SuperMax. Setup out of the box took a couple of hours and ran several boards for adjustments. Dust collection is excellent and the sanding quality is good. Like anything, using the correct sand paper for the task is important. Changing paper is quick and easy once you perform the task once. The speed adjustment knob does not stay in the correct position, so I have to manually put the indicator back on the "0" location before I start a project, my only complaint. There may be a simple fix, however, not taken the time to research. Overall, great addition to my hobby shop.
I haven’t had a chance to put it to a true test yet but all is ok so far . Assembly was easy , had to open holes up on top of stand to align with sander base . Details about some of the set up / assembly instructions are not exactly what I had . Did a minor adjustment on the feed table to drum alignment . Intake pressure roller had gotten out of adjustment and fell out , re installed and adjusted. Paper that comes with sander is very coarse and will be changed before using . Have not played with digital gauge other than install aaa batteries . Looks like it will fit my needs well .
