Made in Italy. Ships from the United States.
The Nova SI 400 is SCM’s best-selling sliding table saw. This robust machine is ideal for professional shops and tradespeople who process sheet goods like plywood, MDF, and OSB. With a 10.5 ft. squaring stroke and an impressive 11HP, 3-phase motor, the Nova SI 400 is built to handle material as thick as 5.5” (140mm).

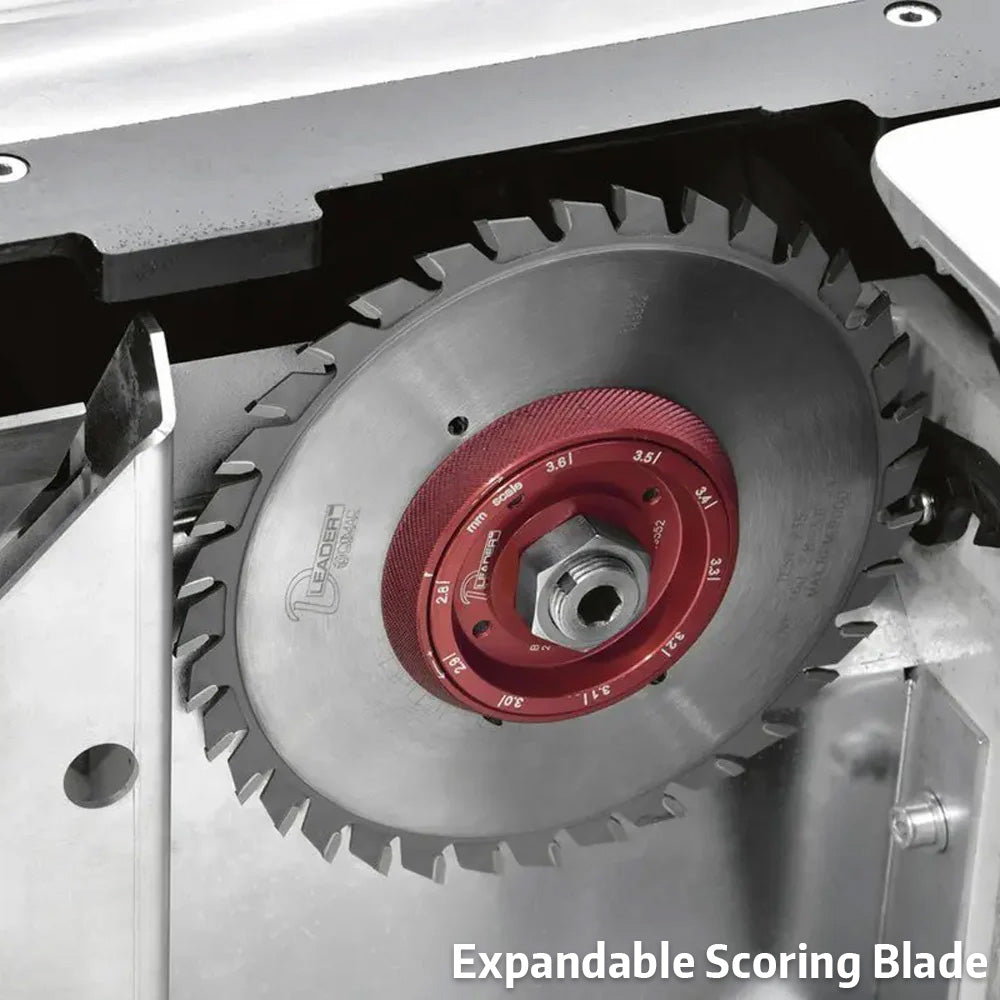

Along with a maximum blade capacity of 16” (400mm), the Nova SI 400 also features a scoring unit that accepts a 4.7” (120mm) expandable scoring blade. The scoring blade makes a preliminary cut designed to give the main blade a cleaner cutting path. This prevents tearout and is excellent for smooth, chip-free cuts in melamine and veneered plywood panels.

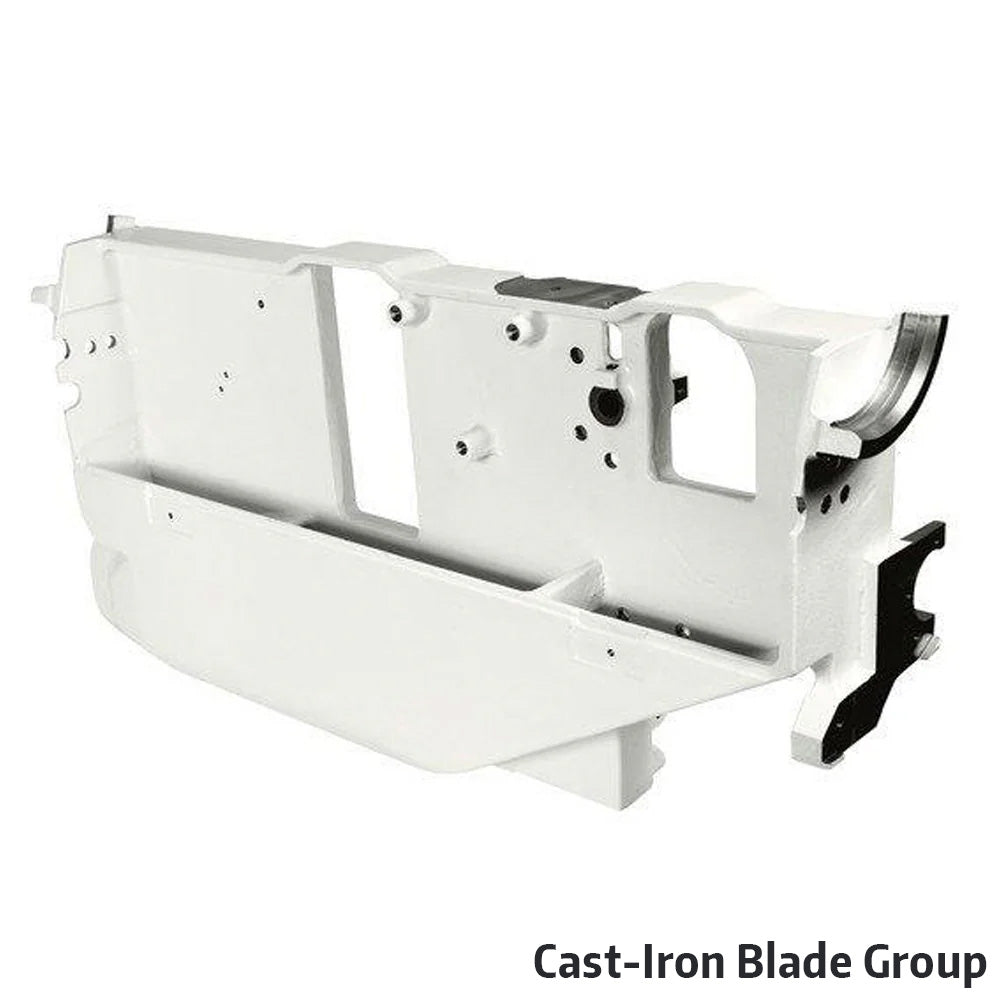

Many sliding table saw manufacturers bolt the blade assembly parts to the saw or have them pivoting on a pin. This often causes misalignment, which results in uneven, splintered cuts. SCM eliminates the possibility of misalignment by fully encasing the blade unit in a cast-iron structure. This robust structure nearly eliminates vibration and ensures perfect alignment of both the main blade and scoring blade.

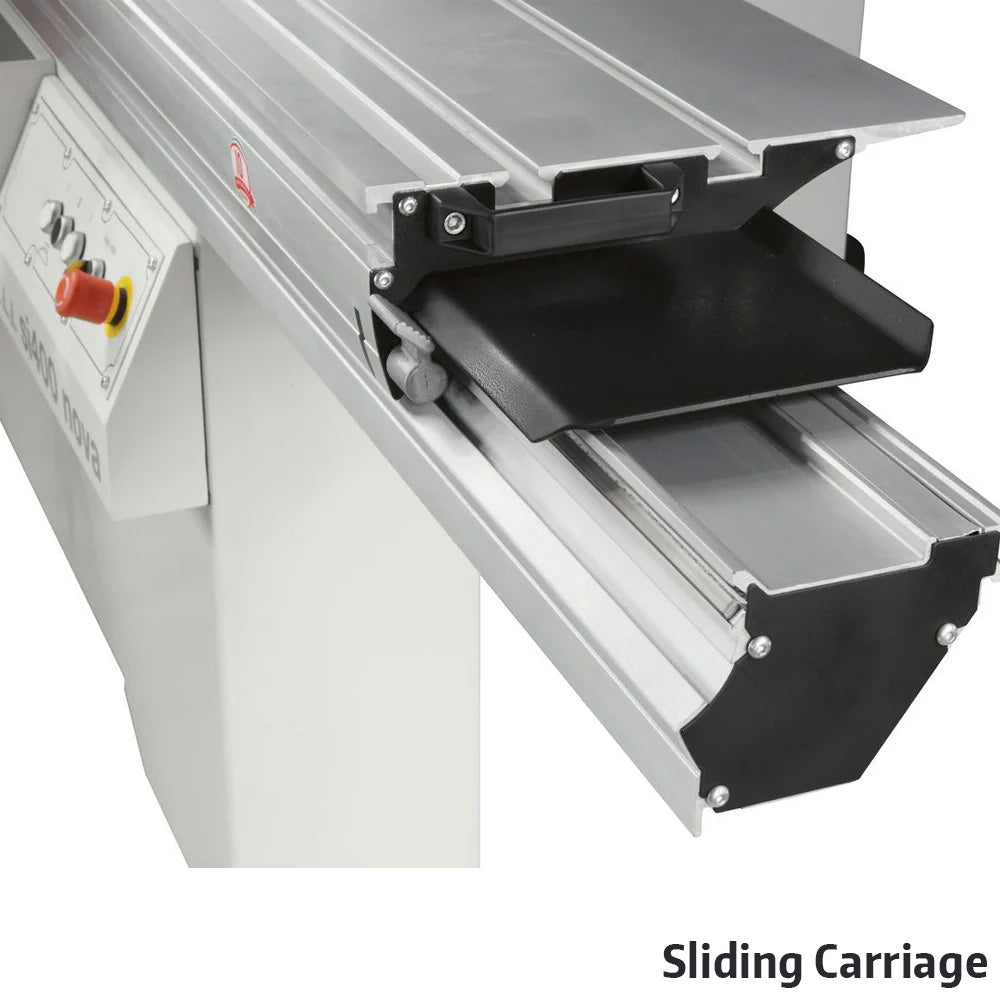

The Nova SI 400 has a wider sliding table with channels for added versatility compared to SCM's Minimax line. The sliding system is made up of steel ball bearings running on tempered and calibrated steel guideways. These guideways are embedded into the aluminum extrusions (no adhesive used) and are designed to last the life of the machine with no adjustments needed.
The Nova SI 400 features a telescopic squaring fence with two flip-over stops for fast referencing when cutting workpieces with the same dimensions. This fence also features a swinging arm support, a steel idle roller to help with panel loading/unloading, and a metric ruler tilted towards the operator.
Utilize SCM's Thundercut App to get the most out of the Nova SI 400. This app is compatible with iOS and Android operating systems, and allows you to:
Optional Installation & Training
When purchased, installation will be performed by an SCM factory-trained service technician or certified dealer technician. Installation is defined as assembling the machine to its "ready-to-run" state; it does not include floor/masonry work or running electrical, pneumatic, or dust extraction services. Training will be conducted on site by the technician after installation is completed.
Warranty
SCM warrants that every machine is free of defects in workmanship and materials for a period of one (1) year beginning on the date the machinery is accepted by the customer. Belts, bearings, and common electrical parts carry a six-month warranty. This warranty does not include wearable items or maintenance required in the ordinary course of operation.
Main Motor Horsepower: 11hp
Scoring Blade Motor Horsepower: 1hp

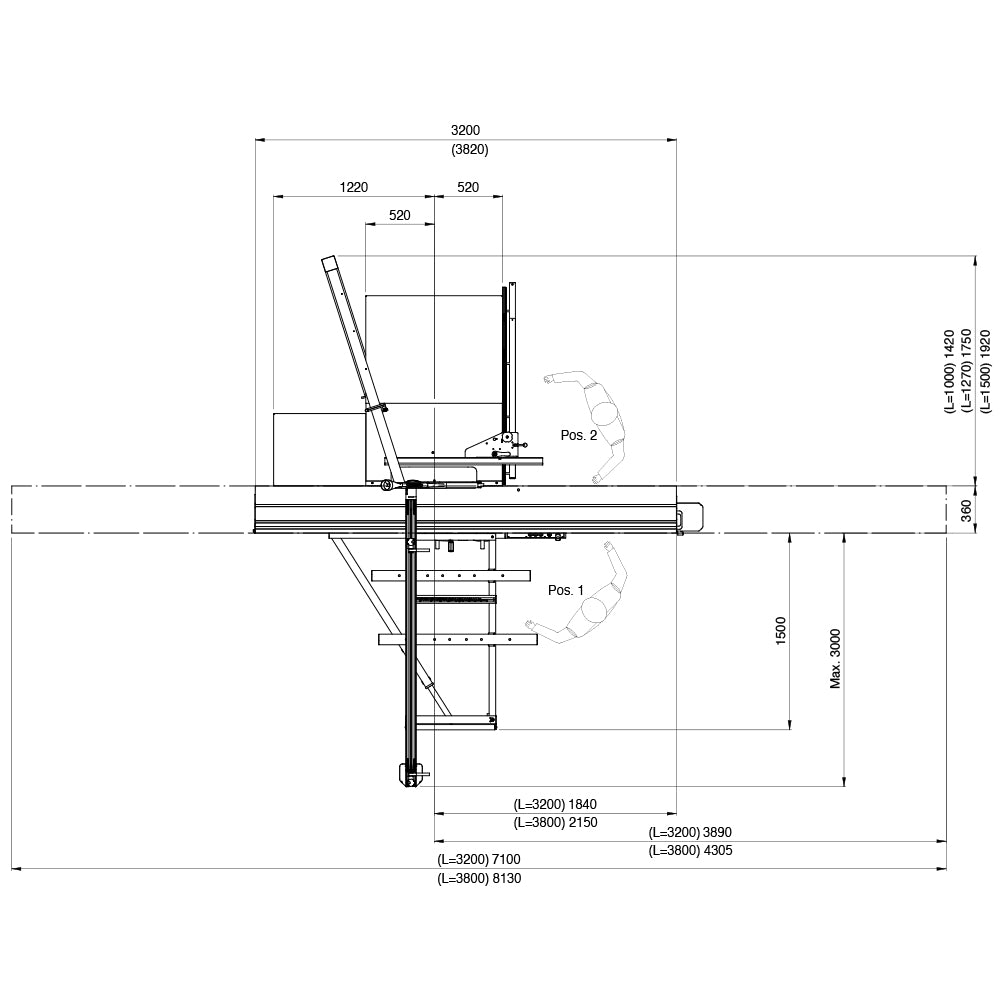

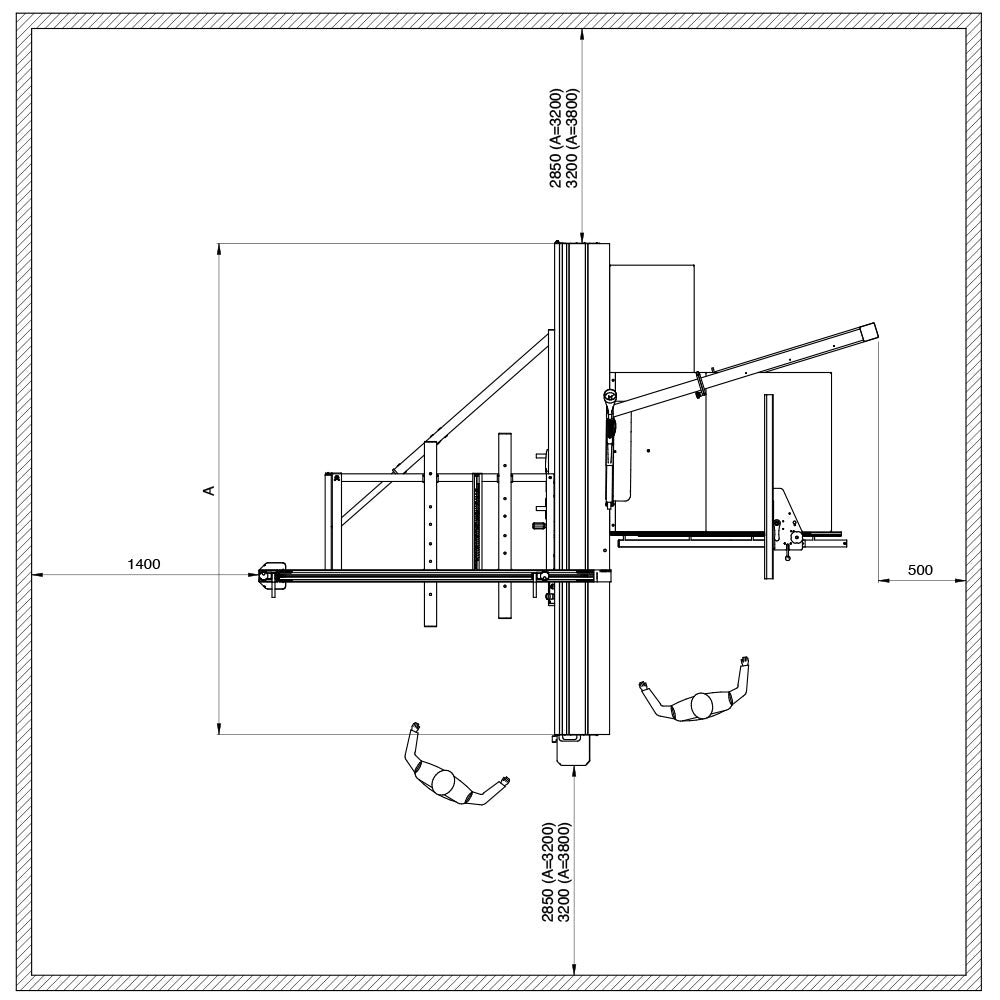

Overall Machine Footprint (accounts for moving slider): 26.7 ft. x 16.8 ft. (max. space saw can take up)
Height of Worktable: 35.4"
Rip Capacity: 50" (1,270mm)
Max. Squaring Stroke: 126" (3,200mm)
Main Blade Diameter / Arbor: 16" (400mm) / 1" (25.4mm)
Scoring Blade Diameter / Arbor: 5" (120mm) / 3/4" (19mm)
Arbor Speed (Main): 3,700 RPM
Arbor Speed (Scoring): 8,500 RPM
Dust Outlets (Main): 5"
Dust Outlets (Overarm Guard): 3.25"
Depth of Cut - 0° / 45°: 5.5" / 3.8"
Net Weight: 2,200 lbs.
*Electrical Requirements: 220V, 3-phase, 30 amp (recommended 40 amp breaker)
Dust Extraction: 696 CFM
*Subject to change. Must be verified prior to installation.
NOTE: The following accessories are optional and not included with the machine. They can be purchased at any time, but you can also take advantage of Accessory Bundle Pricing (applicable only at the time of machine purchase). Call us at (260) 637-0054 for more information and to place your order!
Squaring fence with 2 LCD stop position readouts
-Each stop features a detecting system and micrometric adjustment, and is equipped with independent electronic digital readout on LCD displays. The stop can be positioned close to the blade with a minimum distance of 350mm.
Extra squaring fence stop with LCD readout
Angular cutting device with flip-over stops
-This device is pre-set for rapid angle selection and is equipped with a telescopic fence with two flip-over stops.
Self-adjusting device for angular cutting
-With self-adjustment of the stop position in reference to the blade, regardless of the angles used. Complete with aluminum fence and flip-over stop.
Complementary cutting fence
-Attaches to the squaring fence.

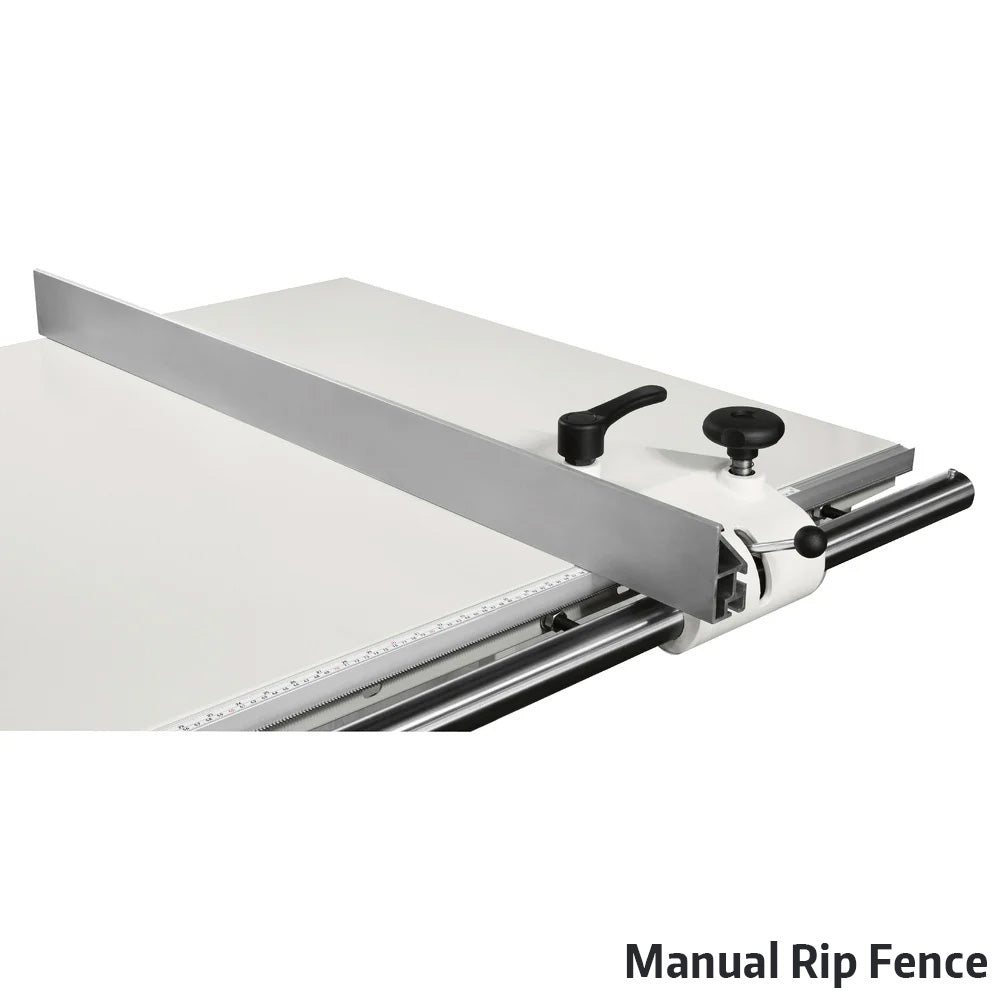

Parallel cutting fence
-For cutting on the sliding carriage. Complete with mm ruler, extended stop for cutting sizes up to 1,000mm, and mm reference system for the first trim cut.
Digital readout for parallel fence positions
-Complete with digital display and magnetic band.
Additional table on sliding table
-For supporting large panels.
Supplementary stop for squaring rule
Eccentric clamp
