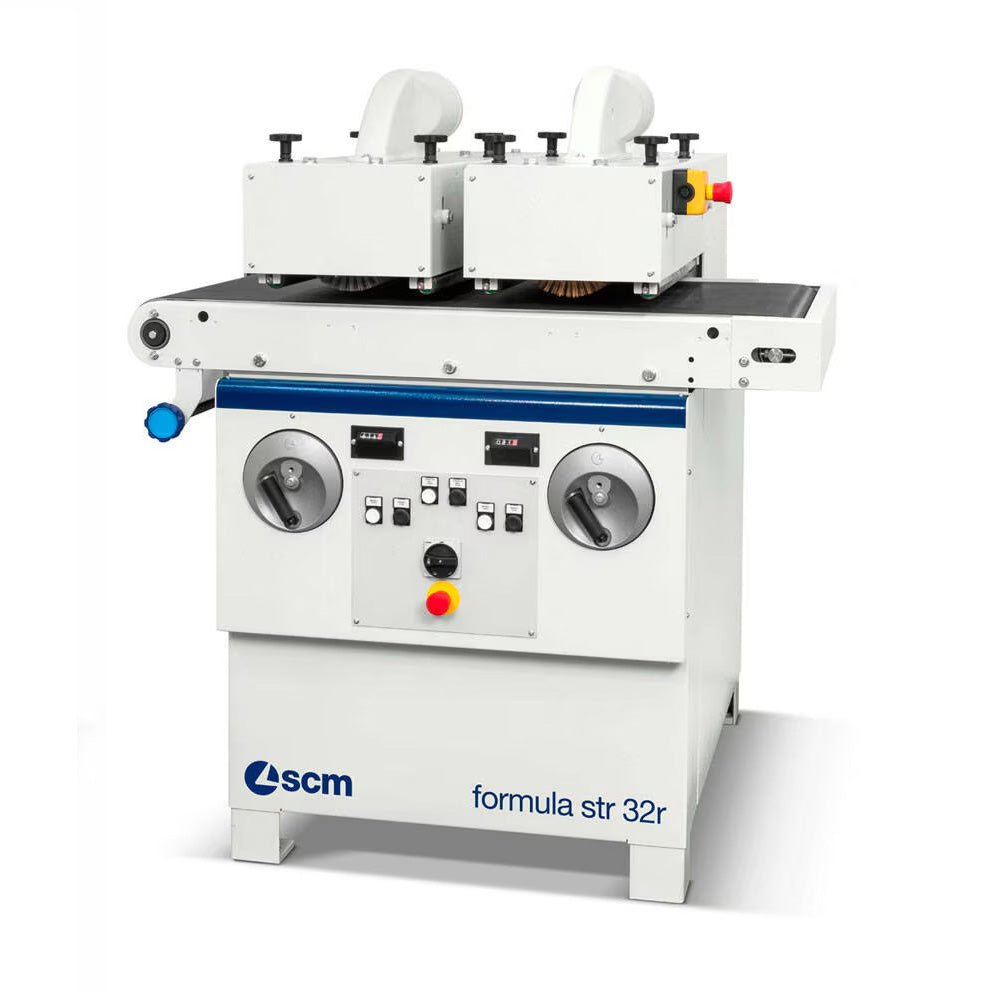

SCM Formula STR 32R Structuring Machine
SCM Formula STR 32R Structuring Machine
SCM Formula STR 32R Structuring Machine
SCM Formula STR 32R Structuring Machine
Click image to open expanded view
SCM Formula STR 32R Structuring Machine
SCM Formula STR 32R Structuring Machine
SCM Formula STR 32R Structuring Machine
SCM Formula STR 32R Structuring Machine

SCM Formula STR 32R Structuring Machine

$ 17,375

Have questions or need help choosing a machine?
Call us at 260-637-0054 or email sales@oaktreesupply.com

Business Financing Available

Eligible for a Section 179 tax deduction. See how much you can save >

Made in Italy. Ships from the United States.

  • Freight included in price*
  • Estimated to ship April 2026**

For a wide range of products such as flooring, decking, doors, or furniture elements, manufacturers seek to emphasize the natural grain of wood in order to obtain an antique or textured finish. SCM's STR 32R features brush filaments that abrade the softer wood fiber more than the hard ones, revealing the grain of the wood and leaving a surface that can be stained or filled with a vast array of unique finishes.

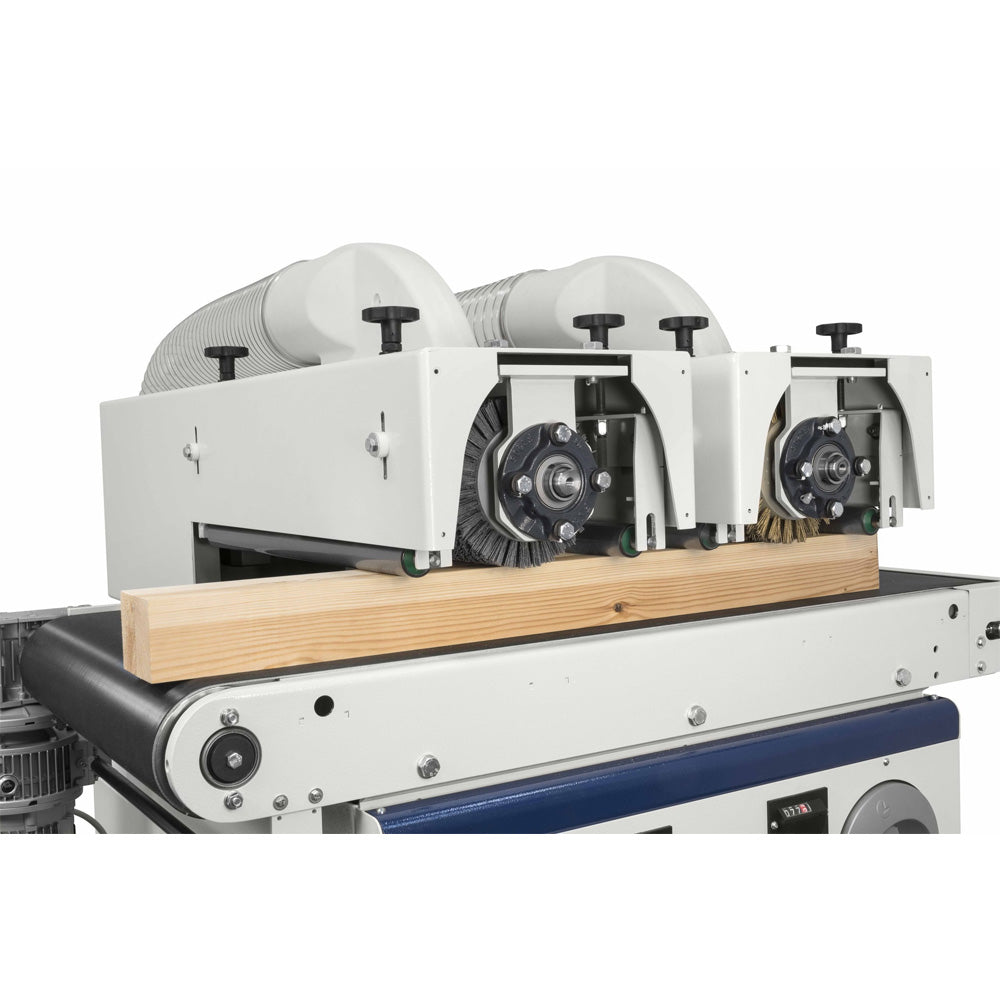

This machine consists of two independent brushing units. The first unit (steel brush) is for roughing, while the second unit (tynex brush) is for finishing. Brushing with metal bristles roughens the wood zones while the secondary tynex brush smooths the transitions and thereby gives the structure a softer, vintage appearance.

The degree of structuring can be changed by setting the working depth. Different degrees of finishes may also be obtained by changing out the type of brushes. Easily achieve an even structuring and pressure with the adjustable contact rollers at both ends of each brush.

Features
  • Double operating unit allows to obtain the desired finish in a single pass

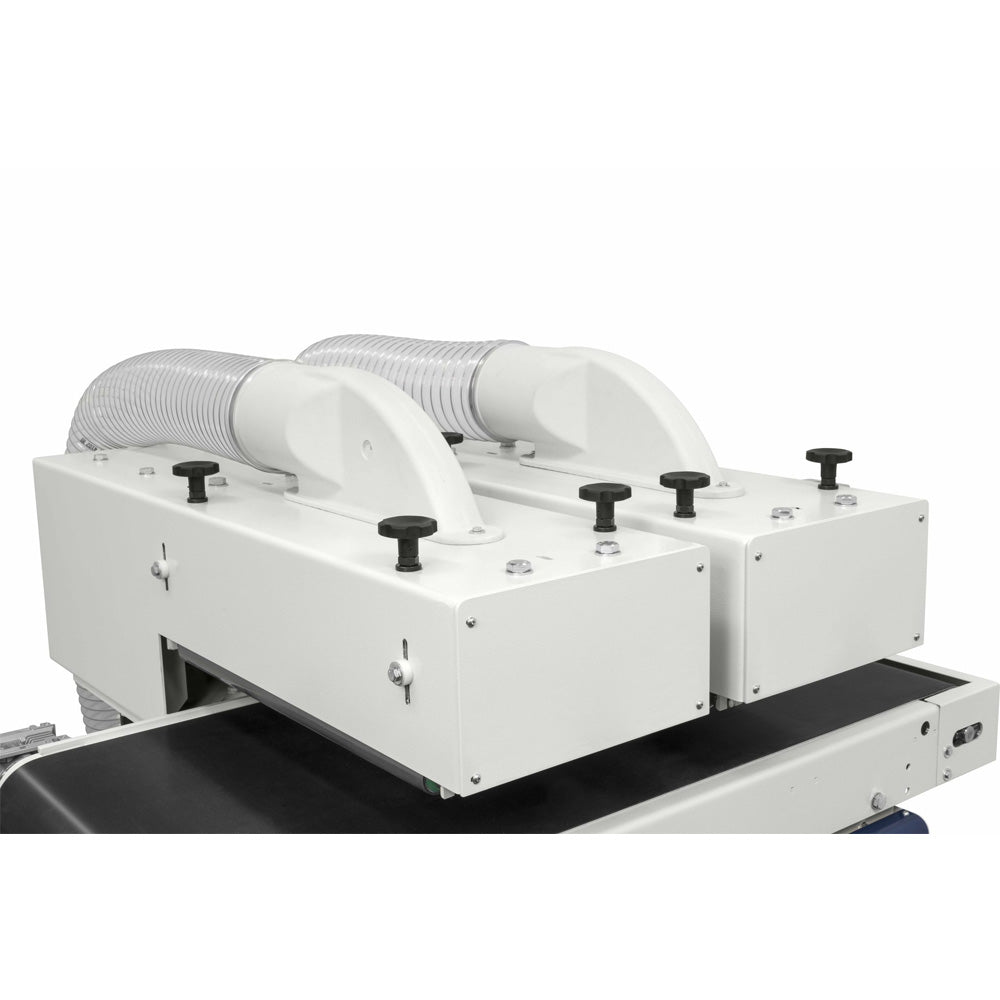

  • Large diameter exhaust hoods grant optimal dust extraction
  • Rubber belt with vertical grooves for excellent adherence

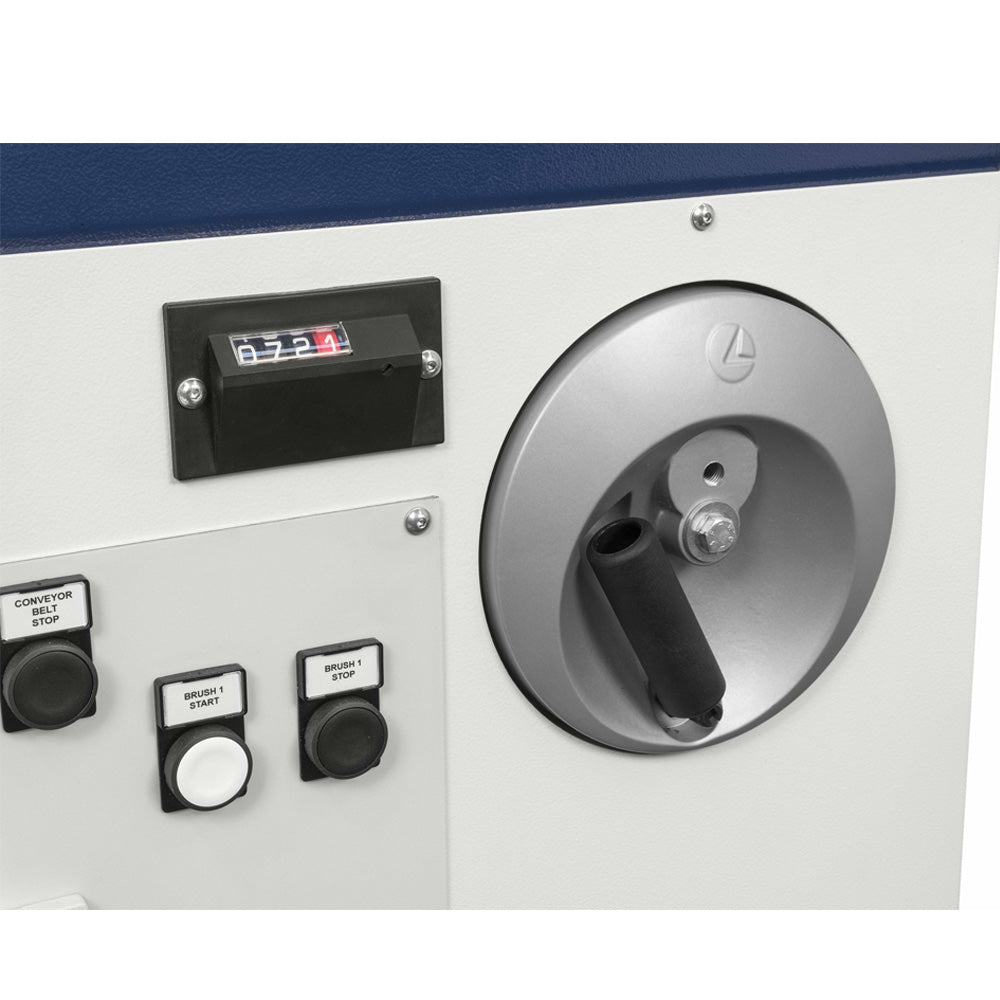

  • Front handwheels for manual lifting
Specs

Working units: 2
Working width: 11.8” (300mm)
Max. working height: 11.8” (300mm)
Dust extraction hoods (2x): 5.5” (140mm)
Brush speed: 1,500 RPM
Feed speed: 3 – 20 m/min
Brush diameter: 7.5” (190 mm)
Inner shaft diameter: 1.6” (40 mm)
Motors: 4hp each
Electrical: 220V, 3-phase
Feed belt motor: 0.3hp
Net weight: 970 lbs.
Dimensions (W x D x H): 51.2” x 35.4” x 51.2” (1,300 x 900 x 1,300mm)

**Machinery Availability Key

Availability statuses found above the product description reflect where a machine is in the supply chain at the time of listing. Use the key below to help determine the lead time for this machine.

In stock for immediate shipment: The machine is in OakTree Supply's warehouse and is ready to ship.

In stock as of [date] / Low stock as of [date]: The machine is in the manufacturer’s U.S. warehouse and was available as of the last update we received. Estimated to ship in 3-5 business days. If low stock, please call us before ordering to confirm current availability.

Estimated to ship [date]: The machine is not yet in our warehouse or the manufacturer’s warehouse. The date shown is an estimate based on current production and shipping timelines and may change due to manufacturing schedules, import processing, or freight transit.

Dates listed as “estimated” are not guaranteed and may change. OakTree Supply is not responsible for delays in transit to or from our facility.

SKU: STR 32R
