$ 20,375

Have questions or need help choosing a machine?
Call us at 260-637-0054 or email sales@oaktreesupply.com

Business Financing Available

Eligible for a Section 179 tax deduction. See how much you can save >

Made in Italy. Ships from the United States.

  • Freight included in price*
  • Estimated to ship April 2026**

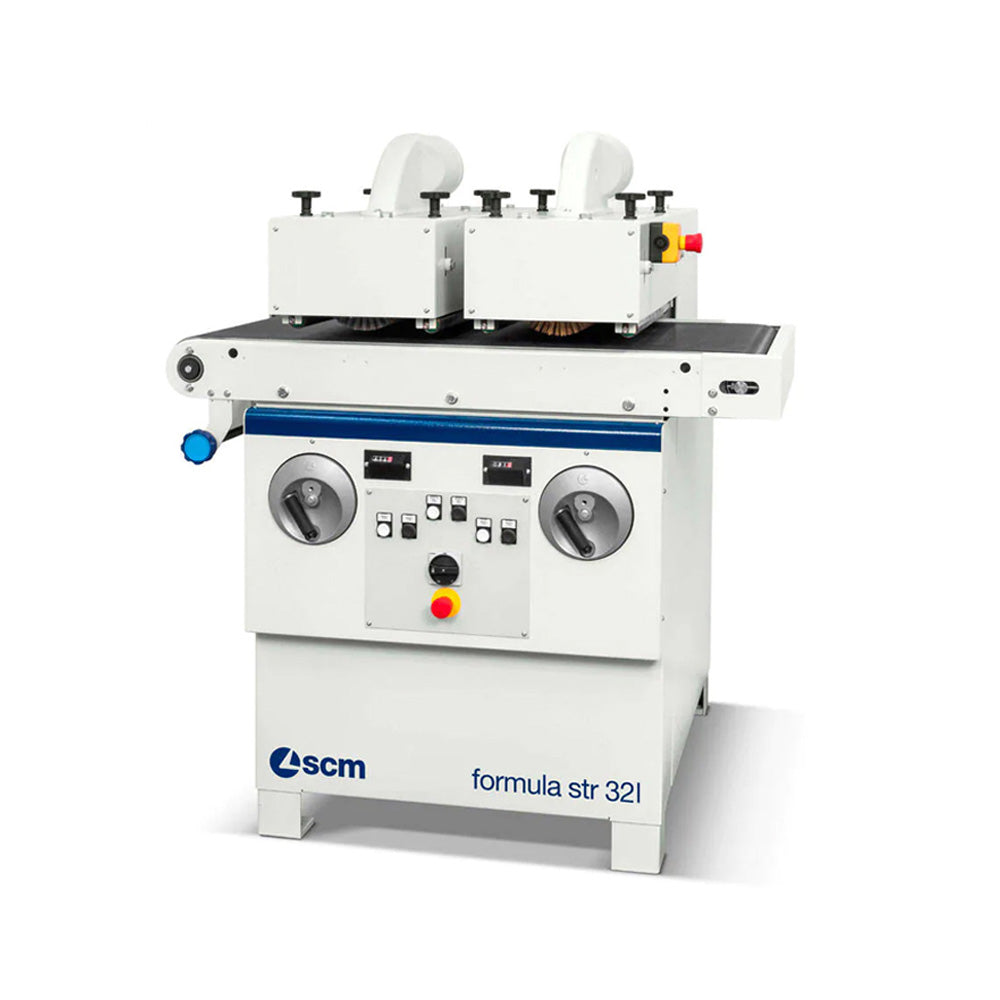

For a wide range of products such as flooring, decking, doors, or furniture elements, manufacturers seek to emphasize the natural grain of wood in order to obtain an antique or textured finish. SCM's STR 32L features brush filaments that abrade the softer wood fiber more than the hard ones, revealing the grain of the wood and leaving a surface that can be stained or filled with a vast array of unique finishes.

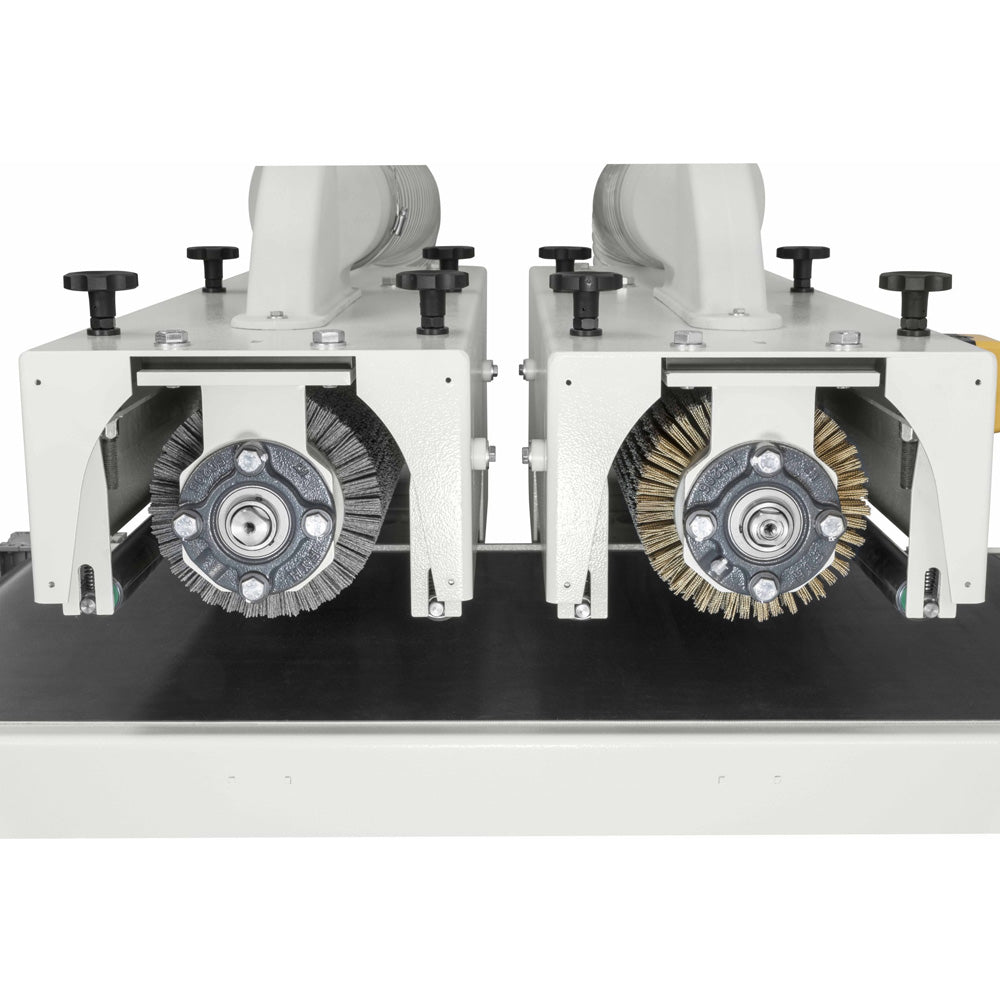

This machine consists of two independent brushing units fitted with abrasive insert brushes and inverter controlled motors for surface sanding. Together, they sand and smooth the wood grain and thereby give the structure a softer, vintage appearance.

The degree of structuring can be changed by setting the working depth. Different degrees of finishes may also be obtained by changing out the type of brushes. Easily achieve an even structuring and pressure with the adjustable contact rollers at both ends of each brush.

Standard Equipment:

  • High resistance rubber belt
  • Variable feed speed adjustment
  • Brush with 32 abrasive inserts (120 grit and natural fiber support inserts)
  • Brush with 32 abrasive inserts (180 grit and natural fiber support inserts)
  • Variable rotational speed of the brush motors with inverter

Features
  • Double operating unit allows to obtain the desired finish in a single pass

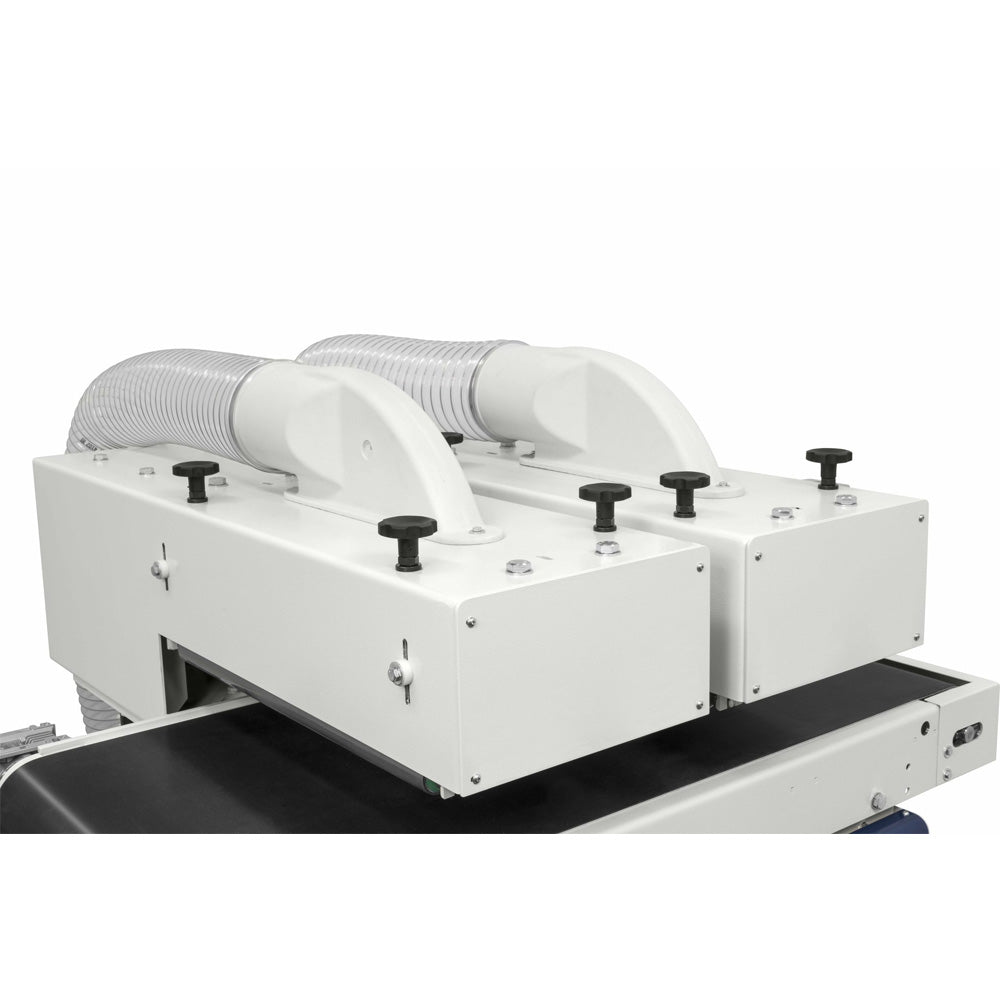

  • Large diameter exhaust hoods grant optimal dust extraction

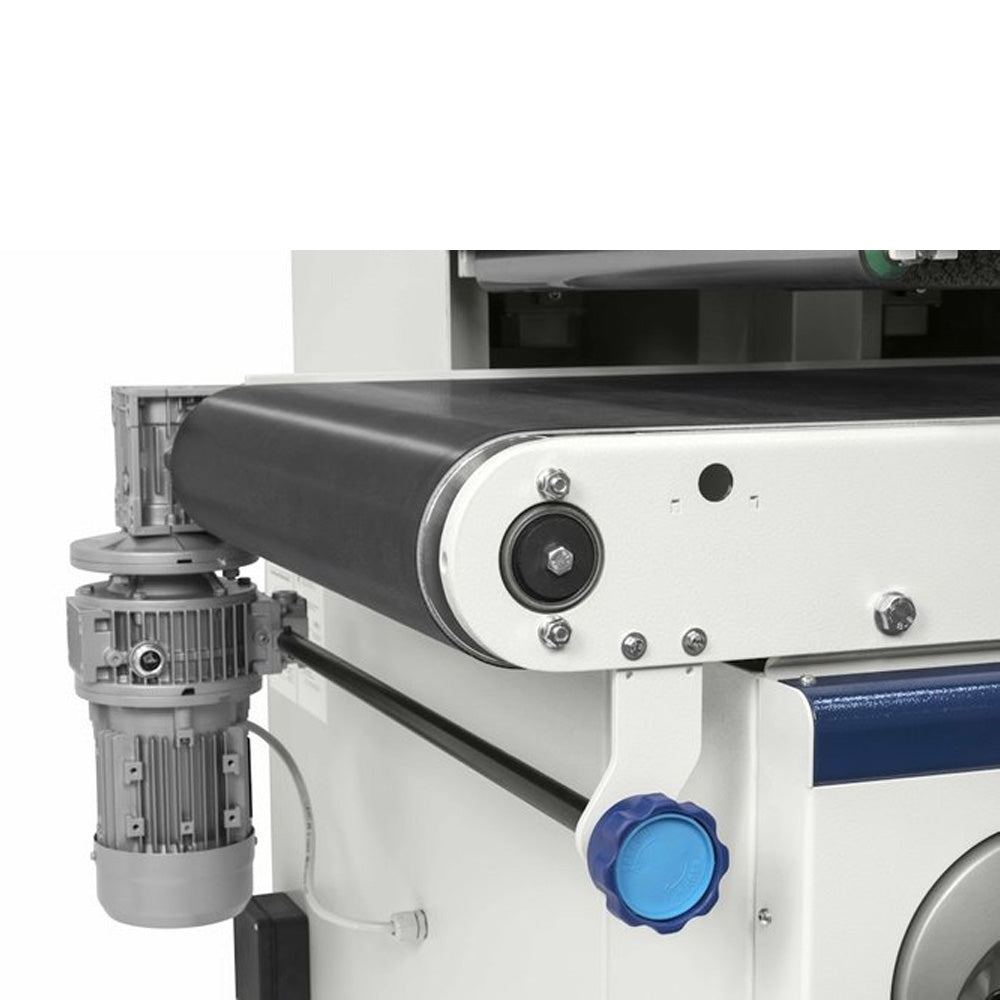

  • Rubber belt with vertical grooves for excellent adherence
  • Front handwheels for manual lifting
Specs

Working units: 2
Working width: 11.8” (300mm)
Max. working height: 11.8” (300mm)
Dust extraction hoods (2x): 5.5” (140mm)
Brush speed: 100 - 1,500 RPM
Feed speed: 3 – 20 m/min
Brush diameter: 9.45” (240 mm)
Inner shaft diameter: 1.6” (40 mm)
Motors: 4hp each
Electrical: 220V, 3-phase
Feed belt motor: 0.3hp
Net weight: 970 lbs.
Dimensions (W x D x H): 51.2” x 35.4” x 51.2” (1,300 x 900 x 1,300mm)
