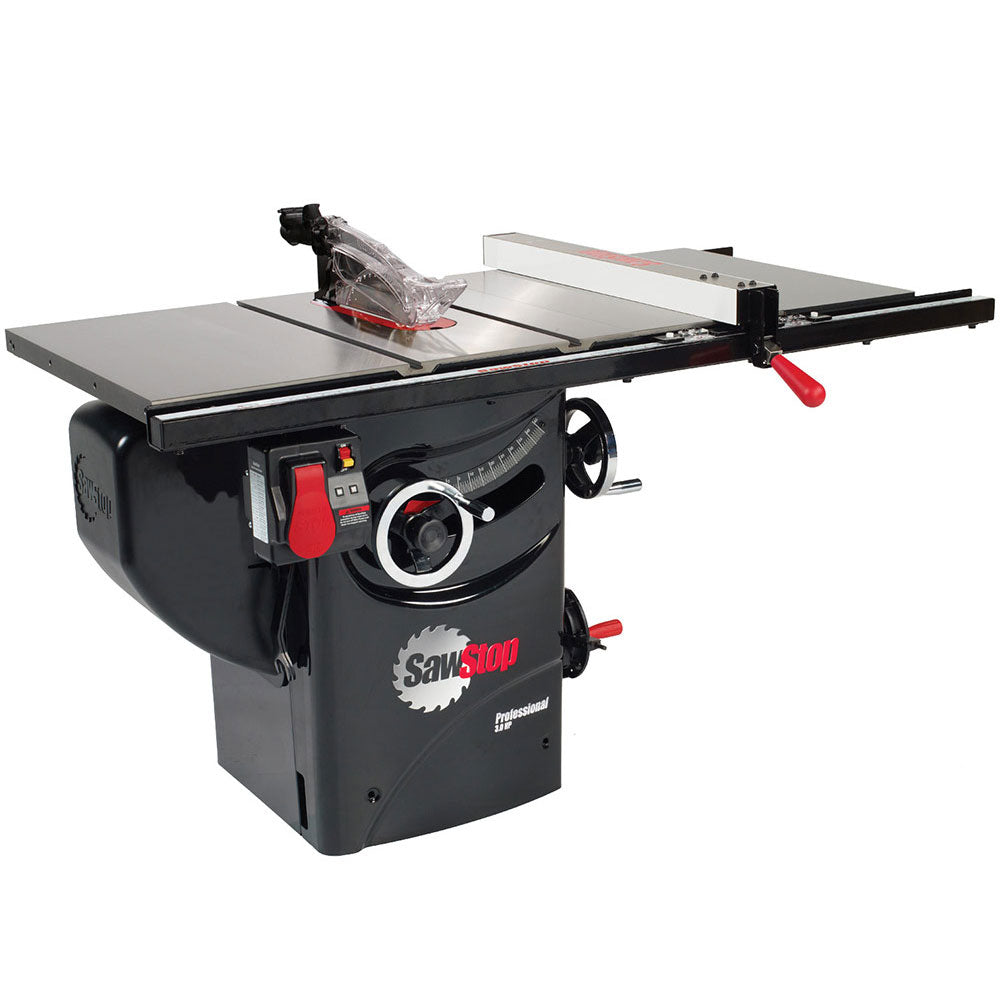

The SawStop Professional Cabinet Saw (PCS) combines SawStop’s patented safety system with class-leading quality and performance, making it ideal for avid hobbyists and small shop professionals. In addition to unmatched safety and dust collection, this 3hp table saw offers many other features including convenience, precision engineering, and durability that make it the right saw to get the job done.
The heart of the SawStop Industrial Cabinet Saw is the skin contact detection. The blade carries a small electrical signal that is continuously monitored by a digital signal processor. The signal changes when it comes in contact with skin since the human body is conductive. This triggers the quick release aluminum brake. A heavy-duty spring forces the brake into the teeth of the spinning blade, stopping it instantly.
A good fence system is essential to accurate cutting. The 30” rip capacity is matched up with the strong premium fence. A magnified indicator lens on the fence makes it easy to see measurements down to 1/32”. Widely spaced glide plates and an infinitely adjustable rail provide flawless travel along the extension table. The Zero Clearance insert supports the wood along the cut and reduces tearout.
The Professional Cabinet Saw’s true vertical gas assisted elevation system makes raising and lowering the blade a breeze. The trunnions and motor are perfectly balanced for precise tilt adjustments, providing consistent and accurate blade alignments at all elevations. Not only does this improve the accuracy of your cuts, it also reduces the risk of binding and kickback.
Made of a solid piece of cast iron, SawStop tables are sturdy and machined ground to the tightest tolerances. Additionally, the beveled edges of the tables prevent scratching of delicate surfaces. The poly-v-ribbed belts transfer more power to the blade for better cuts with less vibration. The powder-coated steel cabinet resists rust and corrosion to ensure life-long reliability.
The SawStop Professional Cabinet Saw is built to work with any kind of wood for any kind of cut, including rips, crosscuts, angled cuts, beveled cuts, wide cuts, and narrow cuts. Designed by woodworkers to provide extraordinary safety, quality, and performance that truly sets it apart from other table saws, the PCS is truly unmatched.

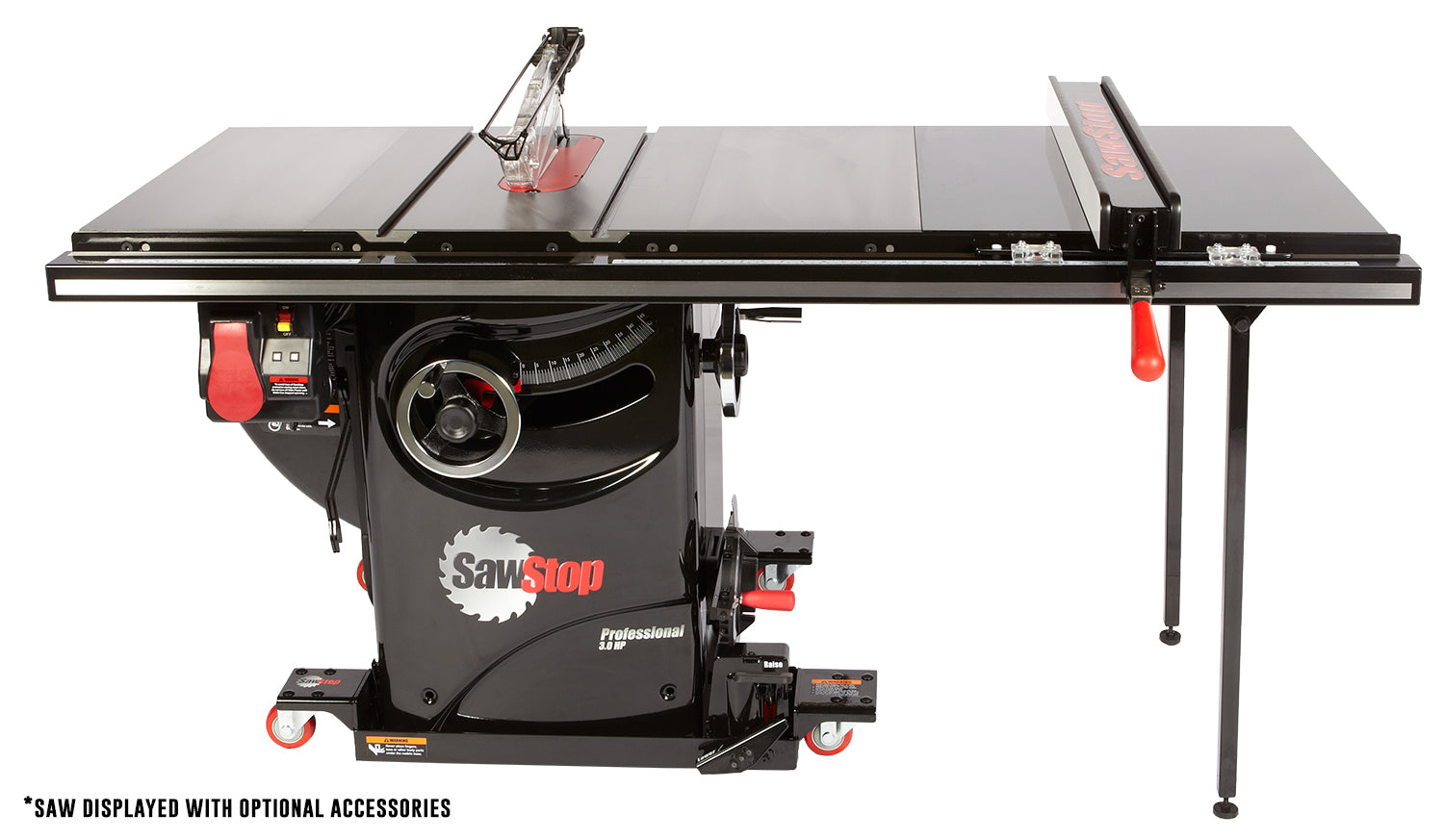

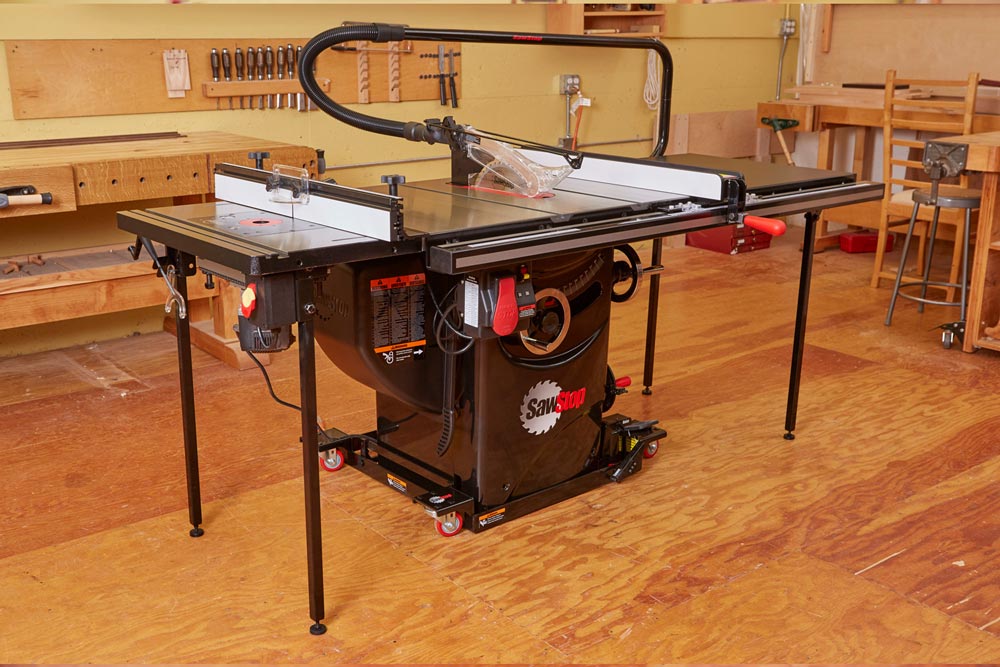

Want to make your saw mobile? Add the optional Mobile Base.
Only ships to continental 48 states - Not available for express or overnight shipping
Motor: 60Hz, TEFC, 3HP, 1 phase, 230v, 13 A Plug: NEMA 6-16P w/9' cord
Overall saw dimensions: 61-3/4" W x 31-1/8" D x 34" H
Cabinet footprint: 19-3/8"W x 19-3/8"D
Cast iron table: 20"W x 27"D
Extension wings: 12"W x 27"D each
Cast iron table (w/ extension wings): 44" W x 27" D
Extension table: 12" W x 27" D
Assembled Weight: 380 lbs
Weight - table saw only: 335 lbs
Blade: 40-tooth, prof. grade, 5/8″ arbor
Blade diameter: 10"
Blade tilt: Left
Blade kerf: 0.118" (3 mm)
Blade plate thickness: 0.078" (2 mm)
Max. depth of cut, blade at 0º: 3-1/8"
Max depth of cut, blade at 45º: 2-1/4"
Max. rip, right of blade: 30" (w/ 30" rails)
Max. rip, left of blade: 12"
Dado diameter: 8" (requires 8R2 brake, dado insert)
Dado max. width: 13/16"
Arbor diameter at blade: 5/8"
Main bearing size: 62 mm OD x 30 mm ID
Second bearing size: 52 mm OD x 25 mm ID
Table in front of blade (max. elevation): 10-1/4"
Table behind blade (max. elevation): 7-1/2"
Arbor runout: 0.001" maximum allowable runout
Table flatness measured diagonally: 0.010" maximum gap
Blade alignment with miter slot: 0.010" maximum displacement
Deviation of miter gauge indexing stops from actual: +/- 0.25 degrees
Alignment between splitter and blade: 0.010" maximum difference
Miter slots T-Shaped: 3/4" at top, 1" at bottom, 3/8" deep
Miter slots center: 11-1/8" center-to-center
Miter Slots info: 5-1/2" (arbor flange to center of right slot)
Dust collection port diameter: 4"
Riving knife / splitter thickness: 0.090" (2.3 mm)

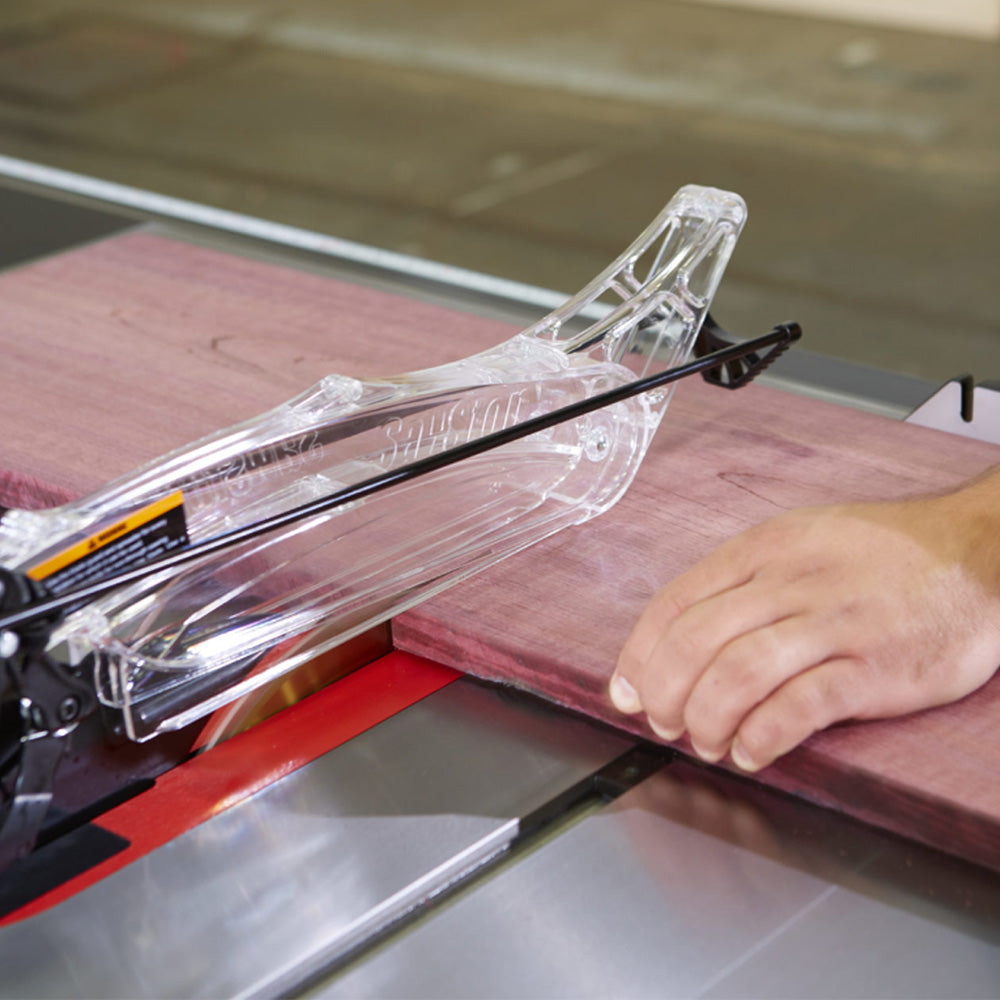

Dust collection blade guard: polycarbonate, extends 1-3/16" right of blade
Blade guard (dust collection) port diameter: 1-1/2" Outside, 1-1/4" Inside
Insert: zero clearance, phenolic core, melamine surfaces

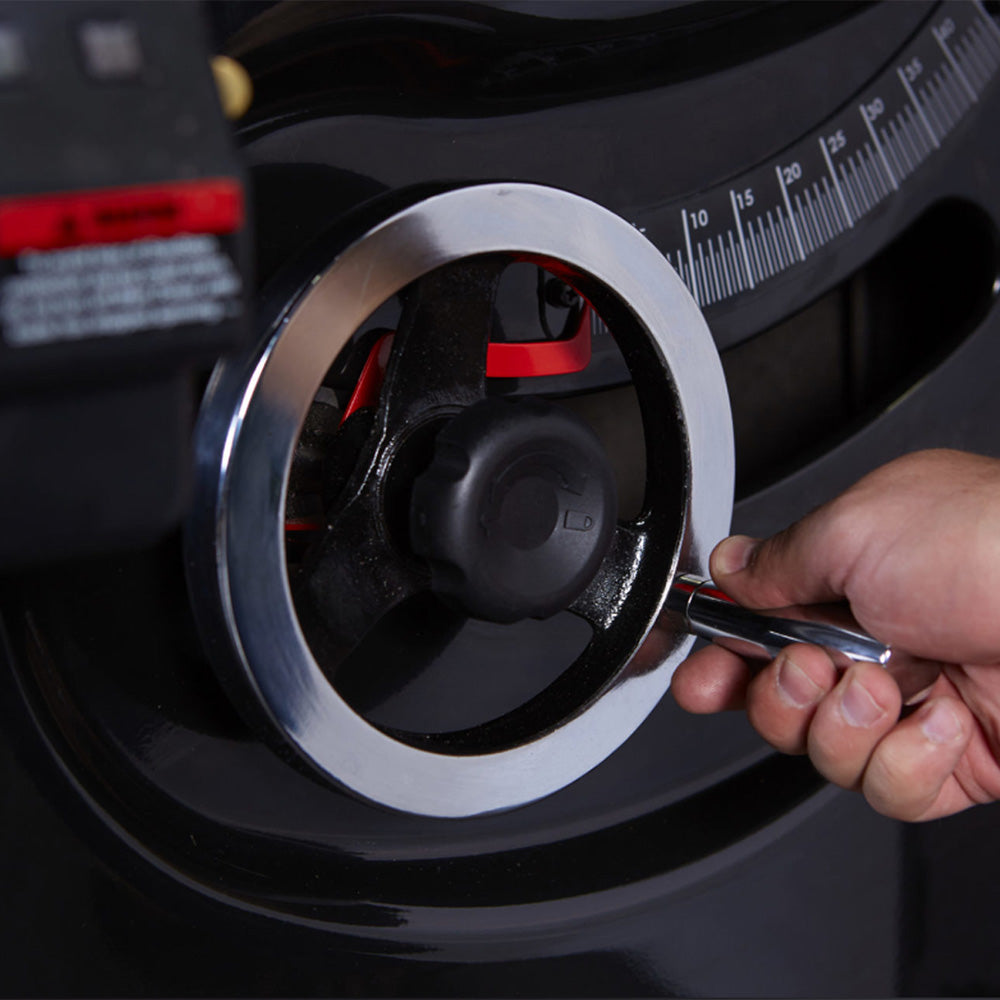

Hand wheels: 7" diameter, cast iron w/ chrome handle
Belts: 2 V-ribbed belts - arbor b. static dissipative
Warranty: 2 years
