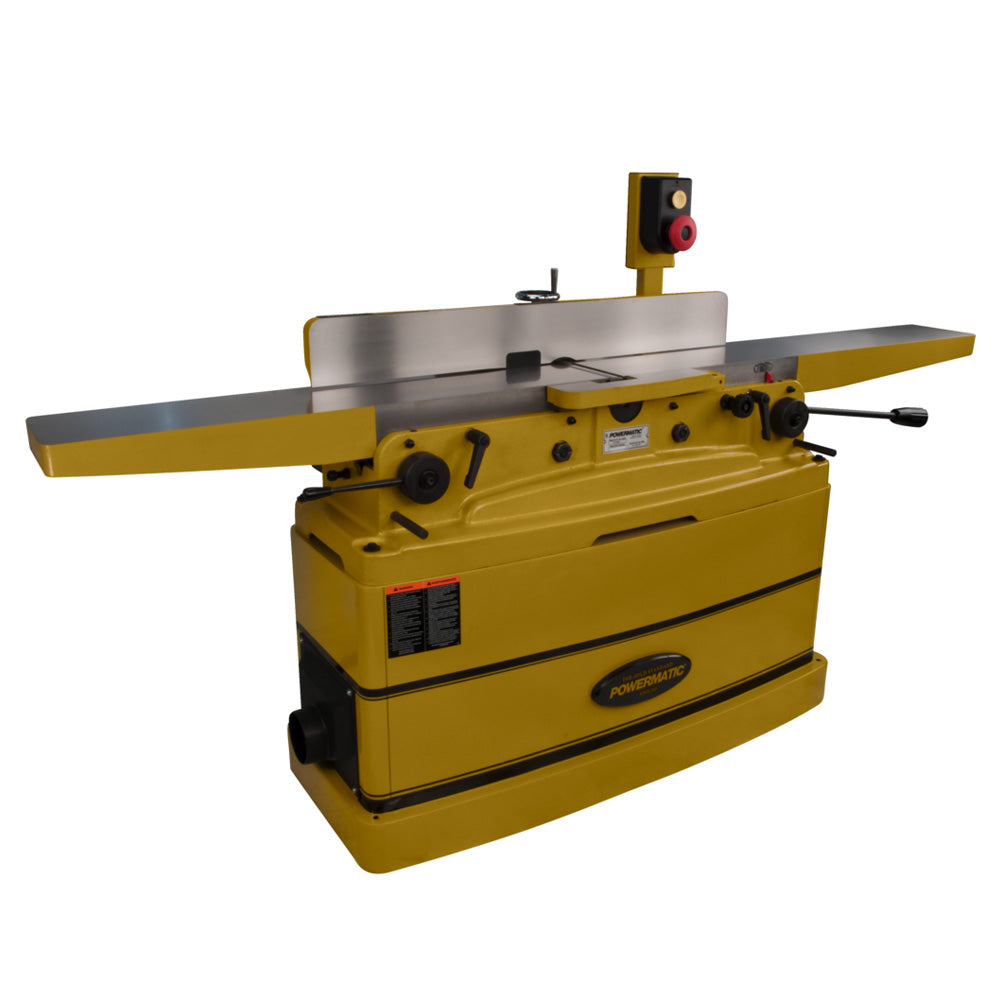

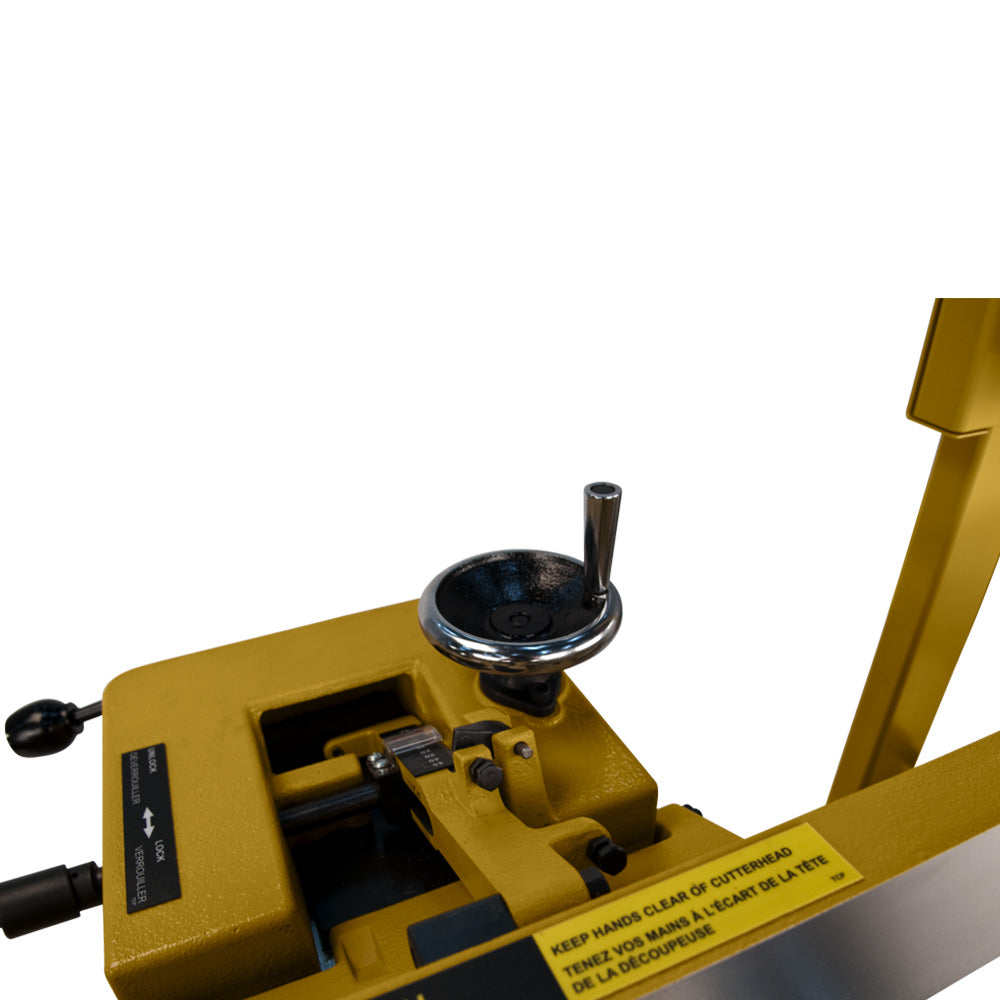

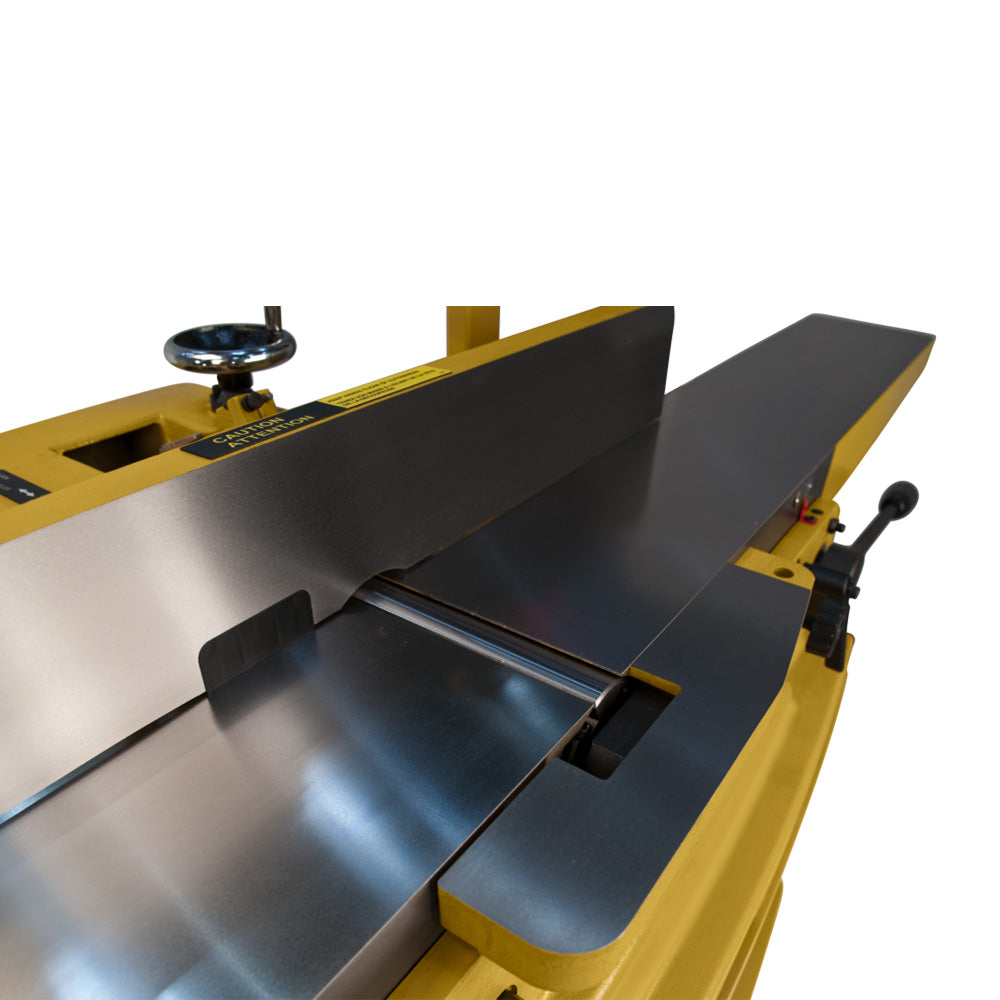

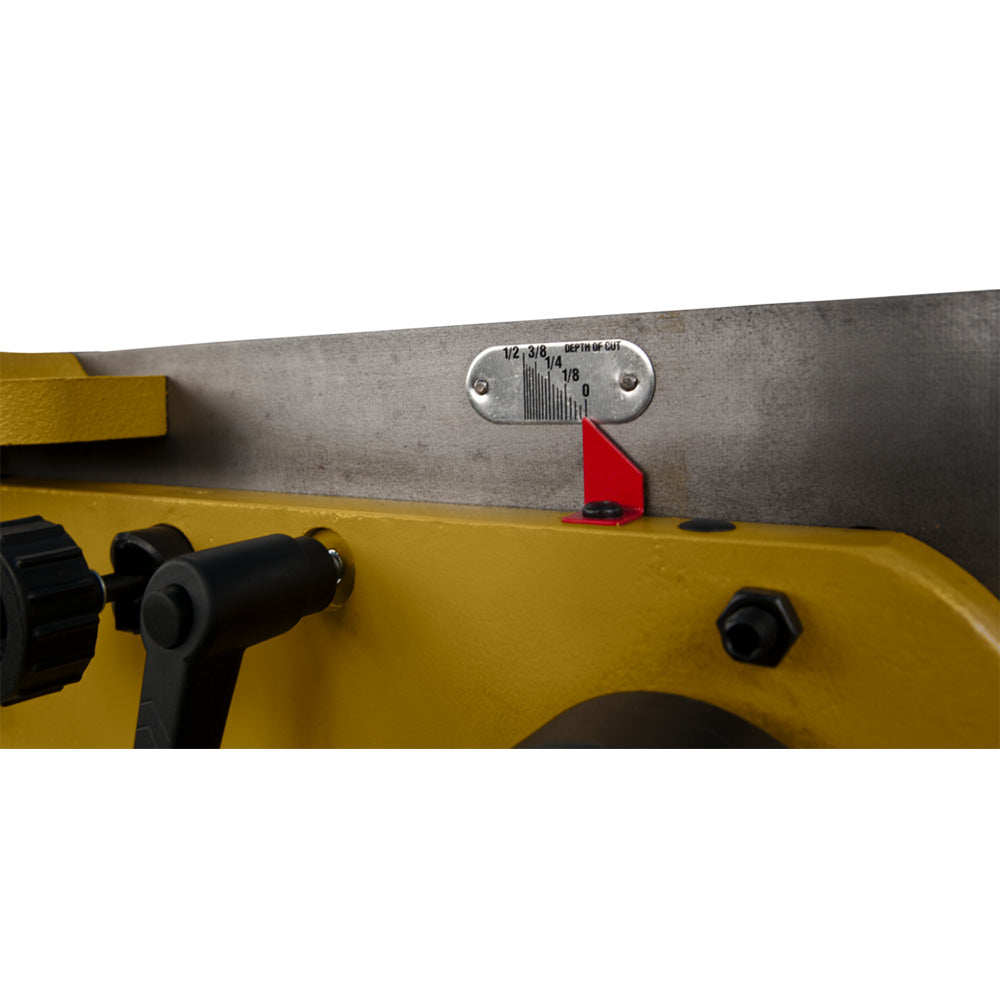

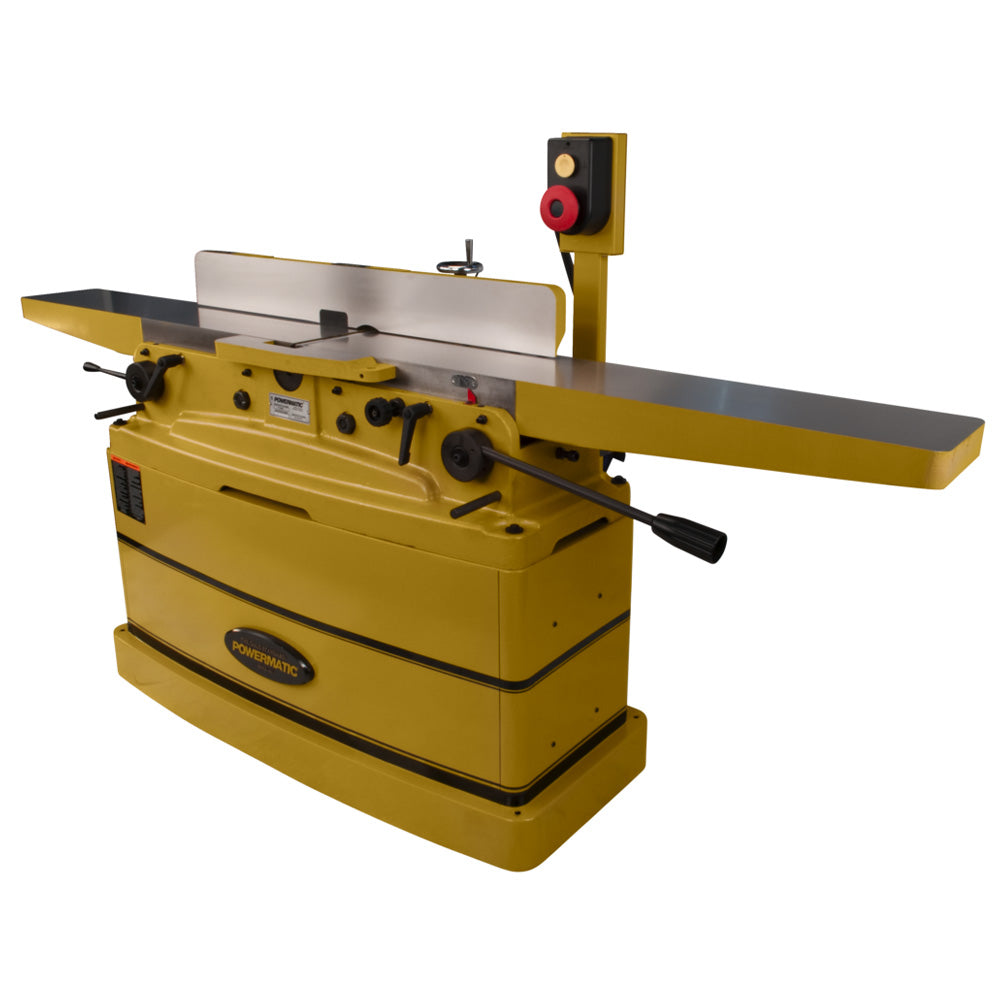

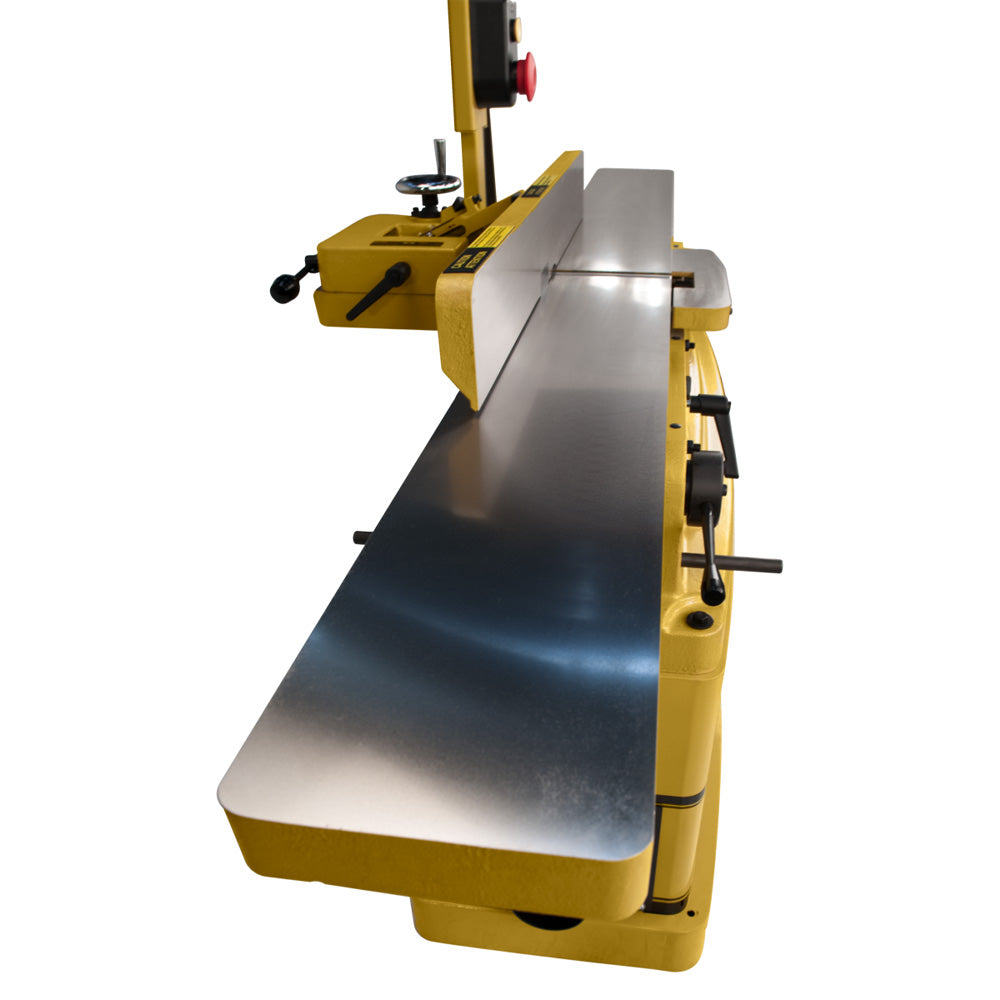

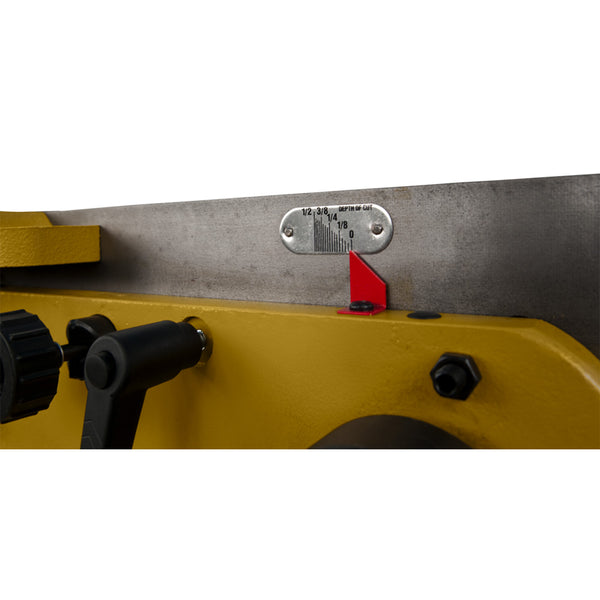

The 8" Parallelogram Jointer offers performance and value in a machine loaded with features. Each machine has an extra long 82" bed length for better work support and is equipped with an innovative single handwheel design that tilts the fence in and out with positive stops at +/-45 and 90 degrees. A non-mar insert in the fence contacts the table to avoid scratching the surface during adjustments. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also insures the table remains perfectly parallel, even after years of tough duty. The 1/8" depth limiter control knob gives you quick adjustment ability and safety. A quick twist of the knob will disable this feature. This jointer features a Powermatic controlled chip 3-knife cutterhead for a safe, smooth cut every time. Powerful 2HP or 3HP motors are totally enclosed in a heavily constructed steel stand providing plenty of power for the most demanding jobs.
| Number of Knives |
3 |
|
| Standard Knife Size (L x W x T) (In.) |
8 x 11/16 x 1/8 |
| Cuts Per Minute |
21,000 |
| Cutterhead Diameter (In.) |
3-1/16 |
| Cutterhead Speed (RPM) |
7,000 |
| Cutting Capacity (W x D) (In.) |
8 x 1/2 |
| Table Size (L x W) (In.) |
82 x 8 |
| Table Height from Floor (In.) |
31-5/16 |
| Infeed Table Length (In.) |
44 |
| Outfeed Table Length (In.) |
38 |
| Rabbeting Capacity (In.) |
1/2 |
|
| Fence Size (L x H) (In.) |
38-3/16 x 4-3/4 |
| Fence Tilt (Deg.) |
45 Forward, 45 Backward |
| Fence Positive Stops (Deg.) |
45, 90, -45 |
| Dust Collection Minimum CFM Required (CFM) |
600 |
| Dust Port Outside Diameter (In.) |
4 |
| Motor Power (HP) |
2 |
| Motor Phase |
1 |
| Motor Voltage (V.) |
230 only |
|
|
| Motor Current (Amps) |
9 |
| Recommended Circuit Size (Amps.) |
20 |
