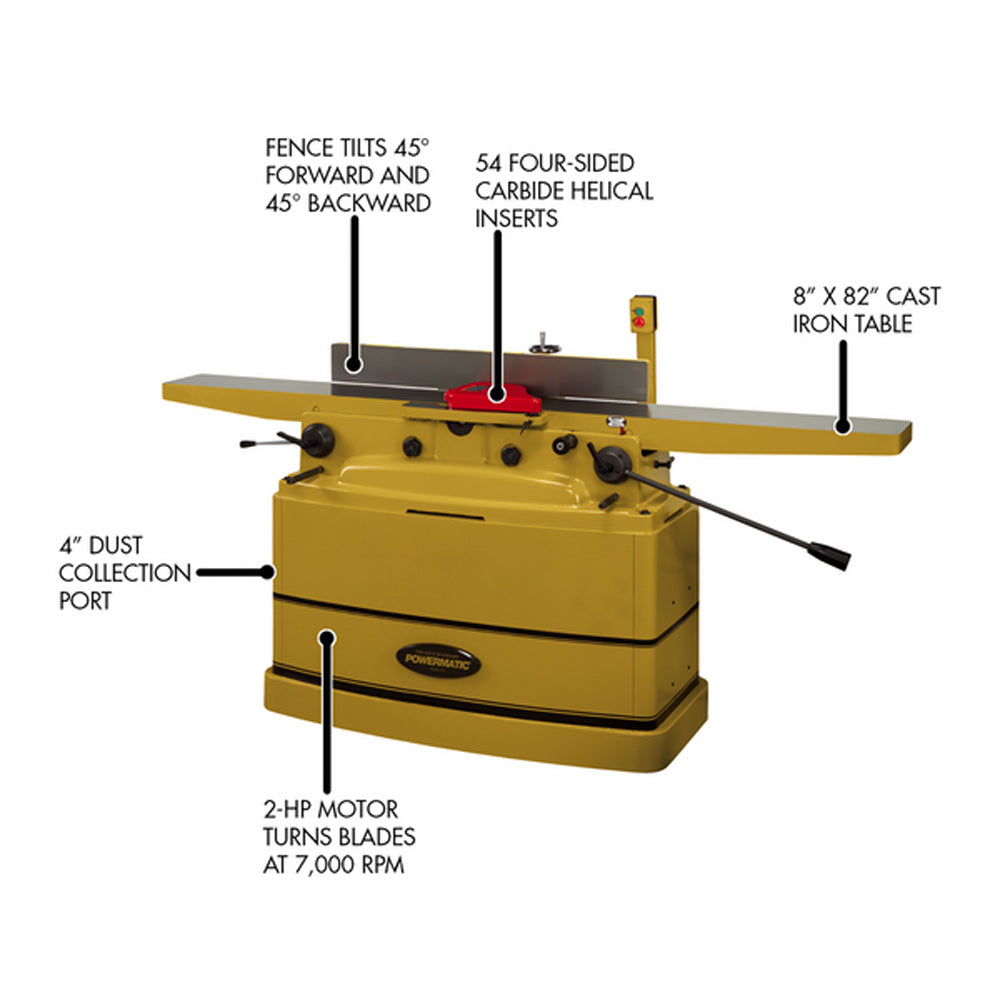

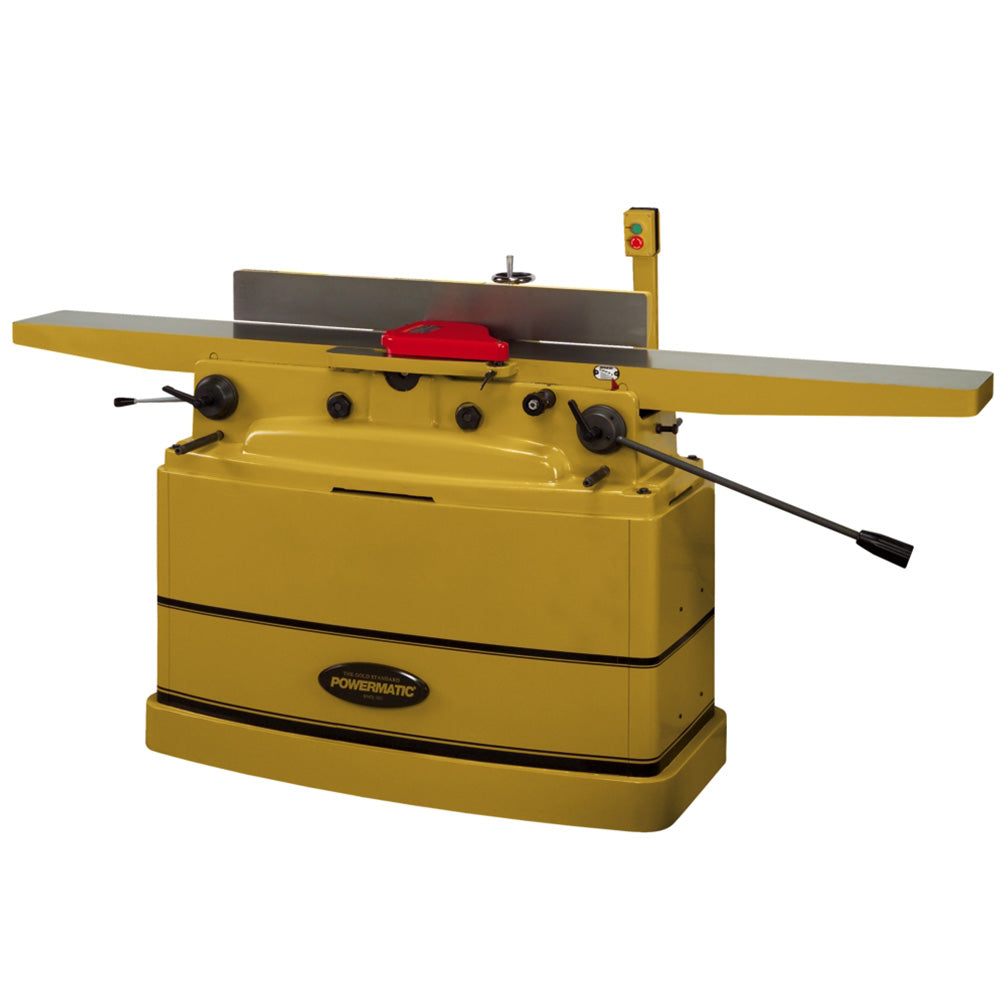

The 8" Parallelogram Jointer offers performance and value in a machine loaded with features. The cutterhead is a helical design with 54 four-sided knife inserts – these produce a superior finish and much quieter operation than conventional cutterheads, and the inserts do not require adjustment once installed. The Jointer has an extra long 82” bed for better work support and is equipped with an innovative single handwheel design that tilts the fence in and out with positive stops at +/-45 and 90 degrees. A non-mar insert in the fence contacts the table to avoid scratching the surface during adjustments. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the table remains perfectly parallel, even after years of heavy use. The 2HP motor is totally enclosed in a heavy steel stand, providing plenty of power and stability for the most demanding jobs.
| Number of Knives |
54 |
| Helical Knife Size (L x W x T) (In.) |
15 x 15 x 2.5 |
|
|
| Cutterhead Diameter (In.) |
3-1/16 |
| Cutterhead Speed (RPM) |
7,000 |
| Cutting Capacity (W x D) (In.) |
8 x 1/2 |
| Table Size (L x W) (In.) |
82 x 8 |
| Table Height from Floor (In.) |
31-5/16 |
| Infeed Table Length (In.) |
44 |
| Outfeed Table Length (In.) |
38 |
| Rabbeting Capacity (In.) |
NA |
|
| Fence Size (L x H) (In.) |
44-3/4 x 38-3/16 |
| Fence Tilt (Deg.) |
45 Forward, 45 Backward |
| Fence Positive Stops (Deg.) |
45, 90, -45 |
| Dust Collection Minimum CFM Required (CFM) |
450 |
| Dust Port Outside Diameter (In.) |
4 |
| Motor Power (HP) |
2 |
| Motor Phase |
1 |
| Motor Voltage (V.) |
230 only |
|
|
| Motor Current (Amps) |
9 |
| Recommended Circuit Size (Amps.) |
20 |
